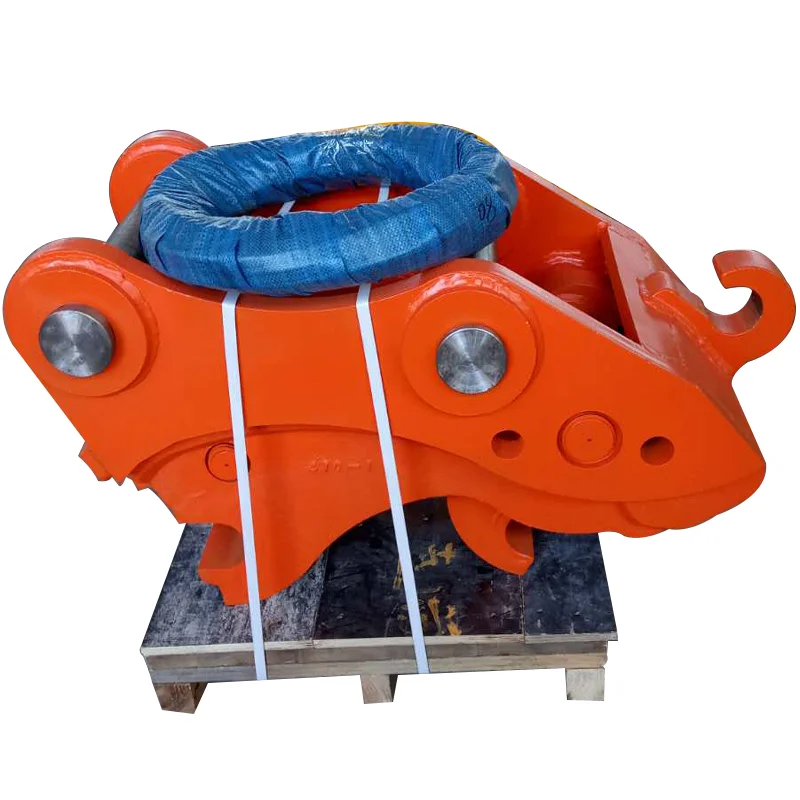

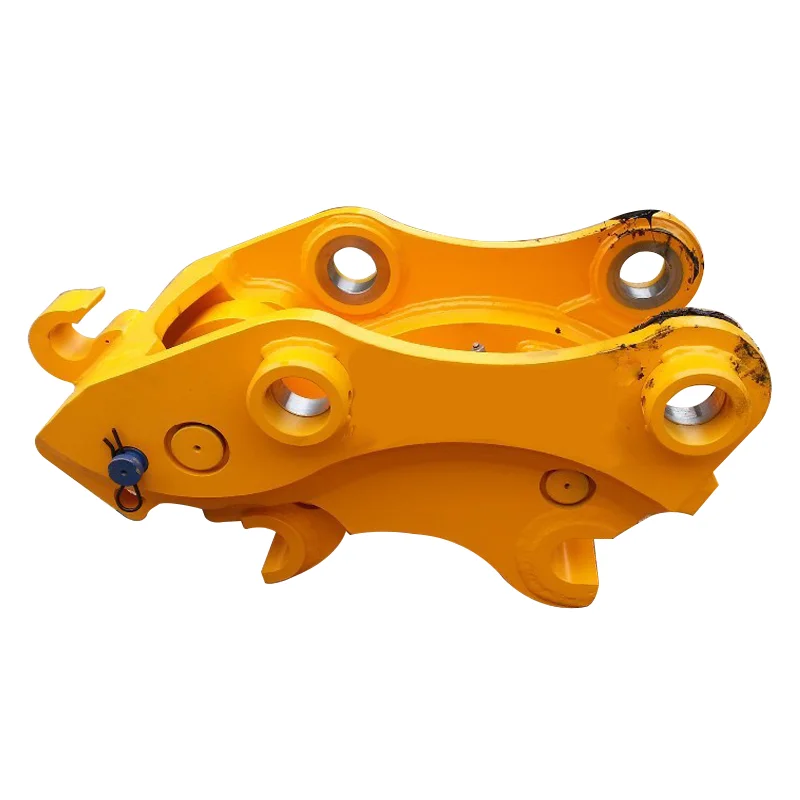

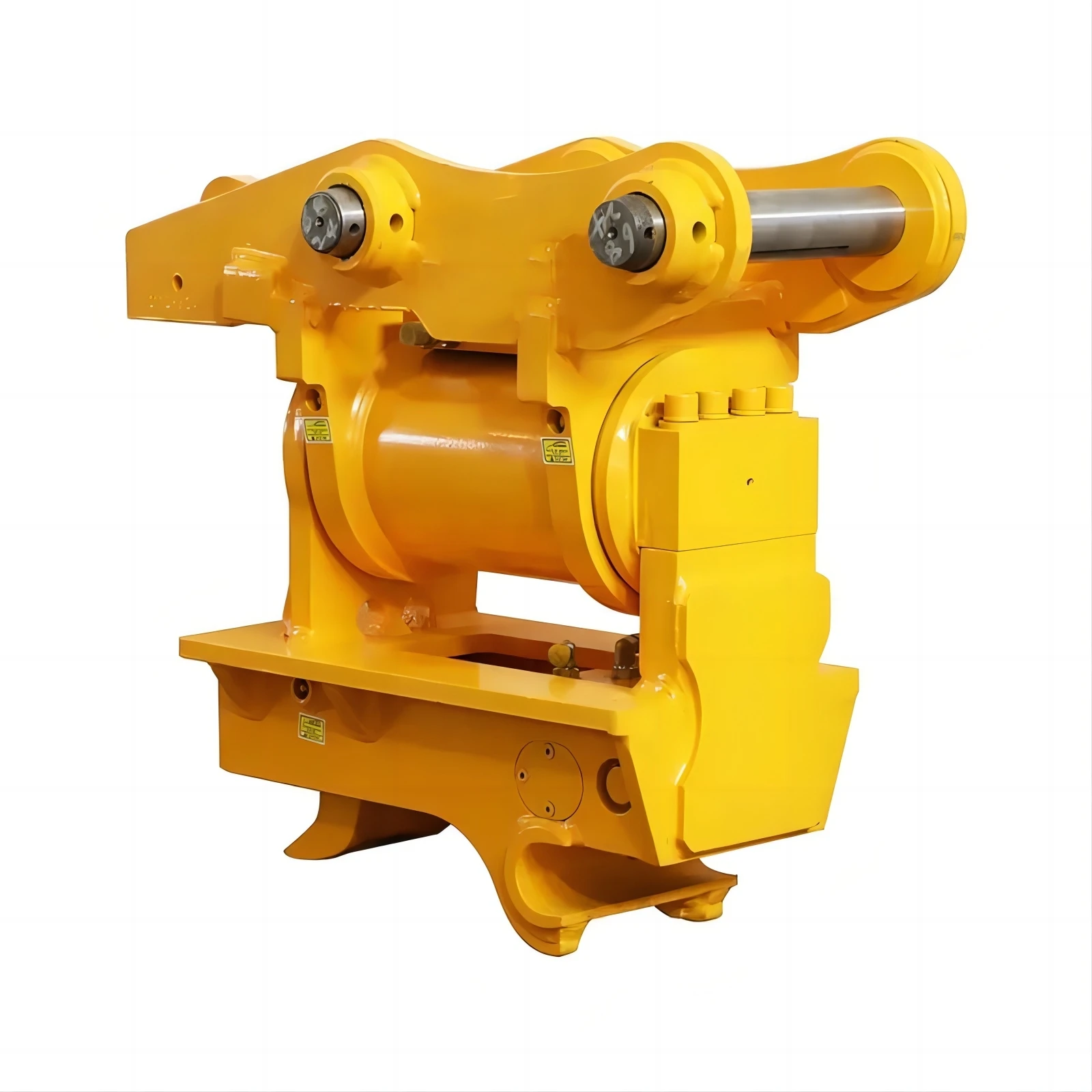

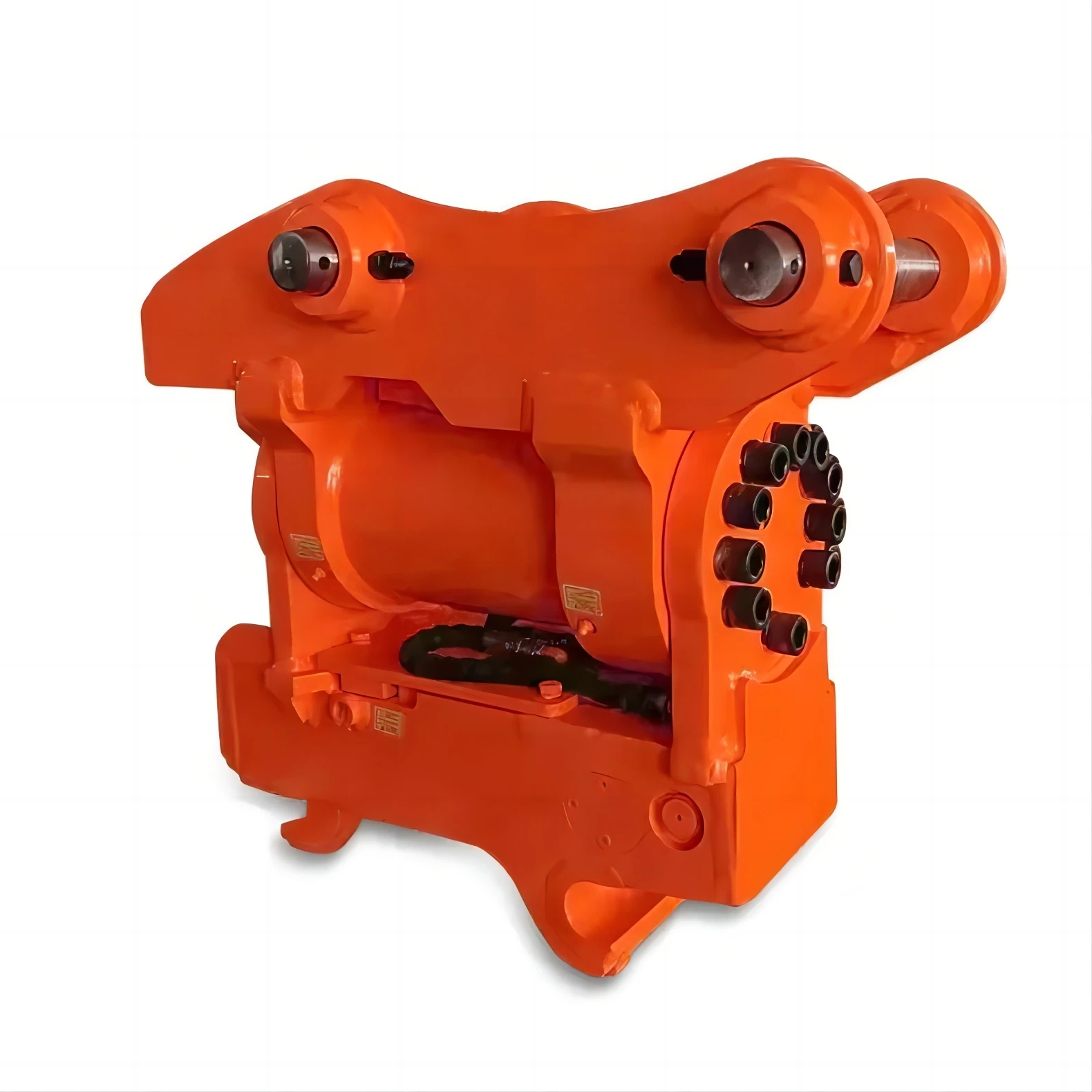

1 30T excavator tilting quick hitch
- Category: Engineering & Construction Machinery >>>
- Supplier: Yantai Zhuoxin Machinery Technology Co. Ltd.
Share on (1600853419232):
Product Overview
Description
Product Display
ZSNMINI | ZSN02 | ZSN04 | ZSN06 | ZSN08 | ZSN10 | ZSN14 | |
Overll Lenght C(mm) | 388 | 534-545 | 600 | 765 | 924-944 | 983-1050 | 1006-1173 |
Overall Height G(mm) | 246 | 307 | 310 | 388 | 492 | 574 | 558-610 |
Overall Width B(mm) | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 |
Foream Open Width A(mm) | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
Pin to Pin Center Distance D | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 |
Retractable Distance of Oil Cylinder E | 170-206 | 205-275 | 340-450 | 340-486 | 256-590 | 413-590 | 520-590 |
Top to Bottom Pin Distance F | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
Pin Diameter | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 | 90-120 |
Weight(kg) | 25-30 | 50-60 | 80-90 | 120-130 | 280-290 | 450-530 | 450-580 |
Working Pressure(kg/m2) | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 |
Required Oil Flow(l/min) | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Suitable Excavator(ton) | 1.5-4 | 4-6 | 5-9 | 9-19 | 17-23 | 23-35 | 33-45 |

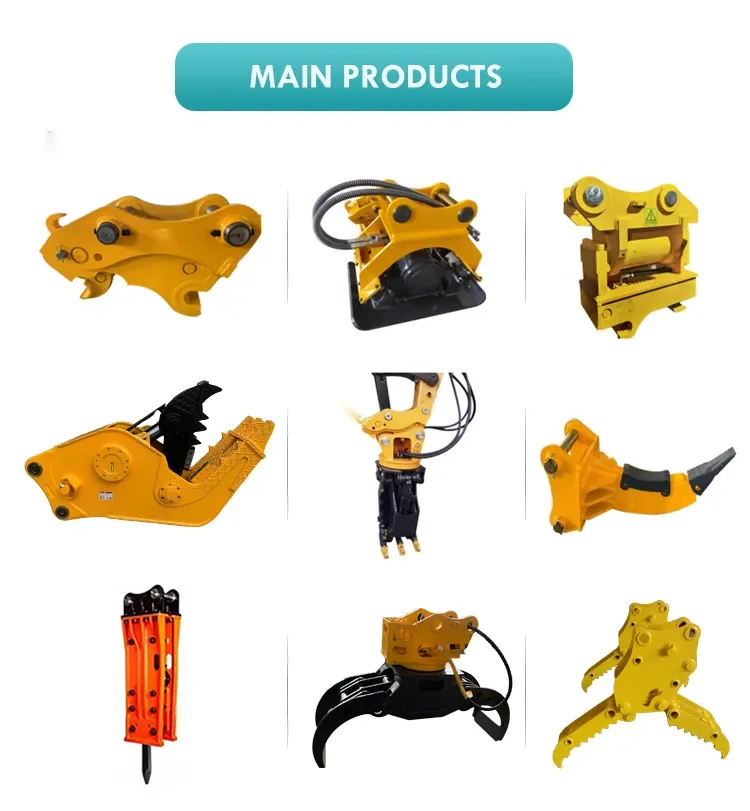

Main Products

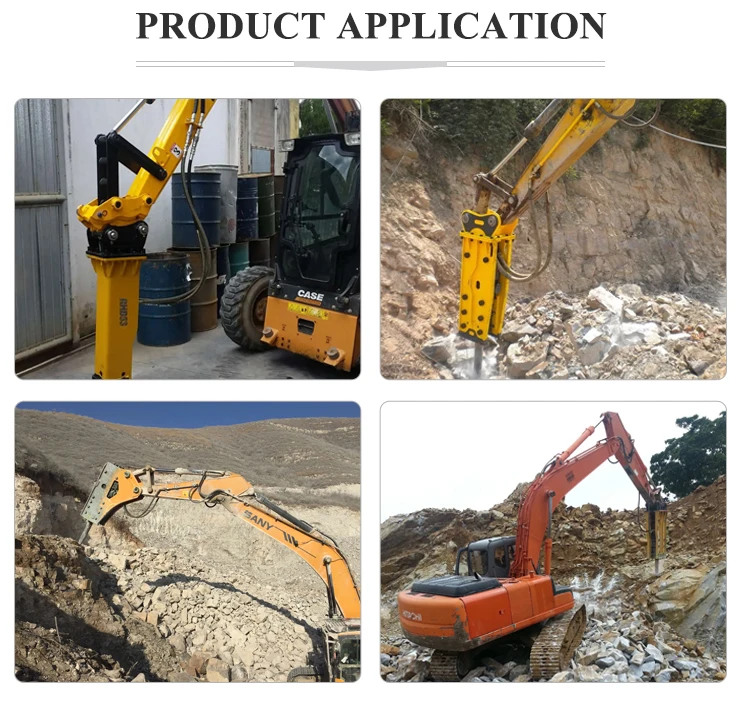

Product Application
