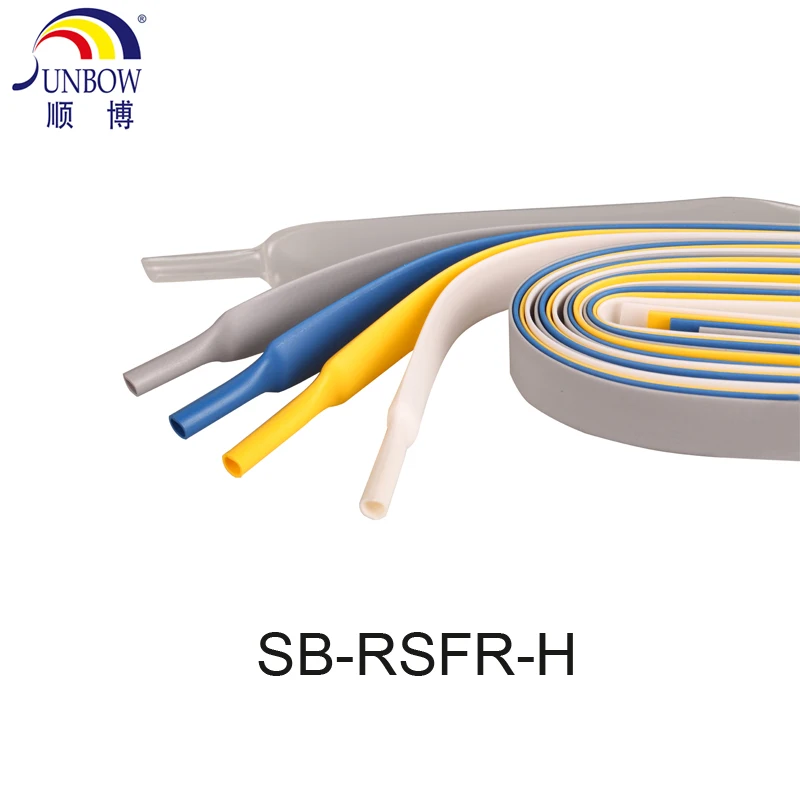

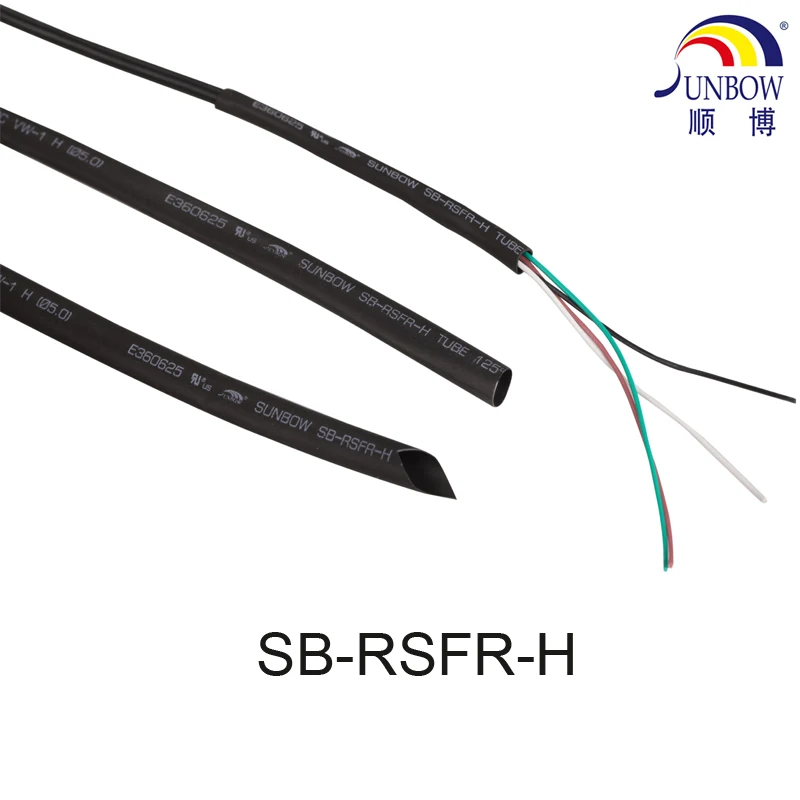

Factory wholesale PE electric wire insulation sleeve flexible halogen free heat shrinkable tubing heat shrink tube
- Category: Insulation Materials & Elements >>>
- Supplier: Shenzhen Sunbow Insulation Materials Mfg. Co. Ltd.
Share on (1600854627690):
Product Overview
Description
Product Description
Factory wholesale PE electric wire insulation sleeve flexible halogen free heat shrinkable tubing heat shrink tube
Model Number: SBD-SWHF
Working temperature: -55ºC ~ 125ºC
Structure
Halogen free flame-retardant heat shrinkable tube is made of eco-friendly cross-linking polyolefin material under
irradiation. It has environment-friendly, flexible, flame retardant, quick shrink and stable performances. Also, it has electrical insulation, welding point anticorrosion and antirust and mechanical performances. It has passed UL, RoHS, Reach certifications for 300V and 600V.
Usage
It is mainly used in electronics, telecommunication, automobiles,
shipping and other manufacturing
shipping and other manufacturing
Property | Unit | Test Method | Standard | ||
Tensile Strength | MPA | ≥10.4(before aging) | ASTM D 2671 | ||
≥7.3(after aging) | 158ºC*168h | ||||
Breakage Elongation (%) | % | ≥200(before aging) | ASTM D 2671 | ||
≥100(after aging) | 158ºC*168h | ||||
Heat Shock | - | no sticking & no cracking | UL 224, 250ºC*4h | ||
Cold Blend | - | no cracking | -30ºC*4h | ||
Breakdown Strength | KV/mm | ≥15 | ASTM D 149 | ||
Dielectric Withstand | 600V | - | UL 224 | no breakdown for 2500V, 60s | |
300V | - | UL 224 | no breakdown for 1500V,60s | ||
Volume Resistivity | Ω. cm | ≥1×1014 | IEC 60093 | ||
Corrosion Performance | - | UL 224 | 158ºC*168h | ||
Copper Stability | - | UL 224 | 158ºC*168h | ||
Flammability | - | UL 224 | VW-1 | ||
Factory wholesale PE electric wire insulation sleeve flexible halogen free heat shrinkable tubing heat shrink tube

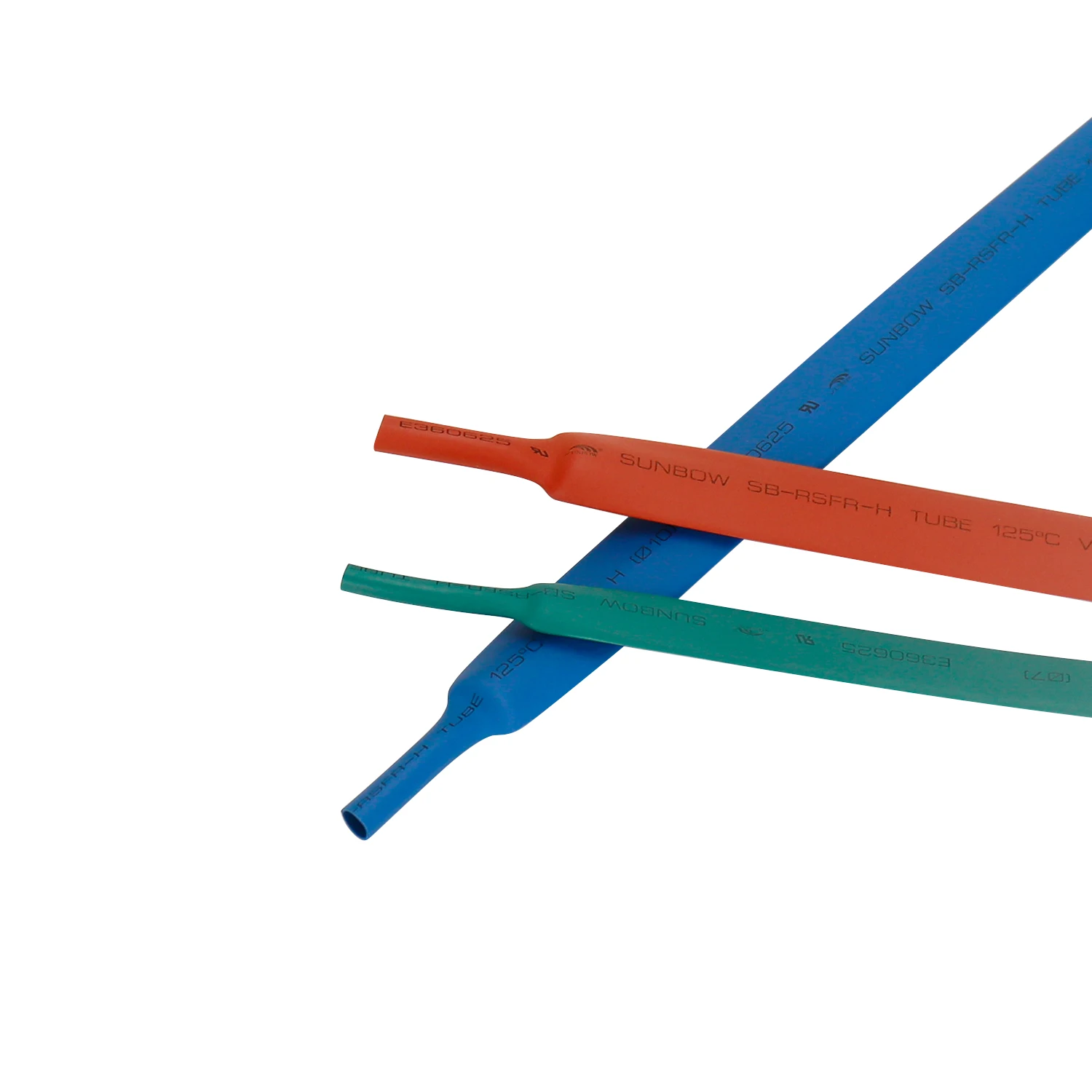

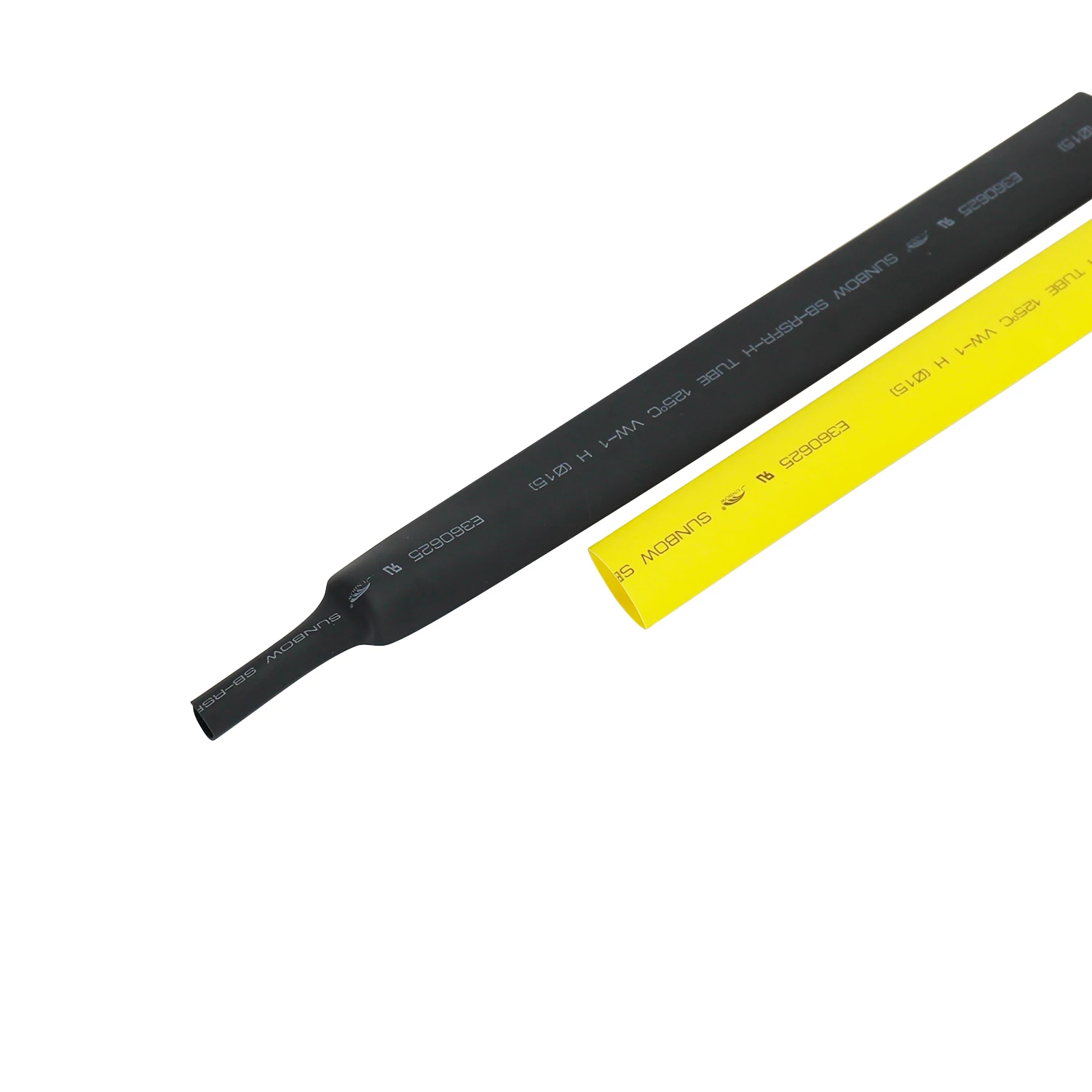

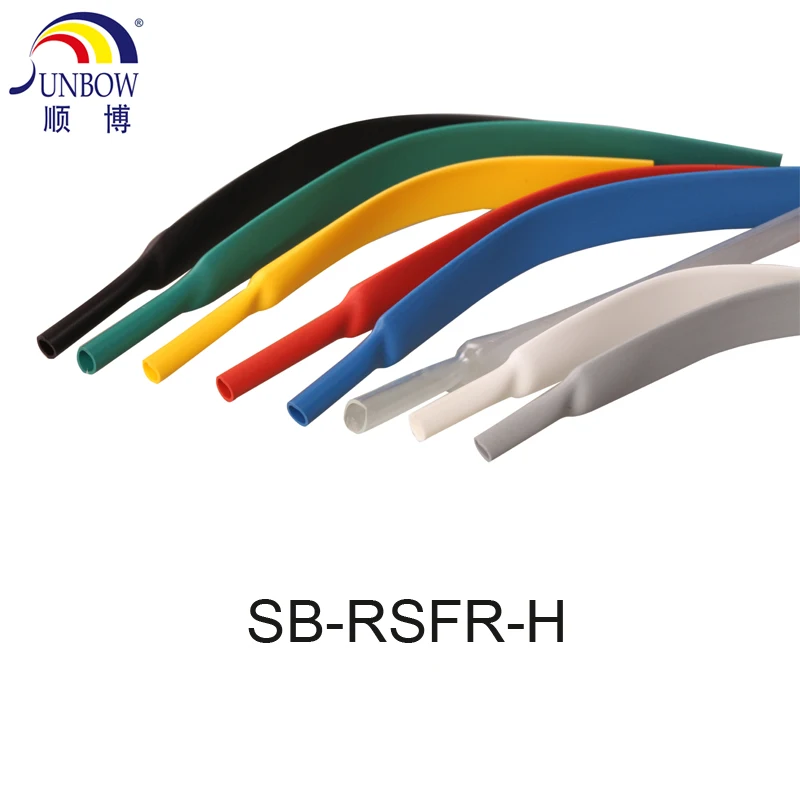

Detailed Images
Characteristics:
2.Shrink ratio: 2:1
3.Shrink temperature: 84ºC ~ 120ºC
1.Halogen free, non-smoke, non-toxic, flame-retardant, soft, quick shrink, stable performance.
2.Shrink ratio: 2:1
3.Shrink temperature: 84ºC ~ 120ºC
Certificate
VW-1 Flame retardant certificate

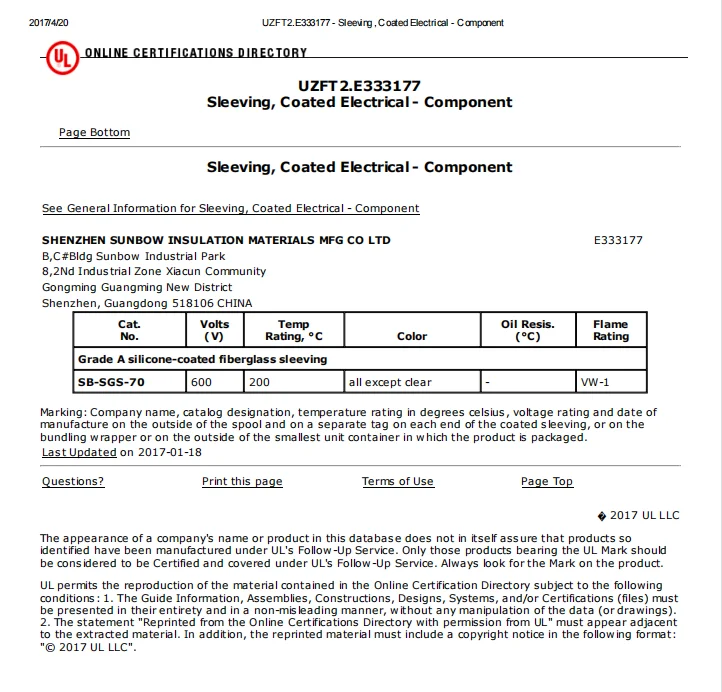

200℃ 600V Certificate
USA UL Certification

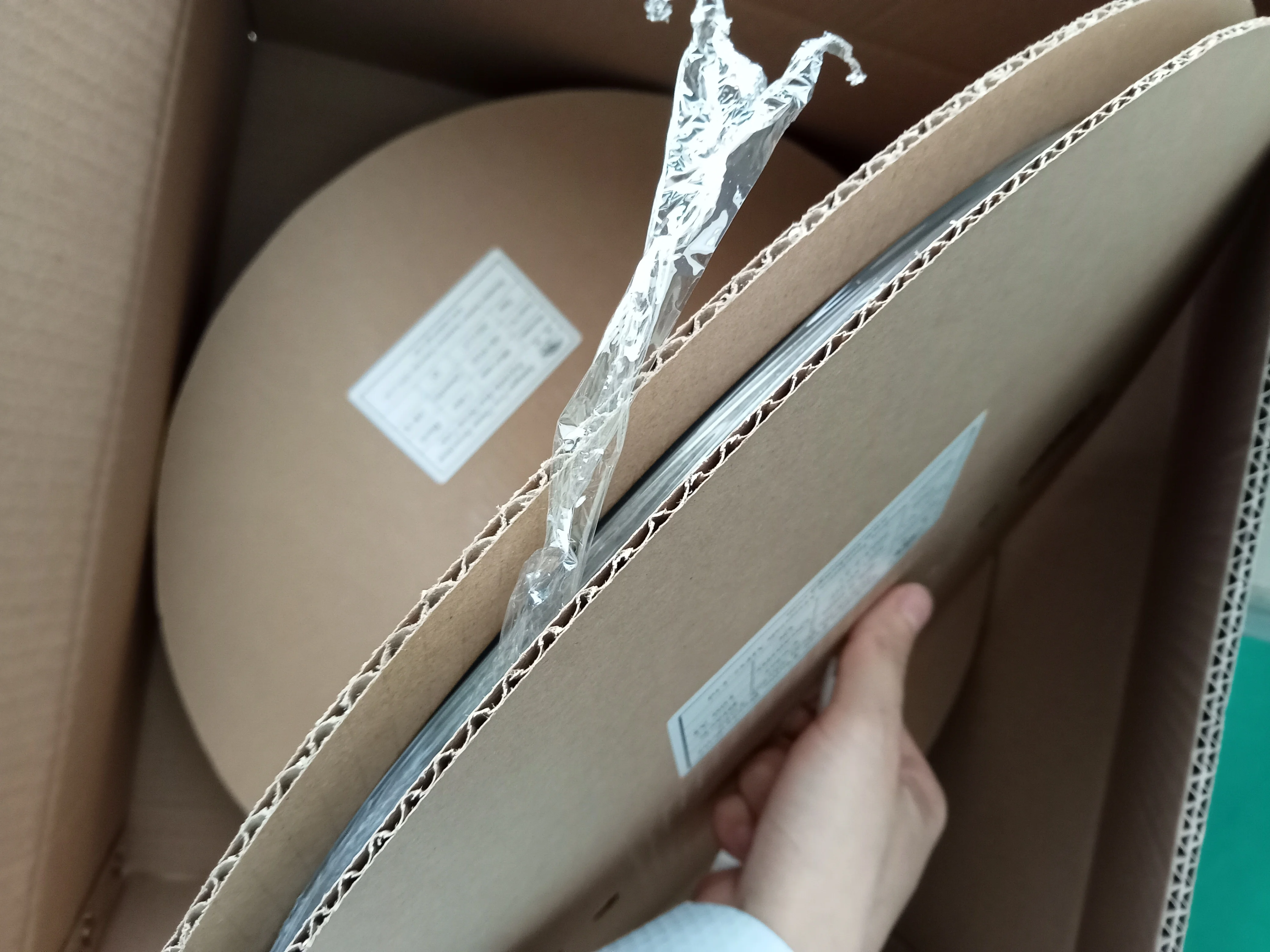

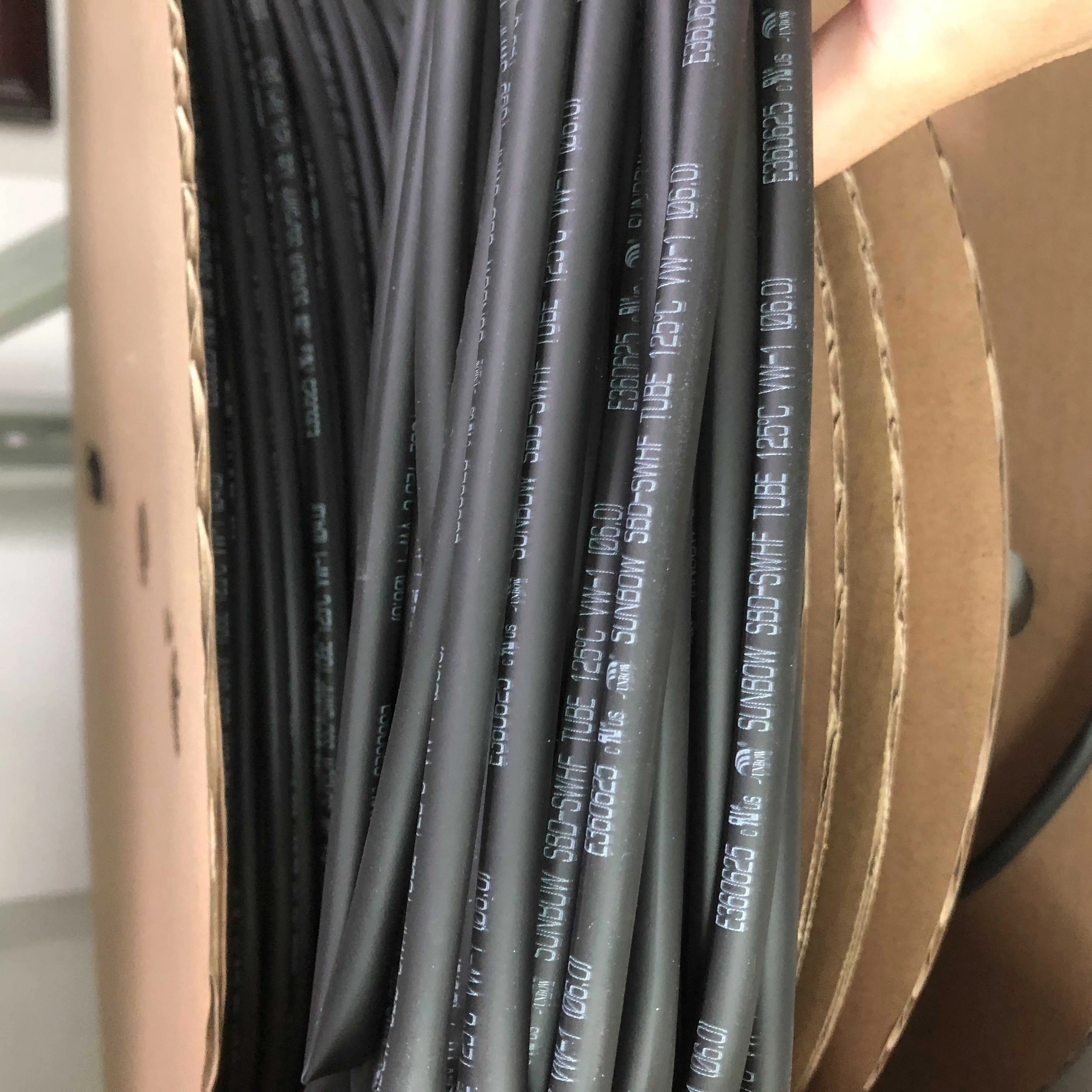

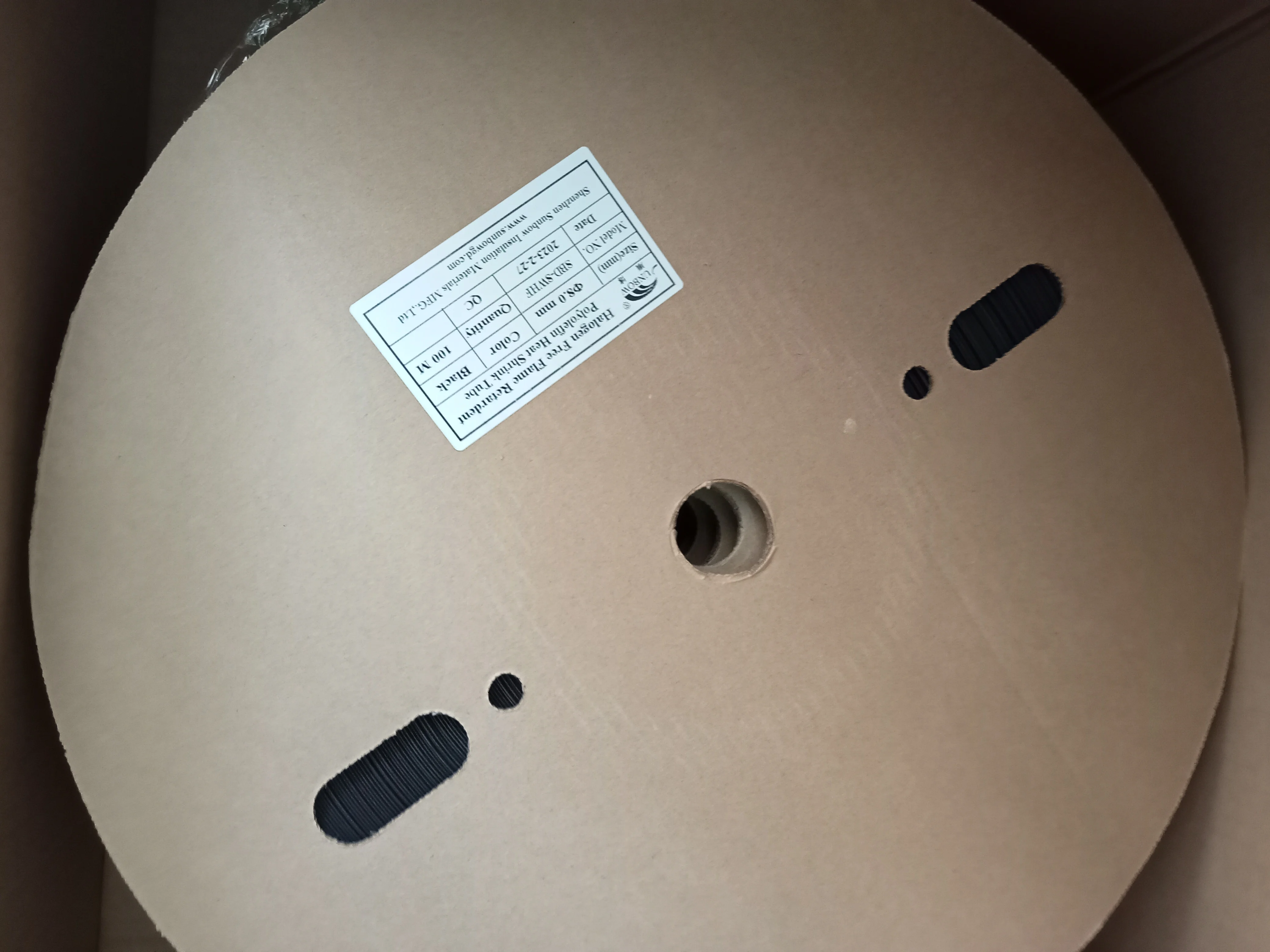

Packing&Shipping
Company Introduction
Shenzhen Sunbow Insulation Materials MFG.Co.,Ltd ,established in 2003,mainly engaged in the research,development,manufacture andsales of various insulation sleeving.
Our company has passed ISO9001:2008 quality management system certification in Sep,2009,also we have passed TS16949 automotive system certification in Apr,2016.Our main products include fiberglass sleeving,silicone rubber tube,PVC tube,heat shrink tube,PTFE/FEP tube and so on.

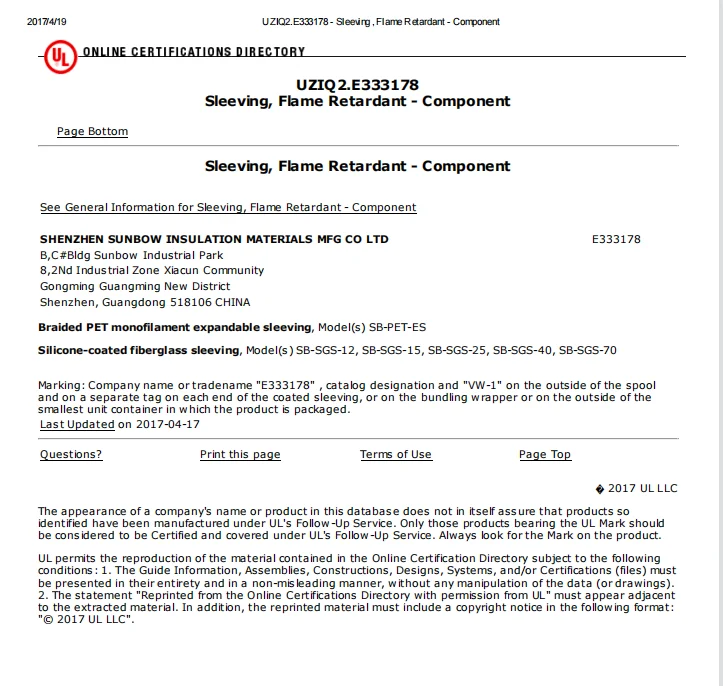

All our fiberglass sleeving had been obtained the certification in 2010(Cert No:E333178--UZIQ2,VW-1for flame resistance
requirement&E333177--UZFT2/8,300V,600V for thermal resistance Requirement);Our heat shrink tube,silicone rubber tube,PTFE tube andPVC soft tube had been obtained certification in 2013(Cert.No.360625);PET Expandable sleeving had been obtained the certification in 2017(Cert. No.UZIQ2:E333178).
Also all our products are in conformance with the European RoHS&REACH requirements. www.sunbowgd.com
Our company has passed ISO9001:2008 quality management system certification in Sep,2009,also we have passed TS16949 automotive system certification in Apr,2016.Our main products include fiberglass sleeving,silicone rubber tube,PVC tube,heat shrink tube,PTFE/FEP tube and so on.
All our fiberglass sleeving had been obtained the certification in 2010(Cert No:E333178--UZIQ2,VW-1for flame resistance
requirement&E333177--UZFT2/8,300V,600V for thermal resistance Requirement);Our heat shrink tube,silicone rubber tube,PTFE tube andPVC soft tube had been obtained certification in 2013(Cert.No.360625);PET Expandable sleeving had been obtained the certification in 2017(Cert. No.UZIQ2:E333178).
Also all our products are in conformance with the European RoHS&REACH requirements. www.sunbowgd.com
Factory wholesale PE electric wire insulation sleeve flexible halogen free heat shrinkable tubing heat shrink tube
Our Services & Strength
1).Free samples for evaluation2).Quick production&fast delivery
3).2 years quality guarantee 4).Prompt response&technical support
5).24 hours online service
FAQ
Q1. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU.
We are based in Guangdong, China, start from 2008,sell to Domestic Market(59.00%),Eastern Asia(8.00%),Northern
Europe(7.00%),Southeast Asia(4.00%),Western Europe(3.00%),South America(3.00%),Eastern Europe(3.00%),Southern Europe(3.00%),North America(2.00%),South Asia(2.00%),Mid East(2.00%),Oceania(2.00%),Central America(2.00%). There are total about 51-100 people in ouroffice.
Q2. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
We are based in Guangdong, China, start from 2008,sell to Domestic Market(59.00%),Eastern Asia(8.00%),Northern
Europe(7.00%),Southeast Asia(4.00%),Western Europe(3.00%),South America(3.00%),Eastern Europe(3.00%),Southern Europe(3.00%),North America(2.00%),South Asia(2.00%),Mid East(2.00%),Oceania(2.00%),Central America(2.00%). There are total about 51-100 people in ouroffice.
Q2. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
