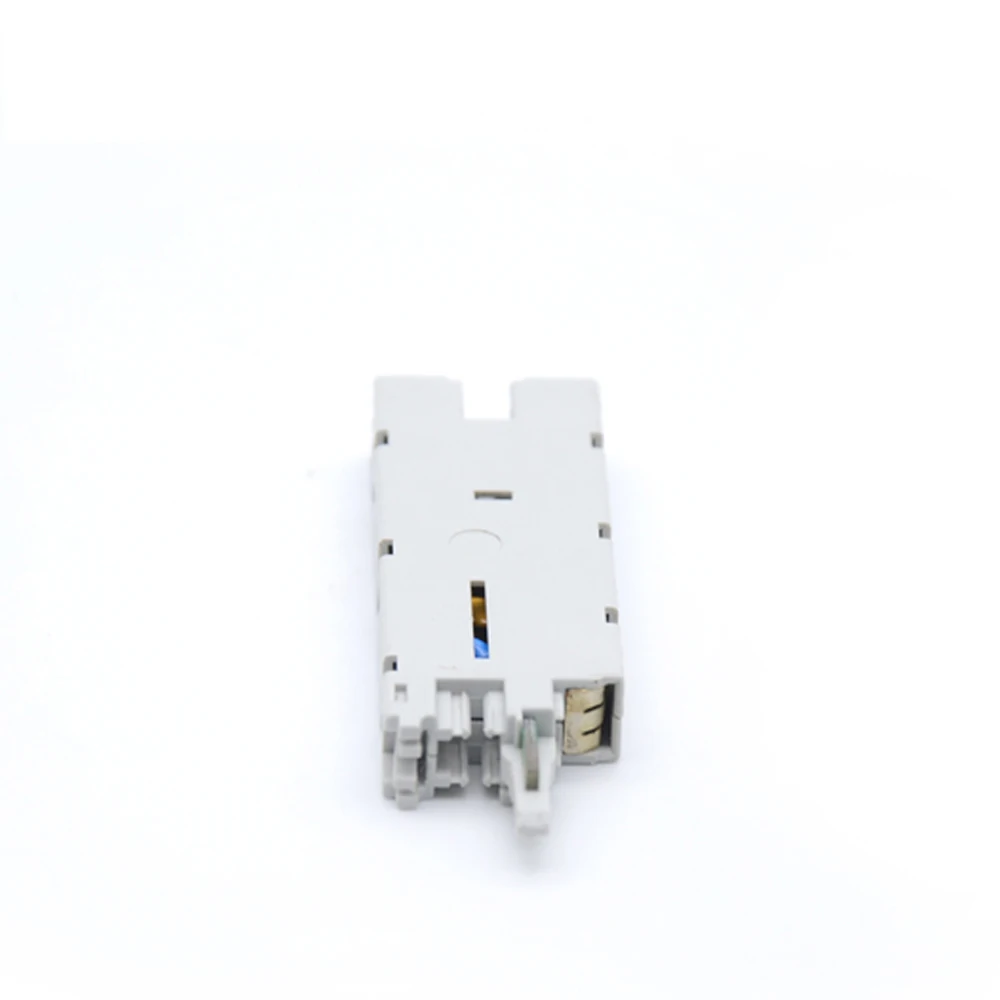

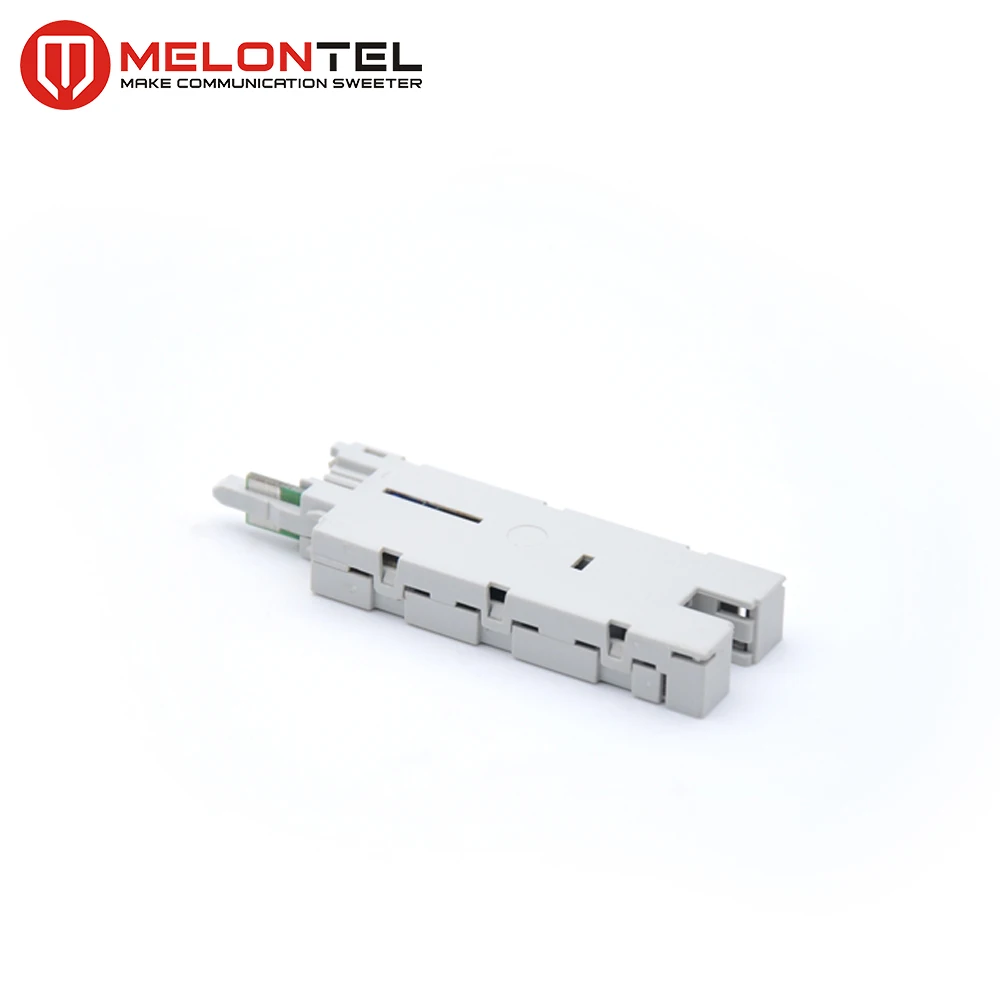

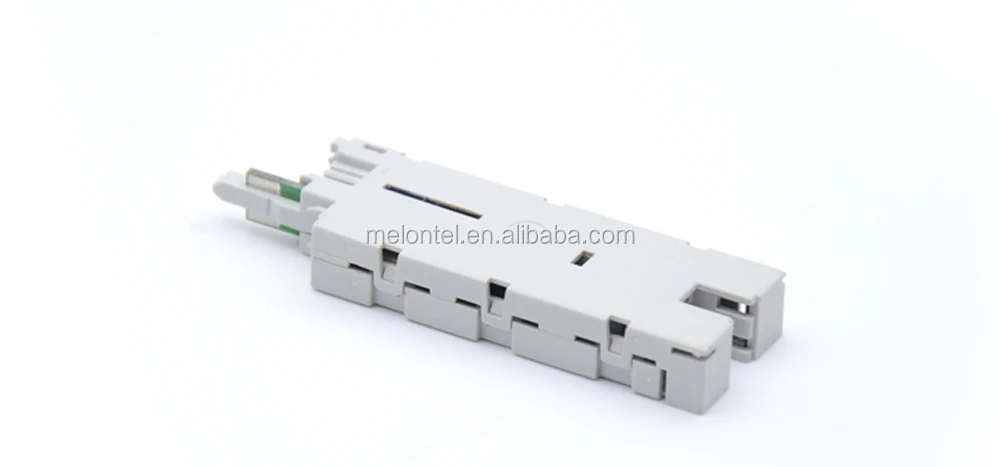

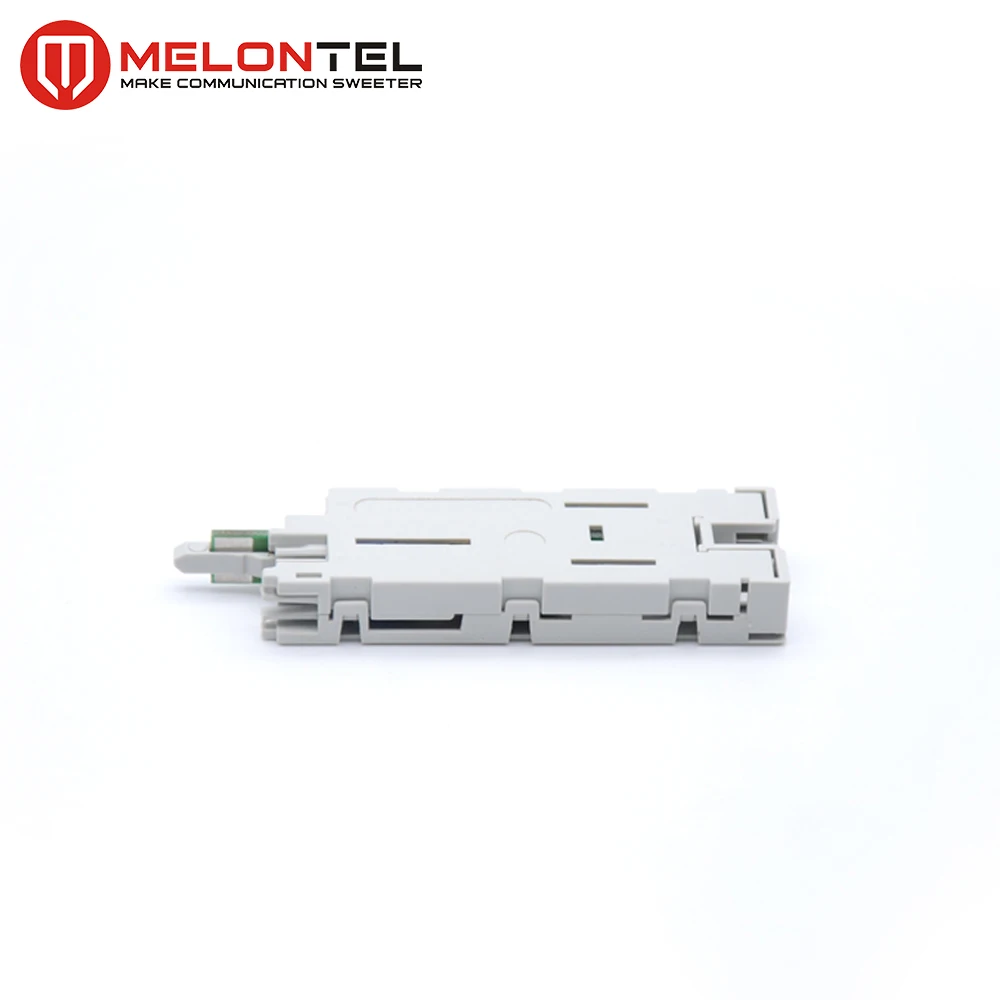

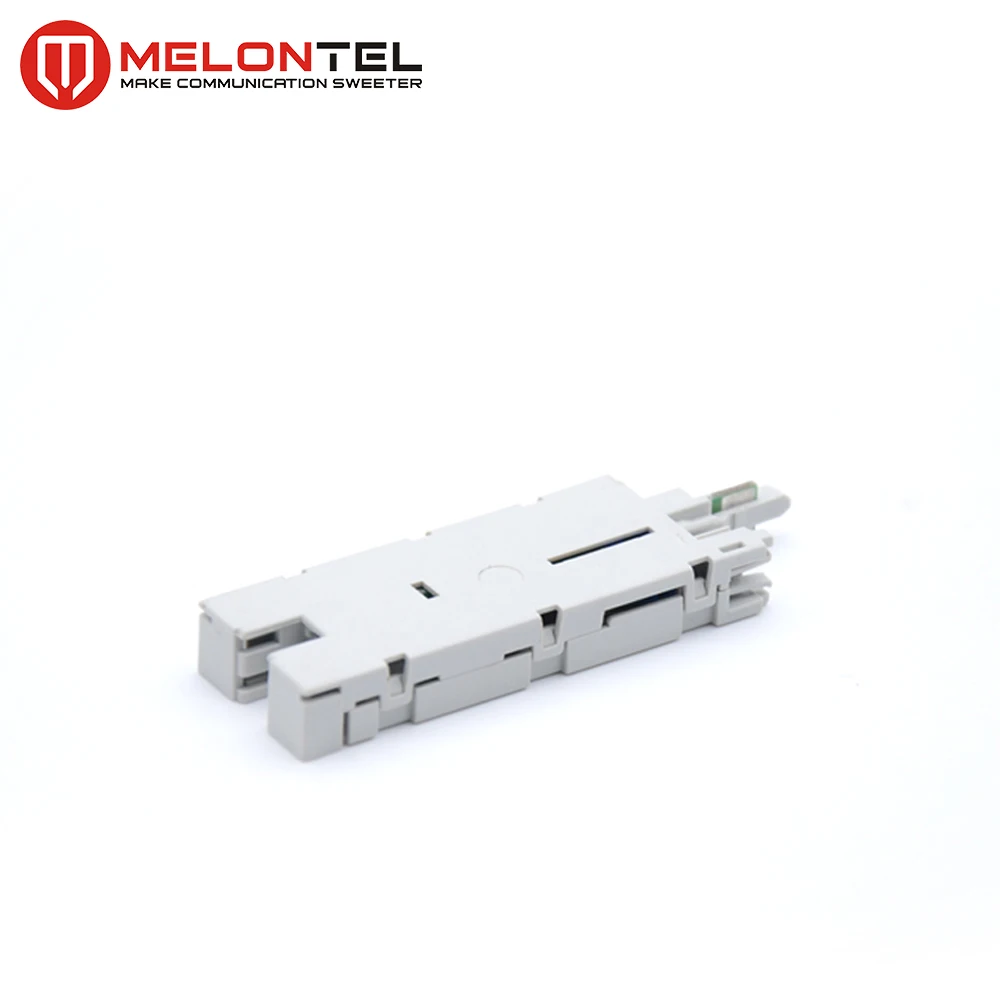

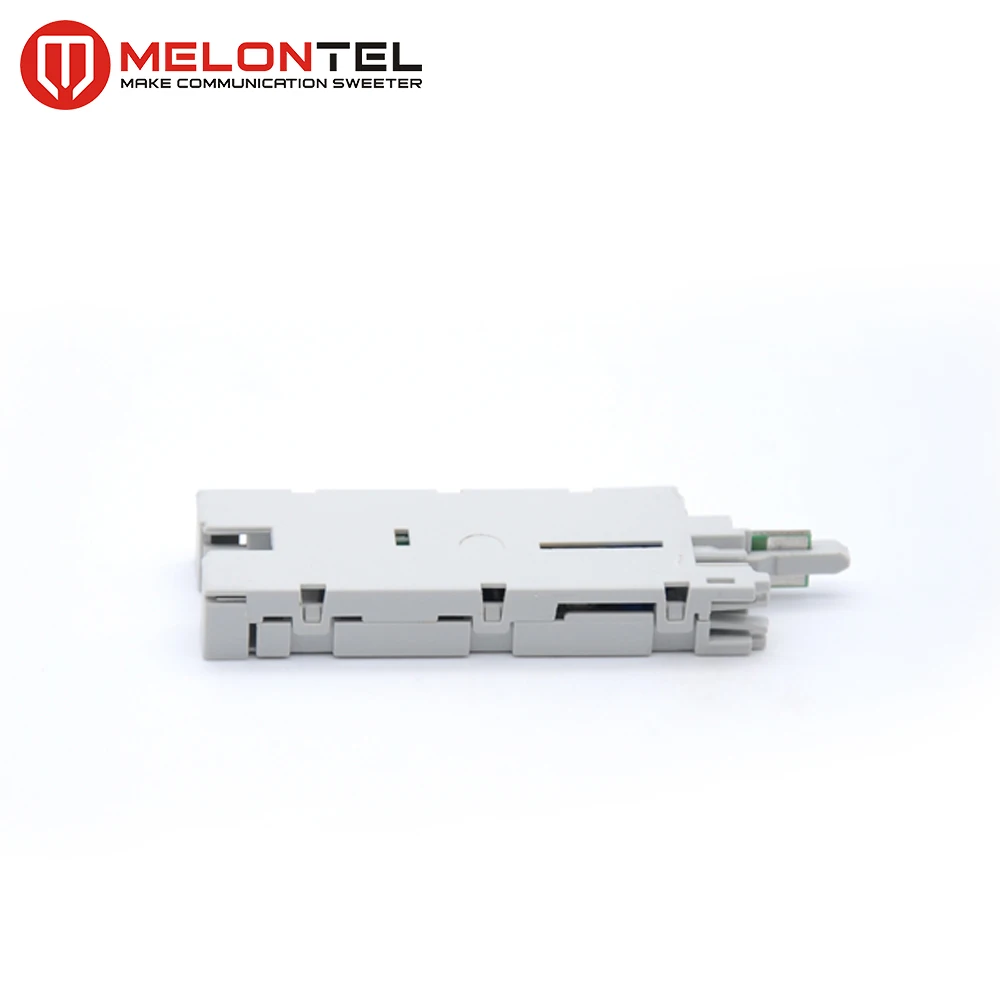

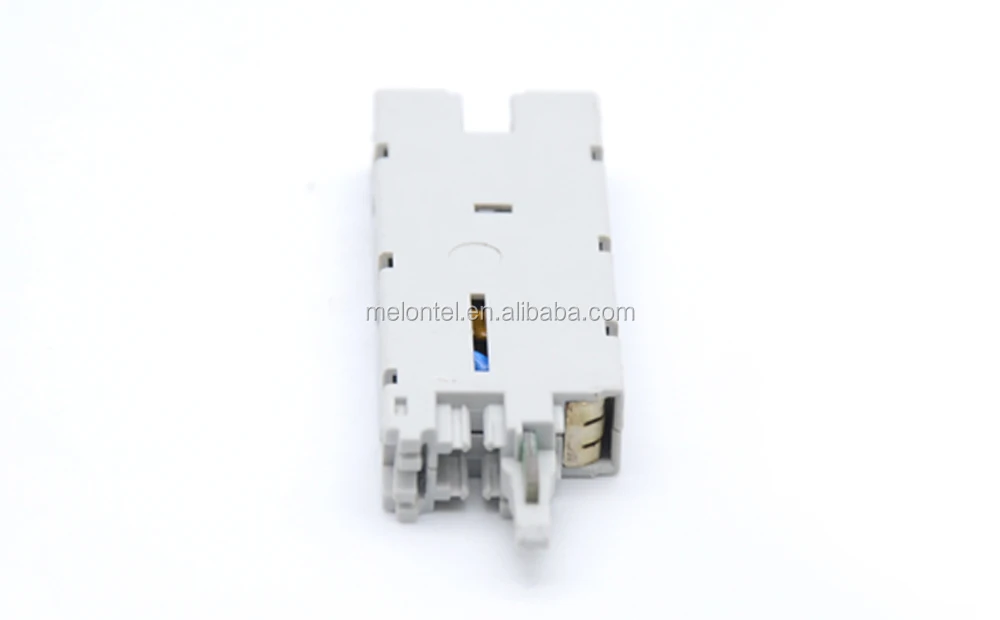

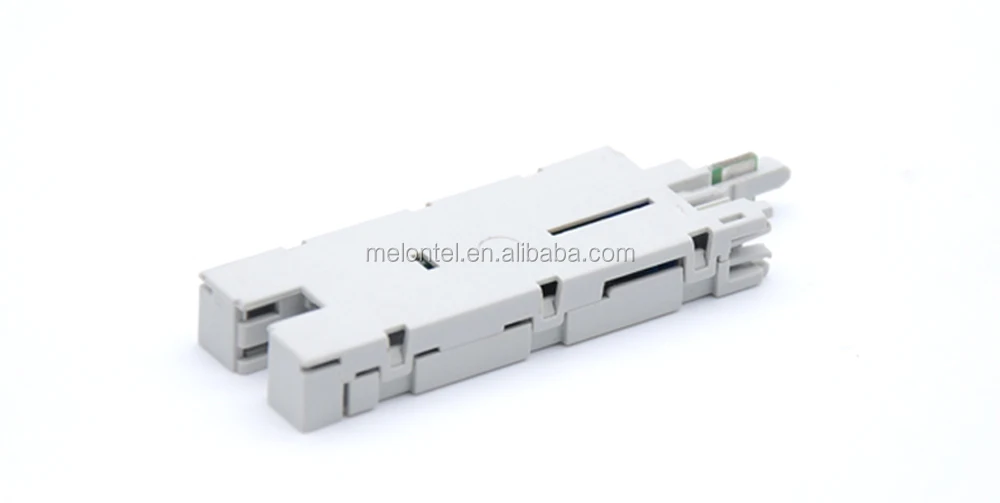

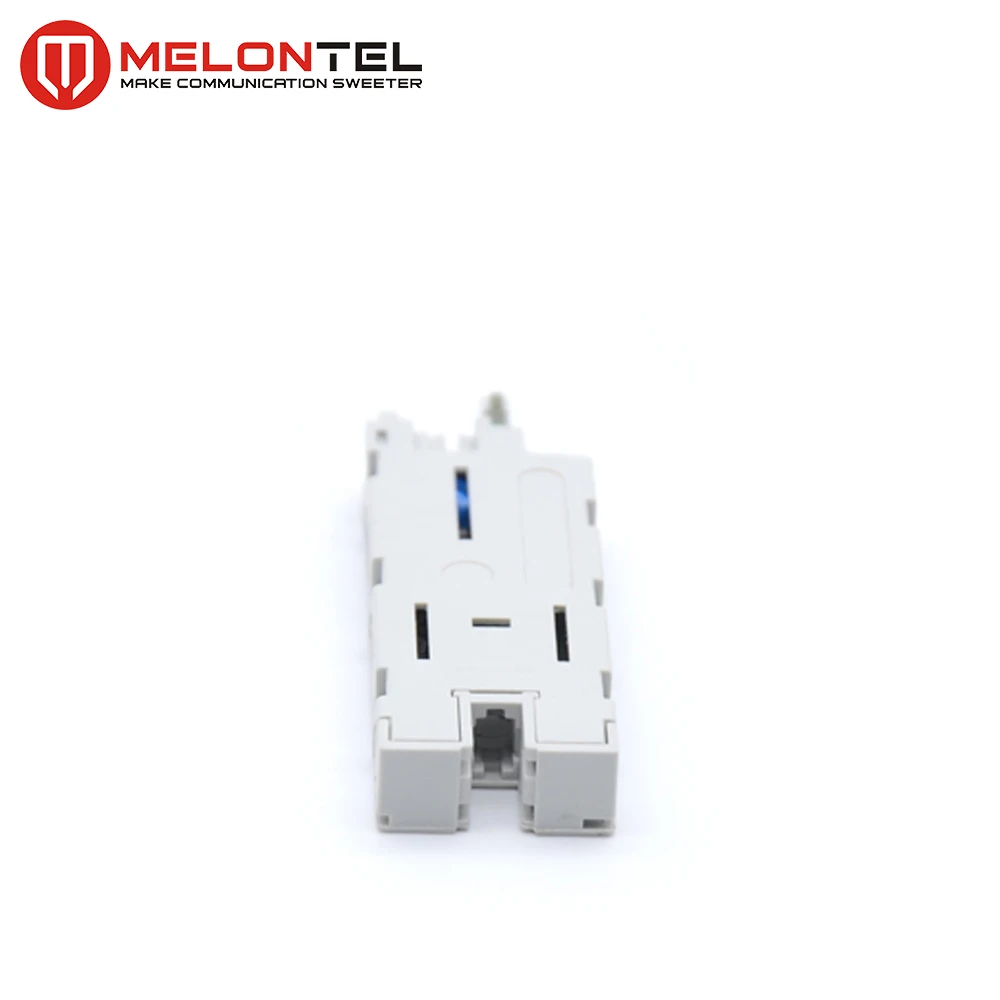

MT 2104 5 point protector multistage IPM type integrated protection lightning protector unit for Krone module

Product Overview

Description









































Quick Details:
1. Name: 1 pair Protector for Krone module
2. Mode No.: YH-5909 1 063-40
3. Material: ABS body (UL94V-0).
4. Contact: Phosphor Bronze
5. Silver Plating: 0.5 um1.25 um5 um
6. Weight: 3.7g/pcs
6. Application: Can be installed on krone type terminal block, with GDT&PTC protector
7. 100% test passed, arrester voltage usually for 230V (or as your wish).
8. Package: 100pcs/Foam box (20x12x9cm), 24 box/carton (52x42x31cm)
9. GW/NW: 12.5/11KG
10. Certificate: ISO9001, Can pass RoHS test



Specifications:
1. Direct current break over voltage: 180-260V
2. Resistance to alternating current: 5A / 10A
3. Pulse break over voltage: <=800V
4. Resistance to pulse current: 5KA / 10KA
5. Zero power resistor: <=22 Ohm
6. Insulation resistor: >1x108M Ohm
7. Absolute error: <=2 Ohm
8. Re-flow operation characteristics: 110mA (60V DC))
9.Lasting time: 60s
10.Over-current operation characteristics:
1) Initial current: 0.35A - 3A
2) Decreased to 0.15A: <=20 / 15 / 5 / 1.5 / 0.5 / 0.2s



Main technical indexes:
Material: reed using tin bronze, and the outer layer of silver-plated,
Approve National Standards: YD/T694-2004 Main Distribution Frame
Insulation Features: ≥ 2000Mohm
Contact resistance: ≤7mohm
Resistance to voltage: ≥1000V/1min without breakdown or arcover-current.
Work circumstance:
Temperature: 0 ~ 40degree
Relative Humidity: 85% (+30degree)
Atmospheric pressure: 70 ~ 106KPa
