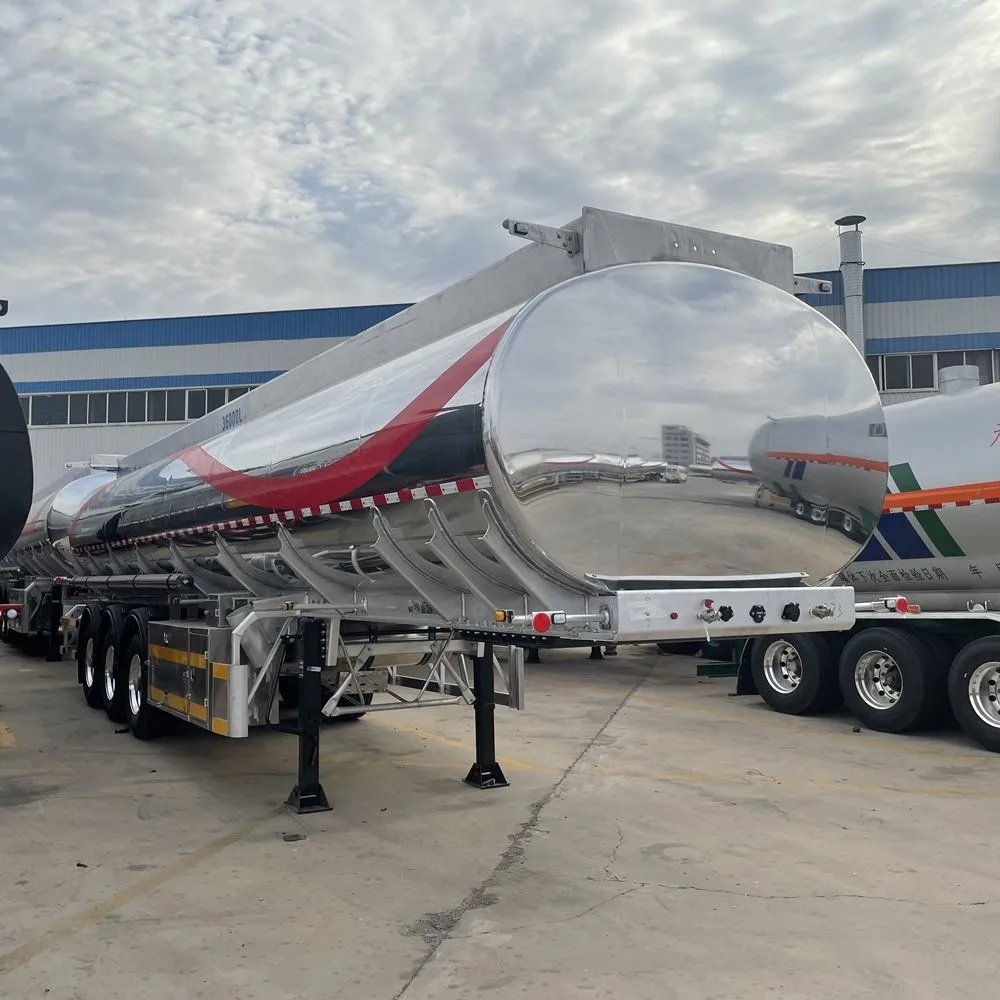

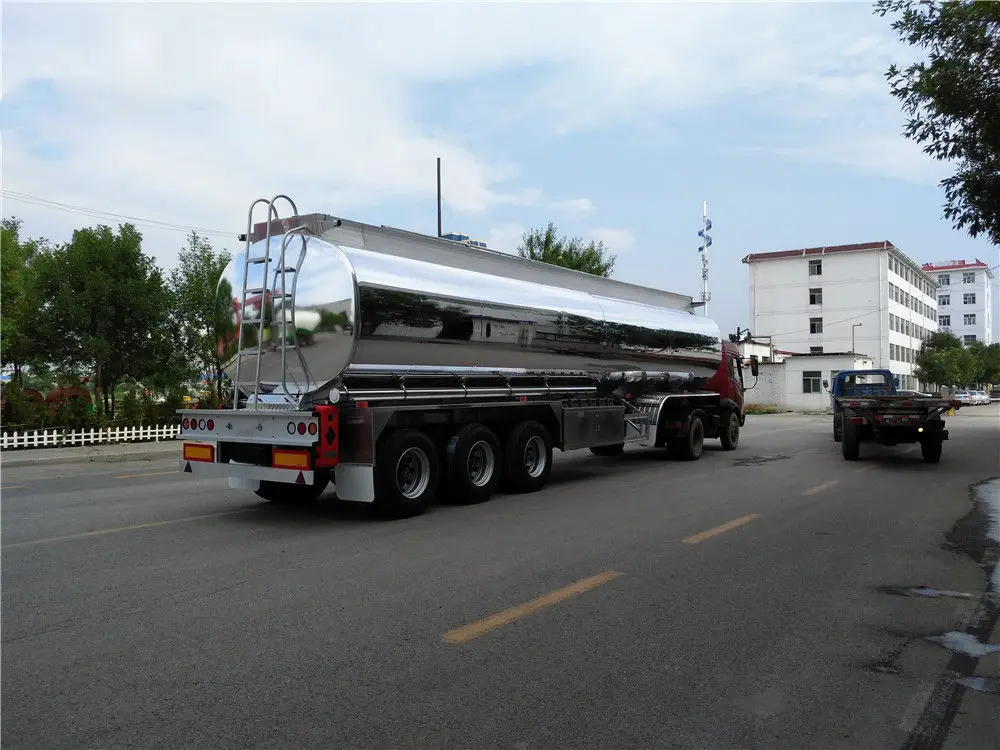

Hot Selling 3 Axles and 4 Axles 35000 60000 Liters Aluminum Alloy Oil Fuel Tanker Semi Trailer for liquid transport
- Category: >>>
- Supplier: Zhengzhou Dongfeng Mid-South Enterprise Co. Ltd.
Share on (1600855847696):
Product Overview
Description
Products Description
Aluminium Alloy Oil Tanker Semi Trailer
Product Fatures:
1) High loading capacity
2) Alxes with famous brand such as : FUWA ,BPW ect.
3) High -tensile steel tanker body
4) The tanker can be printed logo as per request
5) Tanker Volume: 40000L- 55000L
Product Paramenters
Dimension(mm) | 11000x2500x3800mm |
Tare weight | 9000kg |
Volume | Approx 40000Liters |
Tank body | Thickness 5mm Q345 Carbon steel |
Front/Rear end plate | Thickness 6mm Q345 Carbon steel |
Swash plate | Thickness 5mm Q345 Carbon steel |
Compartment | 4units |
Manhole cover | Diameter：500mm;Material :Q345;Number :4pcs |
Discharging valve | Diameter :API 4 inch; Material :standard ;Number :4pcs |
Wave-proof plate thickness | 6mm |
Bottom safety valve | 4sets Pneumatic Bottom Valve |
Discharging pipe | 4 inch ;Rubber hose,2pcs |
Cat walk | Standard |
Axle | Zhengyang Brand 13T*3axles |
Suspension | Mechanical suspension |
Leaf spring | Leaf spring 10pcs*90*13mm* |
Tyre | 12R22.5 Triangle Tyre *12pcs |
Wheel rim | 9.0-22.5 steel wheel rim *12pcs |
Kingpin | 3.5’’bolt-in king pin China famous brand |
Landing gear | 28T Two-speed, manual operating ,heavy duty landing gear |
Braking system | WABCO RE6 Relay Emergency Valve.T30/30 spring brake chamber.40L air tanks |
ABS | Without |
Electrical | Voltage 24V, Receptacle 7 ways (7 wire harness), Side marker lamp LED type |
Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint. Wax spray |
Accessories | One tool box, Two spare tire carrier ,One crank, One shaft head wrench.LED 8 side lights and 2 rear lights 2 width lamp |
Price | 出厂价￥119000 Refer to the picture |

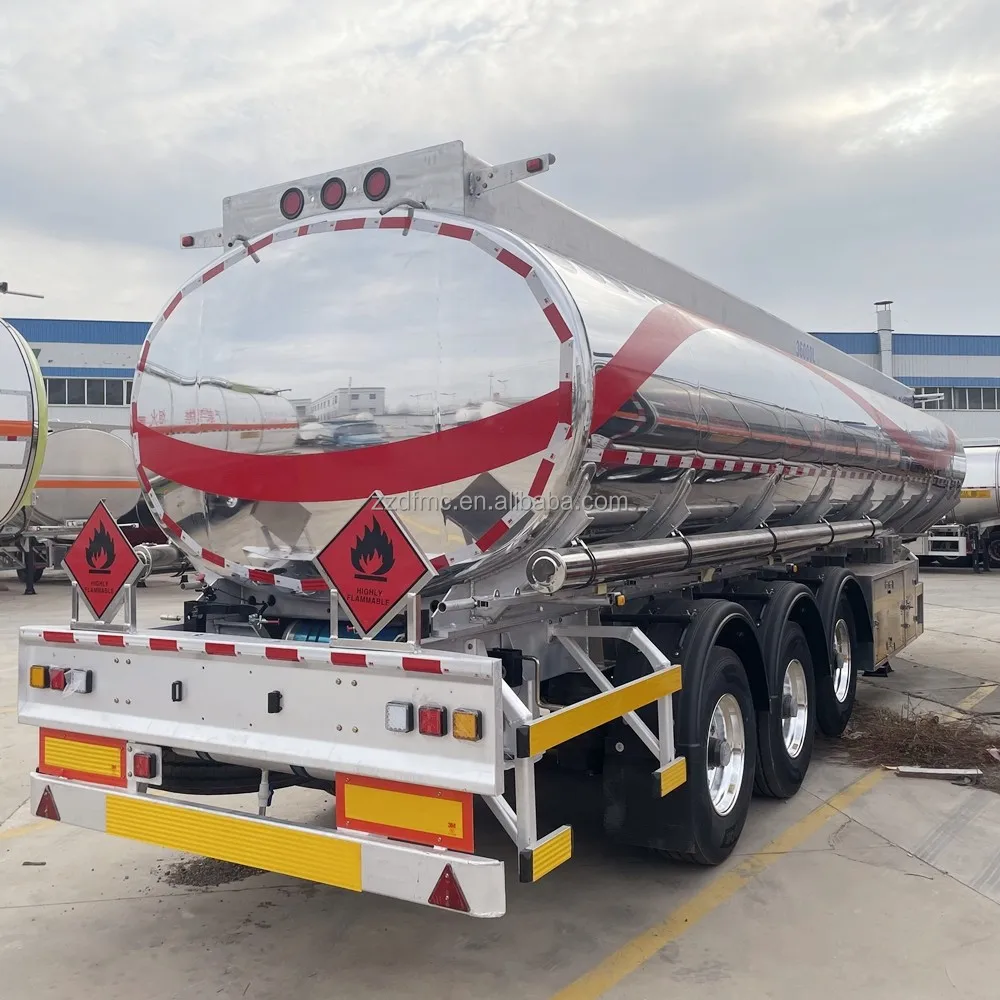

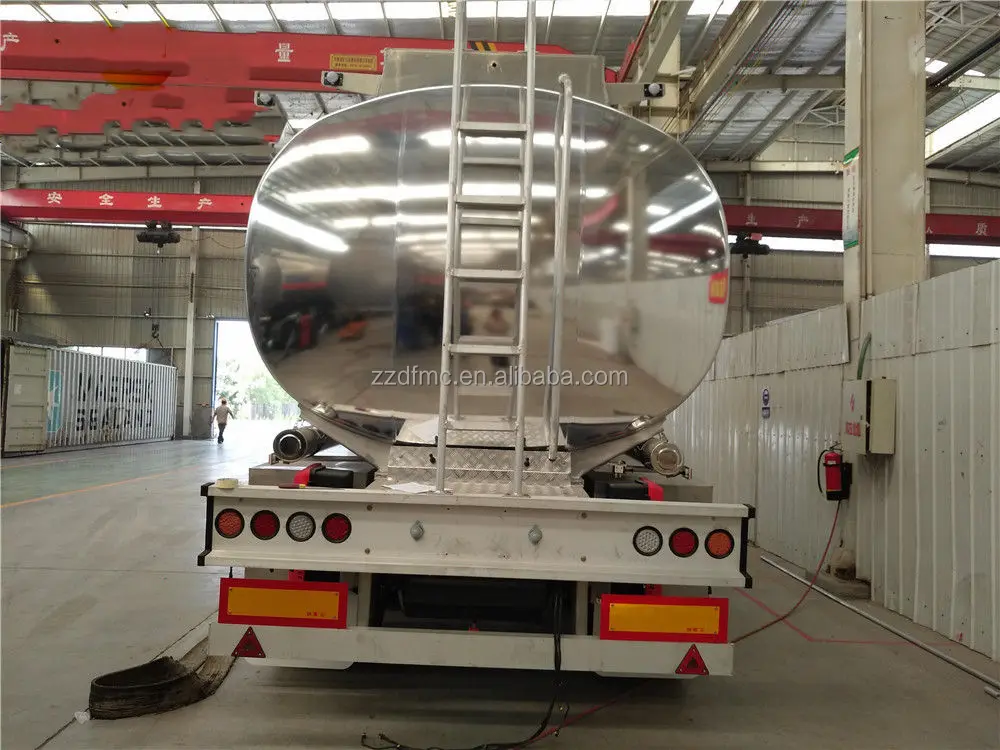

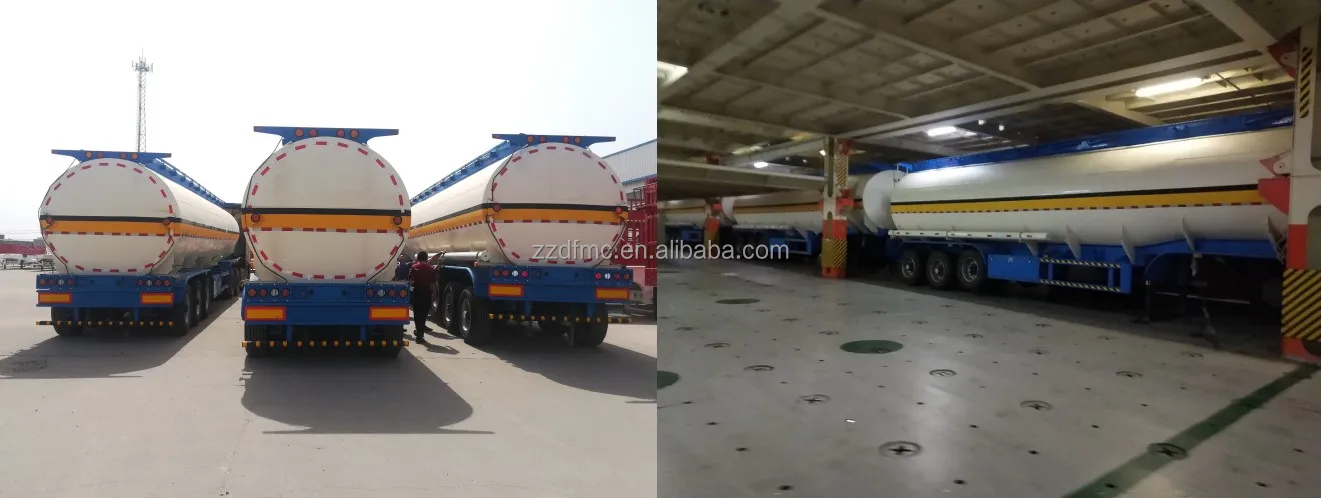

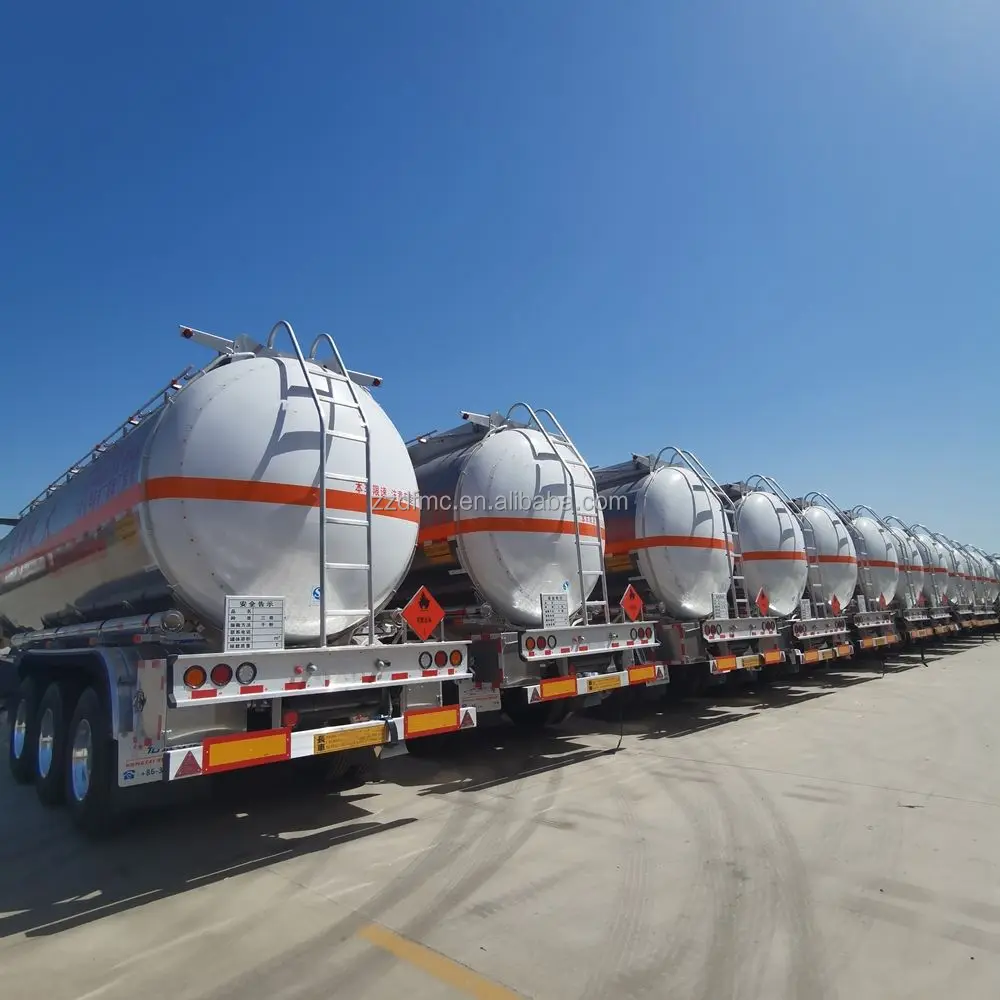

Details Images

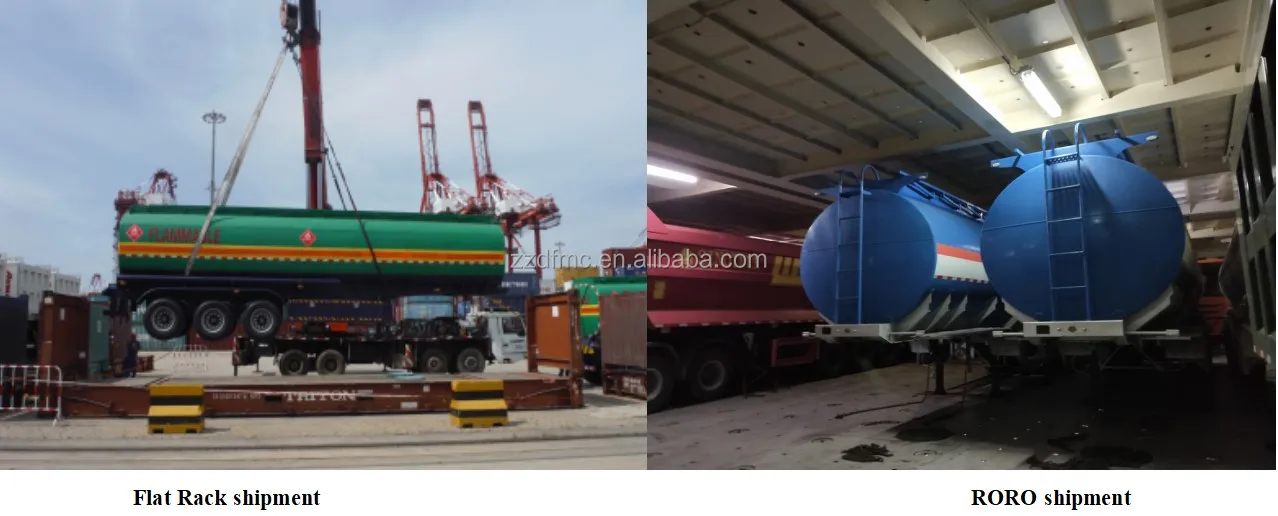

Product packaging
