79GHz Radar Vehicle Detector for Parking Gate Boom Barrier Gate Better Performance than Loop Detector
- Category: >>>
- Supplier: Solarpione (shenzhen) Energy Technology Co. Ltd.
Share on (1600856804684):
Product Overview
Description
Product Description

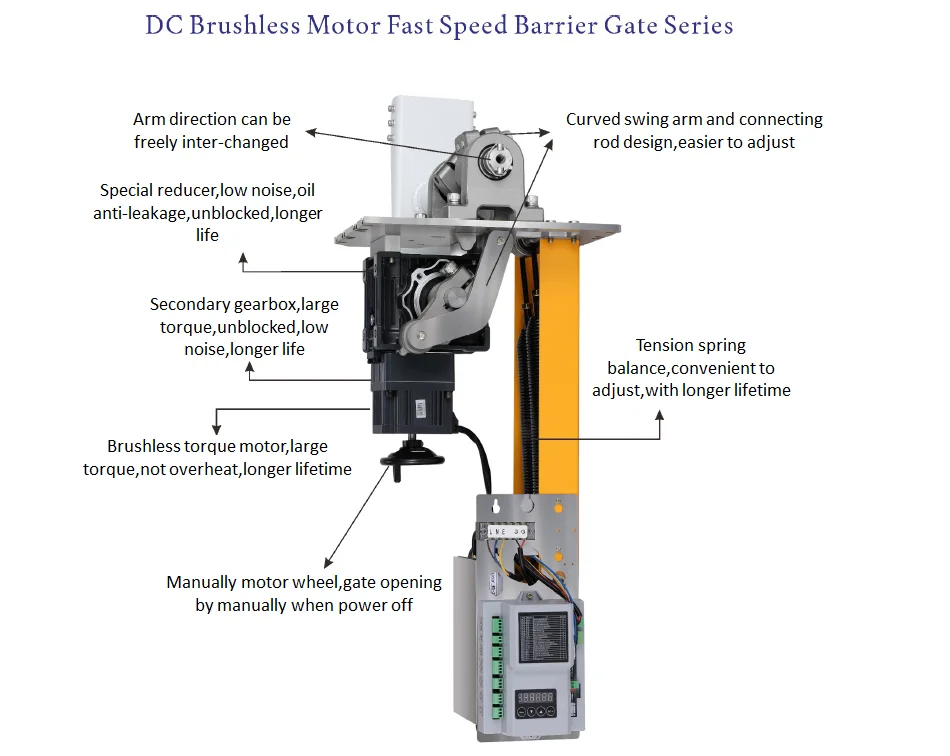

The Drive

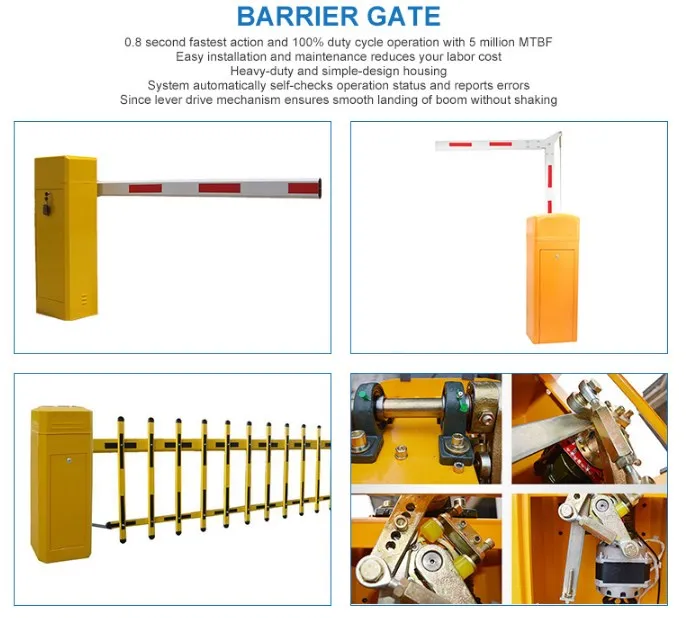

The 24V Brush-less motors form the heart of the Barrier and provide the much-needed robustness so as to offer long reliable product life cycle. This is achieved by firstly preparing the body for the Drive Mechanism to sit on a frame that is made from Aluminium Alloy manufactured by Die-Casting with attention to precise dimensions.
The Movement adopts parallel gear reduction that has high transmission efficiency and low power loss. The gear itself is made from high strength carbon steel carburised with heat treatment process, precision hobbing, ant-ware, anti-impact engineering for long service life. The Motor itself is small in size yet delivering a large output torque. The Speed is adjustable through the controller. The Movement of the boom is smooth as it accelerates and decelerates smoothly in both its open & close end positions.

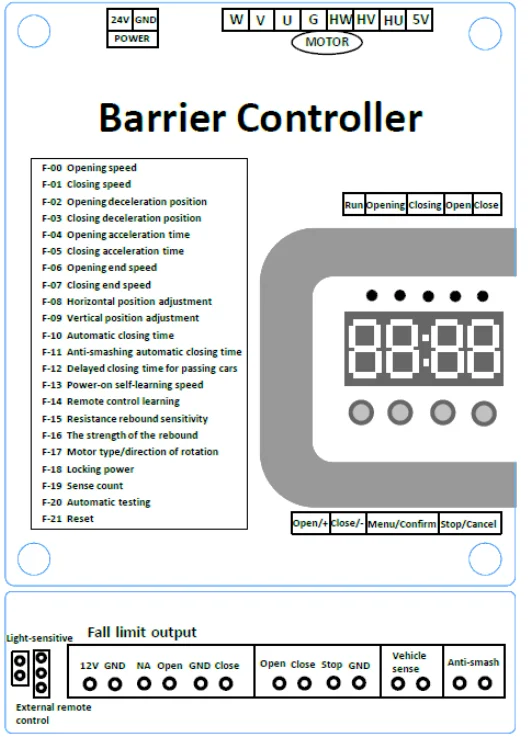

The Controller

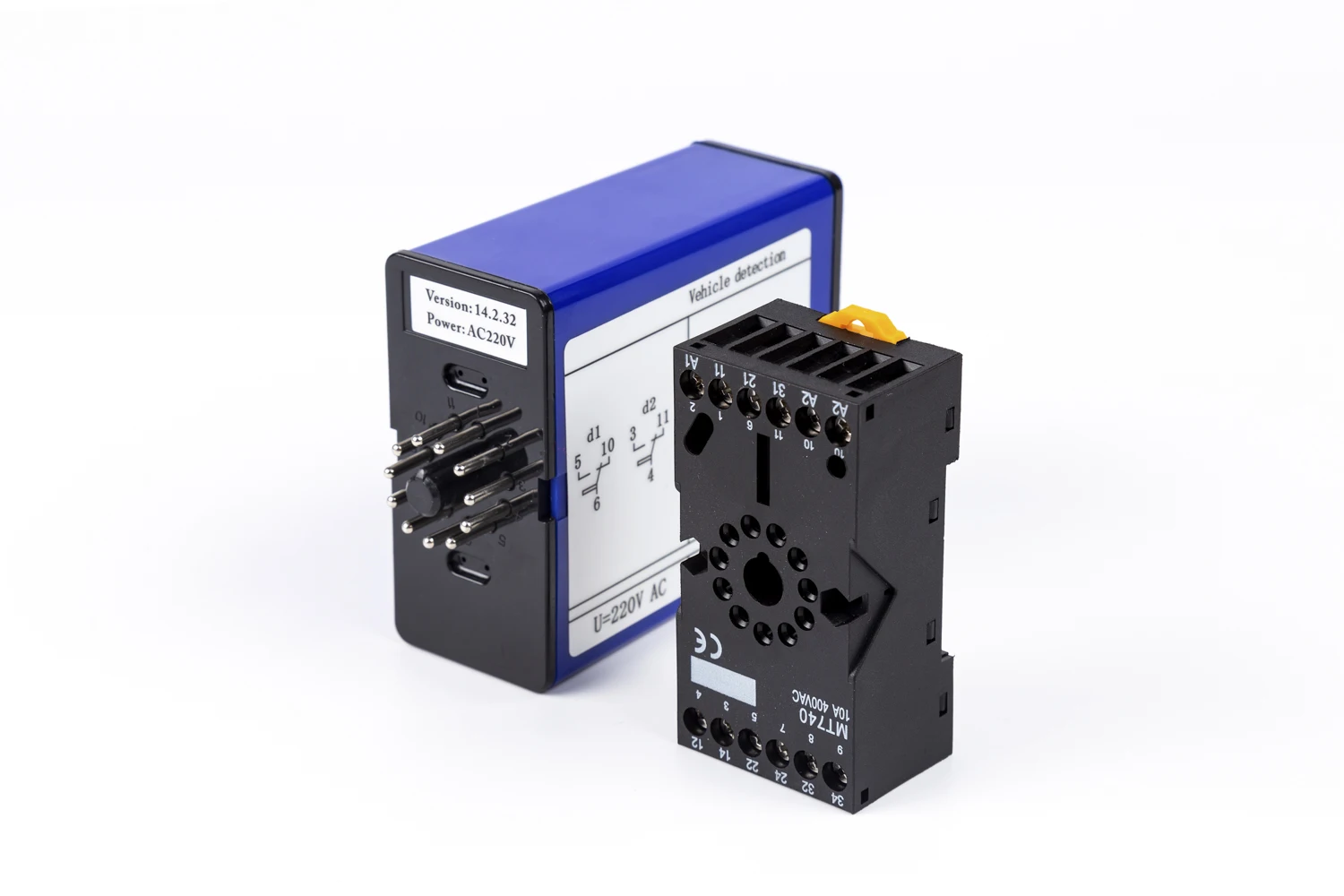

The controller of the Boom Barrier is all that one could ask for flexibility when it comes to adjustment & arrangement of the functioning of the barrier system with an array of adjustable parameters that our client may demand in specific to their site requirements. Right from Boom Length adjustment combined with speed of operation for not just varied lengths but also types viz. Boom Arm with Fence, Folding Boom Arm etc., position of braking, Varied options to engage the barrier to open and close etc., are all part of the controller settings offered for the convenience of the end user to decide based on-site conditions and demands. The System is delivered with Single Channel Loop Detector and Radar Sensor or P E Beam as an option can also be offered depending on the demands of the site.
The Dimensions

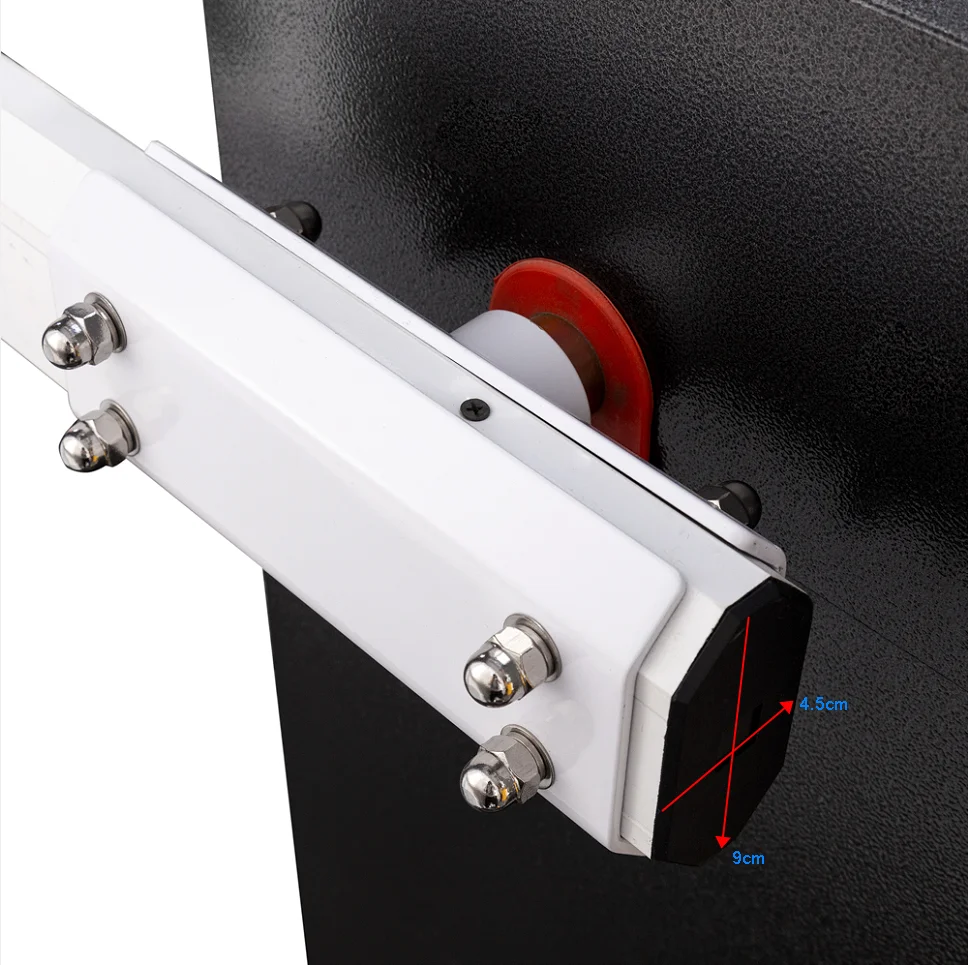

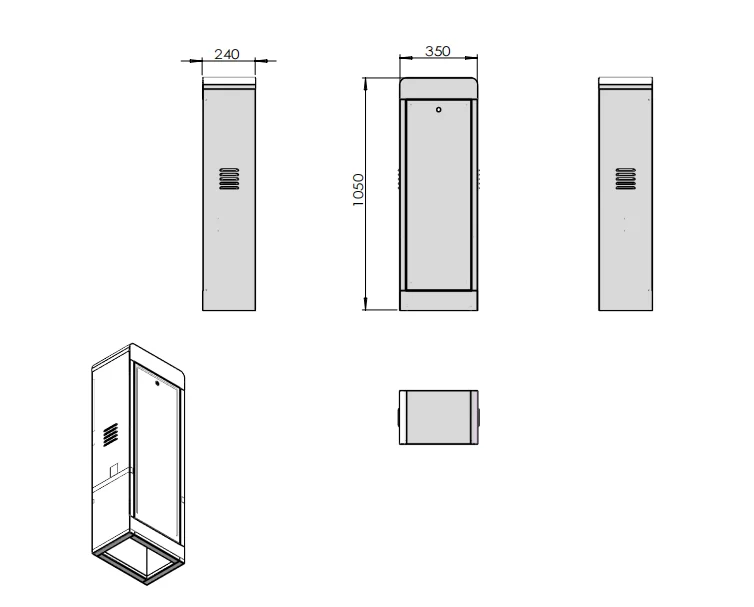

The Barrier Cabinet is fabricated in mild steel & Powder Coated in Orange. The dimension of which is 350 mm X 240 mm & 1050mm High. The Boom is an Octagonal Profile extrusion in Aluminium for stability and low resistance against wind but also offering very high visibility. The Boom is 90 mm in Hight & 45 mm in width. Booms with fence & folding type can also be offered. For better visibility, aesthetics and added safety the Boom arms with Red/Green flashing light combination can also be offered as an option.
Boom
The Aluminium Booms are White in Colour with Red Reflective Tapes for better visibility. Red & Green Flashing Lights integrated with the Boom can be offered as an option. The Boom will flash Green when the Barrier Arm is Opening & Flash Red when the Arm is closing.
Technical Parameters
Size | 1050*350*240mm |
Power Supply | 24V |
Open/close Speed | 1.2s to 6s(Depending on arm length) |
Working Temperature | -40°C~60°C |
| Rated Current | 8.58A |
| Rated Power | 140W |
| Motor No-load Speed | 1850rpm |
| Output Power | 56.8N.m |
| Humidity | ≤90% |
| Remote Control Distance | ≤100m (Open, Sunny Weather) |
Protection Grade | IP44 |
Max Boom Length | 6M |
| Boom Type | Straight, folding,fence & telescopic |

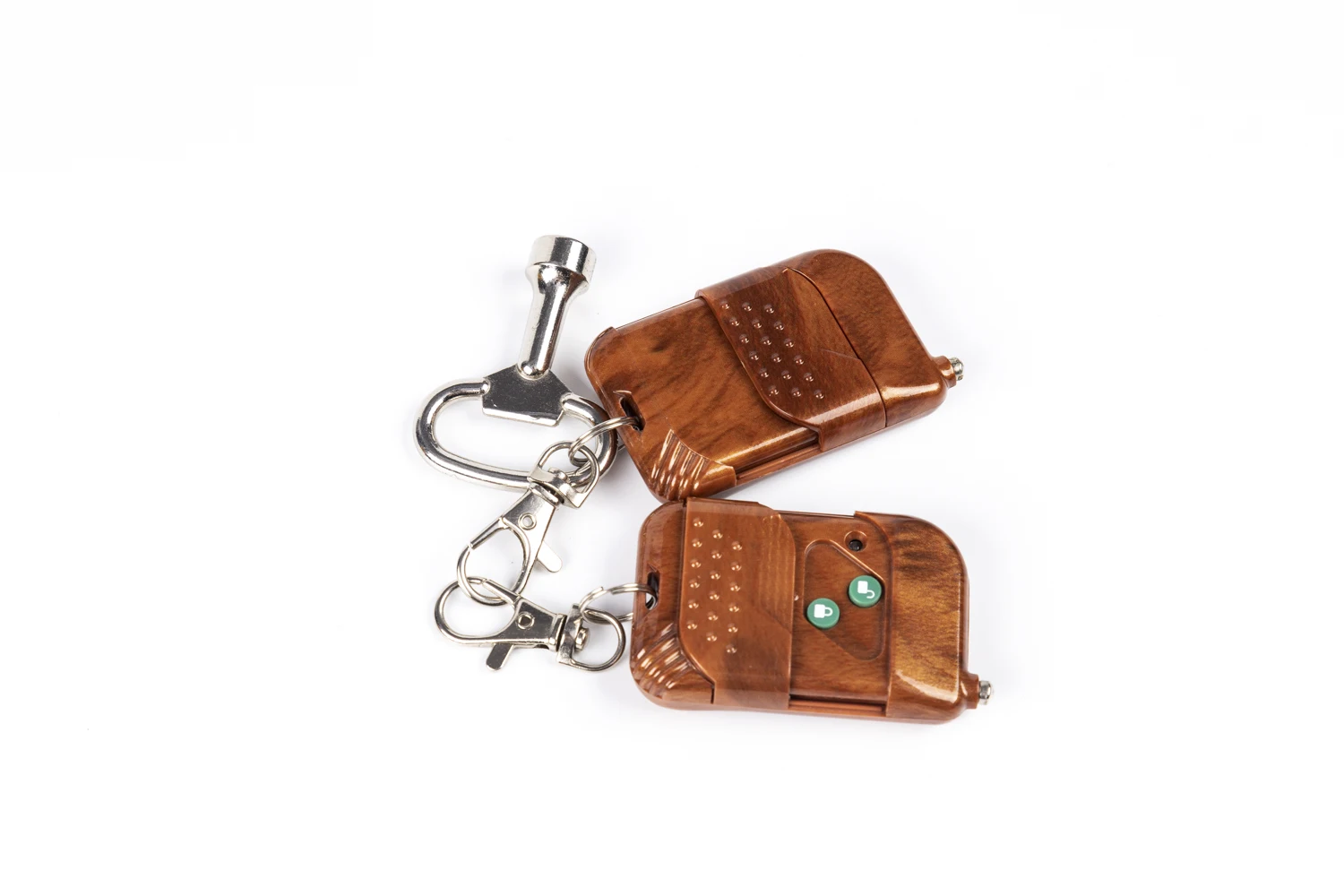

| Remote Controller | 2pcs with free charge |
