BAFANG 8fun 600C UART Display Mid Drive TFT 600C Electric Bicycle eBike BBS01 BBS02 and BBSHD UART 5 pin Round Plug

Product Overview

Description

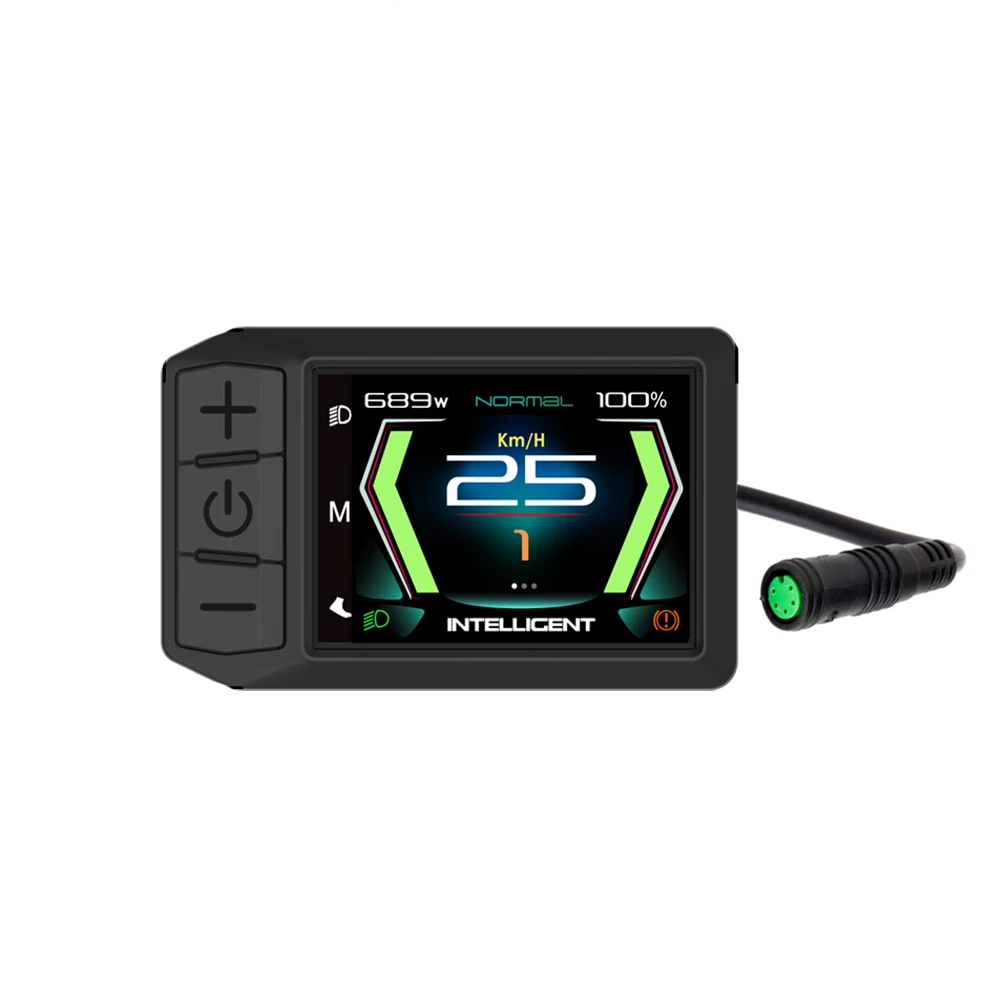

600C Elctric Bicycle 8fun LCD Display for BBS01, BBS02, BBS03, BBSHD Colorful Display



Remark:

This is 5-pin Round plug UART Version, if you want CAN protocol version, please check here:

Bafang 600C Display with CAN Protocol

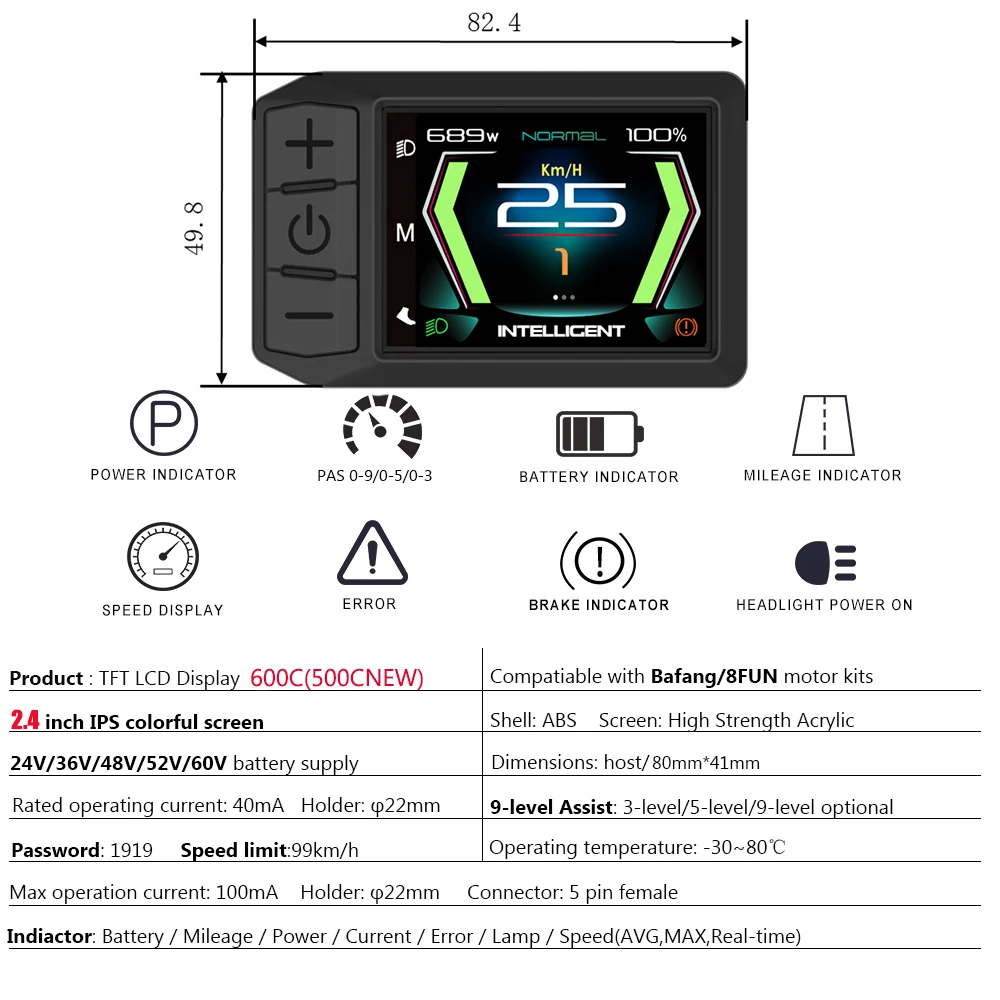

Specification:

2.4" High-contrast IPS Colorful Matrix Display
UART or CAN-BUS Communication Protocol
Customized Start-Up Logo,dynamic displaying
Set up Password of Turning on
Speed display: RT SPEED MAX SPEED AVG SPEED
KM/ Mile: Setting up adjustable according to customers' habits
Mileage: ODO, Trip, Time, Range
Clock
Power indicator
Show Battery level, speed, distance, power, and more
USB charging port: 5V/500mA
Software Update
24V/36V/48V/52V/60V compatible
Waterproof: IP65
Certifications CE/EN15194 Rohs

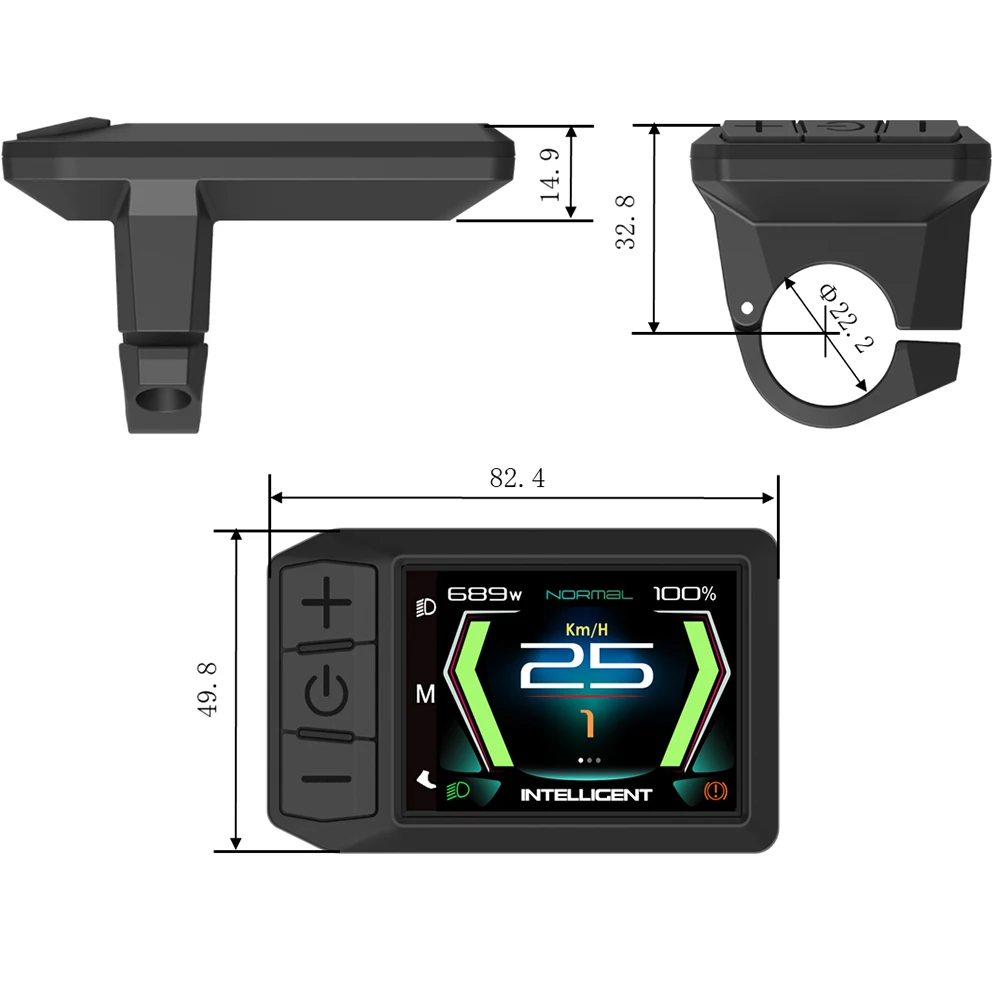

Handlebar for Holding: Ø 22.2 mm
Plug Type: Round 5-pin waterproof quick release female for UART Protocol

This display Works with the BBS01, BBS02 & BBSHD mid drive motor, and all electric bikes with 8fun motor





LCD Display Panel: clear and easy to read in direct sunlight when riding

Compatible with BBS01, BBS02 and BBSHD

Automatic back light, Black or white background can be toggled

Displays volts for highly accurate battery gauge giving you a good idea when your battery will die

High quality, and one year quality warranty, just buy with confidence
