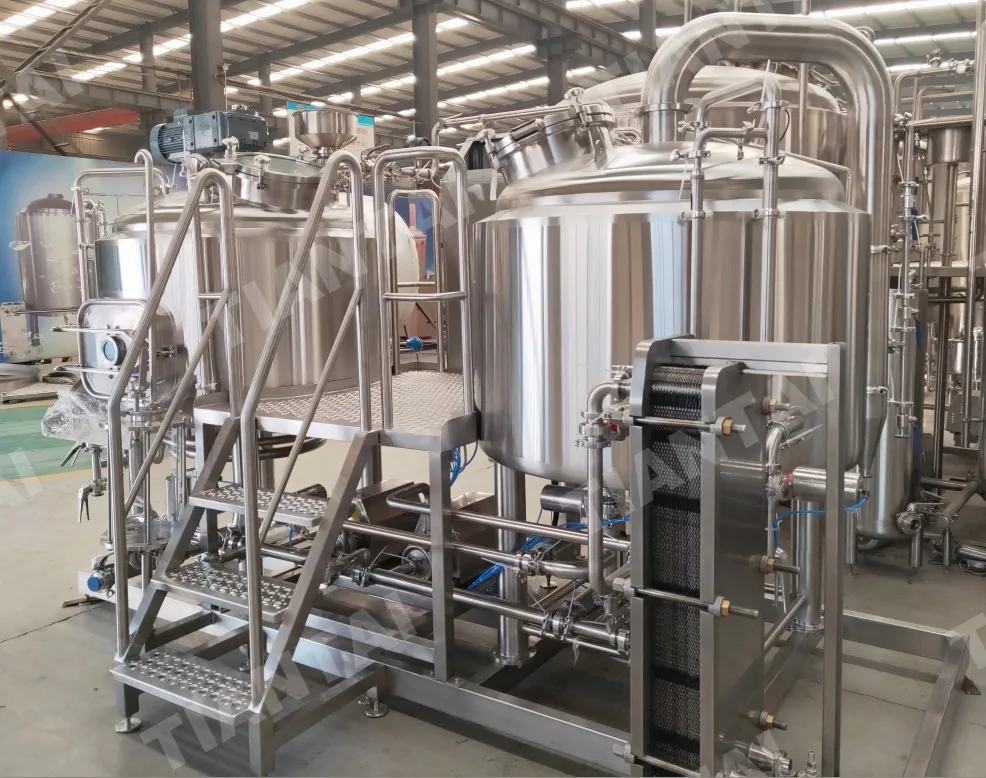

500L Stainless steel Steam heated 3 vessel Small Beer Microbreweri Tanks for ales and lagers
Product Description

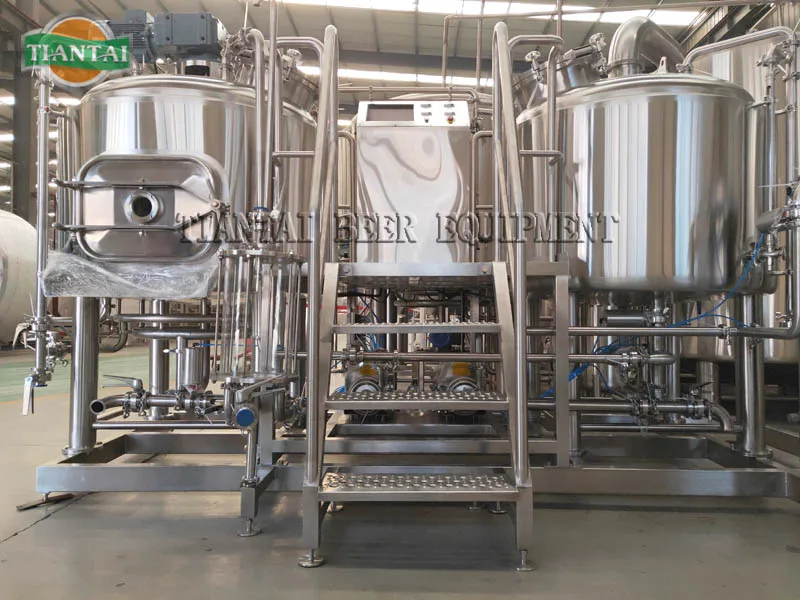

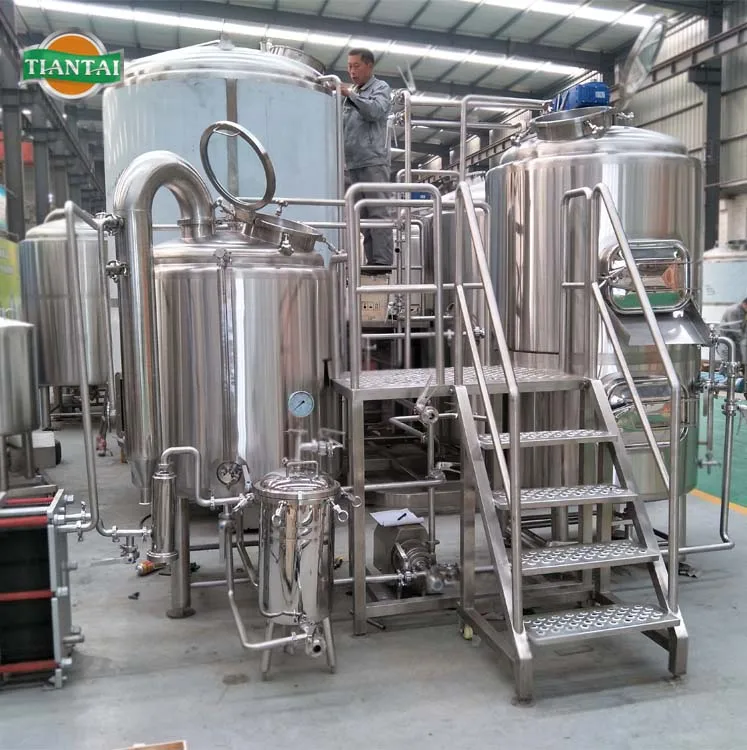

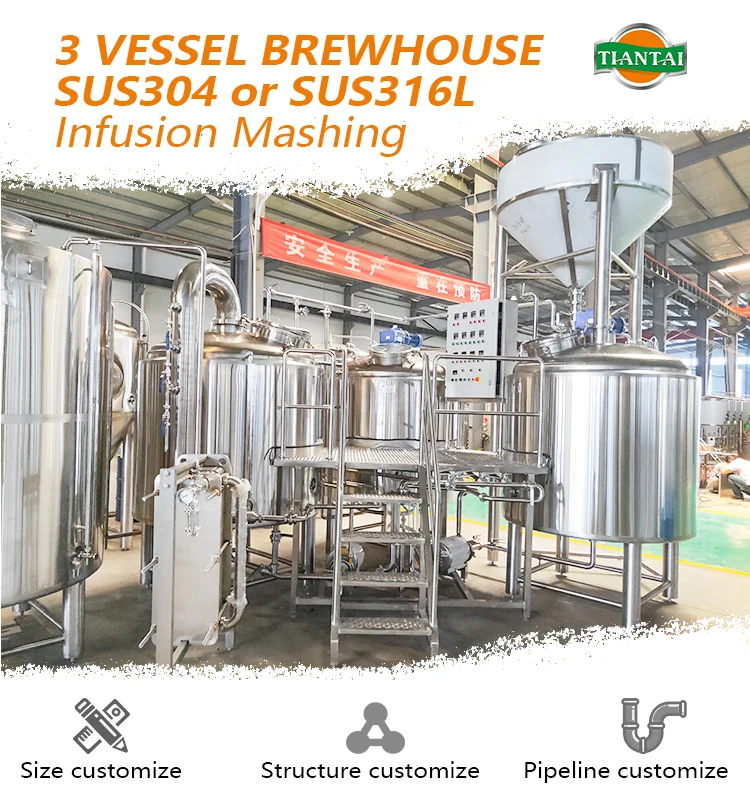

The 500L microbreweri is often used in small craft breweries or craft brewing bars. Brewhouse system is part that need most operation in whole brewery system. 3 vessel brewhouse system usually means a mash tun, an auter tun and a boiling/whirlpool tank. The mashing process and the wort filtration process are completed in independent tank. The boiling and whirlpool processes are completed in one tank. This system usually brews 1-2 batch per day. Brewing 2 batches will take around 12 hours. For detailed information of 3 vessel brewhouse, please check below in detail.

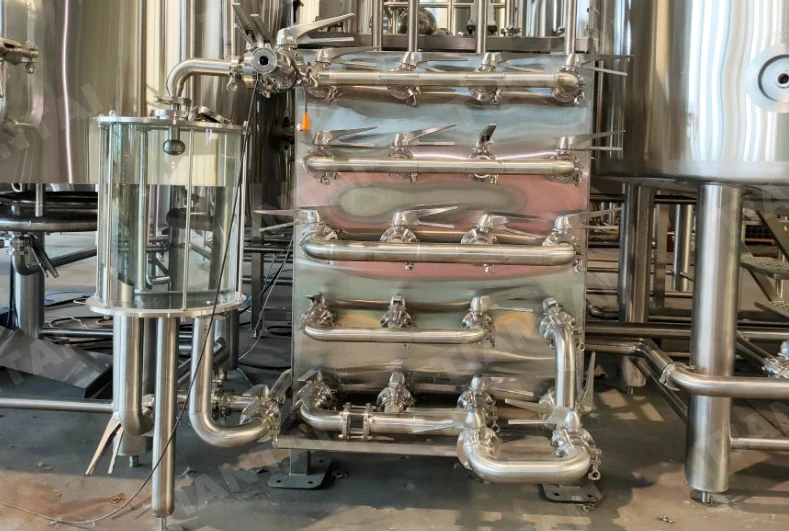

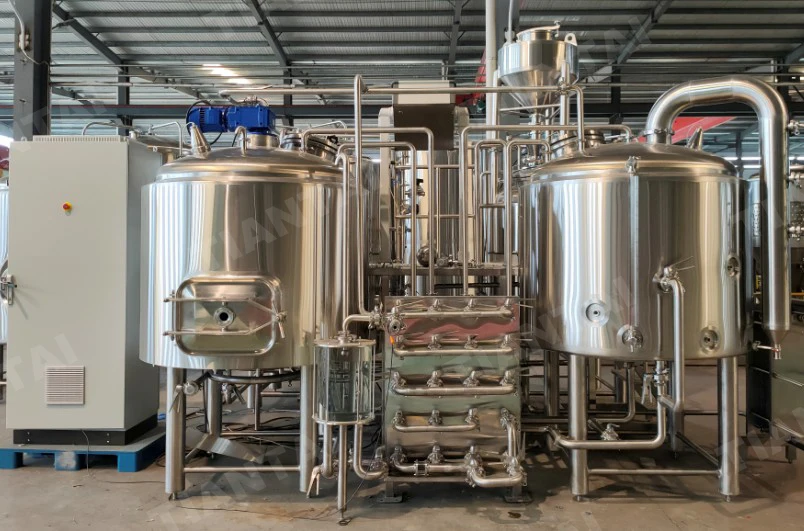

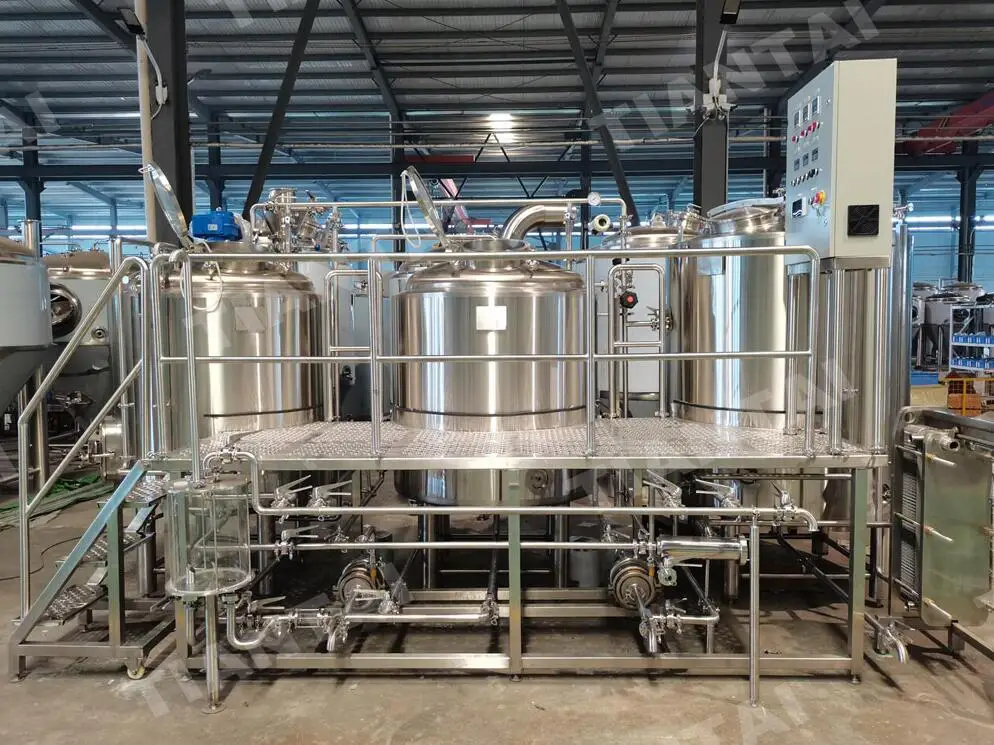

500l microbreweri
Our Advantages
1. One Stop Service from malt to beer 500L microbreweri
2. Design Customization: Tanks structure, pipeline, installation
3. 5 Years Warranty for tanks, free delivery for broken accessory within warranty
4. With ISO TUV SGS certificate, the product meets the GB/CE/PED/ASME standard
5. Local service in EUROPE, AUSTRALIA ETC
6. More than 1100+ global users 500L microbreweri
Feature
***First batch takes about 8 hours, two batches of 14 hours is feasible;
***SUS304 stainless steel, easy to clean; Copper cladding for bars optional;
***Steam heated, high thermal efficiency, gentle for wort; Electric or direct fire heating optional;
***Wort will be cooled down by 2 stages heat exchanger via tap water and -5 ºC ice water together, Single stage heat exchanger optional;
***Mashing heating and fermentation cooling automatically controlled, and manual control switched at any time;
***Manual valve control, humanized operation, low equipment investment cost, high cost performance; PLC automatic control for upgrade;
Specification
Product Name | Stainless Steel 5hl 3 vessel brewery system for sale |
Output/Brew | 500L |
Brewhouse Structure | Mash tun+lauter tun+kettle&whirlpool tun+hot liquor tank |
Brew/day | 1-2 |
Installation Area | >45m2 500l microbreweri |
Mashing method | Infusion, multi-step infusion, Decoction mashing |
Heating Method | Steam heating |
Heating Source | Steam jacket (MT, KWT and HLT side and bottom) |

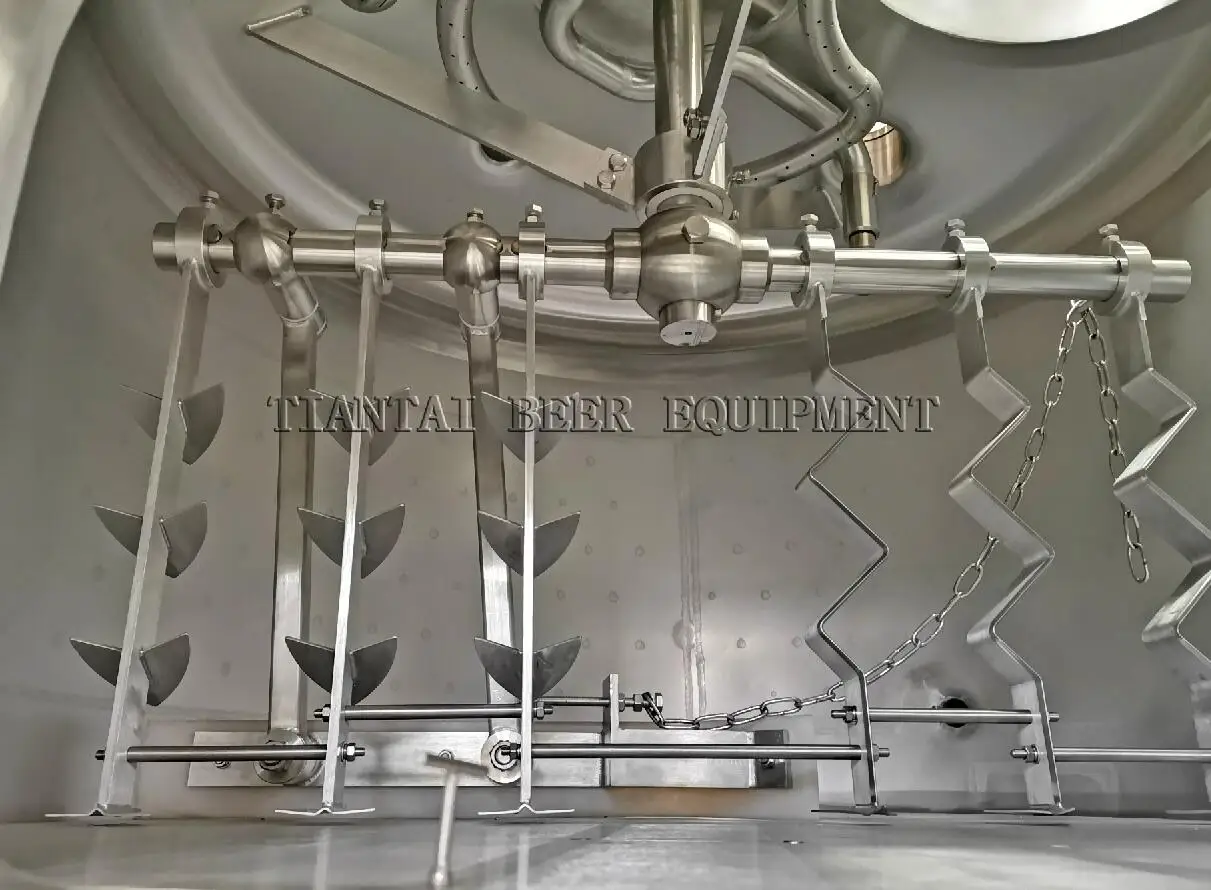

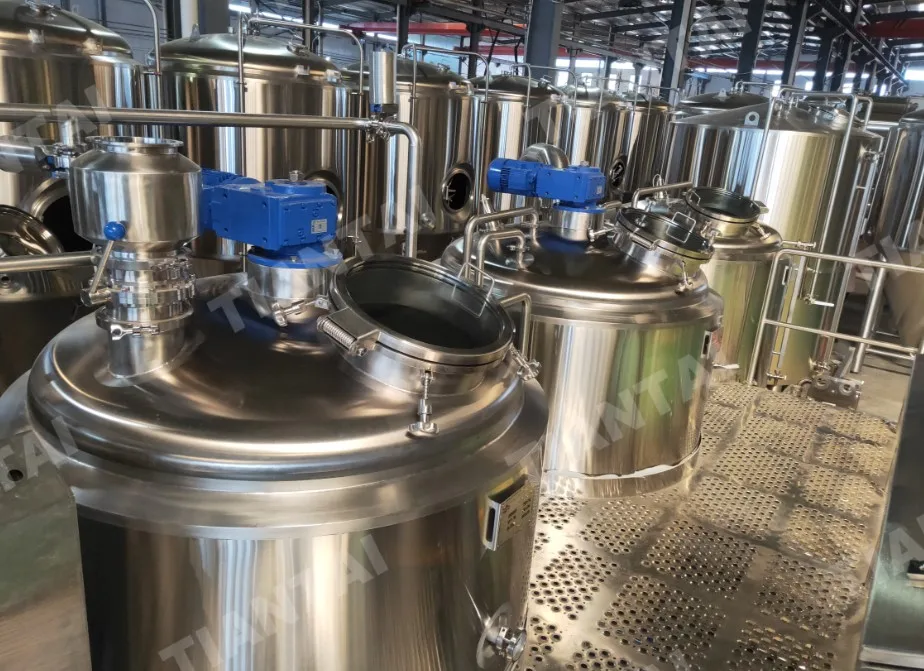

MT | Agitator with VFD controlled motor and gear reducer at top |

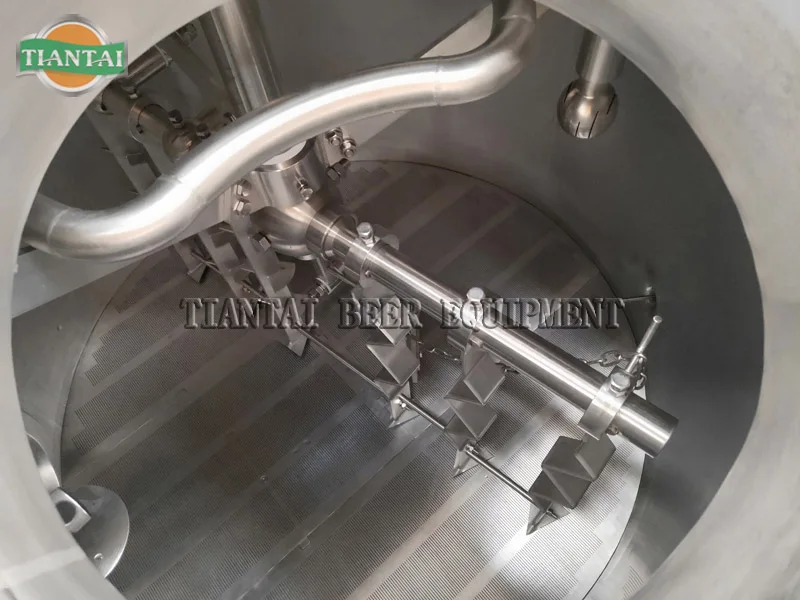

LT | Rake with VFD controlled motor and gear reducer at top |
KWT | Heated for boiling |
Pump | 2x wort pumps+1xhot liquor pump |
Platform | Non slip metal floor or Multi-holes platform |
Heat exchanger | Nanhua brand double stage |
Other equipment included in whole brewing system
0 ir bre

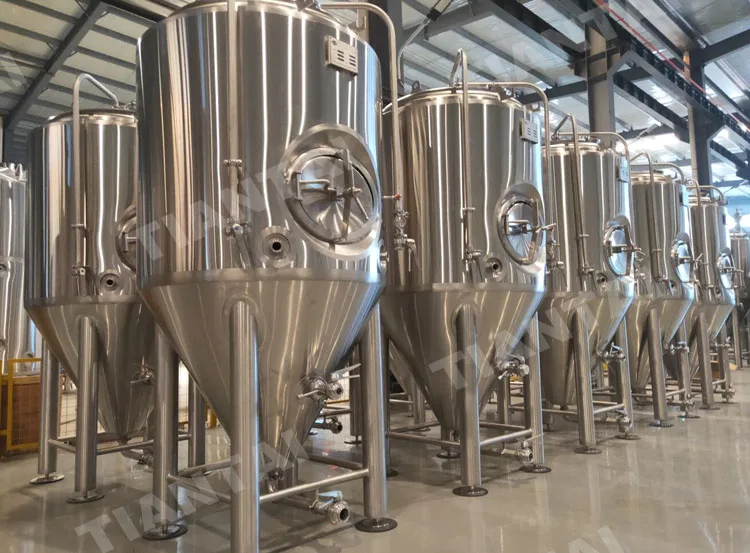

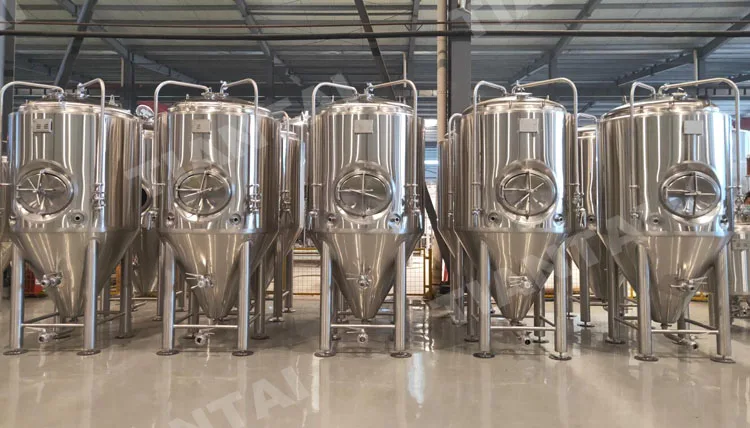

Fermentation tank micro 500L brewery equipment
| Tank structure | Double wall with jacket and insulation |
| Thickness | Internal shell=3mm; External shell=2mm |
| Cone angle | 60 degree/customize |
| Cabonation stone | Yes 500l microbreweri |
| Spunding valve | Yes 500l microbreweri |
Manufacture Details
1. Welding: We abandoned the argon gas cylinder but adopt The Central System of Argon to make sure the TIG welding with pure argon gas shield. We also increase the using amount of gas when welding, so the quality of the welding line is more higher. 500l 500 liter brewery
2.Polishing: We use large-scale polishing equipment to polish the inside of the tanks -- all over the wall to make sure there is no dead corner. You need not worry about there will be some bacterias remained after cleaning.Some other manufacturers may not pay enough attention to the polishing, even some have no polishing machine.

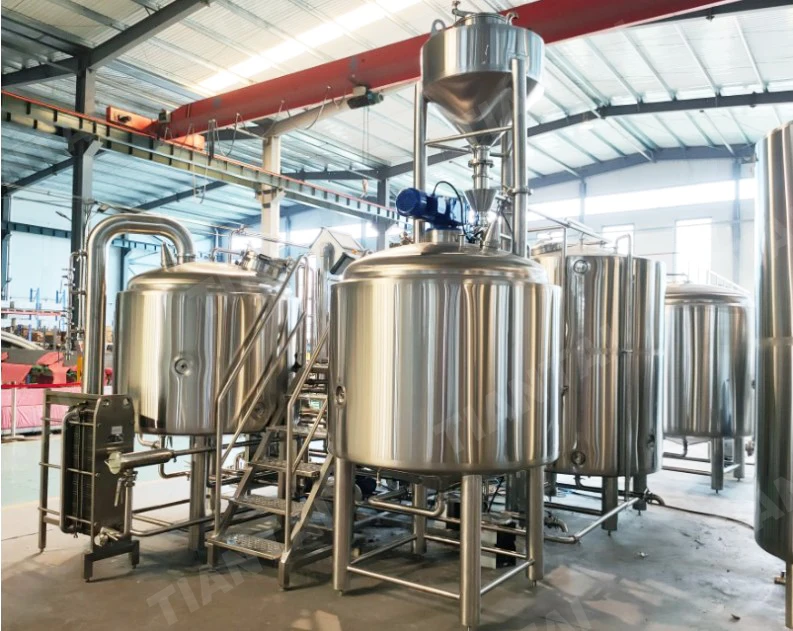

Micro 500L brewery equipment
Company Information
Established in 2012, we have been 6 years in this beer business. Based on honest business principle and reliable quality, we have been top 2 supplier in Jinan city. micro brewery 500L
And we also have We had build lot of breweries in US, Canada, European and Australia, New Zealand and south American countries... micro brewery 500L
We sincerely hope to discuss further with you and design a nice brewery together. b
micro 500L brewery equipment
Our Services
Service | Free |
Professional consultation service in any time | √ |
Project planning and layout design | √ |
3D drawing | √ |
Training to operate and debug | √ |
Ø 3 years warranty
Ø Aboard installation and training
Ø Design and maintenance for free stainless steel beer manufacturing equipment
Ø High quality and best price 500l 500 liter brewery
Ø inner and outer of the tanks have been mirror polish
Ø the material can be stainless steel with low price or red copper with nice-looking
Ø the capacity can be 50L~30,000L 500l 500 liter brewery
Ø Engineers available to service machinery overseas
Welcome to leave message or email me directly to gain updated quotation of micro brewery 500L. 500l 500 liter brewery
I will reply to your within 12 hours. 500l 500 liter brewery
Nicole beer brewing system
