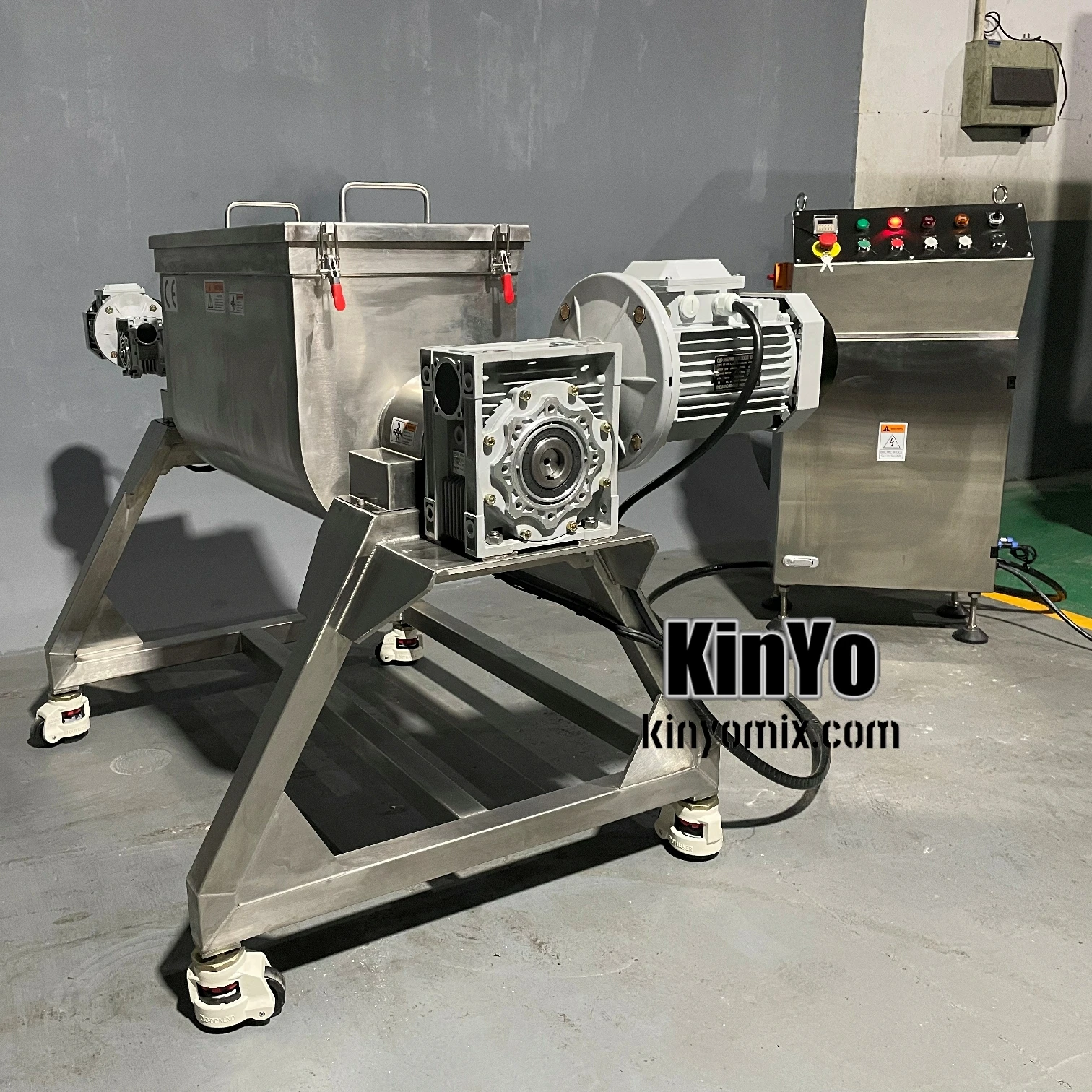

Silicone sealant mixer making machine production line
US $600.00-$650.00

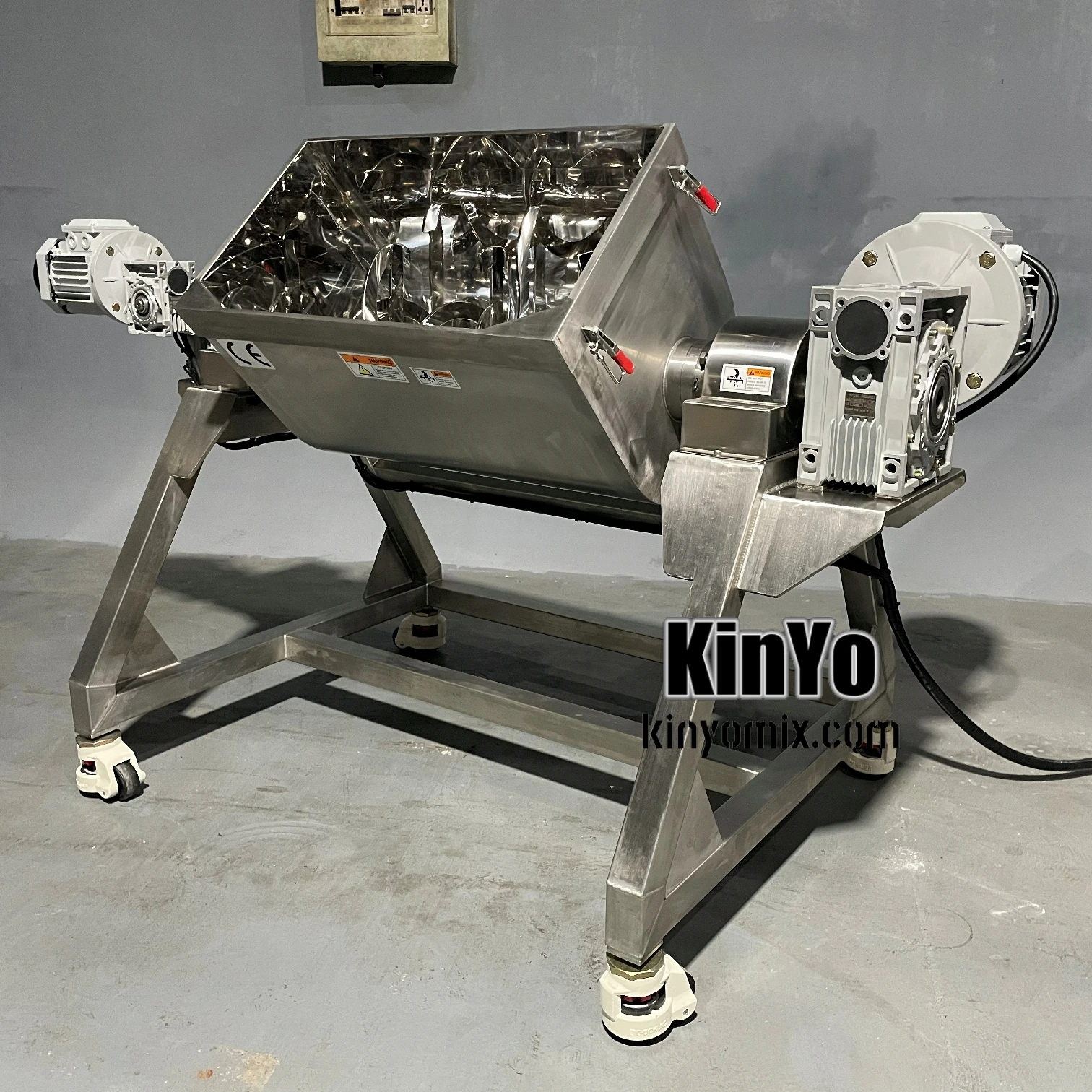

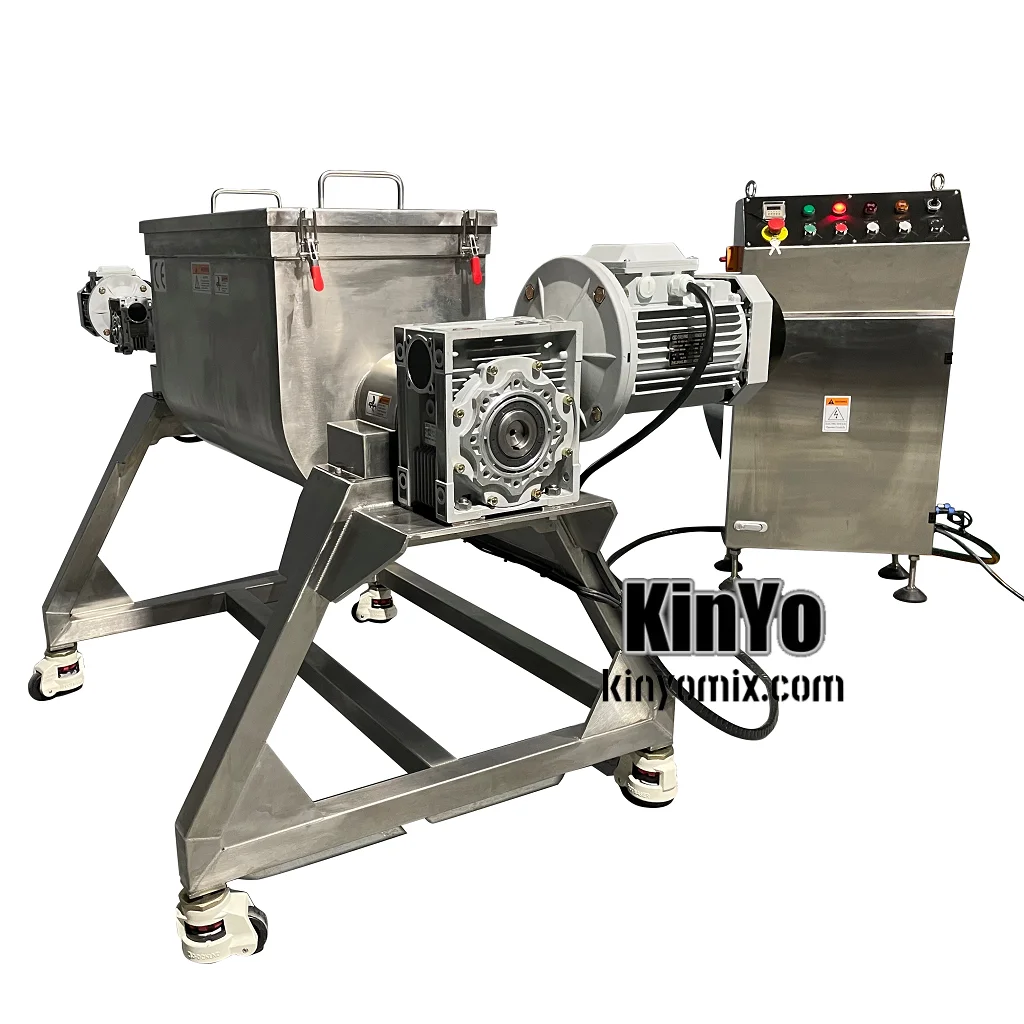

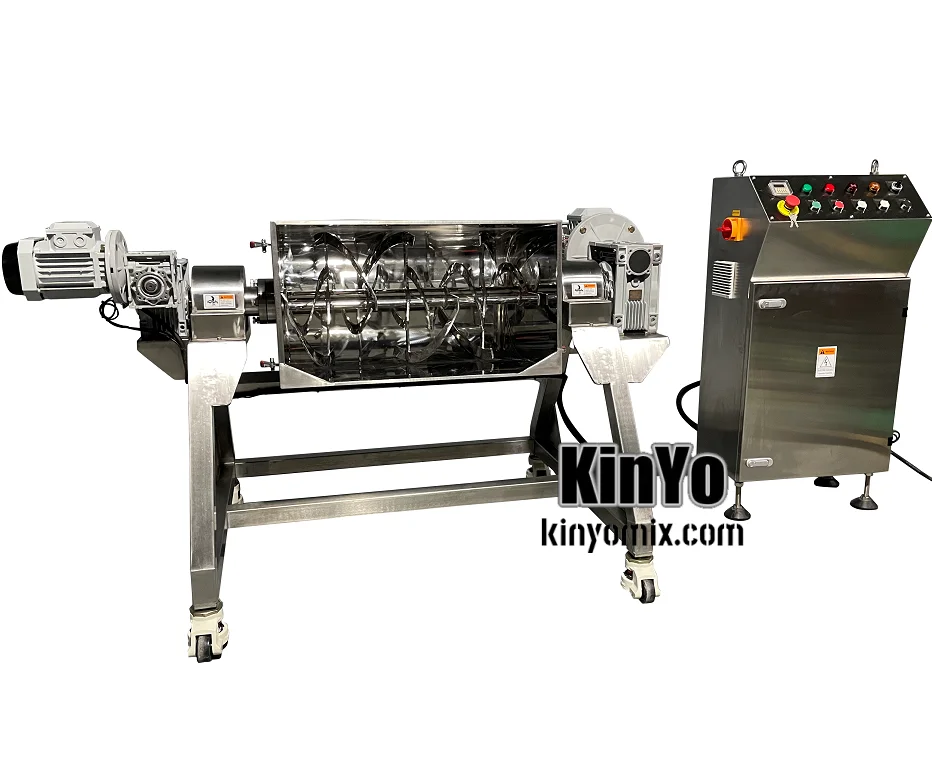

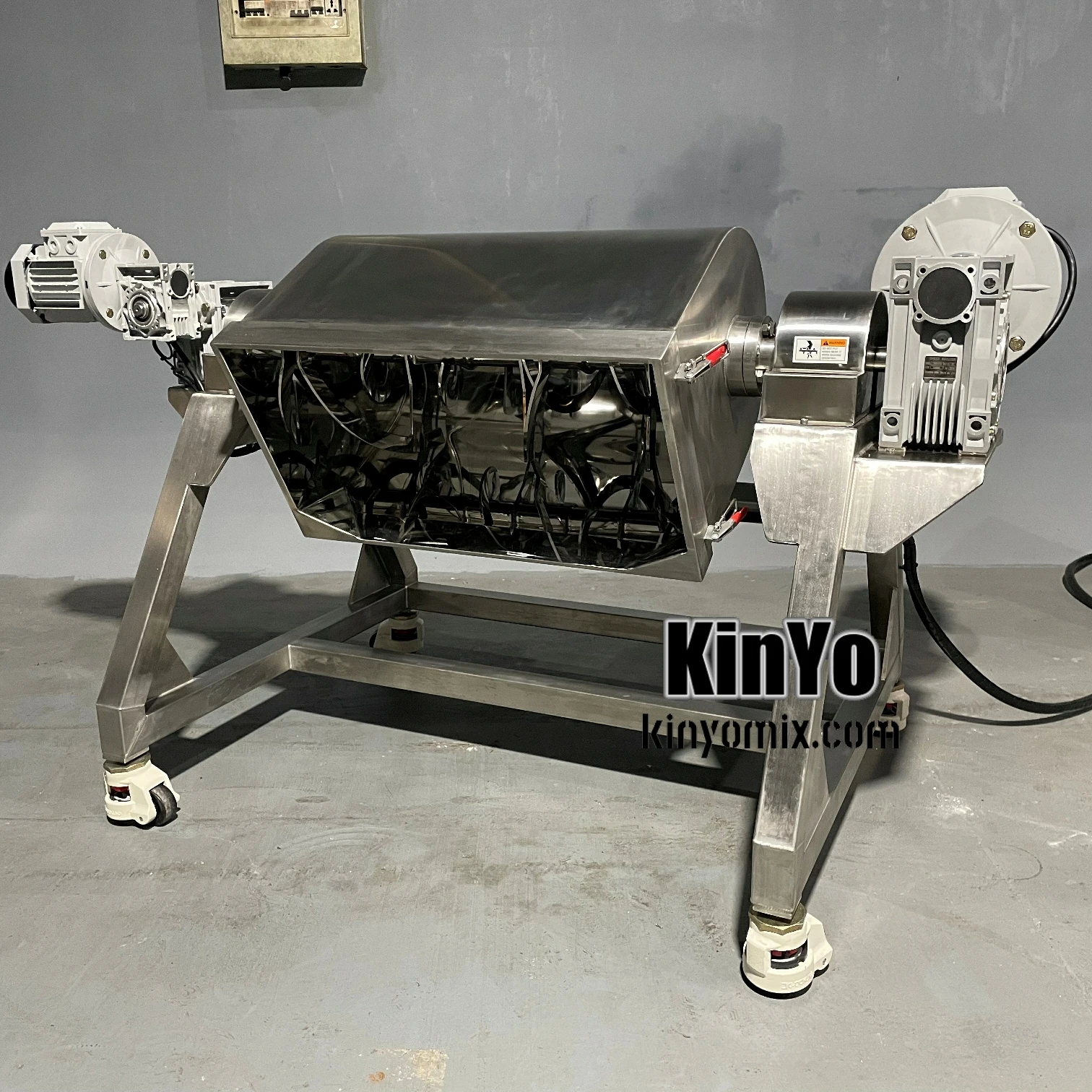

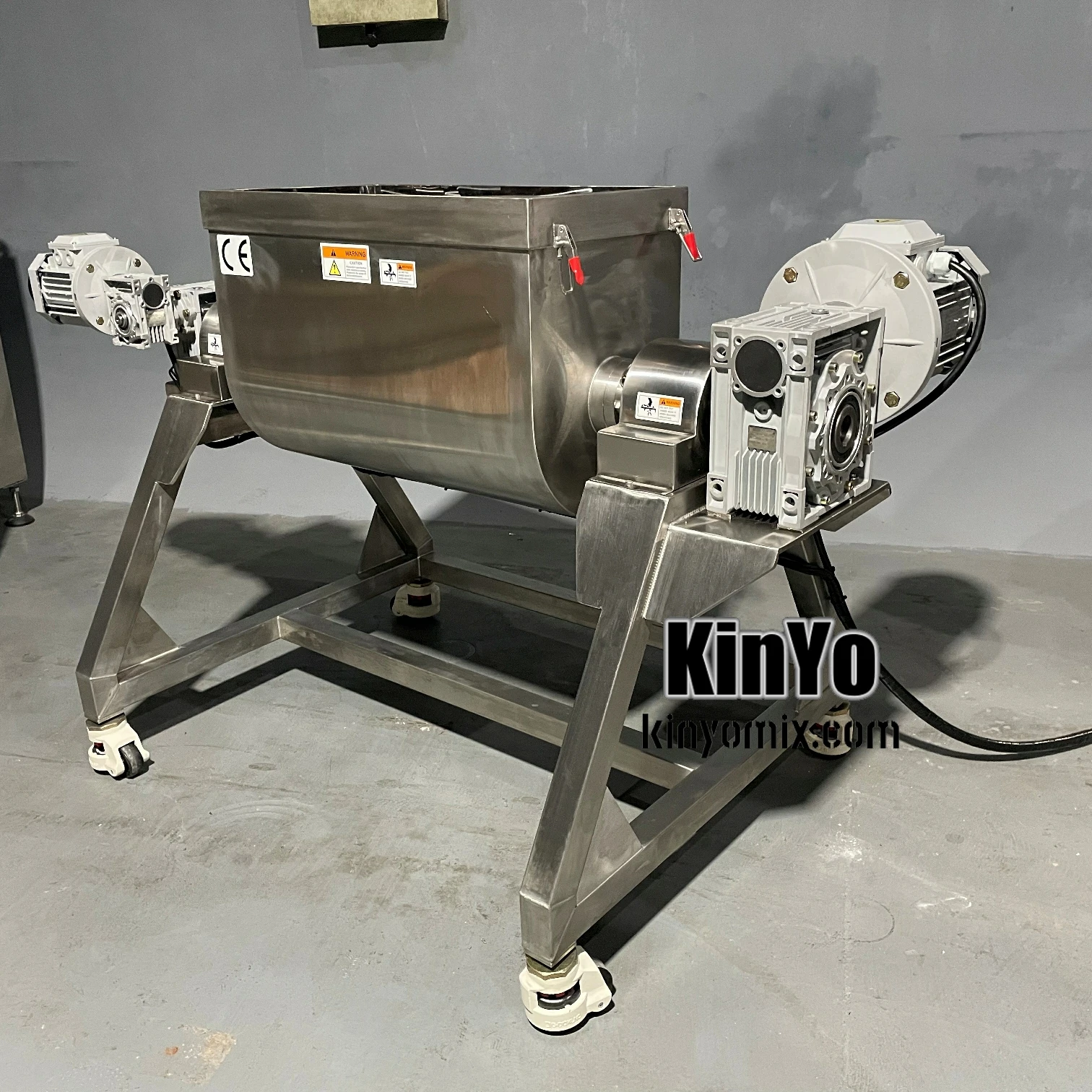

75 л 100 л 300 л Наклонный блендер сухой порошок жидкая паста пищевой порошок смеситель
- Category: Mixing Equipment >>>
- Supplier: Changzhou Kinyo Machinery Co. Ltd.
Share on (1600868028801):
Product Overview
Description
Company Profile
KinYo was registered in January 2018 for exporting & importing business and also a owner of a factory named Changzhou Aofile Machinery Co.,Ltd. devoting ourselves in blending and filling machine for powdered materials.
The factory is located at No. 89, Nanqi, Nanzhai, Wujin District, Changzhou City, Jiangsu Province with a manufacturing area of 3000 sqm+.
We have succeeded in delivering over 500 sets of ribbon blender and auger filling all over the world. North America and Europe are our main market on account of our exquisite workmanship.
The factory is located at No. 89, Nanqi, Nanzhai, Wujin District, Changzhou City, Jiangsu Province with a manufacturing area of 3000 sqm+.
We have succeeded in delivering over 500 sets of ribbon blender and auger filling all over the world. North America and Europe are our main market on account of our exquisite workmanship.

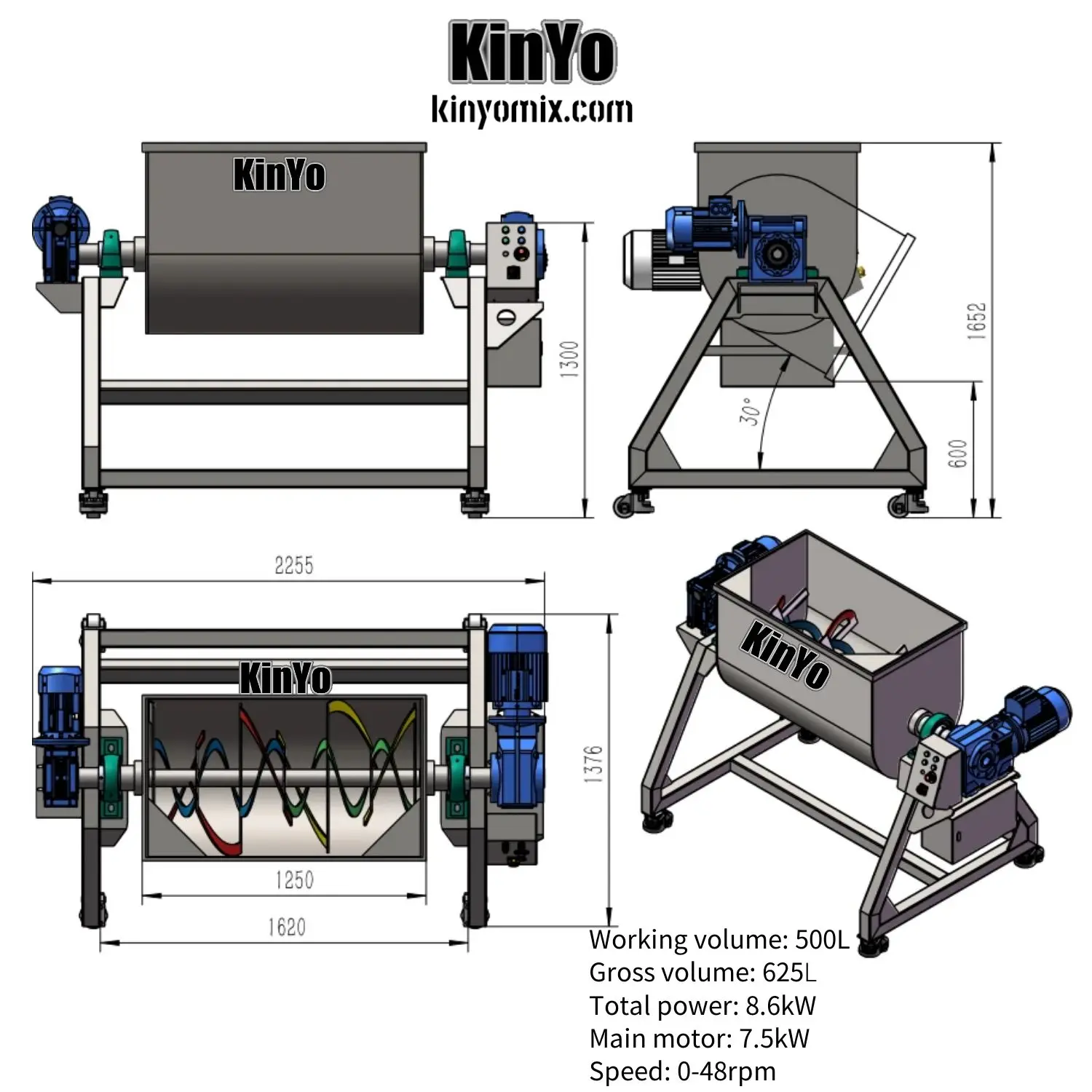

Product Paramenters

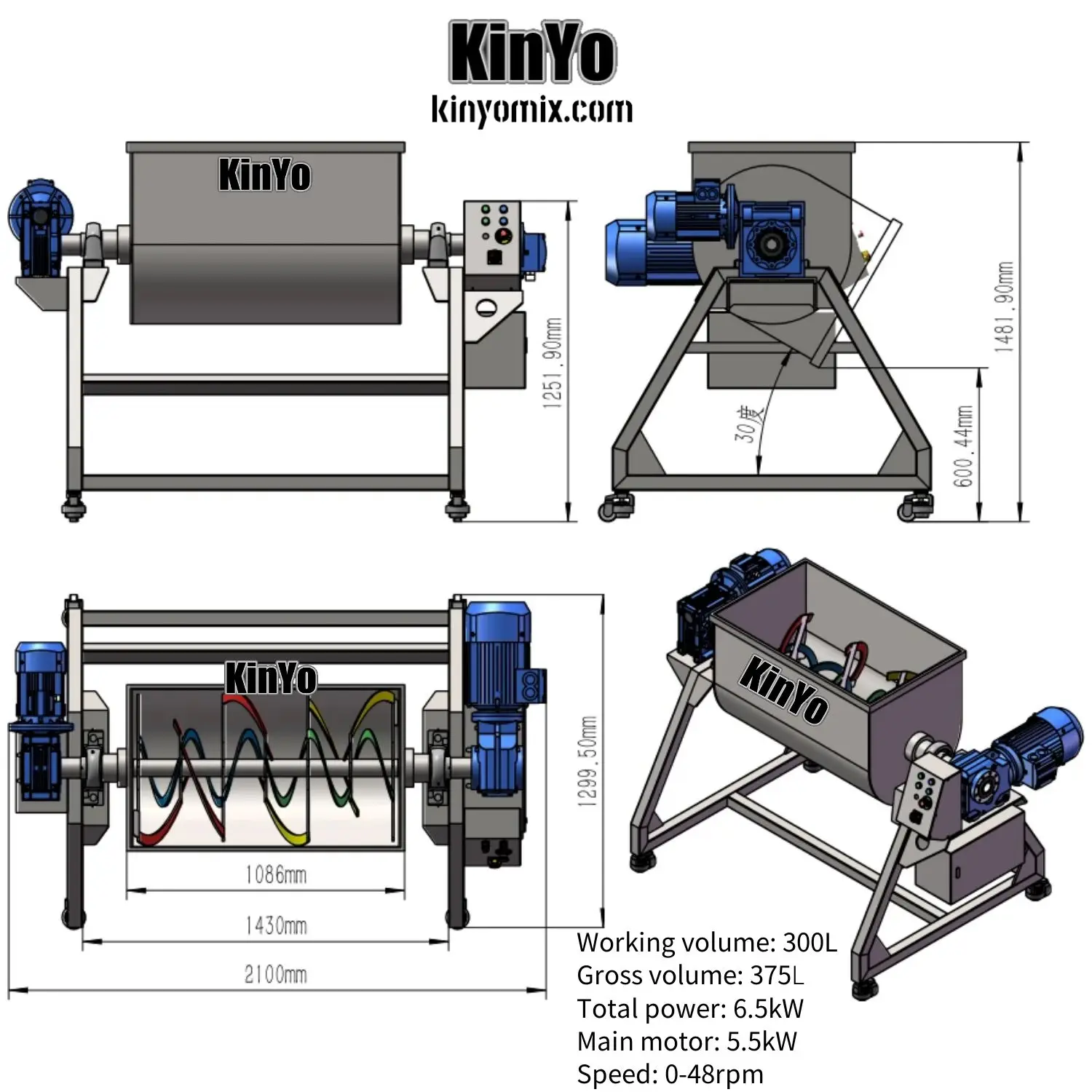

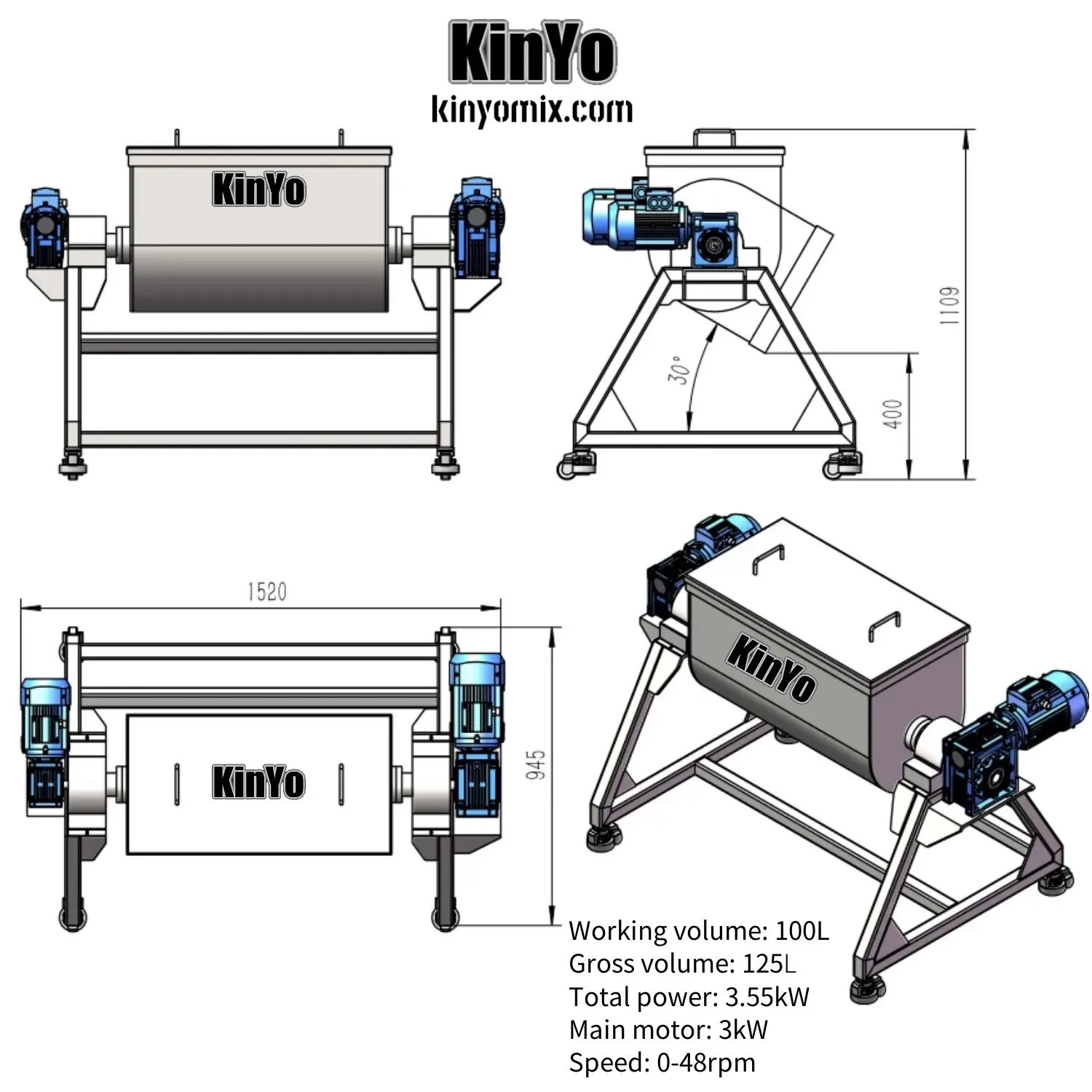

Item | KYRB- T75 | KYRB- T100 | KYRB- T300 | KYRB- T500 |
Gross volume | 95L | 125L | 375L | 625L |
Working volume | 75L | 100L | 300L | 500L |
Weight | 210kg | 335kg | 355kg | 625kg |
Total Power | 2.75kW | 3.55kW | 6.6kW | 8.6kW |
Speed | 0-48rpm | 0-48rpm | 0-48rpm | 0-48rpm |

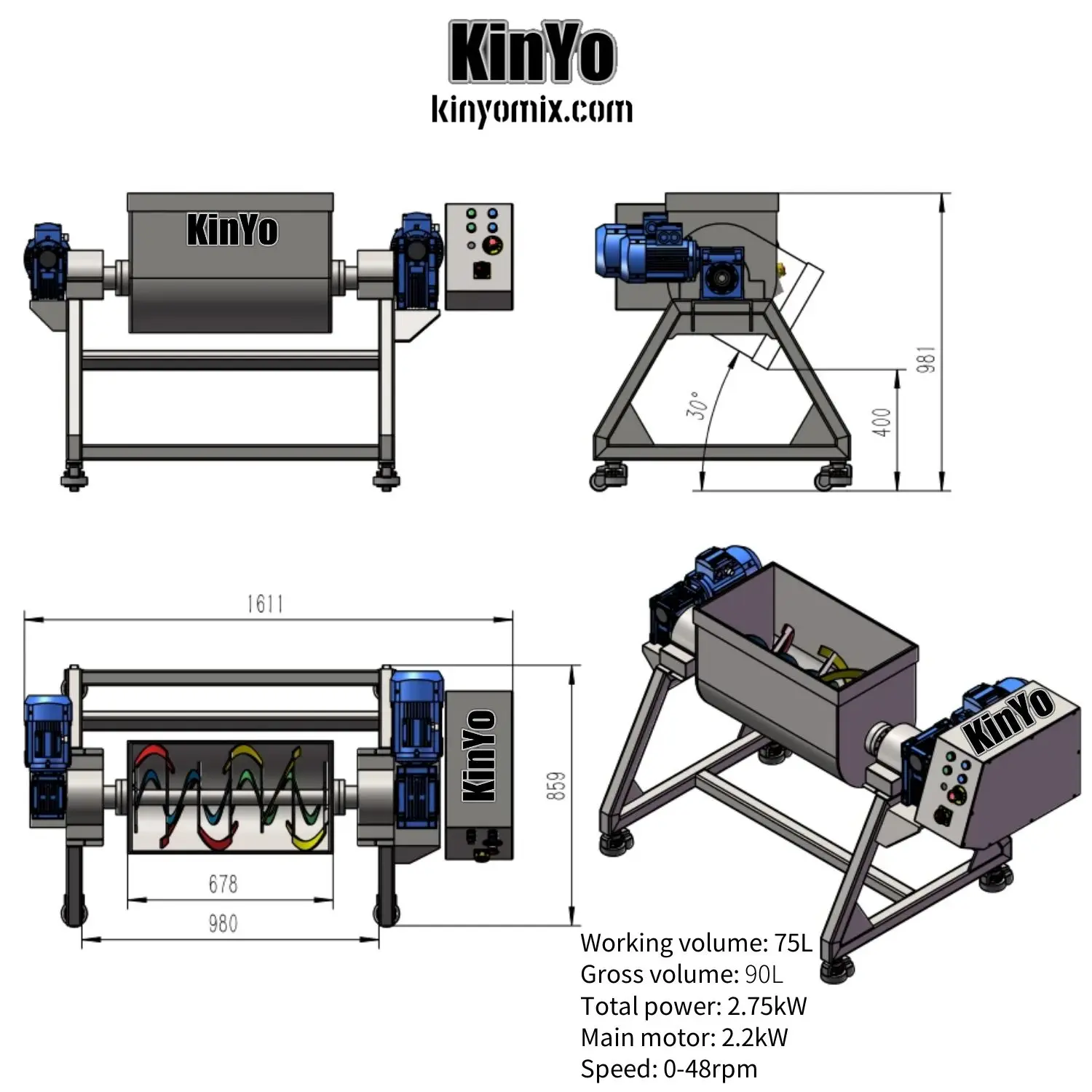

Size(L*W*H) | 1610*860*980mm | 1520*950*1100mm | 2100*1300*1250mm | 2250*1370*1300mm |
Design Capability

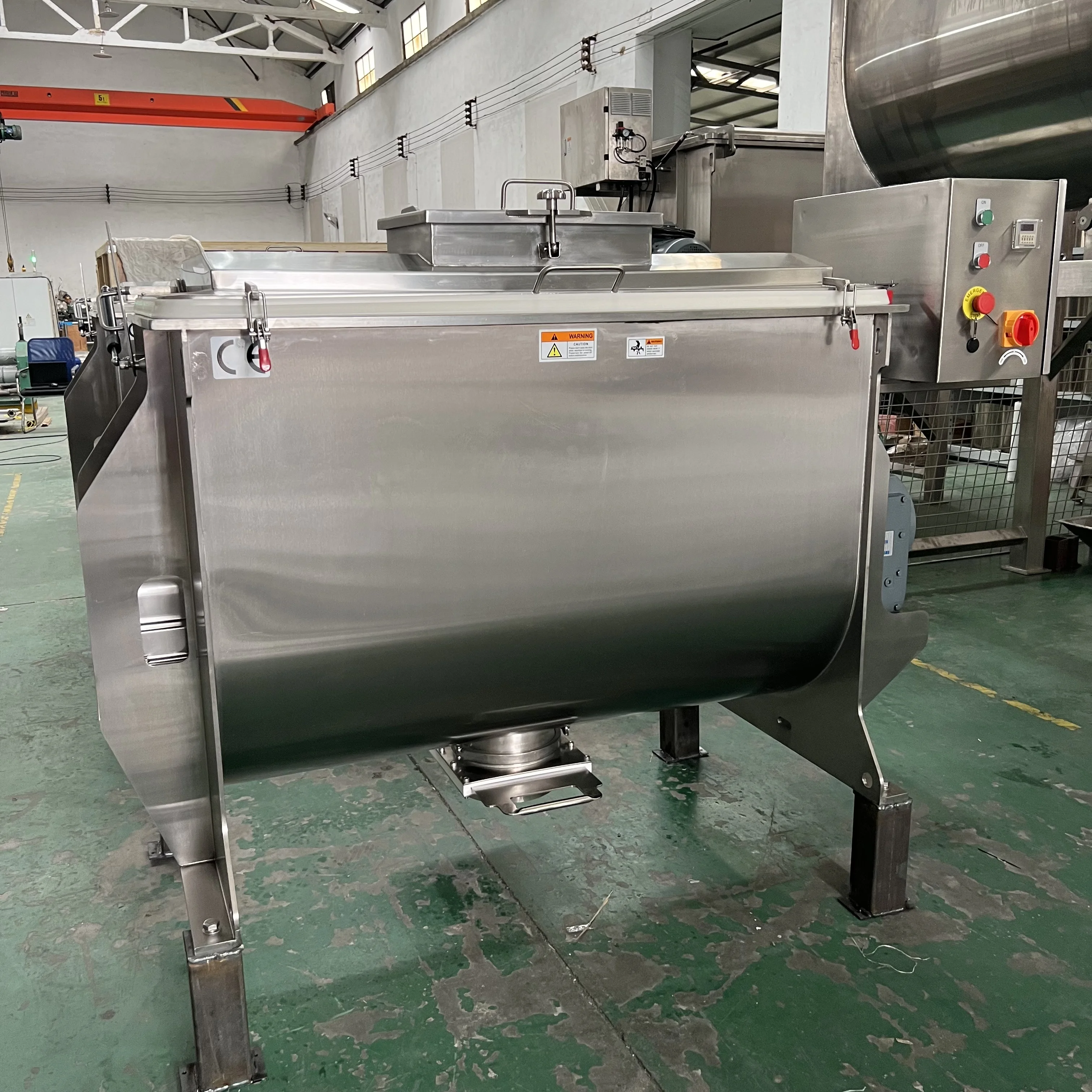

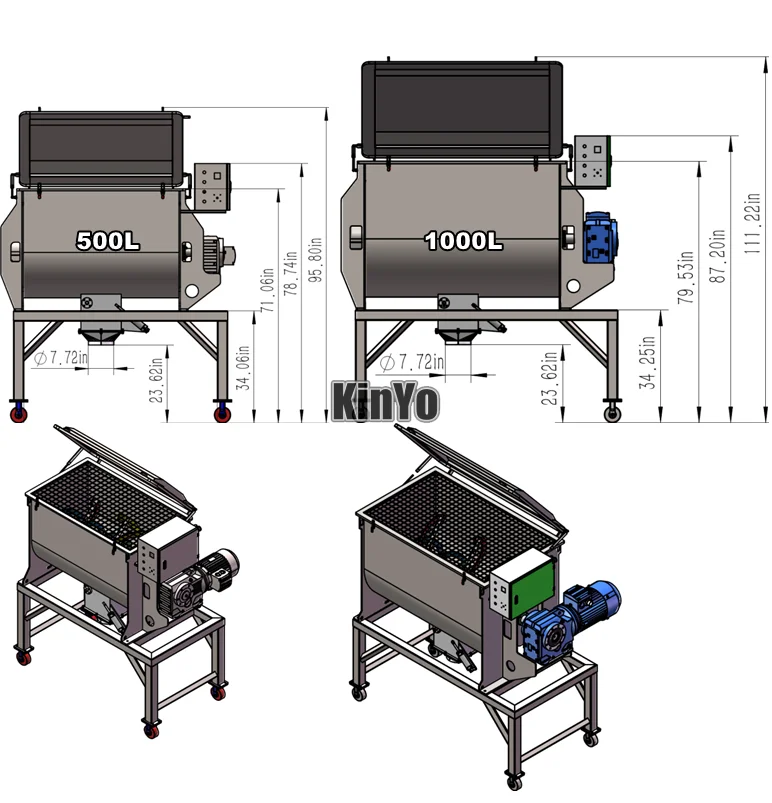

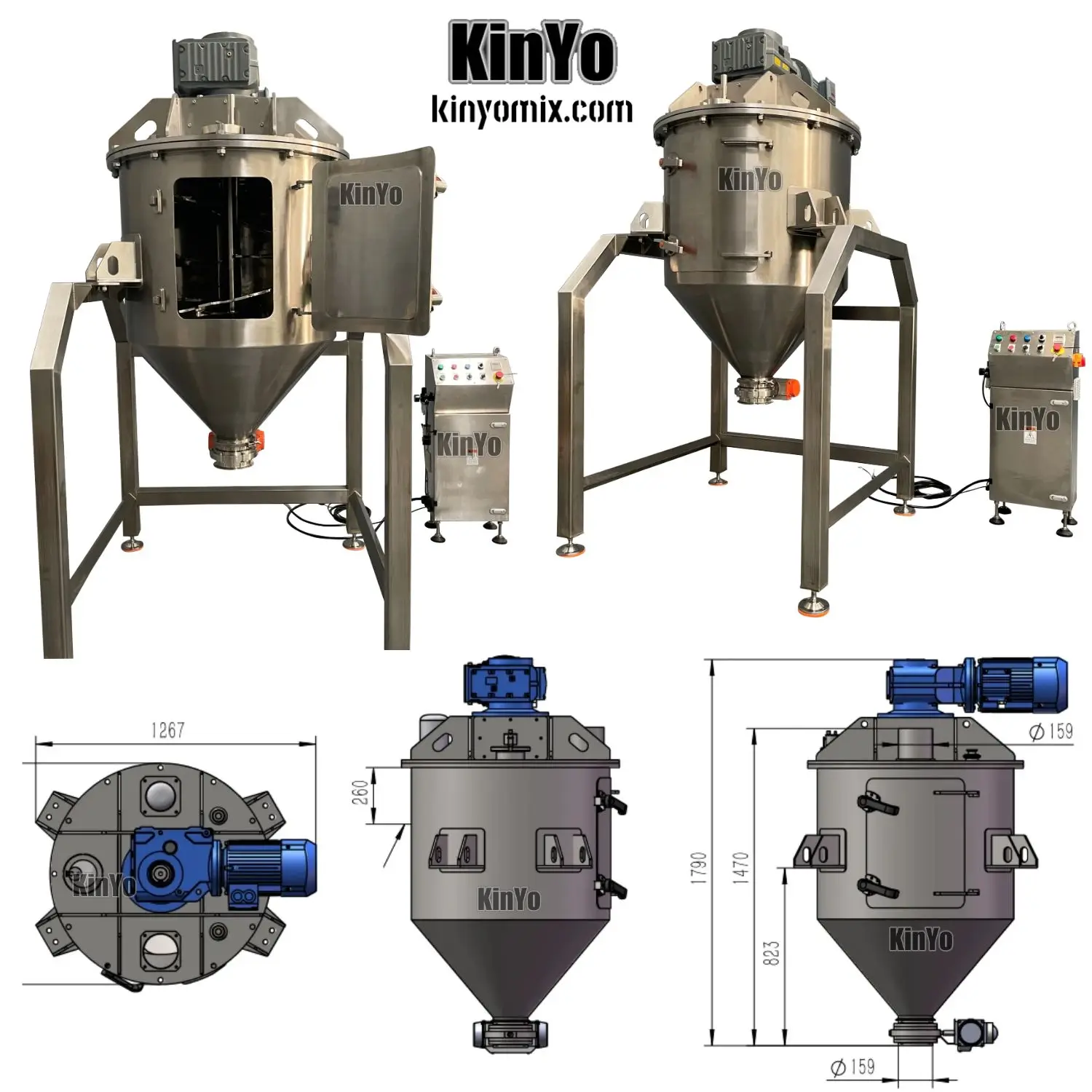

500L vertical ribbon blender
√ Fully welded and highly polished
√ Optional liquid addition by nozzle
√ Optional discharging valve on demand
√ Big-sized inspectioni door
√ Less residue

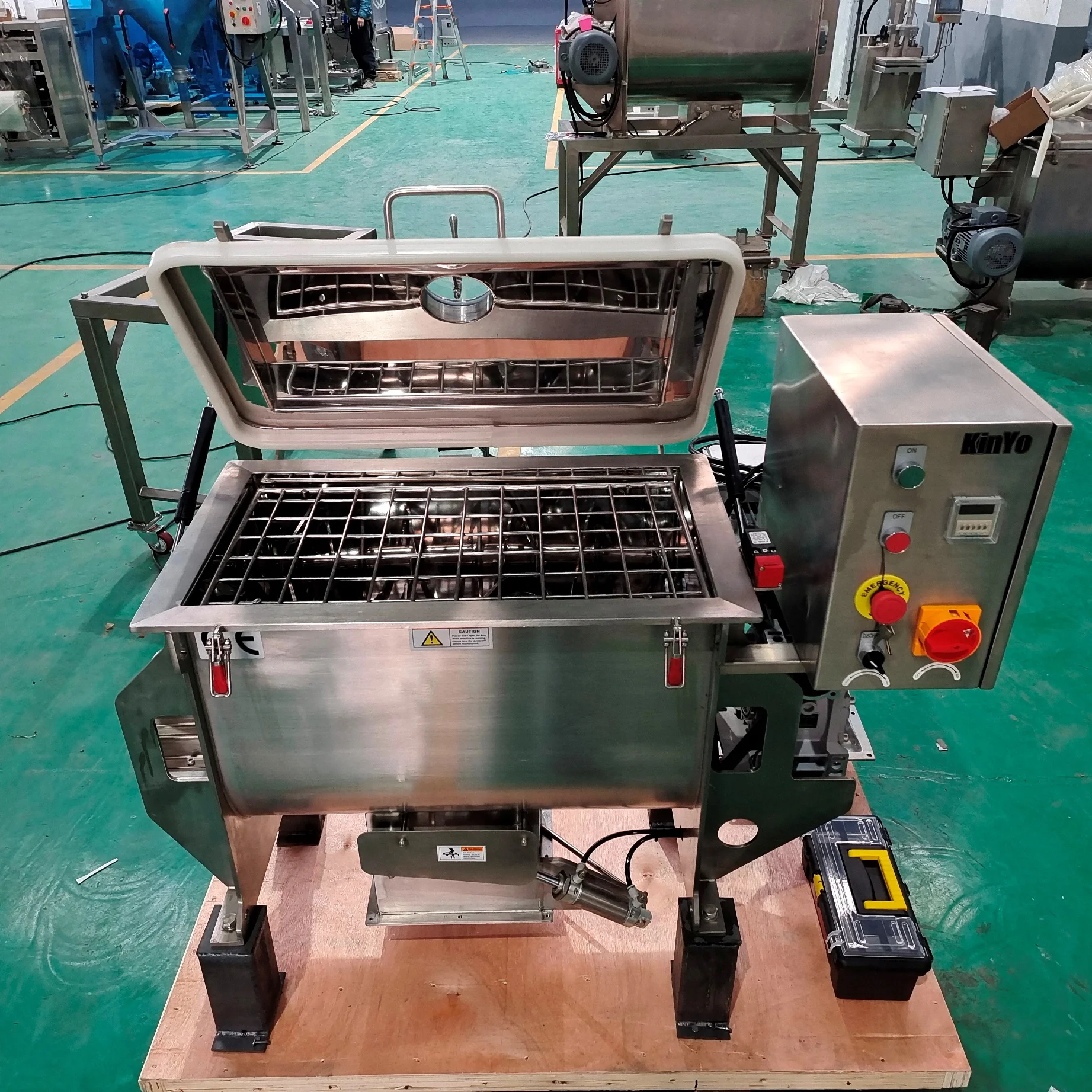

40L horizonal ribbon blender. Open-sided
√ Fully welded and highly polished
√ Optional liquid addition by nozzle
√ Optional discharging valve on demand
√ Open-sided
√ Friendly to clean
Why Choose Us
Features
1. Toilless cover:
1.1. Limit switch;
1.2. Gas spring;
1.3. Rounded corners;
2. Food-grade silicone seal;
1.2. Gas spring;
1.3. Rounded corners;
2. Food-grade silicone seal;

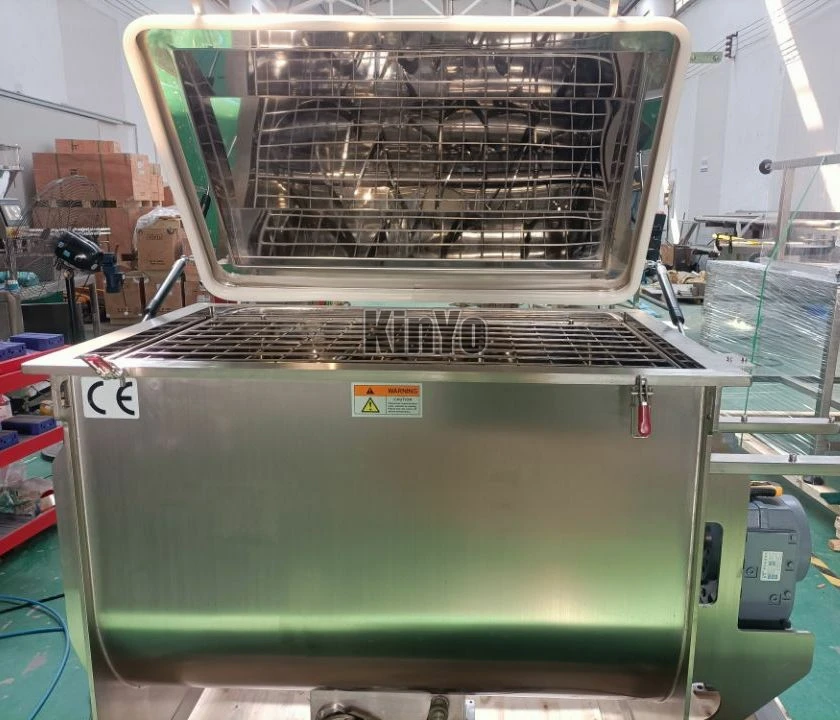

3. Grating
4. Integral shaft
5. Shaft end seal
6. Pneumatic discharging
7. All stainless steel construction
8. Dust-proof bearing cover
9. Rigid gear reducer
10. Mixing time regulable by relay
11. Four castors for moving anywhere
12. Seamless shaft
4. Integral shaft
5. Shaft end seal
6. Pneumatic discharging
7. All stainless steel construction
8. Dust-proof bearing cover
9. Rigid gear reducer
10. Mixing time regulable by relay
11. Four castors for moving anywhere
12. Seamless shaft

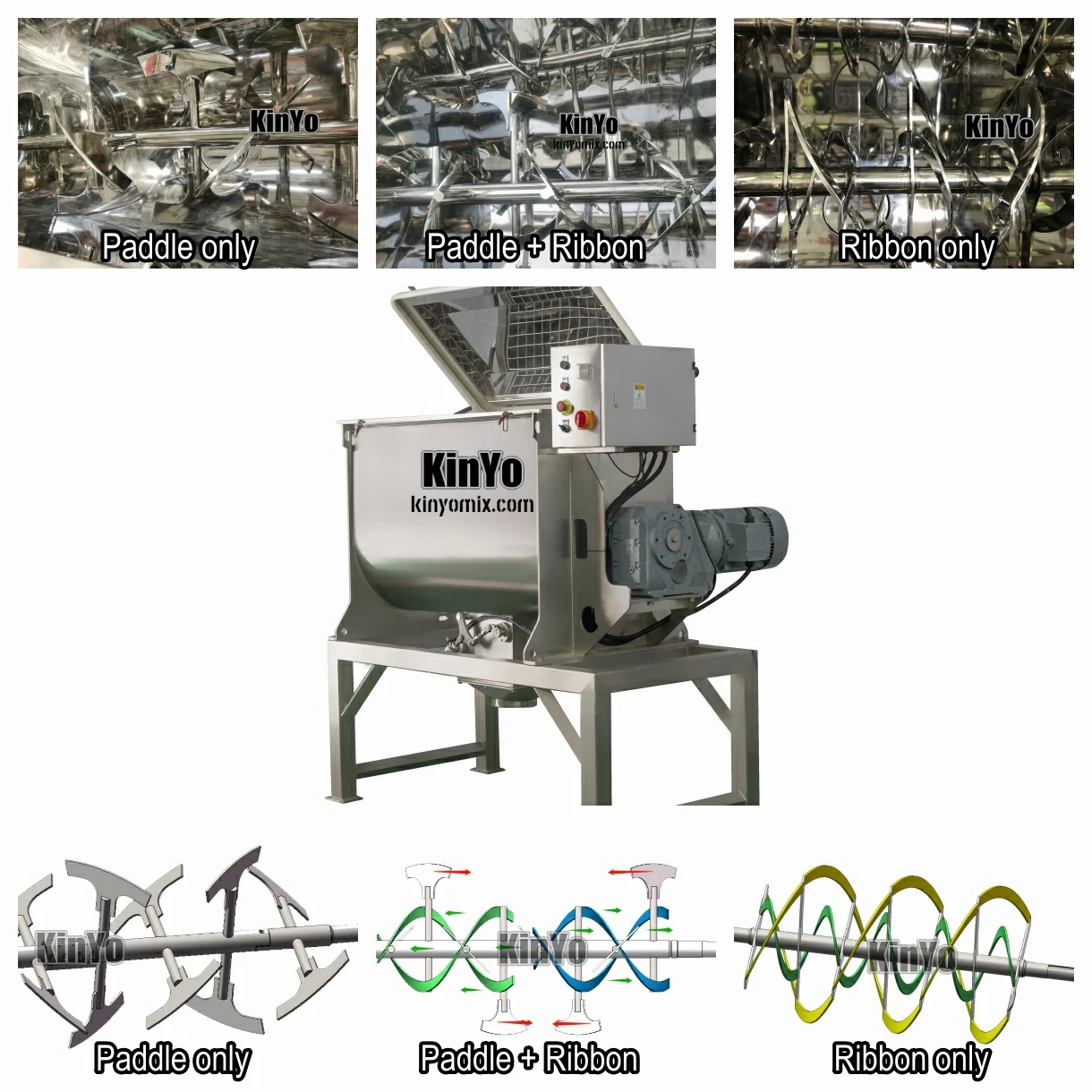

Ribbons inside (single shaft)

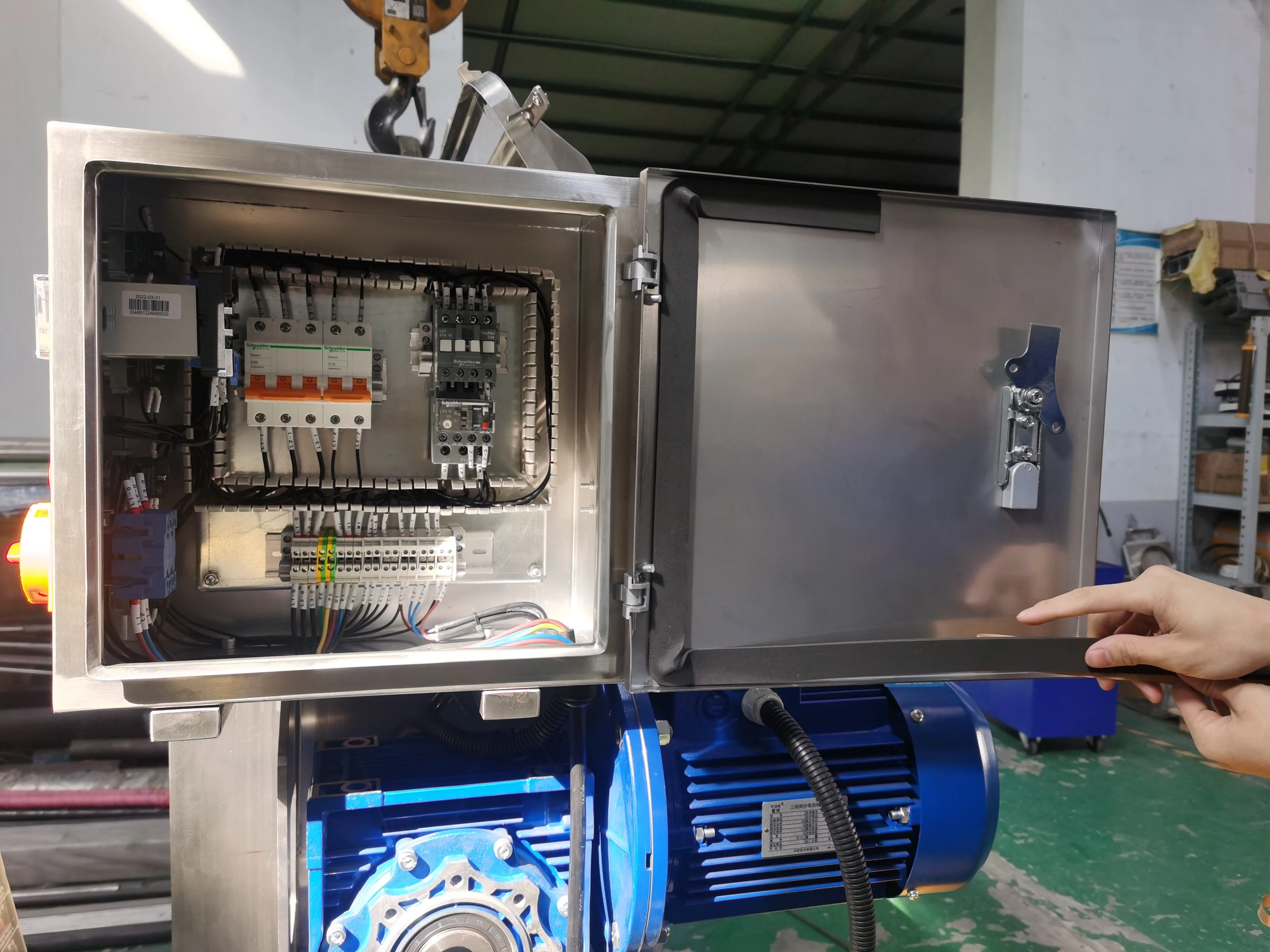

Schneider
Electrical elements
Round for easier clean-up
Liquid hopper for spraying
Made in Korea water-oil filter
Limit switch for safety
Shaft
Cancaved outlet valve for less leftover
Hardened gearbox
Optional VFD for speed control
Dust-proof for bearing

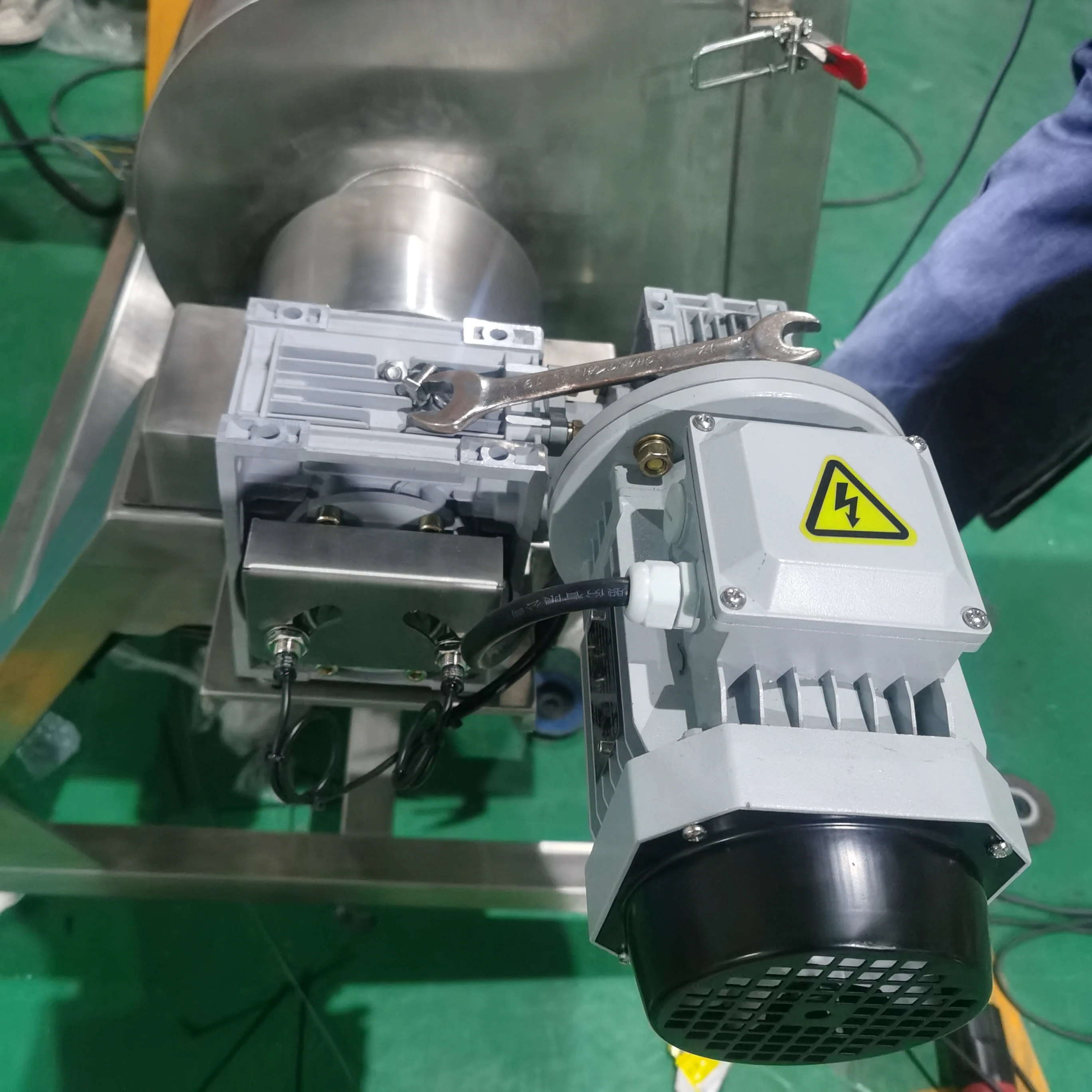

Worm reducer for 100L blender
Protection for pneumatic discharging
Liquid pump for spraying
Optional stair and platform

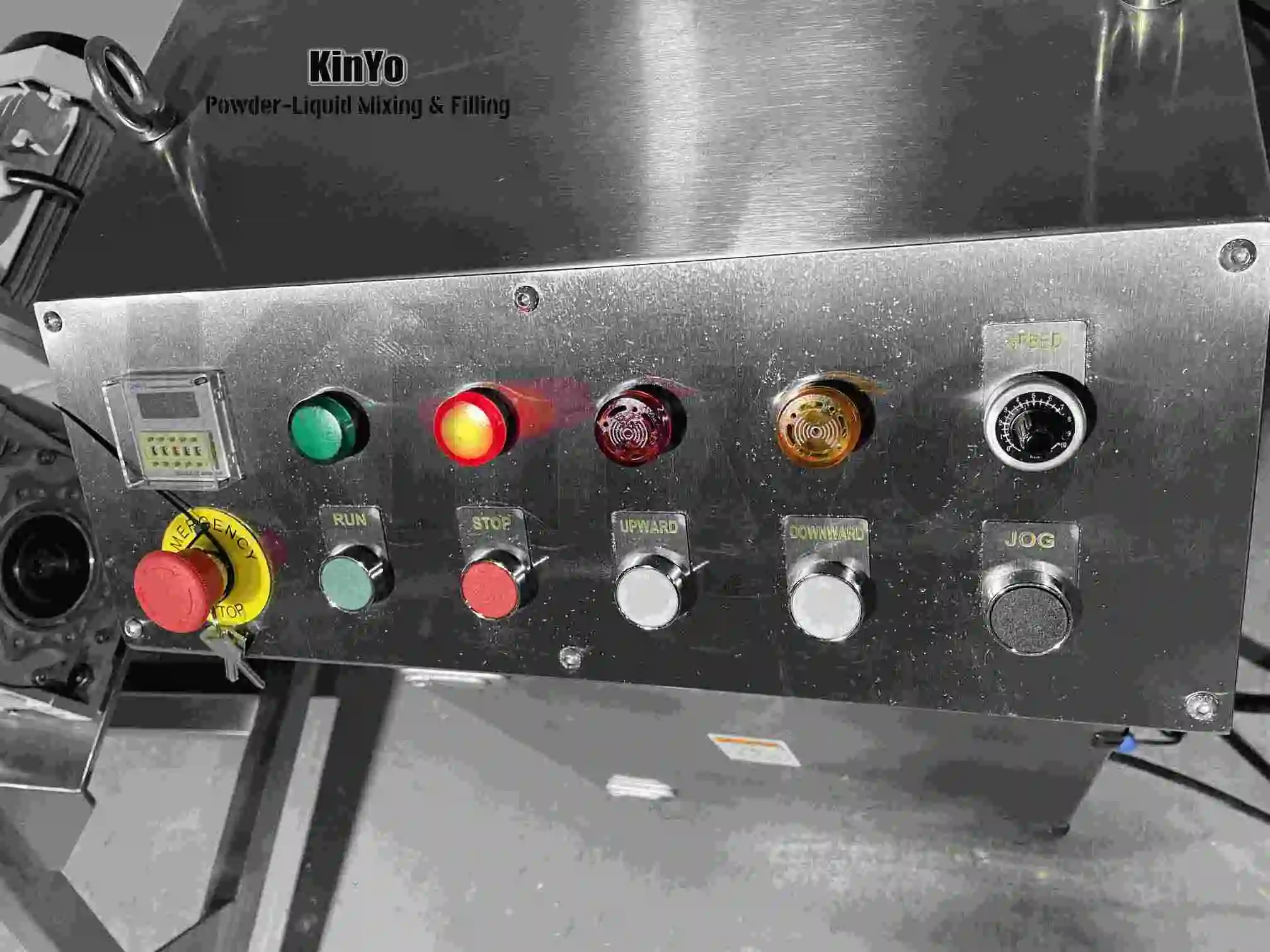

Relay control for mixing time
Bottom view of outlet
Related Products

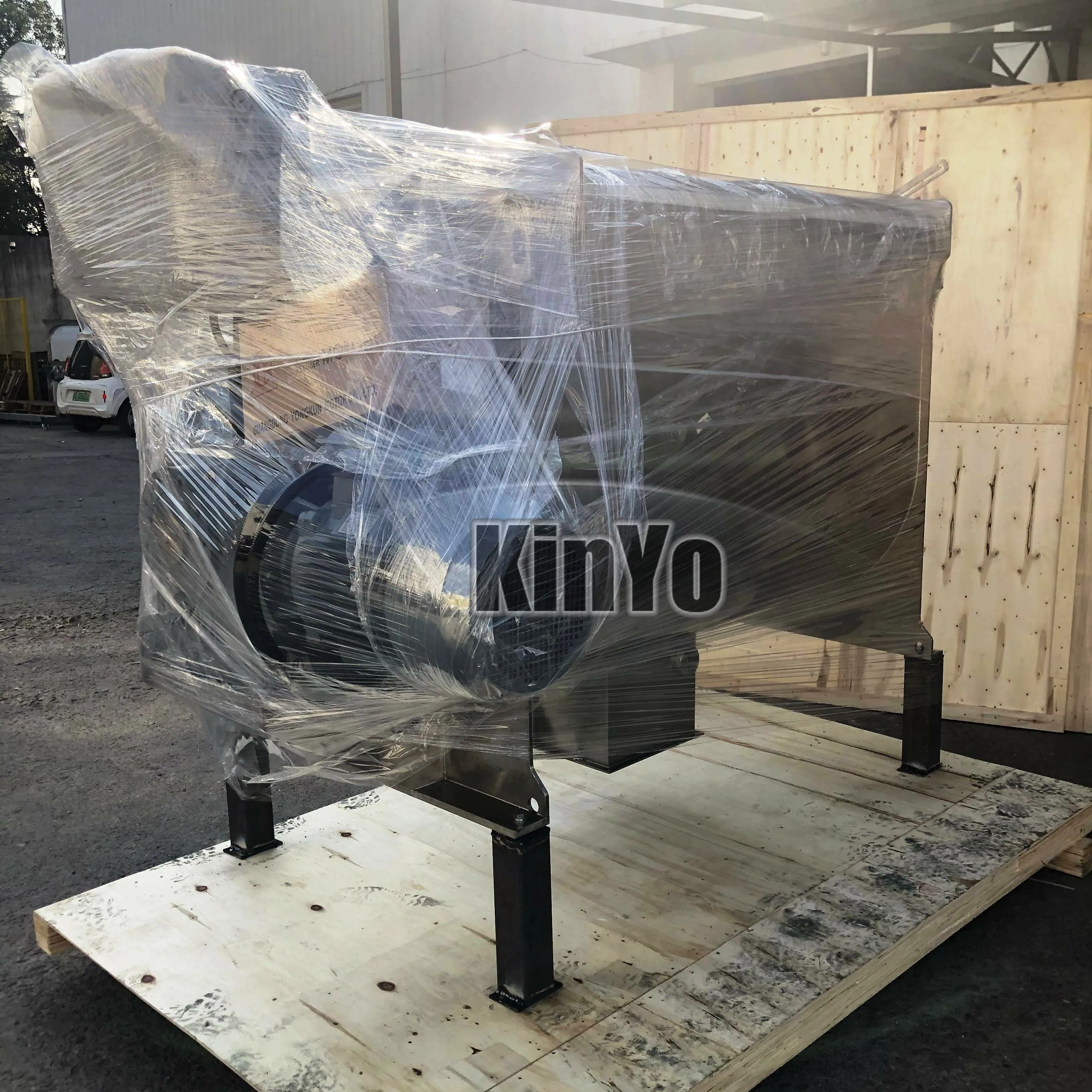

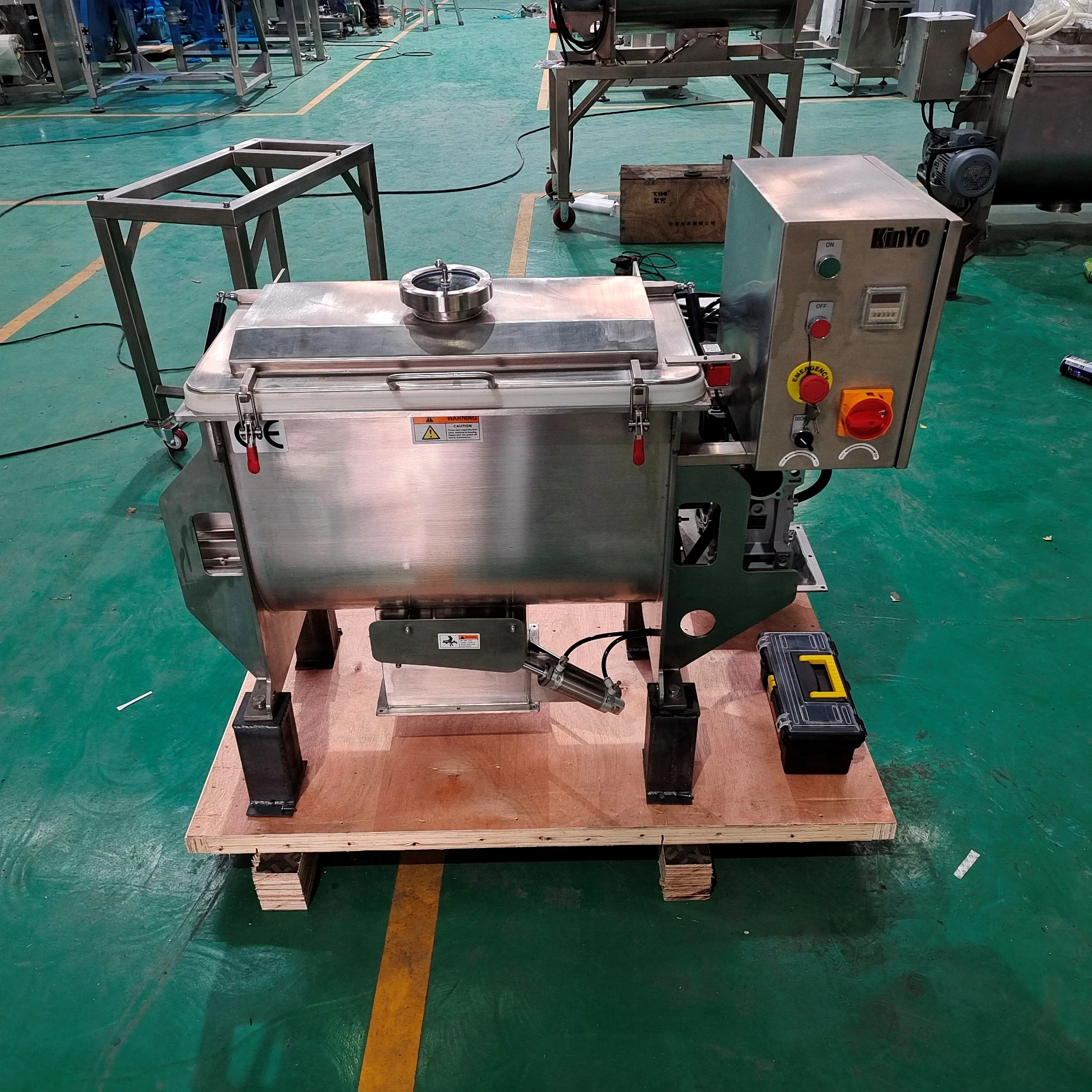

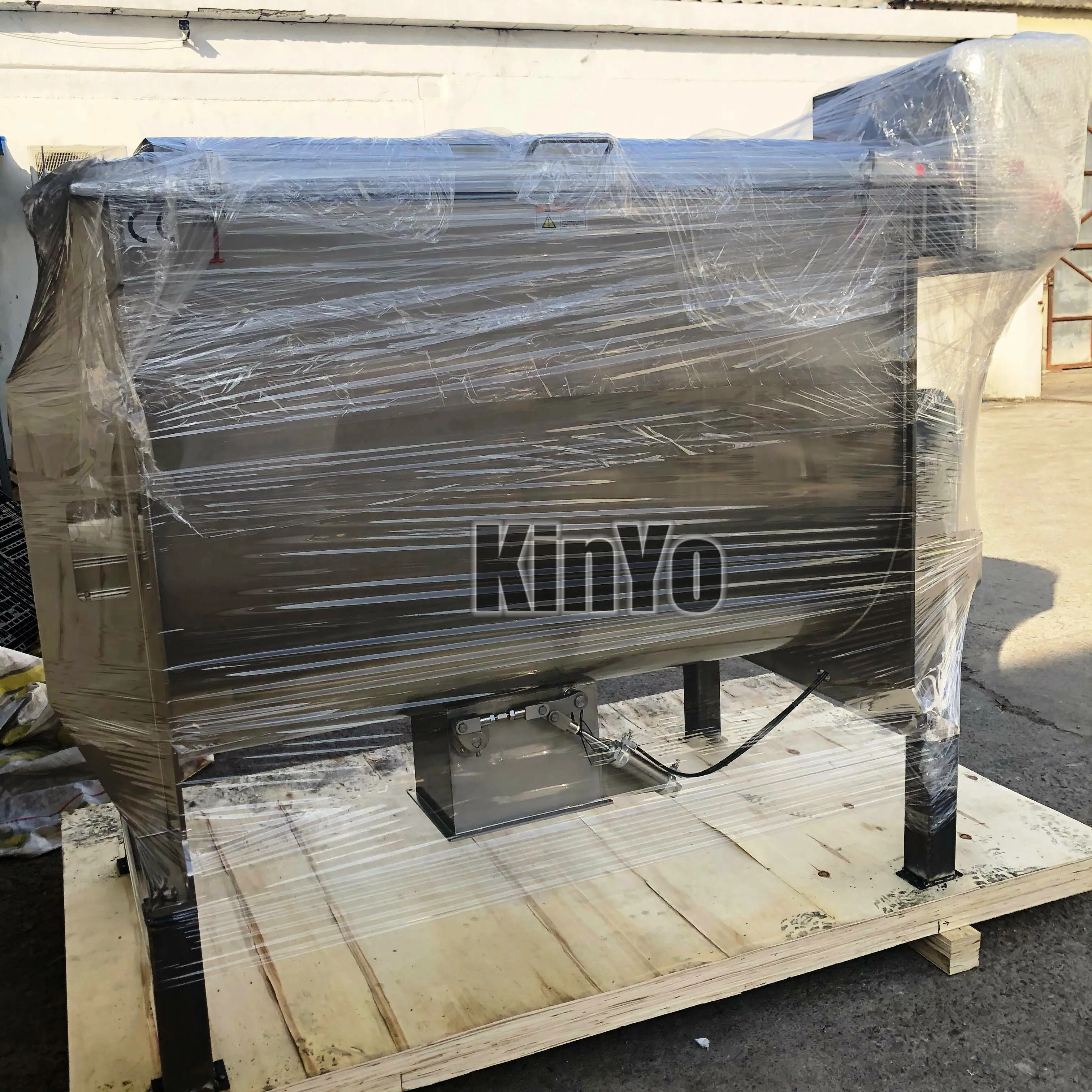

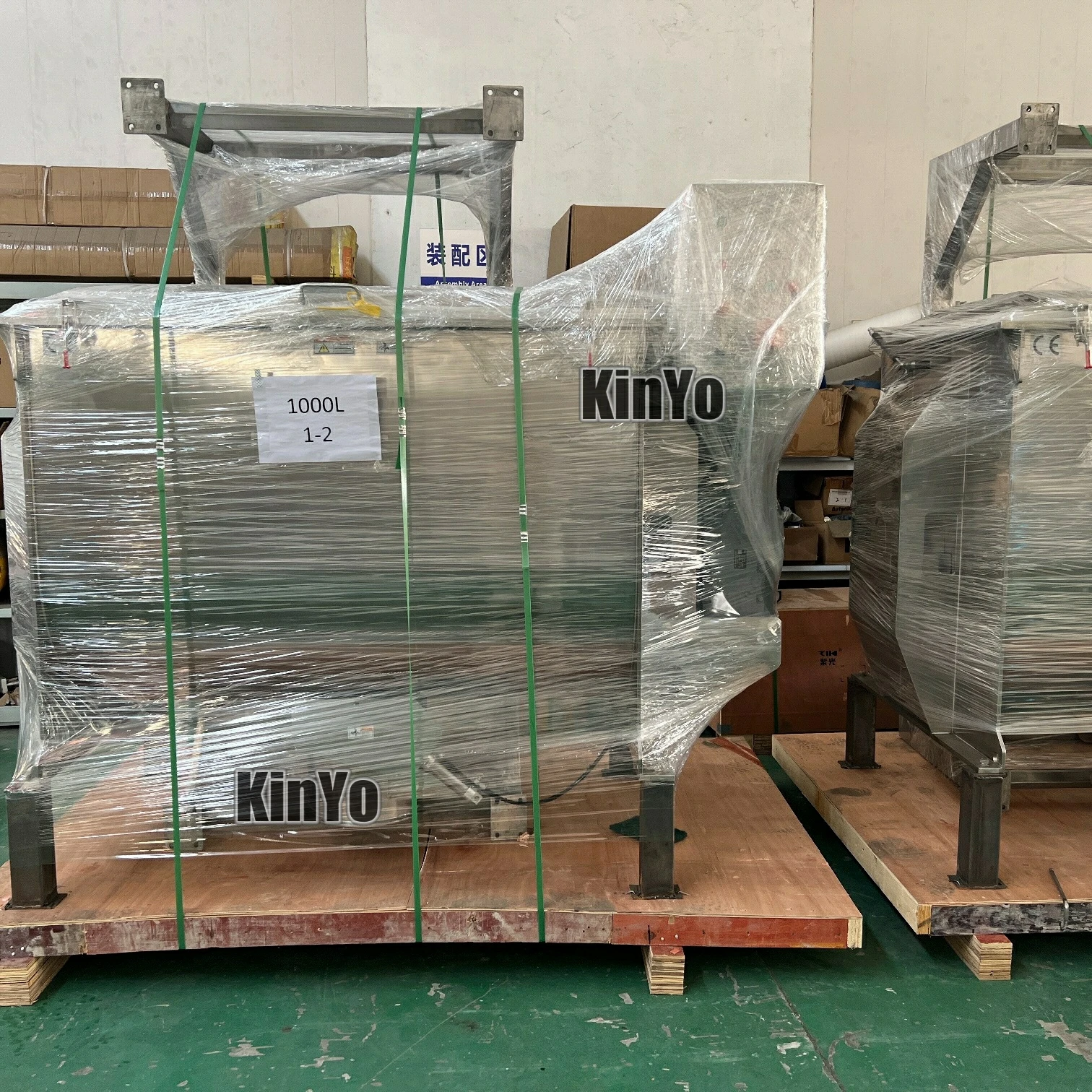

Product packaging
