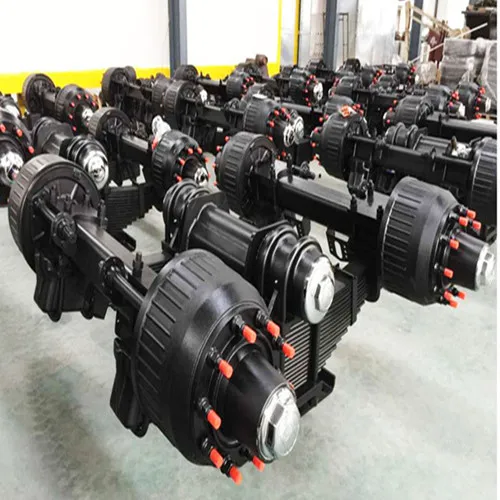

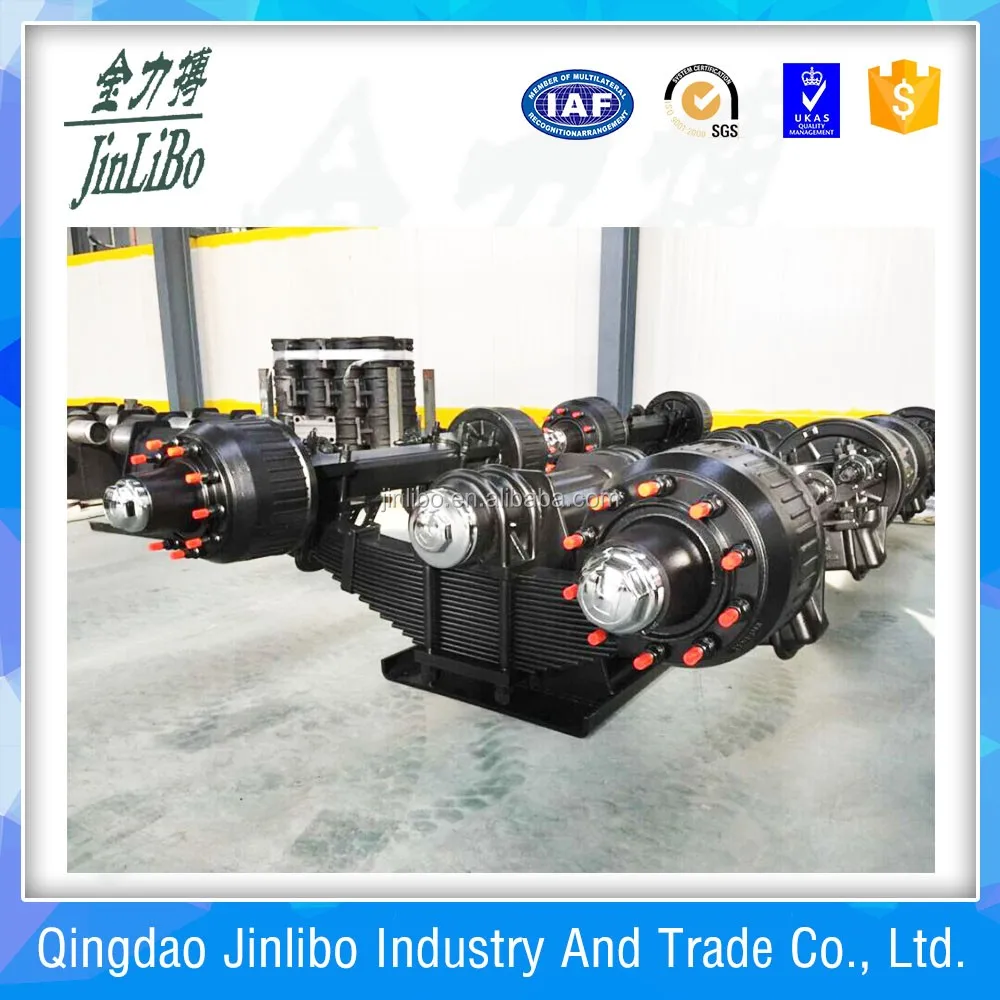

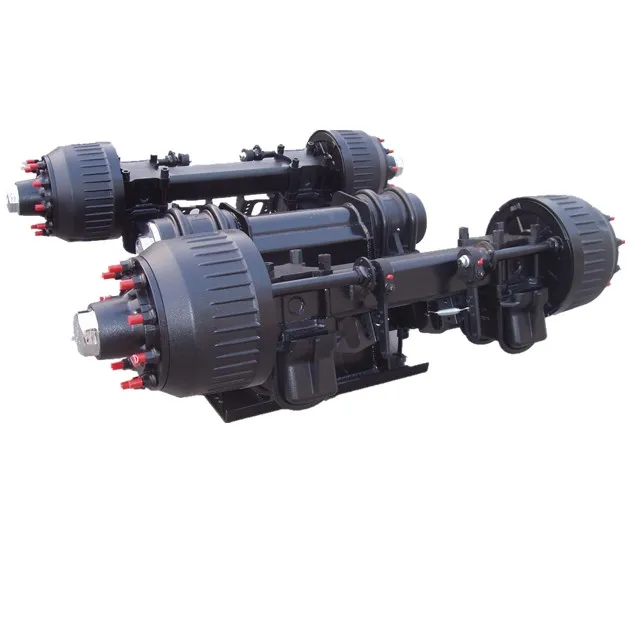

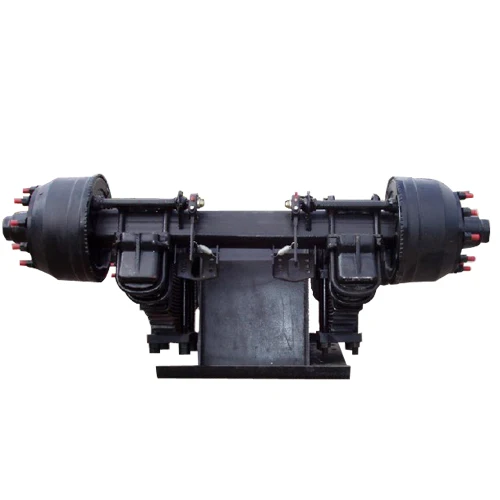

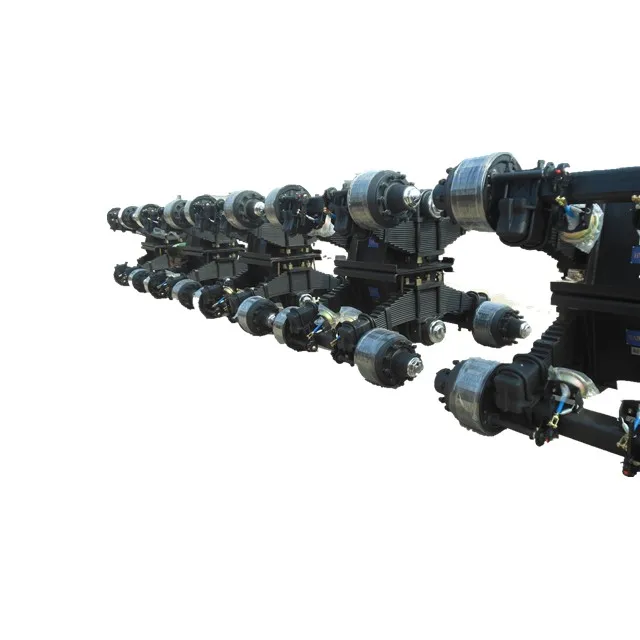

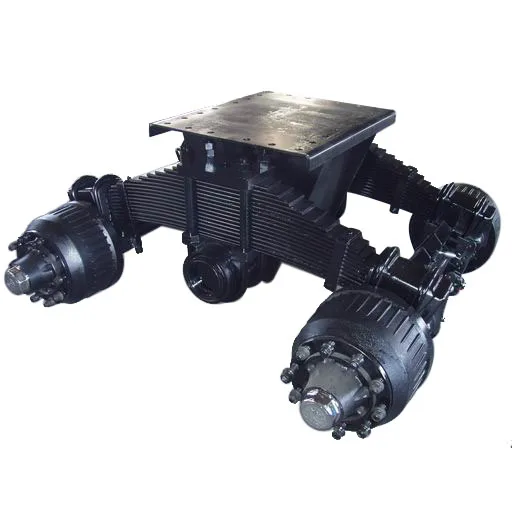

Factory Manufacture 24t Germany Type Bogie Suspension Use Trailer Axle

Product Overview

Description





China supplier train bogie design suspension parts

Rated Load (kg)	Weight (kg)	Bearing Type	Axle Beam	Brake Size	Track Length A	P.C.D.
24000	2020	33118  33213	SQUARE 150*14	420*180	1870mm	335
24000	2080	33118  33213	SQUARE 150*14	420*200	1870mm	335
28000	2455	33215  32219	SQUARE 150*14	420*200	1870mm	335
32000	2520	32314  32222	SQUARE 150*16	420*200	1870mm	335
36000	2600	32314  32222	SQUARE 150*18	420*220	1870mm	335

Tyre Bolt	Steel Turn Position	Wheel Base B	C      mm	D      mm	E      mm	F      mm
10-M22*1.5	280	1385	900	600	700	55
10-M22*1.5	280	1385	900	600	700	55
10-M22*1.5	280	1550	900	600	700	55
10-M22*1.5	280	1550	900	600	700	55
10-M22*1.5	280	1550	900	600	700	55





Novel design and various styles.

Excellent materials.

professional and animated design.

environmmentally favorable materials and equirpments.

Providing the top quality and best services.

Marvelous and satisfactory after-sale services.

Colors,sizes and etc.can be adjusted as your requirements.

A small majority orders are acceptable.

Your any order  will be enthusiastically welcomed.

Q1:Are you a factory?

A:Yes,we are a factory,but not just a factory,as we have sales team,our own offices,and they

all can help the buyers and cooperative partners to decide which products are the best choices

for them,and all your requirements and inquires will be replyed in time.



Q2:What's your Delivery Time?

A:In general, the delivery time is 15-20 days.We will make the delivery as soon as possible with

the guaranted quality.



Q3:What is the convenient way to pay?

A:L/C , T/T,Unionpay,DP are accepted,and if you have a better idea , please be free sharing with us.



Q4:Which type of shipping would be better?

A:Generally,in consideration of the cheap and safe superiorities of sea transportation,we advice

to make delivery by sea.What's more, we respect your views of other transportation as well.
