Product Overview

Description



Product Description

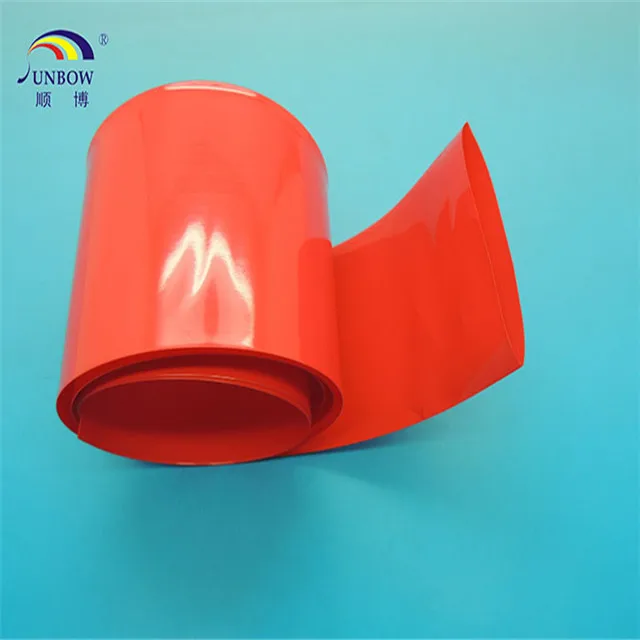

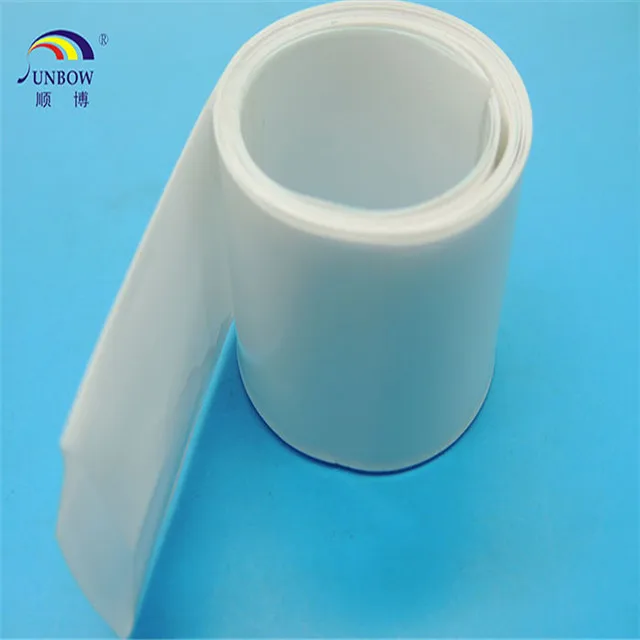

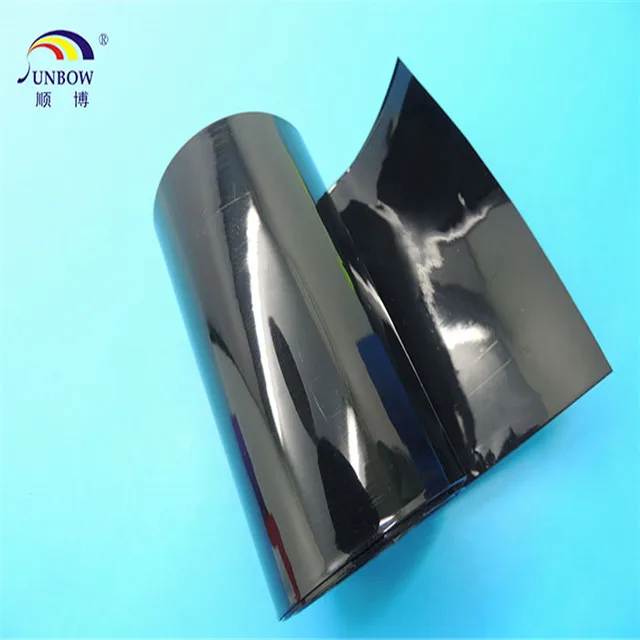

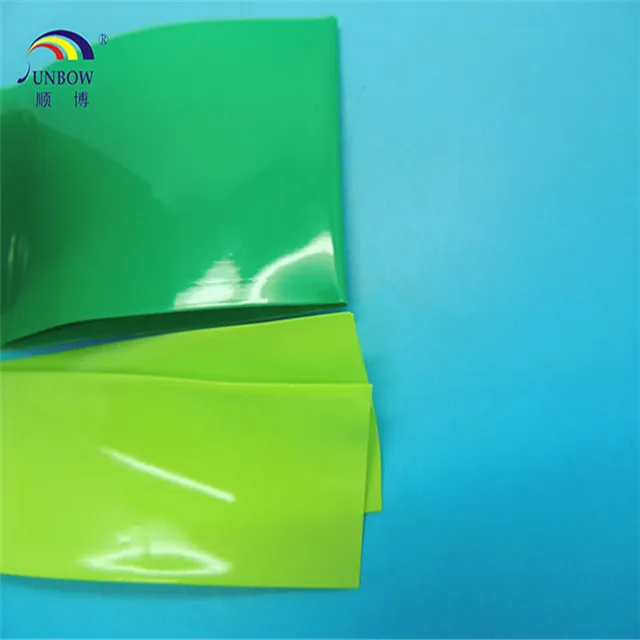

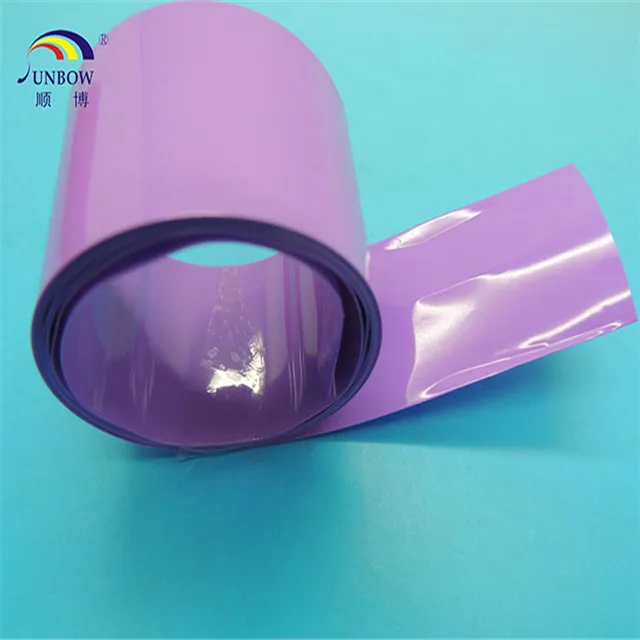

Good Selling PVC Heat Shrink Wrap Tube Blue Color for 18650 21700 32650 Battery pack


Model number：SB-PVC-HST

Operating temperature: -45°C~125°C


Structure
PVC heat shrinkable tubing is produced with excellent and
environmental protective PVC colloidal particle, treated by
evaporation, then extruded to tubing when heated up and
liquidated by extruding machine, and coiling packed after
cooling
Usage
PVC heat shrinkable tubing possesses excellent flexibility,
mechanical and dielectric capability, flame resistance, low temperature shrinkage etc. It is widely applied in outside
insulating protection of outgoing wires of electrical appliances, motors, sensors and transformers, bunchy wires and electronic components, gaseous and liquid pipelines etc.


Property
Test method
Standard
Tensile strength
≥4000Pa/m2
Dielectric voltage withstand
10 seconds
≥8KV
Volume resistivity
Normal temperature Relative temperature≤65%
≥1015Ω/cm3
Resistance to second shrinkage
185ºC 15 seconds
≤20%
Resistance to second shrinkage
Dipping in 160ºC silicone oil after recovered with capacitor for 3 minutes
Excellent appearance



AWG No.

Inner Diameter(mm)
Wall Thickness (mm)

Package size(m/r)
SB-300
SB-600
20
0.85±0.1
0.25±0.05
0.40±0.05
500
19
0.9±0.1
0.30±0.05
0.40±0.05
500
18
1.0±0.15
0.30±0.05
0.45±0.05
500
17
1.2±0.15
0.30±0.05
0.45±0.05
300
16
1.3±0.15
0.30±0.05
0.45±0.05
300

AWG No.

Inner Diameter(mm)
Wall Thickness (mm)
Package size(m/r)
SB-300
SB-600
15
1.5±0.15
0.30±0.05
0.45±0.05
300
14
1.7±0.15
0.30±0.05
0.45±0.05
300
13
1.9±0.2
0.30±0.05
0.45±0.05
300
12
2.1±0.2
0.35±0.05
0.50±0.05
300
11
2.4±0.2
0.35±0.05
0.50±0.05
300
10
2.7±0.2
0.35±0.05
0.50±0.05
300
9
3.0±0.2
0.40±0.05
0.50±0.05
300
8
3.3±0.2
0.40±0.05
0.50±0.05
300
7
3.7±0.2
0.40±0.05
0.50±0.05
300
6
4.2±0.3
0.45±0.05
0.50±0.05
300
5
4.7±0.3
0.45±0.05
0.55±0.05
300
4
5.3±0.3
0.45±0.05
0.55±0.05
300
3
5.9±0.3
0.45±0.05
0.55±0.05
200
2
6.6±0.3
0.45±0.05
0.55±0.05
200
1
7.4±0.35
0.45±0.05
0.55±0.55
150
0
8.3±0.35
0.45±0.05
0.55±0.55
100




Good Selling PVC Heat Shrink Wrap Tube Blue Color for 18650 21700 32650 Battery pack


Related Products




Certificate

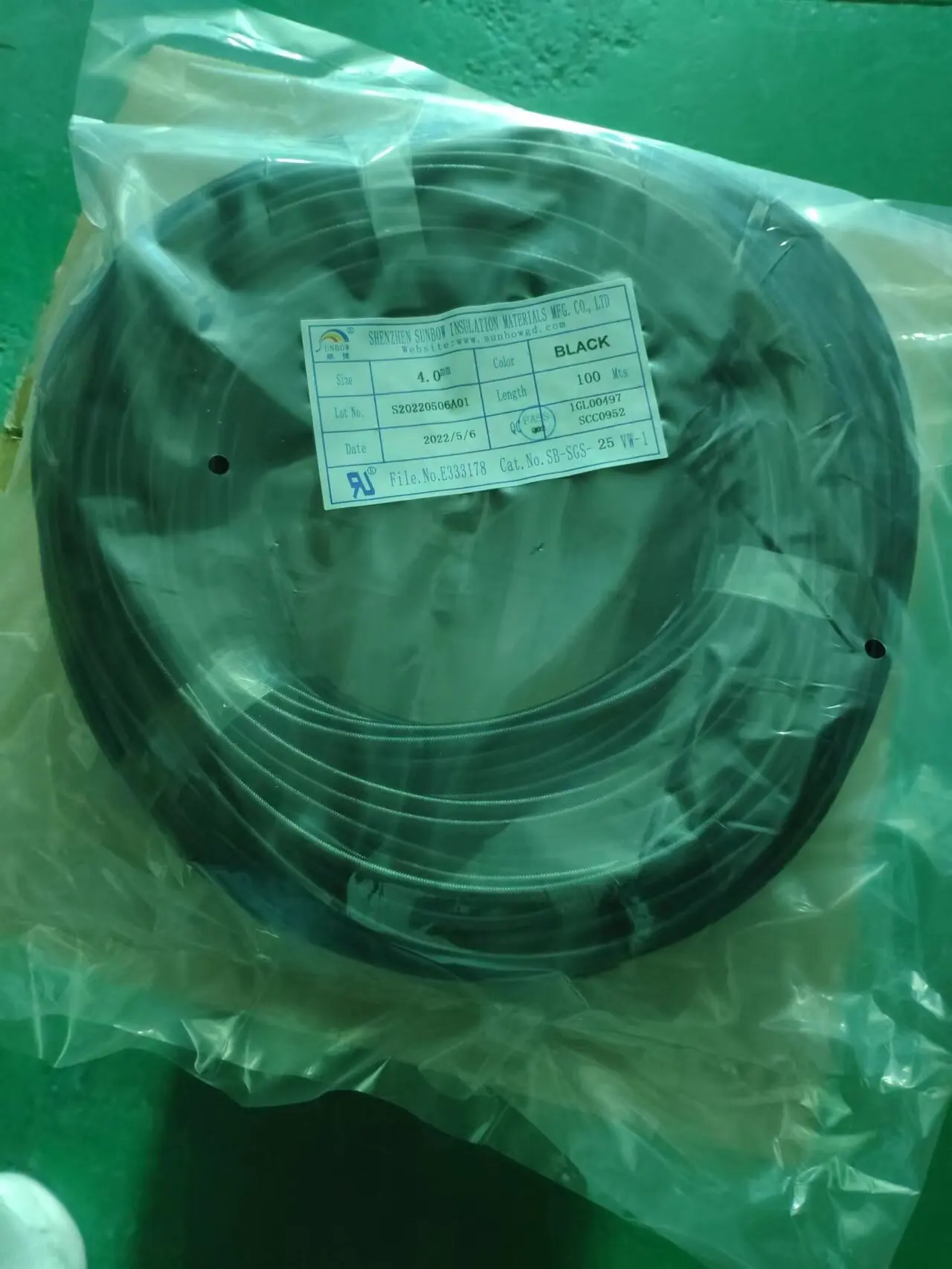

Packing&Shipping






Good Selling PVC Heat Shrink Wrap Tube Blue Color for 18650 21700 32650 Battery pack

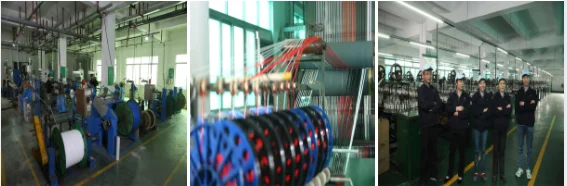

Company Introduction


Shenzhen Sunbow Insulation Materials MFG CO., LTD. is ISO9001:2008 approval insulation sleeving manufacturer.
It is locatedinShenzhen, China. Our main products include: Fiberglass sleevings (with/without coating)
Heat shrink tubes. (PE, Silicone, PTFE,PVC material / shrink ratio 2:1, 3:1,4:1)
Silicone tubes / PTFE tubes / PVC tubes
Expandable braided sleevings (PET, PA6,PA66,PPS)
Nomex tubing, Polyimide film tubing, PET tubing (Mylar tubing) / Insulation Wire.




Our Services & Strength
1).Free samples for evaluation
2).Quick production&fast delivery
3).2 years quality guarantee
4).Prompt response&technical support
5).24 hours online service


Cooprative Partner




FAQ


Q1. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q2. How about your delivery time?
A: Generally, it will take 20 to60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q3.Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds andfixtures.

Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the
sample cost and the courier cost.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6:How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure ourcustomers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
