Высокоэкструзионная фторкремниевая смесь, резина FVMQ для уплотнительных полосок и фторсиликоновых шлангов, экструдированные фторосиликоновые детали
- Category: Fluorocarbon Rubber >>>
- Supplier: Jiangsu FreChem Co. Ltd.
Share on (1600872812965):
Product Overview
Description
Product Description
FVMQ(Fluorosilicone)
Fluorosilicone (FVMQ) is like side chains of silicone rubber, bonding trifluoropropyl, methyl and vinyl. The mechanical and physical properties are similar to VMQ. However, FVMQ offers improved fuel and mineral oil resistance, but less hot air resistance than standard VMQ.

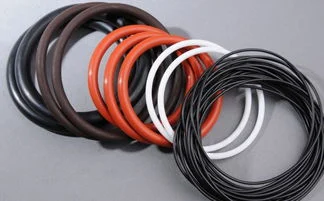

Fluorosilicone is the material resulting from the compounding of fluoroelastomer (FKM) and silicone. With great compression set and performance in high and low temperatures, fluorosilicone o-rings are becoming more widely accepted for general purpose use. Nonetheless, fluorosilicone o-rings are most commonly utilized in aerospace applications, especially with high regard to its resistance to jet fuel. Fluorosilicone o-rings have low abrasion resistance and are preferred for use in static environments.
Fluorosilicone is the material resulting from the compounding of fluoroelastomer (FKM) and silicone. With great compression set and performance in high and low temperatures, fluorosilicone o-rings are becoming more widely accepted for general purpose use. Nonetheless, fluorosilicone o-rings are most commonly utilized in aerospace applications, especially with high regard to its resistance to jet fuel. Fluorosilicone o-rings have low abrasion resistance and are preferred for use in static environments.
Specification
Fluorosilicone rubber combines the advantages of silicone rubber and fluoro rubber:
1.Wide temperature range (long-term - 65 ℃- 200 ℃), up to 250 ℃ in short term;
2.Excellent resistance to fuel, engine oil, solvents and chemical media;
3.Lower tensile deformation and better vulcanization recovery ability;
4.It retains the advantages of high tensile retention rate of silicone rubber at high temperature;
3.Lower tensile deformation and better vulcanization recovery ability;
4.It retains the advantages of high tensile retention rate of silicone rubber at high temperature;
5.Good insulation performance;
6.Has good selectional air permeability and meets the requirements of environmental protection;
7.Easy to color.It is suitable for high temperature, low temperature, oil and medium resistant applications.
6.Has good selectional air permeability and meets the requirements of environmental protection;
7.Easy to color.It is suitable for high temperature, low temperature, oil and medium resistant applications.
Product Technical Property of FVMQ
High rebound (low compresion set) F-HR series
Type | F-HR30 | F-HR40 | F-HR50 | F-HR60 | F-HR70 | F-HR80 |
30± 5 | 40± 5 | 50±5 | 60±5 | 70±5 | 80± 5 | |
9.5 | 10.2 | 10.2 | 10.2 | 10.2 | 8.9 | |
430 | 410 | 355 | 332 | 270 | 205 | |
Tear strength (KN / M) die B | 16 | 17 | 17 | 18 | 18 | 17 |
Compression set 177 ℃ 22hr (25%) type B | 6.0 | 6.1 | 6.1 | 6.3 | 6.8 | 6.9 |
Vertical resilience (%) | 31 | 31 | 32 | 32 | 32 | 32 |
Volume change of reference fuel C (%) (23 ℃)×20h） | 17 | 17 | 17 | 17 | 17 | 17 |
Change rate of reference fuel C intensity (%)（23℃×72h） | -20 | -20 | -20 | -20 | -20 | -20 |
Change rate of elongation of reference fuel C （%）（23℃×72h） | -20 | -20 | -20 | -20 | -20 | -20 |
Change rate of heat resistance at 72 ℃ (H) | -17 | -17 | -17 | -17 | -17 | -17 |
Change in elongation of heat aging resistance (%) (72h at 225 ℃) | -10 | -10 | -10 | -10 | -10 | -10 |
Good bonding F-GB series
Type | F-GB60 | F-GB70 |
Hardness (Shore A) | 60±5 | 70±5 |
Tensile strength (MPA) die C | 9.0 | 9.0 |
Elongation at break (%) die C | 350 | 330 |
Tear strength (KN / M) die B | 22 | 23 |
Compression set 177 ℃ 22hr (25%) type B | 11 | 11 |
Volume change of reference fuel C (%) （23℃×70hr） | 17 | 17 |
Reference fuel C intensity change (%)（23℃×70hr） | -20 | -20 |
Change in elongation of reference fuel C (%）（23℃×70hr） | -20 | -20 |
Strength changerate of heat aging performance (%) (70 hours at 225 ℃) | -20 | -20 |
Heat aging resistance elongation change rate (%) (70 hours at 225 ℃) | -10 | -10 |
Adhesion to silica gel kn / M | 2.1 | 2.1 |
High tear resistant F-HTR series
Type | F-HTR40 | F-HTR50 | F-HTR60 | F-HTR70 | F-HTR80 |
Hardness (Shore A) | 40±5 | 50±5 | 60±5 | 70±5 | 80±5 |
Tensile strength (MPA) die C | 11.5 | 11.6 | 11.7 | 9.3 | 8.7 |
Elongation at break (%) die C | 483 | 420 | 392 | 322 | 183 |
Tear strength (KN / M) die B | 41 | 43 | 43 | 35 | 30 |
Compression set 177 ℃ 22hr (25%) type B | 13 | 14 | 16 | 17 | 20 |
Vertical resilience (%) | 17 | 17 | 17 | 17 | 17 |
Volume change of reference fuel C (%) (23 ℃)×20h） | -20 | -20 | -20 | -20 | -20 |
Change rate of reference fuel C intensity (%)（23℃×72h） | -20 | -20 | -20 | -20 | -20 |
Change rate of elongation of reference fuel C （%）（23℃×72h） | -20 | -20 | -20 | -20 | -20 |
Change rate of heat resistance at 72 ℃ (H) | -20 | -20 | -20 | -20 | -20 |
Change in elongation of heat aging resistance (%) (72h at 225 ℃) | -10 | -10 | -10 | -10 | -10 |
Extrusion F-ET series
Type | F-ET50 | F-ET60 | F-ET70 | F-ET80 |
Hardness (Shore A) | 50 ± 5 | 60 ± 5 | 70 ± 5 | 80 ± 5 |
Tensile strength (MPA) die C | 9.2 | 9.3 | 9.4 | 8.1 |
Elongation at break (%) die C | 337 | 293 | 273 | 173 |
Tear strength (KN / M) die B | 16 | 16 | 17 | 16 |
Compression set 177 ℃ 22hr (25%) type B | 7 | 8 | 9 | 9 |
Vertical resilience (%) | 17 | 17 | 17 | 17 |
Volume change of reference fuel C (%) (23 ℃)×20h） | -20 | -20 | -20 | -20 |
Change rate of reference fuel C intensity (%)（23℃×72h） | -20 | -20 | -20 | -20 |
Change rate of elongation of reference fuel C （%）（23℃×72h） | -20 | -20 | -20 | -20 |
Change rate of heat resistance at 72 ℃ (H) | -20 | -20 | -20 | -20 |
Change in elongation of heat aging resistance (%) (72h at 225 ℃) | -10 | -10 | -10 | -10 |
Note:
1.The curing agent is 2,5 dimethyl-2,5 Di tert butyl hexane peroxide (DBPH), and the dosage is 0.53gDBPH/100g precompound.
2.Press cure: 170 ℃* 10min, post cure: 200 ℃*4H.
Using method:
Mixing: Firstly mixing several times in open mixer, adding vulcanizing agent, keep mixing until the vulcanizing agent fully mixed inside the material; then reduce the roller distance to 0.5mm-1mm and mixing for 8-10 times. Vulcanization: After above mixing, the rubber mixture with vulcanizing agent will be made into rubber sheet or cut into the required shape, and then molded and vulcanized on the molding machine.
Storage :
Store in a dry environment at room temperature for one year.

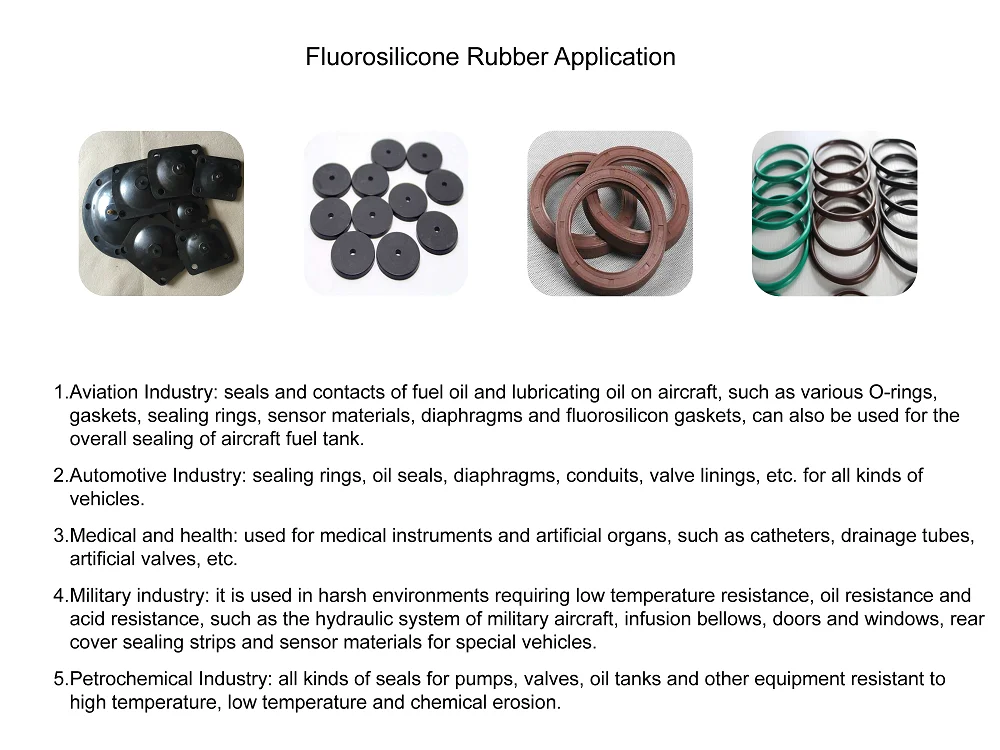

Application
Packing & Shipping
About us
Jiangsu FreChem Co., Ltd.
FreChem is a professional research & development, manufacturer of high performance rubber compounds, special additives and fluorochemicals.
Starting from 2014, FreChem has now become one of the leading manufacturers of rubber compounds in China.
Thanks to our research & development capabilities, FreChem is able to provide highly qualified rubber compounds to global customers: Fluoroelastomer(FKM), Fluorosilicones(FVMQ),HNBR compounds, NBR compounds, EPDM compounds, SBR compounds, PVDF, PVDC, PTFE, PFA, FEP and so on.
FreChem expects to offer best solution as well as customization in order to meet customers’ special needs. The equipment and special know- how used in production control guarantee that our compounds respond to the customer requirement and provide high consistency standards.
Our vision is to become an excellent partners with customers and we will improve and focalize our skill on final application to develop compounds with high added value.
Starting from 2014, FreChem has now become one of the leading manufacturers of rubber compounds in China.
Thanks to our research & development capabilities, FreChem is able to provide highly qualified rubber compounds to global customers: Fluoroelastomer(FKM), Fluorosilicones(FVMQ),HNBR compounds, NBR compounds, EPDM compounds, SBR compounds, PVDF, PVDC, PTFE, PFA, FEP and so on.
FreChem expects to offer best solution as well as customization in order to meet customers’ special needs. The equipment and special know- how used in production control guarantee that our compounds respond to the customer requirement and provide high consistency standards.
Our vision is to become an excellent partners with customers and we will improve and focalize our skill on final application to develop compounds with high added value.
