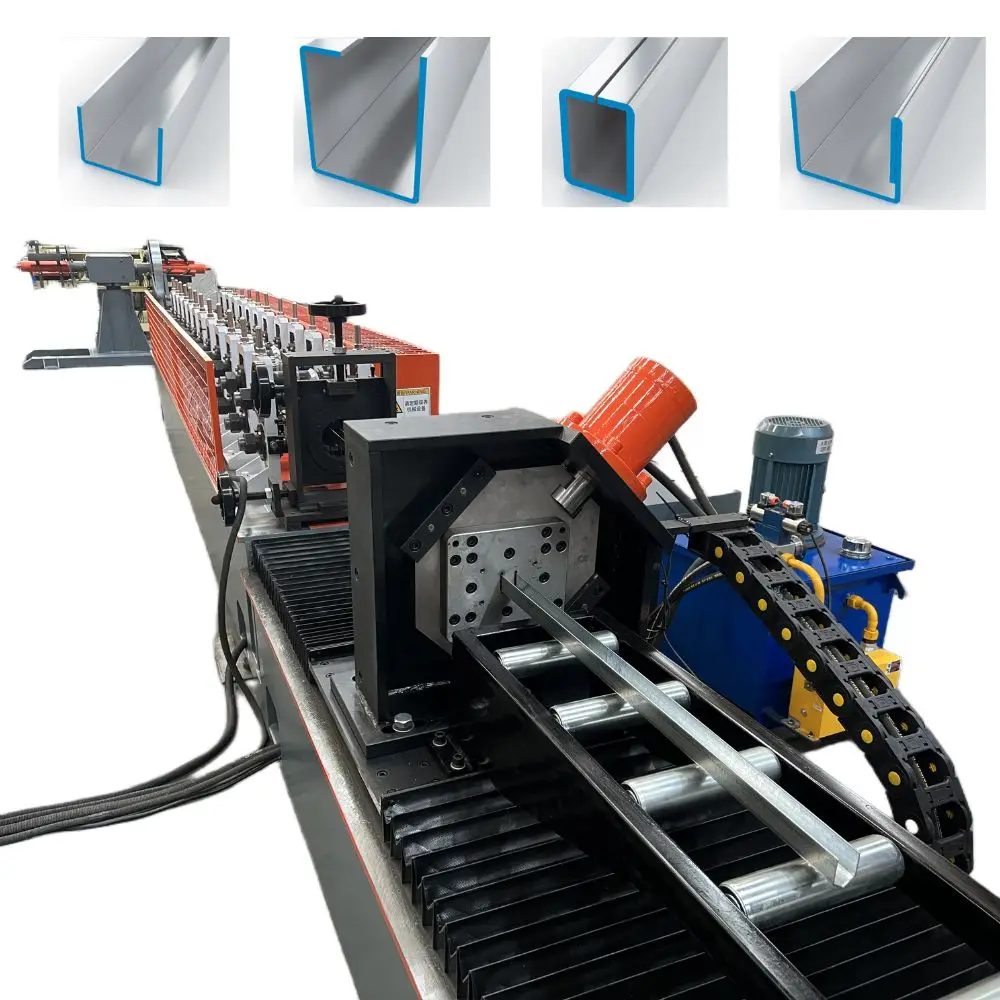

New 0.8mm 2.0mm Thickness GI Steel Reinforcement Profiles Support C U Lip Channel Roll Forming Machine for PVC UPVC Windows
- Category: >>>
- Supplier: Sussman Machinery (wuxi) Co. Ltd.
Share on (1600873138165):
Product Overview
Description
Product Description

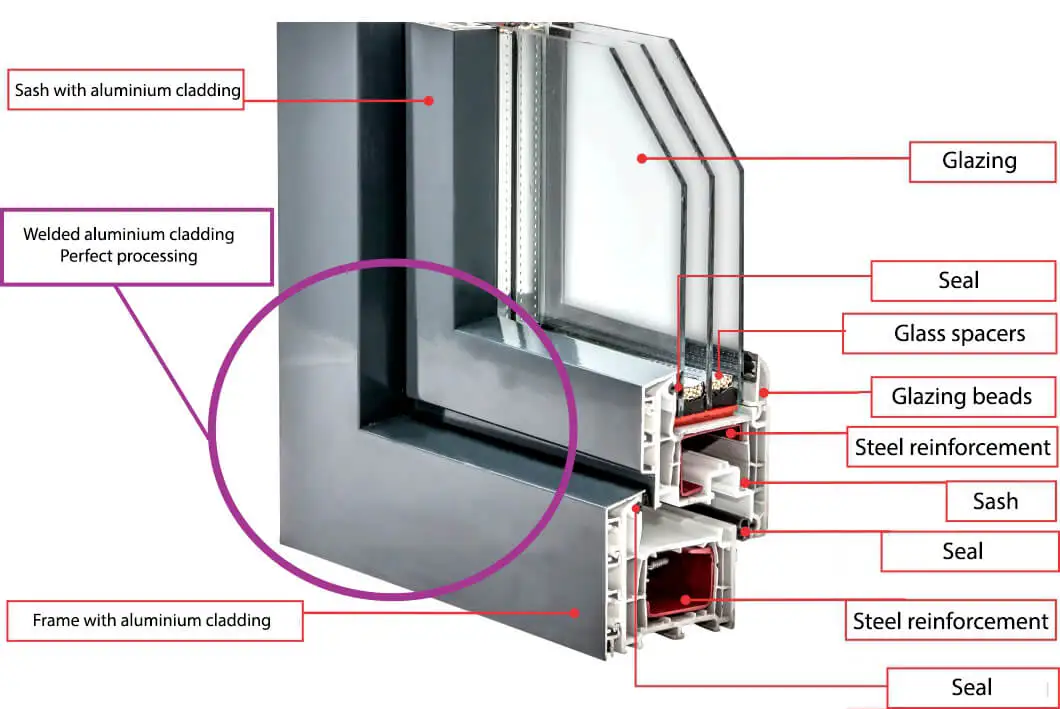

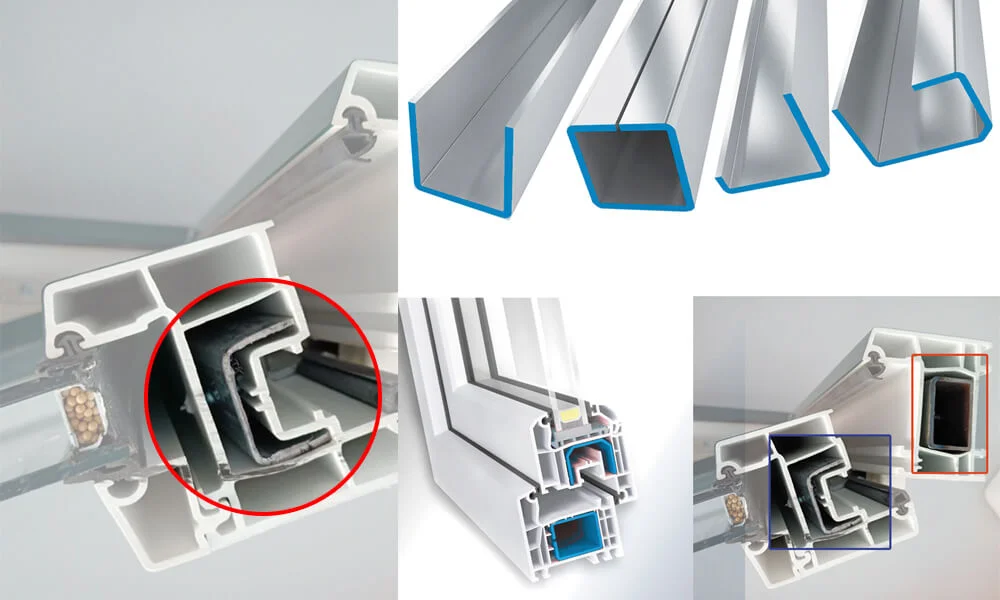

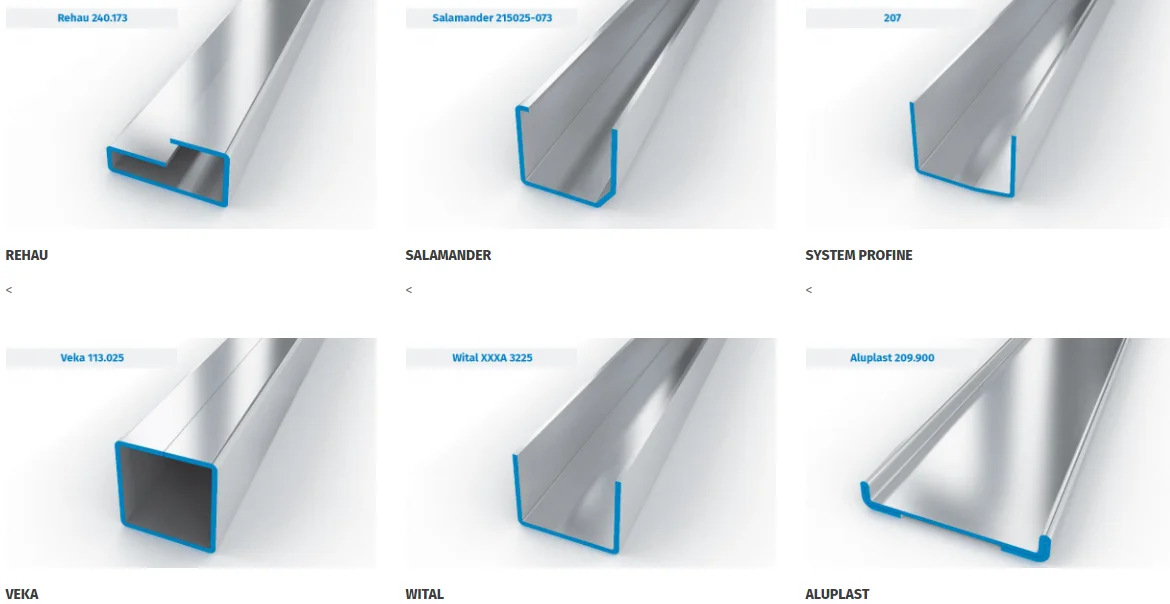

Reinforcing profile for PVC windows provides stiffness and stability of window frames and door assemblies. A steel load-bearing member installed in inner chamber of plastic extrusions increases a performance property of PVC-windows, compensates temperature changes in geometry of plastic or metal, prevents deformation.
The first reason is that inserting GI Reinforcement inside a profile provides strength and rigidity to the profile. You must have heard many a times that UPVC Profiles bend while installation. This is not due to the quality of the upvc profile and does not necessarily mean that the profile is of an inferior quality but because of the absence of the GI Reinforcement, the profile could not get support, strength and rigidity.
Items | Specifications | |
Material of coil | Material Thickness | 1.5-2.0mm Galvanized steel |
Forming system | Rolling Speed | 0-30m/min |
Roller Stations | About 11 stations | |
Roller Material | Gcr15 Steel with quenching | |
60mm shaft | ||
Shaft | 60mm | |
Maim Motor Power | 11kw | |
Hydraulic cutting Power | 7.5kw | |
Electrical parts | Schneider | |
Cutting | Material Of Cutting | CR12mov with quench treatment |
system | Hardness | HRC58-62 |
Tolerance | +-1.5mm | |
Electrical control system | Electric Source | 220V, 60HZ,3 phase |
Control System | PLC Delta | |
Weight | About 4 tons | |
Way Of Drive | 2 inches chain | |
Size of machine | Length 8000mm* Width 800mm* Height 1000m |
Technological process:
Uncoiling—feedingwithguide—Rollforming——servo followingCutting—Products collecting
Machine List:
Uncoiling—feedingwithguide—Rollforming——servo followingCutting—Products collecting
Machine List:
2 tonne double heads de-coiler | 1 set |
Main roll forming machine | 1 set |
PLC Control box | 1 set |
Hydraulic station | 1 unit |
Servo following cutting device | 1 unit |
3 meters auto stacker | 1 unit |
Product Display

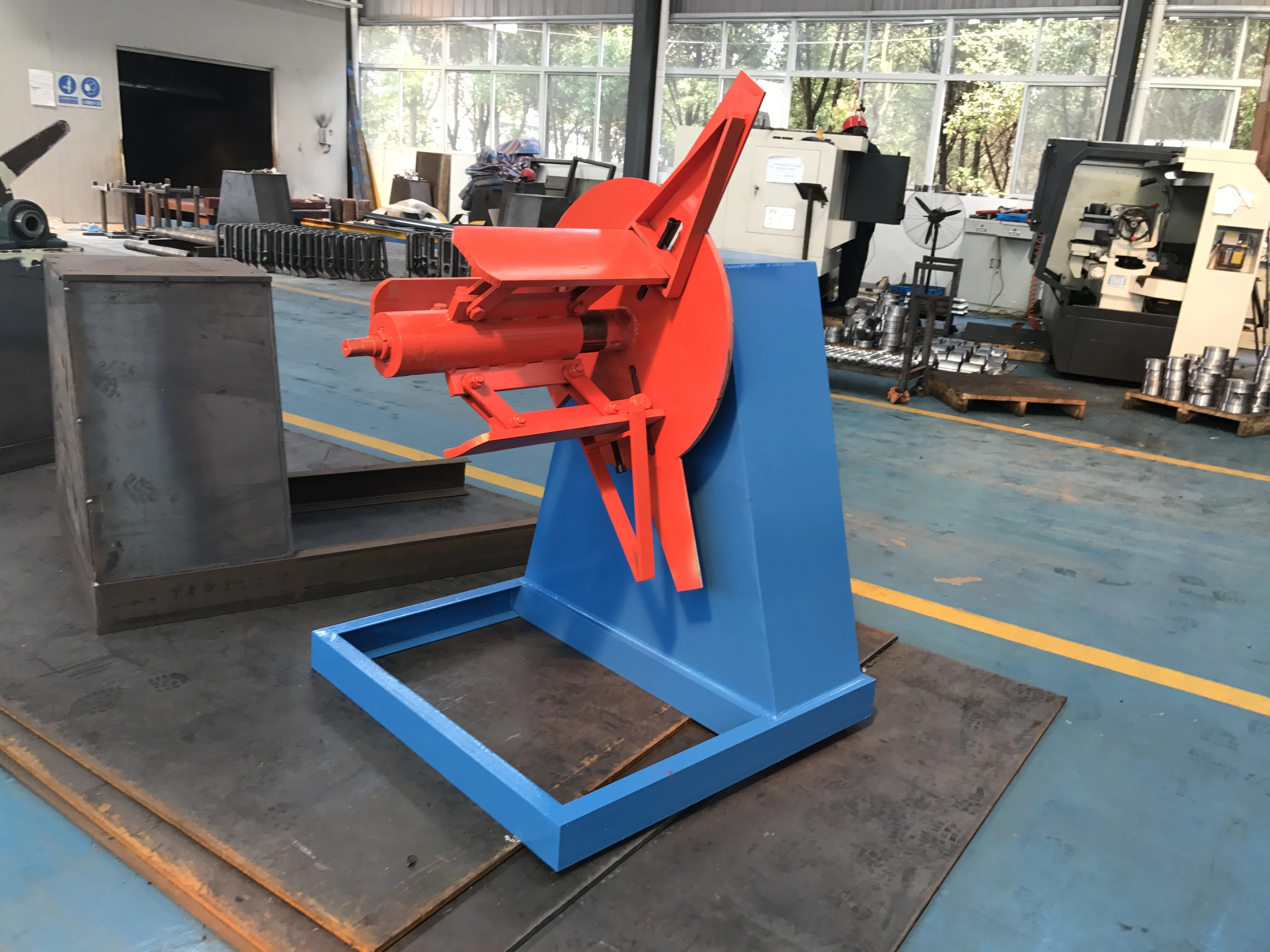

3 Tons Passive Decoiler
Coil inner Diameter: ￠460mm～520mm
Max out diameter of the coil: ￠800mm
Expansion: Manual with brake
Max Coil Width: 500mm
Max out diameter of the coil: ￠800mm
Expansion: Manual with brake
Max Coil Width: 500mm

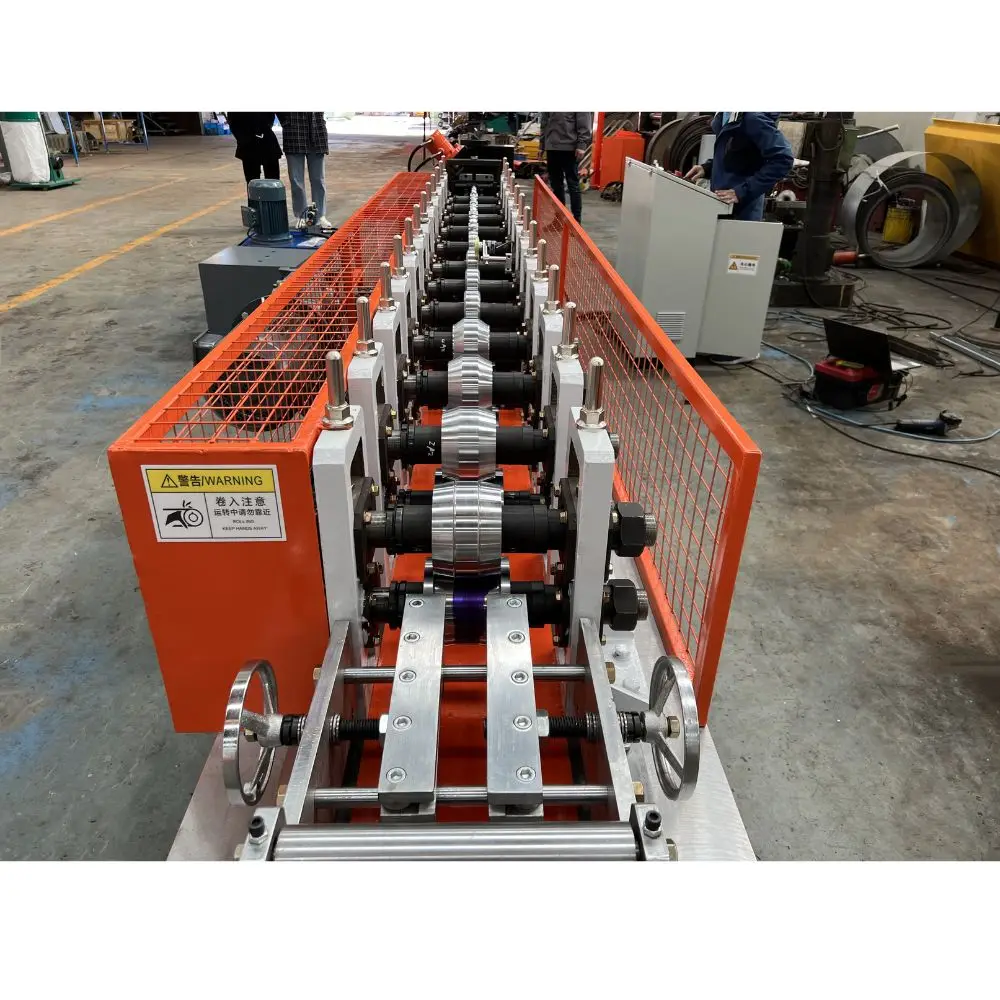

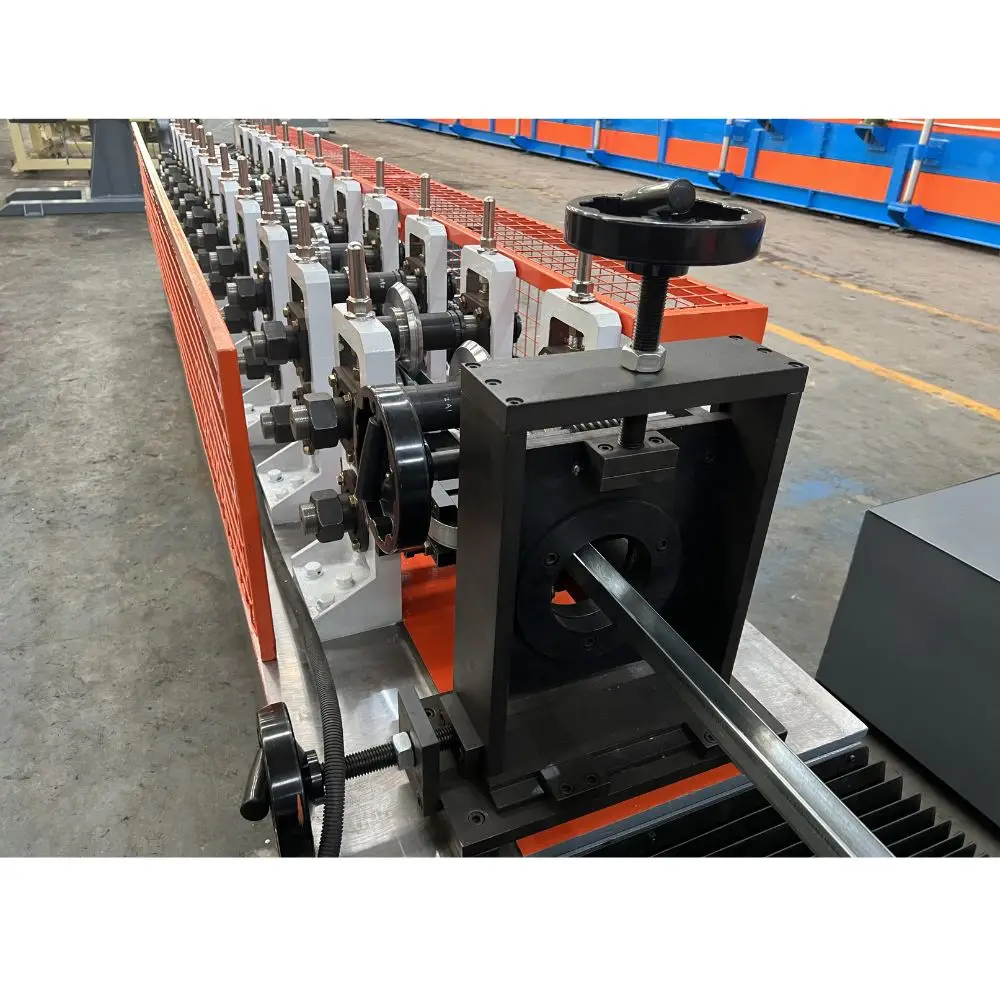

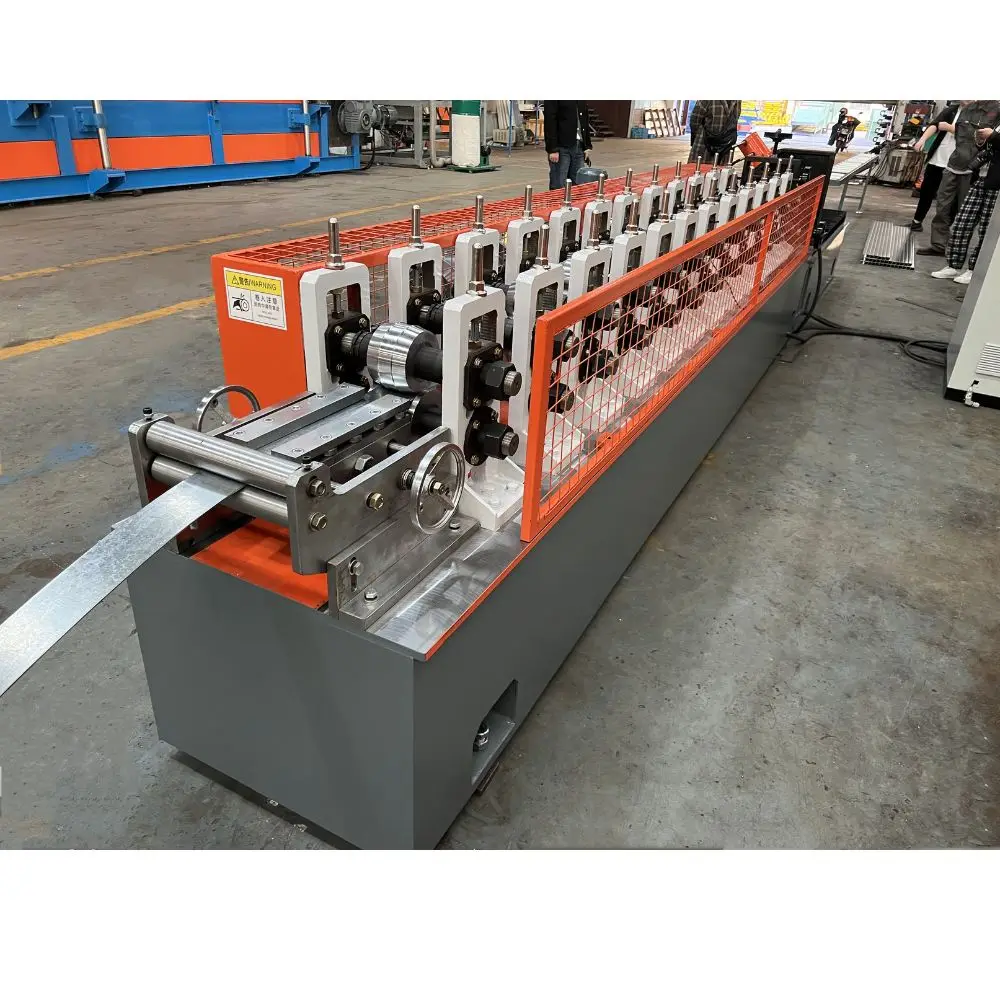

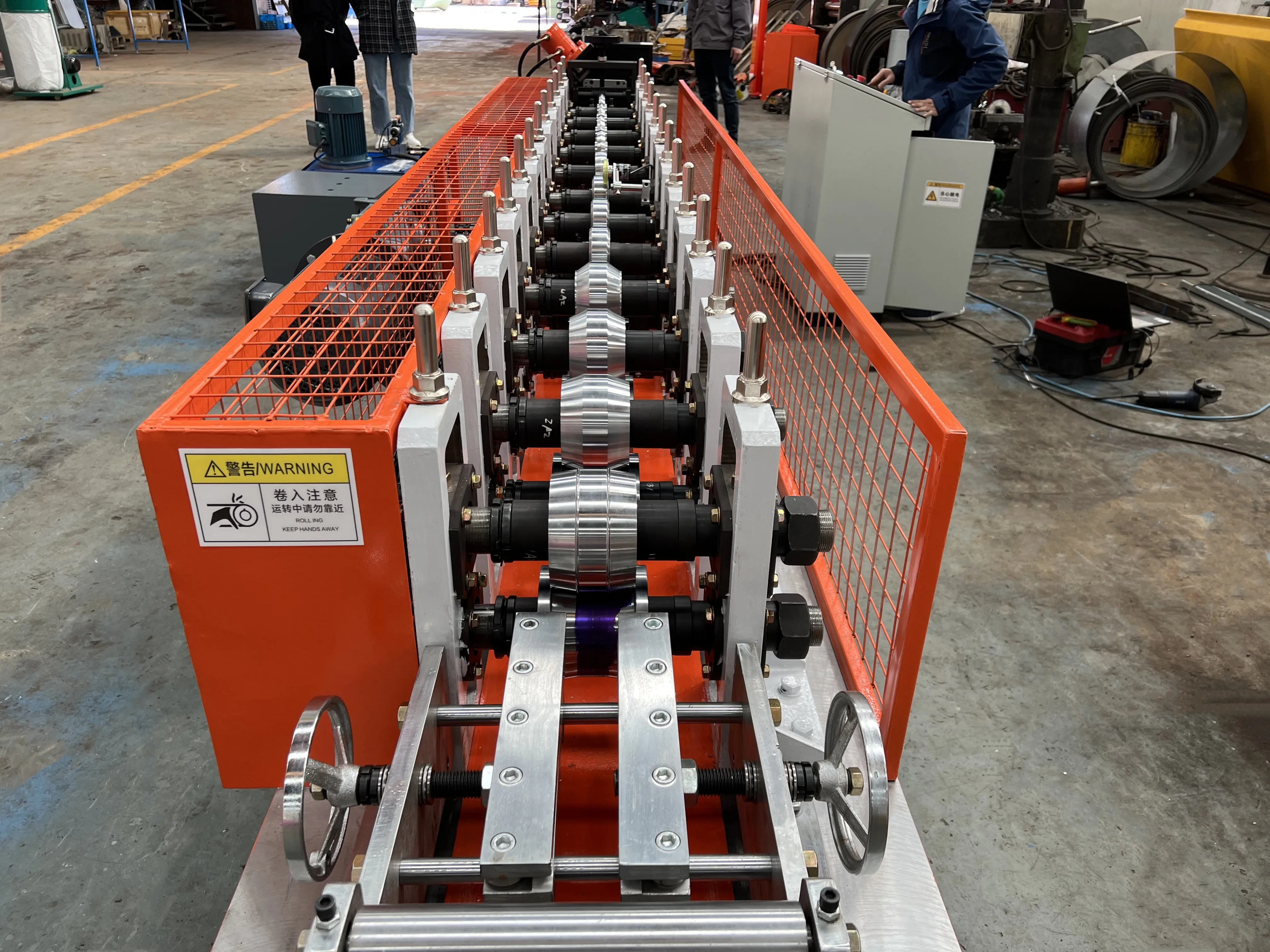

Main Roll Forming Part
Thickness of sheet: 1.5-2.0mm
Motor Power:11kw forming system
Roller material: C45 steel
Base Frame: 300 H steel welded
Roller Stations About 11 stations forming
Roller Material 45# Steel with quenching
Shaft Material 45# Steel Diameter 60mm shaft
Motor Power:11kw forming system
Roller material: C45 steel
Base Frame: 300 H steel welded
Roller Stations About 11 stations forming
Roller Material 45# Steel with quenching
Shaft Material 45# Steel Diameter 60mm shaft

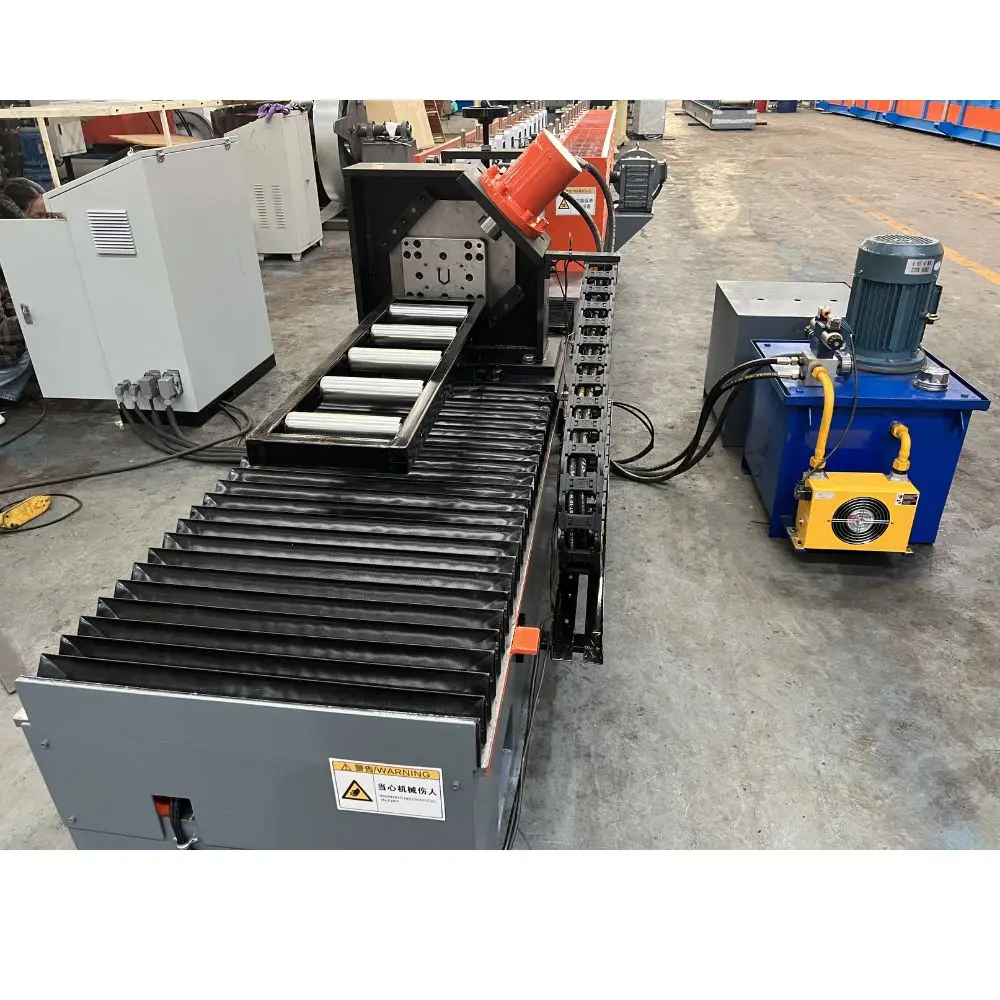

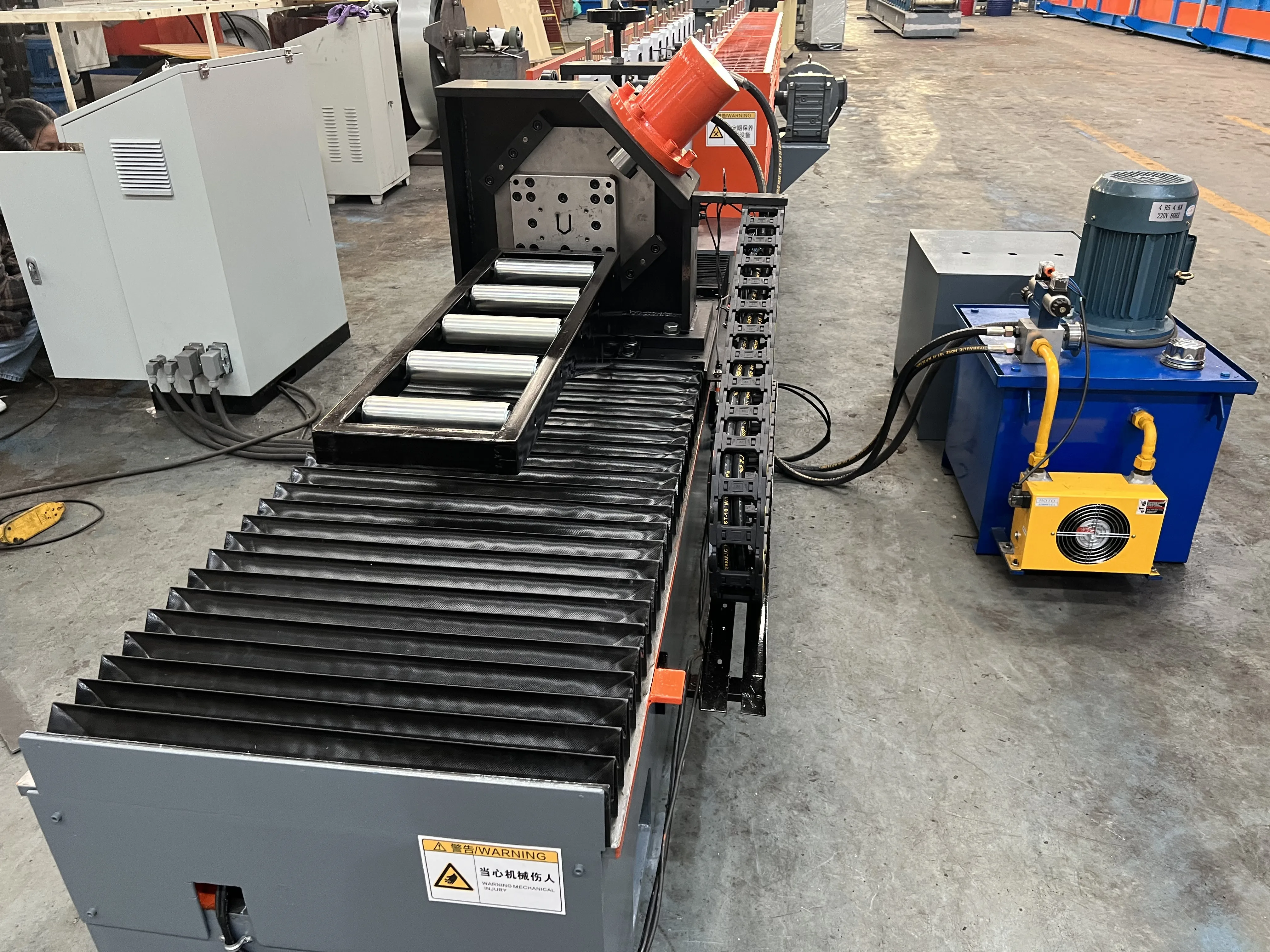

Hydraulic Cutting
Cutting way: non stop cutting.
Oil pump statio:1set.
Hydraulic power: 4 kw hydraulic system.
Blade Material: CR12Mov with heat treatment HRC58-62.
Tolerance: +-1.5mm
Oil pump statio:1set.
Hydraulic power: 4 kw hydraulic system.
Blade Material: CR12Mov with heat treatment HRC58-62.
Tolerance: +-1.5mm

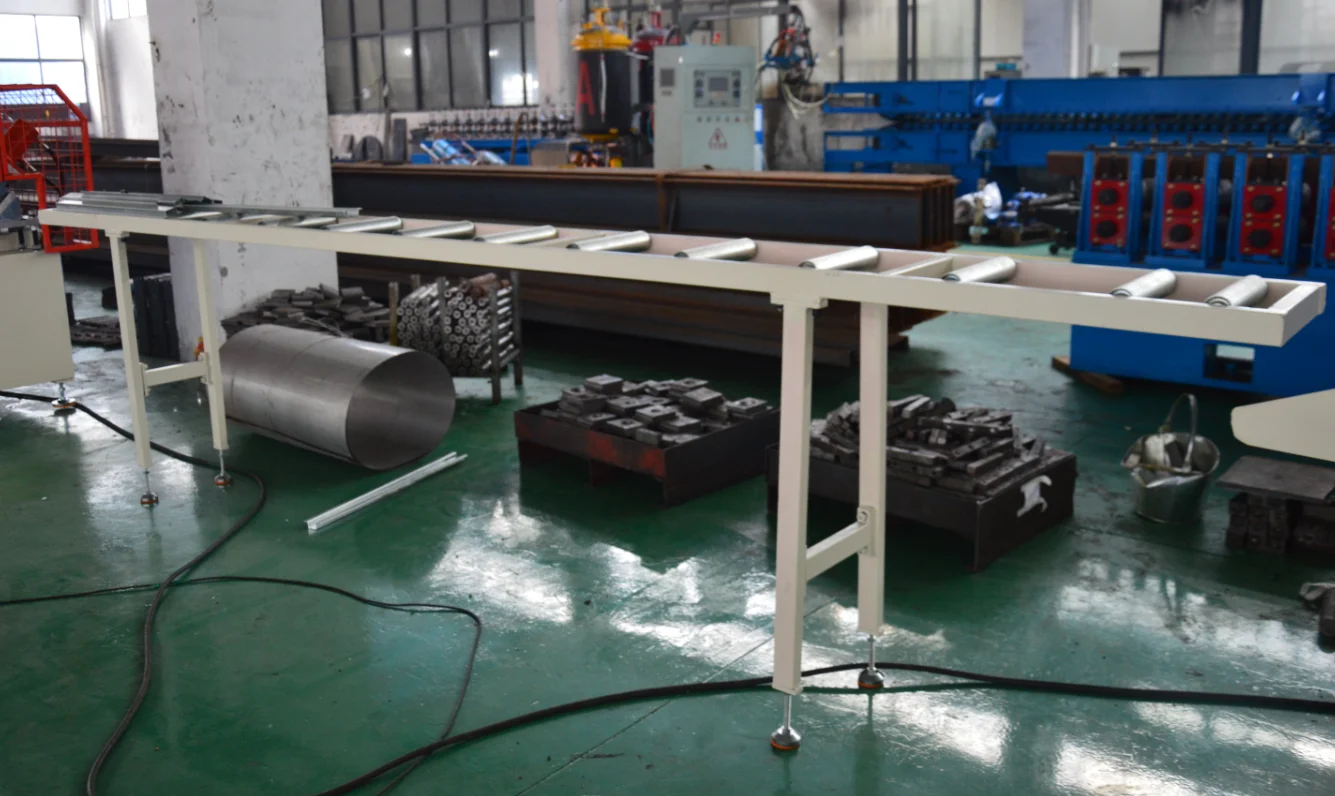

Passive output table
Length :6 meters
Quantity: 1 unit
Quantity: 1 unit
