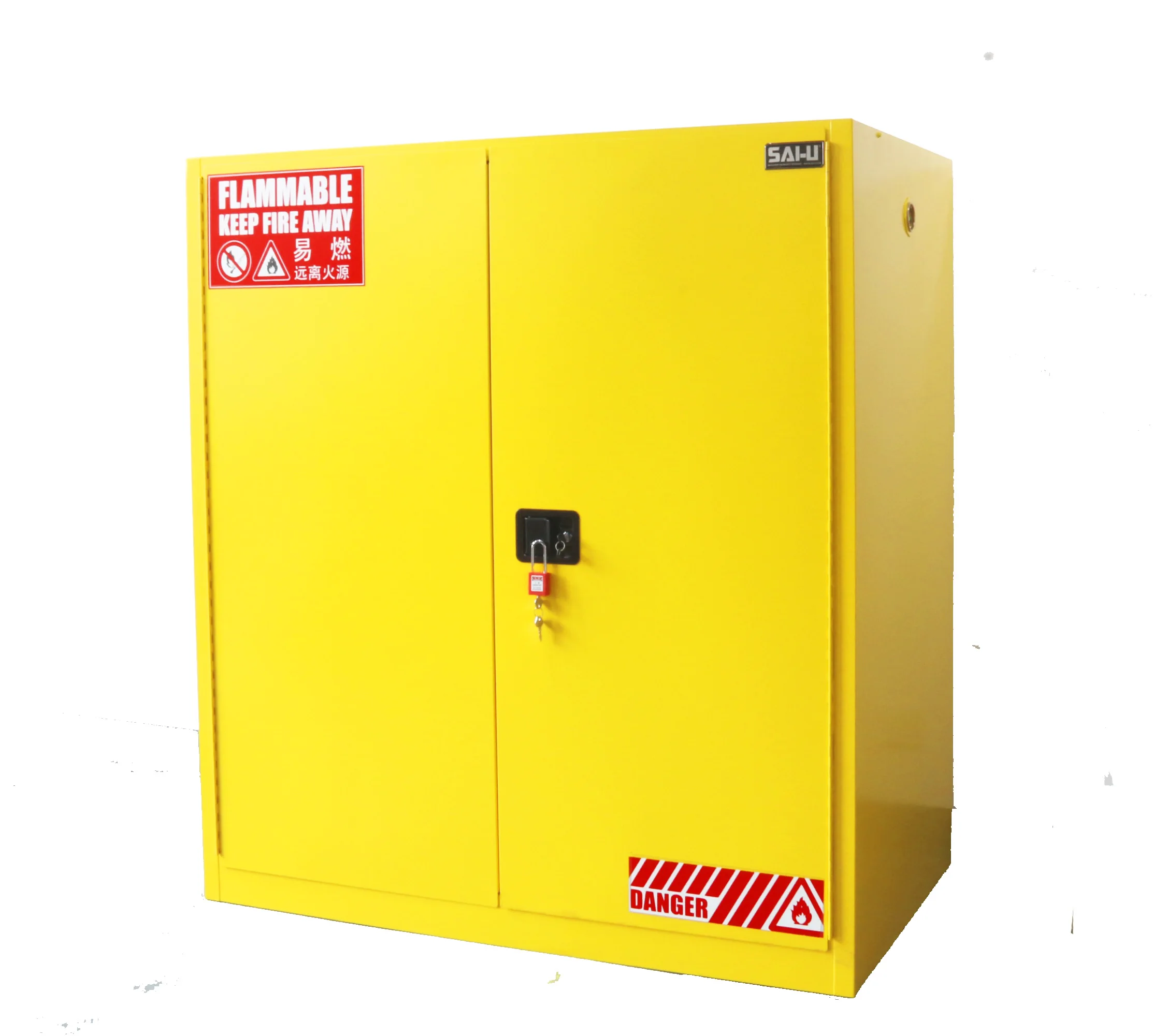

Fireproof Chemical Storage SAI U FM Flammable FM Flammable Liquid Storage Cabinet 115Gal
- Category: >>>
- Supplier: Shanghai Beston Metal Products Co. Ltd.
Share on (1600878680992):
Product Overview
Description
Product Description

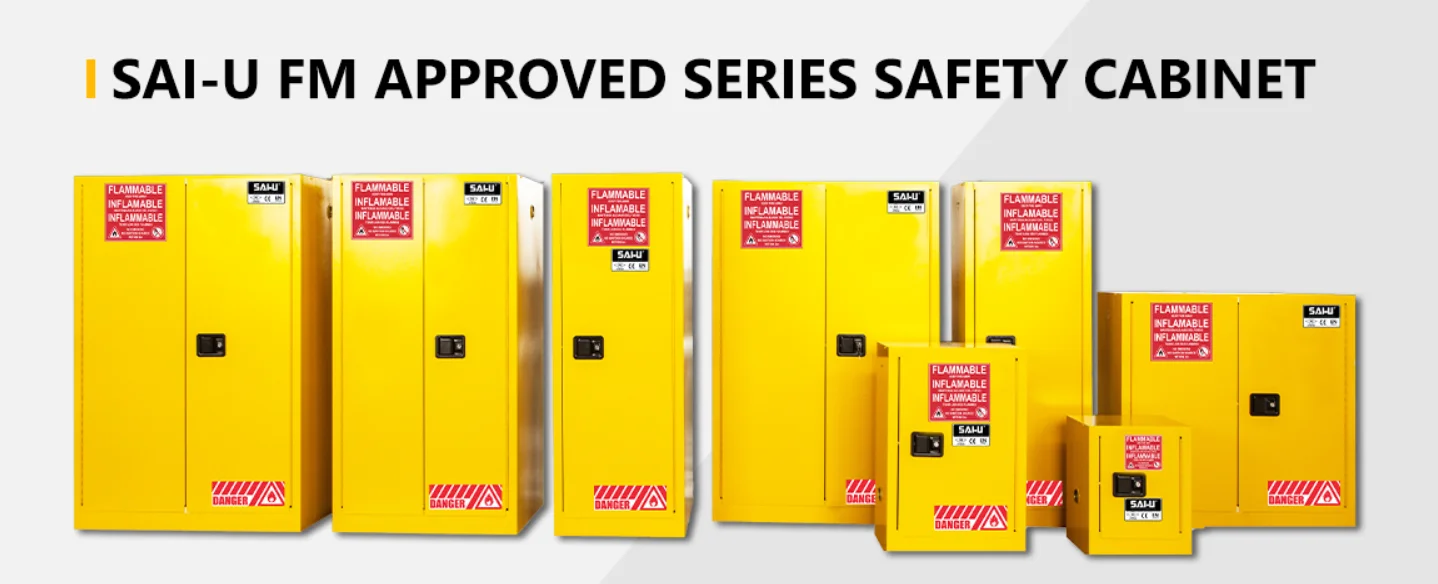

SAI-U FM APPROVED SERIES SAFETY CABINET
SAI-U® Safety Storage Cabinets series include FM Standard Safety Cabinets, Drum Storage Cabinets, Personal Preparedness Emergency Cabinets and Gas Cylinder Storage Cabinets. Storing hazardous goods with right type of safety and storage cabinet can effectively prevent industrial fires. All the SAI-U® safety and storage cabinets are made of 1.0mm or 1.2mm high quality galvanized steel sheet and painted with epoxy polyester powder, which not only gives a firm structure to the products, but also provides a very strong corrosion resistance.
SAI-U® FM standard safety cabinet has obtained both FM certification in the United States and CE certification in the European Union, meeting the OSHA 29 CFR 1910.106 and NFPA CODE 30 specifications, as well as the Hazardous Chemical Safety Management Regulations of the China National Administration of Work Safety. According to the US FM standard, after rigorous testing, after burning for 10 minutes, all connections inside the safety cabinet remain tightly connected, the cabinet door remains tightly closed, and the internal temperature remains below 162,7 ℃.

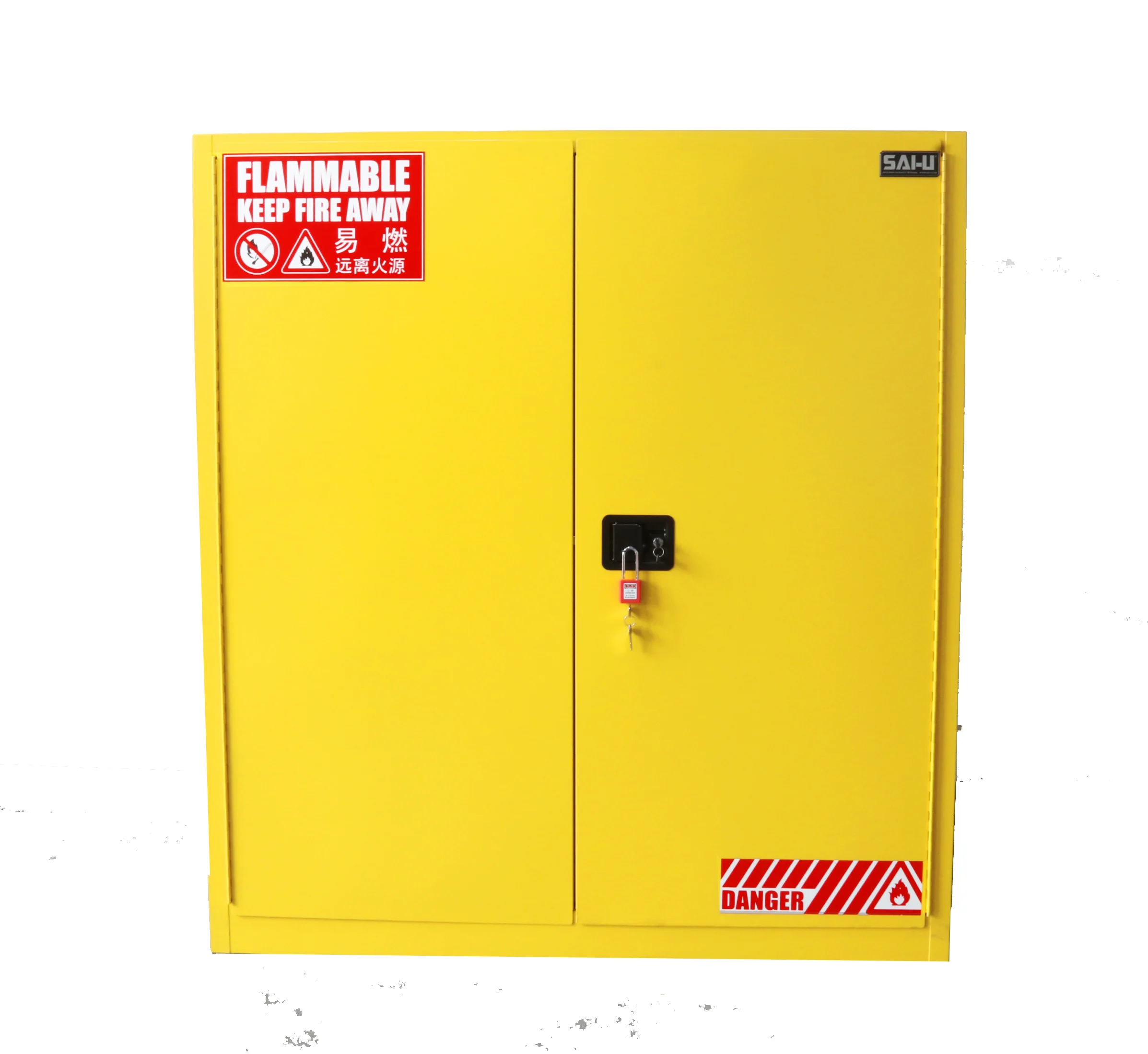

Front View
Side View

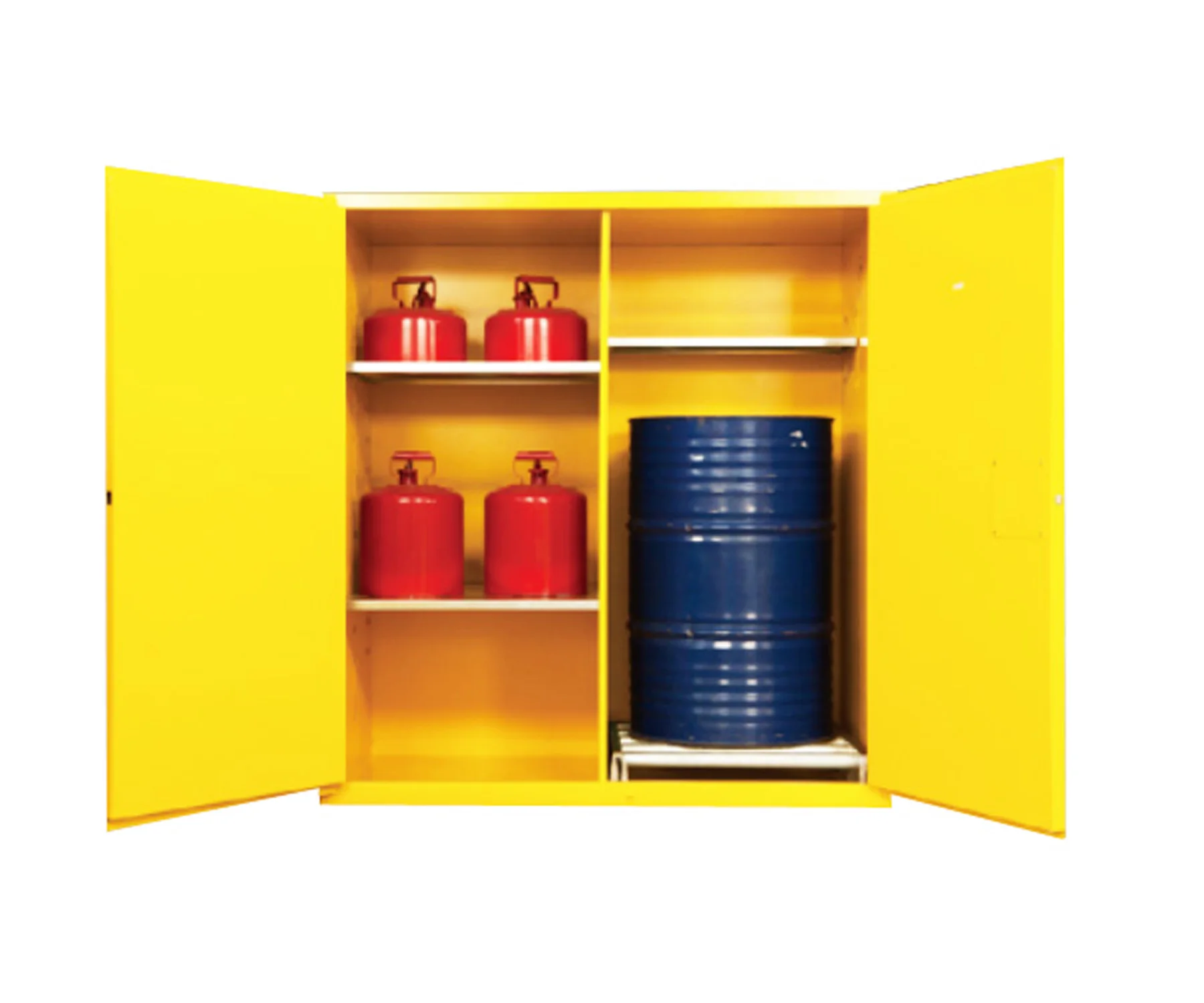

Inner View
Model | SC0115Y | ||||||
Capacity（Gal/L） | 115/434 | ||||||
Approval | FM,CE | ||||||
Internal Dimension(H*W*D/mm) | 1550*1413*783 | ||||||
External Dimension(H*W*D/mm) | 1650*1499*863 | ||||||
Packing Dimension(H*W*D/mm) | 1775*1560*925 | ||||||
Adjustable shelves(pcs) | 2(Left) 1(Right) | ||||||
Rollers(pcs) | 1 | ||||||
Shelf loading weight(kgs) | 100 | ||||||
N.W.(kgs) | 249 | ||||||
G.W.(kgs) | 291 | ||||||
Door Type | Double door,Manual | ||||||
Product Category
Model | SC0055Y | SC2055Y | SC0110Y | SC2110Y | SC0115Y | SC2115Y | |||
Capacity(Gal/L) | 55/207 | 110/415 | 115/434 | ||||||
Approval | FM,CE | FM,CE | FM,CE | ||||||
Internal Dimension (H*W*D/mm) | 1550*777*783 | 1550*1413*783 | 1550*1413*783 | ||||||
External Dimension (H*W*D/mm) | 1650*863*863 | 1650*1499*863 | 1650*1499*863 | ||||||
Packing Dimension (H*W*D/mm) | 1775*925*925 | 1775*1560*925 | 1775*1560*925 | ||||||
Adjustable shelves (pcs) | 1 | 1 | 2(Left) 1(Right) | ||||||
Rollers (pcs) | 1 | 2 | 1 | ||||||
Shelf loading weight (kgs) | 50 | 100 | 100 | ||||||
N.W.(kgs) | 175 | 182 | 253 | 263 | 249 | 259 | |||
G.W.(kgs) | 204 | 211 | 295 | 305 | 291 | 301 | |||
Door Type | Double Door,Manual | Double Door,Self-closing | Double Door, Manual | Double Door,Self-closing | Double Door,Manual | Double Door,Self-closing | |||

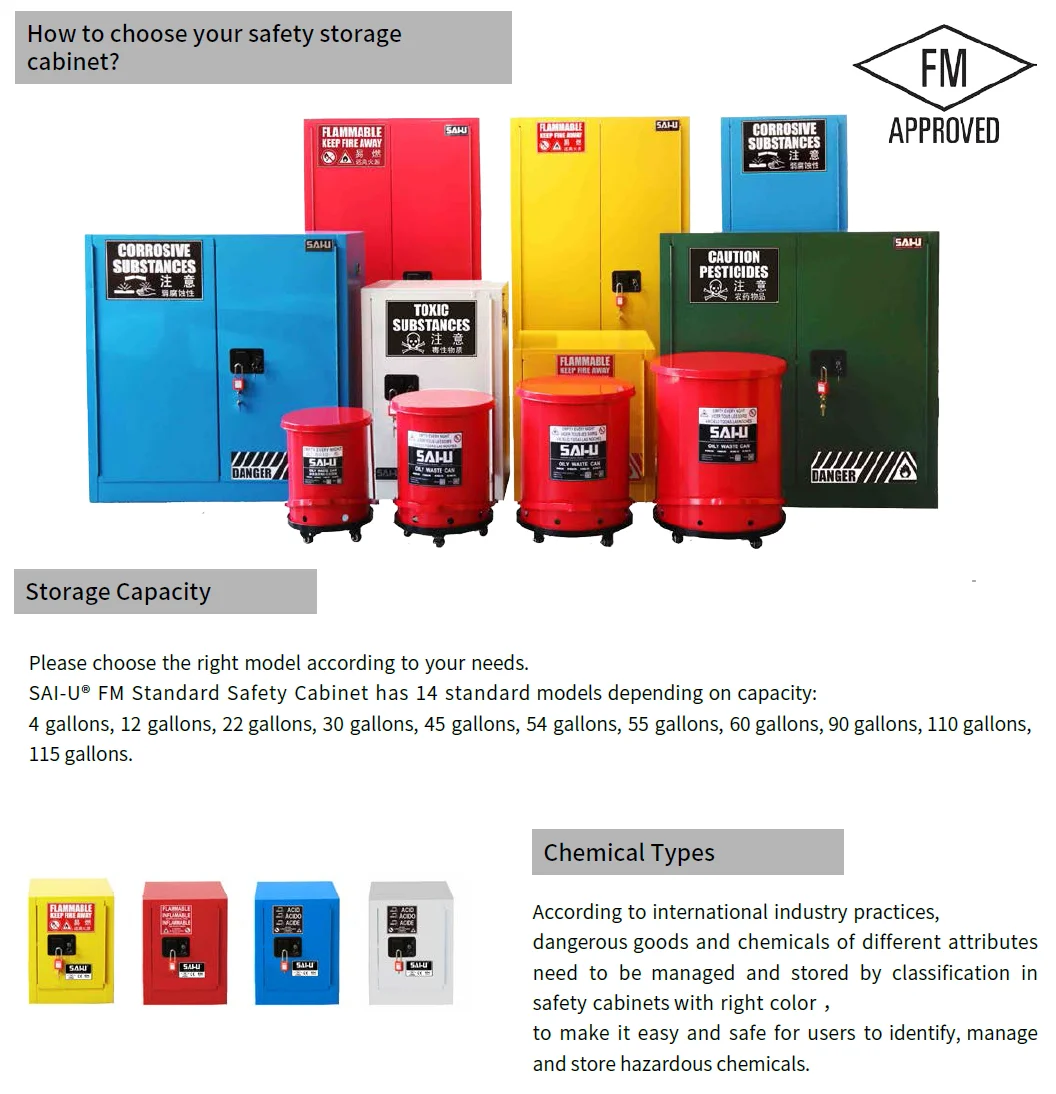

Choose safety storage cabinet
Please choose the right model according to your needs.
SAl-U® FM Standard Safety Cabinet has 14 standard models depending on capacity:4 gallons, 12 gallons, 22 gallons, 30 gallons, 45 gallons, 54 gallons, 55 gallons, 60 gallons, 90 gallons, 110 gallons,115 gallons.
SAl-U® FM Standard Safety Cabinet has 14 standard models depending on capacity:4 gallons, 12 gallons, 22 gallons, 30 gallons, 45 gallons, 54 gallons, 55 gallons, 60 gallons, 90 gallons, 110 gallons,115 gallons.
Chemical Types
According to international industry practices,dangerous goods and chemicals of different attributes need to be managed and stored by classification in safety cabinets with right color, to make it easy and safe for users to identify, manage and store hazardous chemicals.
Selection Guide
Cabinet Type | Safety Cabinets for Flammables | Safety Cabinets for Combustibles | Safety Cabinets for Corrosives | Safety Cabinets for Hazardous Materials |
Colour | Yellow | Red | Blue | White |
Key Features | Yellow,affixed"Flammable" label. The most widely used standard type in the industry. | Red, affixed “Flammable” label. With standard steel shelves, additional shelves are available for the storage of coatings, inks and other small containers. | Blue, affixed "Corrosive" label. Each steel shelf is equipped with a polyethylene tray with function of anti- corrosion and anti-leakage. | White, affixed "Toxic" label. For the storage of toxic and hazardous chemicals or flammable liquid waste. |
Door Type | Manual/ Self-closing | Manual/ Self-closing | Manual/ Self-closing | Manual/ Self-closing |
Flammable and combustible substances -gasoline, kerosene, isopropanol, etc.. | √ | √ | ||
Flammable and combustible acids-acetic acid, formic acid, acrylic acid, etc. | √ | |||
Paints and inks-varnish, enamel, stain, epoxy coating, etc.. | √ | |||
Acids of low concentration -hydrochloric acid, sulfuric acid, nitric acid, etc | √ | |||
Toxic Chemicals -Chemicals Labeling "Toxic" in MSDS | √ | |||
Flammable waste- contaminated flammable and combustible liquid | √ |
Detail Photos
Door Type
SAl-U® FM Standard Safety Cabinets offer two options of door type to meet different needs: Manual-closing and Self-closing.
In Europe, United States and Australia, safety cabinets are always equipped with self-closing device, forcing the cabinet to stay closed when not in use, thus to eliminate fire risks before happening.
In Europe, United States and Australia, safety cabinets are always equipped with self-closing device, forcing the cabinet to stay closed when not in use, thus to eliminate fire risks before happening.

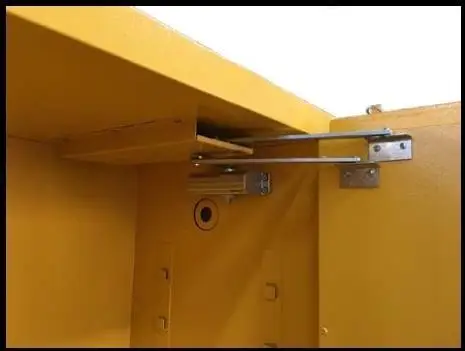

SAl-U self-closing device:
SAl-U Self-Closing Device is independently developed by our company, and has already applied for national patent.
By the test, this device showed an extremely high stability, which could bear more than 100,000 opening and closing.
Every SAl-U FM Standard Safety Cabinet can be equipped with this self- closing device to improve safety level.
By the test, this device showed an extremely high stability, which could bear more than 100,000 opening and closing.
Every SAl-U FM Standard Safety Cabinet can be equipped with this self- closing device to improve safety level.
Specifically, this self-closing device features a fusible link.
During use, this link can keep the cabinet door open if necessary;
while fire occurs and the ambient temperature of the cabinet reaches to 74 ℃,the fuse will melt and then the cabinet door will automatically shut off
So, the exterminate flame is isolated and the second combustion is avoided.
while fire occurs and the ambient temperature of the cabinet reaches to 74 ℃,the fuse will melt and then the cabinet door will automatically shut off
So, the exterminate flame is isolated and the second combustion is avoided.
Packaging & Shipping
Company Profile
General description
Shanghai SAI-U Metal Products Co., Ltd. is an established domestic manufacturer dedicated to manufacturing metal safety storage products. The production base is headquartered in Fengxian District, Shanghai, China, where excellent production enterprises gather. We have a professional supporting production chain, with a comprehensive production base of nearly 10000 square meters, an office area of 1000 square meters, and nearly 70 staff.Since its establishment in 2000, the company philosophy conveyed by SAI-U has been to become the "storage expert around you". SAI-U ® Secure storage system is used to classify and classify chemicals, helping enterprises safely store hazardous chemicals, reduce fire risks, ensure the personal safety of employees, and reduce unnecessary significant losses caused by fires. As the leading secure storage manufacturer in China, we adhere to a "professional, rigorous, flexible, and innovative" attitude, providing customers with better industrial product storage solutions in all aspects to meet the needs of our customers.
R&D Capacity
SAI-U ® We are dedicated to the hazardous chemical storage industry and continue to tirelessly research and develop more practical products to meet customer needs. Our product has multiple invention patents and utility model patents in the industry. SAI-U ® From research and development to production, the safety cabinet series is in accordance with the standards of OSHA 29 CER 1910.106 of the Occupational safety and health Administration of the United States and NFPA CODE30 of the National Fire Protection Association of the United States. It also has the FM certification of the United States, the CE certification of the European Union, and meets the industry's highest standards such as EN-14470-1 European standard high-end fire safety cabinets. SAI-U ® Provide various professional fireproof, explosion-proof, and leak proof safe storage products and solutions.
Production Capacity
SAI-U ® Extreme emphasis on quality control and attention to details. From internal management in the production workshop to quality inspection of finished products, we strictly follow the ISO9001 quality management and ISO140001 environmental quality dual system certification process. SAI-U ® A strong manufacturer with multiple factory management certifications such as international SGS and SEDEX.
Business Performance
SAI-U ® Our vision is to provide customers with higher quality and safer industrial and chemical storage products. We will continue to provide professional secure storage products to well-known enterprises, universities, research institutions, and laboratories both domestically and internationally. Becoming the most trusted hazardous chemical storage brand for customers.
Trade Capacity
In 2017, the company launched the eponymous brand SAI-U ®, Expand domestic and international markets with high-quality products, services, and internationally competitive prices. Over the past 6 years, the company's business has spread to over 70 countries worldwide, developing and owning nearly 500 brand distributors. Under the influence of three years of COVID's management of the global economy, we still maintain the continuous stability and development of our business. According to the 2022 performance report, the overseas market share increased by 50% year-on-year and sales increased by 800%. Domestic market competition against SAI-U ® Brand recognition continues to rise, with a repurchase rate of up to 90%.
FAQ
1.Why choose SAI-U ?
Advanced professional production equipment, Professional production design team. Competitive price, Qualified product, Excellent service.
2. Are you a manufacturer ?
Yes, we are a professional manufacturer which It is a modern company with research and development and production of safety storage, which integrates FM approved flammable safety cabinet, oily waste can, gas cylinder cabinets, drum spill pallets, outdoor chemical storage cabinets, and many other products.
3. Can you do OEM?
Yes, we do OEM products.
We also can do:
(1) Logo printing: We can print the logo on the products as the customer's requirements.
(2) Professional design: We have the professional designers, we usually produce goods based on customer's samples, design
drawings, picture and sizes etc.
4.How does your factory do regarding quality control?
Quality is priority.Our factory always attaches great importance to quality controlling from the beginning to finished products and packing. We have ISO9001, ISO 14001,OHSAS 18001 and Certificate of Occupational Health and Safety Management System certification for all the quality control and safety production.
Advanced professional production equipment, Professional production design team. Competitive price, Qualified product, Excellent service.
2. Are you a manufacturer ?
Yes, we are a professional manufacturer which It is a modern company with research and development and production of safety storage, which integrates FM approved flammable safety cabinet, oily waste can, gas cylinder cabinets, drum spill pallets, outdoor chemical storage cabinets, and many other products.
3. Can you do OEM?
Yes, we do OEM products.
We also can do:
(1) Logo printing: We can print the logo on the products as the customer's requirements.
(2) Professional design: We have the professional designers, we usually produce goods based on customer's samples, design
drawings, picture and sizes etc.
4.How does your factory do regarding quality control?
Quality is priority.Our factory always attaches great importance to quality controlling from the beginning to finished products and packing. We have ISO9001, ISO 14001,OHSAS 18001 and Certificate of Occupational Health and Safety Management System certification for all the quality control and safety production.
