Automatic 2 Ply corrugation plant single facer cardboard carton machine/2 layer corrugator box production line making machine
- Category: Packaging Machines >>>
- Supplier: Cangzhou Ouguan Packing Machinery Co. Ltd.
Share on (1600879160579):
Product Overview
Description
Product Description

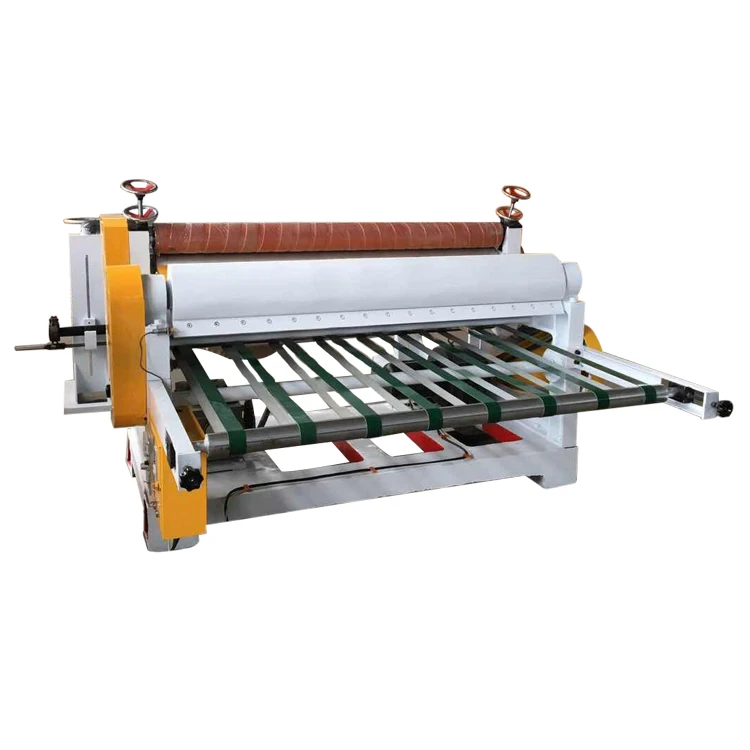

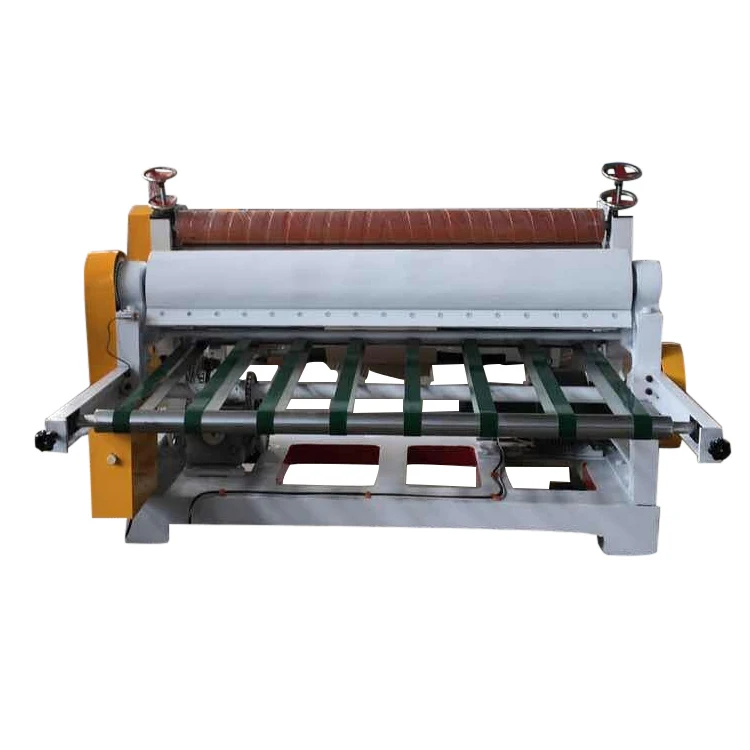

NC-120 2ply slitter & cross cutter machine
1)Adopt high speed steel plate bladeThe slitter unit and cross cutting unit are isolated, which is convenient to adjust and change the blade
Slitter is round blade cutting , manual adjust the blade.
2)Cross cutting is Flat straight knife
he gear of cross cut unit adopt un-key joint which will never loose.
Transmission gear adopt 40Cr , which will thermal refining ,then the surface of gear quench and abrasive planning, adopt Oil-immersed lubrication
Roller stacker
3)As an important part of the paperboard production line, the machine is used to complete the collection and finishing of the paperboard, which greatly reduces labor costs and improves production efficiency.
The whole machine adopts servo, PLC control, and the operation screen is simple and easy to learn.
The whole machine adopts servo, PLC control, and the operation screen is simple and easy to learn.
NC-120 2ply slitter & cross cutter machine | ||||||||
Working width | 1600mm | |||||||
The Max. machinery speed | 100m/min | |||||||
Total power | 18KW | |||||||
Diameter of cutting paper knife roller | 188mm | |||||||
Cutting length | 500mm-9999mm | |||||||
Cutting accuracy | ±1mm( keeping steady speed) | |||||||
Max collection paper length | 1300mm | |||||||
Chang order method | Manual or automatic ,can store 200-group orders | |||||||
Roller stacker | ||||||||
Working width | 1600mm | |||||||
Operation direction | Left or right choose by customer factory | |||||||
Max machinery speed | 100m/min | |||||||
Stacker length | min:500mm max:1300mm | |||||||
First part of motor power | 3.0kw (frequency conversion and speed adjust motor ) | |||||||
Second and third part of motor power | 2.2 kw | |||||||
Roller output motor power | 2.2 kw (gear reducer ) | |||||||

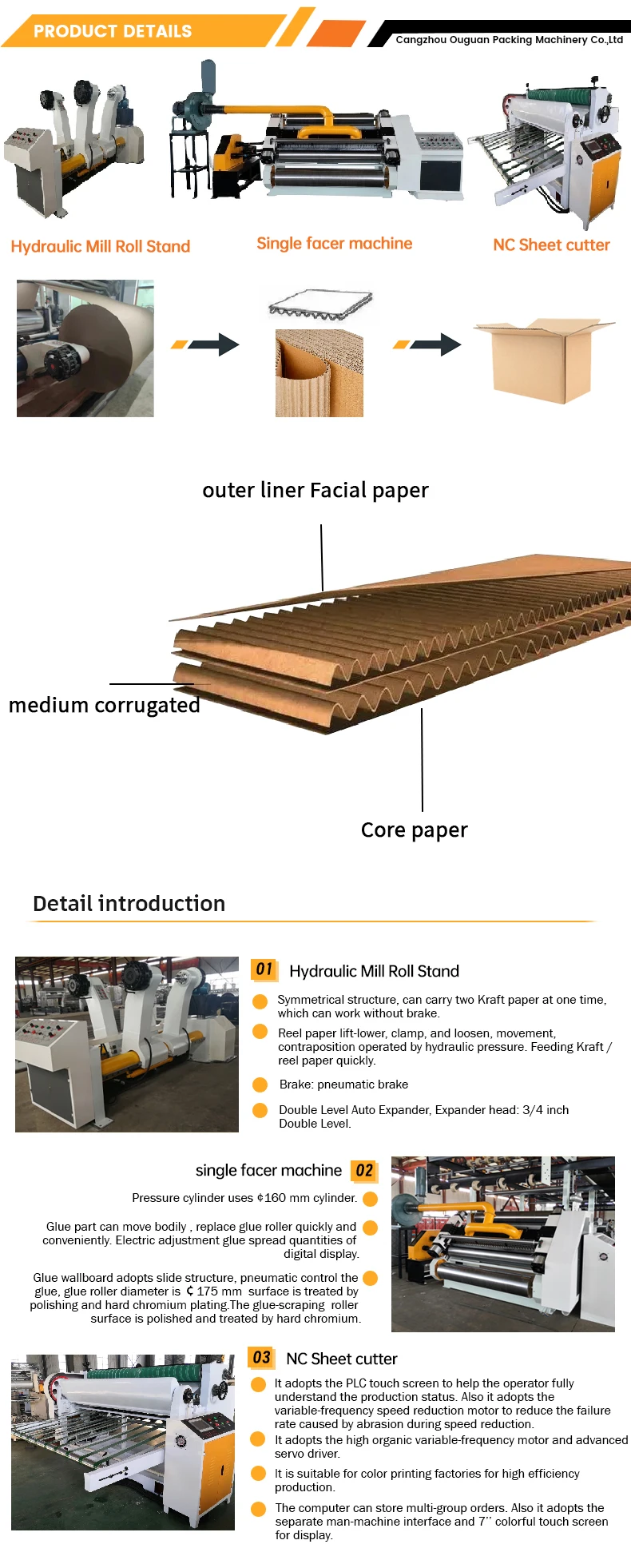

Details Images
Customer Feedback
Company Profile
Why Choose Us
FAQ
1. Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 30 years. (with export
license)
2. Q: Where is your factory located? How can I visit here?
A: Our factory is located in Lisiwei industrial area south of Dongguang country, Cangzhou City Hebei province, China. It is about
2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up
if you need.
Welcome to visit our factory!
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary
printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our
sole purpose providing the products with excellent quality, professional technology OUGUAN packing machinery CO., LTD always
attach great importance to quality controlling from the very beginning to the very end.
1) All raw material we used are environment-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department specially responsible for quality in each process
5. Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country.
Product quality and enter reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
We accept LC at sight
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 30 years. (with export
license)
2. Q: Where is your factory located? How can I visit here?
A: Our factory is located in Lisiwei industrial area south of Dongguang country, Cangzhou City Hebei province, China. It is about
2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up
if you need.
Welcome to visit our factory!
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary
printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our
sole purpose providing the products with excellent quality, professional technology OUGUAN packing machinery CO., LTD always
attach great importance to quality controlling from the very beginning to the very end.
1) All raw material we used are environment-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department specially responsible for quality in each process
5. Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country.
Product quality and enter reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
We accept LC at sight
