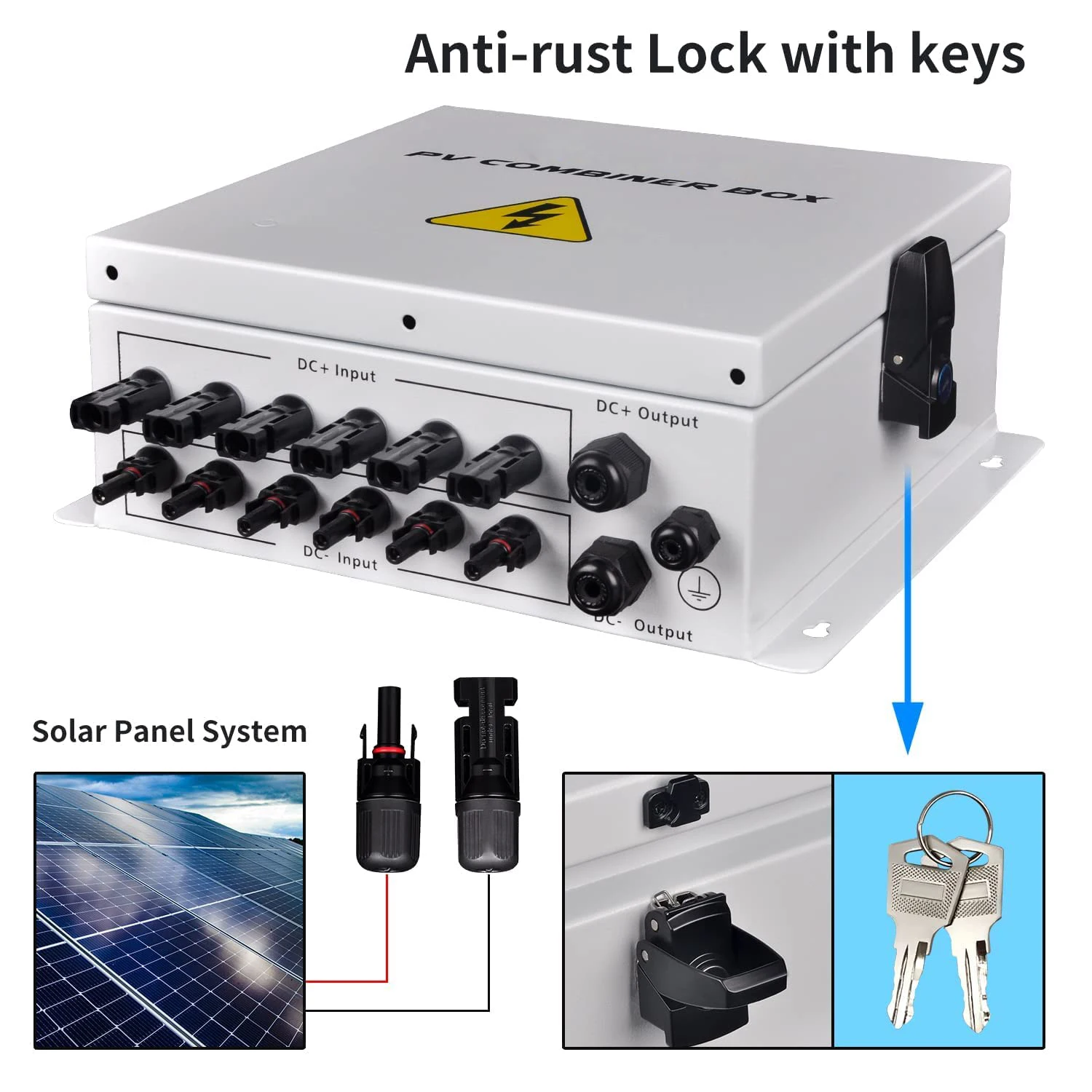

Metal 6 String Solar Combiner Box DC Solar Panel PV Junction 63A Circuit Breaker,IP65 Waterproof Fuse Lightning Indicator Lock
- Category: >>>
- Supplier: Yueqing Baym Electric Co. Ltd.
Share on (1600879564943):
Product Overview
Description
Specifications:
* 6 String PV Combiner Box with 3 Digit Combination Lock,suitable for photovoltaic on-grid/off-grid solar power generation systems, solar panel systems, PV array, RV solar power, home solar panel systems. It can support solar panel systems up to 720W in 12V system, 1440W in 24V system, 2880W in 48V system

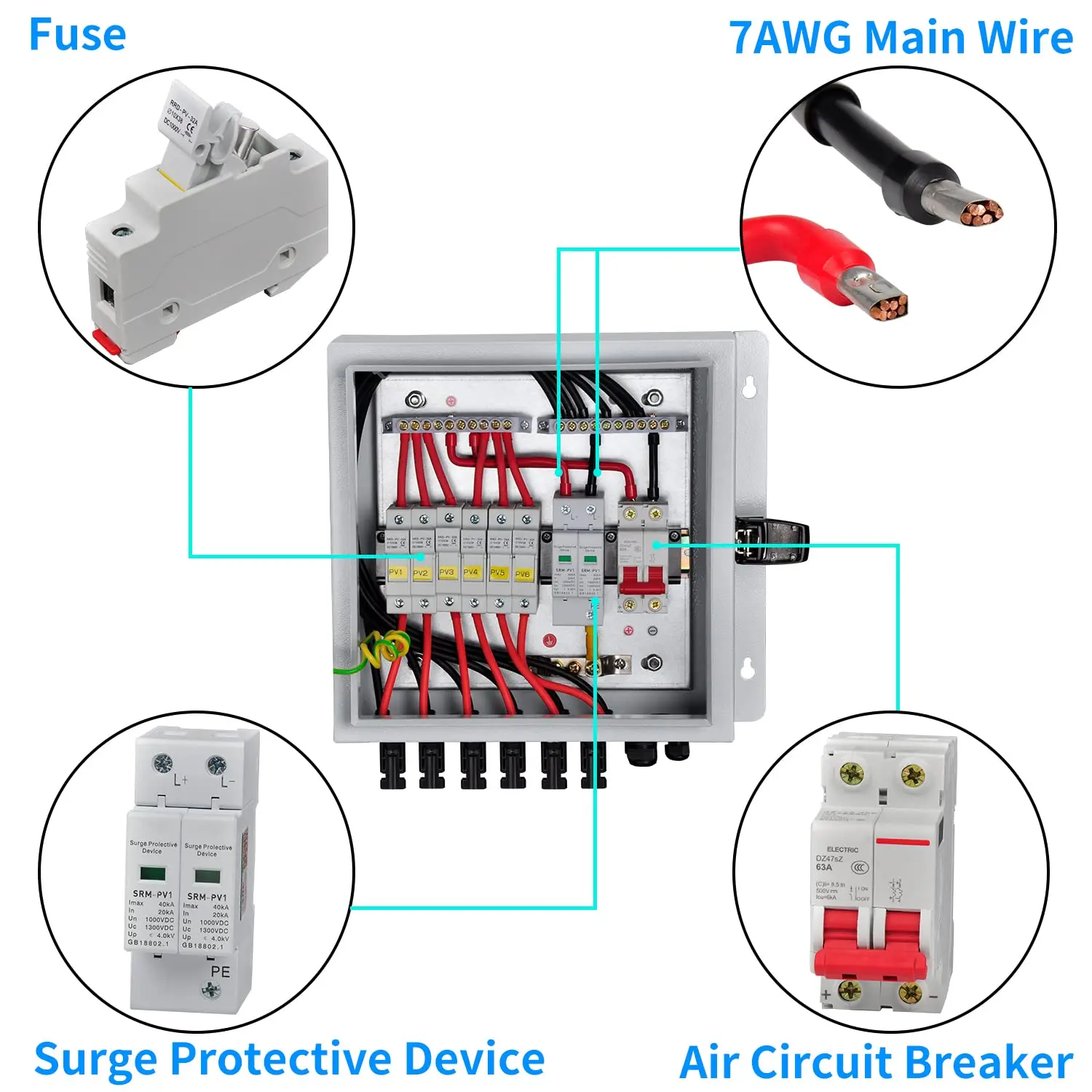

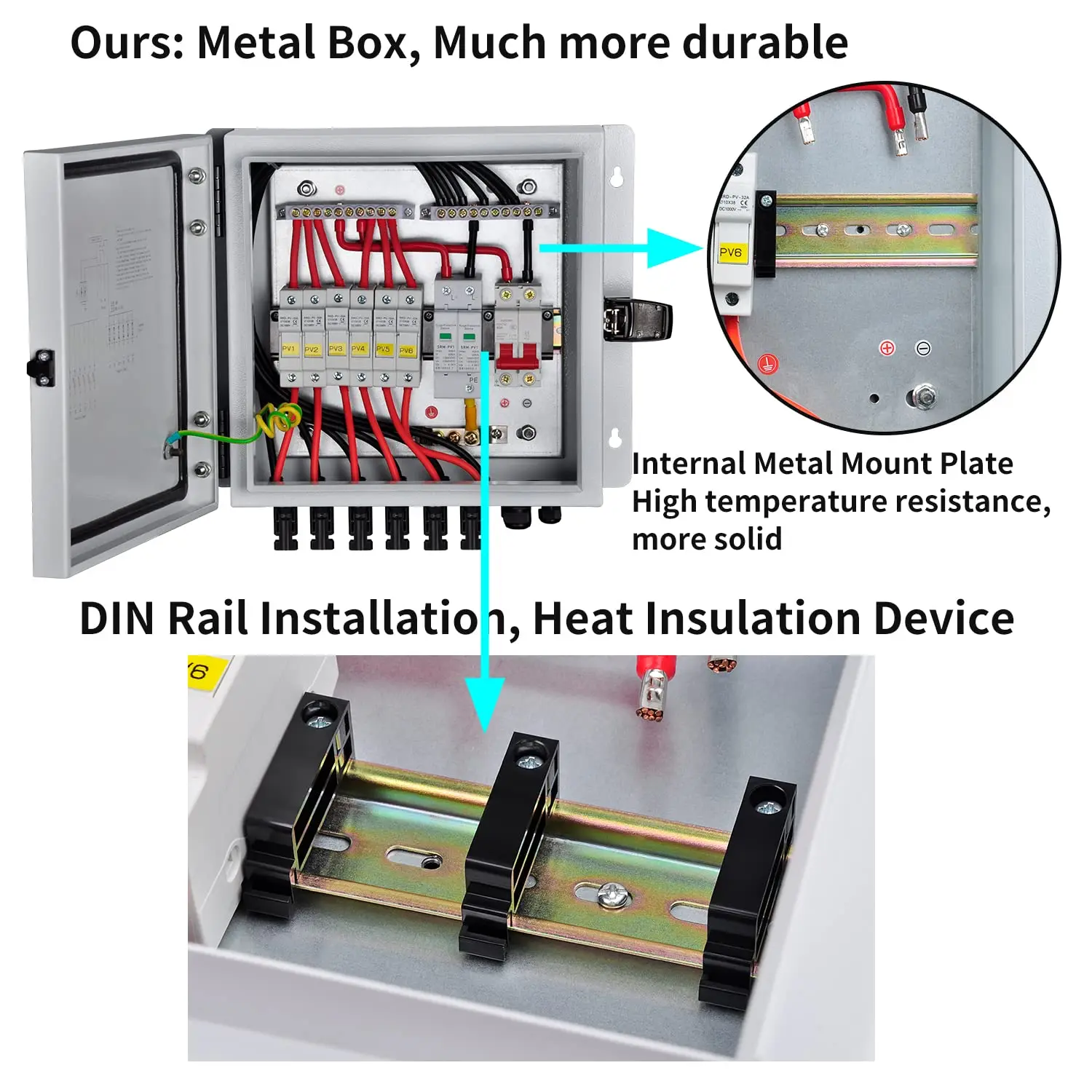

* Configuration:Anti-Backflow Diodes, Anti-Backflow & Anti-Reverse Protection;Radiator, Heat Dissipation for Diode;8Awg +12Awg Cables;6pcs*15A DC Fuse;32A Fuse Holder Base has an LED indicator, if fuse is burned out, LED will light up; MAX 40KA Surge protection device;DC 500V 63A 2 Pole DC Circuit Breaker. With short circuit/lightning surge/over-voltage/over-current protection/grounding protection to avoid damage to photovoltaic panels and inverters when fault occurs

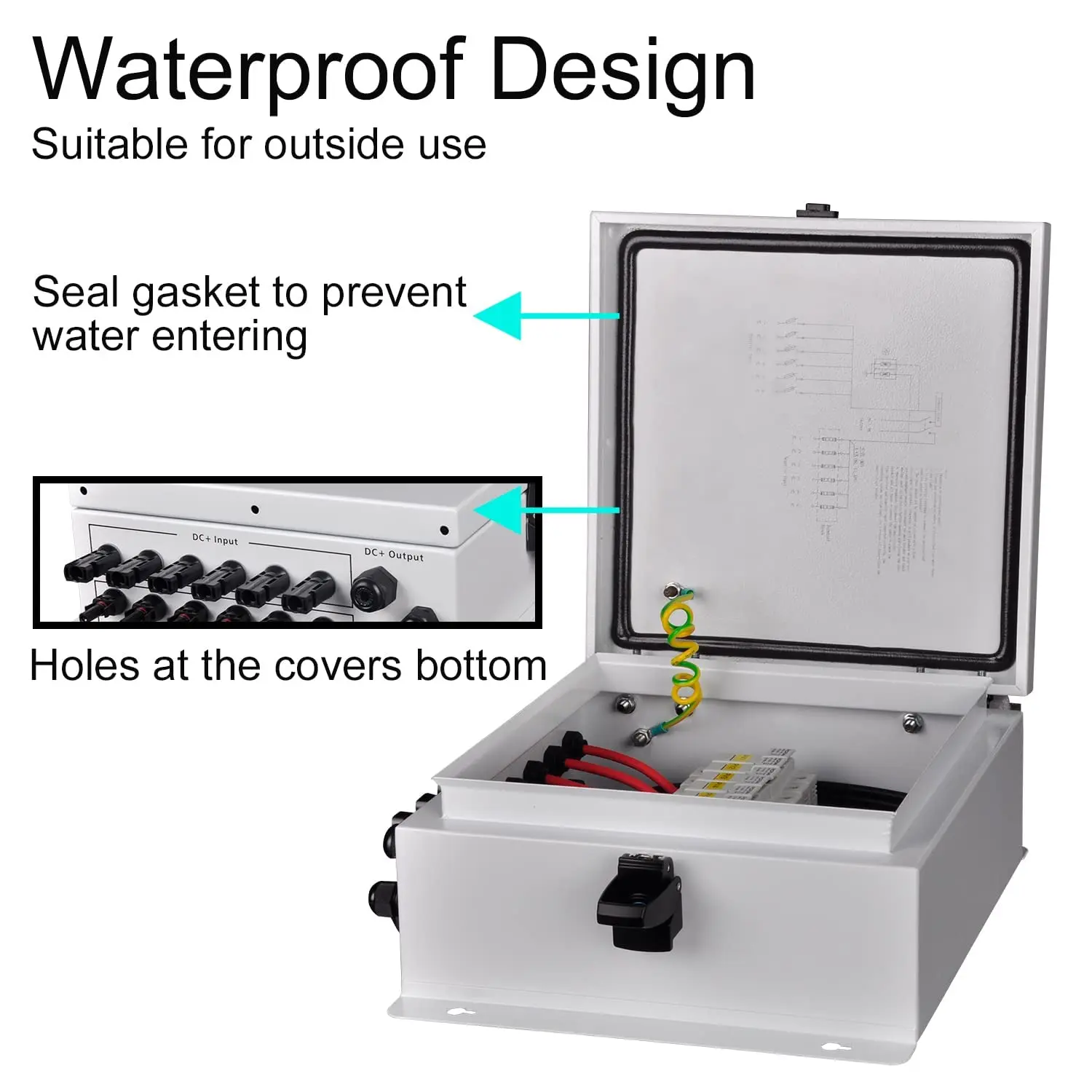

* Advantages:Solar PV combiner shell is IP65 waterproof & dustproof. The sturdy shell is made of high-quality Metal material, insulating, moisture-proof, has no dripping; It has impact resistance and high break resistance, keeping your equipment well protected in harsh environment.The wiring adopts wiring blocks, which are safe, clear and concise
* Applications:The combiner box is a perfect device for outdoor installation and use. Suitable for photovoltaic on- grid/off-grid solar power generation systems, solar panel systems, PV array, RV solar power, home solar panel systems
* Configuration:Anti-Backflow Diodes, Anti-Backflow & Anti-Reverse Protection;Radiator, Heat Dissipation for Diode;8Awg +12Awg Cables;6pcs*15A DC Fuse;32A Fuse Holder Base has an LED indicator, if fuse is burned out, LED will light up; MAX 40KA Surge protection device;DC 500V 63A 2 Pole DC Circuit Breaker. With short circuit/lightning surge/over-voltage/over-current protection/grounding protection to avoid damage to photovoltaic panels and inverters when fault occurs
* Advantages:Solar PV combiner shell is IP65 waterproof & dustproof. The sturdy shell is made of high-quality Metal material, insulating, moisture-proof, has no dripping; It has impact resistance and high break resistance, keeping your equipment well protected in harsh environment.The wiring adopts wiring blocks, which are safe, clear and concise
* Applications:The combiner box is a perfect device for outdoor installation and use. Suitable for photovoltaic on- grid/off-grid solar power generation systems, solar panel systems, PV array, RV solar power, home solar panel systems
Technical Data
6 String PV Combiner Box
***Model: BM-PV6

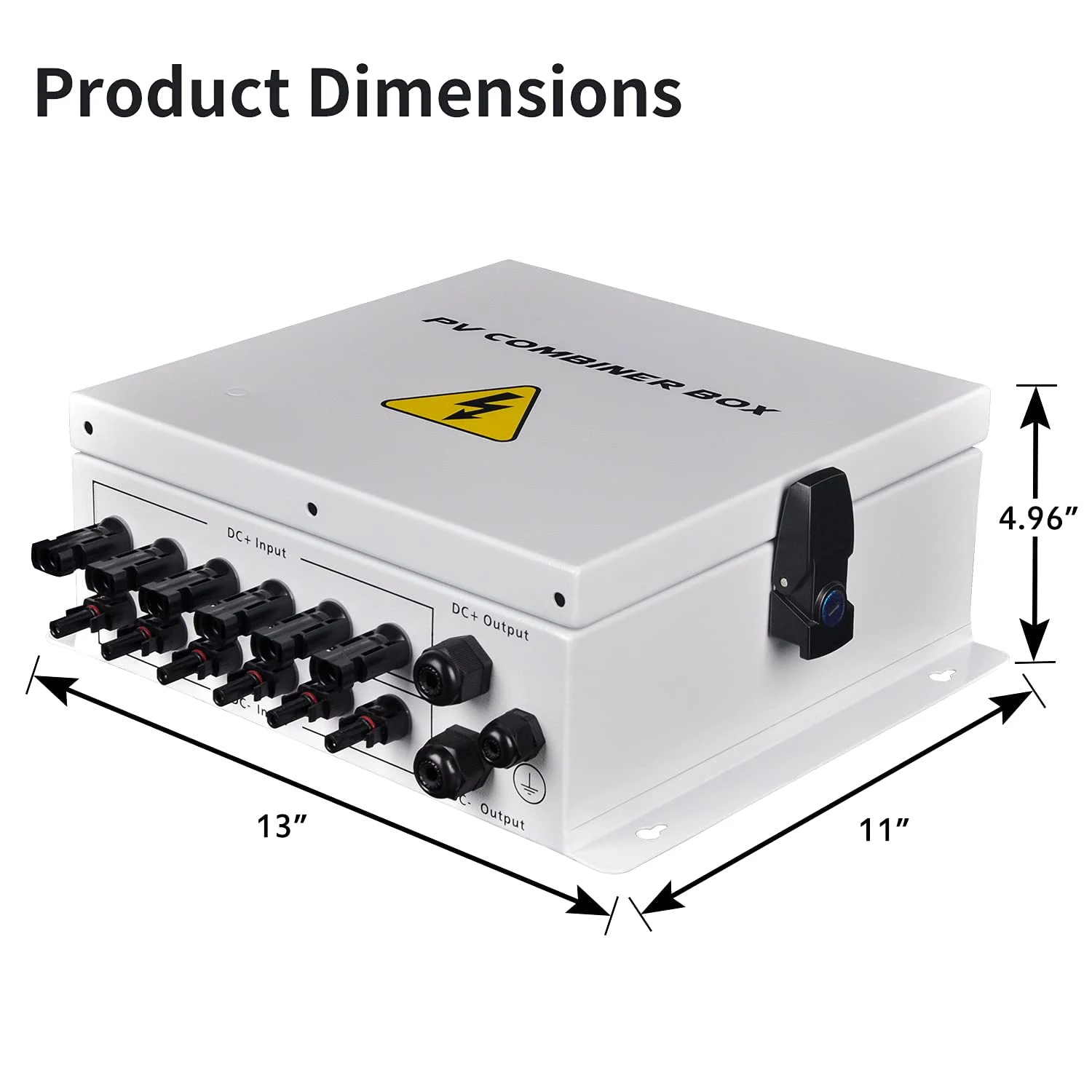

***Box dimension: 14.56″x10.63″x5.90″ (37*27*15cm)
***System maximum dc voltage:550V
***No. of Max. PV array: 6 strings
***Max Input Current of Single PV Array: 15A
***Total input current of PV array: 90A
***Number of output strings:1
***Nominal discharge current:20KA
***Maximum discharge current:40KA
***Voltage protection level:2.8KV/3.8KV
***Max Input Voltage of Single PV Array:600V
***Max Output Voltage:600V
***Fuse Parameter: DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
***Surge Protective Device: in: 20kA; Imax: 40kA; Up: 1.8kV
***MC4 Connectors/dc fuse/dc surge protector:Standard
***Box material:ABS+PC Clear Cover
***Installation method:Wall mounting type
***Operating Temperature:-30℃~+55℃
***Relative Humidity: 0-95%
*** Surge Lightning Protection: Yes
*** Waterproof Grade: IP65
***Weight:8.82lbs(4kg)
P.S.: Waterproof IP67 ventilation valve can be dustproof, breathable, heat dissipation.
Installation & Maintenance
1. Usage instruction: connect solar panel positive and negative with box input port respectively, please switch the DC MCB at ON. Suggesting to use the cable that more than 8AWG/10mm2.
2. Don’t connect PV input and output port reverse, otherwise the output equipment couldn’t work normally, moreover damage other equipment.
3. When maintain or test this combiner box, please notice the input and output port may with power, please be careful of electric shock or damage other equipment.
4. After thunder weather, please check the anti-thunder module, if the malfunction indicator is red, please replace the module in time.
5. Please use bolt fixed the 4 holes on the combiner box bottom to install it. Please install at aeration drying place, avoid direct sunshine, high
environmental temperature and moisture influence equipment function.
6. This combiner box connects with the ground line to prevent thunder damages equipment and solar panel
***Model: BM-PV6
***Box dimension: 14.56″x10.63″x5.90″ (37*27*15cm)
***System maximum dc voltage:550V
***No. of Max. PV array: 6 strings
***Max Input Current of Single PV Array: 15A
***Total input current of PV array: 90A
***Number of output strings:1
***Nominal discharge current:20KA
***Maximum discharge current:40KA
***Voltage protection level:2.8KV/3.8KV
***Max Input Voltage of Single PV Array:600V
***Max Output Voltage:600V
***Fuse Parameter: DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
***Surge Protective Device: in: 20kA; Imax: 40kA; Up: 1.8kV
***MC4 Connectors/dc fuse/dc surge protector:Standard
***Box material:ABS+PC Clear Cover
***Installation method:Wall mounting type
***Operating Temperature:-30℃~+55℃
***Relative Humidity: 0-95%
*** Surge Lightning Protection: Yes
*** Waterproof Grade: IP65
***Weight:8.82lbs(4kg)
P.S.: Waterproof IP67 ventilation valve can be dustproof, breathable, heat dissipation.
Installation & Maintenance
1. Usage instruction: connect solar panel positive and negative with box input port respectively, please switch the DC MCB at ON. Suggesting to use the cable that more than 8AWG/10mm2.
2. Don’t connect PV input and output port reverse, otherwise the output equipment couldn’t work normally, moreover damage other equipment.
3. When maintain or test this combiner box, please notice the input and output port may with power, please be careful of electric shock or damage other equipment.
4. After thunder weather, please check the anti-thunder module, if the malfunction indicator is red, please replace the module in time.
5. Please use bolt fixed the 4 holes on the combiner box bottom to install it. Please install at aeration drying place, avoid direct sunshine, high
environmental temperature and moisture influence equipment function.
6. This combiner box connects with the ground line to prevent thunder damages equipment and solar panel
Q: Is OEM available?
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
