Paraffin Wax Melting Pot Melting Wax Machine
US $56.00-$130.00
UMS/D High compression ratio pocket spring coiling coiler machine for sale
- Category: Home Product Manufacturing Machinery >>>
- Supplier: Guangzhou Lianrou Machinery And Equipment Co. Ltd.
Share on (1600883304366):
Product Overview
Description
Product Description
Specification
Product Name | Pocket spring machine | ||||
Model | LR-PS-UMS | LR-PS-UMD | |||
Production capacity | 160 springs/mins. | ||||
Coiling head | Single wire servo coiling head | ||||
Working principle | Servo control | ||||
Spring shape | Standard versions: barrel and cylindrical | ||||
Air consumption | 0.23m³/min. | ||||
Air pressure | 0.6-0.7Mpa | ||||
Power consumption in total | 40KW | 43KW | |||
Power requirements | Voltage | 3AC 380V | |||
Frequency | 50/60Hz | ||||
Input current | 60A | 65A | |||
Cable section | 3*16 m㎡ + 2*10 m㎡ | ||||
Working temperature | +5℃ - +35℃ | ||||
Weight | Approx.4000Kg | Approx.5000Kg | |||
Non-woven fabric | ||||||
Fabric density | 70-90g/m2 | |||||
Fabric width | 370-680mm | |||||
Inner dia.of fabric roll | 75mm | |||||
Outer dia.of fabric roll | Max.1000mm | |||||
Steel wire | ||||||
Wire diameter | 1.6-2.1mm | |||||
Inner dia.of wire roll | Min.320mm | |||||
Outer dia.of wire roll | Max.1000mm | |||||
Acceptable weight of wire roll | Max.1000Kg | |||||
Applicable spring specifications(mm) | ||||||

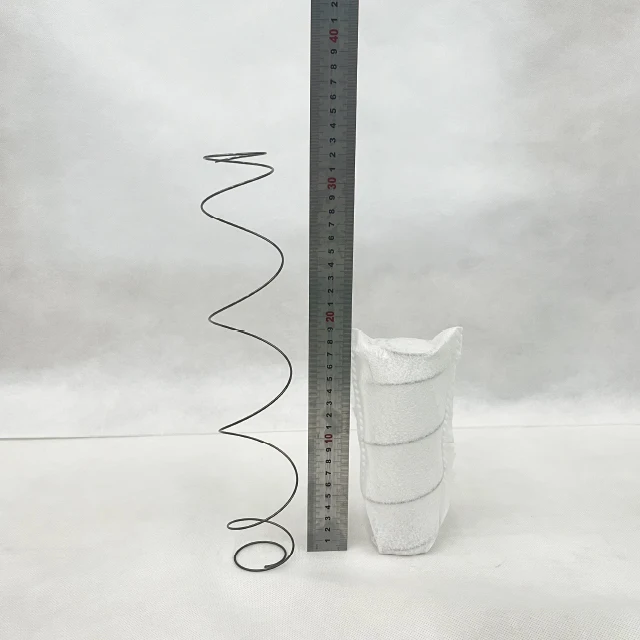

Original height of spring | 160-360 | |||||
Maximum compression ratio | 66% | |||||
Wire Diameter | Spring Waist Diameter | Pocket Spring Height | ||||
Option 1 | φ1.6-2.1mm | φ55-70mm | 120-250mm | |||
Packing & Delivery
Stronger elasticity, lighter products and less consumables
1.Patented ultra-high spring pre-compression technology
2.Same wire diameter, stronger spring support
to reduce the cost of materials and transportation
3.Unique high compression ratio with high elasticity
achieve the same hardness product at a lower cost
1.Patented ultra-high spring pre-compression technology
2.Same wire diameter, stronger spring support
to reduce the cost of materials and transportation
3.Unique high compression ratio with high elasticity
achieve the same hardness product at a lower cost
Company Profile
Guangzhou Lianrou Machinery and Equipment Co.,Ltd, as the first manufacturer of pocket spring production machines in China, has always keep in mind a brief of Technological Innovation, Quality First and Top Class Service, and has continually researched and developed a series of upholstered furniture manufacturing equipments,Pocket Spring Machine,Pocket Spring Assembly Machine,Automatic Mattress Packing Machine,Mattress Roll-packing Machine,Foam-roll Compressing Machine,ect.
FAQ
1. Can you make your products with our colors?
Our products have fixed colors and specifications, if you can meet our MOQ, you can customize the color of the product.
2. How to ensure the quality of your machines?
(1) We have perfect quality standards and strict quality inspection procedures, and each process strictly abides by the standards.
(2) Strictly inspect, test and test run the finished machine according to the factory standard before leaving the factory to
ensure the quality of the machine
(3) The machine has a quality assurance policy, which is guaranteed for 1 year.
Our products have fixed colors and specifications, if you can meet our MOQ, you can customize the color of the product.
2. How to ensure the quality of your machines?
(1) We have perfect quality standards and strict quality inspection procedures, and each process strictly abides by the standards.
(2) Strictly inspect, test and test run the finished machine according to the factory standard before leaving the factory to
ensure the quality of the machine
(3) The machine has a quality assurance policy, which is guaranteed for 1 year.
