12 Meter Long 40 60 100 Ton Heavy Duty 3 Axle 4 Axle Low Flatbed Loader Deck Lowboy Trailers Lowbed Semi Trailer With Ramps
- Category: >>>
- Supplier: Liangshan Xuandong Automobile Trading Co. Ltd.
Share on (1600890453810):
Product Overview
Description
Products Description
We have two kinds of products:semi trailer and van truck.

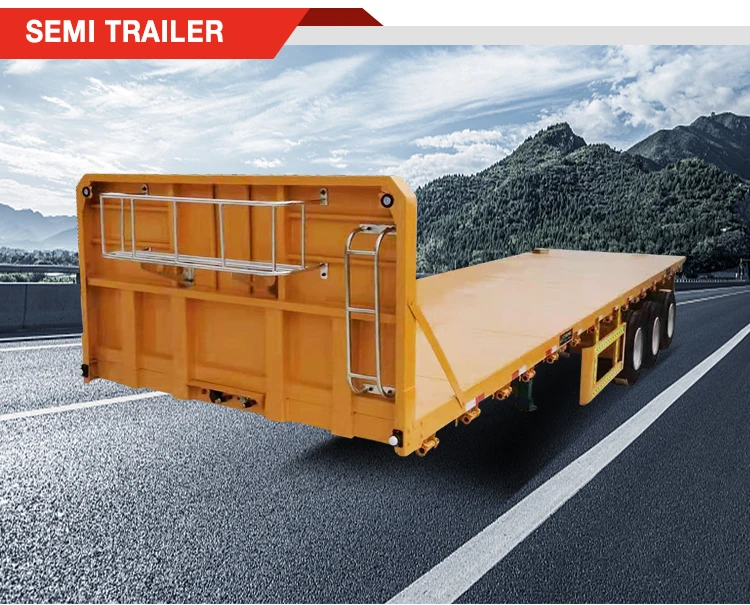

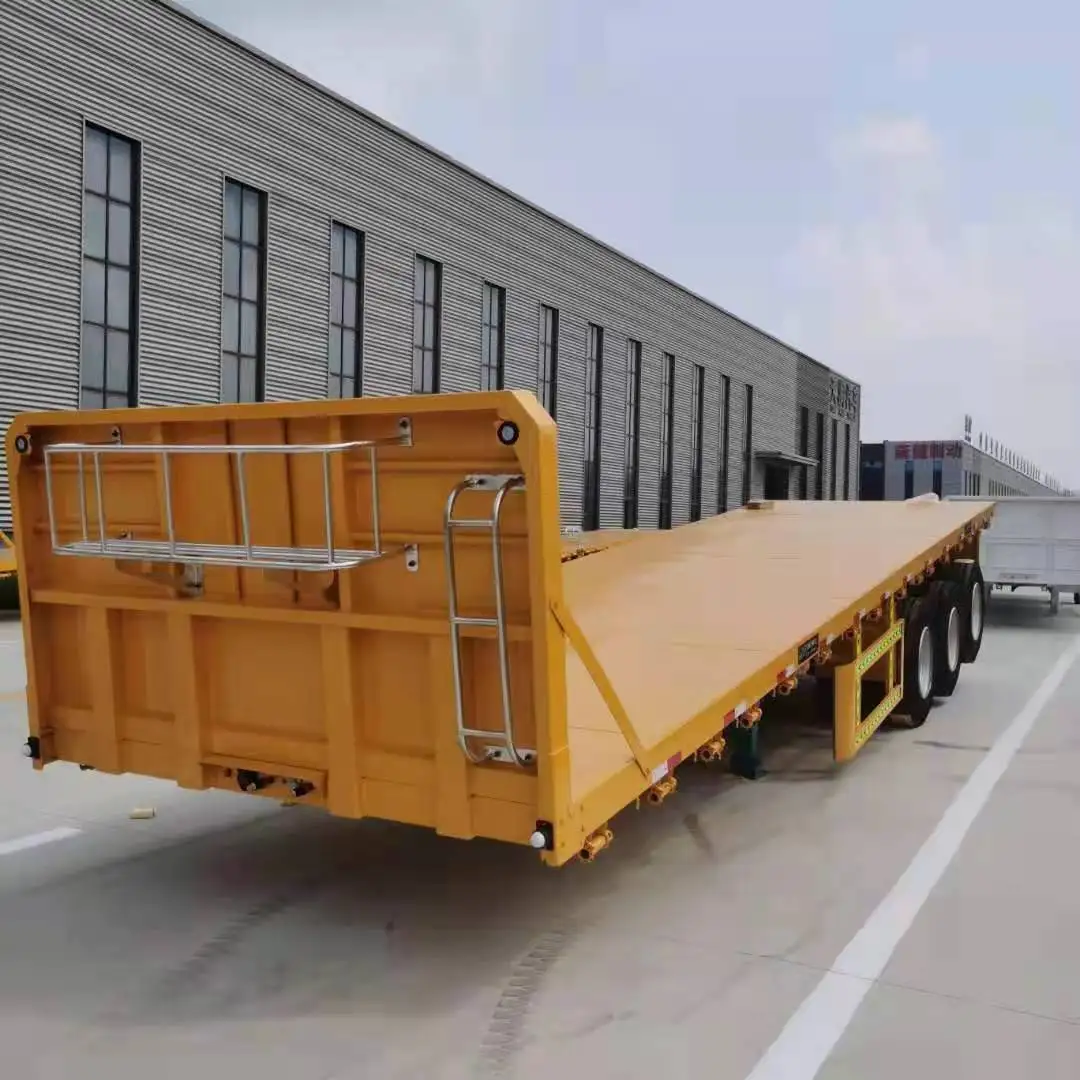

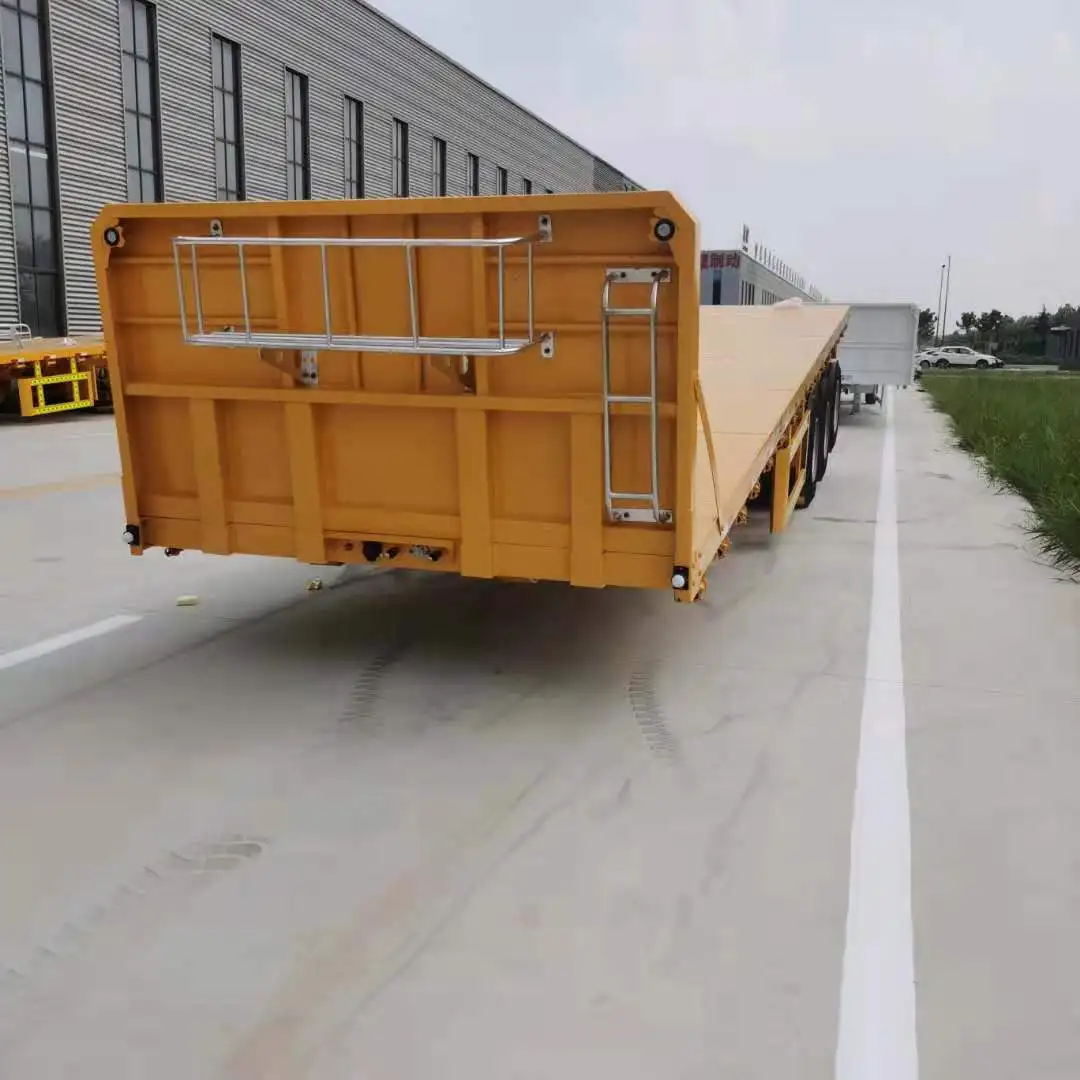

The flatbed semi-trailer is very versatile and is mainly used for medium and long-distance freight transportation. Flatbed semi-trailer uses high-strength international steel material, and the whole trailer has light weight and guarantees its resistance to twisting, shock and bounce, and meets different road load carrying capacity. Hot sale in all countries of the world.
Our cargo trucks are outlined with full and smooth lines, which better meets aerodynamic principles and greatly reduces the drag coefficient, thus significantly improving fuel economy.
The flatbed semi-trailer is very versatile and is mainly used for medium and long-distance freight transportation. Flatbed semi-trailer uses high-strength international steel material, and the whole trailer has light weight and guarantees its resistance to twisting, shock and bounce, and meets different road load carrying capacity. Hot sale in all countries of the world.
Our cargo trucks are outlined with full and smooth lines, which better meets aerodynamic principles and greatly reduces the drag coefficient, thus significantly improving fuel economy.
Flatbed Semi Trailer Specification | ||||
20FT FLATBED SEMI TRAILER | 40FT FLATBED SEMI TRAILER | 45FT FLATBED SEMI TRAILER | ||
Brand: VEHICLE MASTER | Brand: VEHICLE MASTER | Brand: VEHICLE MASTER | ||
2 Axles/3 Axles | 2 Axles/3 Axles /4 Axles | 3 Axles /4 Axles | ||
20ft container or cargo loading | 1*40ft/2*20ft Container or cargo loading | 1*40ft/1*45ft container or cargo loading | ||
Loading Capacity: 20 - 60 Tons | Loading Capacity: 30 - 80 Tons | Loading Capacity: 30 - 80 Tons | ||
Gooseneck Type: Yes | Gooseneck Type: Yes | Gooseneck Type: Yes | ||
Tandem Type: Yes | Tandem Type: Yes | Tandem Type: Yes | ||
Main Beam | ||||
Material: Q345/T700 | Material: Q345/T700 | Material: Q345/T700 | ||
Upper Plate Thickness: 12mm | Upper Plate Thickness: 16mm | Upper Plate Thickness: 16mm | ||
Middle Plate Thickness: 6mm | Middle Plate Thickness: 10mm | Middle Plate Thickness: 10mm | ||
Lower Plate Thickness: 14mm | Lower Plate Thickness: 18mm | Lower Plate Thickness: 18mm | ||
Height: 500mm | Height: 500mm | Height: 500mm | ||
Platform Thickness: 2.5mm | Platform Thickness: 3mm | Platform Thickness: 3mm | ||
Product Dimension | ||||
L 7000mm*W 2500mm*H 1570mm | L 12400mm*W 2500mm*H 1570mm | L 13950mm*W 2500mm*H 1600mm | ||
Axles | ||||
2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other | 2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other | 2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other | ||
Tire | ||||
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand | 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand | 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/ Other Brand | ||
Rim | ||||
9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | ||
Leaf Spring | ||||
90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs | ||
King Pin | ||||
50#(2")/90#(3.5") JOST/Other Brand | 50#(2")/90#(3.5") JOST/Other Brand | 50#(2")/90#(3.5") JOST/Other Brand | ||
Landing Gear | ||||
28 Ton Two Speed,JOST/Other Brand | 28 Ton Two Speed,JOST/Other Brand | 28 Ton Two Speed,JOST/Other Brand | ||
Twist Lock | ||||
4 Sets | 12 Sets | 12 Sets | ||
Vehicle Painting | ||||
Electrophoresis painting | Electrophoresis painting | Electrophoresis painting | ||

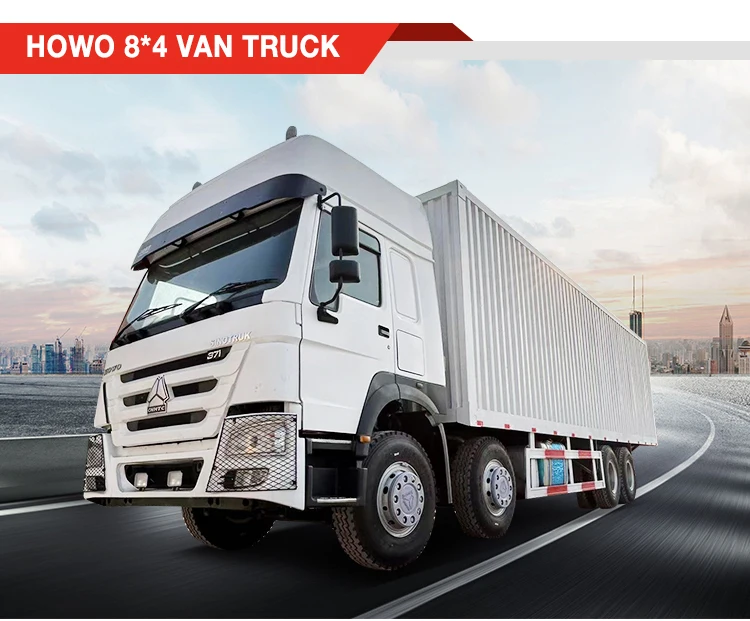

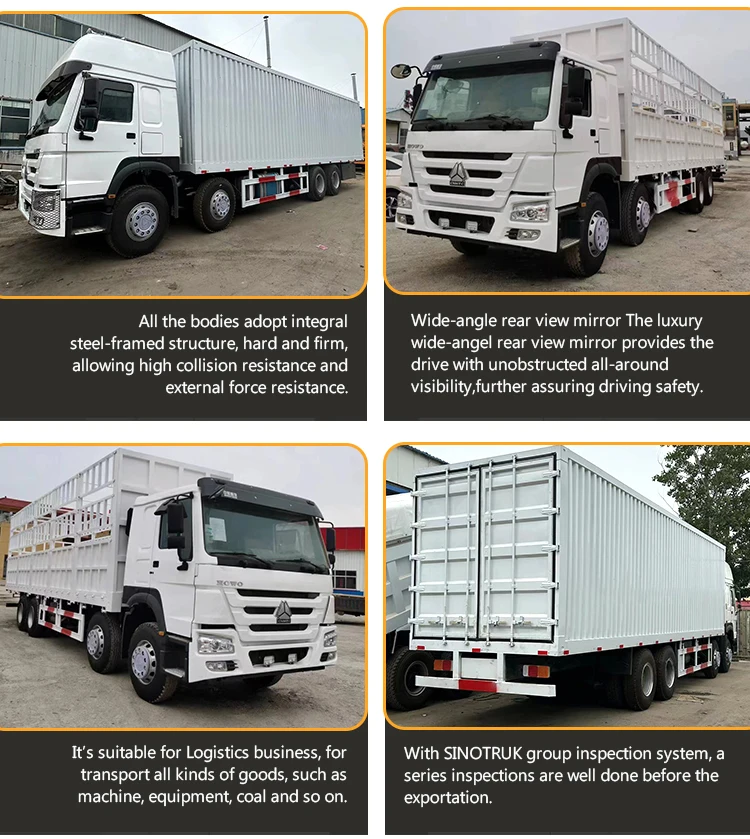

Model | ZZ1317N4667V | ||
Cabin | HW79 High Roof Cabin, with two seats and two beds, with Air Conditioner and electric window. | ||
Engine | Model | WD615.47 | |
Horse Power (Hp/rpm) | 371/2000, Euro II Emission Standard | ||
Max.Torque (Nm/rpm) | 1460/1200-1500 | ||
Displacement L | 9.726 | ||
Type | 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine | ||
Transmission | HW19710, 10 speeds forward and 2 speeds reverse | ||
Front Axle | HF9, Steering with double T-cross section beam | ||
Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42 | ||
Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | ||
Steering System | ZF8118, Hydraulic steering with power assistance | ||
Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | ||
Tire | 12.00R20 | ||
Fuel Tank Capacity (L) | 400L Diesel Tank | ||
Kurb Weight (kg) | 15,000 | ||
Loading Capacity (kg) | 35,000 | ||
Gross Vehicle Weight (kg) | 50,000 | ||
Overall Dimension(L*W*H)(mm) | 12000×2500×3850 | ||
Van Dimension(L*W*H)(mm) | 9280×2300×2450 | ||
Wheelbase(mm) | 1800+4600+1350 | ||
Max. Speed (km/h) | 102 | ||

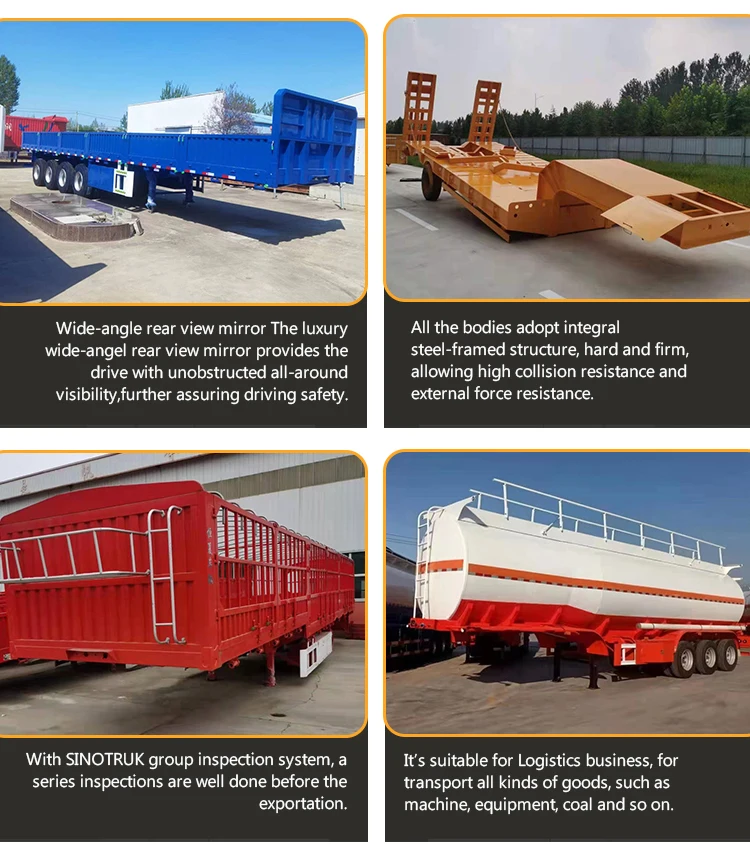

More Products
Our Advantages
Product packaging
Company Information
FAQ
Q1. What's your MOQ?
A1.One unit trailer or truck.
Q2. Can you satisfy my special requirement?
A2.Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3.How about your product quality?
A3.High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.Established a procedure to check products at all stages of the manufacturing process,raw materials,process materials,validated or tested materials finished goods ect.
Q4. How can I get the price of your truck?
A4.You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. Is it available to print our own brand on the truck?
A5.Totally acceptable as you wish.
Q6.What's the delivery time?
A6.The delivery time is within 30-50 working days after receiving your advance payment.
Q 7:How do you transport the truck?
A7.We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
Q8.Can you supply some quick-wear truck or truck parts?
A8.Yes, we can supply truck and truck, parts as your request.
A1.One unit trailer or truck.
Q2. Can you satisfy my special requirement?
A2.Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3.How about your product quality?
A3.High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.Established a procedure to check products at all stages of the manufacturing process,raw materials,process materials,validated or tested materials finished goods ect.
Q4. How can I get the price of your truck?
A4.You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. Is it available to print our own brand on the truck?
A5.Totally acceptable as you wish.
Q6.What's the delivery time?
A6.The delivery time is within 30-50 working days after receiving your advance payment.
Q 7:How do you transport the truck?
A7.We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
Q8.Can you supply some quick-wear truck or truck parts?
A8.Yes, we can supply truck and truck, parts as your request.
