Product Overview
Description

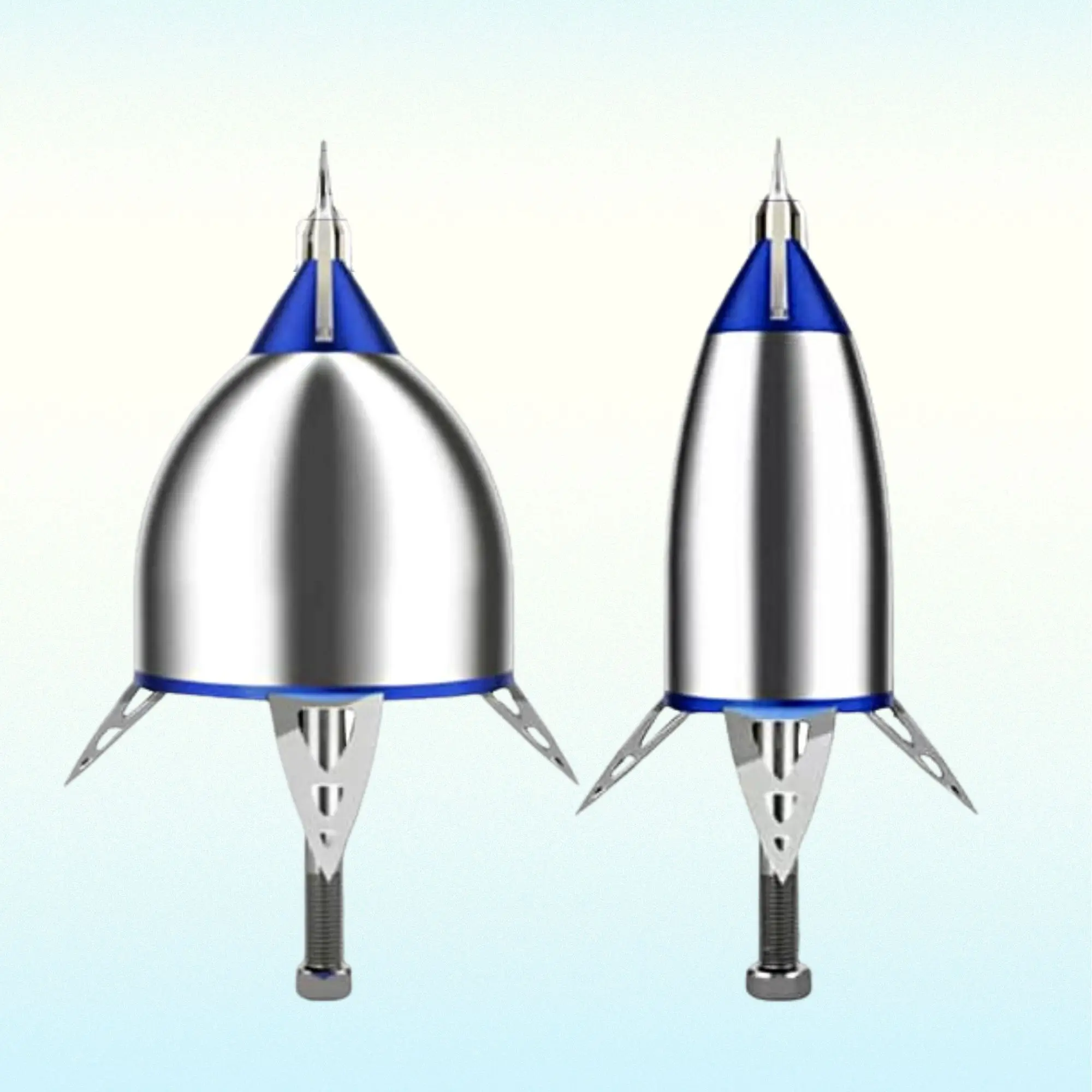

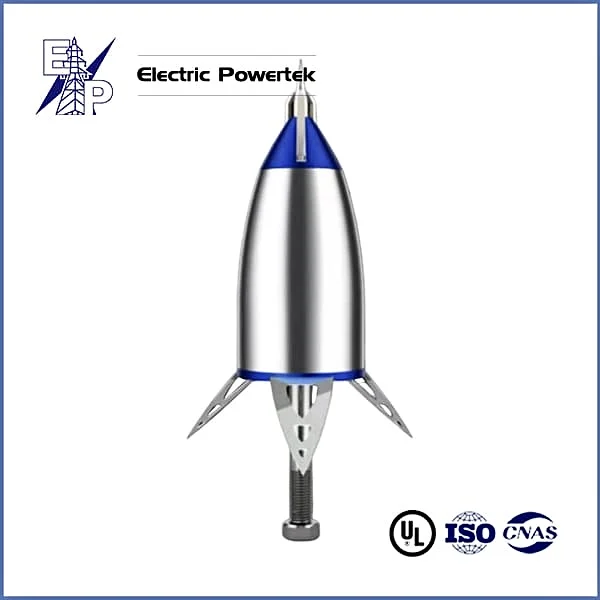

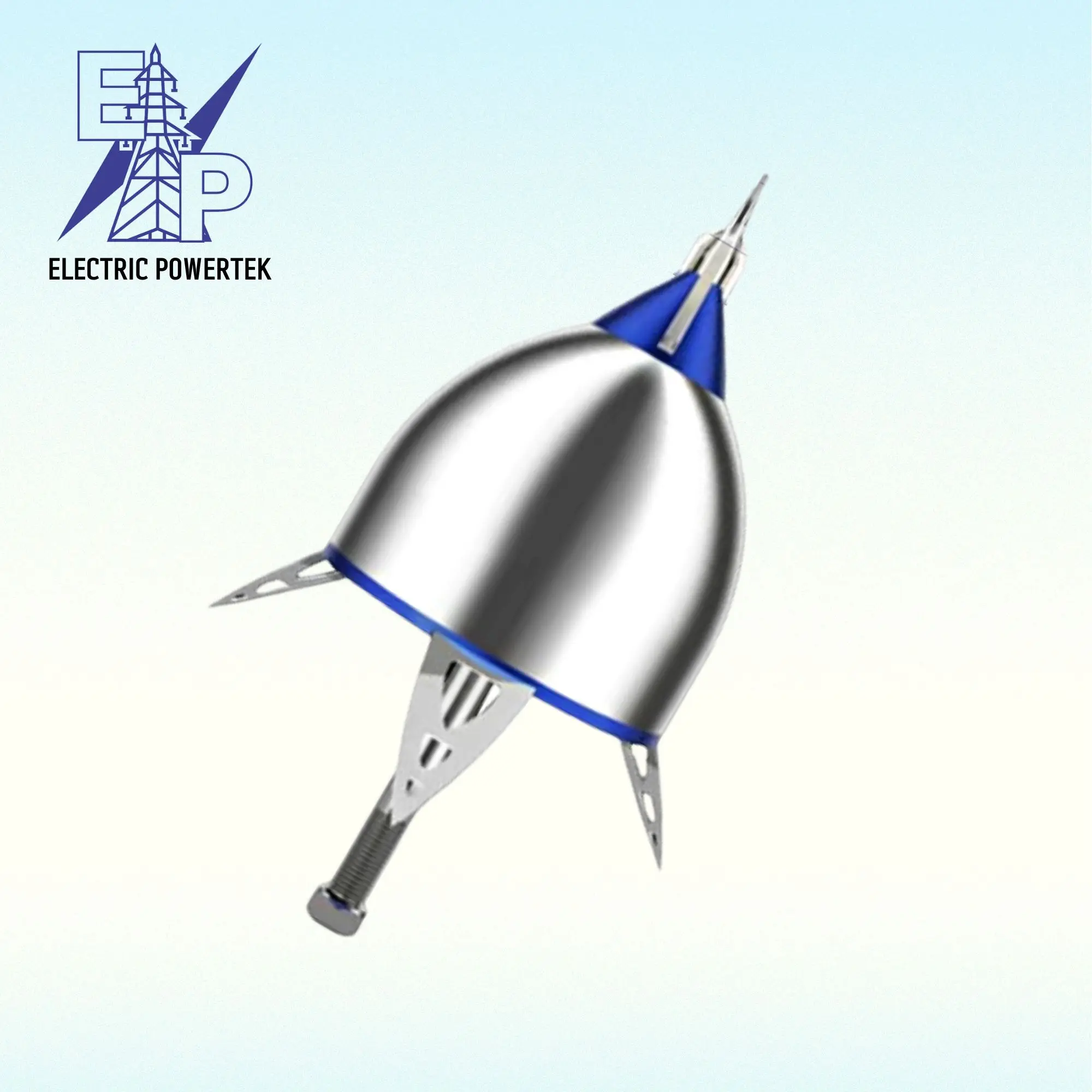

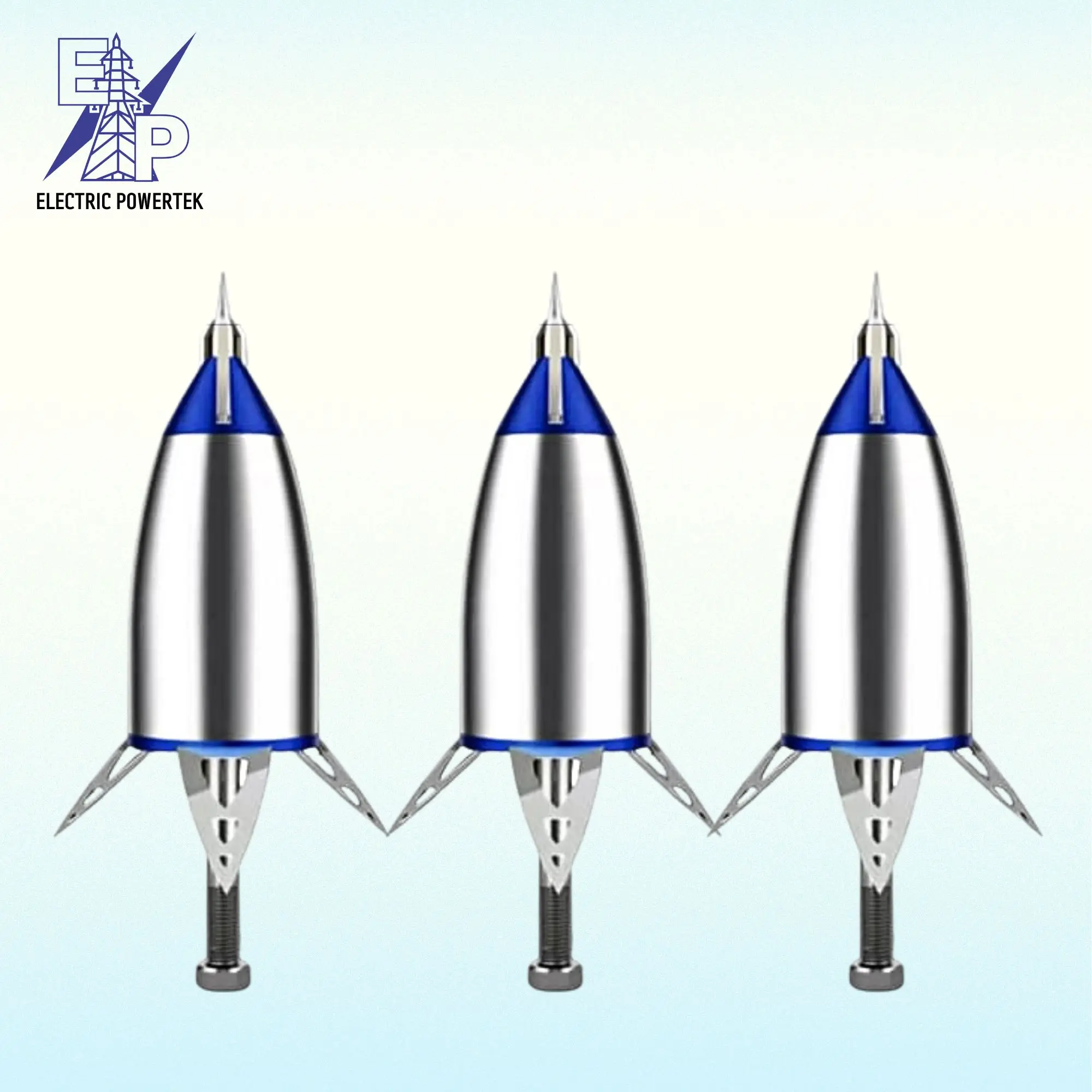

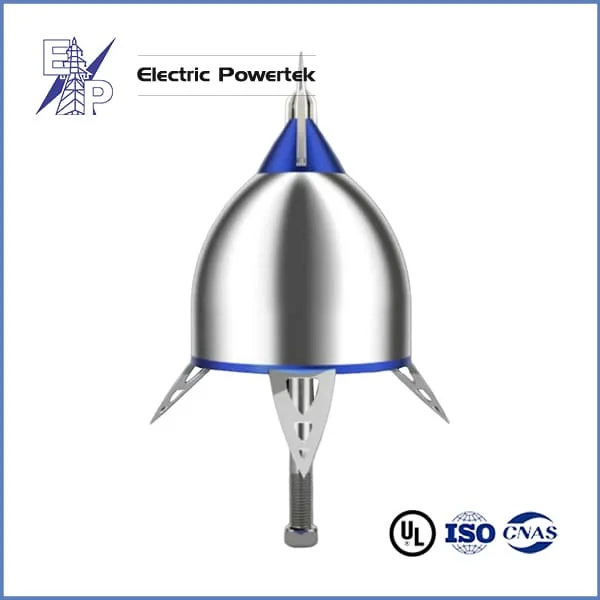

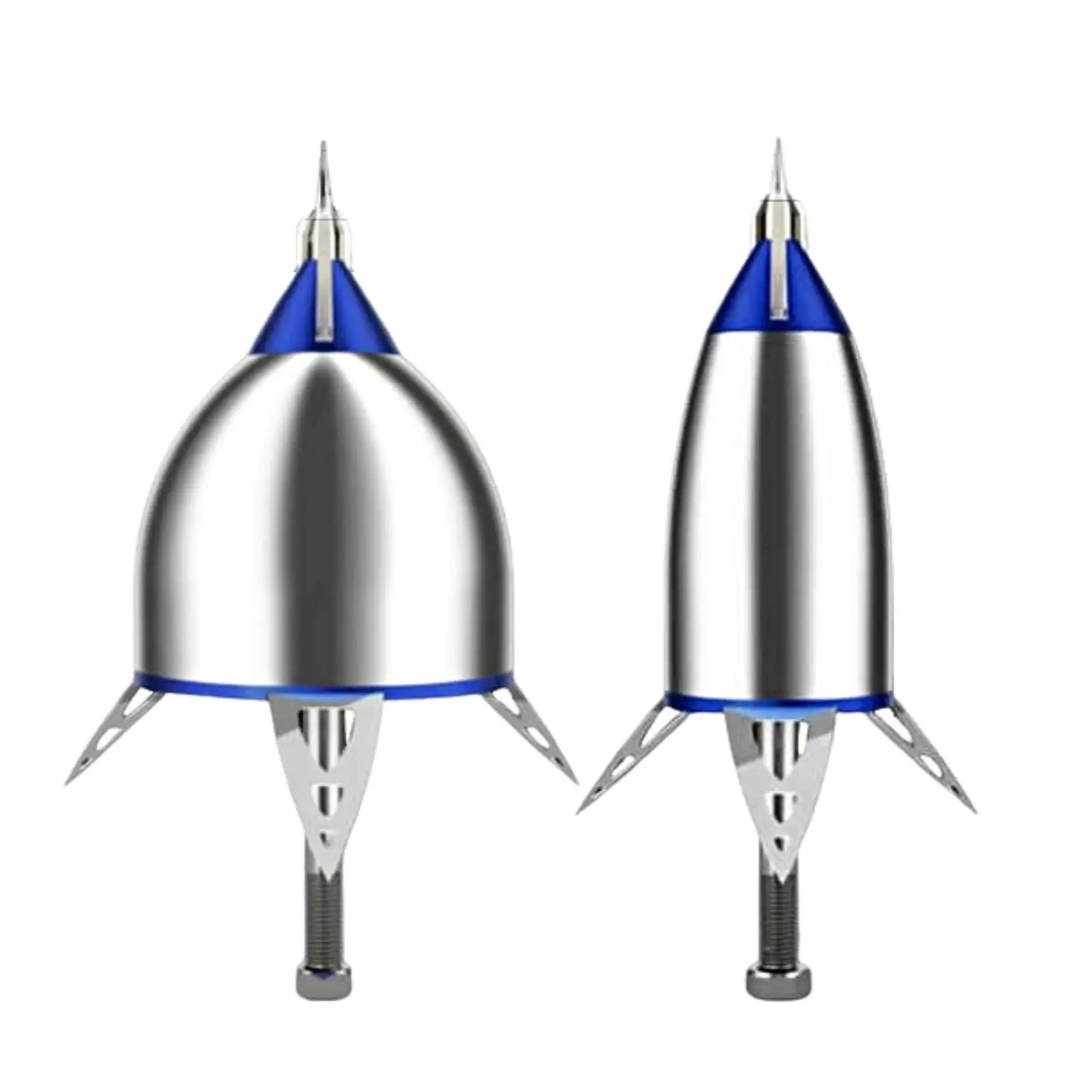

Steel Stainless Lightning Protection System Various Types of Ese Lightning Arrester / Ese Lightning Rod
Products Description
Model Number | ESE30-60 | ||||||
Efliciency (AT) | 30/40/50/60us | ||||||
Standard Deviation ESE / Single Rod | < 0.6/0.55/0.5/0.4 | ||||||

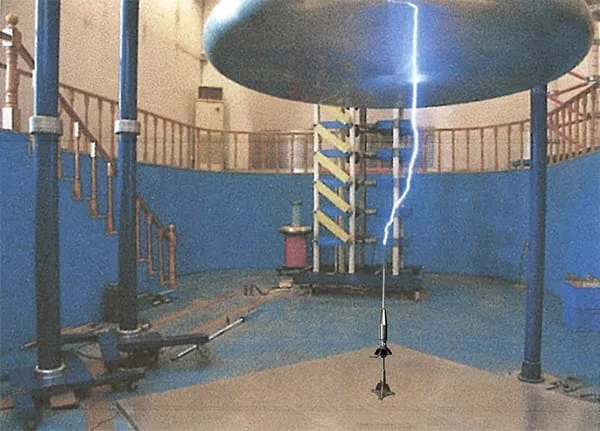

Lightning current withstanding test | 100kA (normative test at 10/350us waveform as standard requires) | ||||||
Lightning current withstanding | > 200KA(10/350 us) | ||||||
Capacity against wind speed | >40 m/s | ||||||
Dimension(Length) | 408-418mm | ||||||
Approx net weight | 3-4kg | ||||||
Enclosure material | Stainless Steel (Superior Quality) | ||||||

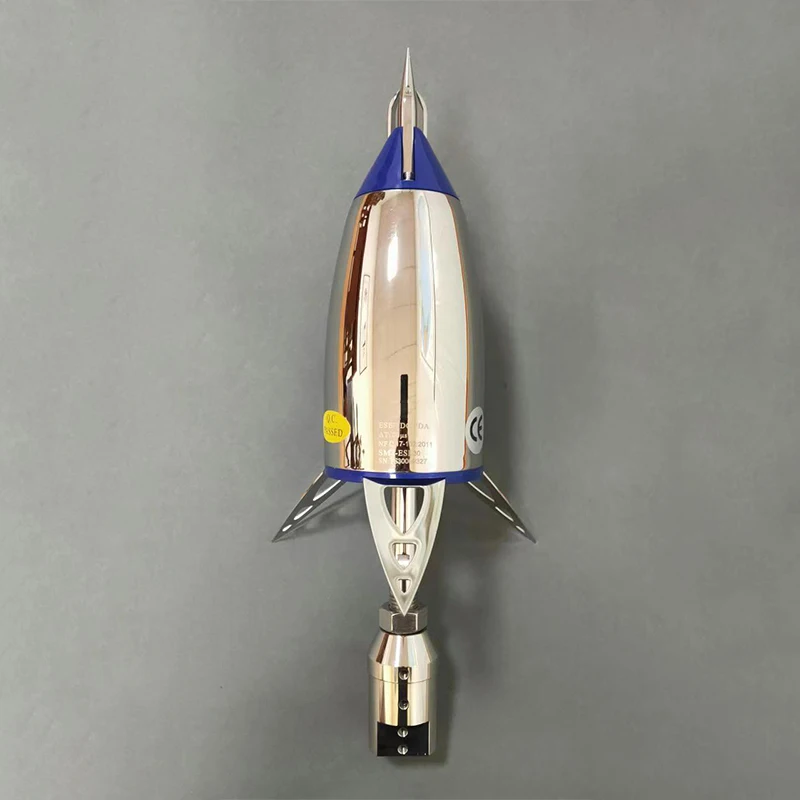

ESE Stainless Steel Prevent Discharge Of Lightning Rod In Advance
Pre discharge Lightning rod, also known as pre discharge Lightning rod, is a grounding metal rod system vertically installed on the top of the protected body to prevent lightning strikes.A lightning protection device composed of a lightning arrester, down lead, and grounding device. The lightning arrester is installed on the structure and above the protected object, and the load is sensed by the tip in advance with the thunderstorm cloud, and energy is released through the down lead, weakening the energy of the thunderstorm cloud and protecting the building.
Basic Parameters
Product Functions And Characteristics
Series PATENTED models offering customized solutions for each project.
GLOBAL SUCCESSFUL General, Mechanical, Environmental.
ESE Lightning Rod only becomes active when electrical field intensity rises (lightning discharge likely) .
ESE Lightning Rod presents no danger to the site.Fully reliability, even in extreme climatic conditions.
Robust to withstand multiple lightning strikes.
ISO 9001: 2015Q. M. S. Certified Manufacturing Process.

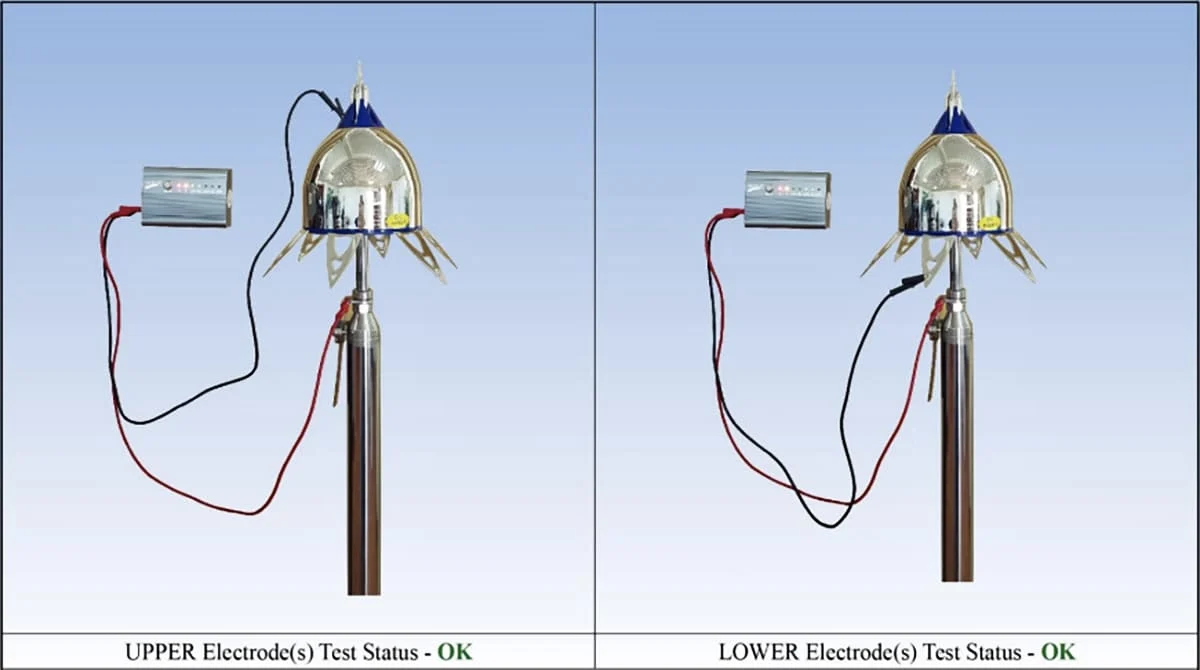

Product case

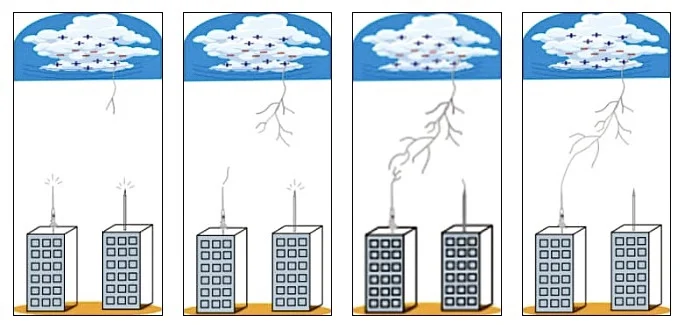

Product Working Principle
1.When lightning clouds form, the distance between the clouds and the ground The atmosphere will generate an electric field.Thereby causing the ground to protrude Corona discharge begins to appear on some or metal components.
2.When a downward leader is formed inside the lightning cloud layer, lightning strikes begin. The downward lead charge develops in a stepped form towards the ground, and the charge carried by the downward lead establishes an electric field on the ground.
3.An upward leader is generated from a building or object on the ground. This upward leader propagates upwards until it meets the downward leader, and at this point, lightning current flows through the channel formed. A single building on the ground may generate several ascending leaders, and the location of the lightning shock is determined by one ascending leader that meets the descending leader.
4. The working principle of the intelligent discharge Lightning rod is to produce a faster and more accurate uplink leader than the ordinary Lightning rod. Thus, an early rising leader will be generated, which will change the direction of the downward leader of the thundercloud, transfer the lightning falling point within the protection range of the Lightning rod to itself, and quickly and safely release the lightning to the ground to avoid being struck by lightning.
Reference/Test Standards
NF C 17-102:2011 Annexe C
EN/IEC 60060-1:2010 Part 1
EN/IEC 62305
GB/T T16927.1-2011 Part 1
UNE 21.186:2011 Paragraph C
UNE-EN 62561
UNE-EN 60068-2-52
UNE-EN ISO 6988

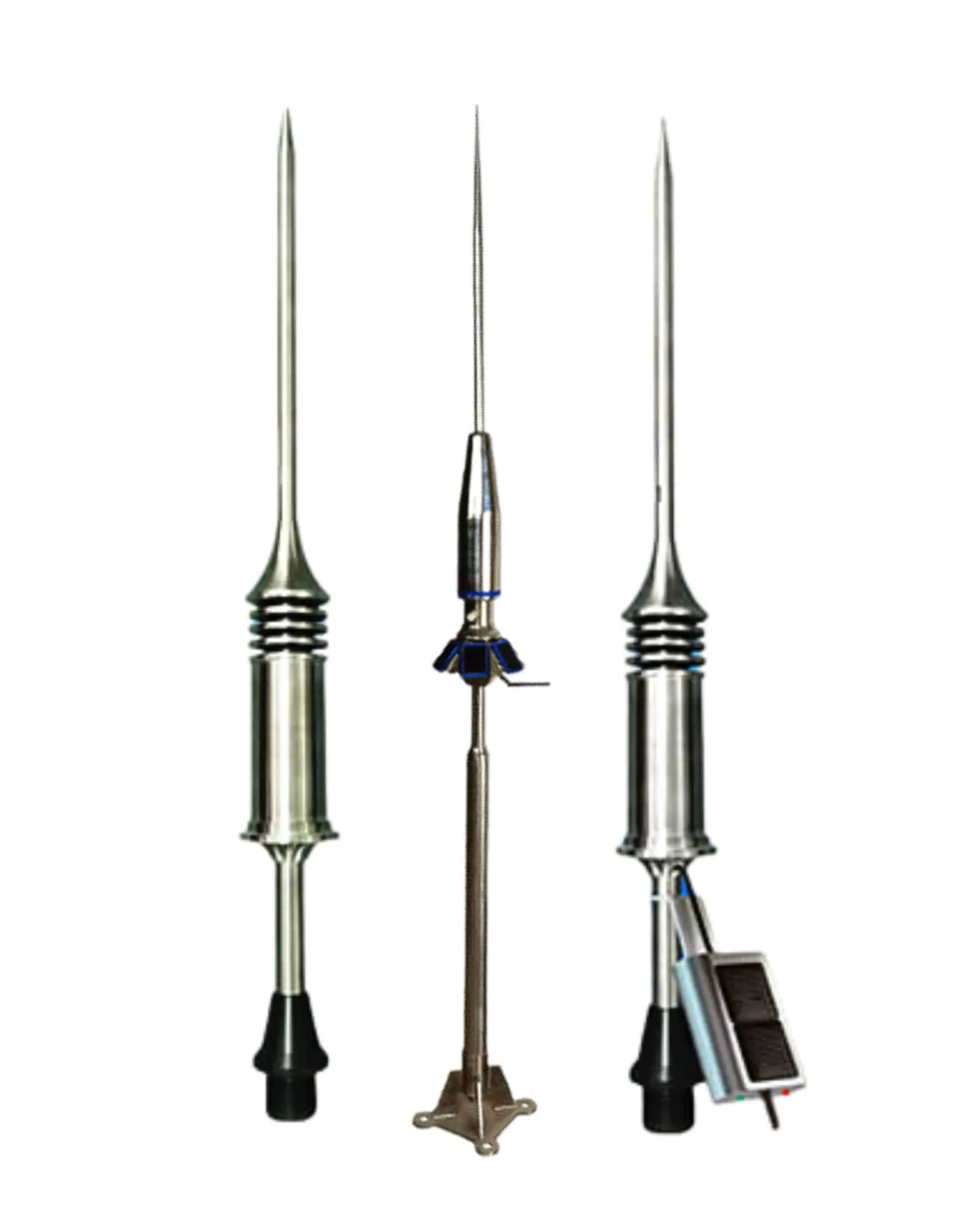

Other products
Company Profile
Please click the link in the description for more product information！
www.electricpowertek.com
Partner customers
Cooperative Client
Our cooperative client are all over the world and our products are very popular all over the world. Many products are exported to Russia, USA, Australia, Canada, South Africa, Kenya, Tanzania, Zambia, Brazil and Argentina. Chile, Southeast Asian countries and other international markets. With first-class technical ability and perfect pre-sale and after-sales service guarantee system, we have established a good reputation between enterprises and users.
Certifications
Packing&Delivery

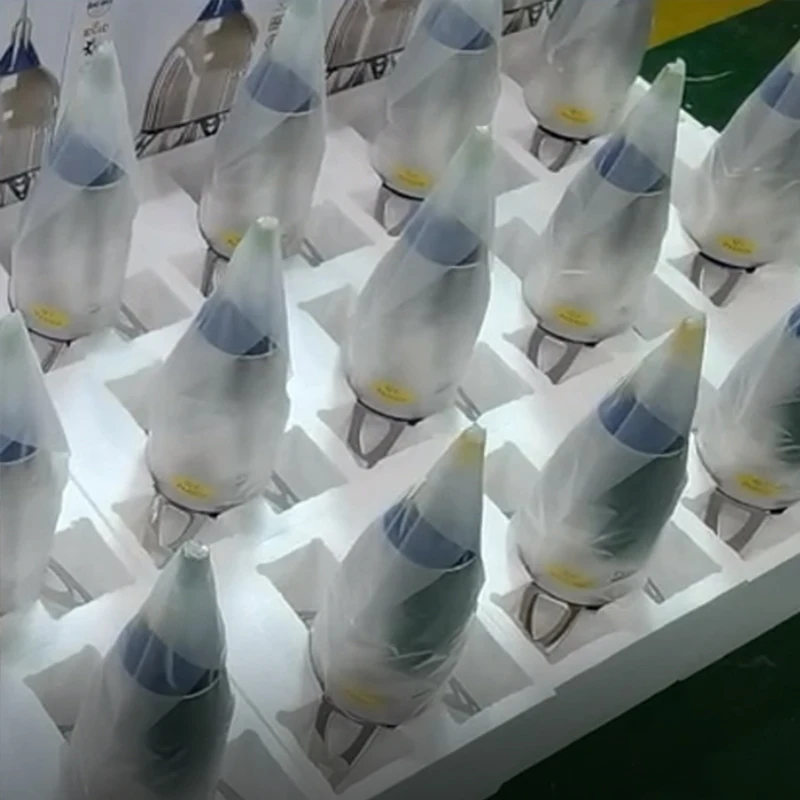

Packing
