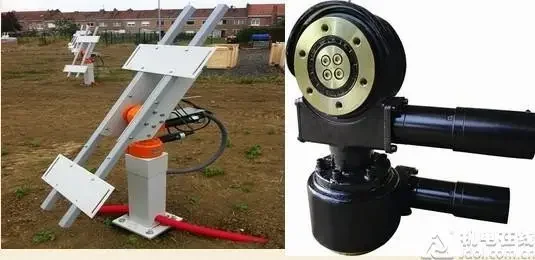

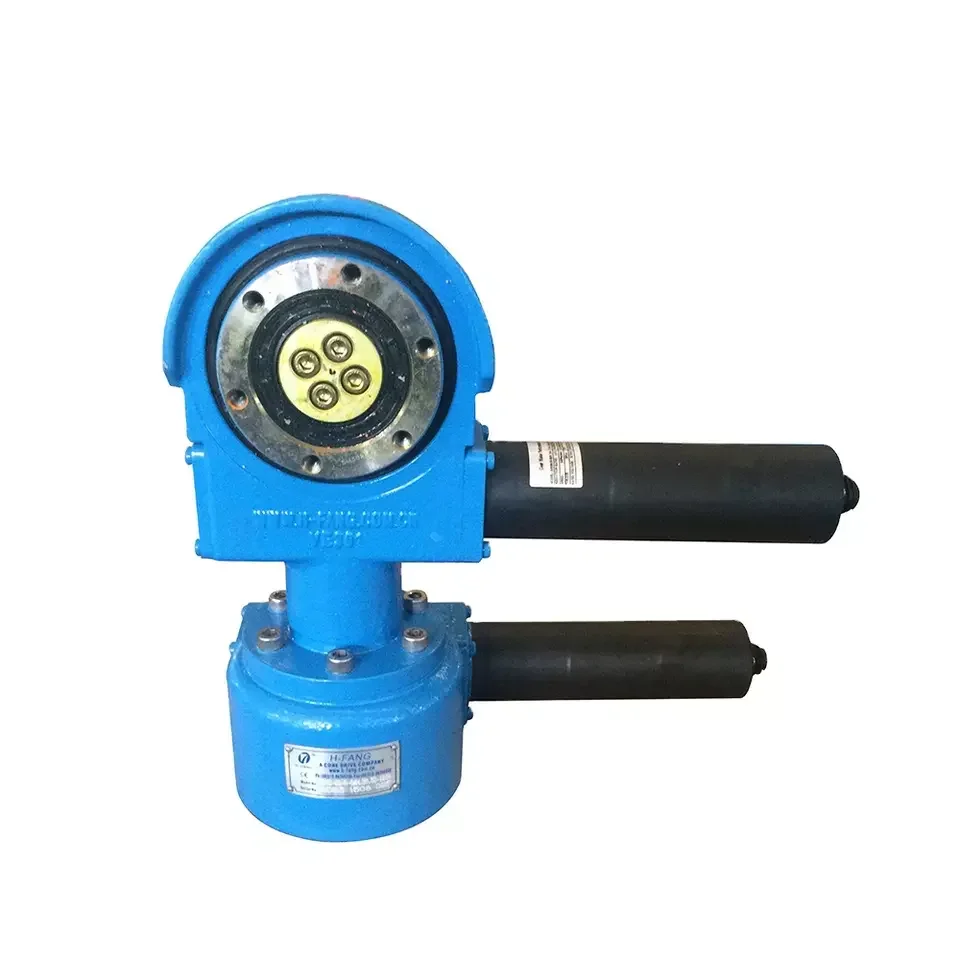

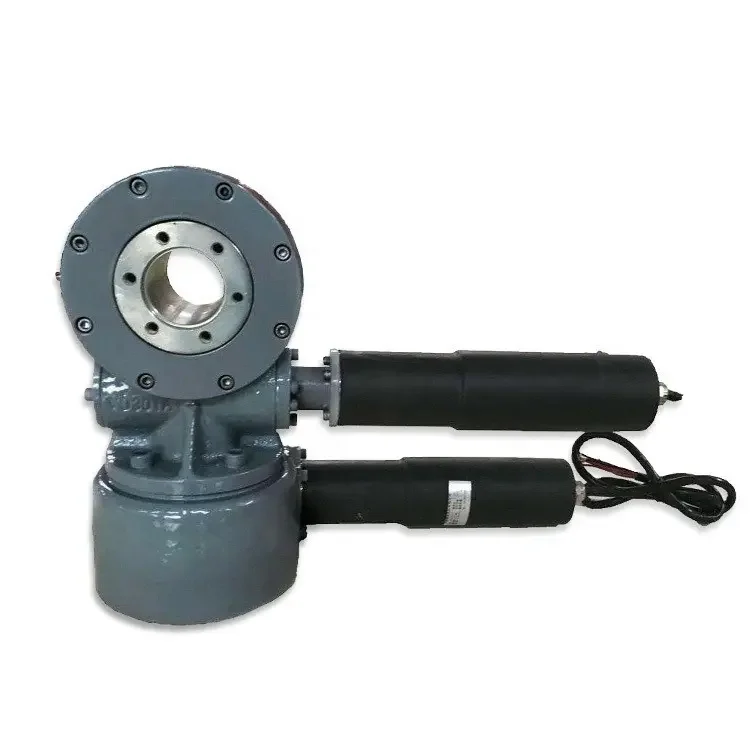

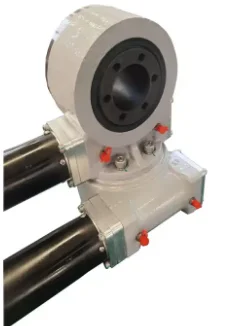

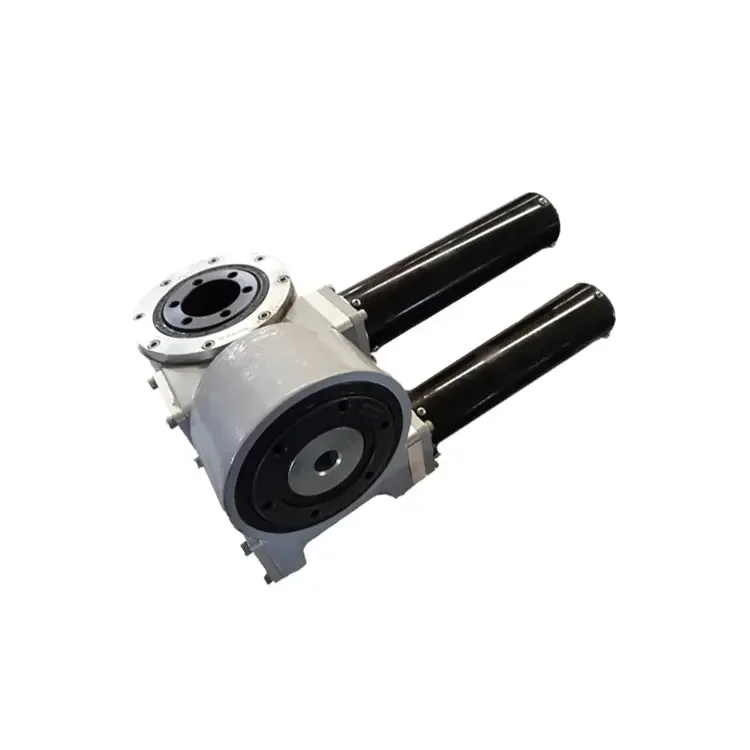

Dual Axis Slew drive SDE3 With Motor For Solar tracking system
Dual Axis Slew drive SDE3 With Motor For Solar tracking system
Dual Axis Slew drive SDE3 With Motor For Solar tracking system
Dual Axis Slew drive SDE3 With Motor For Solar tracking system
Dual Axis Slew drive SDE3 With Motor For Solar tracking system
Dual Axis Slew drive SDE3 With Motor For Solar tracking system
Dual Axis Slew drive SDE3 With Motor For Solar tracking system

Dual Axis Slew drive SDE3 With Motor For Solar tracking system

Share on (1600899192025):


Price:$520.00

Quantity:


Product Overview

Description



Production Description


The slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of
worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they
can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary
products, the new slewing drive features easy installation, easy maintenance and a greater degree of installation
space.Slewing drive are widely used in PV,CPV,STP solar tracking systems and construction applications including
truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications.




Mechanism Characteristics:
1. Large transmission ratio can be obtained, which is more compact than the staggered helical gear mechanism.
2. The meshing surfaces of the two wheels are in line contact, and the bearing capacity is much higher than that of
    the staggered shaft helical gear mechanism.
3. Worm drive is equivalent to spiral drive, multi-tooth meshing drive, so the drive is stable and has little noise.
4. Self-locking.When the leading Angle of the worm is less than the equivalent friction Angle between the meshing            gears, the mechanism has self-locking property, and can realize reverse self-locking, that is, only the worm
   drives the worm, but not by the worm wheel drives the worm.Such as in the lifting of the use of self-locking worm         mechanism, its reverse self-locking can play a role in safety protection.




Worm gear slewing drive and worm structure is often used to transfer motion and power between two staggered shafts.Worm gear and worm in the middle plane is equivalent to gear and rack, worm and screw shape is similar.

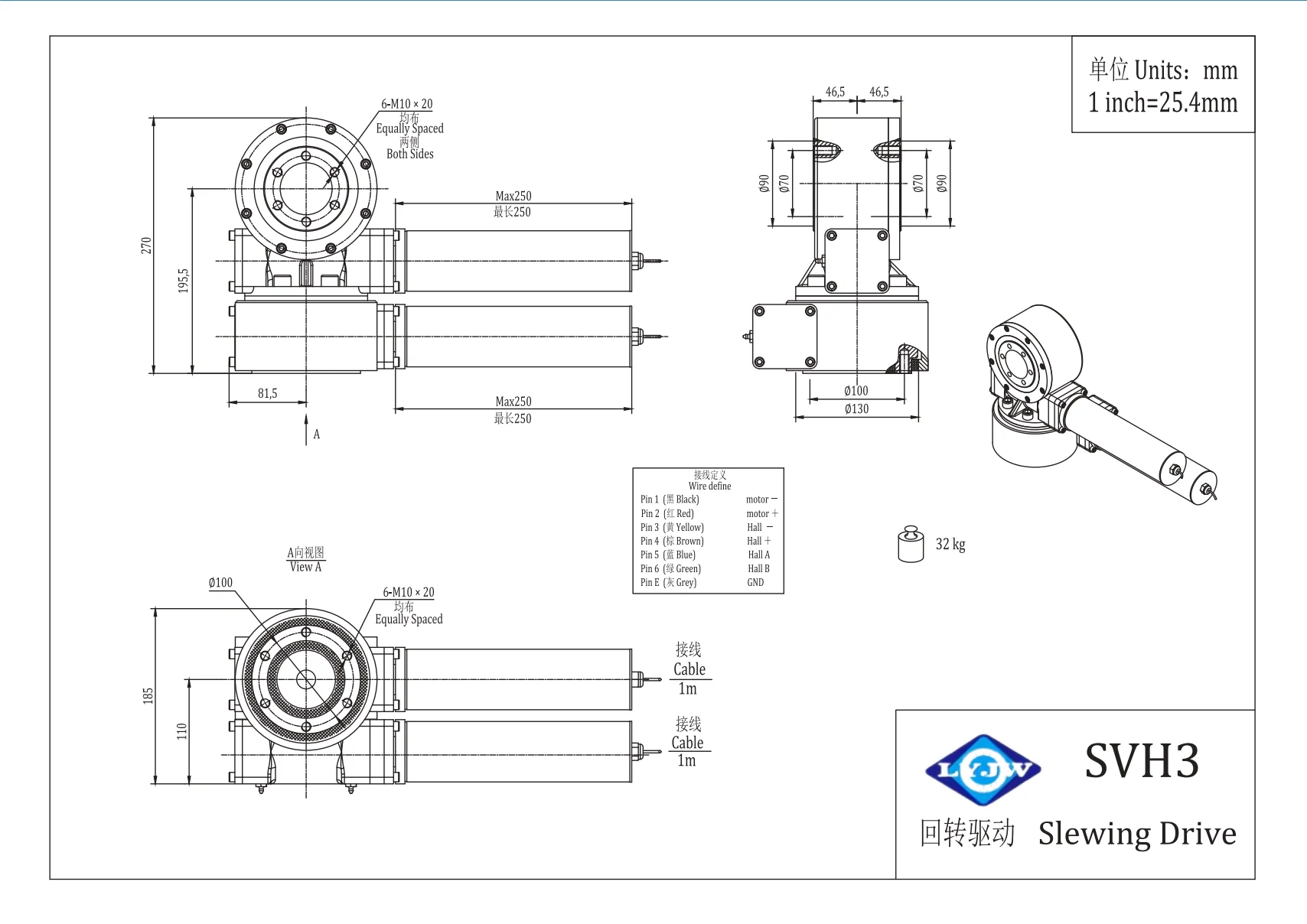

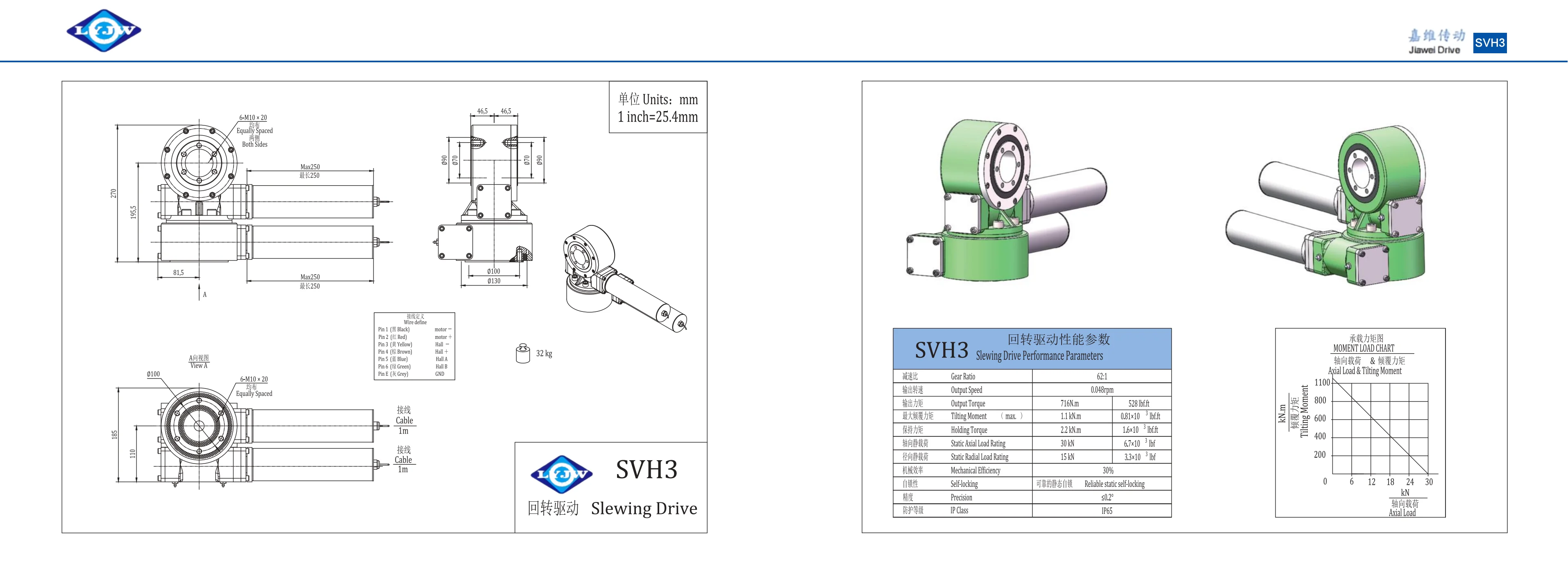

SVH3 dual axis slewing drive gearmotor is available to load 50-200kg weight:
For 4-6pcs solar panels tracking design
For 1-2.5 Dia. satellite receiver and solar dish system


Product Advantages


1.Slew drives are ready-to-mount modules which are capable of transmitting forces and high torques.
2.LYJW Drive slew drives consist of a ball bearing and a worm screw enclosed by a housing structure.
3.The enclosed housing guarantees a sustainable, low-maintenance operation without loss of lubrication,
as well as protection against environmental influences.
4.1-3m Dia.TVRO dish dual axis slewing drive slewing gear
5.Higher tracking precision
6.IP class 65
7.Temperature range: -30ºC-60ºC

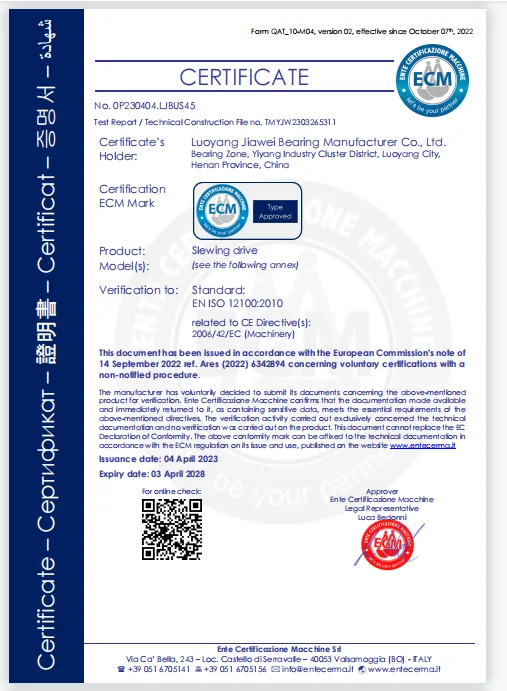

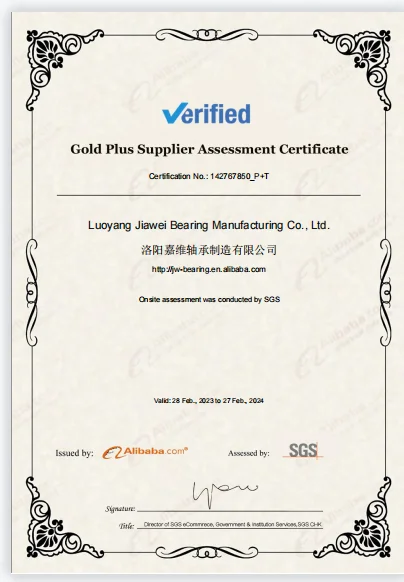

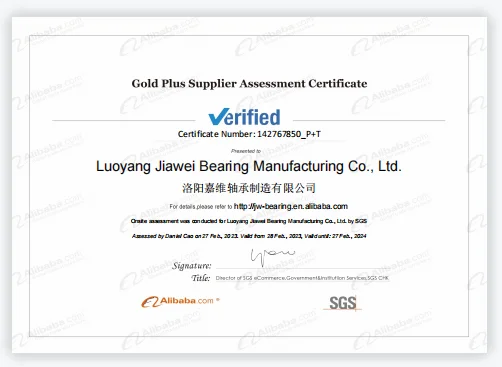

Certification

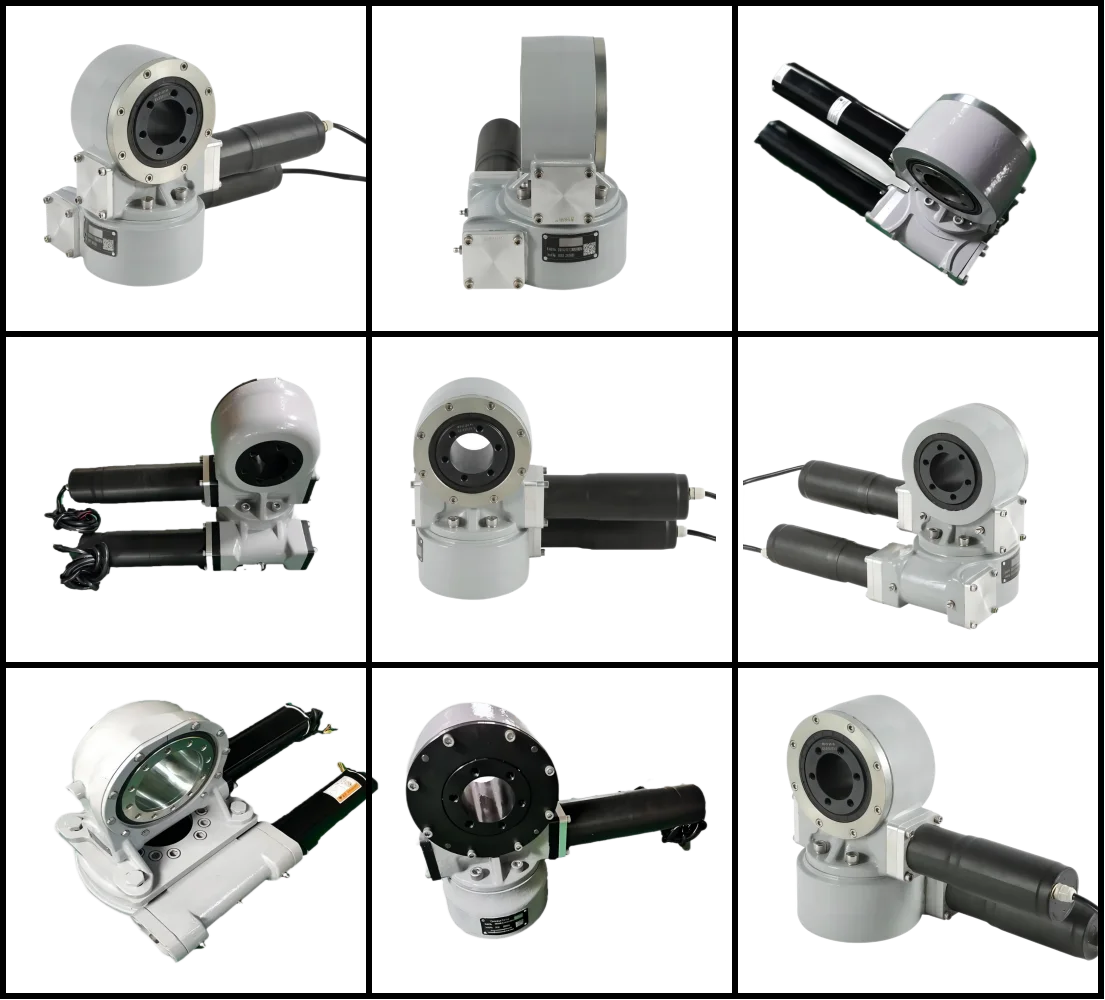

main product


SE series
WEA series
SP series


SVH series
VH series
WH-2 series

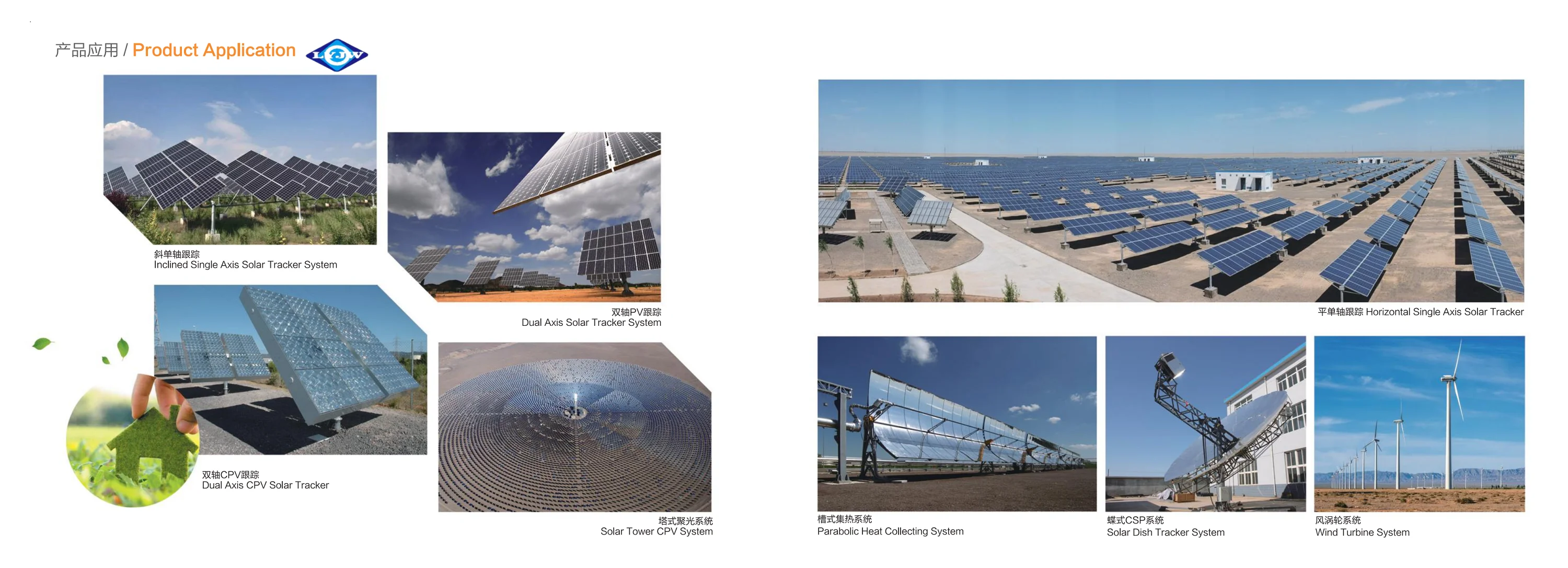

Application






Why Choose Us


Solar heliostat tracking system is a mechanical and electronic control unit system which optimizes the use of
sunlight to improve photoelectric conversion efficiency in the process of photothermal and photovoltaic power
generation. It mainly includes photovoltaic applications and photothermal applications.
1. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the
efficient Quality.Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008.
2. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and
requirements.
3. With abundant raw materials and high production efficiency, the company can supply products to customers
as quickly as possible and shorten the time for customers to wait for products.
4. Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling
inspection to ensure product quality. The company has complete testing equipment and advanced testing method.
5. Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.
6. Delivery Time: 15 days after
7. Warranty Time: 1 years
8.CE certificate for quality guarantee


Packaging&Shipping




Contact Us


Please contact me if necessary.
Best regards,
Luoyang Jiawei Bearing Manufacturer Co., Ltd.
Contact: Darline
Webset: www.jw-bearing.com
www.jw-bearing.en.alibaba.com
Tel: (+86)15225511839
Email: lyjw07@jw-bearing.com
Whatsapp: +8615225511839
