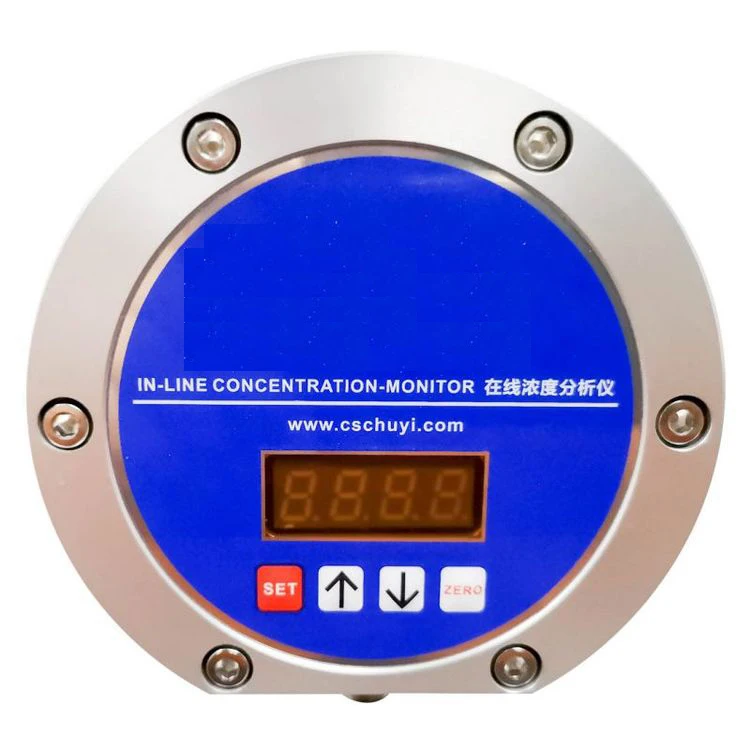

Online concentration analyzer
- Category: Concentration Meters >>>
- Supplier: Shanghai Honghui Instrument Equipment Co. Ltd.
Share on (1600900561908):
Product Overview
Description
Product Description
Specification
Product model | HR-M-350 |
Measurement item | Refractive Index (nD), Brix, ,temperature. |
Measuring range | 1.3200 - 1.3920 RI / 0.0 - 35.0 Brix |
Resolution | 0.0001 RI / 0.1 Brix |
Precision | ± 0.0003 RI / ± 0.20 Brix |
Brix range | Temperature corrected 5-60o C |
Process temperature | 0o C up to +60o C |
Prism | Sapphire |
Wetted parts | Stainless Steel SUS 316L |
Power supply | 24 V DC |
Interfaces | 1 output 4 - 20 mA,1 serial output RS485 |
International Protection class | IP65 Water resistant |
Process pressure | Max. 1 MPa (145 psi, 10 bar) |
Dimensions and weight | Length64 x diam.90mm; approx. 520g |
Cleaning components Options | IPRM-Wiper |

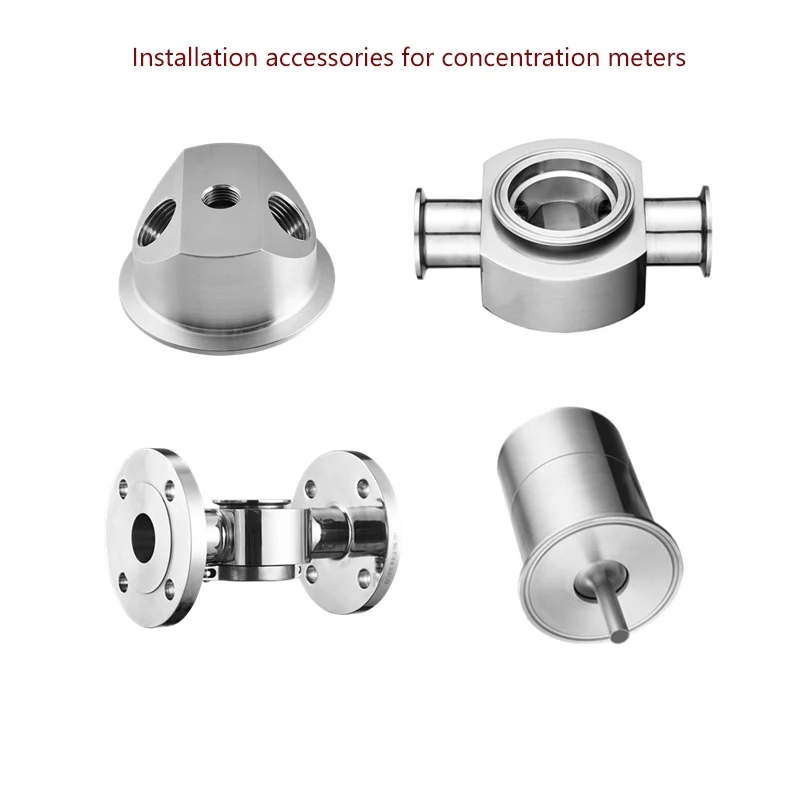

Fitting Options | IDF/ISO clamp union, Flange, Compression Fitting G1/4D |
Special scale | More special scales are welcome to come to consult |

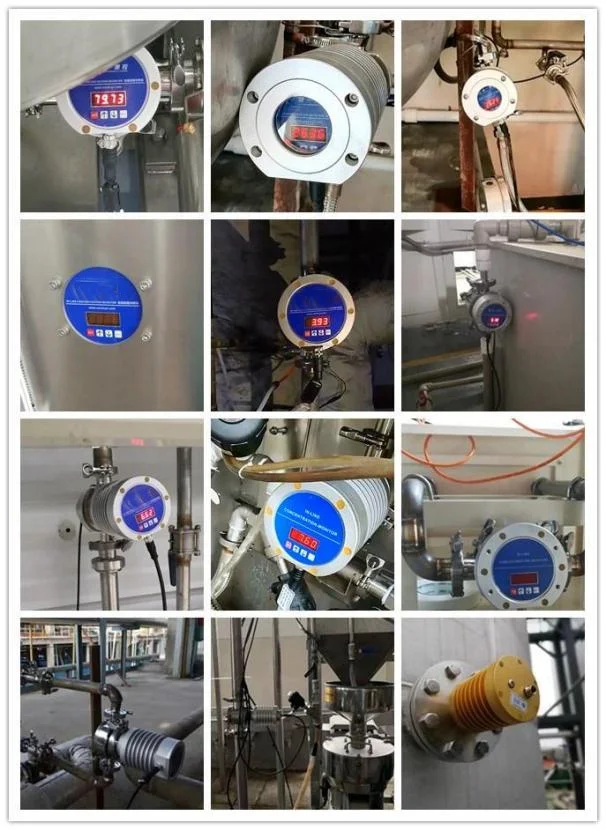

On site cases
