3500 Lbs Remolque Trailer Suspension Parts Straight Axle Brake Axle Assembly

3500 Lbs Remolque Trailer Suspension Parts Straight Axle Brake Axle Assembly

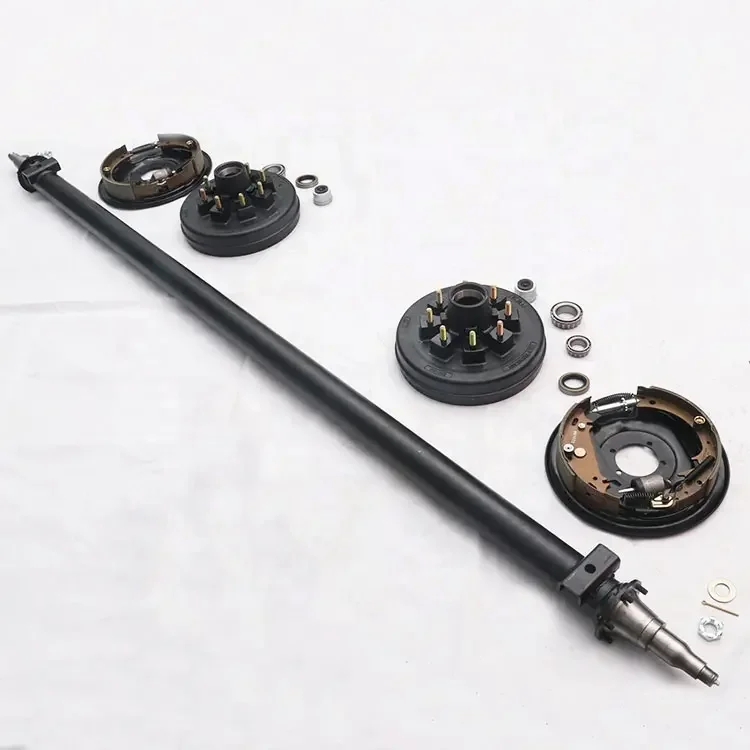

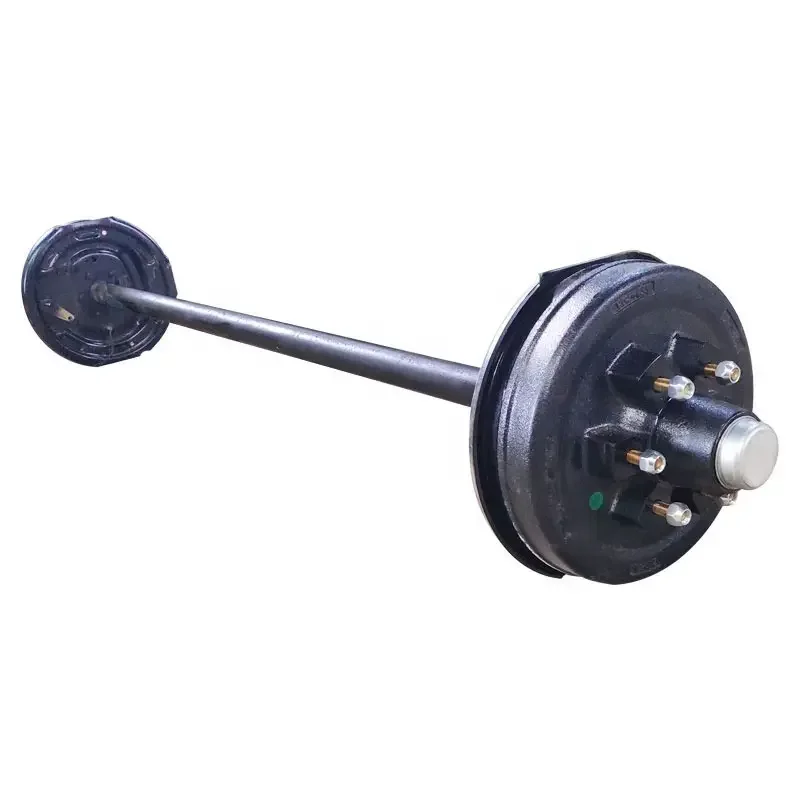

Trailer Axle: 2 3/8" diameter x 3/16" nominal wall round tubing. Hub/Drum: Idler hubs and hub/drums available in a 5-4.5", 5-4.75", 5-5", 5-5.5", or 6-5.5"bolt circle. Lubrication: Grease. Spindle: Type 84 with an inner journal dimension of 1 3/8" and an outer journal dimension of 1 1/16". Includes brake flange - You can add brakes for future use. Trailer Axle price does not include springs, hangers, or u-bolts. Trailer Axles are available in different lengths and hub faces. Maximum Overhang = 17.5" Minimum Overhang = 14" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination. Axle seats and lug nuts come loose with axle. Trailer axle assembly contains trailer axle beam with pressed in spindles and four bolt mount brake flange, hubs (races pressed), bearings, grease cap, and grease seal, axle seats, and lug nuts.

Establishing in 1995, Guilin Pengyuan Trading Co., Ltd. is a manufacturer and trader combined company. We have enough tests on the products to ensure the quality of the products and their goods will be delivered after strict quality inspection. We had associated and independent factory named "Guilin Pengda Automobile Parts Manufactory Co., Ltd." which located in Guilin, occupies an area of 23,067 square meters. We have successful foreign trading experience in Europe, North America, South America etc..,

As a member of GM Automobile Group and Association of Quality Management of Mechanics Industry of China. In March 2005, Pengyuan passed TS16949 Quality System Certification. Our products turned out by our enterprise have been selling well in markets at home and abroad, and got high appreciation from overseas buyers.

We are capable of producing iron casting, steel casting, nonferrous metal casting, forging, punching and riveting, welding, heat treatment, mechanical processing, etc.

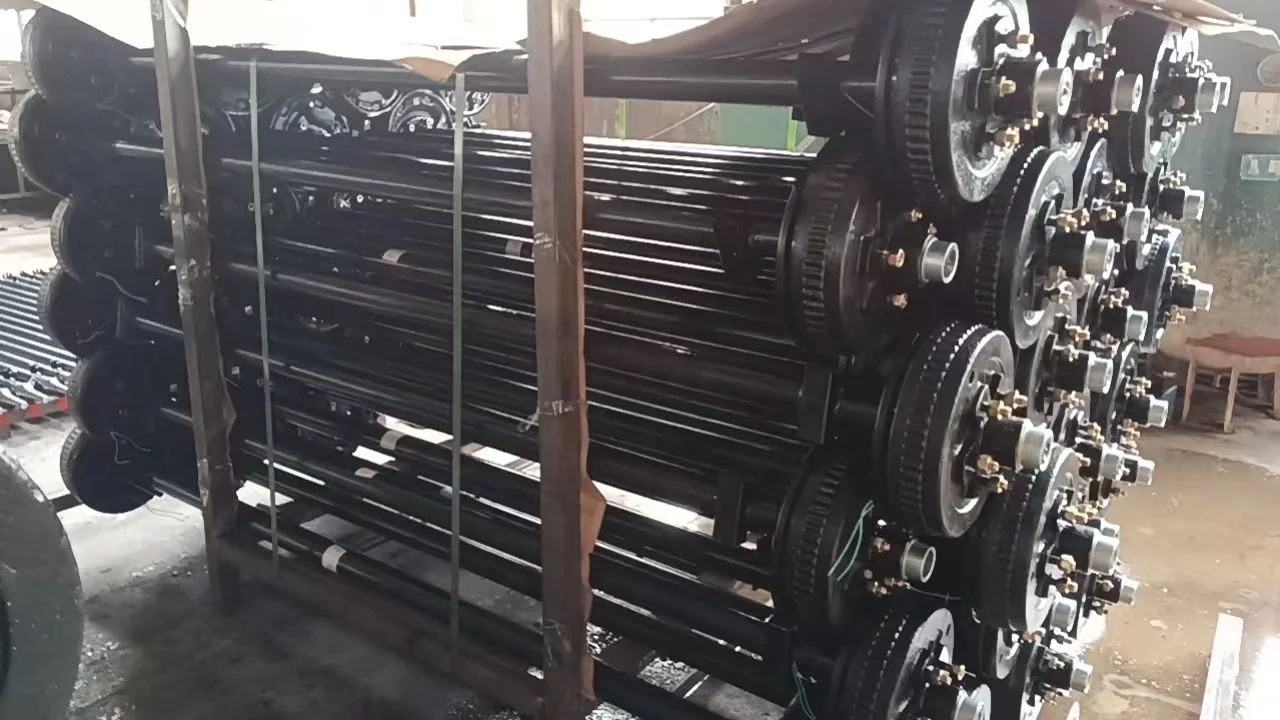

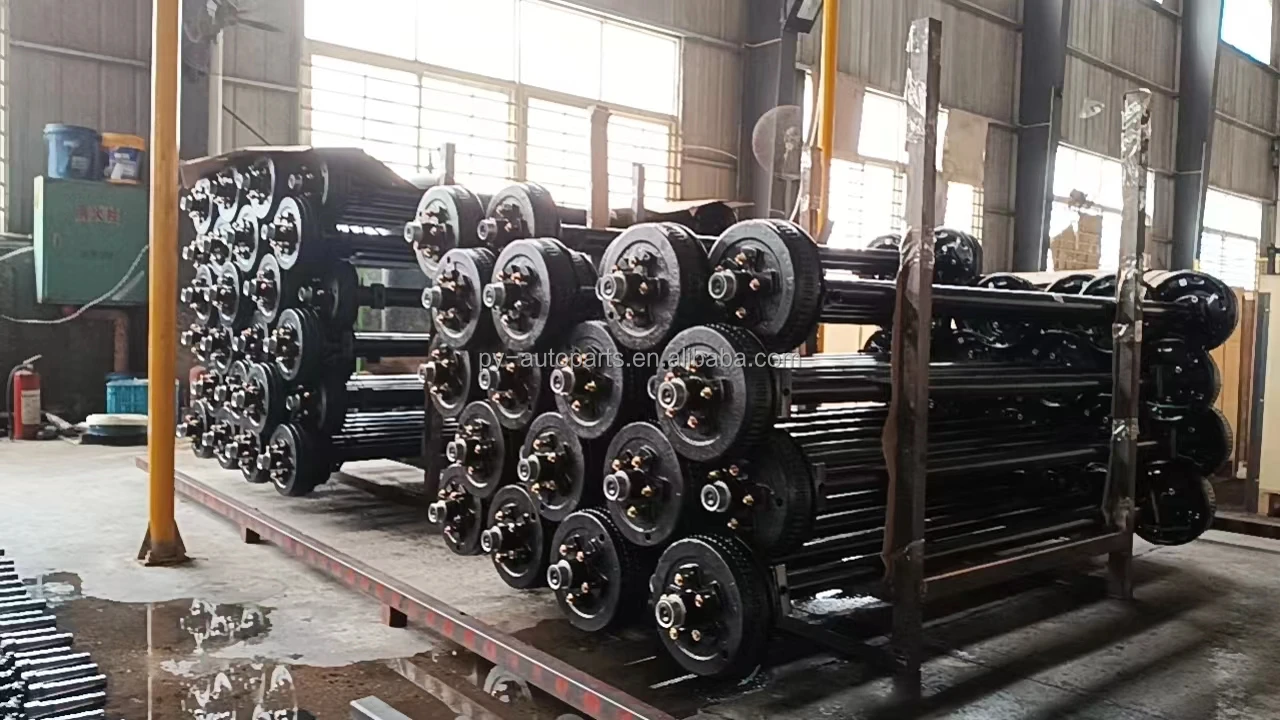

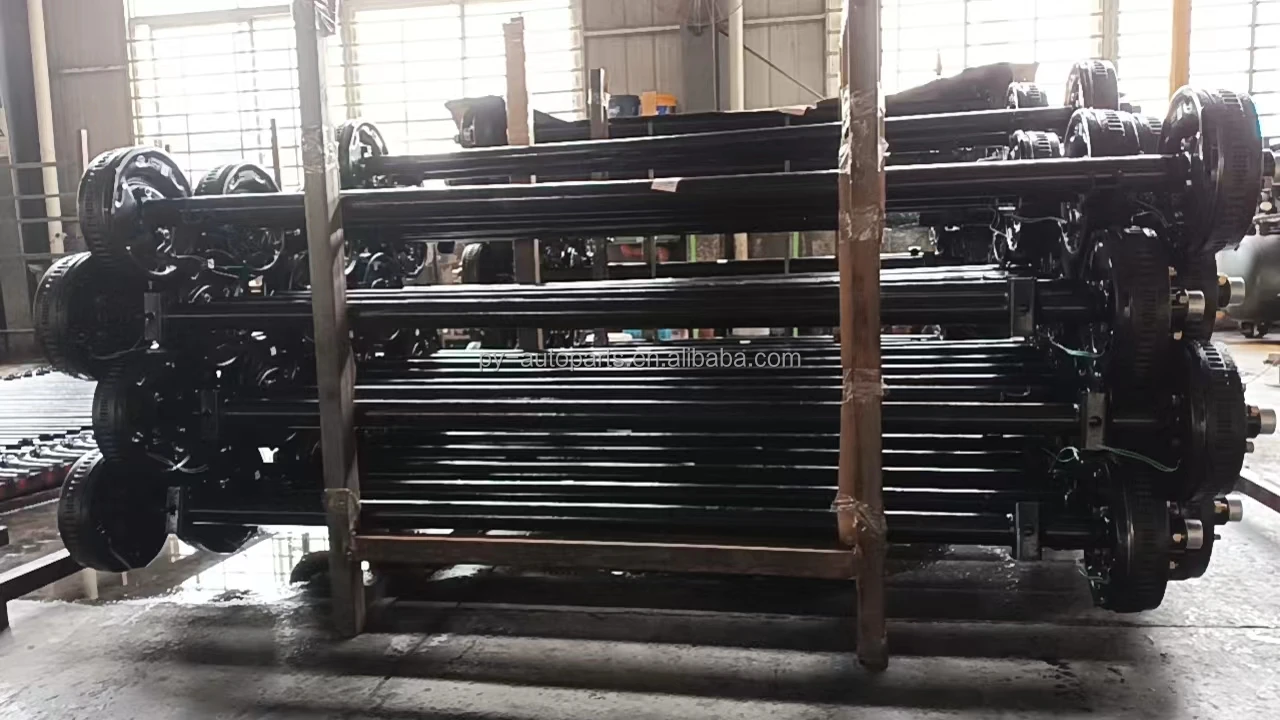

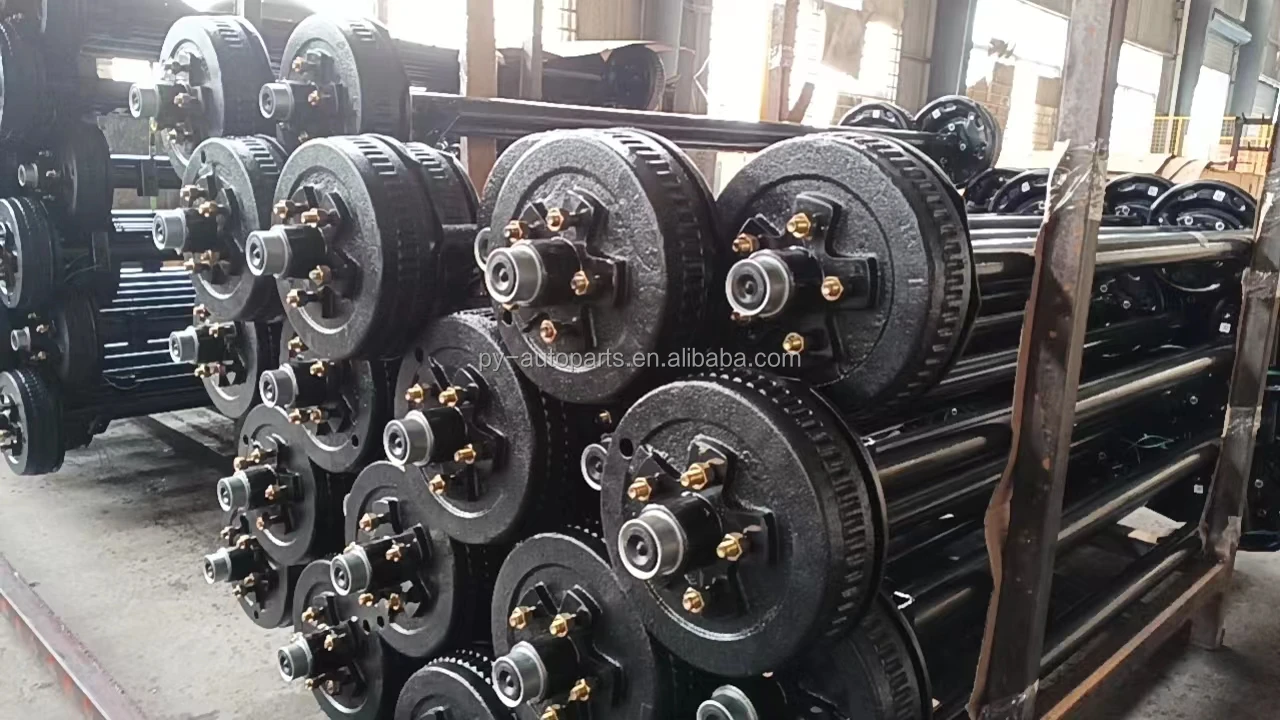

Production workshop and equipment:

Pengyuan is well-equipped with all kinds of trailer parts.

We has 487 sets of physical performance, chemical analysis,

metallographic inspection and other testing equipment.

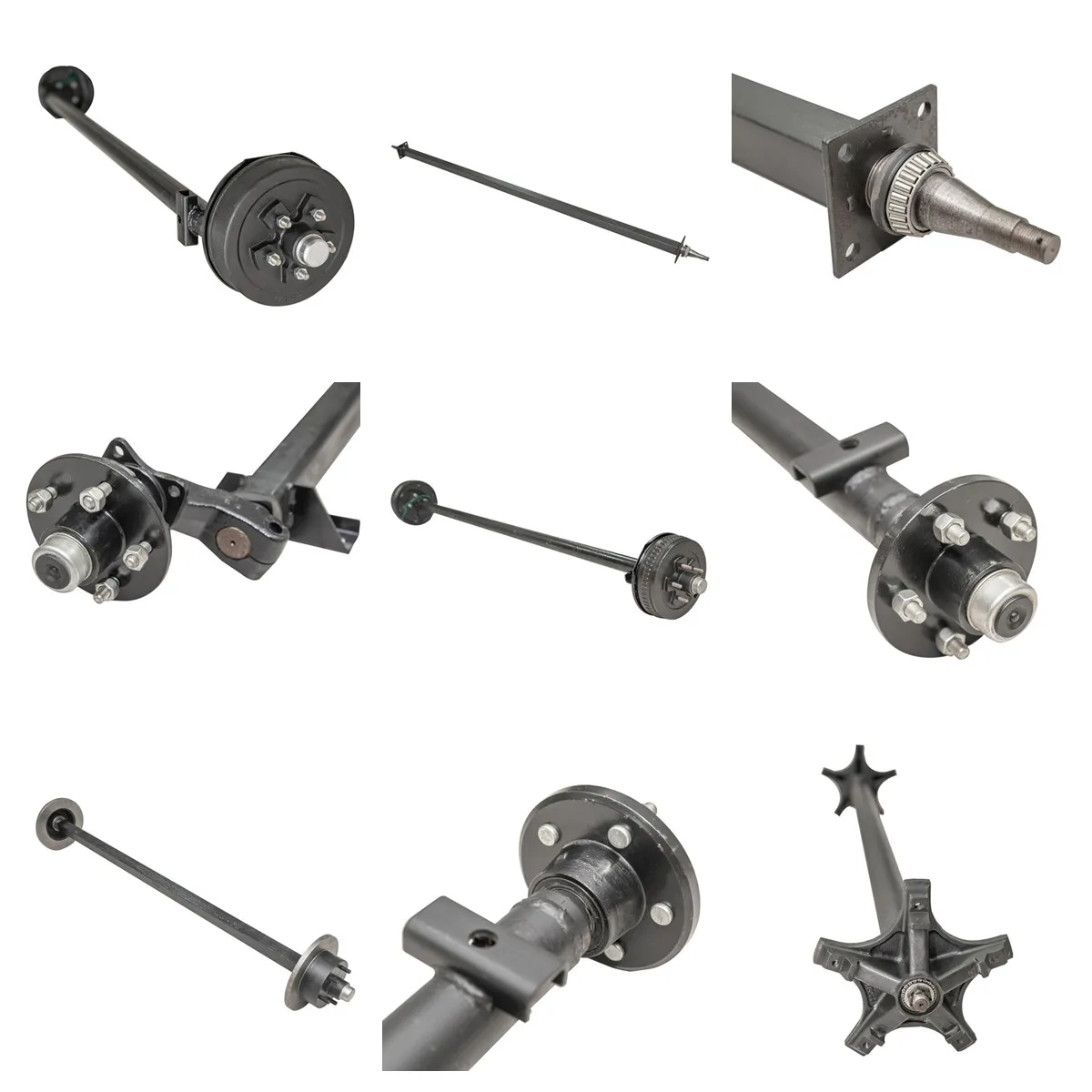

Our products include:
1. Spindle
2. Hub and drum assembly
3. Brake assembly
4. Leaf spring
5. Square axle beam and axle
6. Other axle part
1) Couple
2) U-bolt kit

More Details, click here

As for the transportation of products, our company supports various sea, land and air international transportation. Please confirm the specific transportation plan during the negotiation.

Choose to contact us>>

1: Could you please make us an offer as soon as possible?

In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.

2: Could you please provide us with the specifications of the products?

Sure, please confirm the product code you need before that.

3: How can you guarantee the quality of your products?

Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.

4: How to solve the problems in the later stage?

We are confident in our products. We pack them well to make sure they are well protected.
