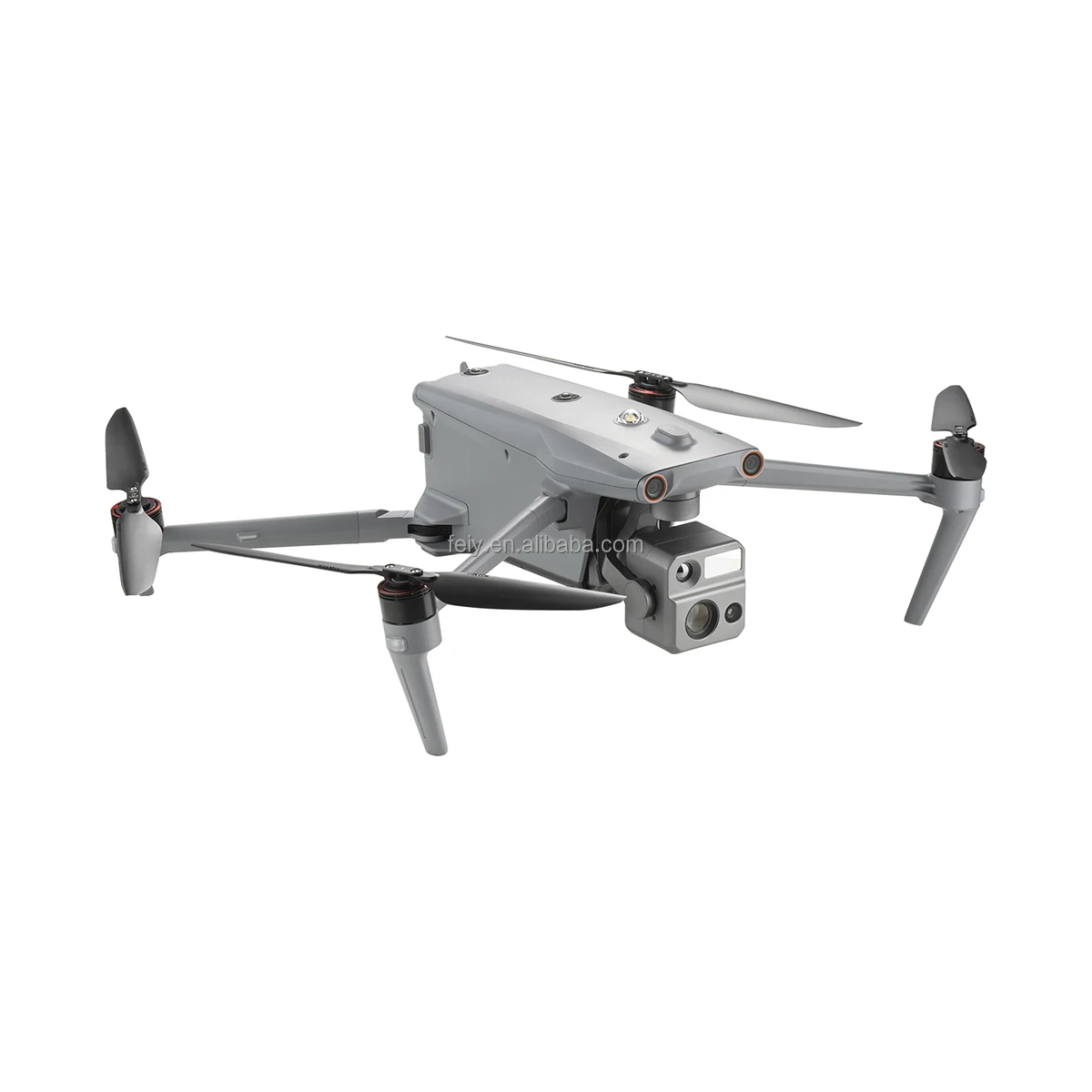

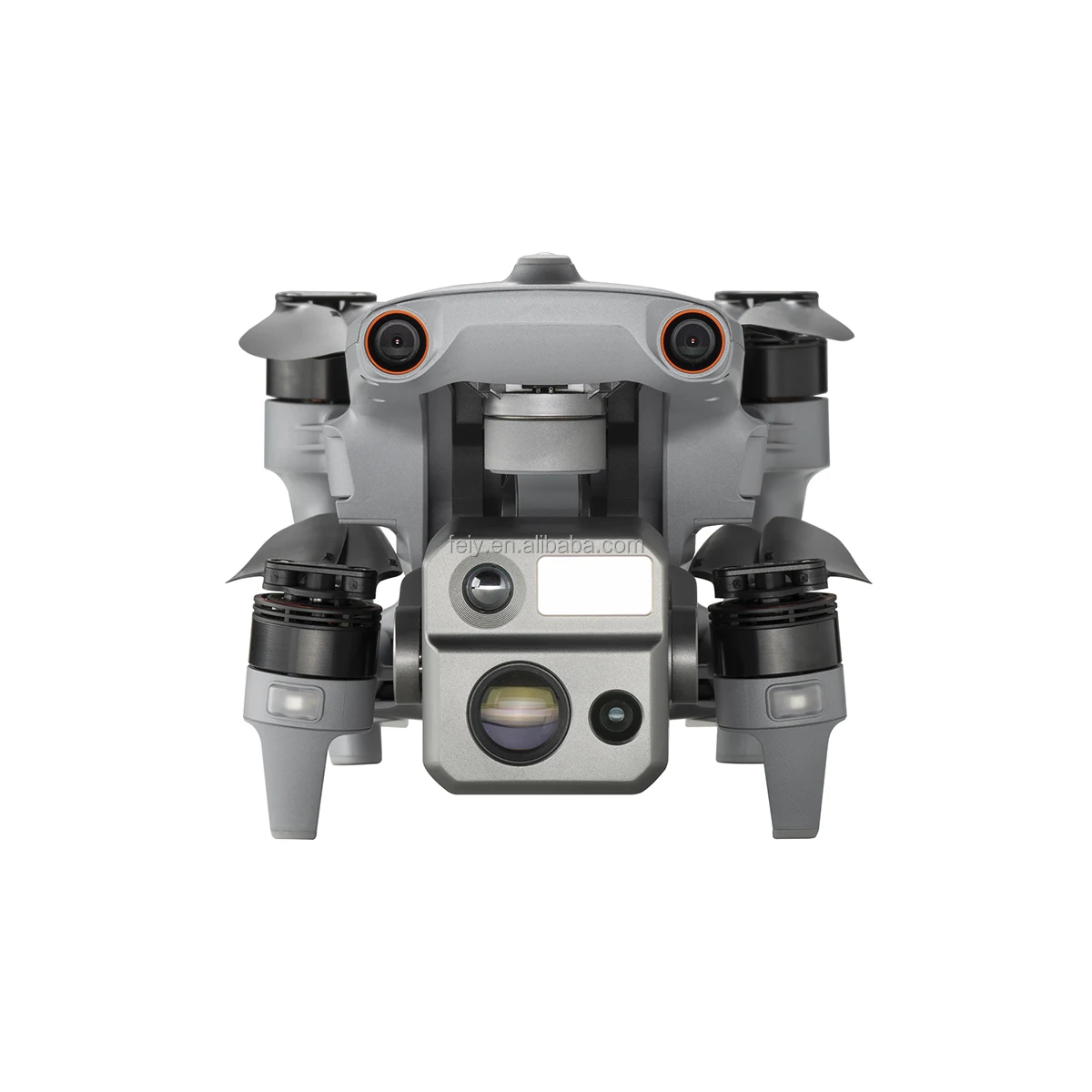

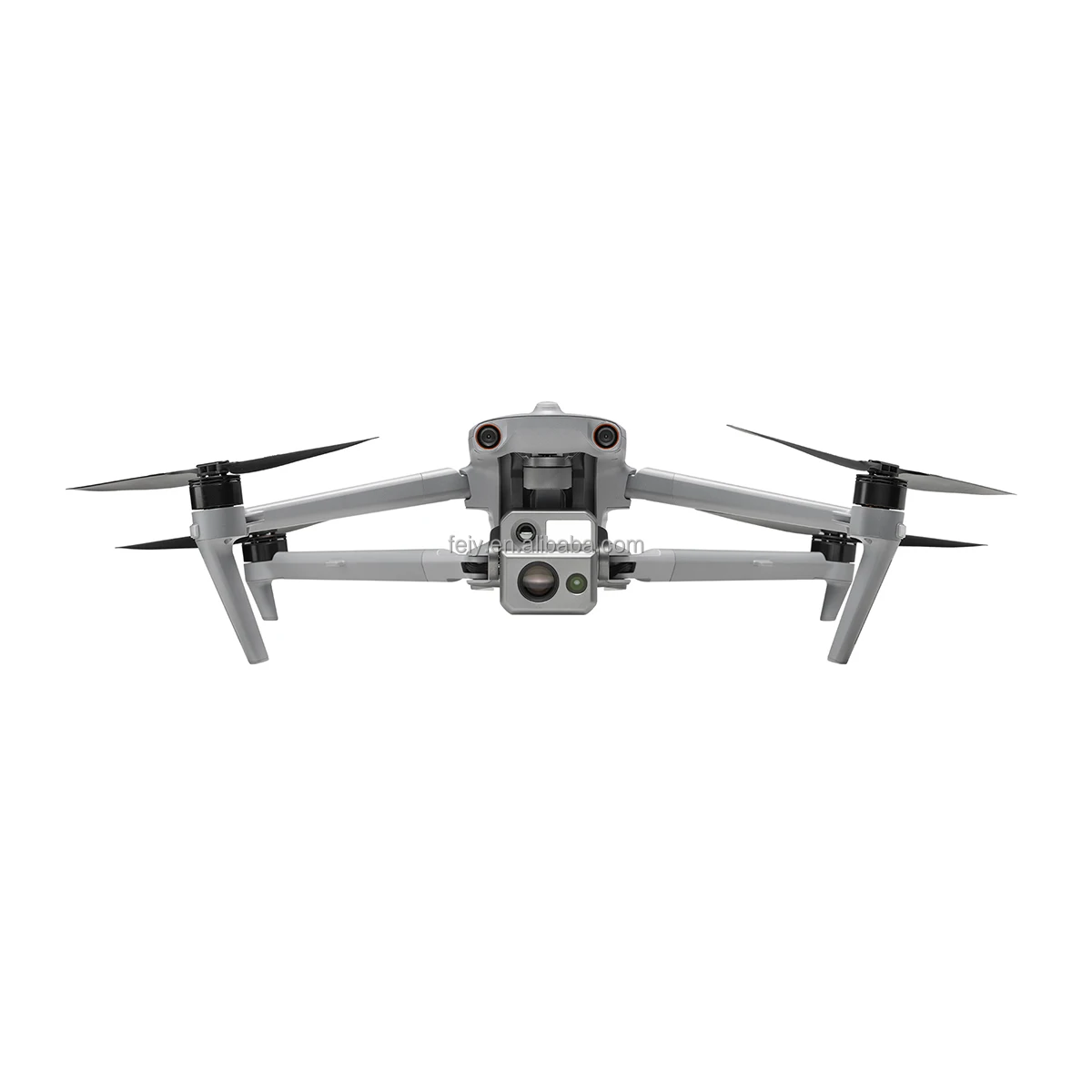

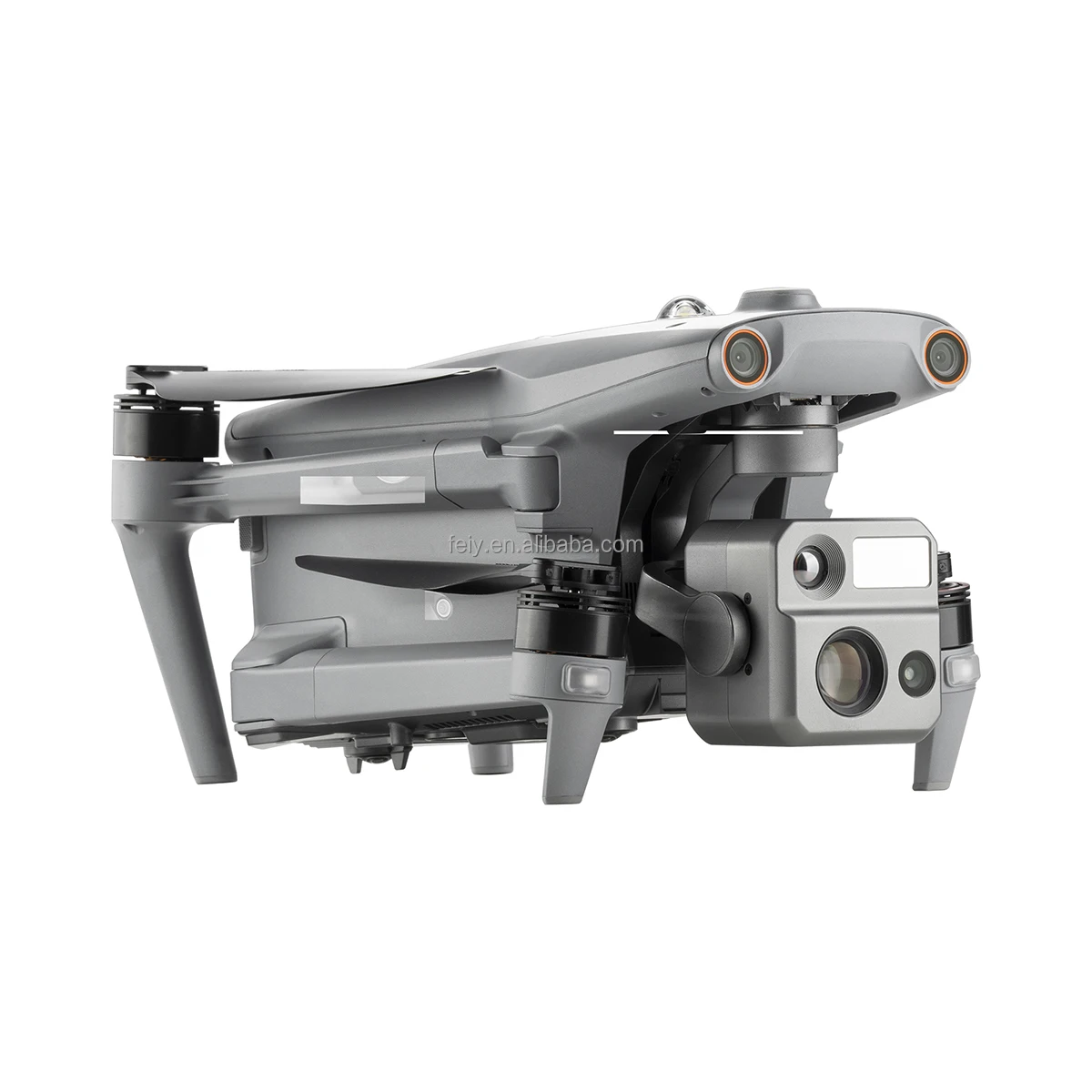

Autel Robotics EVO Max 4N 4T ночная версия зум широкоугольный лазерный дальномер картографическая тепловая камера Дрон Autel EVO Max 4N
- Category: Camera, Photo & Accessories >>>
- Supplier: Feiy Technology (shenzhen) Co. Ltd.
Share on (1600901186049):
Product Overview
Description
Authorization
Products Description
AUTEL ROBOTICS EVO MAX 4N
Product packaging

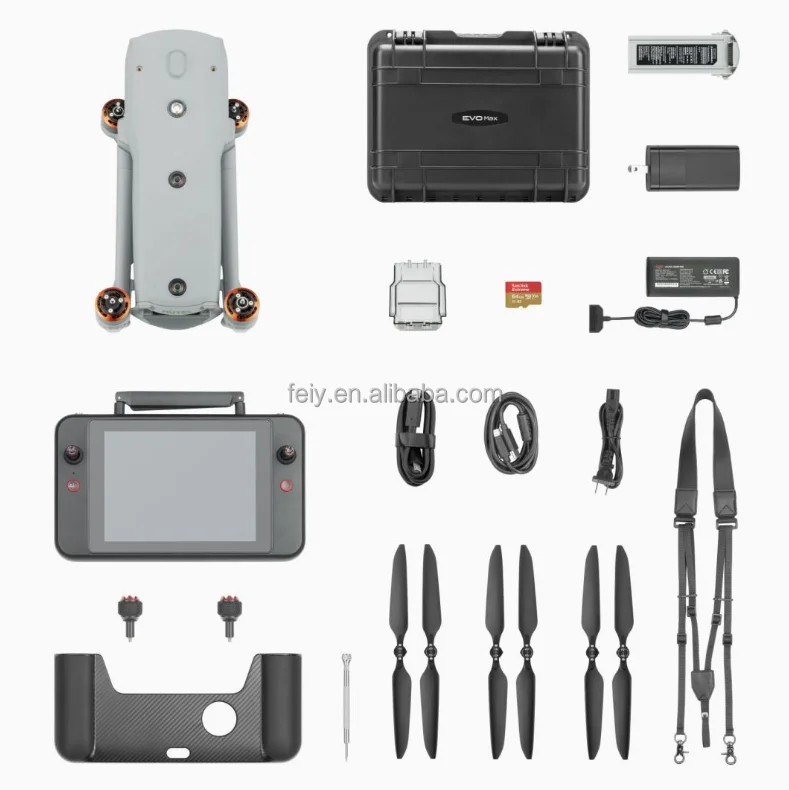

Packing List For Autel EVO Max 4N
1:Aircraft (Battery, propeller, gimbal, gimbal cover, 64G SD card included)*1
2:Battery Charger + Power Cable*1
3:Spare Propeller (pair)*1
2:Battery Charger + Power Cable*1
3:Spare Propeller (pair)*1
4:screwdriver*1
5:Smart Controller V3(sticks included)*1
6:Smart Controller Lanyard*1
5:Smart Controller V3(sticks included)*1
6:Smart Controller Lanyard*1
7:Smart Controller Cover*1
8:Smart Controller Spare Joystick (pair)*1
9:RC Charger*1
9:RC Charger*1
10.RC Charging Cable*1
11:Data Cable*1
12:Documentation
-Packing List*1
-Quick Start Guide*1
-Quick Start Guide*1
13: Rugged Case
Parameters
Aircraft | ||
Weight | 3.62 lbs (1641g, battery and gimbal included) | |
Dimensions | 562*651*147 mm (unfolded, incl. propellers) 318*400*147 mm (unfolded, excl. propellers) 257*145*131 mm (folded, excl. propellers) | |
Diagonal Wheelbase | 1.53 ft (466mm) | |
Max Ascent Speed | 8m/s | |
Max Descent Speed | 6m/s | |
Max Horizontal Speed (windless near sea level) | 23m/s *Maximum speed in Ludicrous Mode is 19m/s when operating in EU regions. | |
Max Service Ceiling Above Sea Level | 13,124ft (4000m) | |
Max Flight Time (windless) | 42 mins | |
Max Hovering Time (windless) | 38 mins | |
Max Wind Resistance | 27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s). | |
IP Rating | IP43 | |
Max Tilt Angle | 35° | |
Max Angular Velocity | Pitch: 300°/s; Yaw: 120°/s | |
Operating Temperature | -4°F to 122°F (-20℃ - 50℃) | |
Operating Frequency | 2.4GHz/5.8GHz 5.2GHz (only applicable for FCC, CE, and UKCA regions). 900MHz (only applicable for FCC regions). | |
GNSS | GPS+Galileo+BeiDou+GLONASS | |
Transmitter Power (EIRP) | 2.4GHz: <30dBm (FCC), <20dBm(CE/SRRC/MIC) 5.8GHz: <27dBm (FCC/SRRC), <14dBm (CE) 5.15-5.25GHz: <23dBm (FCC/CE) 902-928MHz: <30dBm (FCC) 5.65-5.755GHz: <27dBm (MIC) | |
Hovering Accuracy | Vertical: ±0.1 m (Vision System enabled); ±0.3 m (GPS enabled); ±0.15 m (RTK enabled); Horizontal: ±0.15 m (Vision System enabled); ±0.3 m (GPS enabled); | |
Wi-Fi Protocol | 802.11a/b/g/n/ac/ax Support 2 x 2 MIMO Wi-Fi | |
Wi-Fi Operating Frequency | 2.400 - 2.4835 GHz; 5.150 - 5.250GHz (CE/FCC/MIC); 5.725 ‒ 5.850 GHz*(Except MIC） | |
Wi-Fi Transmitter Power (EIRP) | 2.400 - 2.4835 GHz FCC:＜30dBm; CE/SRRC/MIC:＜20dBm 5.150 - 5.250GHz FCC/CE/MIC<22dBm 5.725 ‒ 5.850 GHz FCC/SRRC: ＜21dBm CE: ＜14dBm | |
Gimbal | ||
Mechanical Range | Pan: -135° to 45° Tilt: -45° to 45° Roll: -100° to 100° | |
Controllable Range | -90° to 45° | |
Stable system | 3-axis mechanical gimbal (pitch, tilt, roll) | |
Max Control Speed (pitch) | 200º/s | |
Angular Vibration Range | <0.005° | |
Night version Camera | ||
Sensor | Effective Pixels: 2.3M | |
Lens | Focal Length: 35mm (equivalent 41.4mm) FOV：52° Zoom Range: 1-8x, supports linkage zoom | |
ISO Range | Auto: ISO100-ISO450000 Super Sensitive Mode: Auto ISO100-ISO450000 | |
Camera Modes | Single shot (default), long press for continuous shots | |
Photo Format | JPG | |
Photo Resolution | 1920×1200 | |
Video Format | MP4 | |
Video Resolution | 20Mbps (1920×1200 P30) | |
HDR Video | Auto | |
Video Output | Super Sensitive Mode: 1920×1200 P30 | |
Wide Angle Camera | ||
Sensor | 1/1.28 CMOS, Effective pixels: 50M | |
Lens | DFOV: 85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus | |
Exposure Compensation | ±3EV 0.3EV/step | |
ISO Range | Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400 | |
Shutter Speed | Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s | |
Max. Video Resolution | 3840×2160 | |
Photo Size | 8192*6144 4096*3072 | |
Thermal Camera | ||
Thermal Imager | Uncooled VOx Microbolometer | |
Lens | DFOV: 64° Aperture: 13mm Focus: f/1.2 | |
Infrared Temperature Measurement Accuracy | 26.6~37.4 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉ | |
Video Resolution | 640*512 | |
Photo Size | 640*512 | |
Pixel Pitch | 12 um | |
Temperature Measurement Method | Center measurement, pot measurement, rectangular measurement | |
Temperature Measurement Range | -4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C) | |
Temperature Alert | High and low temperature alarm thresholds, reporting coordinates and temperaturevalues | |
Laser Rangefinder | ||
Measurement Accuracy | ± (1 m + D×0.15%) D is the distance to a vertical surface | |
Measuring Range | 5m to 1.2km | |
Image Transmission | ||
Operating Frequency | 2.4G/5.2G*/5.8G/900MHz* | |
Max Transmission Distance (unobstructed, free of interference) | 20km | |
Independent Networking | 7.9-inch Smart Controller | |
Transmitter Power (EIRP) | 2.4GHz:<33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: <23dBm(FCC/SRRC/MIC) | |
Millimeter Wave Radar | ||
Frequency | 60Ghz~64Ghz | |
Size | 38*14*2mm | |
Weight | 2g | |
EIRP | 18dbm | |
Distance Detection Range | For Obstacle Avoidance：0.2m~100m For Height Measurement：0.05m~200m | |
Ranging Accuracy | For Obstacle Avoidance：0.1m For Height Measurement：0.02m | |
Speed Measurement Range | ± 60m/s（4D Mode）；±28m/s（3D Mode）； | |
Speed Measurement Accuracy | ≤1% | |
Max. Tracking Target Number | 32 | |
Visual Sense System | ||
Obstacle Sensing Range | Forward/Upward/Downward/Backward/Sideward: 0.2~50m | |
FOV | Forward/Backward/Sideward: 60°(H)，80°(V) Upward/Downward: 360°(H)，190°(V) | |
