Autel Robotics EVO 2 II Dual 640T V3 Quadcopter 10KM Long Range Control Distance Surveillance UAV Dron Thermal 4K Camera Drone
- Category: Camera, Photo & Accessories >>>
- Supplier: Shenzhen Zhimu E-Commerce Co. Ltd.
Share on (1600901747873):
Product Overview
Description
Products Description
Aircraft | ||
Takeoff weight (With propellers and battery) | 2.67 lbs (1209 g) | |
Max takeoff weight | 4.41 lbs (1999 g) | |
Size (L x W x H) | Folded: 230 x 130 x 108 mm; 9.1 x 5.1 x 4.3 inches | |
Unfolded: 457 x 558 x 108 mm; 18 x 22 x 4.3 inches | ||
Wheelbase | 397 mm | |
Maximum Takeoff Altitude | 7000 m | |
Max ascent speed | 8 m/s (Ludicrous) | |
Max descent speed | 4 m/s (Ludicrous) | |
Max horizontal flight speed | 20m/s (Ludicrous) | |
Max flight distance (no wind) | 22 km | |
Max angular velocity | 120°/s | |
Max tilt angle | 33° (Ludicrous) | |
Max flight time (no wind) | 38 min | |
Max hovering time (no wind) | 33 min | |
Operating temperature range | 14 °F to 104 °F (-10℃ to 40℃) | |
Maximum resistance to wind | 12 m/s (takeoff and landing) | |
Operating frequency | 902-928MHz (FCC Only) | |
2.400-2.4835GHz | ||
5.725-5.850GHz | ||
Transmission power (E.I.R.P) | 900 MB | |
FCC/ ISED: ≤31 dBm | ||
2.4 GB | ||
FCC/ ISED: ≤32 dBm | ||
SRRC/CE/MIC/RCM: ≤20 dBm | ||
5.8 GB | ||
FCC/ISED/SRRC/MIC: ≤33 dBm | ||
CE/ RCM: ≤14 dBm | ||
Hovering accuracy | Vertical: ±0.1 m (when the visual positioning is working normally) | |
±0.5 m (when GNSS works normally) | ||
Horizontal: ±0.3 m (when the visual positioning is working normally) | ||
±1.5 m (when GNSS works normally) | ||
GNSS | GPS/Beidou/Glonass/Gallieo | |
Internal storage | 8 GB | |
Max. SD storage | 256 GB (UHS-3 or Class 10) | |
Gimbal | ||
Gimbal | 3-axis stabilization | |
Mechanical range | Tilt: -135° to +45°; | |
Pan: -100° to +100° | ||
Controllable rotation range | Tilt: -90° to +30°; | |
Pan: -90° to +90° | ||
Max control speed (Tilt) | 300°/s | |
Angular Vibration Range | ±0.005° | |
Remote controller and image transmission | ||
Operating frequency | 902 to 928 MHz (FCC Only) | |
2.400 to 2.4835 GHz | ||
5.725 to 5.850 GHz | ||
Transmission power (E.I.R.P) | FCC: ≤ 33 dBm | |
CE: ≤ 20 dBm@2.4GB, ≤ 14 dBm@5.8 GB | ||
SRRC: ≤20 dBm@2.4 GB, ≤ 33 dBm@5.8/5.7 GB | ||
Max Transmission Distance (unobstructed, free of interference) | FCC: 9.3 miles (15 km) | |
CE: 5 miles (8 km) | ||
Display screen | 2048 x 1536 60fps | |
Battery | 5800 mAh | |
Operating time | ~3 hours (Max. Brightness) | |
~4.5 hours (50% Brightness) | ||
Charging time | 120 min | |
Internal Storage | 128 GB | |
Sensing system | ||
Sensing system type | Omnidirectional sensing system | |
Forward | Accurate measurement range: 0.5 to 18 m | |
Effective sensing speed: < 12m/s | ||
Viewing angle: Horizontal: 60°; Vertical: 80° | ||
Backward | Accurate measurement range: 0.5 to 16 m | |
Effective sensing speed: < 12 m/s | ||
Viewing angle: Horizontal: 60°; Vertical: 80° | ||
Upward | Accurate measurement range: 0.5 to 10 m | |
Effective sensing speed: < 5 m/s | ||
Viewing angle: Horizontal: 65°; Vertical: 50° | ||
Downward | Accurate measurement range: 0.5 to 10 m | |
Effective sensing speed: < 5m/s | ||
Viewing angle: Horizontal: 100°; Vertical: 80° | ||
Left and right | Accurate measurement range: 0.5 to 10 m | |
Effective sensing speed: < 5 m/s | ||
Viewing angle: Horizontal: 65°; Vertical: 50° | ||
Operating Environment | Forward, Backward and Sides: | |
Surface with clear pattern and adequate lighting (lux > 15) | ||
Upward: | ||
Detects diffuse reflective surfaces (>20%) | ||
(walls, trees, people, etc.) | ||
Downward: | ||
Surface with clear pattern and adequate lighting (lux > 15) | ||
Detects diffuse reflective surfaces (>20%) | ||
(walls, trees, people, etc.) | ||

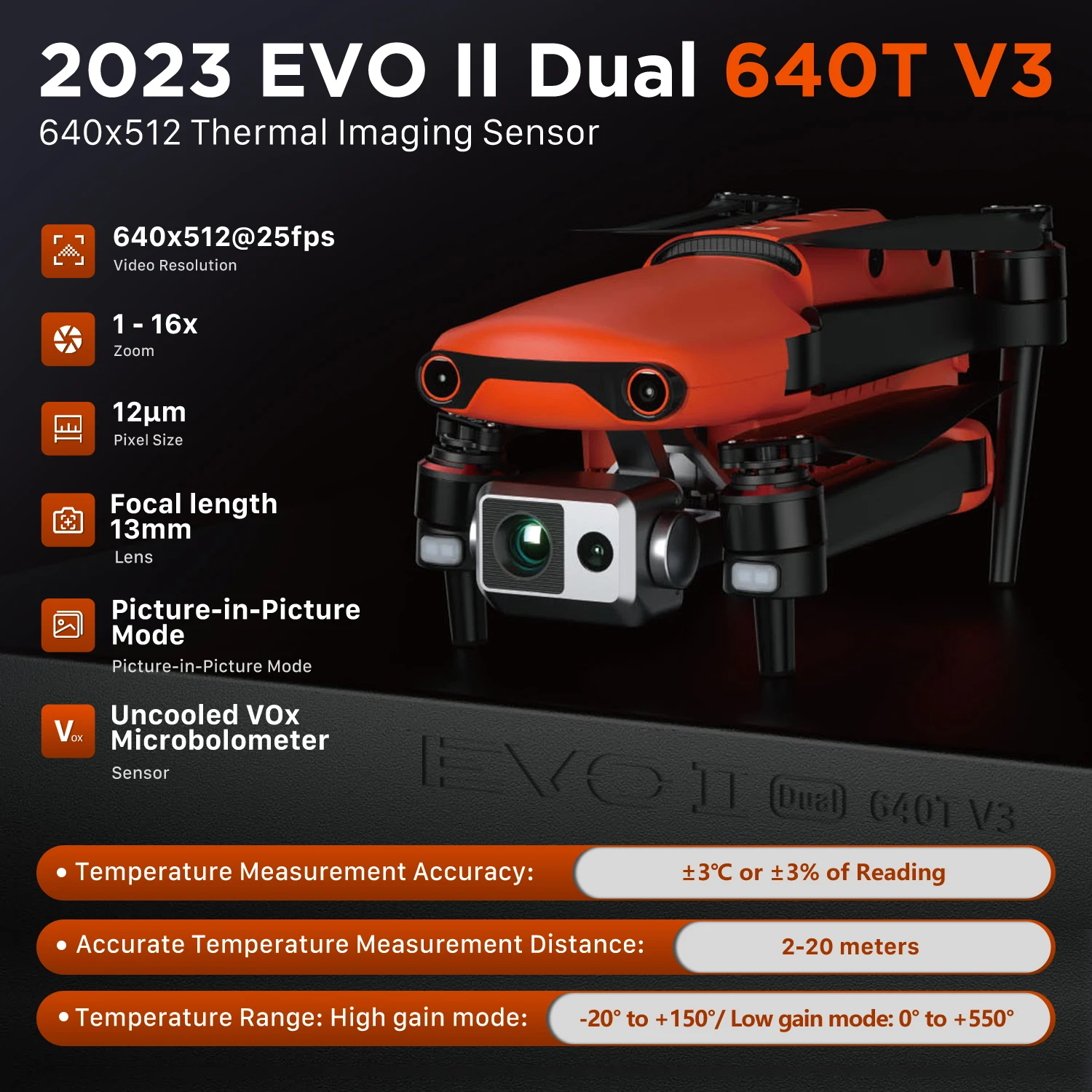

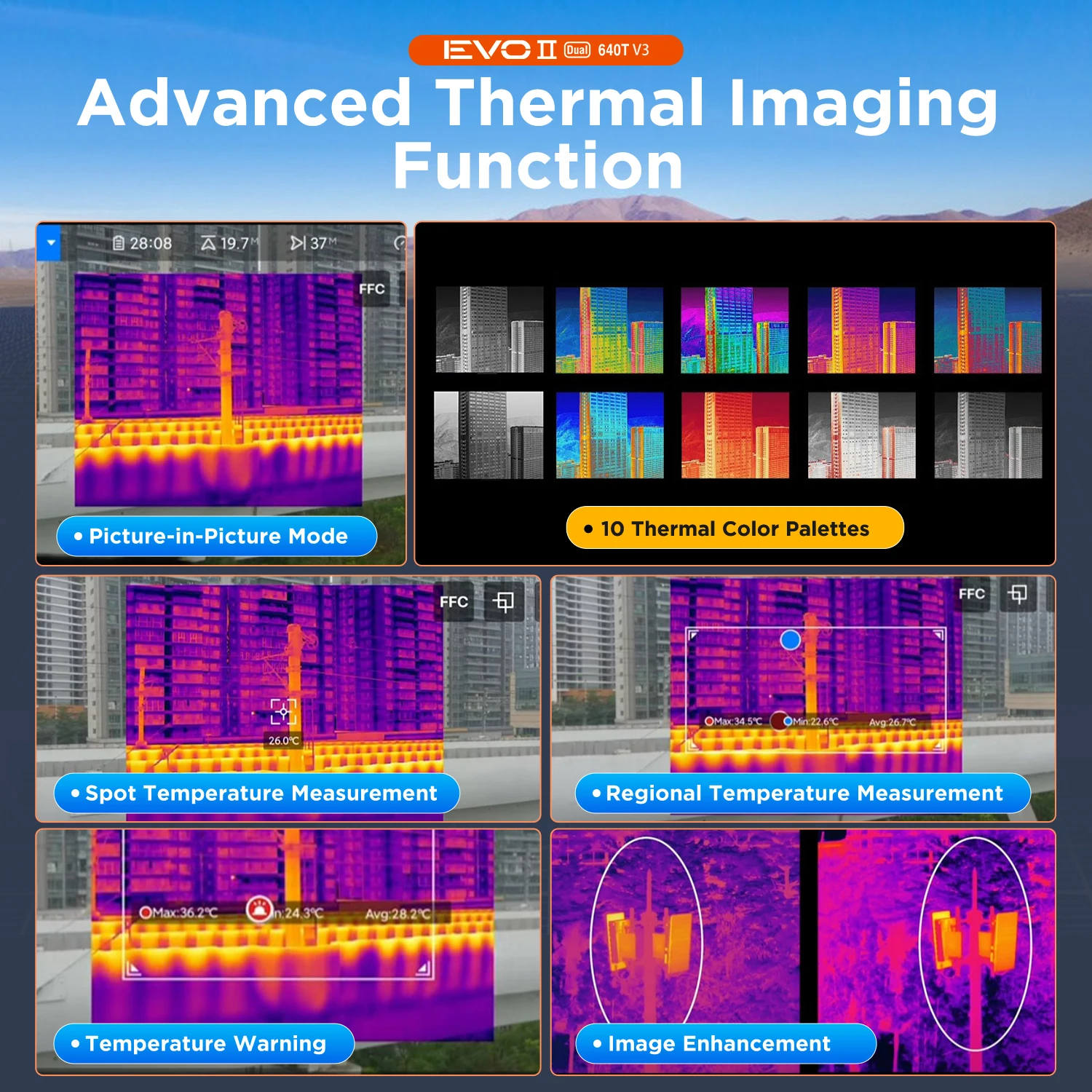

Thermal camera | ||
Sensor | Uncooled VOx Microbolometer | |
Lens | FOV H33°V26° | |
Focal length 13mm | ||
Zoom | 1 to 16x | |
Pixel size | 12μm | |
Wavelength range | 8 to 14μm | |
Temperature range | High gain mode: -20° to +150° | |
Low gain mode: 0° to +550° | ||
Temperature measurement accuracy | ±3℃ or ±3% of reading (whichever is greater) | |
@Environmental temperature-20℃~60℃ | ||
Accurate temperature | 2-20 meters | |
measurement distance | ||
Video resolution | 640x512@25fps | |
Video format | MOV / MP4 (Support H.264/H.265) | |
Camera resolution | Infrared mode: 640*512 | |
Picture-in-picture mode: 1920*1080, 1280*720 | ||
Photo mode | Single shot | |
Burst shooting: 3/5 frames, 3 is the default | ||
Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s | ||
Photo format | JPG (with irg file) | |
Visible light camera | ||
Sensor | 1/1.28"(0.8") CMOS; 50M effective pixels | |
Lens | FOV: 85° | |
35 mm format equivalent focal length: 23 mm | ||
Aperture: f/1.9 | ||
Focus range: 0.5 m to infinity (with auto focus) | ||
ISO range | Video: 100-64000 | |
Photo: 100-6400 | ||
Shutter speed | Photo mode: 1/8000 ~ 8s | |
Other: 1/8000 ~ 1/frame rates | ||
Zoom | 1-16x (up to 4x lossless zoom) | |
Photo mode | Single shot/Burst shooting/AEB/Time Lapse/HDR imaging | |
Maximum photo size | 8192*6144（4:3） | |
4096*3072（4:3） | ||
3840x2160（16:9） | ||
Image Format | JPG (default) / DNG / JPG+DNG | |
Video format | MOV / MP4 | |
Video resolution | 3840x2160P60/P50/P48/P30/P25/P24 | |
2720x1528P60/P50/P48/P30/P25/P24 | ||
1920x1080P60/P50/P48/P30/P25/P24 | ||
Max bitrate | 80Mbps | |
Supported file system | FAT32/exFAT | |
Battery | ||
Capacity | 7100 mAh | |
Voltage | 11.55 V | |
Battery type | LiPo 3S | |
Energy | 82 Wh | |
Weight | 365 g | |
Charging temperature range | 5℃ to 45℃ | |
Storage temperature and humidity | -10~30℃，65±20%RH | |
Recommended storage temperature | 22-28℃ | |
Max charging power | 93W | |
Charging time | 90 minutes | |
Charger | ||
Input | 100-240 V, 50/60 Hz, 1.5A | |
Output | 13.2 V ⎓ 5 A | |
5V⎓3A 9V⎓2A 12V⎓1.5A | ||
Voltage | 13.2±0.1V | |
Rated power | 66W | |
Multi-Charger | ||
Voltage | 13.2 V | |
Charging temperature range | 5℃ to 45℃ | |
