Autel Robotics EVO 2 II Dual 640T Enterprise V3 Professional Commercial Dron 10KM Long Range RC Thermal 4K Camera Drone
- Category: Camera, Photo & Accessories >>>
- Supplier: Shenzhen Zhimu E-Commerce Co. Ltd.
Share on (1600901313587):
Product Overview
Description
Products Description

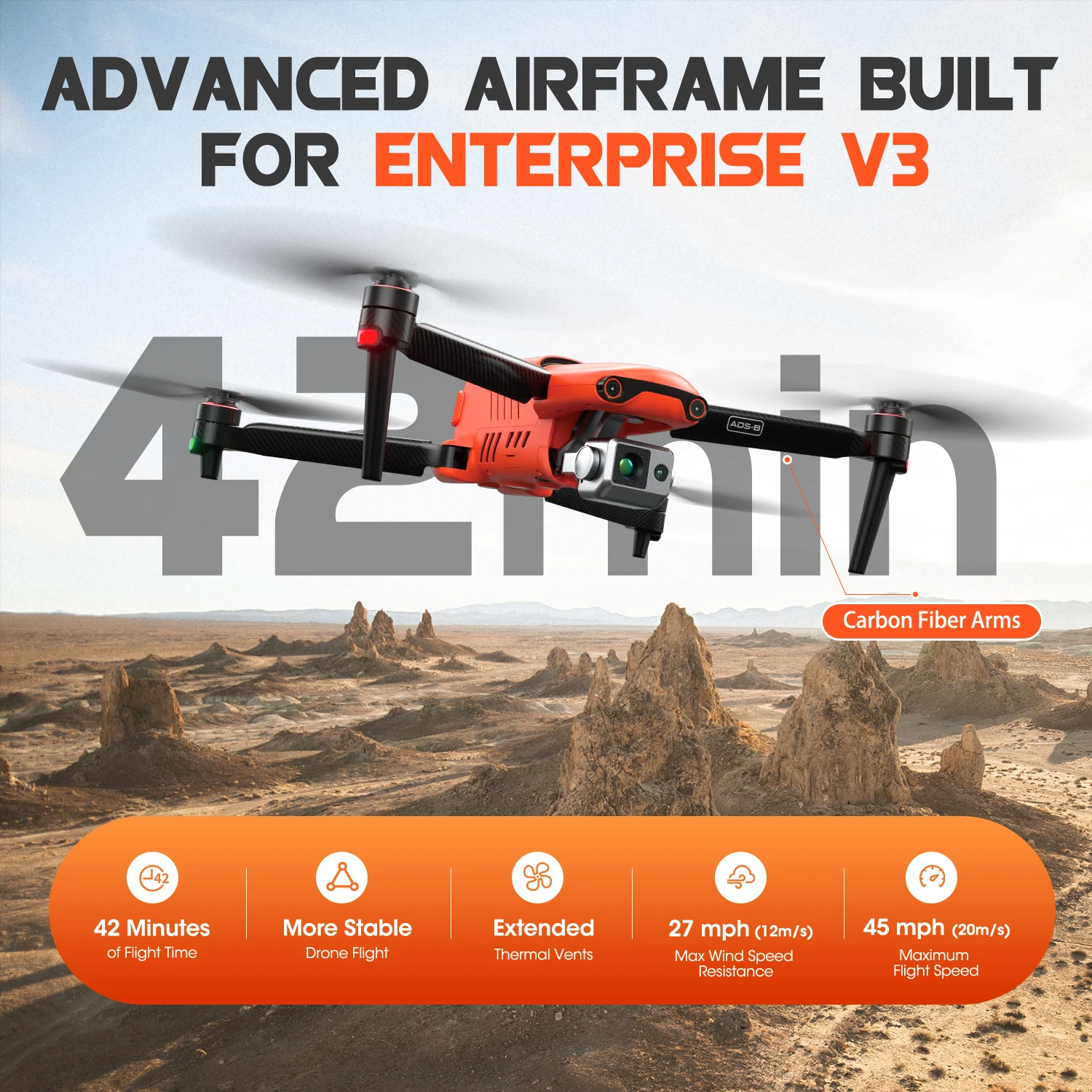

Aircraft | ||
Takeoff Weight(Without Accessories) | EVO II Dual 640T Enterprise：2.51 lbs (1136.5 g) | |
Max Takeoff Weight | 1999 g | |
Diagonal Length | 16.8 inches (427 mm) | |
Size(L*W*H) | Folded: 9.6*5.1*4.4 inches; 245*130*111mm | |
Unfolded: 19.9*24.4*4.4 inches; 506*620*111mm | ||
Max Takeoff Altitude | 4.3 miles (7000 m) MSL | |
Max Ascent Speed | 18 mph (8 m/s) (Ludicrous) | |
Max Descent Speed | 9 mph (4 m/s) (Ludicrous) | |
Max Level Flight Speed | 45 mph (20 m/s) (Ludicrous) | |
Max angular velocity | 120°/s | |
Max tilt angle | 33° (Ludicrous) | |
Max Flight Time (no wind) | 42 min（without accessories） | |
Max Hovering Time (no wind) | 38 min（with strobe） | |
29 min（with spotlight） | ||
34 min（with loudspeaker） | ||
36 min（with RTK module） | ||
Operating Temperature Range | 14℉ to 104℉ (-10℃ to 40℃) | |
Max Wind Speed Resistance | 27mph, 12 m/s (Take-off and landing) | |
Operating Frequency | 2.400 GHz - 2.4835 GHz； | |
5.725GHz - 5.850 GHz | ||
Hovering accuracy | When RTK is enabled and working normally: | |
Vertical: ±0.1 m; Horizontal: ±0.1 m | ||
Vertical: ±0.1 m (when the visual positioning is working normally); | ||
±0.5 m (when GNSS works normally) | ||
Horizontal: ±0.3 m (when the visual positioning is working normally); | ||
±1.5 m (when GNSS works normally) | ||
Internal storage | 8GB | |
SD storage | max. support 256GB (UHS-3 or Class 10) | |
Gimbal | ||
Gimbal | 3-axis stabilization | |
Mechanical range | Tilt: -135° to +45°; | |
Pan: -100° to +100° | ||
Controllable rotation range | Tilt: -90° to +30°; | |
Pan: -90° to +90° | ||
Max control speed (Tilt) | 300°/s | |
Angular Vibration Range | ±0.005° | |
Remote controller and image transmission | ||
Operating frequency | 902-928MHz (FCC Only) | |
2.400-2.4835GHz | ||
5.725-5.850GHz (non-Japan) | ||
5.650-5.755GHz (Japan Only) | ||
Transmission power (E.I.R.P) | FCC：≤33dBm | |
CE：≤20dBm@2.4G，≤14dBm@5.8G | ||
SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G | ||
Max Transmission Distance (unobstructed, free of interference) | FCC：9.3 miles (15 km) | |
CE：5 miles (8 km) | ||
Display screen | 2048x1536 60fps | |
Battery | 5800mAh | |
Operating time | ~3 hours (Max. Brightness) | |
~4.5 hours (50% Brightness) | ||
Charging time | 90 minutes | |
Internal Storage | ROM 128GB | |
Sensing system | ||
Sensing system type | Omnidirectional sensing system | |
Forward | Accurate measurement range: 0.5-18 m | |
Effective sensing speed:<12m/s | ||
Viewing angle: Horizontal: 60°, Vertical: 80° | ||
Backward | Accurate measurement range: 0.5-16 m | |
Effective sensing speed:<12m/s | ||
Viewing angle: Horizontal: 60°, Vertical: 80° | ||
Upward | Accurate measurement range: 0.5-10 m | |
Effective sensing speed:<5m/s | ||
Viewing angle: Horizontal: 65°, Vertical: 50° | ||
Downward | Accurate measurement range: 0.5-10 m | |
Effective sensing speed:<5m/s | ||
Viewing angle: horizontal: 100°, vertical: 80° | ||
Left and right | Accurate measurement range: 0.5-10 m | |
Effective sensing speed:<5m/s | ||
Viewing angle: horizontal: 65°, vertical: 50° | ||
Operating Environment | Forward, Backward and Sides: | |
Surface with clear pattern and adequate lighting (lux > 15) | ||
Upward: | ||
Detects diffuse reflective surfaces (>20%) | ||
(walls, trees, people, etc.) | ||
Downward: | ||
Surface with clear pattern and adequate lighting (lux > 15) | ||
Detects diffuse reflective surfaces (>20%) | ||
(walls, trees, people, etc.) | ||

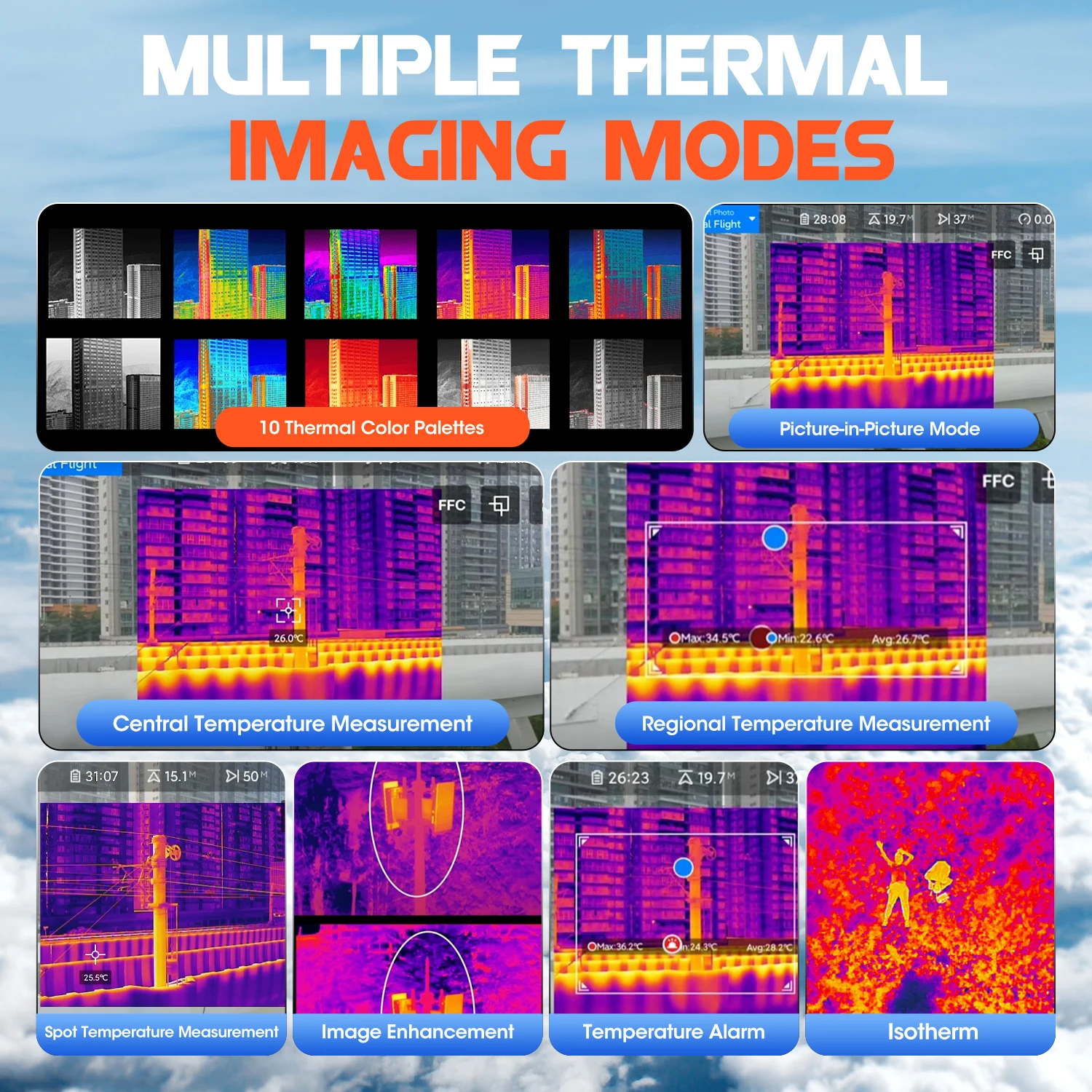

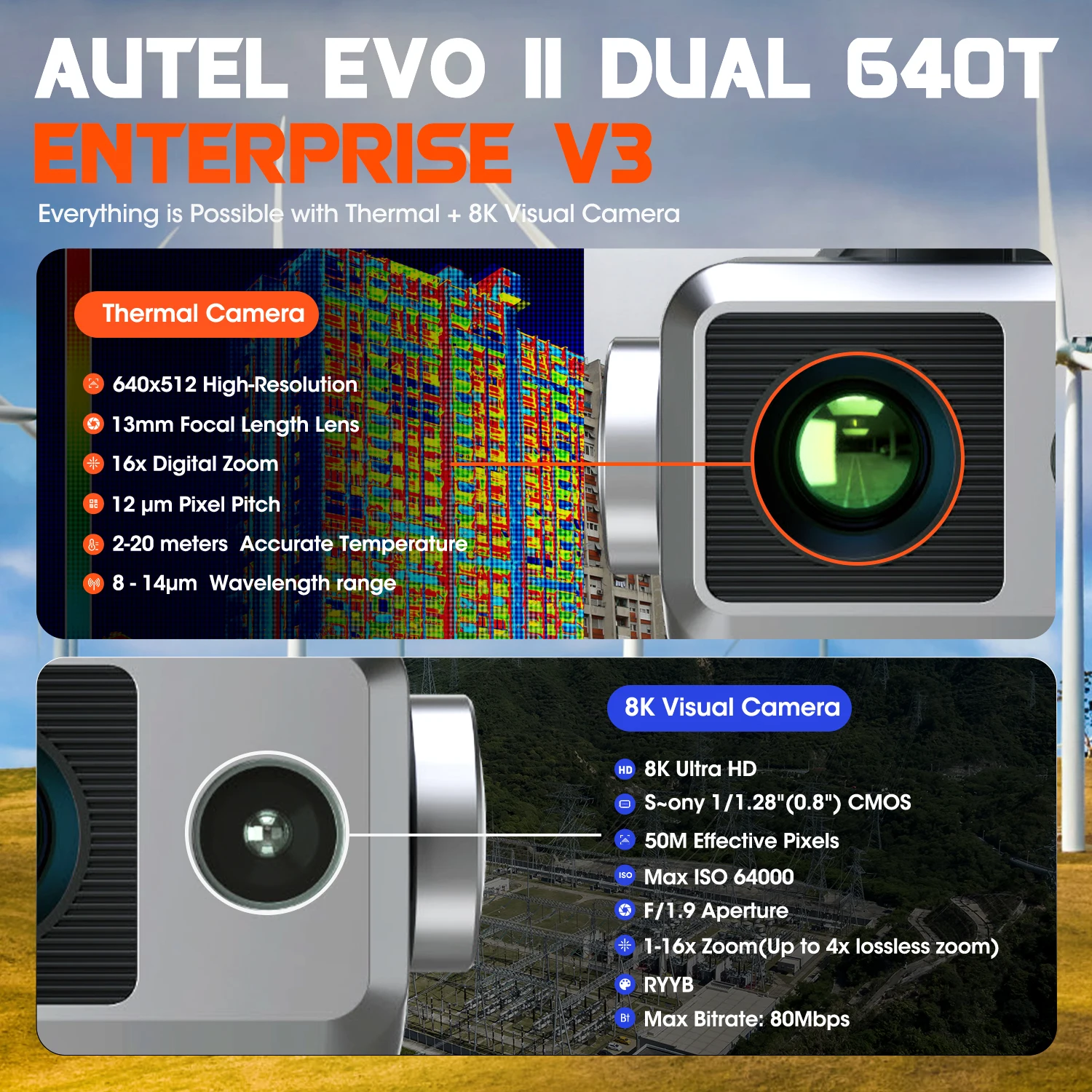

EVO II Dual 640T Enterprise thermal camera | ||
Sensor | Uncooled VOx Microbolometer | |
Lens | FOV H33°V26° | |
Focal length 13mm | ||
Zoom | 1-16x | |
Sensor resolution | 640*512 | |
Pixel size | 12μm | |
Wavelength range | 8 - 14μm | |
Temperature range | High gain mode: -20° to +150° | |
Low gain mode: 0° to +550° | ||
Temperature measurement accuracy | ±3℃ or ±3% of reading (whichever is greater) | |
@Environmental temperature-20℃~60℃ | ||
Accurate temperature | 2-20 meters | |
measurement distance | ||
Video resolution | 640x512@25fps | |
Video format | MOV / MP4 (Support H.264/H.265) | |
Camera resolution | Infrared mode: 640*512 | |
Picture-in-picture mode: 1920*1080, 1280*720 | ||
Photo mode | Single shot | |
Burst shooting: 3/5 frames, 3 is the default | ||
Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s | ||
Photo format | JPG (with irg file) | |

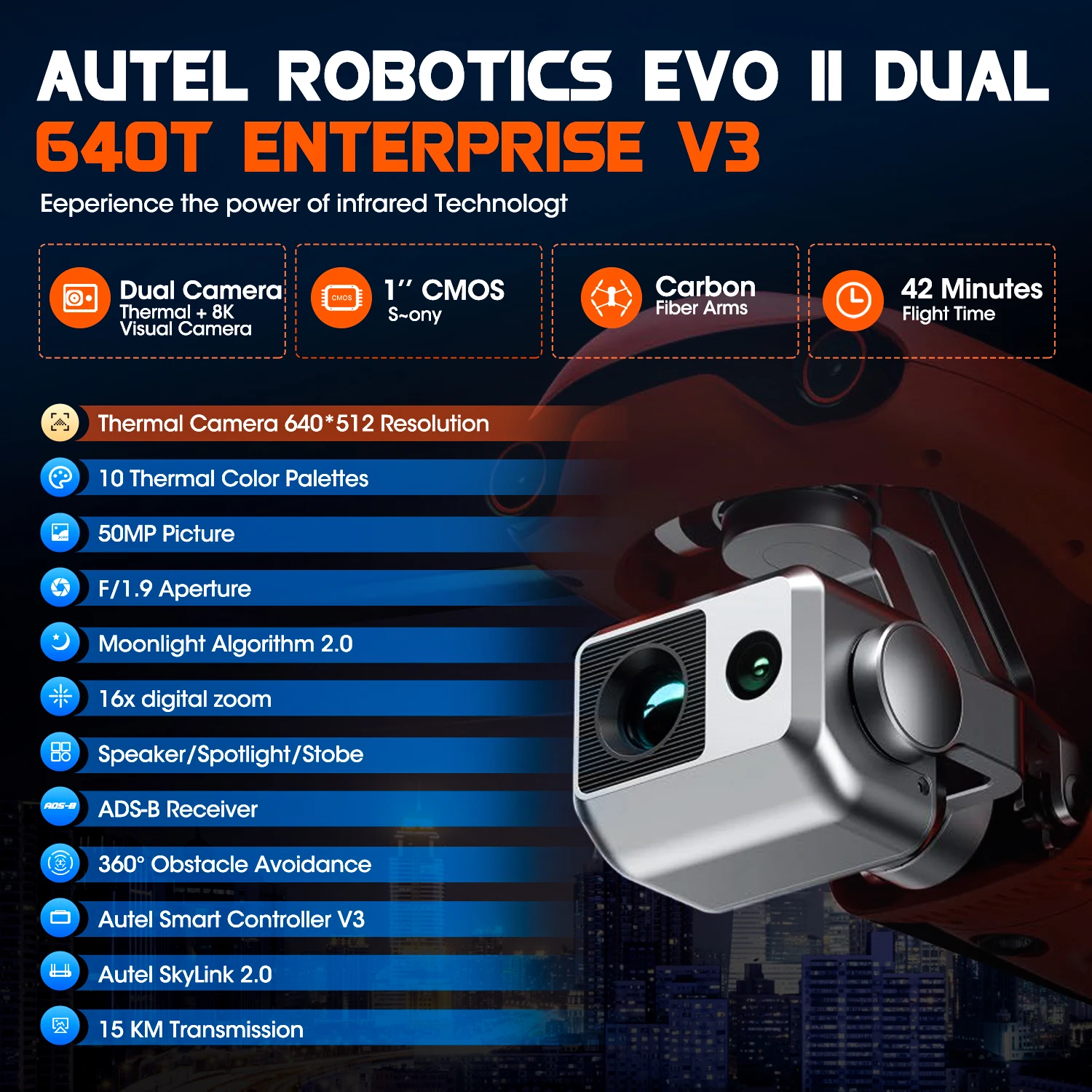

EVO II Dual 640T Enterprise V3 visual camera | ||
Sensor | 1/1.28"(0.8") CMOS; 50M effective pixels | |
Lens | FOV: 85° | |
35 mm format equivalent focal length: 23 mm | ||
Aperture: f/1.9 | ||
Focus range: 0.5 m to infinity (with auto focus) | ||
ISO range | Video: 100-64000 | |
Photo: 100-6400 | ||
Shutter speed | Photo mode: 1/8000 ~ 8s | |
Other: 1/8000 ~ 1/frame rates | ||
Zoom | 1-16x (up to 4x lossless zoom) | |
Photo mode | Single shot/Burst shooting/AEB/Time Lapse/HDR imaging | |
Maximum photo size | 8192*6144（4:3） | |
4096*3072（4:3） | ||
3840x2160（16:9） | ||
Image Format | JPG (default) / DNG / JPG+DNG | |
Video format | MOV / MP4 | |
Video resolution | 3840x2160P60/P50/P48/P30/P25/P24 | |
2720x1528P60/P50/P48/P30/P25/P24 | ||
1920x1080P120/P60/P50/P48/P30/P25/P24 | ||
Max bitrate | 80Mbps | |
Supported file system | FAT32/exFAT | |

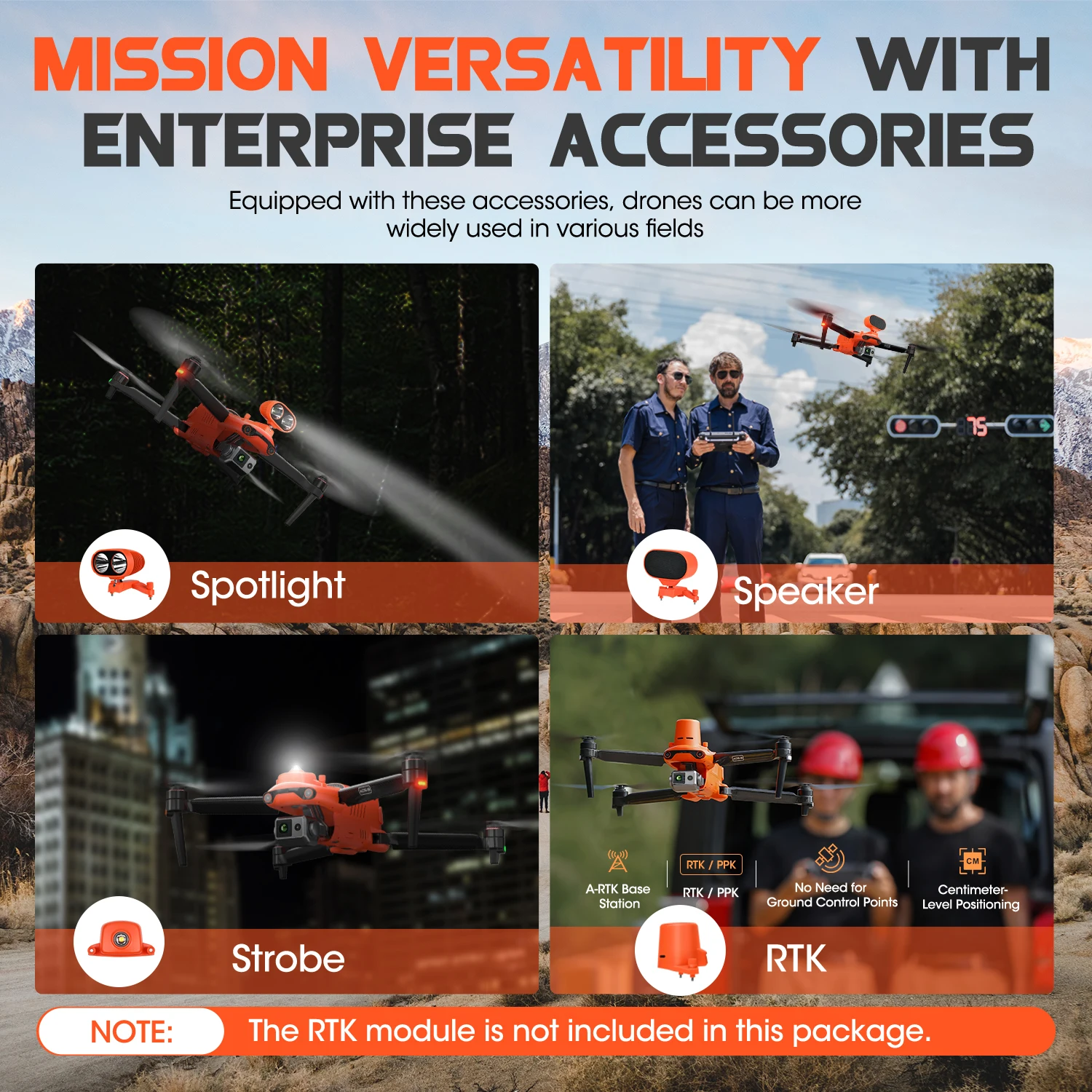

Accessories | ||
Strobe | Dimensions：39*72*34 mm | |
Weight：19.5 g | ||
Connections：Floating Connectors | ||
Power：Avg. 1.6W | ||
Controllable Range：5000 m | ||
Light intensity：Min 50cd；Max 486cd；Avg. 290cd | ||
Loudspeaker | Dimensions：46*80*77 mm | |
Weight：98.5 g | ||
Connections：Floating Connectors | ||
Power：Max 18W | ||
Decibel：120dB @ 1m；88dB @ 60m；70dB @ 110m； | ||
Max Bitrate：36kbps | ||
Adjustable Angle Range：0°~45° | ||
Spotlight | Dimensions：48.5*72*63 mm | |
Weight：77 g | ||
Connections：Floating Connectors | ||
Power：Max 35W | ||
Controllable Range：30 m | ||
Adjustable Angle Range：0°~90° | ||
Illuminance：FOV14°, Max：11lux @ 30m Straight | ||
RTK Module | Dimensions：55.5*72.5*57 mm | |
Weight：59.5 g | ||
Connections：Floating Connectors | ||
Power：~ 3W | ||
RTK Positioning Precision： | ||
1.5 cm + 1 ppm（(Vertical） | ||
1 cm + 1 ppm（Horizontal） | ||
Battery | ||
Capacity | 7100 mAh | |
Voltage | 11.55 V | |
Battery type | LiPo 3S | |
Energy | 82 Wh | |
Weight | 365 g | |
Charging temperature range | 5℃ to 45℃ | |
Storage temperature and humidity | -10~30℃，65±20%RH | |
Recommended storage temperature | 22-28℃ | |
Max charging power | 93W | |
Charging time | 90 minutes | |
Charger | ||
Input | 100-240 V, 50/60 Hz, 1.5A | |
Output | 13.2 V ⎓ 5 A | |
5V⎓3A 9V⎓2A 12V⎓1.5A | ||
Voltage | 13.2±0.1V | |
Rated power | 66W | |
Multi-Charger | ||
Voltage | 13.2 V | |
Charging temperature range | 5℃ to 45℃ | |
