Autel Robotics EVO 2 II двойной 640T RTK V3 Квадрокоптер коммерческий 10 км дальний Радиоуправляемый БПЛА наблюдение Дрон тепловая камера 4K Дрон

Aircraft

Weight (With propellers, battery and RTK module)

1250g±0.5g（EVO II Dual 640T RTK V3）

Max Takeoff Weight

4.41 lbs+ (1999 g)

Size(L*W*H)

Folded: 230*130*143mm; 9.1*5.1*5.6 inches

Unfolded: 457*558*143mm; 18*22*5.6 inches

Wheelbase

397 mm

Maximum Takeoff Altitude

7000 m

Max ascent speed

8 m/s (Ludicrous)

Max descent speed

4 m/s (Ludicrous)

Max horizontal flight speed

20m/s (Ludicrous)

Max flight distance (no wind)

21 km

Max angular velocity

120°/s

Max tilt angle

33° (Ludicrous)

Max flight time

36 min

Max hovering time (no wind)

32 min

Operating temperature range

14°F to 104°F (-10℃ ~ 40℃)

Maximum resistance to wind

27mph, 12 m/s (Take-off and landing)

Operating frequency

902-928MHz (FCC Only)

2.400-2.4835GHz

5.725-5.850GHz

Transmission power(E.I.R.P)

900M

FCC/ ISED：≤31dBm

2.4G

FCC/ ISED：≤32dBm

SRRC/CE/MIC/RCM：≤20dBm

5.8G

FCC/ISED/SRRC/MIC：≤33dBm

CE/ RCM：≤14dBm

Hovering accuracy

When RTK is enabled and working normally:

Vertical: ±0.1 m; Horizontal: ±0.1 m

Vertical: ±0.1 m (when the visual positioning is working normally);

±0.5 m (when GNSS works normally)

Horizontal: ±0.3 m (when the visual positioning is working normally);

±1.5 m (when GNSS works normally)

Image position compensation

The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63,
0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the
front, right, and bottom of the aircraft respectively.

Internal storage

8GB

SD storage

max. support 256GB (UHS-3 or Class 10)

GNSS

Single frequency high sensitivity GNSS

GPS+BeiDou+Galileo（Asia）

GPS+GLONASS+Galileo（Other areas）

Multi-frequency multi-system high-precision RTK GNSS

Frequency points used：

GPS：L1/L2；

GLONASS：L1/L2；

BeiDou：B1/B2；

Galileo：E1/E5

First positioning time:<50 s

Positioning accuracy:

vertical 1.5 cm + 1 ppm (RMS);

Horizontal 1 cm + 1 ppm (RMS)

1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves

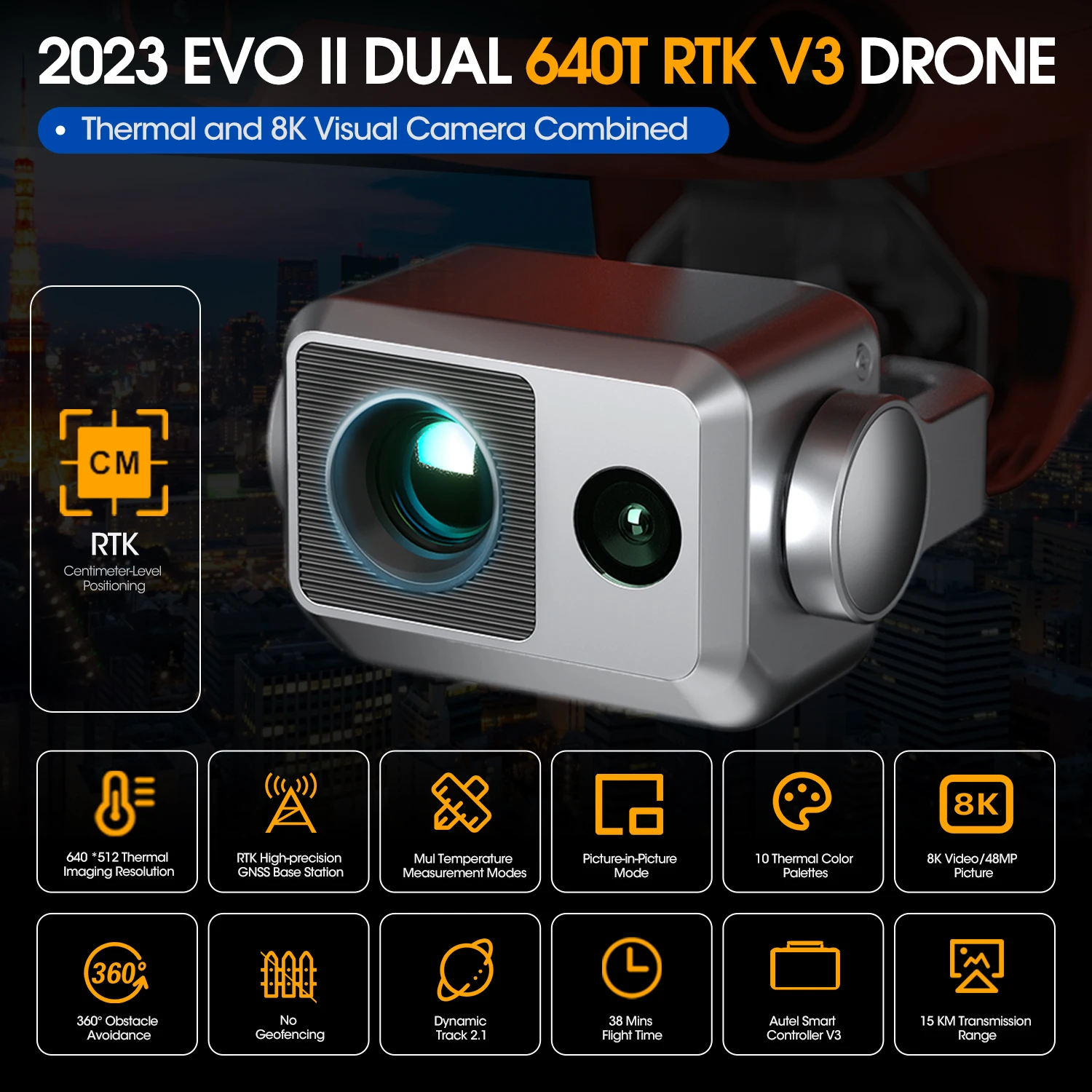

Gimbal

Gimbal

3-axis stabilization

Mechanical range

Tilt: -135° to +45°;

Pan: -100° to +100°

Controllable rotation range

Tilt: -90° to +30°;

Pan: -90° to +90°

Max control speed (Tilt)

300°/s

Angular Vibration Range

±0.005°

Remote controller and image transmission

Operating frequency

902-928MHz (FCC Only)

2.400-2.4835GHz

5.725-5.850GHz

Transmission power(E.I.R.P)

FCC：≤33dBm

CE：≤20dBm@2.4G，≤14dBm@5.8G

SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G

Max Transmission Distance (unobstructed, free of interference)

FCC：9.3 miles (15 km)

CE：5 miles (8km)

Display screen

2048x1536 60fps

Battery

5800mAh

Operating time

~3 hours (Max. Brightness)

~4.5 hours (50% Brightness)

Charging time

120 minutes

Internal Storage

ROM 128GB

Sensing system

Sensing system type

Omnidirectional sensing system

Forward

Accurate measurement range: 0.5-18 m

Effective sensing speed:<12m/s

Viewing angle: Horizontal: 60°, Vertical: 80°

Backward

Accurate measurement range: 0.5-16 m

Effective sensing speed:<12m/s

Viewing angle: Horizontal: 60°, Vertical: 80°

Upward

Accurate measurement range: 0.5-10 m

Effective sensing speed:<5m/s

Viewing angle: Horizontal: 65°, Vertical: 50°

Downward

Accurate measurement range: 0.5-10 m

Effective sensing speed:<5m/s

Viewing angle: horizontal: 100°, vertical: 80°

Left and right

Accurate measurement range: 0.5-10 m

Effective sensing speed:<5m/s

Viewing angle: horizontal: 65°, vertical: 50°

Operating Environment

Forward, Backward and Sides:

Surface with clear pattern and adequate lighting (lux > 15)

Upward:

Detects diffuse reflective surfaces (>20%)

(walls, trees, people, etc.)

Downward:

Surface with clear pattern and adequate lighting (lux > 15)

Detects diffuse reflective surfaces (>20%)

(walls, trees, people, etc.)

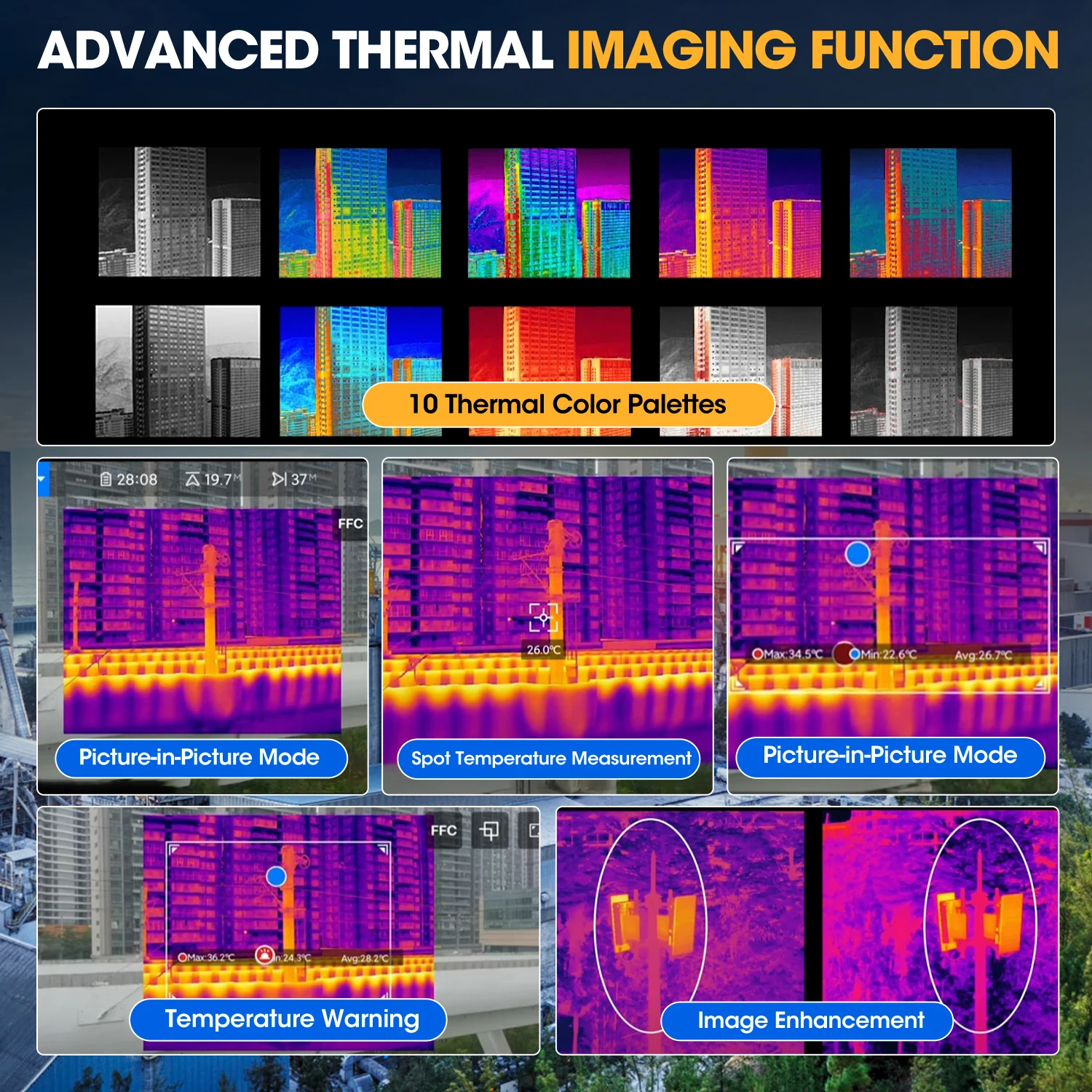

EVO II Dual 640T RTK thermal camera

Sensor

Uncooled VOx Microbolometer

Lens

FOV H33°V26°

Focal length 13mm

Zoom

1-16x

Pixel size

12μm

Wavelength range

8 - 14μm

Temperature range

High gain mode: -20° to +150°

Low gain mode: 0° to +550°

Temperature measurement accuracy

±3℃ or ±3% of reading (whichever is greater)

@Environmental temperature-20℃~60℃

Accurate temperature

2-20 meters

measurement distance

Video resolution

640x512@25fps

Video format

MOV / MP4 (Support H.264/H.265)

Camera resolution

Infrared mode: 640*512

Picture-in-picture mode: 1920*1080, 1280*720

Photo mode

Single shot

Burst shooting: 3/5 frames, 3 is the default

Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s

Photo format

JPG (with irg file)

EVO II Dual 640T RTK V3 visual camera

Sensor

1/1.28"(0.8") CMOS; 50M effective pixels

Lens

FOV: 85°

35 mm format equivalent focal length: 23 mm

Aperture: f/1.9

Focus range: 0.5 m to infinity (with auto focus)

ISO range

Video: 100-64000

Photo: 100-6400

Shutter speed

Photo mode: 1/8000 ~ 8s

Other: 1/8000 ~ 1/frame rates

Zoom

1-16x (up to 4x lossless zoom)

Photo mode

Single shot/Burst shooting/AEB/Time Lapse/HDR imaging

Maximum photo size

8192*6144（4:3）

4096*3072（4:3）

3840x2160（16:9）

Image Format

JPG (default) / DNG / JPG+DNG

Video format

MOV / MP4

Video resolution

3840x2160P60/P50/P48/P30/P25/P24

2720x1528P60/P50/P48/P30/P25/P24

1920x1080P60/P50/P48/P30/P25/P24

Max bitrate

80Mbps

Supported file system

FAT32/exFAT

Battery

Capacity

7100 mAh

Voltage

11.55 V

Battery type

LiPo 3S

Energy

82 Wh

Weight

365 g

Charging temperature range

5℃ to 45℃

Storage temperature and humidity

-10~30℃，65±20%RH

Recommended storage temperature

22-28℃

Max charging power

93W

Charging time

90 minutes

Charger

Input

100-240 V, 50/60 Hz, 1.5A

Output

13.2 V ⎓ 5 A

5V⎓3A 9V⎓2A 12V⎓1.5A

Voltage

13.2±0.1V

Rated power

66W

Multi-Charger

Voltage

13.2 V

Charging temperature range

5℃ to 45℃

Charger

Input

100-240 V, 50/60 Hz, 1.5A

Output

13.2 V ⎓ 5 A

5V⎓3A 9V⎓2A 12V⎓1.5A

Voltage

13.2±0.1V

Rated power

66W

Multi-Charger

Voltage

13.2 V

Charging temperature range

5℃ to 45℃
