Product Overview
Description
PRODUCT OVERVIEW

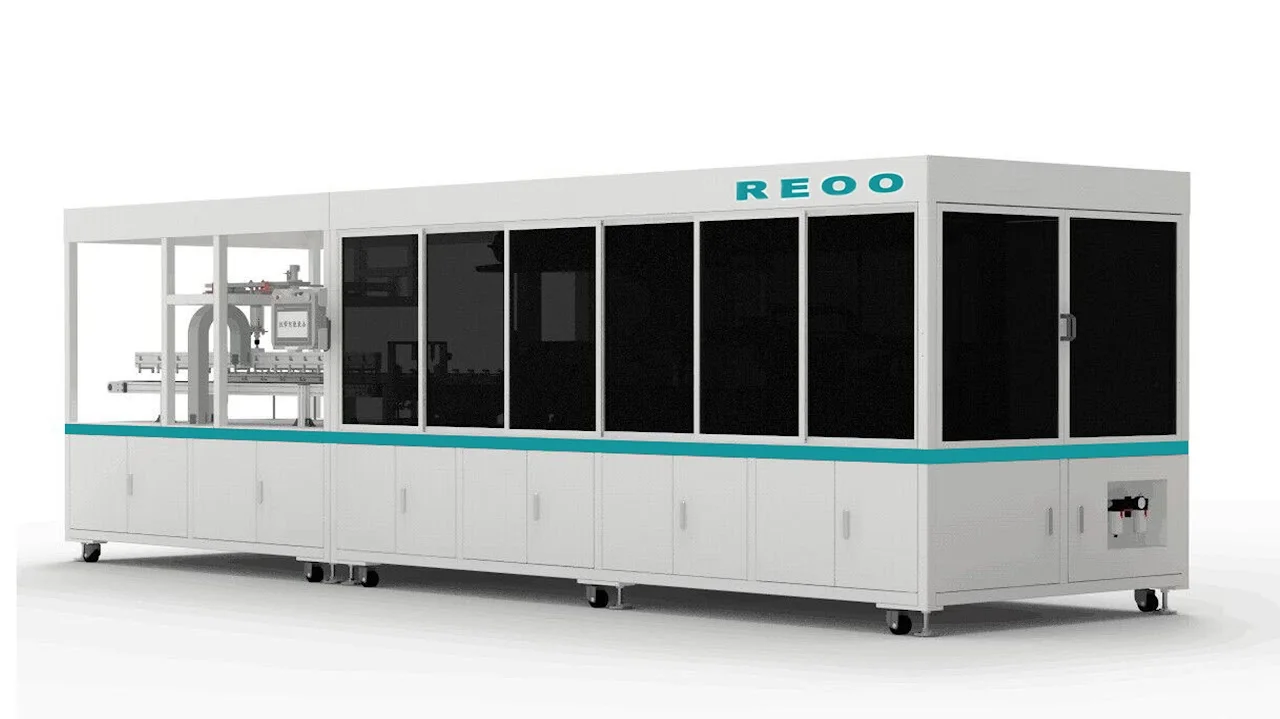

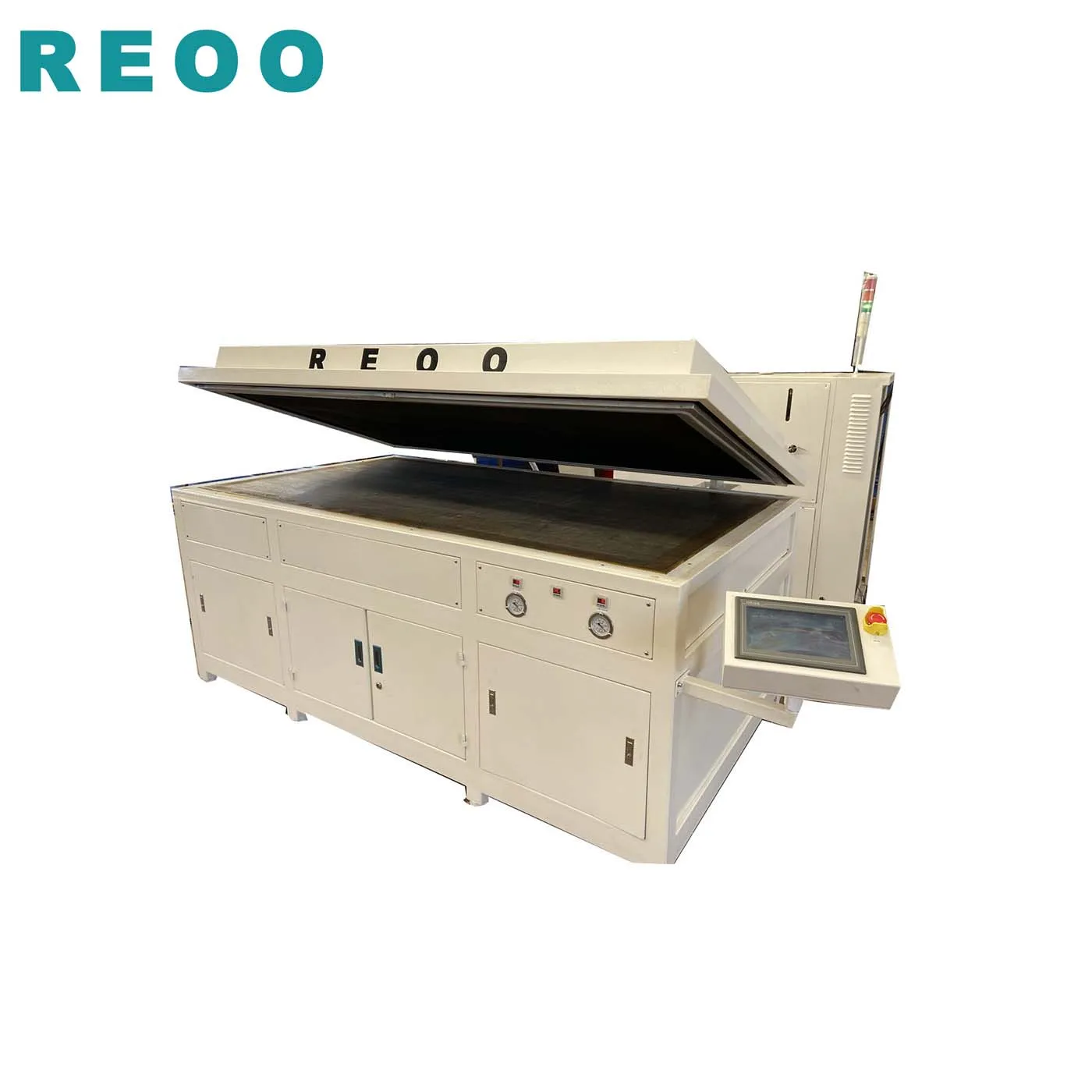

Full Automatic Solar Panel Laminating Machine
As the equipment of manufacturing solar module limited to laminate glass, EVA (Ethylene Vinyl Acetate Sheet), solar cell and back sheet
A laminator is a piece of equipment that presses multiple layers of material together. Put the laid modules into the laminator, and melt the EVA by heating to bond the cells, glass and back sheet together. The air is pumped by the vacuum pump to discharge the air in the gap of the packaging material and the gas generated during the lamination process and to eliminate the air bubbles in the module. Then apply a certain pressure on the surface of the modules through the inflation stage to press these substances tightly together.
FEATURES AT A GLANCE
High safety: Equipped with abnormal alarm system,
Picture 1
Picture 2
Picture 3
PRODUCT SPECIFICATIONS
No | Model | RO-Q1 | RO-Q8 | RO-Q2472 |
1 | Dimensions | 14000 x 2800 x 1380 mm | 19200 x 3380 x 1300 mm | 34000x 3300x1380 mm |
2 | Laminating area | 3600mm x 2200mm | 4500mm x 2300mm | 7200mm x 2400mm |
3 | Laminating height | 25mm | 25mm | 25mm |
4 | Total power consumption | 80KW | 100KW | 150KW |
5 | Production capacity | 460 WP * 3 pieces / time * 3 time / h * 8 hours * 300 days=9.936 MWp / year | 550 WP * 4 pcs/ cycle * 6 cycles/h*8hours*300days= 31.68 MWp/ year | 700 WP*5 pcs/ Cycle * 6 Cycles/h* 8 hours* 300days=50.4. MWp / year |
1 | Air source | 0.6 - 1.0 MPa | 8 | Temperature control accuracy | ≤± 1 ℃ | ||||
2 | Operating mode | Manual / Automatic | 9 | Temperature control range | 30℃ - 180 ℃ | ||||
3 | Control system | PLC ( Siemens) | 10 | Pumping rate | 70 L/s | ||||
4 | HIM system | Touch screen | 11 | Vacuum rate | 200 L / S | ||||
5 | Temperature control | PID intelligent temperature control system | 12 | Heating rate | 135℃ at room temperature with 50 to 60 minutes | ||||
6 | Temperature uniformity in working area | ≤ ±1.5 ℃ | 13 | Laminating time | 2 - 4 mins ( Excluding sollidification time ) Total: around 18 min | ||||
7 | Vacuum Time | 90 seconds | 14 | The limit vacuum | 70 ~ 90 Pa | ||||
15 | Heating mode: Oil Heating ( SD320 heat-conducting oil, capacity: 170 L, flow pressure:0.3 Mpa.), inculde: main heating and adjustable heating | ||||||||
16 | Lid opening: Straight from the hydraulic, the biggest opening height: 200 mm | ||||||||
OUR ADVANTAGES
1.Quick response service: We will provide you with any professional technical and price consultation according to your needs within 24 hours, and give you a quick reply to any questions you care about.
2.Tailor-made: Temporary customization of products according to your actual needs to ensure budget optimization.
3.Provide on-site inspection: We welcome you to come to the company for on-site inspection and provide you with any convenient conditions.
4.Strict quality inspection: each piece of equipment is strictly inspected in accordance with national requirements, and is controlled by special personnel to eliminate bad products.
5.Good after-sales service: Provide customers with installation, training, etc.; equipment free warranty for one year, life-long maintenance; free technical consultation, software upgrades and other services; customer service response time within 24 hours.
COMPANY PROFILE
NANTONG REOO TECHNOLOGY CO.,LTD.
REOO technology company is a leading manufacturer of solar panel machines in China.
Founded in 2005, it specializes in the design and production of solar panel production equipment and specializes in manufacturing and selling solar panels.
Our equipment is exported to the United States, Britain, Germany, France, Poland, Bosnia and Herzegovina and other European and American countries, Mexico, Argentina, Chile, Jamaica and other American countries, India, Thailand, Malaysia, Bangladesh and other southeast Asian countries, South Africa, Algeria and other African countries.
Our company's advantages:
1. Tailored for customers of all kinds of equipment.
2. Rich experience in overseas installation,commissioning and training.
3. Rich experience in overseas equipment after-sales service.
CUSTOMER PHOTOS
Picture 1
Picture 2
Picture 3
SIMILAR PRODUCTS
CONTACT WITH ME
NANTONG REOO TECHNOLOGY CO.,LTD.
Add: Chennan industrial park, Rudong, Jiangsu, China Zip.226400
Mobile number: +86 187 5132 7183
Tel: +86 513 8410 5399
Fax: +86 513 8410 5505
What's App:+86 187 5132 7183
Add: Chennan industrial park, Rudong, Jiangsu, China Zip.226400
Mobile number: +86 187 5132 7183
Tel: +86 513 8410 5399
Fax: +86 513 8410 5505
What's App:+86 187 5132 7183
We Recommend
Radiant Pv Solar 1 Mw Solar Panel Manufacturing Machine Assembly Line System
$400,000.00-500,000.00

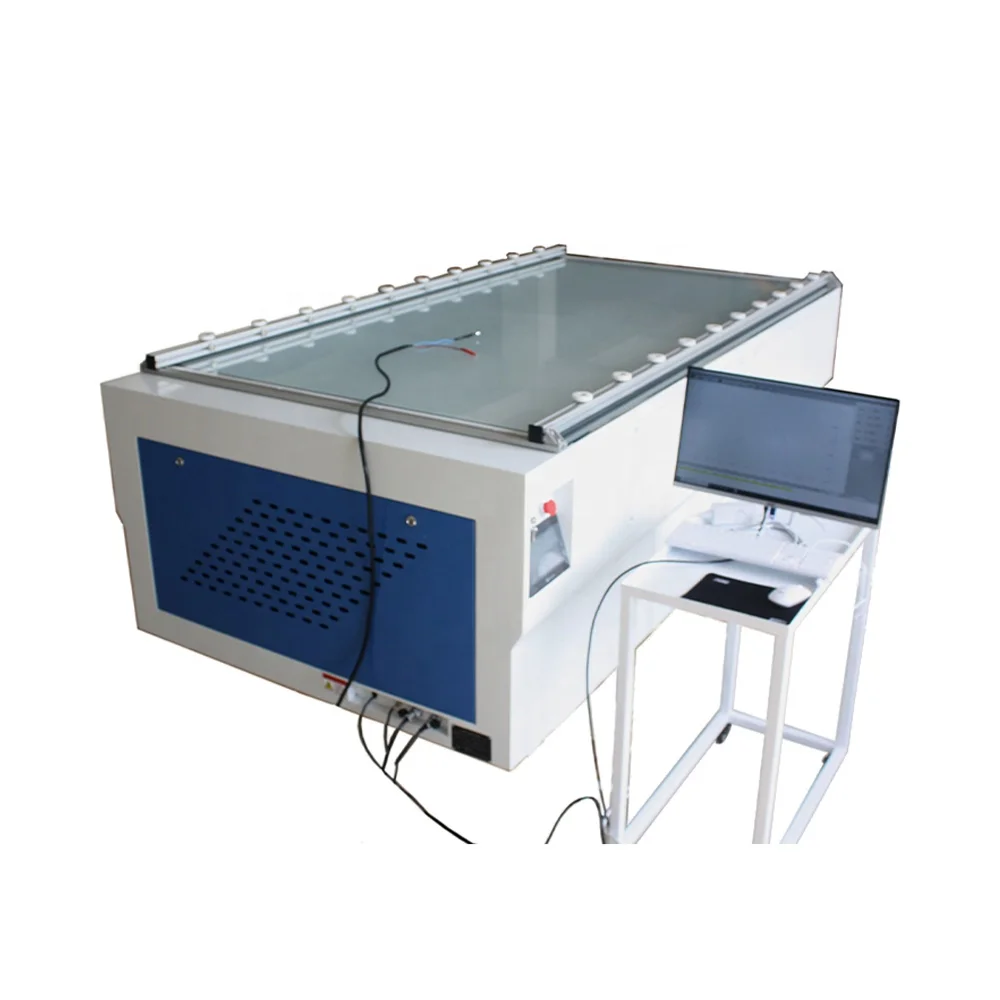

Iv Curve Tester Solar Panel Testing Machine Solar Cell Iv Tester
