High temperature resistance Refractory Sic Plate for ceramic firing (1600902805117)

Share on:


Price:$37.00 - $39.00
Price in USD:Details

Quantity:


Product Overview

Description

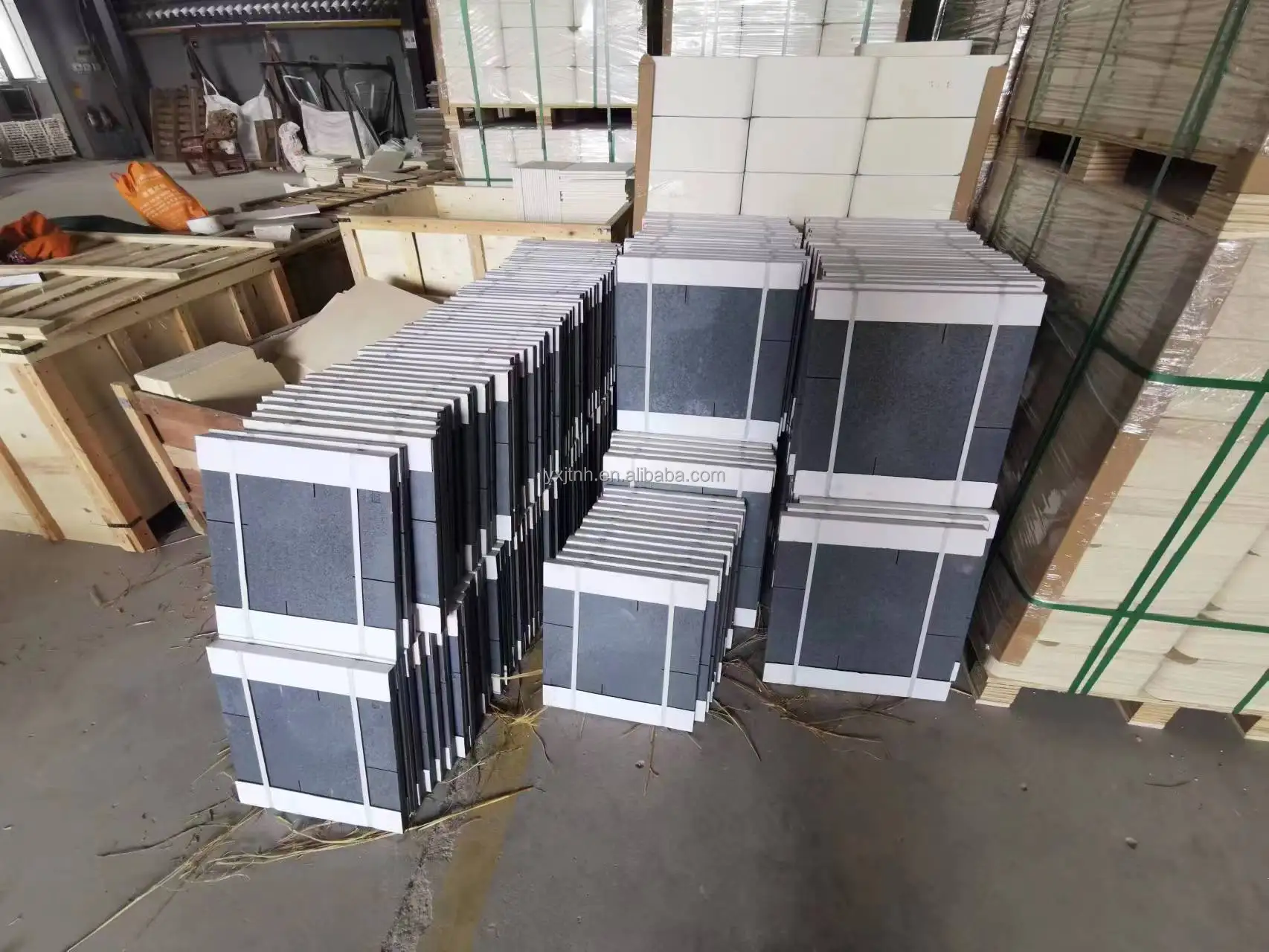

High temperature sic plate






Product Description


Sic plate have superior properties, such as high temperature resistance, corrosion resistance, high bending strength, the thermal conductivity of oxide bonded silicon carbide is 10 times than cordierite and high alumina kiln shelves, which is widely used inconstruction ceramics, sanitary ceramics, daily ceramics, electro ceramics, refractory material, powder metals sintered furnaces.


 IMG_20170207_131242_



































































       item



Technical Data



    volume density
     (g/cm3)



   2.70-2.75



apparent porosity
(%)



    7-8



 strength at normal temperature
   (Mpa)



    >50



  high temperature bending strength
  (Mpa/1400℃)



     >55



   cold crushing strength
  (Mpa)



    >90



   refractoriness under load
  (℃)



    >1750(T2)2Kg/cm2



   maximum service temperature
   (℃)



     1450



   pyroconductivity

(Kca l/m.h.℃)



     13.5-14.5



  thermalexpansivity
(×10-6/℃)



     4.2-4.8



chemical



  SiC



     >90%



  Fe2O3



    <0.3%



  Al2O3



     >99%(surface coating)









2. Property of Sic plate


Superior wear resistance, impact resistance and corrosion resistance


Excellent flatness and temperature resistance up to 1400℃


Excellent oxidation resistance


Good dimensional control of complex shapes


Easy installation


Longer service life








 3.Application


Oxide boned Sic plate can be made into OSiC plate, OSiC support, OSiC disc and other special shaped products, which are mostly used as kiln furniture like batts, setter plate, pusher plate, setter slab, sagger,muffle board and support shelves in firing tableware, sanitary ceramics, electrical ceramics, emery wheel and so on.








 Kiln Furniture Photo.1.jpg





 .


 23











Packaging & Shipping



















Our Services





Friendly tips


We can customzie according to customer's requirement.If we have similar size, we will recommend our size.Nowadays , mould charge is a big COST for us, we want to save money for customer , so if you can accept our current size, it is good for you.Don't you think so ?
