Good Price 40m3/h Truck Mounted Concrete Pump For Sale DTC40 Good Quality Truck Concrete Pump Price

Product Overview

Description

Good Price 40m3/h Truck Mounted Concrete Pump For Sale DTC40 Good Quality Truck Concrete Pump Price

Mobile/WeChat: 008615066732025

Please contact,will give you good discount and will service for you 24 hours



Truck Concrete Pump, it is concrete city pump truck, which is designe for the users who need to transport on the high speed way, from one building side to another building side, the Truck Mounted Concrete Pump can meet this speed, High working efficiency to achieve your construction works.



Item-DTC40	unit	parameter
Max. Concrete output	cbm/h	40
Pipe pressure	Mpa	13
Max. horizontal delivery distance	m	500
Max. Vertical height	m	150
Max. Aggregate size	mm	40
Valve type	S valve
Main oil pump	KAWASAKI
Lubrication	Automatically
Concrete cylinder bore*stroke	mm	180mm*1050
Diesel engine power	kw	85
Dimension	mm	7100*2100*2500
Weight	kg	7100

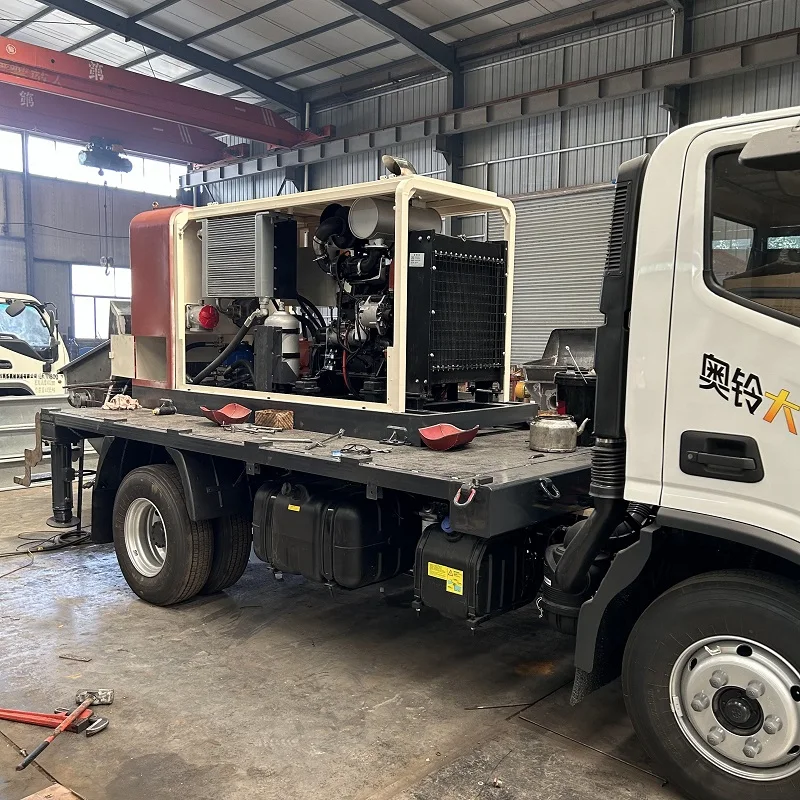

1.Power system  Cement Pump Truck

Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.

Diesel power: Germany Deutz, Weichai, Yuchai, .etc.

2.Electronic control system  Cement Pump Truck

Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.

3.Hydraulic system  Cement Pump Truck

The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.

4.Pumping system  Cement Concrete Pump Truck

Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition. Reducing design of the hopper could release the reducing pressure of the concrete into the delivery pipe maximally, and prolong the service life of the S pipe outlet.

5.Lubrication System  Concrete Pump Truck

The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.

6.Cooling System  Concrete Pump Truck

Compulsory air cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.



WELCOME INQUIRY



we have the professional shipping team and we have our own broker;





12 months warranty for Concrete Mixer machine and Pump

Guarantee for free replacement or repair the key componentd which is ineffcient function or performance caused by poor material or technique. (Damage caused by improper use and natural aging are not covered under the guarantee. )



 Stationary Concrete Pump Car;Stationary Concrete Pump Car;Stationary Concrete Pump Car;Stationary Concrete Pump Car;Stationary Concrete Pump Car;Stationary Concrete Pump Car;Stationary Concrete Pump Car;Stationary Concrete Pump Car;

I serve worldwide clients with high-quality products,devoted professional services
honorable credibility to meet customers' requirements

I will supply you 24 hoursa day and 7 days a week after-sale services.



 Stationary Concrete Pump Car;Stationary Concrete Pump Car;Stationary Concrete Pump Car;Stationary Concrete Pump Car;Stationary Concrete Pump Car;Stationary Concrete Pump Car;Stationary Concrete Pump Car;Stationary Concrete Pump Car;



Taian Minle Machine Manufacture Co., Ltd is located in Taian City, Shandong Province, China,  We have more 150 employees and with our own professional manufacturing factory for the mobile concrete trailer pump diesel pumpcrete

In 1999, we developed the first small diesel concrete pump for the government project, which started our concrete pump business and broke the monopoly of the brand concrete mixer with pump in the Chinese market. our concrete mixer pump serving the construction industry for more than 20 years.







--We will do the best to support your construction work, you will be very happy!





Q1: Are you trading company or manufacturer?

A: We are factory. We can design and manufacture products with our patent.

Q2: How about your delivery time?

A: Usually 7-10 days if the goods are in stock. or 15-20 days if the goods are not available in stock, it is up to your quantity.

Q3: What is your payment method?

A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.Money Gram;

Q4: How many types Concrete Mixer and Pump you have?

A: Diesel driven or electric motor
If you need electric motor one, please let us know your power situation, such as in China, it is 380Voltege & 50 HZ.
If you need diesel motor concrete mixer pump, the brand of diesel engine you like, it is Cummins or Deutz or Chinese Weichai,yuchai?

Q5: What is the capacity of your concrete mixer pump?

A: We have 30m-40m3/h.

Q6: How long and high you want to pump?

A: We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.

Q7: The aggregate size that you usually use?

A: Pebble 40mm, crushed stone 30mm.

---------------------------------
