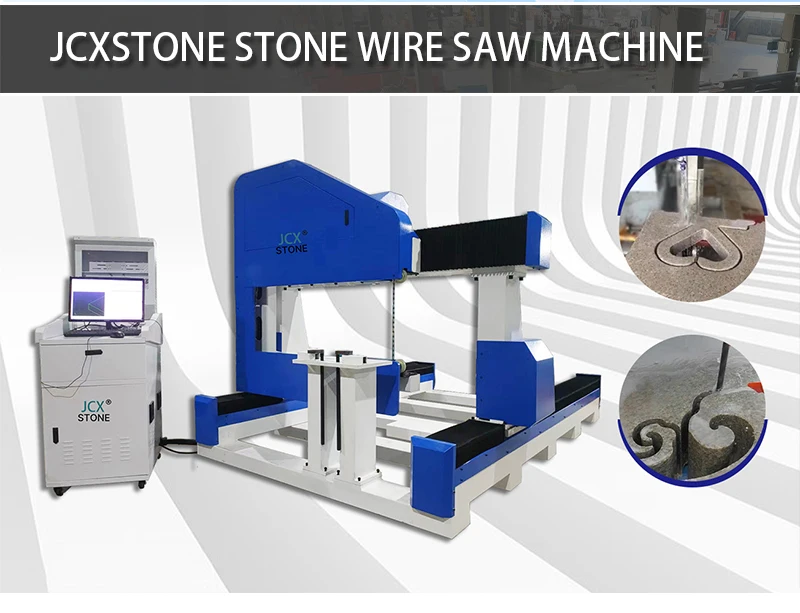

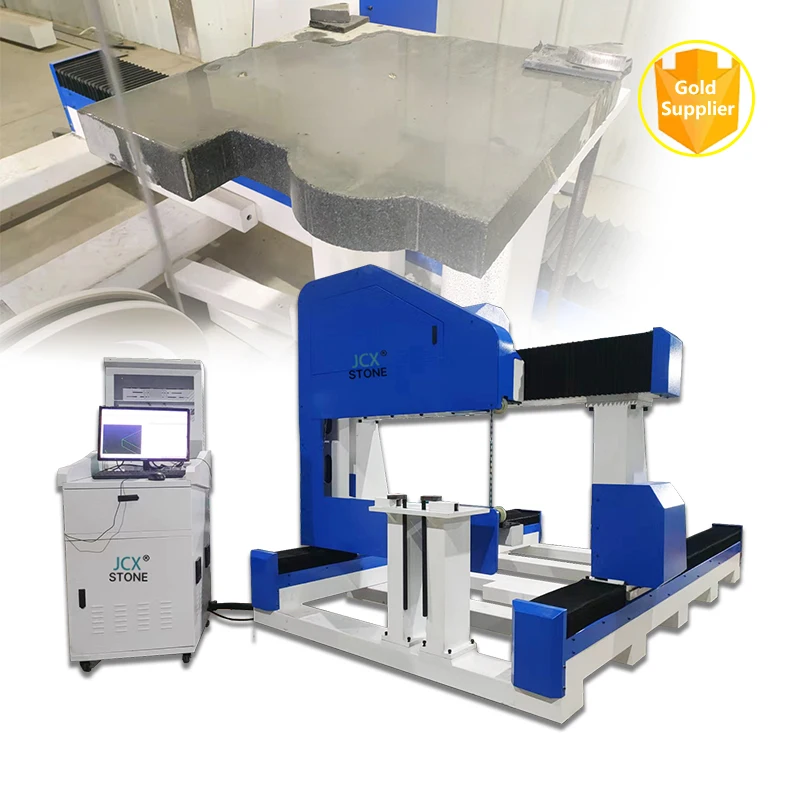

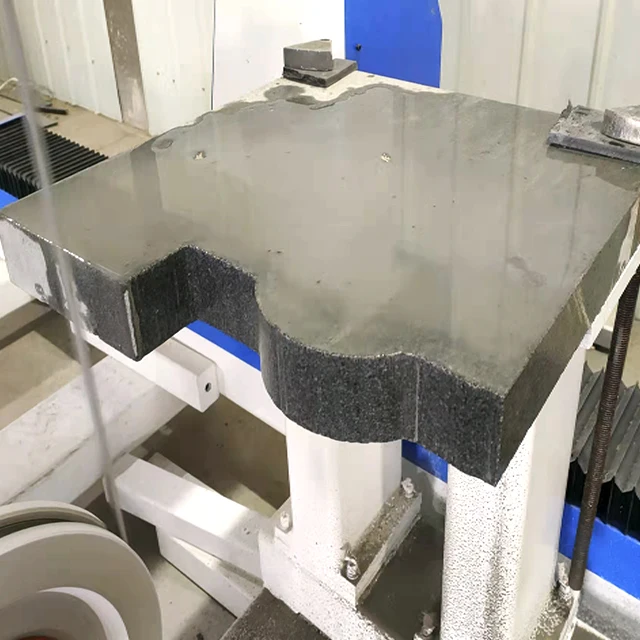

Diamond Wire Quarry Machine for Granite&Marble Block Cutting Wire saw machine
- Category: >>>
- Supplier: Beijing Yandiao Cnc Machine Co. Ltd.
Share on (1600906147102):
Product Overview
Description
Model | JCXstone-2010 | |
Working size | X-axis travling | 2000mm |
Y-axis traving | 1000mm | |
Z-axis | 400mm | |
Precision | Working precision | 0.05mm |
Repeated positioning accuracy | 0.02mm | |
Structure | X、Y structure | X.Y axis—gear rack , 20mm guide rail |

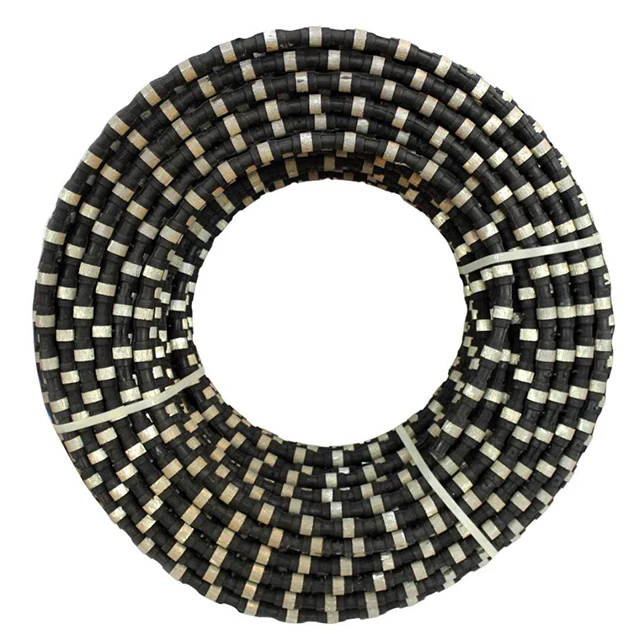

Cutting way | Wire saw | |
Total Machine power | 16 KW | |
Speed | Working speed | 20-30mm/min |
Working mode | Stepper motor | |
Working voltage | AC380V/50Hz | |

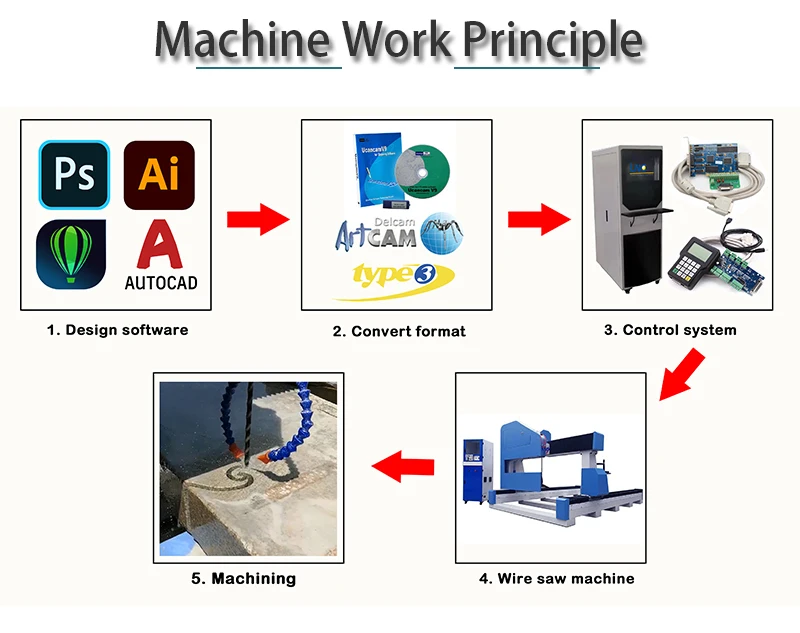

Working command | G code | |
Control system | Nc studio (Weihong system) |
PS: All the working area and specifications can be customized according to your requests.
Our Advantage
Equipped with CNC system, which makes the man-manchine interface easy and flexible.

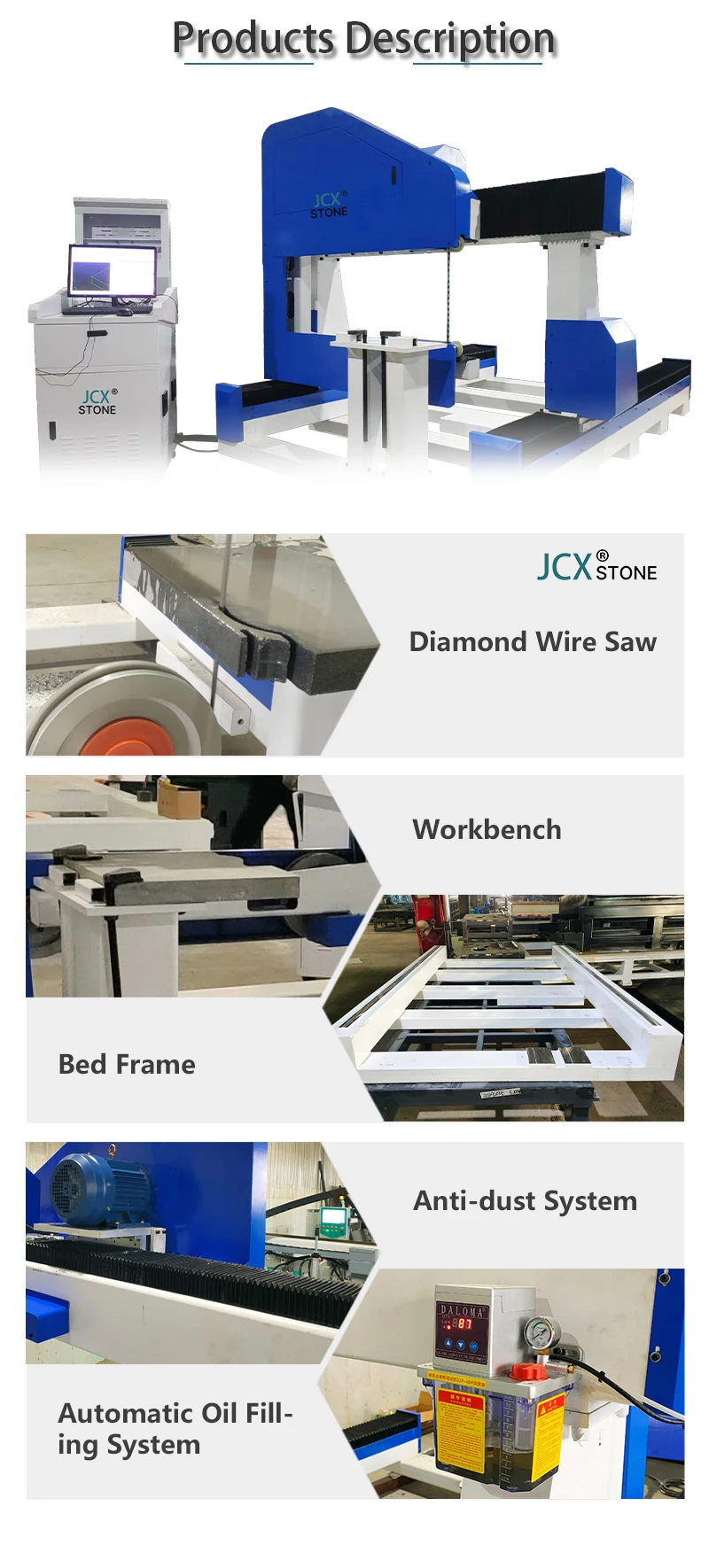

Flywheels tension has a stable, constant stretch mode to enhance cutting accuracy.
Cutting speed is adjustable according to different requirements.

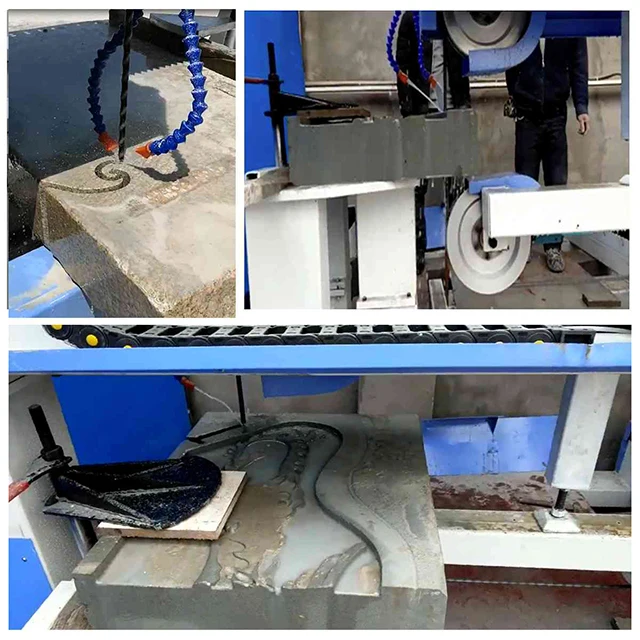

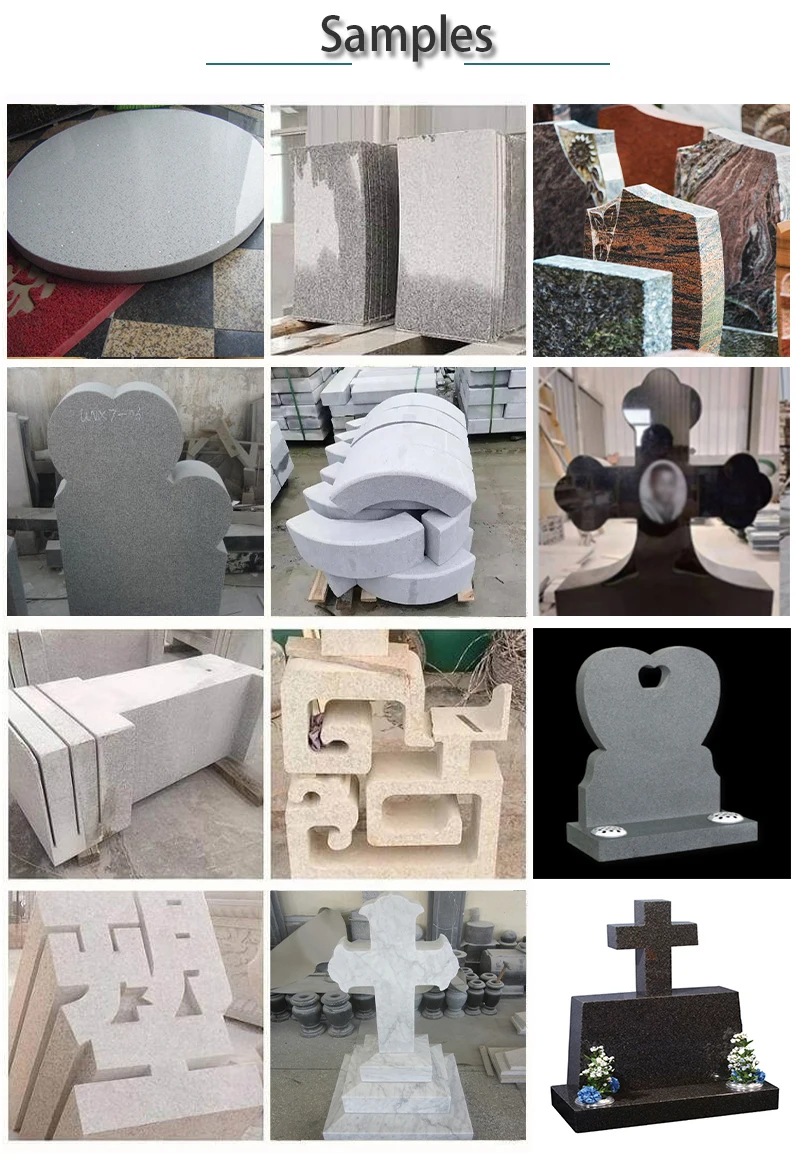

High efficiency, it can process various stones and tombstones.

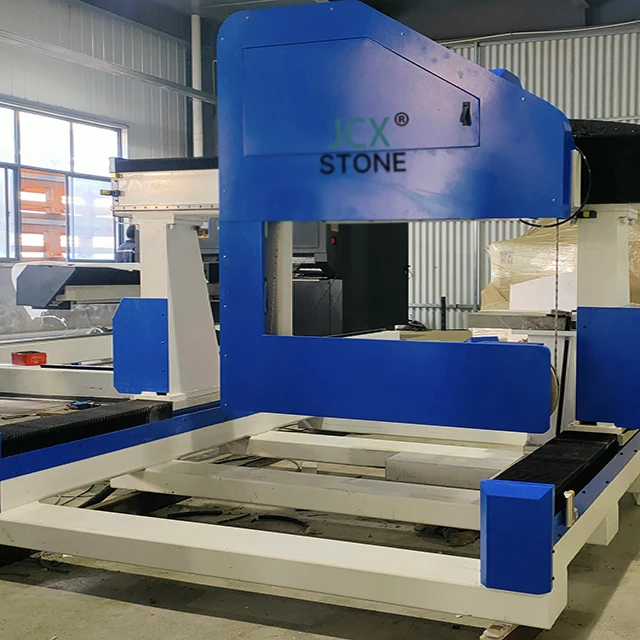

We have our own machining workshop. All machines frame, gantry and Z axis are made by our own workshop. In this way, we can ensure our good quality and lower the cost .
We can design and produce according to customer’s requirements. (including machine structure , type , color , spare parts and so on )
We can make OEM. ( with customers’ own logo on the machine )
We have rich experience for exporting, we will prepare well all customs documents and CO for making customs successfully.
