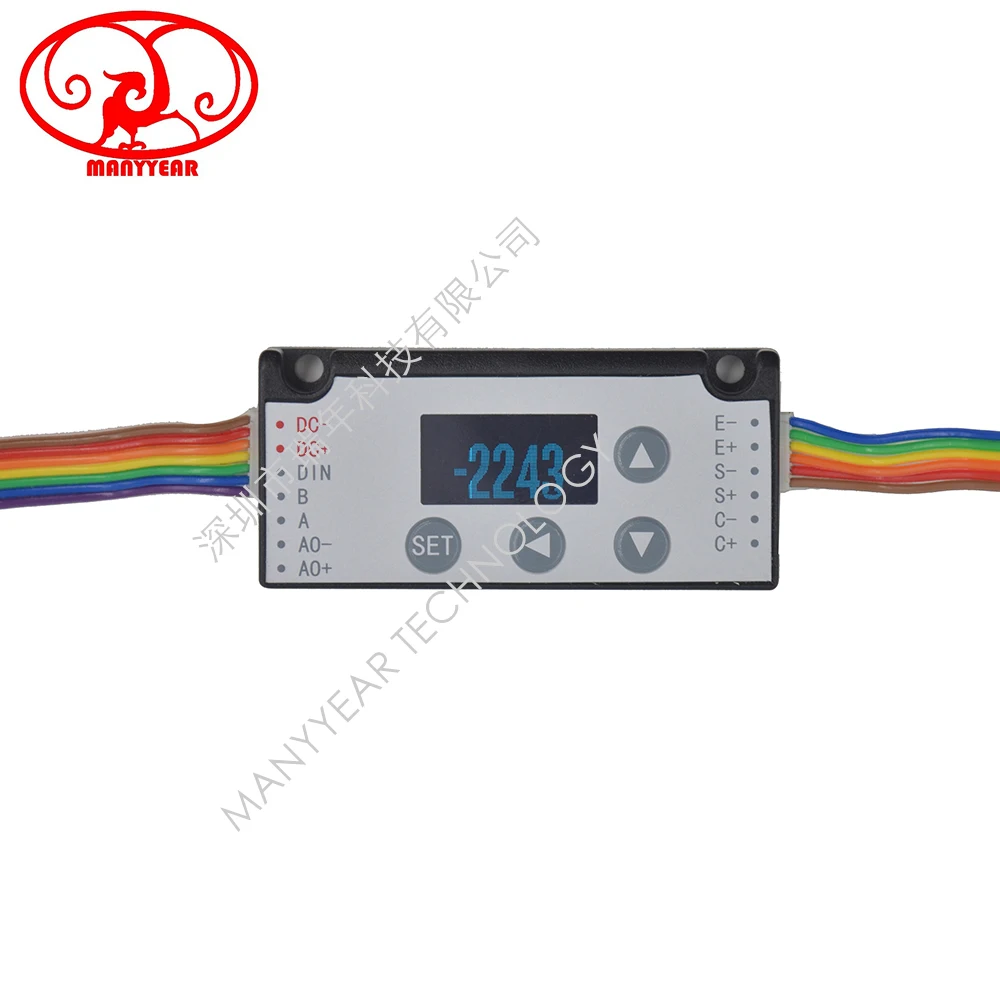

ADS DM107C miniature digital weighing load cell digital weight transmitter
ADS-DM107C miniature digital weighing load cell digital weight transmitter
ADS-DM107C miniature digital weighing load cell digital weight transmitter
ADS-DM107C miniature digital weighing load cell digital weight transmitter
ADS-DM107C miniature digital weighing load cell digital weight transmitter
ADS-DM107C miniature digital weighing load cell digital weight transmitter
ADS-DM107C miniature digital weighing load cell digital weight transmitter

ADS DM107C miniature digital weighing load cell digital weight transmitter

Share on (1600907312802):


Price:$40.00 - $75.00

Quantity:


Product Overview

Description



Product Description


ADS-DM113C digital weight transmitter digital force measure
Features:
Four wire proportional measurement, with a non-linear error not exceeding ± 0.05% F • S (under the condition of 13
measurements/second).
OLED display (blue), display range -999999~999999.
Display resolution: 1/100000.
The measurement speed is 13, 110, 220, 440, 880, and 1760 times/second, which can be selected through parameter settings.
Communication speed: selectable from 2400bps to 115200bps.
The transmission output rate is synchronized with the measurement.
10 point line correction function.
With peak to valley value function.
Sensor power supply 5V ± 2%, 100mA (MAX).
Communication, transmission output, input and power supply are not isolated.
Power supply: 13-17V AC 50/60 Hz; 18-32V DC.





Technology Specification
Below spec is only for customer design reference. we can provide ODM product.


project
specifications
supply voltage
DC power supply
13-17V AC 50/60 Hz; 18-32V DC
Power consumption
DC power supply
Typical value: 0.72W (carrying a 350 Ω sensor)
Operating environment
ambient temperature
-10~50 ℃
Environmental humidity
35~85% R • H, no condensation
Installation position
Indoor, height<2000m
display
0.96 inch OLED blue display screen with a resolution of 128 × sixty-four
Display range of measured values -999999~999999
Input specifications
project
specifications
Sensor power supply
DC 5V ± 2%, 100mA (MAX)
Input impedance
＞ 10M Ω
Conversion method
Sigma Delta
Measurement and control speed
13 times/second, 110 times/second, 220 times/second, 440 times/second, 880 times/second, 1760 times/second (through parameter
settings)
Nonlinear
± 0.05% F • S (measurement and control 13bps)
(The higher the measurement and control speed, the worse the nonlinearity)
Gain drift
<10 ppm/℃
(When connecting sensors, matching terminal connectors must be used, otherwise the temperature drift characteristics will
deteriorate)
measuring range
-199999~999999, Decimal separator position can be set
Display resolution
1/100000
Input signal
Proportional measurement, equipped with a 4-wire strain sensor
Contact input
1 external switch input, which can be used to reset
Output optional specifications
project
specifications
Transmission+communication
Option 1
A1F
Current output 4-20mA, 0-20mA
Non isolated transmission interface
MS1
RS232 interface, Modbus RTU and TC ASCII protocol
Resolution: 1/12000, load capacity: 1uA, ≥ 10M Ω
Option 2
A3F
Voltage output 0-10V, ± 10V
Communication interface non isolated
MS2
High speed RS485 interface, Modbus RTU and TC ASCII protocol
Response time: 100 μ S (measured value)
Intelligent module
TS
Intelligent module interface
Code Description
ADS-DM107C-
Standard 1 point input, 1 external supply, 1 communication channel, and 1 transmission output channel.
Overall dimensions
sixty-five × thirty × 9.6, fixed with adhesive or screws.
Transmission+communication
Option 1
A1F
Current output (4-20) mA, (0-20) mA
MS1
RS232 interface, TC-ASCII or Modbus-RTU protocol can be selected through parameter settings
Option 2
A3F
Voltage output 0-10V, ± 10V
MS2
RS485 interface, TC-ASCII or Modbus-RTU protocol can be selected through parameter settings
Intelligent module (option)
TS
Intelligent module interface


Product Assembly Structure
Blow force structure is for reference.






Product Process
for the load cell product process, include total 26 word step, take about 20days.




Product Application
this load cell can apply to pricing scale, packing scale, platform scale.




Delivery and Shipment
this load cell can apply to pricing scale, packing scale, platform scale.
