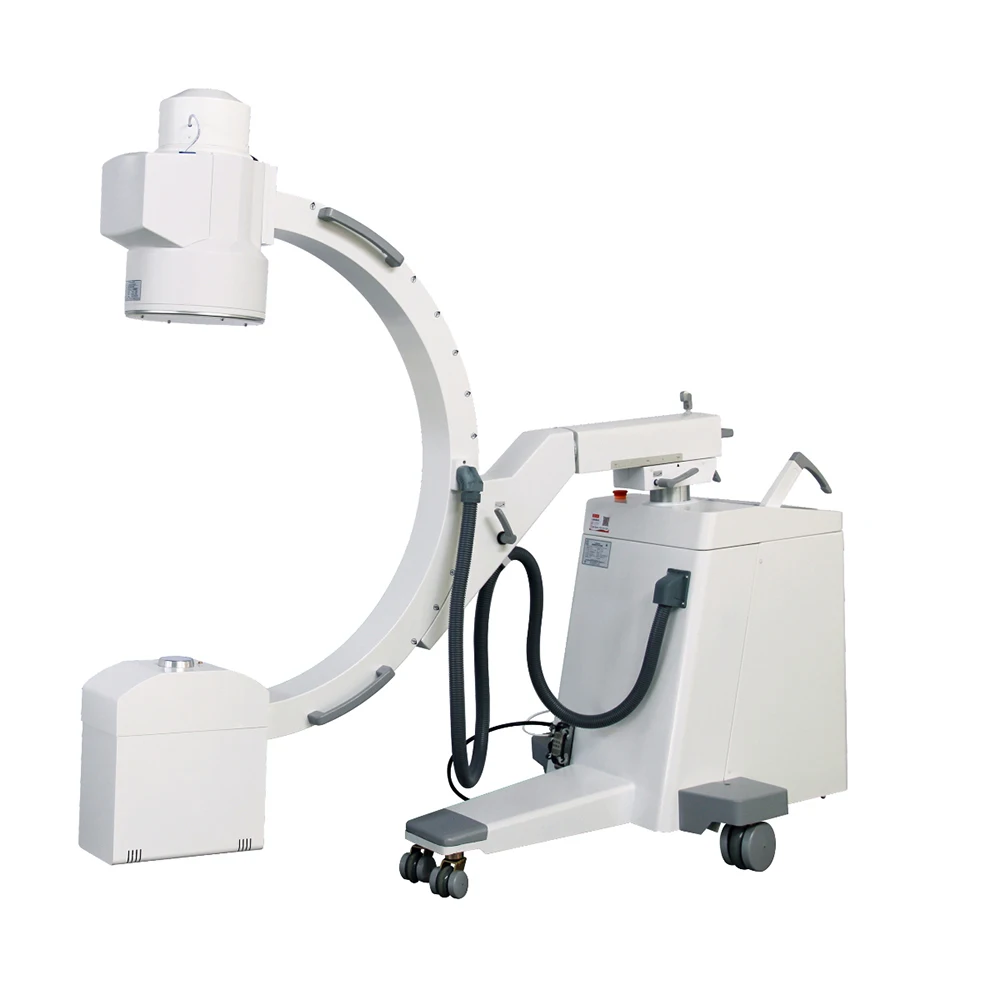

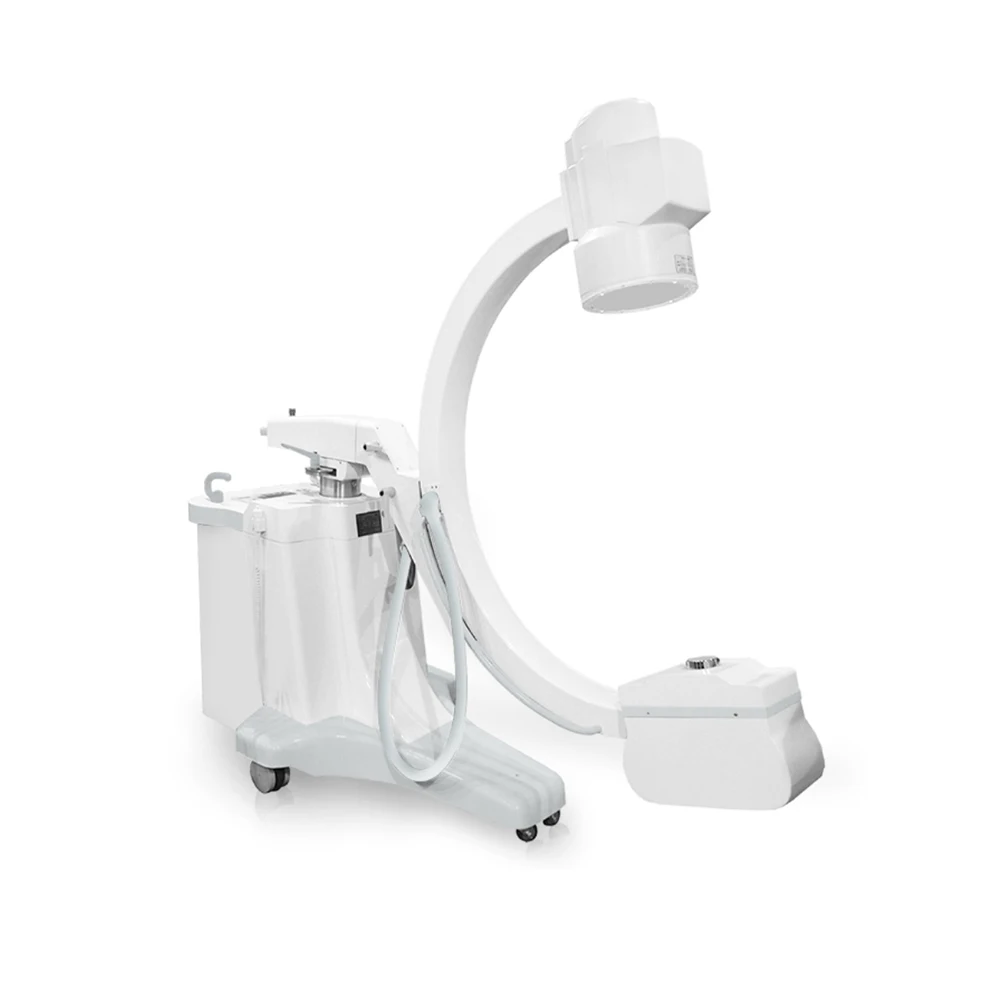

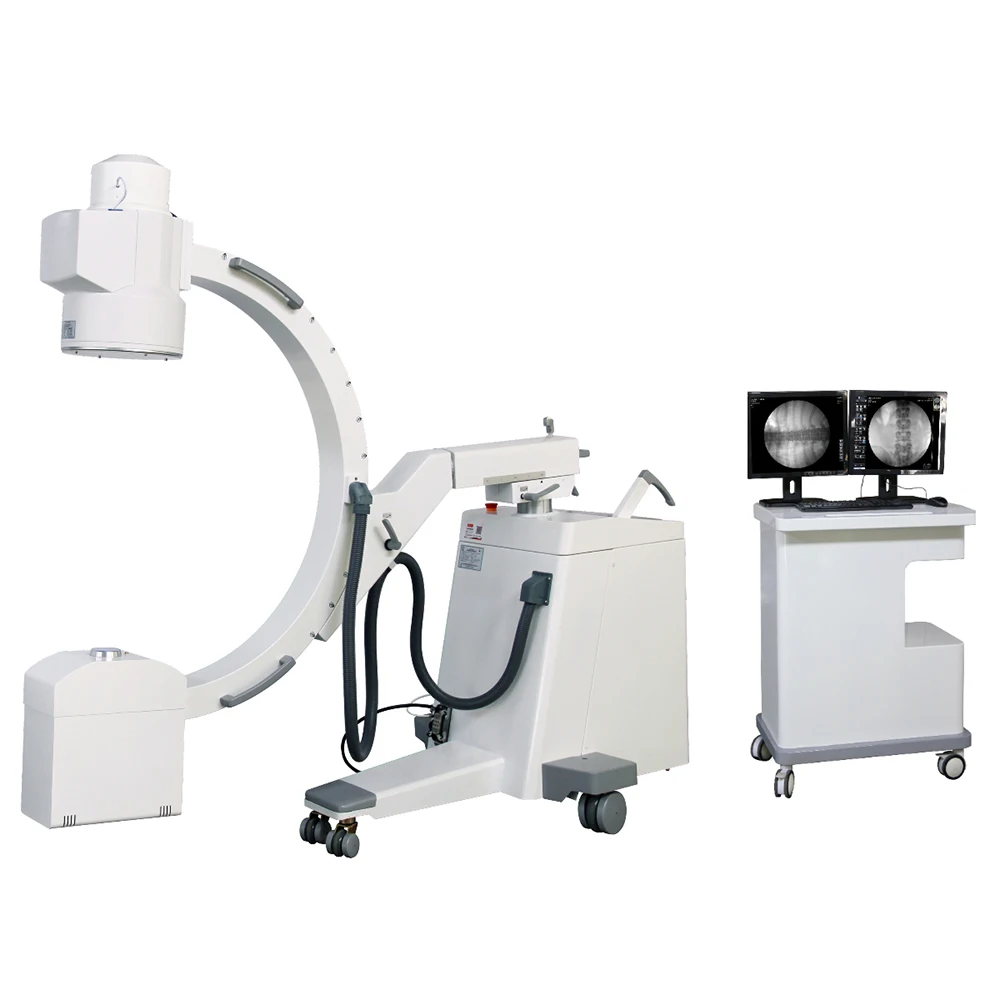

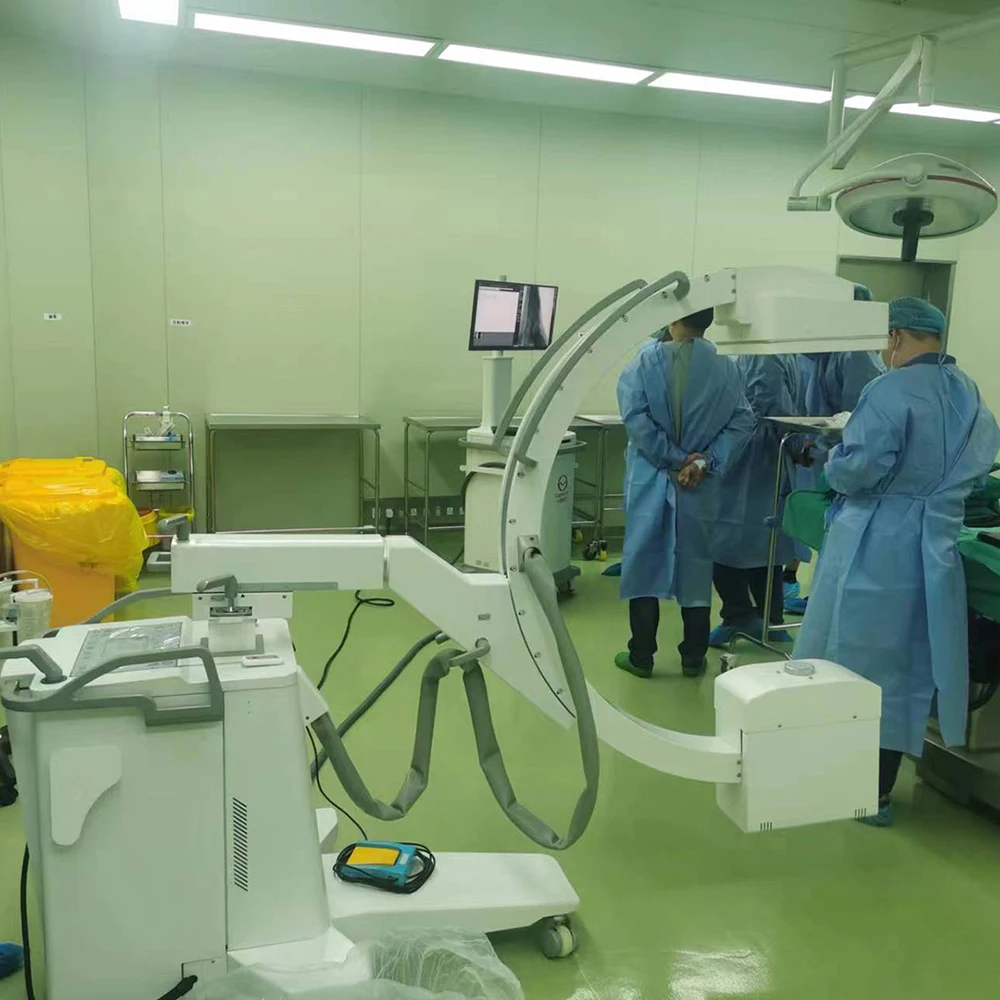

Ce Cetification Professional Ultra-High Frequency Mobile Digital Medical C-Arm X-Ray Machine

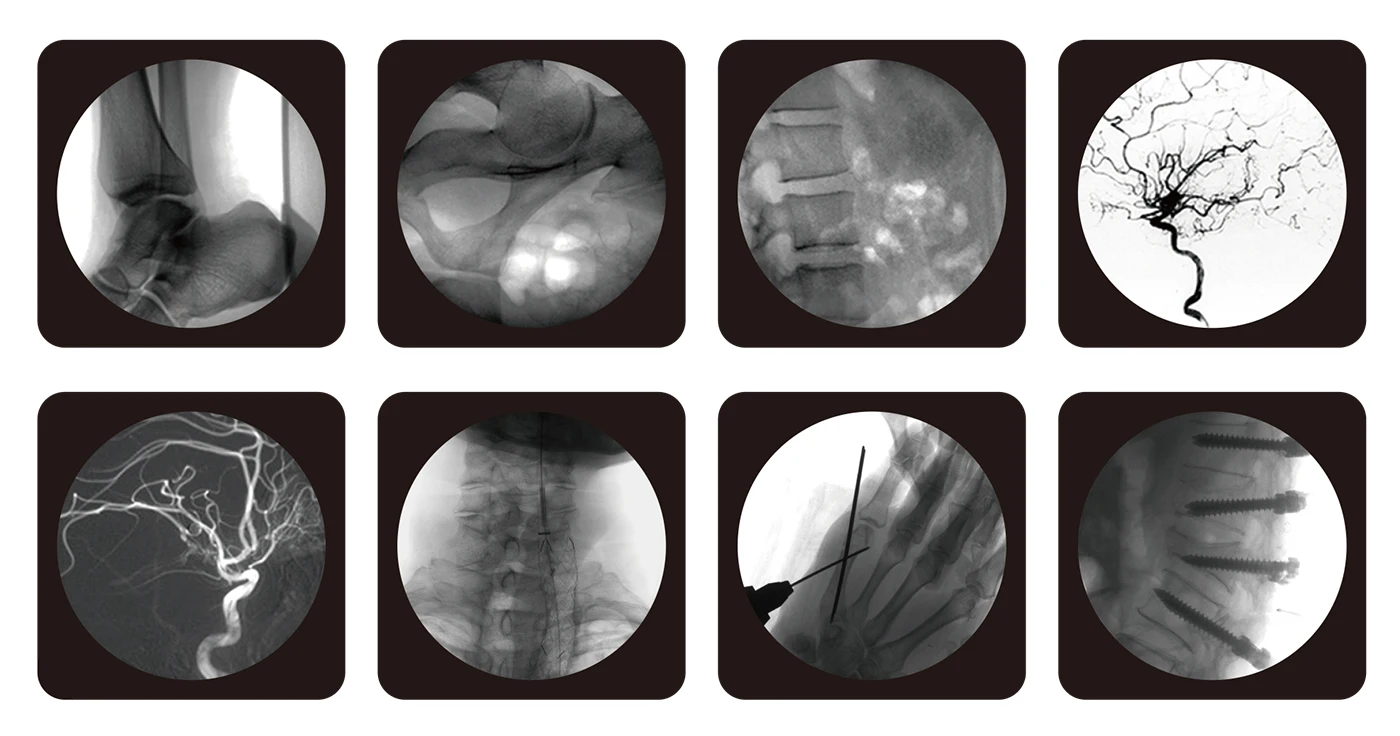

Scope of application
It is suitable for emergency, general surgery, spine surgery, orthopedics, trauma, pain, radiology, plastic surgery, operating room and other departments for X-ray examination and diagnosis. It can be used for internal foreign body removal, lumbar surgery, osteopathy, reduction, nailing and other diagnostic work
Specification
CCD camera
★1. image resolution ≥2.2lp/mm
2. Maximum frame rate of image acquisition: 30fps
3. 3.A/D conversion coefficient (gray level) ≥14bit
4. 4. camera pixel size: 1 million (1K*1K)
★ Imported GEMSS HD megapixel ultra-low illumination camera, equipped with medical image acquisition card, faster (image transmission to the display only 0.8s), while greatly improving image quality)
★1. image resolution ≥2.2lp/mm
2. Maximum frame rate of image acquisition: 30fps
3. 3.A/D conversion coefficient (gray level) ≥14bit
4. 4. camera pixel size: 1 million (1K*1K)
★ Imported GEMSS HD megapixel ultra-low illumination camera, equipped with medical image acquisition card, faster (image transmission to the display only 0.8s), while greatly improving image quality)

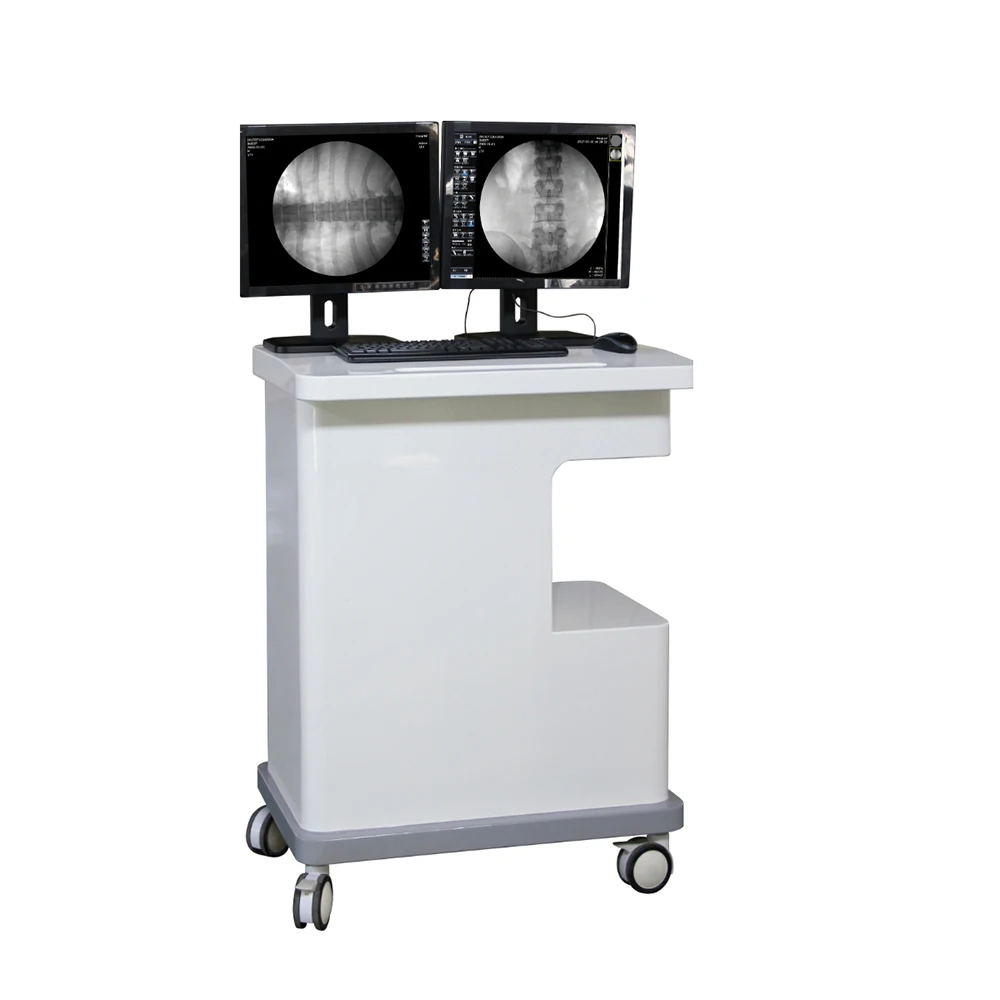

Monitor
1. 1. 2 sets of19-inch LCD HD display
2. 2. double screen display, using the world's most advanced image transfer technology, two monitors can display dynamic and static two different images at the same time. At present, this technology is our company's proprietary technology
Image processing
Hardware part
1. GEMSS (Professional Industrial Computer)
2. 2. aviation special quality dual-core 2.9GHZ
3. 3. DDR four generations 4GB
4. 4. hard disk: 500G large capacity
1. 1. 2 sets of19-inch LCD HD display
2. 2. double screen display, using the world's most advanced image transfer technology, two monitors can display dynamic and static two different images at the same time. At present, this technology is our company's proprietary technology
Image processing
Hardware part
1. GEMSS (Professional Industrial Computer)
2. 2. aviation special quality dual-core 2.9GHZ
3. 3. DDR four generations 4GB
4. 4. hard disk: 500G large capacity
Environmental requirement | ||
Ambient temperature | 10℃～40℃ | |
Relative humidity | 30％～75％ | |
Atmospheric pressure | 70～106kPa | |
Power requirements | ||
Supply voltage | 220Ｖ，50Hz | |
Internal resistance of power supply | ≤0.3Ω | |
Power supply capacity | ≥5.5kVA | |
Output power | 5.5kW | |
Working frequency | 100kHz | |
Perspective current | 3. 0.3mA ~ 4.0mA (step size 0.1mA) | |
Film current | 30mA ~ 78mA | |
Perspective, photography kV | 40kV ~ 120kV | |
The current time product | 1mAs ~ 160mAs | |
