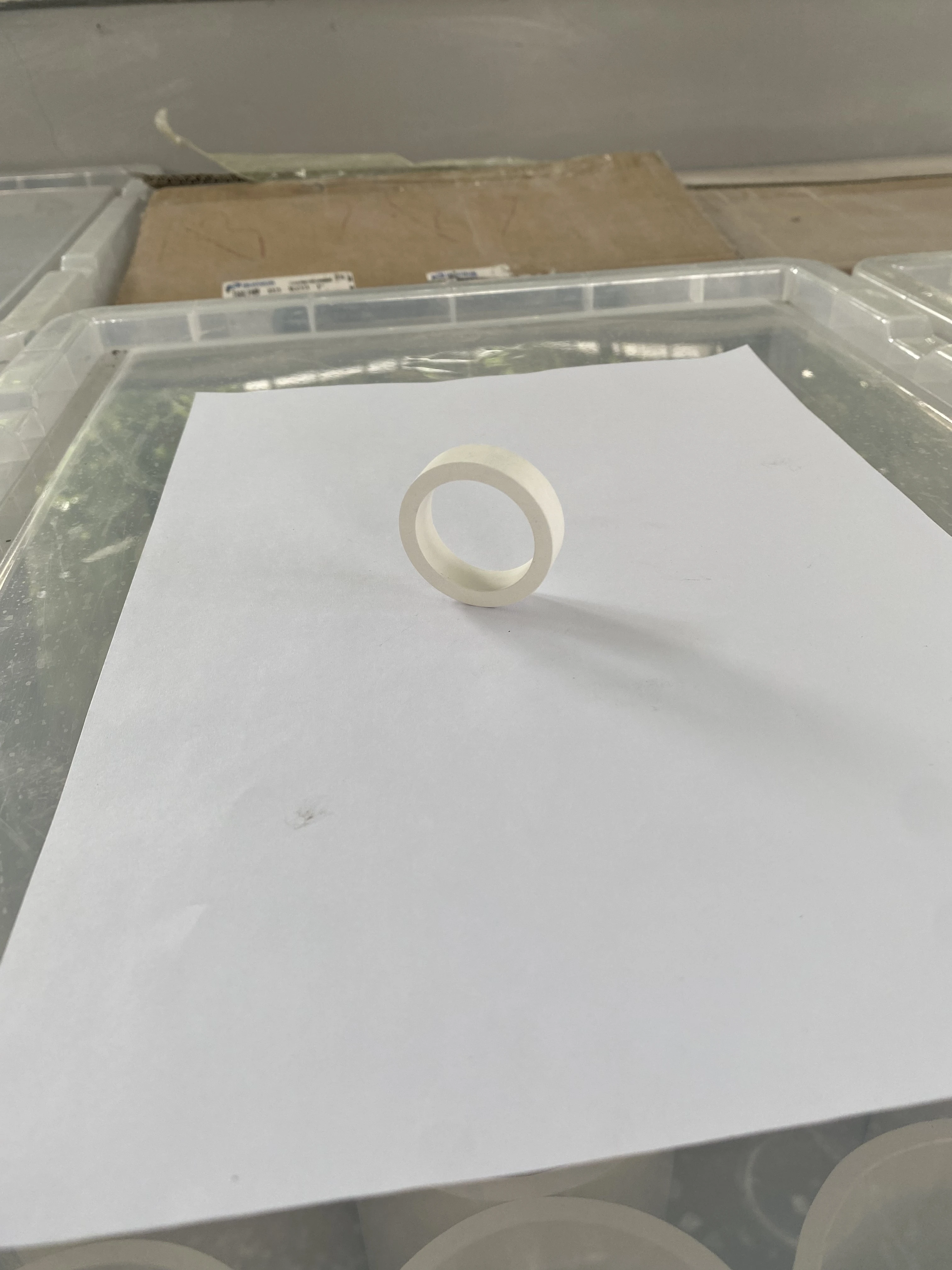

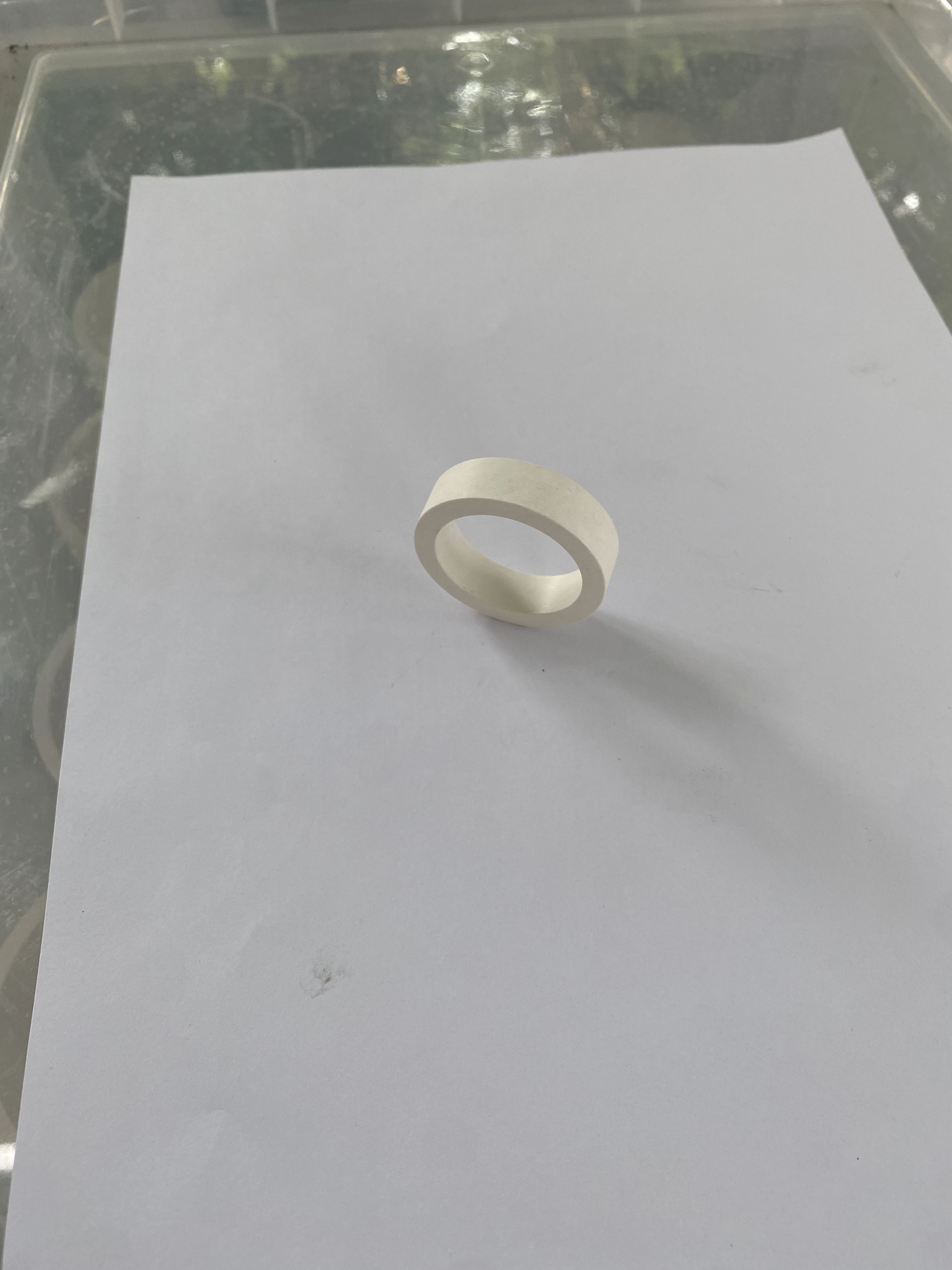

Изоляционный комплекс нитрид бора млрд керамическая часть (1600910436914)

Share on (1600910436914):


Price:200,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Products Description


BN ceramic has one of the highest thermal conductivities for an electrically insulating material,with an added benefit of superior thermal shock resistance, it is also oxidation and corrosion resistant, make it suitable for high-temperature ceramic manufacturing and molten metal processing
With a dielectric strength much greater than alumina, BN is an excellent low loss insulator, make it an outstanding dielectric cooling filler for polymer compounds used in LED lighting and electronic assemblies for power devices or high frequency applications.
Due to its excellent lubricity, oxidation resistance and non-abrading, BN is ideal as a release agent in light-metal processing and as a lubricant additive in dynamic friction materials for high-performance automotive and aerospace applications. It’s low hardness make it very easy to machine parts with tight tolerance, such as nuzzles for metal atomization or side dams and break rings for steel casting.


Grade
Unit
PENSC-A
PENSC-AA
Chemical structure
%
99
99.5
Other components
no
no
Density
g/cm3
1.9-2.0
1.55-1.65
Hardness
HL
300
300
Flexural Strength
Mpa
35
33
Coefficient of thermal expansion
(10-6/K)
-1~2.5
-1~2
Thermal conductivity at 20℃
W/mk
40
60

MAX-Temperature of use
Air
900℃
900℃
Vacuum
1800℃
1800℃
Inert
2200℃
2200℃
RT Resistivity
Ω.cm
>1014
>1014

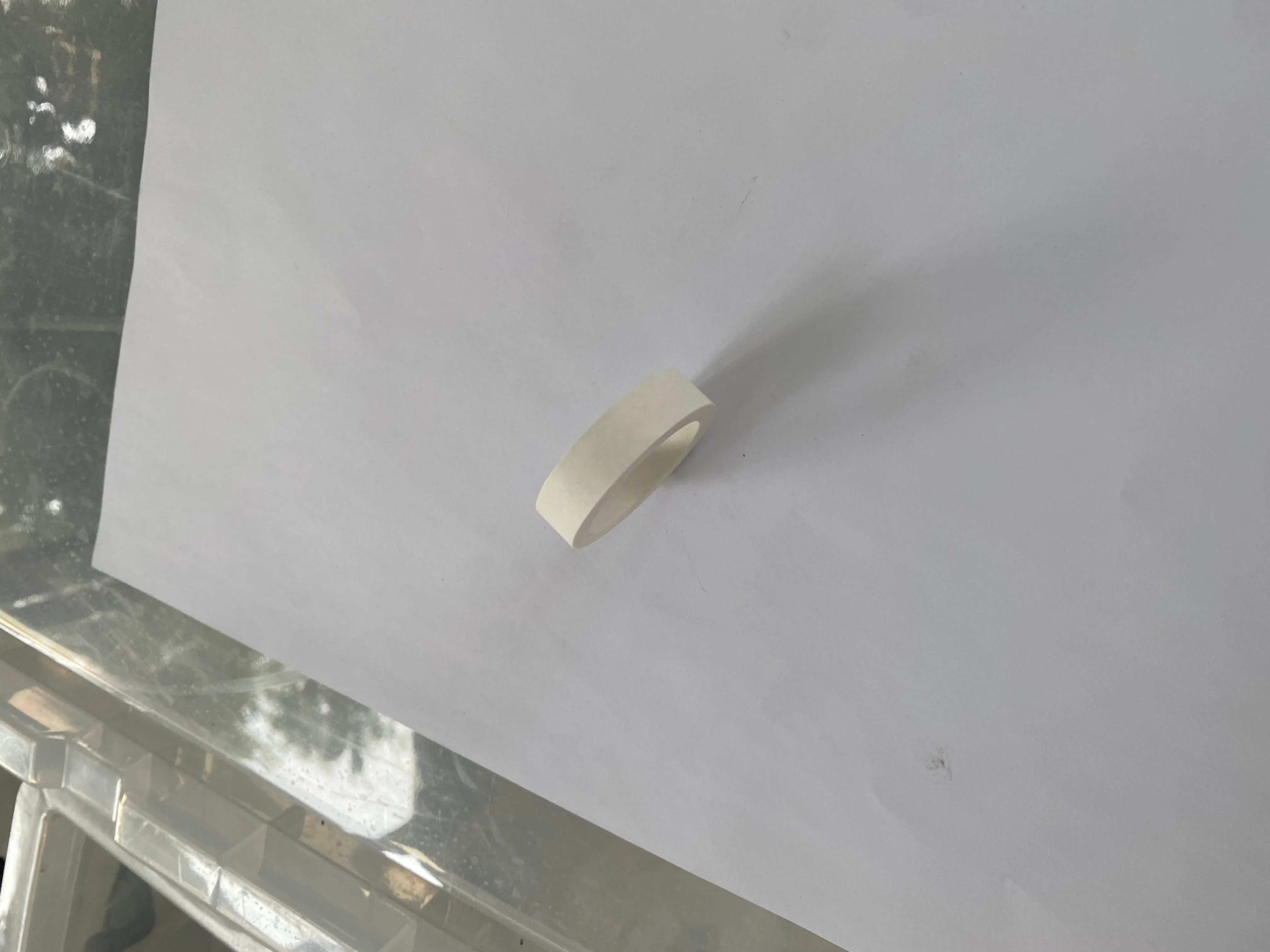

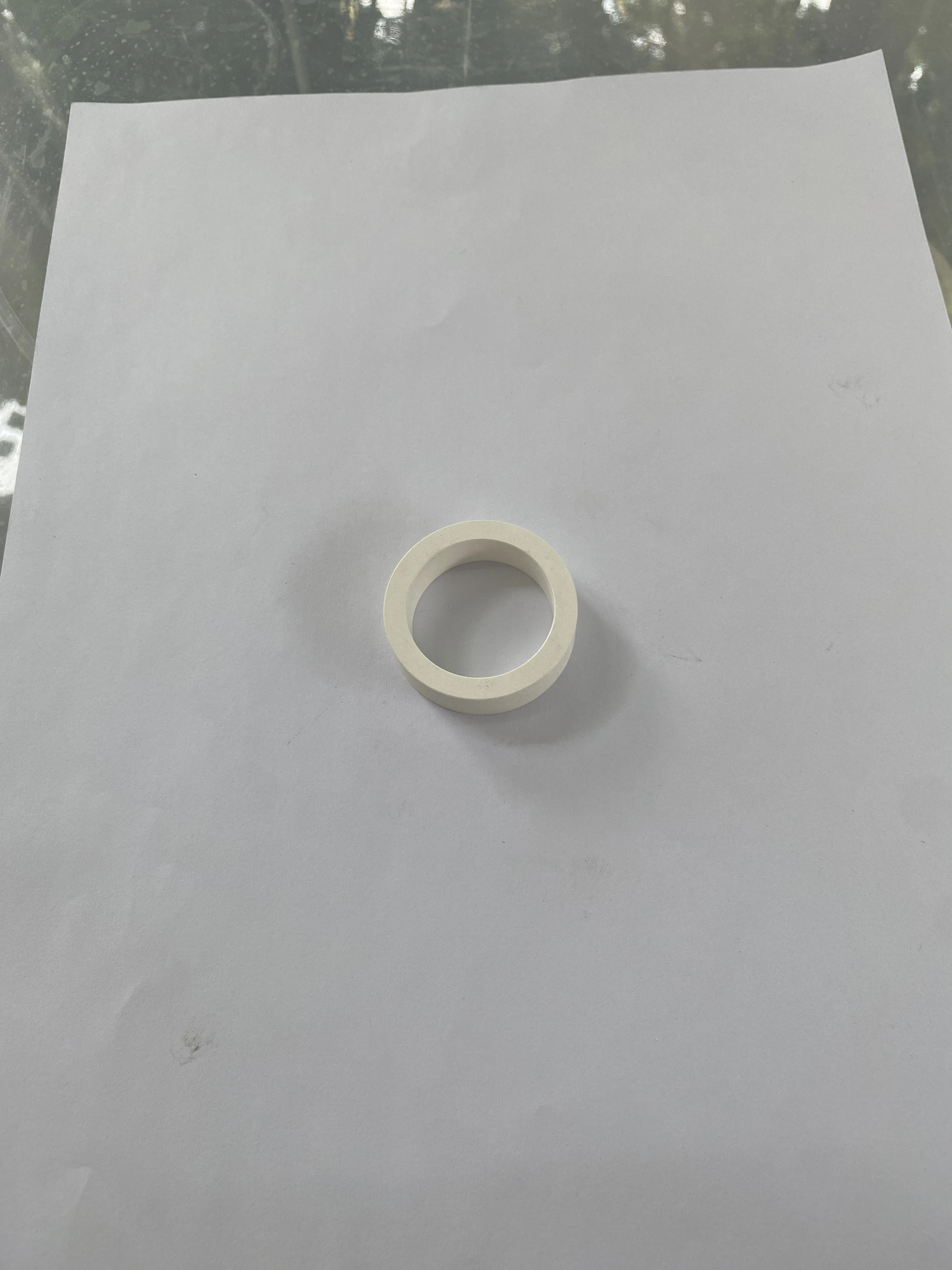

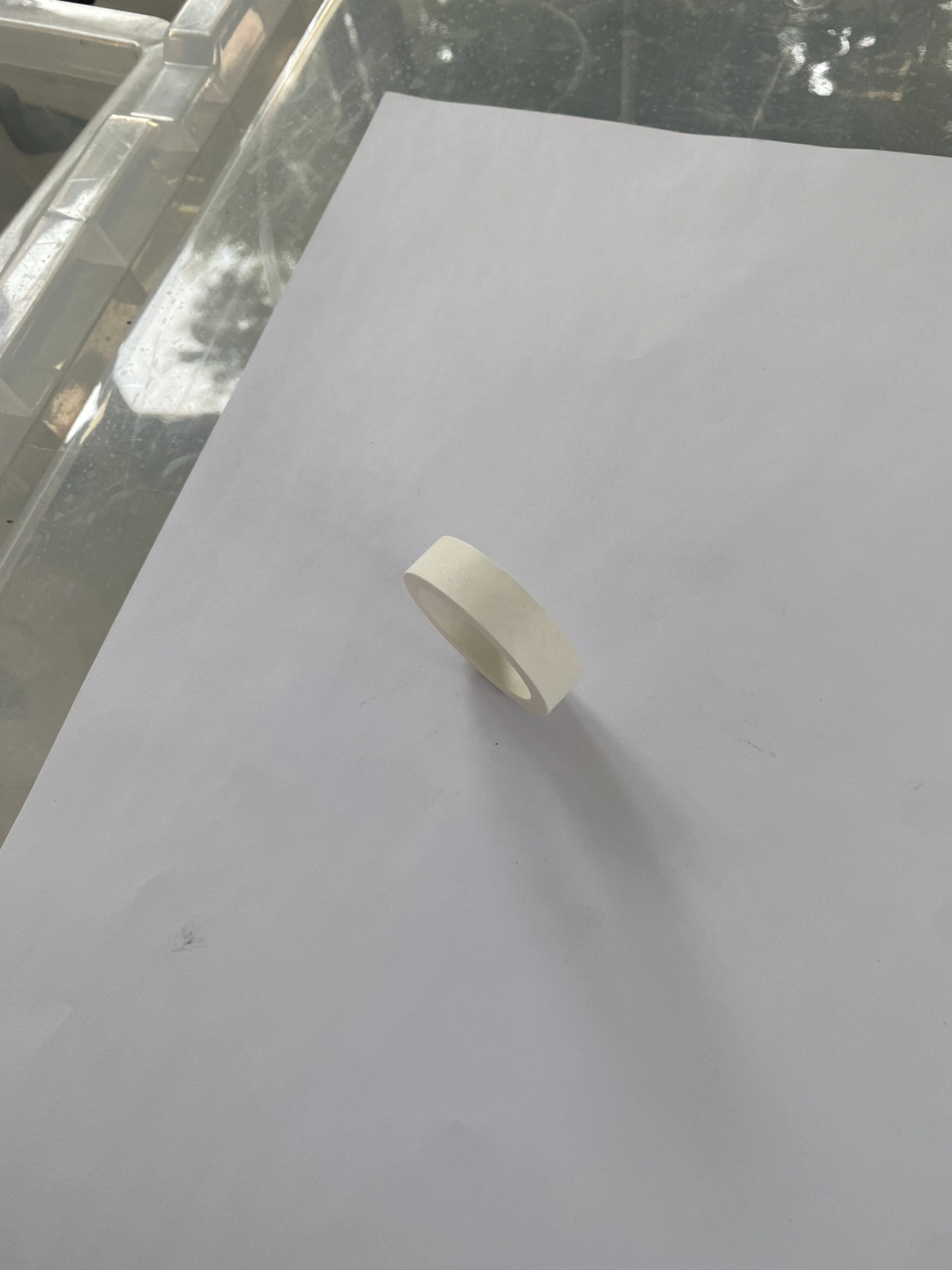

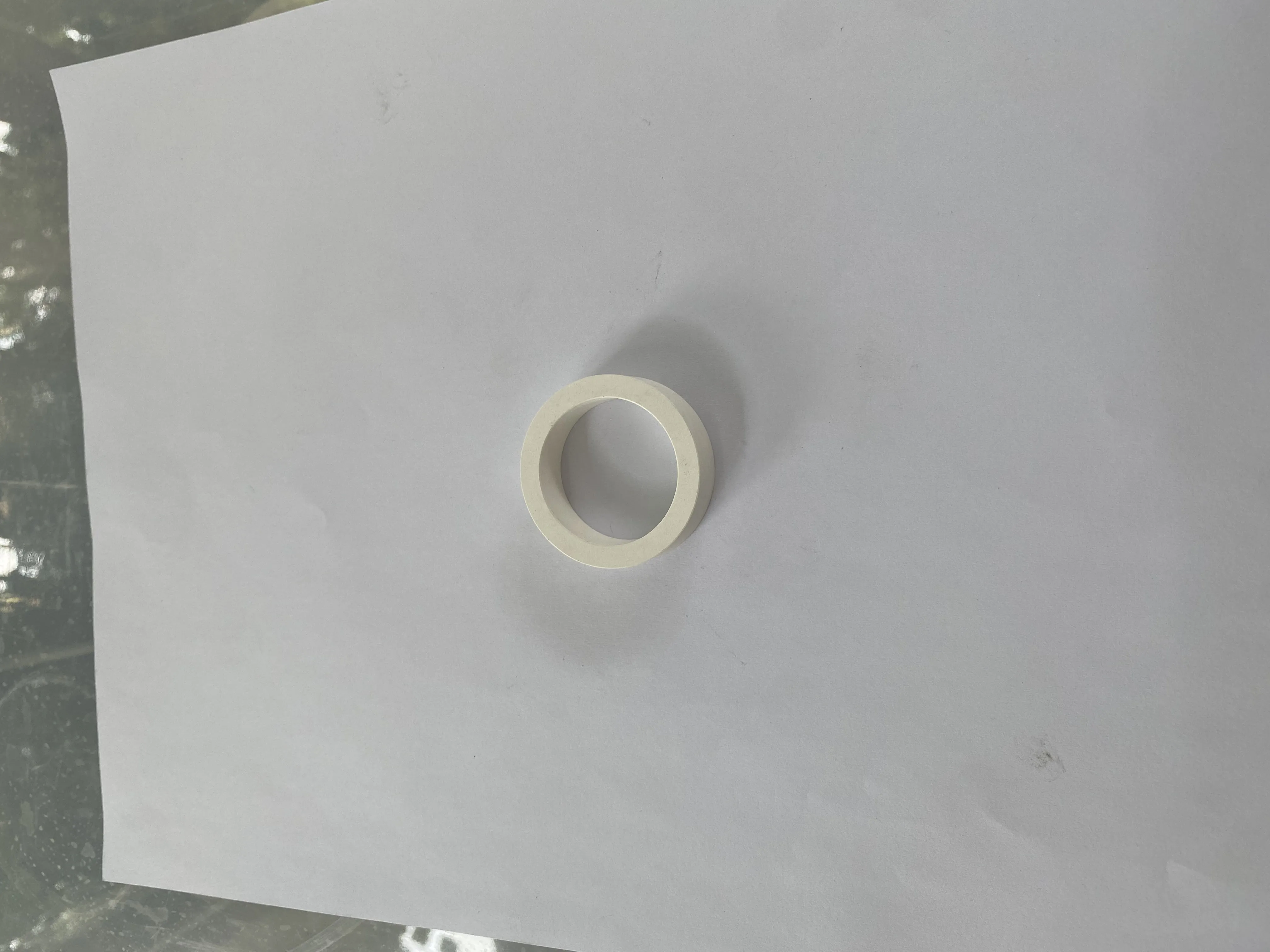

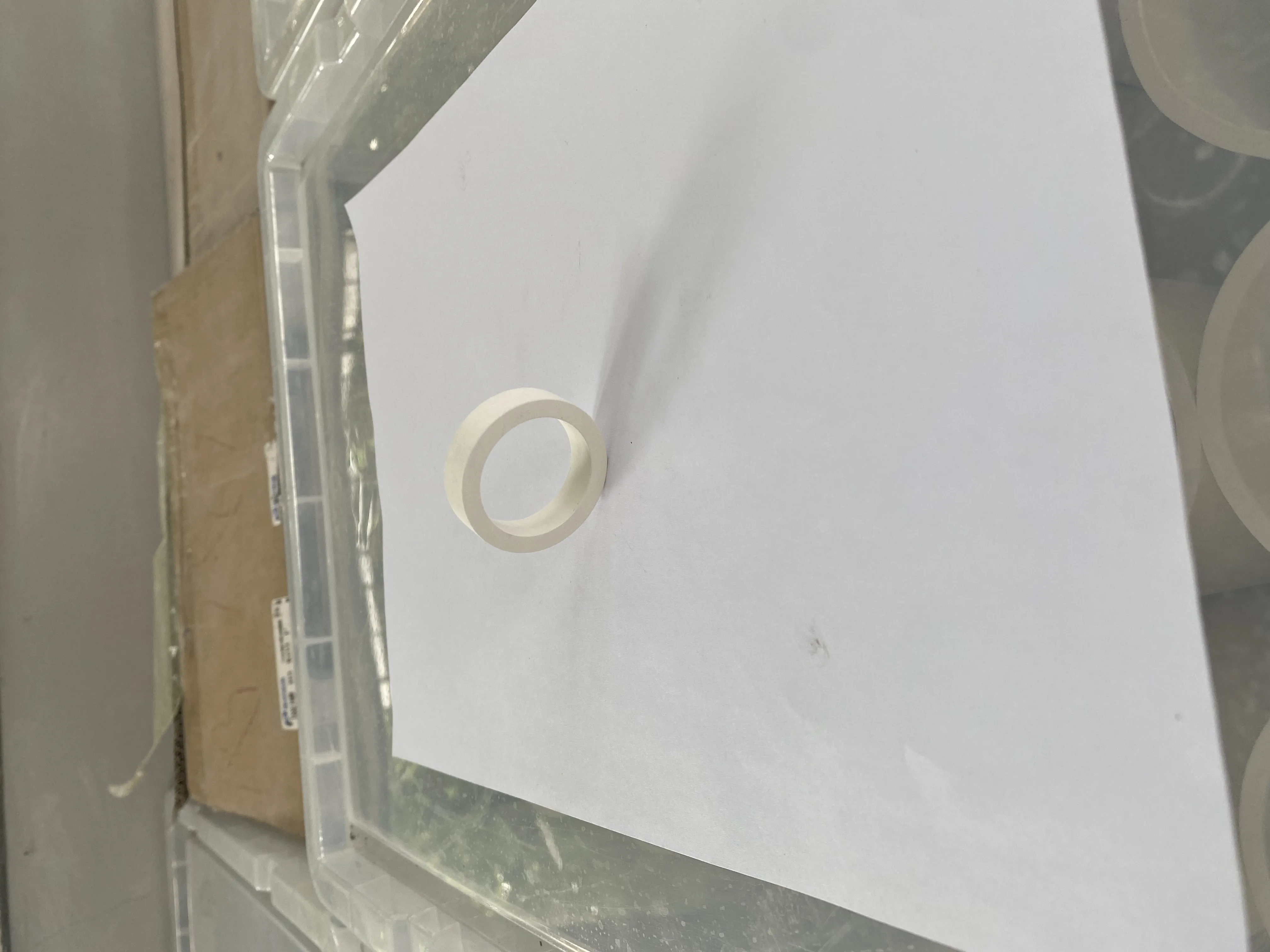

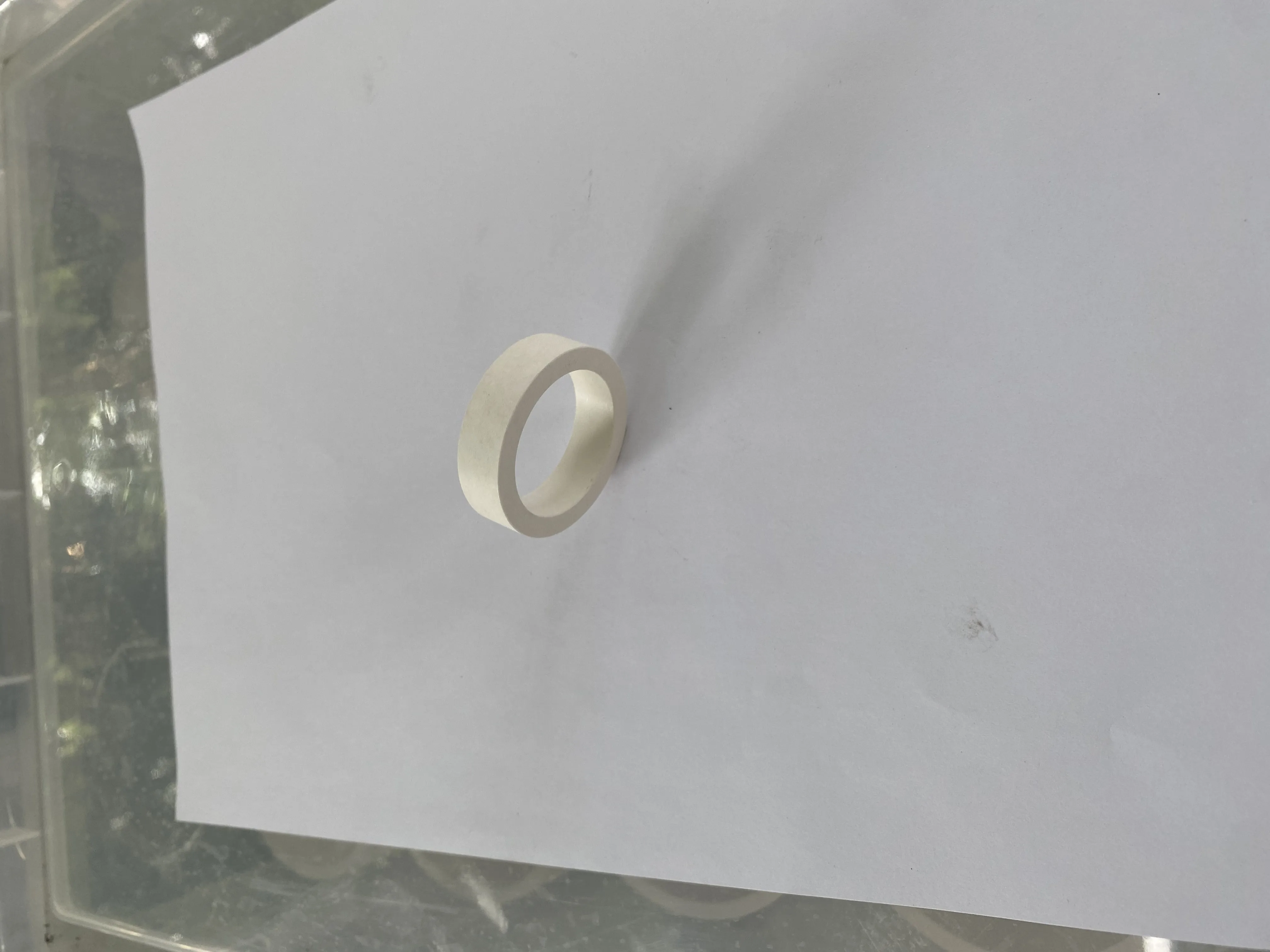

Details Images






Company Introduction






PENSC is the global leader of evaporation boats in metalizing applications. Our company was found in 1997. PENSC is a high-tech enterprise specializing in development and production of evaporation boats and boron nitride products.We have accumulated rich production experience in vacuum hot-pressing of boron nitride ceramics and have a number of industry experts and engineers.In 2014, we built a new factory in Zibo High-tech Zone. It occupies around thirty thousand square meters. Total investment is 25 million U.S Dollars. Our products include evaporation boats in metalizing applications, boron nitride ceramics, and the upstream raw materials.
PENSC devoted to making the largest boron nitride materials production base in the world. We have twenty-two vacuum
hot pressing production lines and matched processing and test equipment. Our special formulation and technology, a sound management system which to ensure product quality stability and reliability. PENSC establish a leading position in the Chinese boron nitride ceramics field. PENSC conductive boron nitride ceramic evaporation boats. The output and quality are the first in China, the second in the world. PENSC developed a variety of boron nitride ceramics products, be widely used in the manufacture of amorphous alloy strip, Ultra-high temperature fumaces, steel casting industry, semiconductor, microelectronics, aerospace and other industries. The products have passed ISO9001-2008 Quality Management System Certification and SGS test. The company has 3 patent for the invention, several new practical patents.
PENSC share of nearly 30% in Chinese market. Besides our products are exported to Southeast Asia, Europe, America and other countries. The development and achievements made by the company today are inseparable from the support and trust of our customer. We would like to extend our sincere thanks to you! We will always cooperate and develop with our customer for win-win benefits!


Product Portfolio


Powders
*PENSC supply boron nitride powders and Titanium diboride powders.
*Advanced production technology makes a stable and reliability performance of our powders.
*Advanced equipment can process the powders according to different particle sizes requirement.
Boron Nitride Ceramic Products
*PENSC make ceramics using our own powders to keep high purity of more than 99%.
*PENSC have more than 20 years of manufacturing experience and can supply almost all shapes of products as your requirement.
*The most advanced equipment and experienced workers can machine the fine parts with tight tolerance.
Composite Ceramic Products
*PENSC make composite ceramic with different properties.
*PENSC-E is widely used in molten metal industries with high thermal shock resistance.
*PENSC-T is the most ideal material of evaporation with a higher working temperature than graphite and longer working life.


Coatings
PENSC is a leading supplier of surface technologies that significantly improve the performance and durability of precision components as well as tools for the metal and plastics processing industries.
PENSC Thin Film coatings, with wear-resistant, antimicrobial and chemically inert properties, have been developed especially for Aluminum manufacturing applications.


Our Advantages




Packing & Shipping








Customer Photos




FAQ


1. who are we?
We are based in Shandong, China, start from 2014,sell to Domestic Market(10.00%),South Asia(10.00%),Southern
Europe(10.00%),Northern Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Eastern Asia(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),North America(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Evaporation Boat,Boron Nitride Ceramic Products,Titanium Diboride Powder,Aluminium Nitride Ceramic Product,Titanium Diboride Ceramic Product
4. why should you buy from us not from other suppliers?
PENSC was found in 1997,world top3 vacuum hot press manufacture. We are specialized in developing and producing of Evaporation boats and Boron nitride ceramics. Possessed with 40sets of vacuum hot press furnace and 20 sets of machining line.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,German,French,Russian,Korean,Italian
