The T / H / I Beam Assembly-welding-straightening machine developed by our factory is designed on the basis of absorbing the advantages of similar foreign products and combining the actual situation of domestic steel structure production. Its main structural advantages are: the all-in-one welding and straightening machine is special equipment for assembly, welding, and straightening T / H steel. It will integrate the three pieces of equipment of the assembly machine, gantry welding, and straightening machine into one piece of equipment. To carry out, significantly improve production efficiency, reduce equipment costs, and save equipment installation space, is the production equipment for efficient production of H-Beam and T-Beam. In addition, this equipment uses CNC programming control to automatically complete the automatic feeding, automatic centering, automatic welding, automatic straightening, and other work in the production process of T / H / I Beam welding, which saves a lot of manpower and provides automatic production of the entire profile solid foundation.

Used PEB H / I / T beam line automatic gantry assembly welding straightening machine welding production line Technical Parameters

Ø Applicable workpiece web height: h = 200—1500/1800mm

Ø Applicable workpiece web thickness: tw = 6-32mm

Ø Workpiece Flange width: b = 150-800mm

Ø Applicable workpiece flange thickness: t = 6-40mm

Ø Applicable workpiece length: L = 4000-15000mm

Ø Applicable workpiece material: Q235 (tensile strength ≤235MPa)

Ø Welding angle height: hf = 4-8mm

Ø Adjustment range of conveying speed of equipment: 0.2—2m / min (According to the height of the welding angle, the diameter of the welding wire, determine the welding process, select the appropriate welding speed)

Ø Input roller table: 2.6 meters roller table three sections (one section is active, driven by the host through the chain)

Ø Output roller table: double roller lifting roller table 1 section, single roller lifting roller table 3 sections, double roller passive roller table 3 sections (total length about 11.5 meters)

Ø Tie rod system: 2 groups (one main and one quilt)

Ø Total power: about 17kW

Ø Submerged arc welding machine power about 100kW × 2

Ø Power supply: 3-phase AC380V 50HZ

Ø Straightening capacity range

Used PEB H / I / T beam line automatic gantry assembly welding straightening machine welding production line Machine Structures:

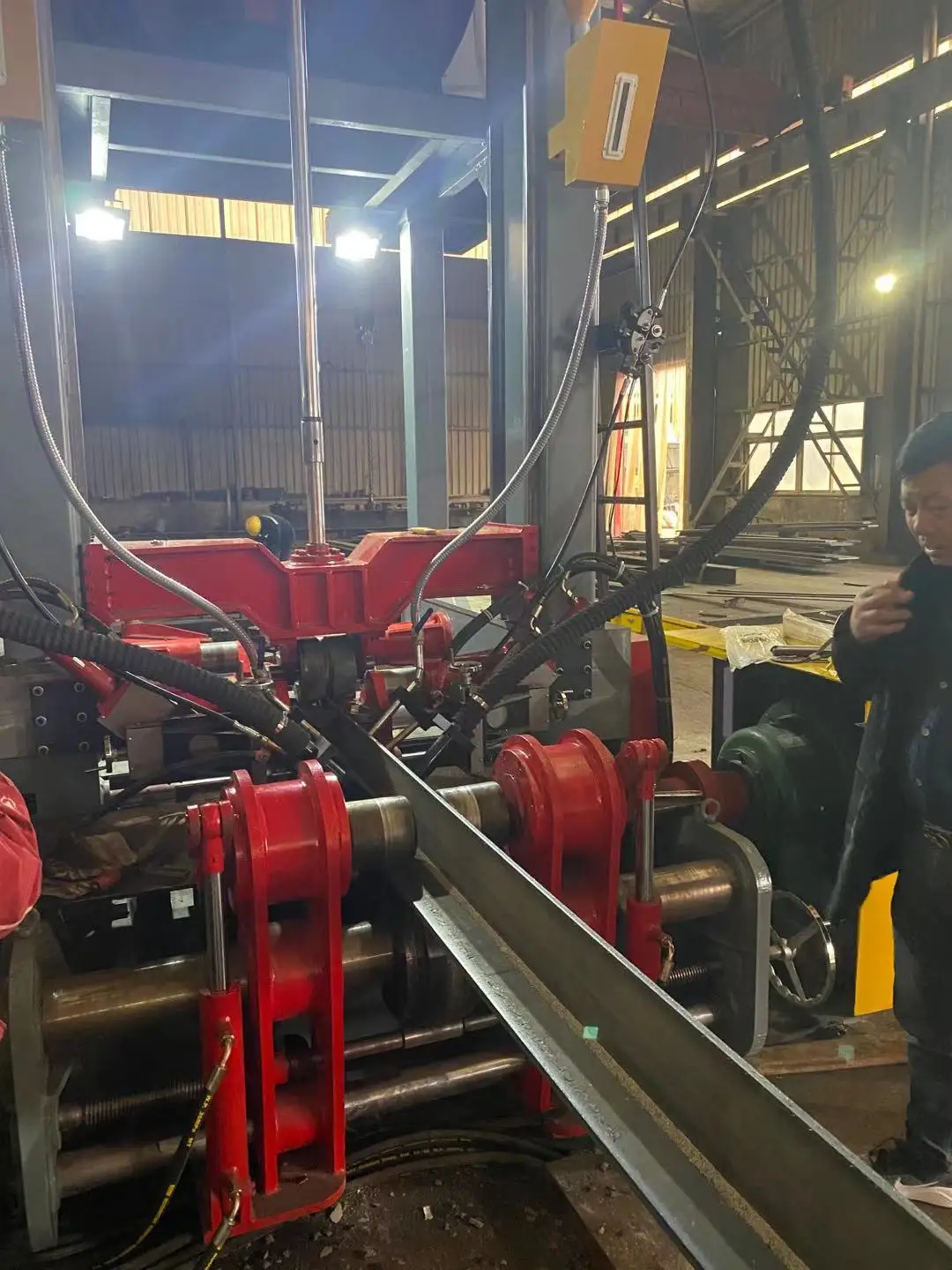

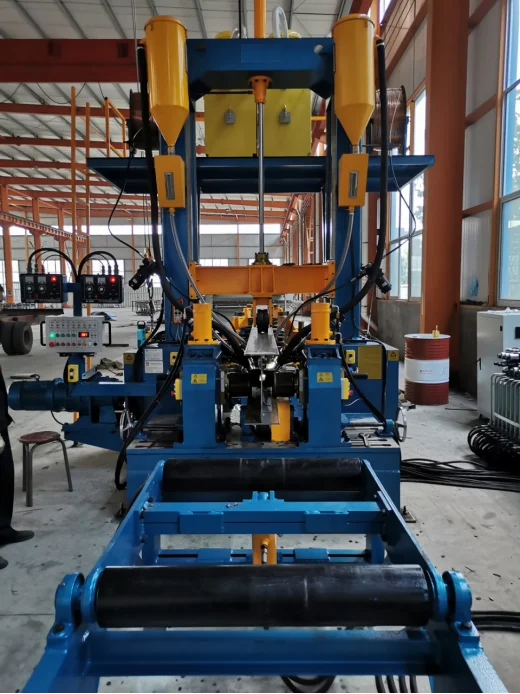

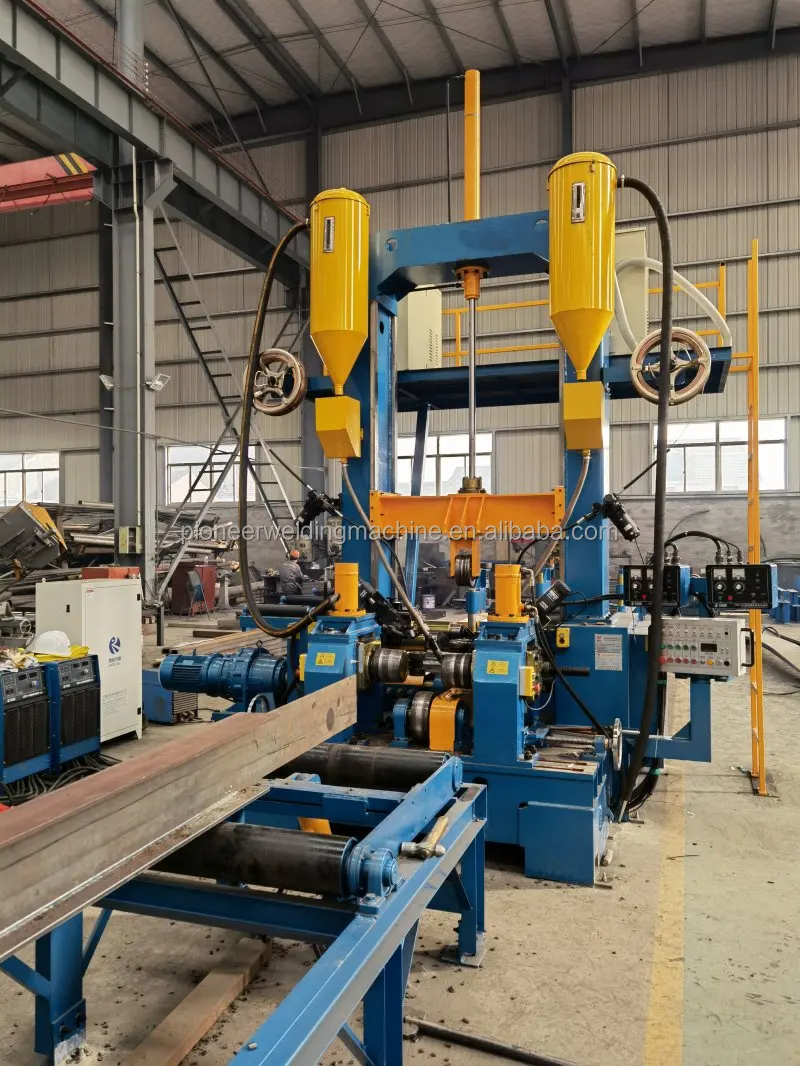

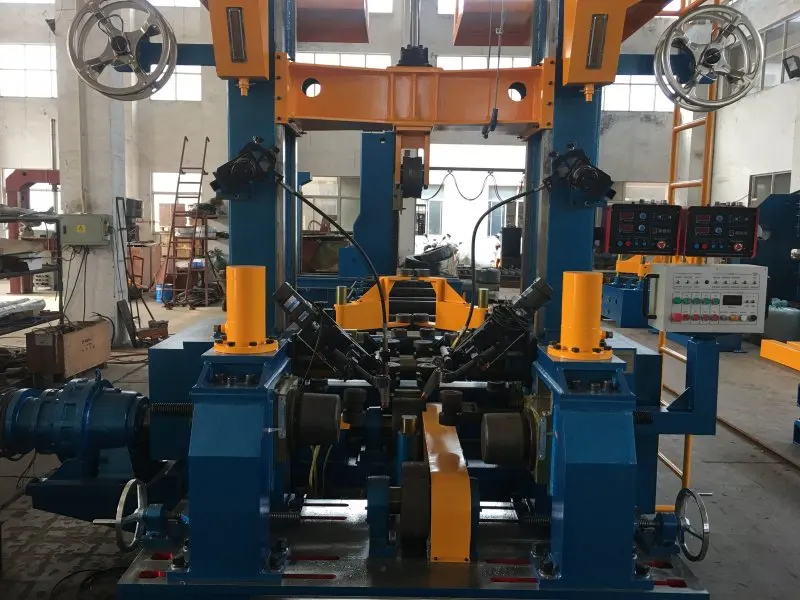

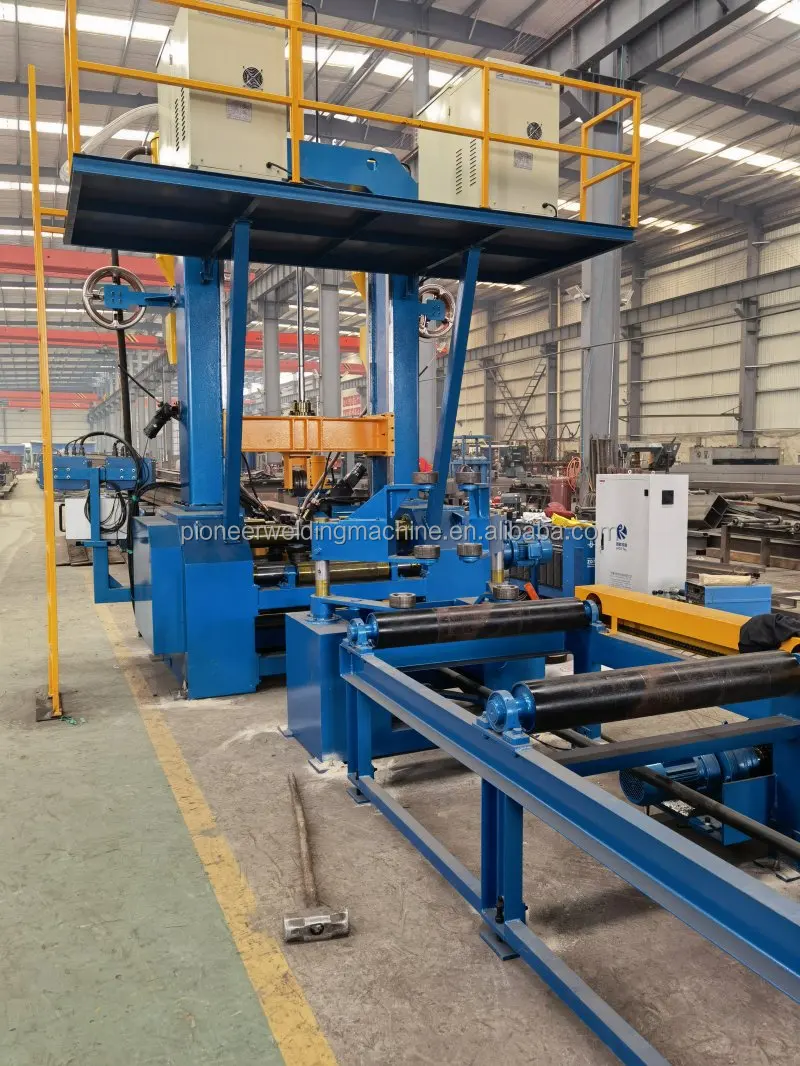

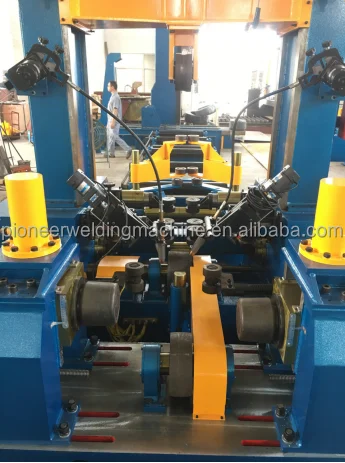

The appearance of the machine see the below picture

After the web and flange are sent into the equipment, the tail aligning unit will be raised automatically, making sure alignment of the face of the flanges and web.

Welding unit:

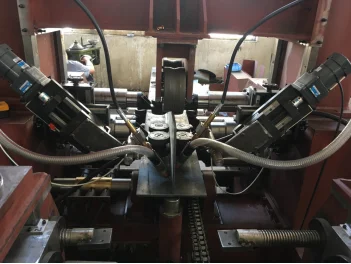

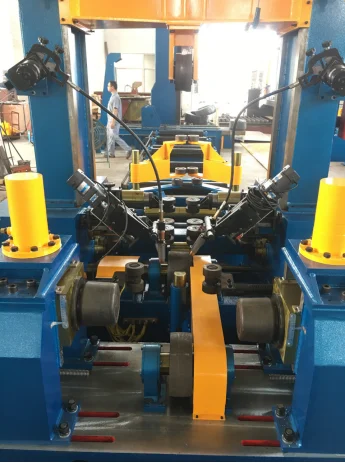

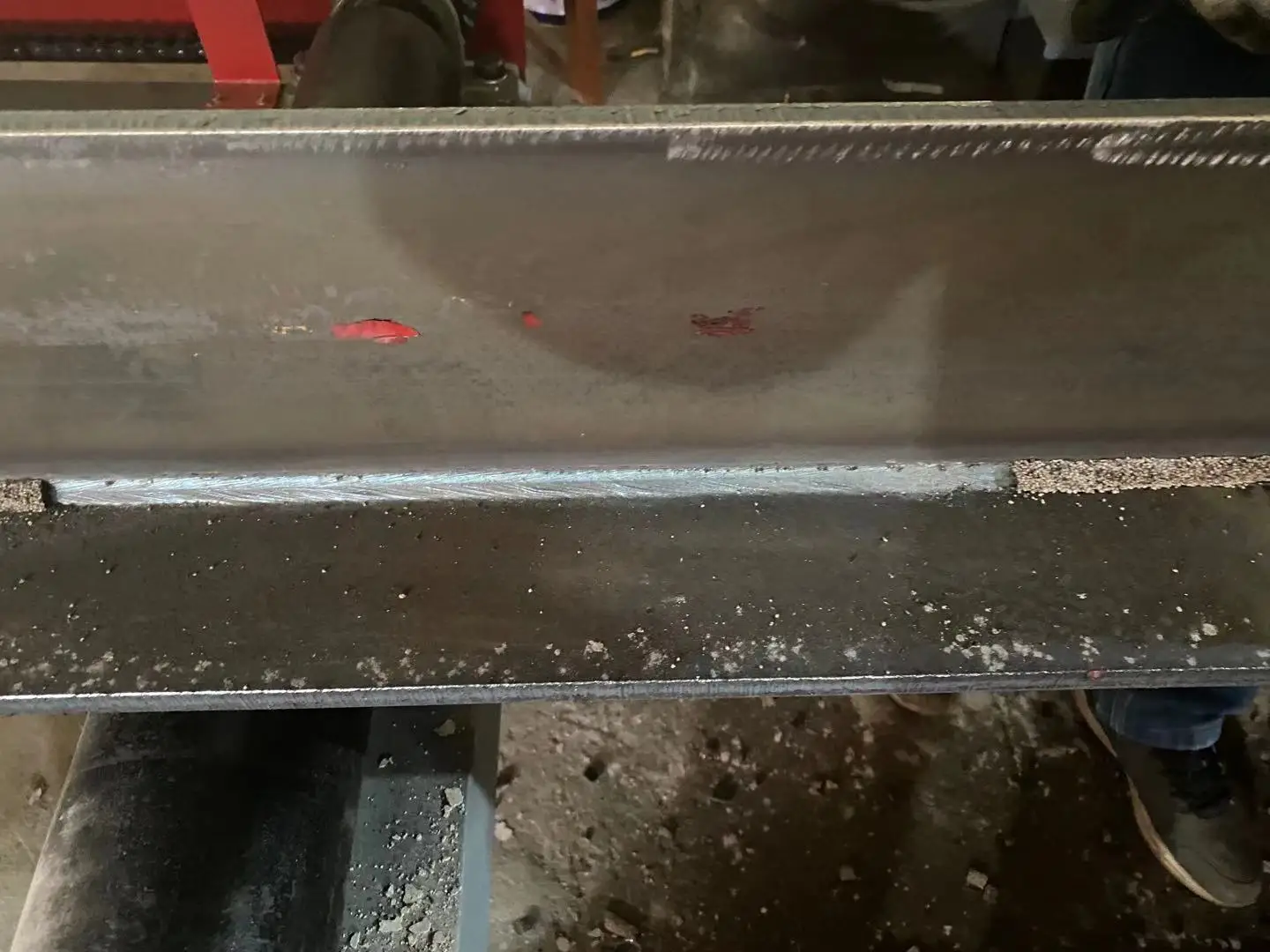

2 sets of China MZ-1000/1250/1600Amp IGBT PRO SAW system are used for welding the 2 seams alongside both sides of the H-beam, (single wire diameter is Ø3.0 or Ø 4.0 mm), featuring high efficiency and good quality.

The position of the welding torch can be adjusted and observed easily during welding.

2 sets of automatic flux recycling systems are used for conveying flux to the welding seam and screening and recycling un-sintered flux by way of the suction hole at the rear side of the torch and sucking the flux back into the flux barrel for re-use.

After welding, one side of the web will be subjected to heat input, making H-beam expand and bend upward. For this reason, 2 sets of elevating conveyors are used for supporting H-beam.

The equipment has the same speed for assembly, welding, and straightening which is VF controlled and displayed in digits, adapting to the manufacture of H-beam of various specifications.
