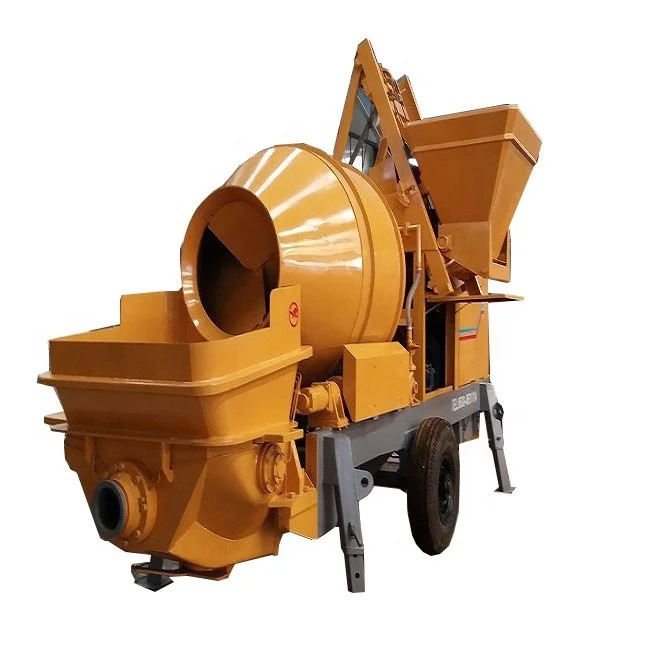

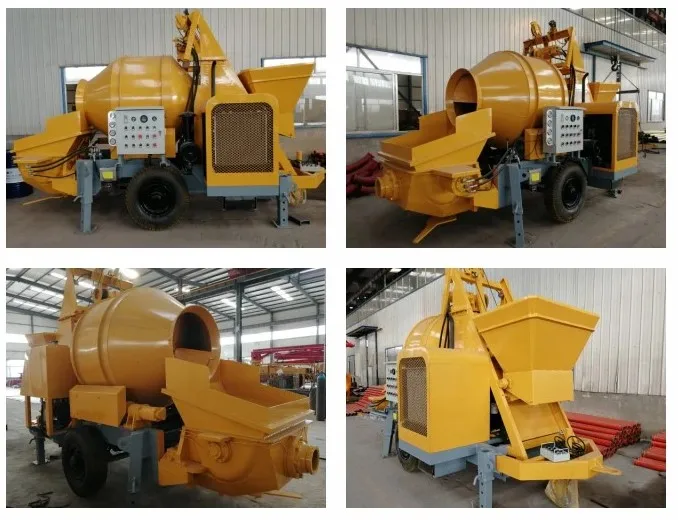

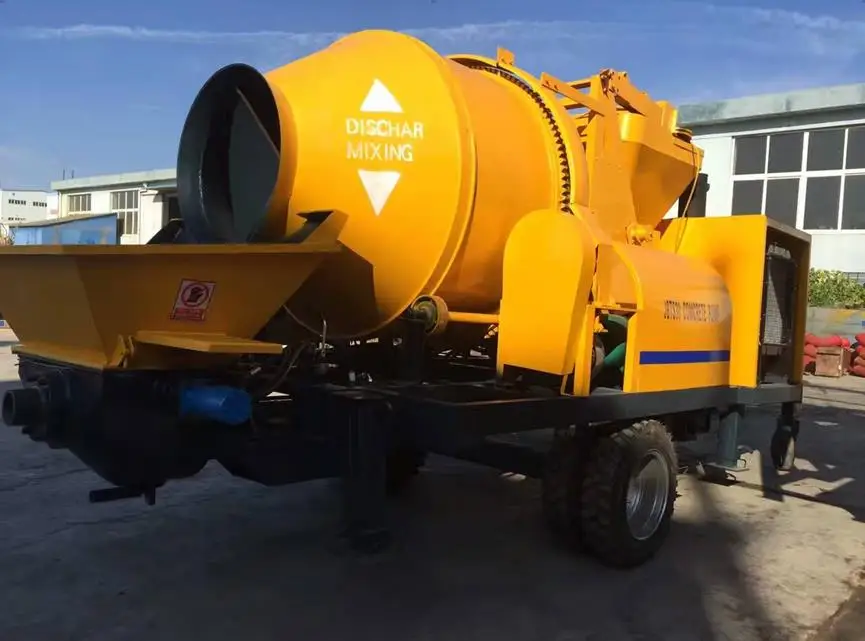

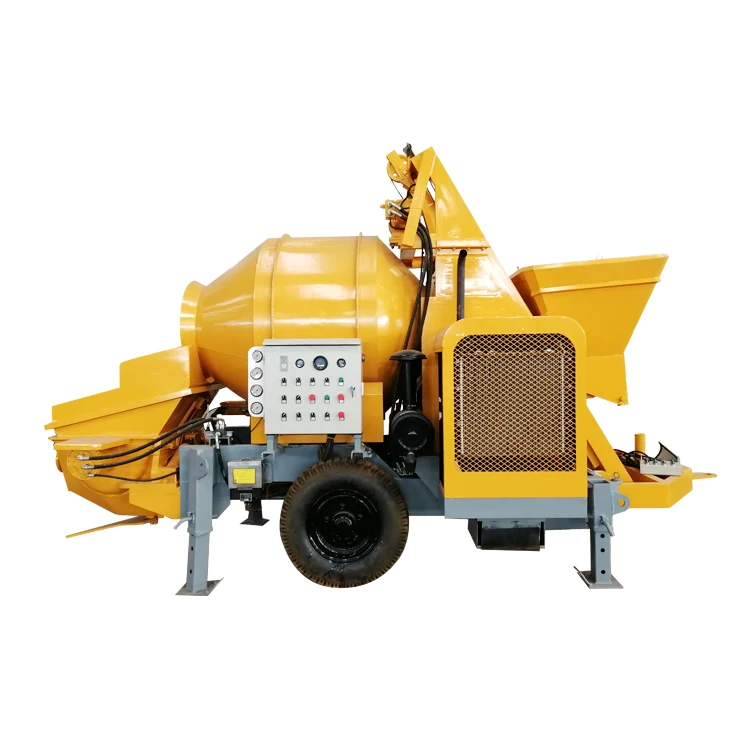

2020 Trailer Mounted Concrete Mixing Pump With Electric&Diesel Motor Mobile Ready Concrete Mixer with Pump Portable
- Category: >>>
- Supplier: Cangzhou Taichan Mechanical Equipment Co. Ltd.
Share on (1600915706172):
Product Overview
Description
Product Description
2020 Trailer Mounted Concrete Mixing Pump With Electric&Diesel Motor Mobile Ready Concrete Mixer with Pump Portable
MAIN PARTS PARAMETER
1.Power system mobile conrete mixer pump

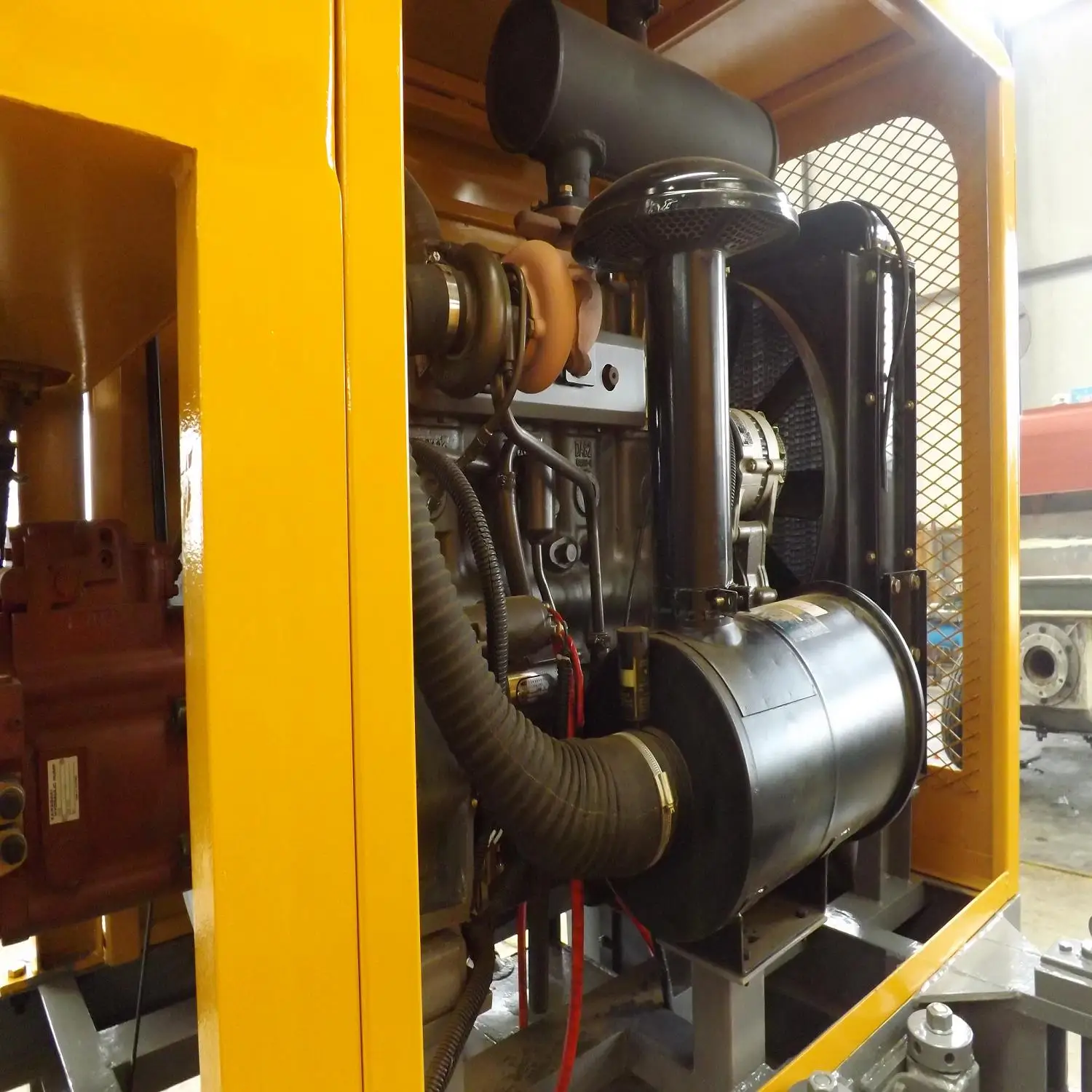

Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted. Diesel power:Germany Deutz,Weichai,Schneider,Japan Siemens,Mitsubishi are adjusted.
2.Electronic control system mobile conrete mixer pump
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.Main electric elements are imported original Schneider,Siemens,OMRON,LG etc.

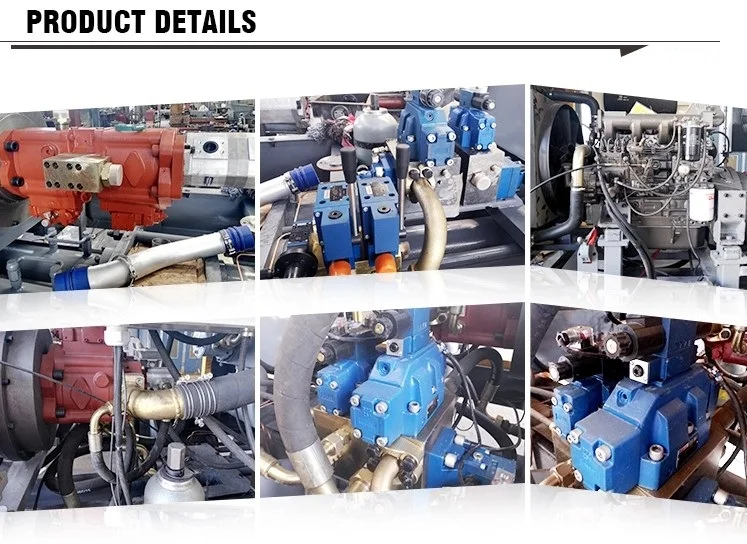

3.Hydraulic system mobile conrete mixer pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system.
4.Pumping system mobile conrete mixer pump
Pumping displacement variable adjustment:Change the pumping displacement according to the construction to meet the requirement of the condition.
5.Lubrication System mobile conrete mixer pump
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston.
6.Cooling System mobile conrete mixer pump
Compulsory air cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.

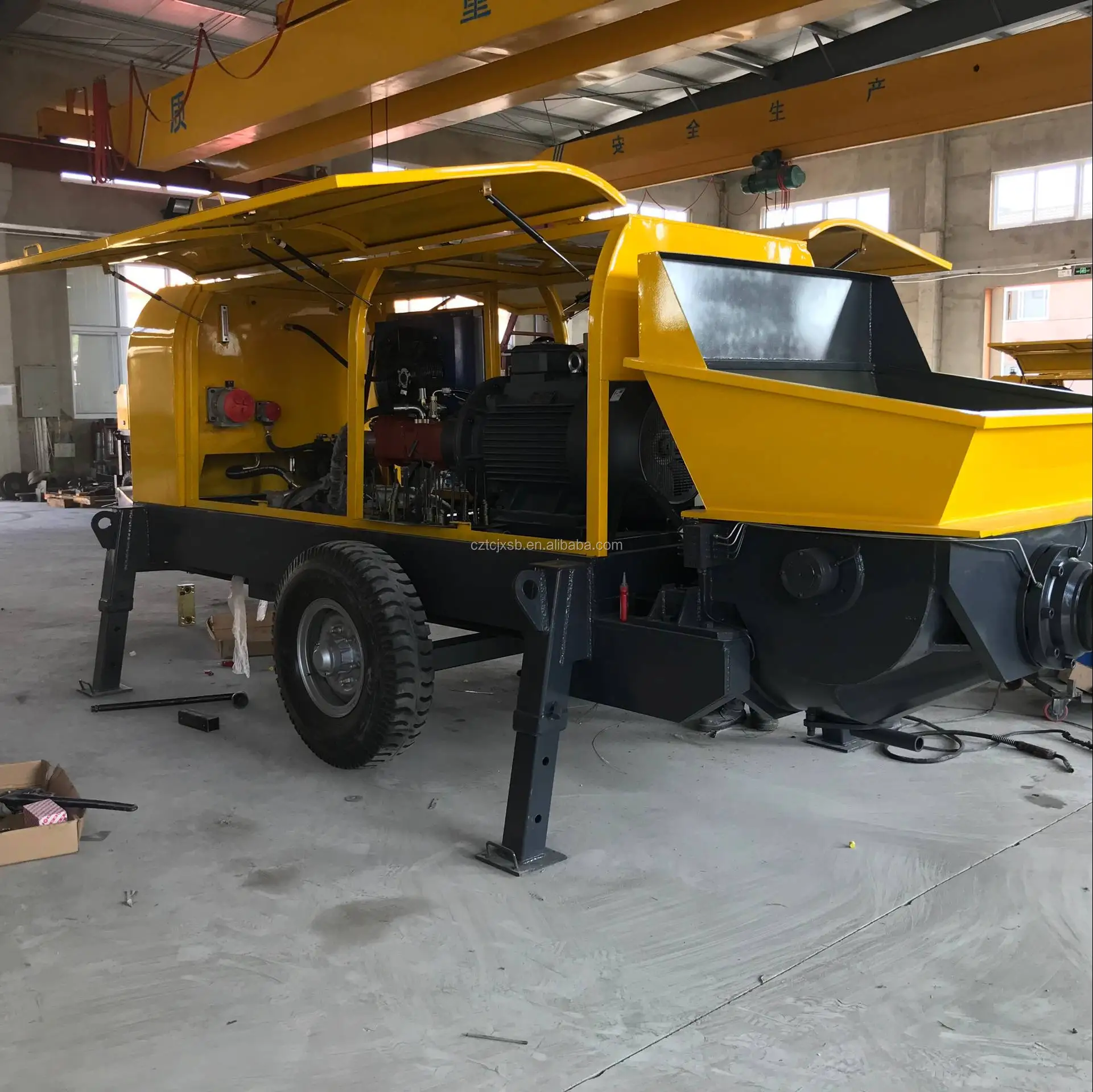

Specifications of Tralier Pump Truck:
| Item | HBT-20 | HBT-30 | HBT-40 | HBT-50 | HBT-60 | HBT-80 | HBT-90 |
Max. Theoretical Throughput(m3/h) | 20 | 30 | 40 | 50 | 60 | 80 | 90 |
| Max. Pumping Pressure (MPa) | 10 | 11 | 43782 | 43812 | 13/15/16 | 16 | 16/18 |
| Max.Theoretical Vertical Conveying Distance (m) | 140 | 150 | 150 | 150 | 190 | 200 | 220 |
| Max.Theoretical Horizontal Conveying Distance (m) | 500 | 600 | 600 | 600 | 800 | 1000 | 1200 |
Max. Aggregate Diameter (mm) | 20 | 20/30 | 30/40 | 40/50 | 50 | 50 | 50 |
Conveying Pipe Radius (mm) | 100 | 100 | 125 | 125/150 | 150 | 150 | 150 |
Conveying Cylinder Bore X Piston Stroke(mm) | Φ140 ×1000 | Φ160 ×1200 | Φ180 ×1200 | Φ180 ×1300 | Φ200 ×1650 | Φ200 ×1800 | Φ200 ×1850 |
| Hydraulic Oil Tank Capacity(L) | 240 | 370 | 370 | 370 | 580 | 580 | 580 |
| Feeding Height (mm) | 1100 | 1100 | 1100 | 1400 | 1420 | 1420 | 1420 |
| Hopper Capacity (m3) | 0.35 | 0.4 | 0.6 | 0.68 | 0.68 | 0.68 | 0.8 |
| Power (kw) | 37 | 45 | 45/56 | 75 | 90 | 110 | 110 |
Dimension | 4000×1350 ×1550 | 4500×1750 ×1600 | 4600×1850 ×1770 | 5200×2000 ×2260 | 6000×2160 ×2600 | 6300×2100 ×2250 | 6300×2100 ×2250 |
Features and Advantages of Electric Concrete Pump
1. Hydraulic System:Double open hydraulic loops with two pumps,makes the whole hydraulic system much simpler.
2. Electric control system:Compared with domestic product, the electric control system is simplest,the element quantity is fewest and its reliability is highest.

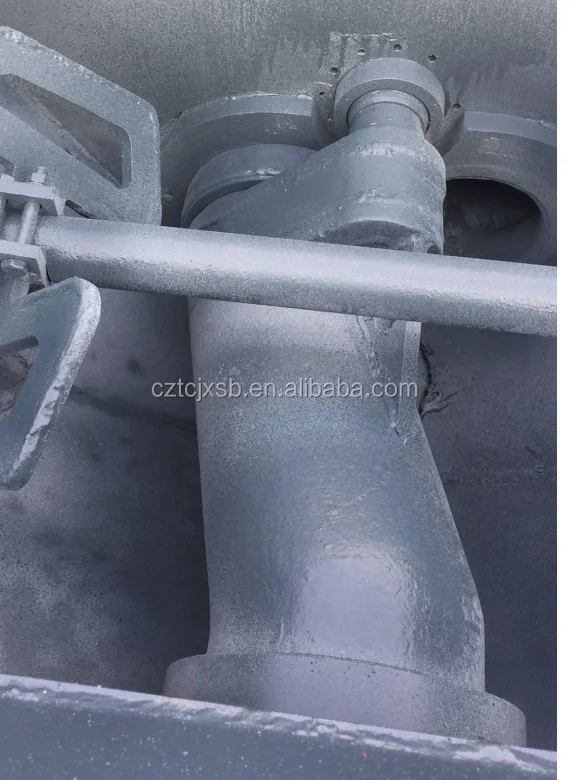

3. S valve: The design of hopper and S valve and so on adopt I-DEAS software to calculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.
