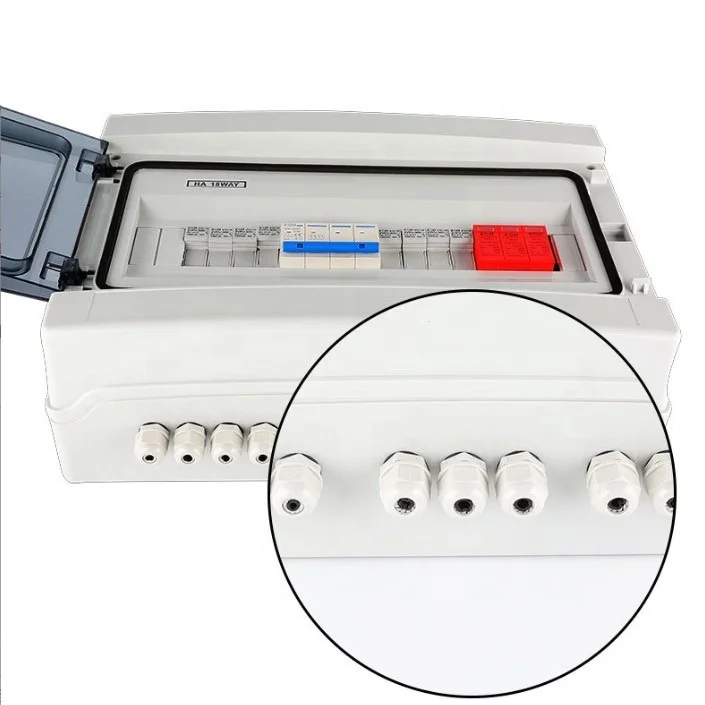

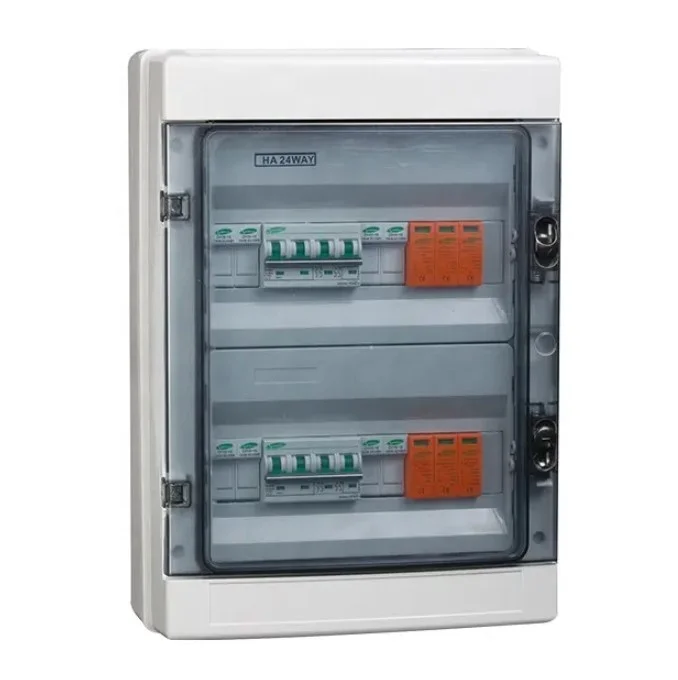

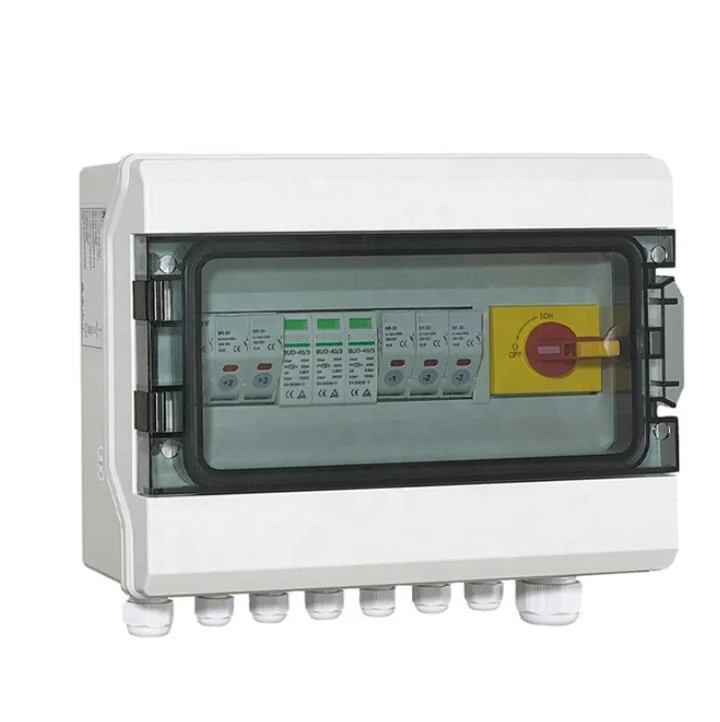

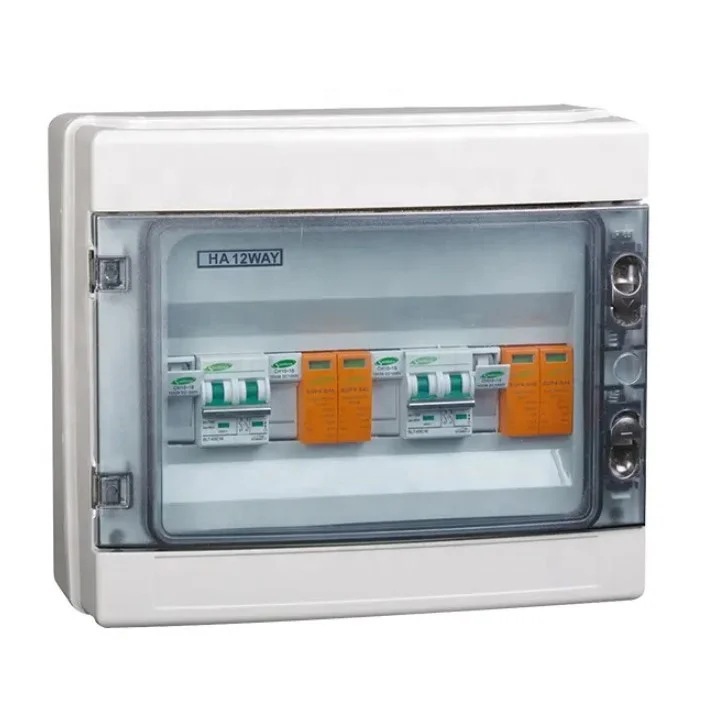

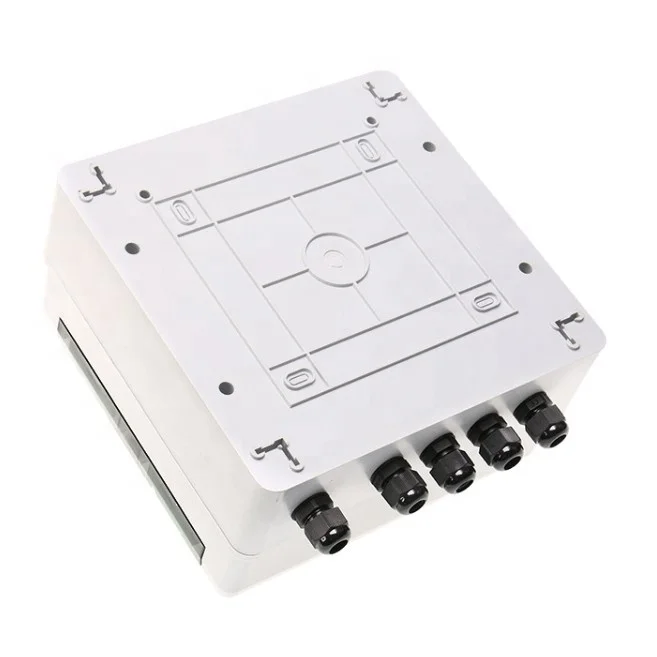

Factory Waterproof IP65 Solar DC Combiner Box 2 4 5 6 8 10 12 16 24 Ways String PV Box

Product Overview

Description

Product description:

The plastic photovoltaic DC combiner box is a specially designed solar cell module connection box, which is used to centrally convert the DC power of multiple photovoltaic panels into DC power. It is made of plastic material and has the characteristics of corrosion resistance, sealing, waterproof and dustproof.

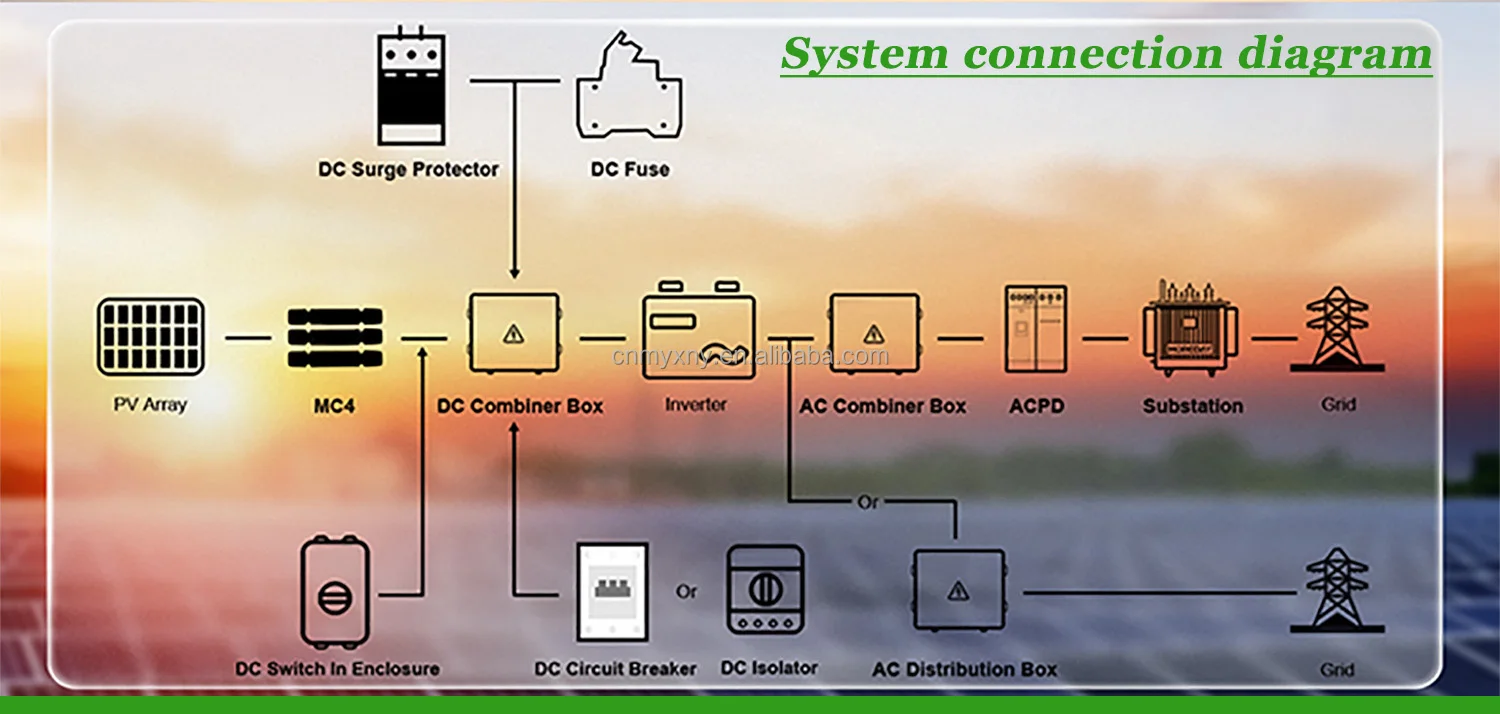

The plastic photovoltaic DC combiner box usually includes multiple DC input terminals for connecting the positive and negative poles of photovoltaic panels, and a DC output terminal for transmitting the DC power in the combiner box to the battery energy storage system or DC load equipment middle. In addition, the combiner box may also be equipped with functional modules such as DC circuit breakers, protection devices, and monitoring instruments to ensure the safety and performance stability of the system.
The use of plastic photovoltaic DC combiner boxes can simplify the wiring of photovoltaic cell components, improve the overall power conversion efficiency, and because of the use of plastic materials, it can provide a certain degree of mechanical protection and environmental adaptability, and prolong the service life of the system.
It should be noted that the selection of an appropriate photovoltaic DC combiner box needs to consider the voltage, current, mechanical strength, protection level and other factors of the system to ensure the stability and reliability of the system. In addition, relevant safety regulations and operating guidelines should be followed during installation and use.







Product features:

Lightweight and durable: Made of plastic material, it is light in weight, easy to install and carry, and has strong durability and corrosion resistance.

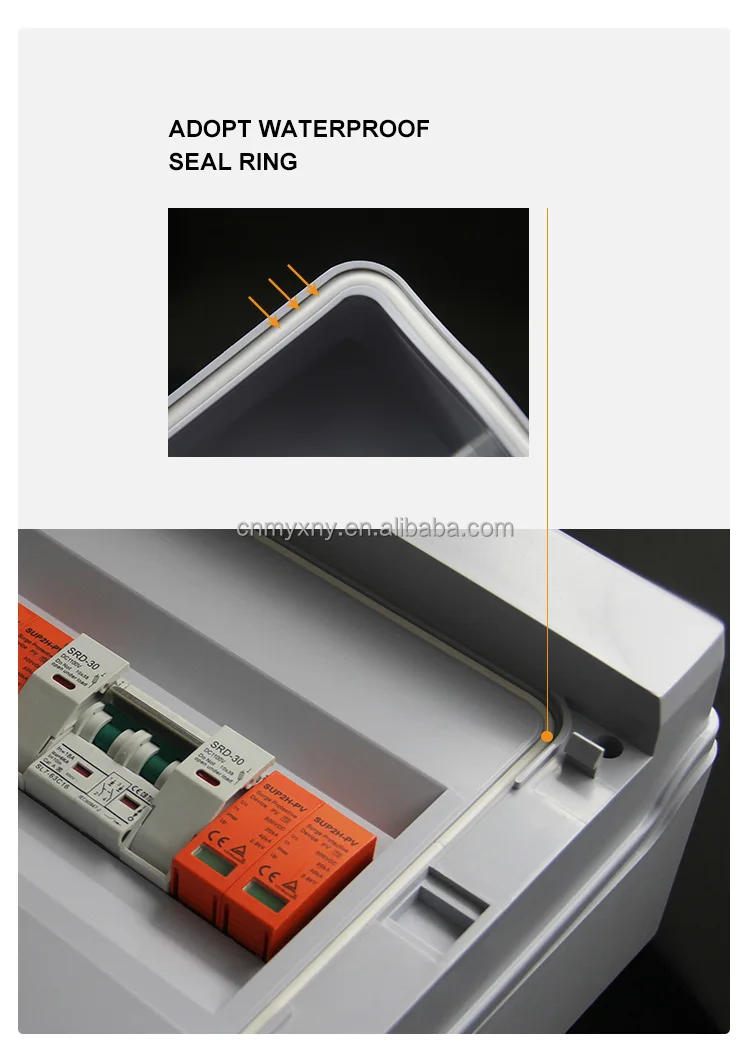

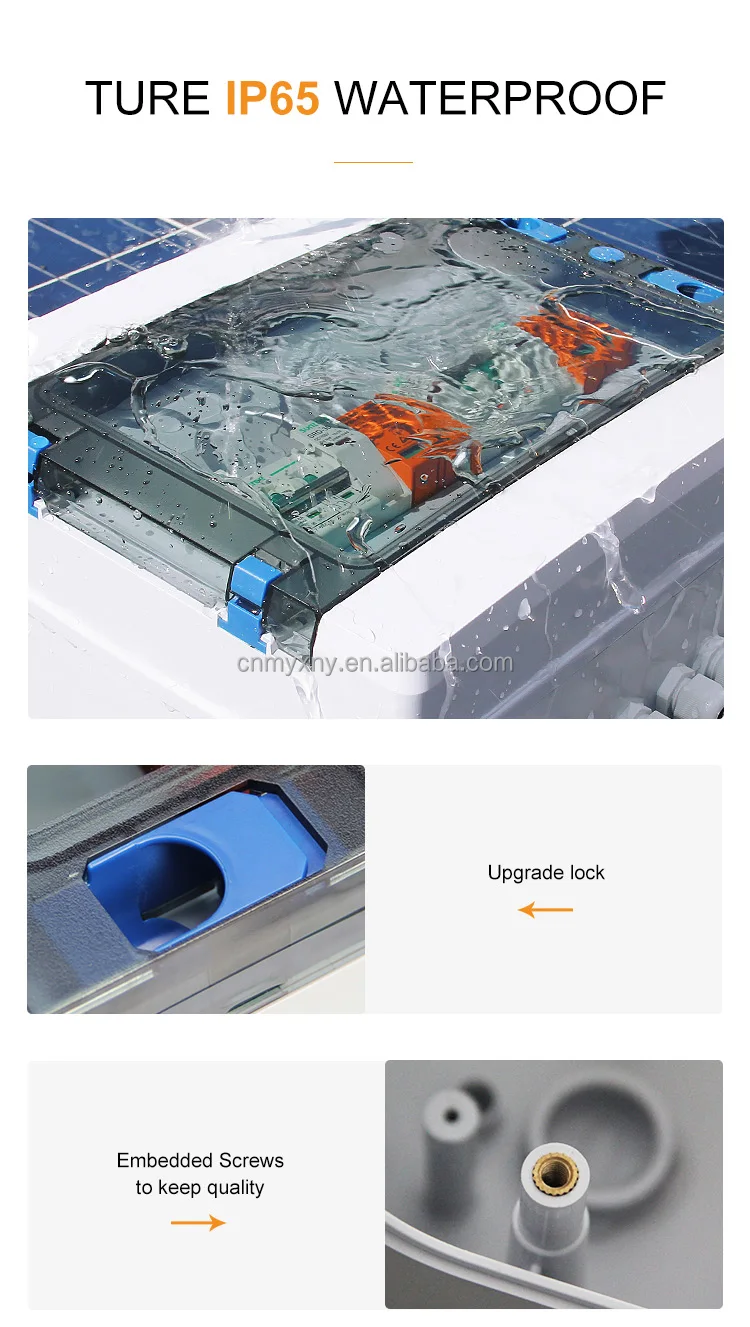

High sealing performance: It has good waterproof, dustproof and anti-corrosion properties, and can effectively protect the internal electrical components from the external environment.
Flexible wiring: The combiner box is usually equipped with multiple string input terminals and one output terminal, which can be flexibly wired according to actual needs and facilitate the connection of multiple photovoltaic panels.
Safety protection: Plastic photovoltaic DC combiner boxes usually have built-in DC circuit breakers and electrical protection devices, which can effectively protect photovoltaic power generation systems from electrical faults such as overcurrent, overtemperature and short circuit.
Monitoring function: Some plastic photovoltaic DC combiner boxes are also equipped with monitoring instruments such as current, voltage and power. Through real-time monitoring and data transmission, the operating status of the photovoltaic power generation system can be monitored and analyzed.
Convenient maintenance: Due to the modular design of the plastic photovoltaic DC combiner box, maintenance and replacement of parts are relatively simple, which greatly reduces maintenance costs and repair time.

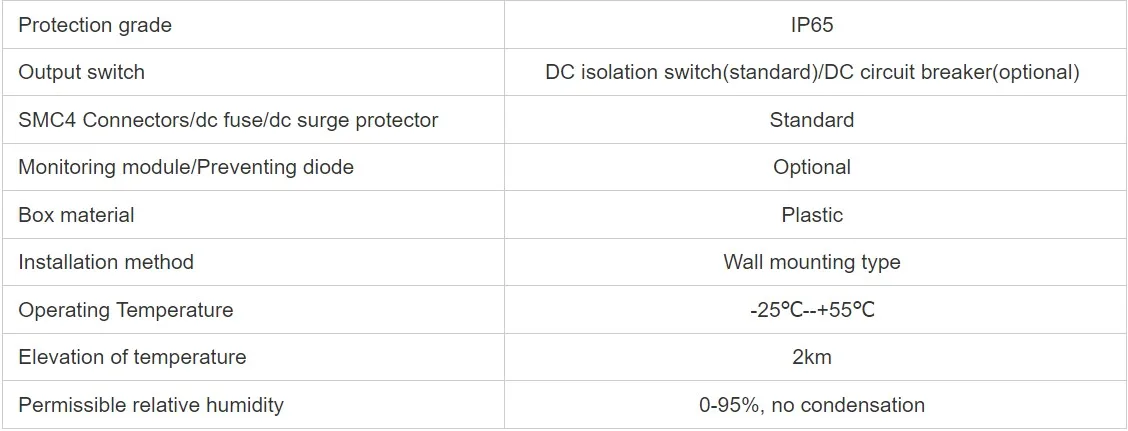

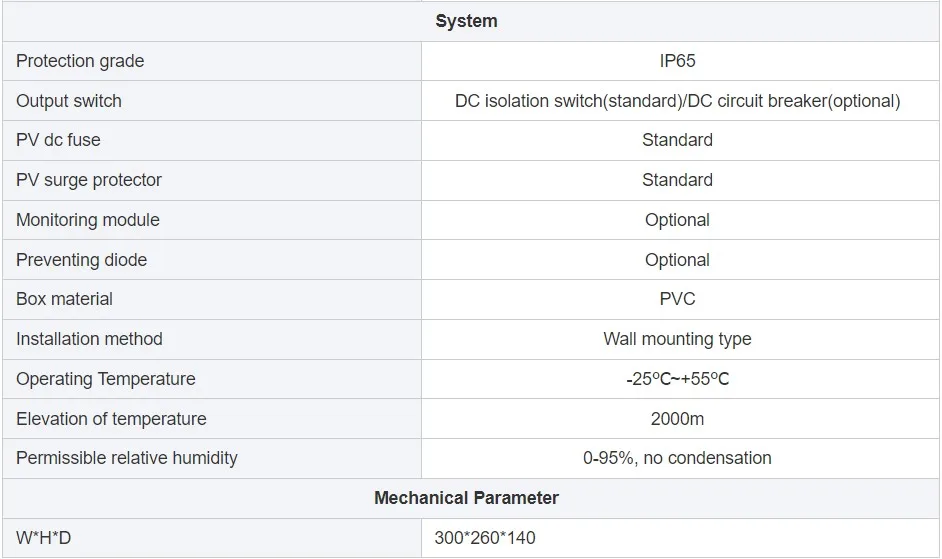

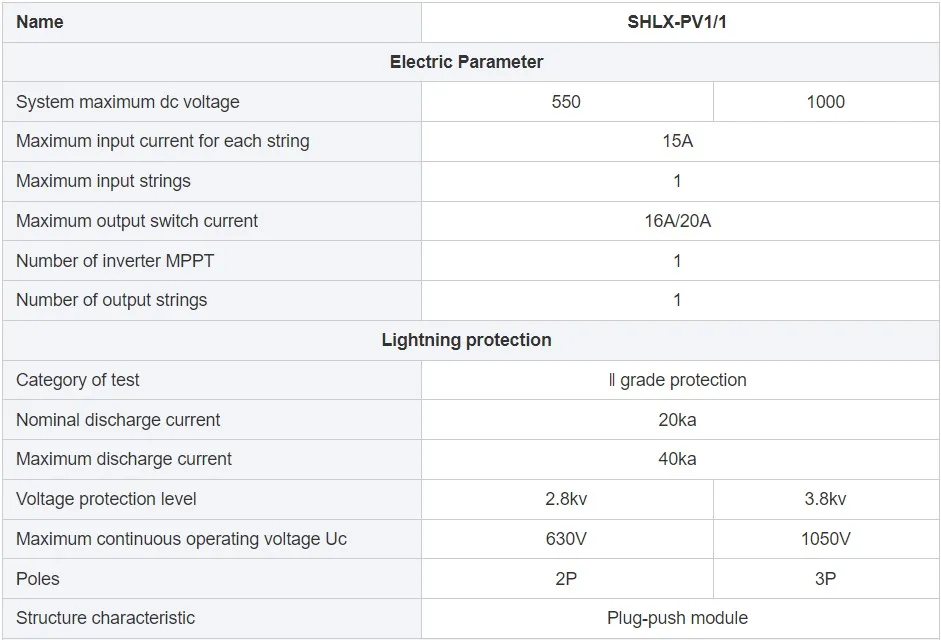

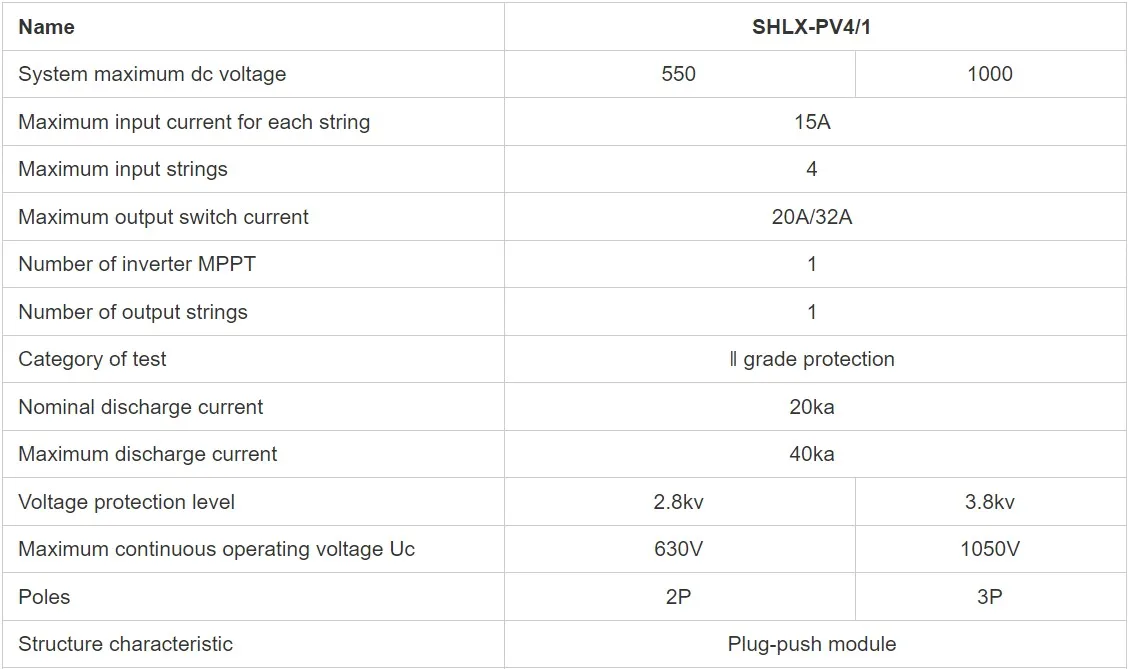

Product parameters:

















Environment condition:

Outdoor locations: The photovoltaic DC combiner box is usually installed near the solar panel array, so it needs to be able to adapt to the requirements of the outdoor environment. The outdoor environment may have factors such as temperature changes, wind, rain, snow, frost, and sunlight. The combiner box must be waterproof, fireproof, dustproof, windproof, UV-proof, and corrosion-resistant to ensure stable operation of the system.

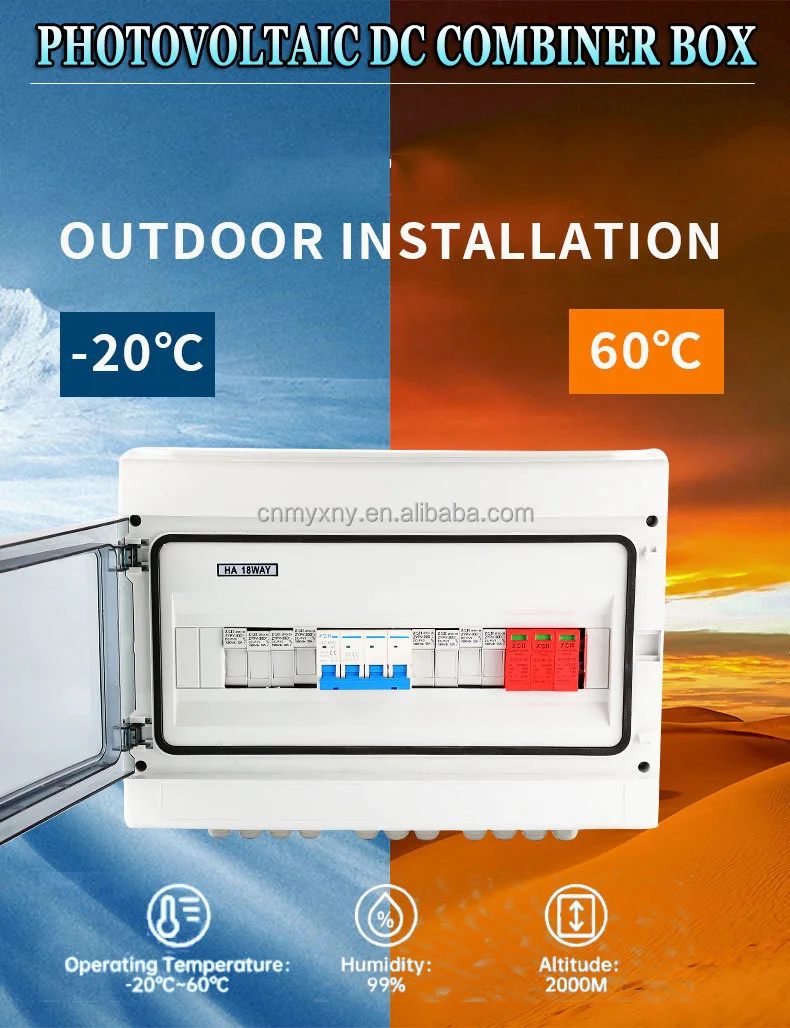

Temperature range: PV DC combiner boxes usually need to be able to adapt to a wide temperature range, generally -40°C to +70°C. The operating temperature of solar panels is high, so the combiner box needs to have good heat dissipation performance to ensure that electrical components and cables will not overheat and affect the normal operation of the system.
Altitude: The use environment of the combiner box may also include installation at a certain altitude. At high altitudes, the oxygen is thinner and the temperature is lower, so additional considerations for temperature compensation and high-altitude environment design are required.
Lightning protection: As an important part of the photovoltaic power generation system, the combiner box needs to take corresponding lightning protection measures to improve the system's lightning resistance. Generally, equipment such as lightning protectors and flash triggers are used to ensure the safe operation of the system in lightning weather.

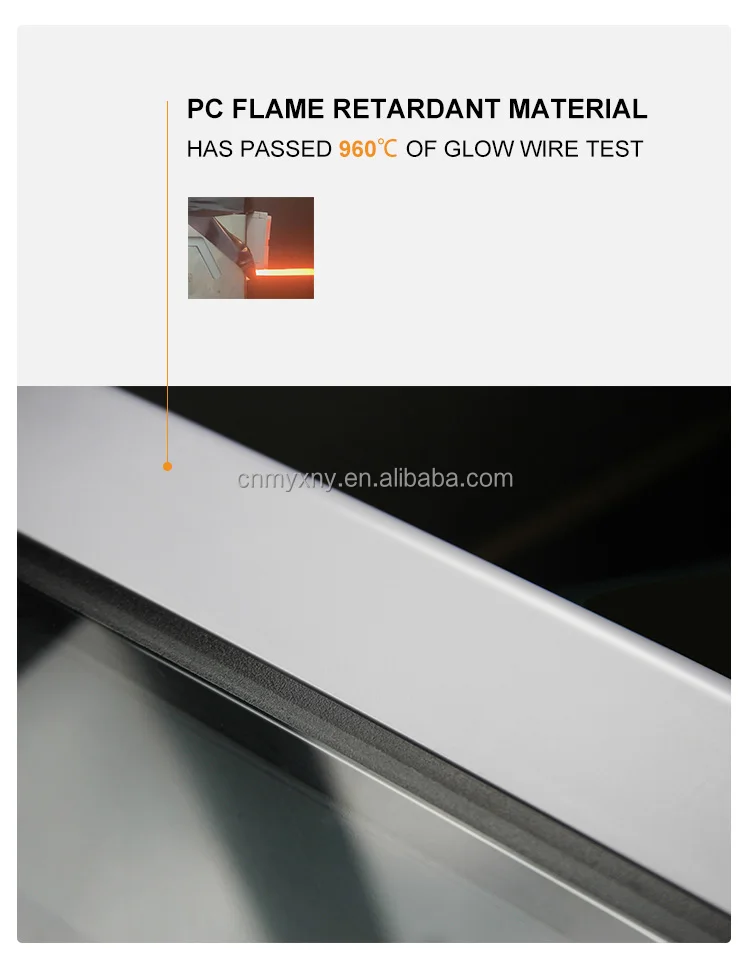

Product details:





Workshop:





Certificate:

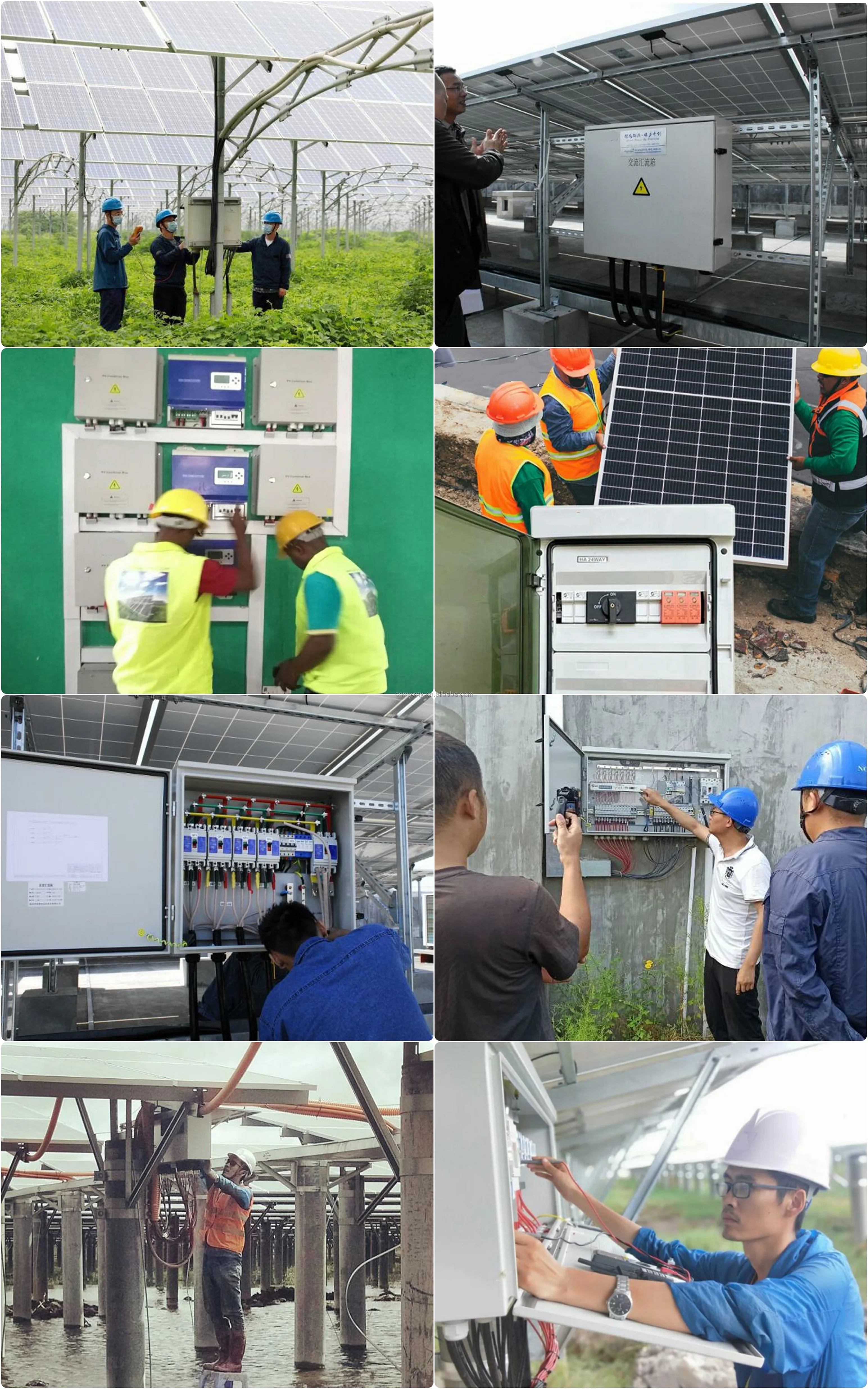

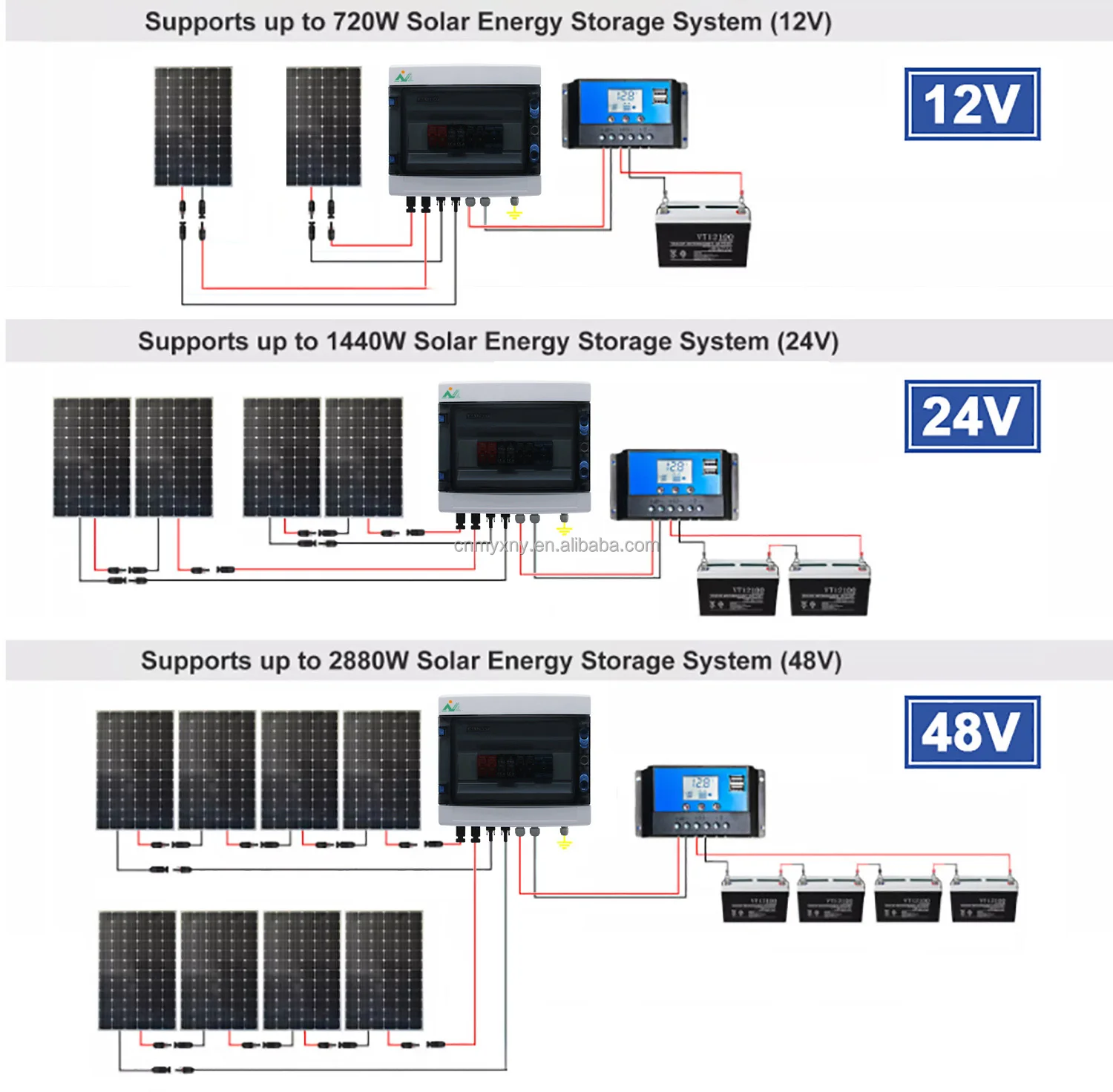

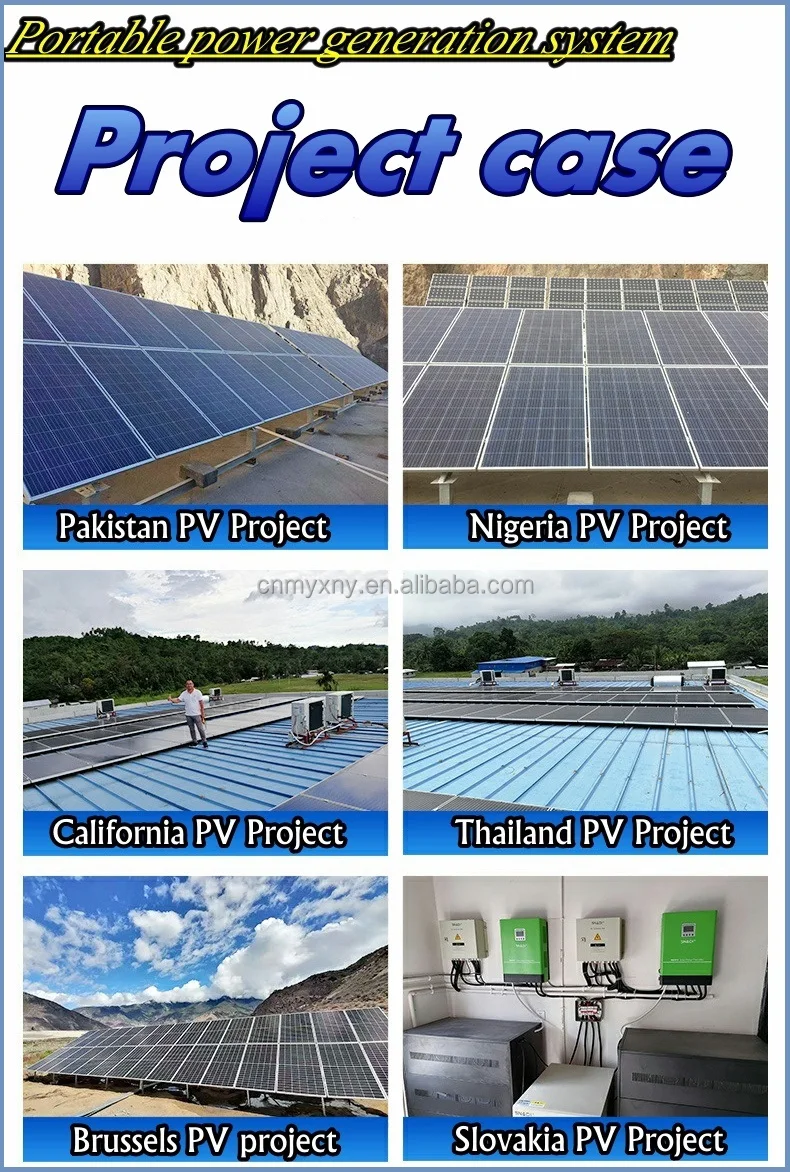

Product application cases:





Transportation and packaging:







FAQ:

Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.

Q: Do you provide samples ?
A: Yes, we could offer the sample But the customer has to pay the sample cost and freight

Q:Can I get a sample for test before place order?
A:Of course!

Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.

Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train.

Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
