Traffic Safety Bridge Guardrail Bridge Barrier for Sale
- Category: >>>
- Supplier: Shandong Sino-Energy Traffic Facilities Co. Ltd.Shandong Ltd.
Share on (1600917233795):
Product Overview
Description
Products Description

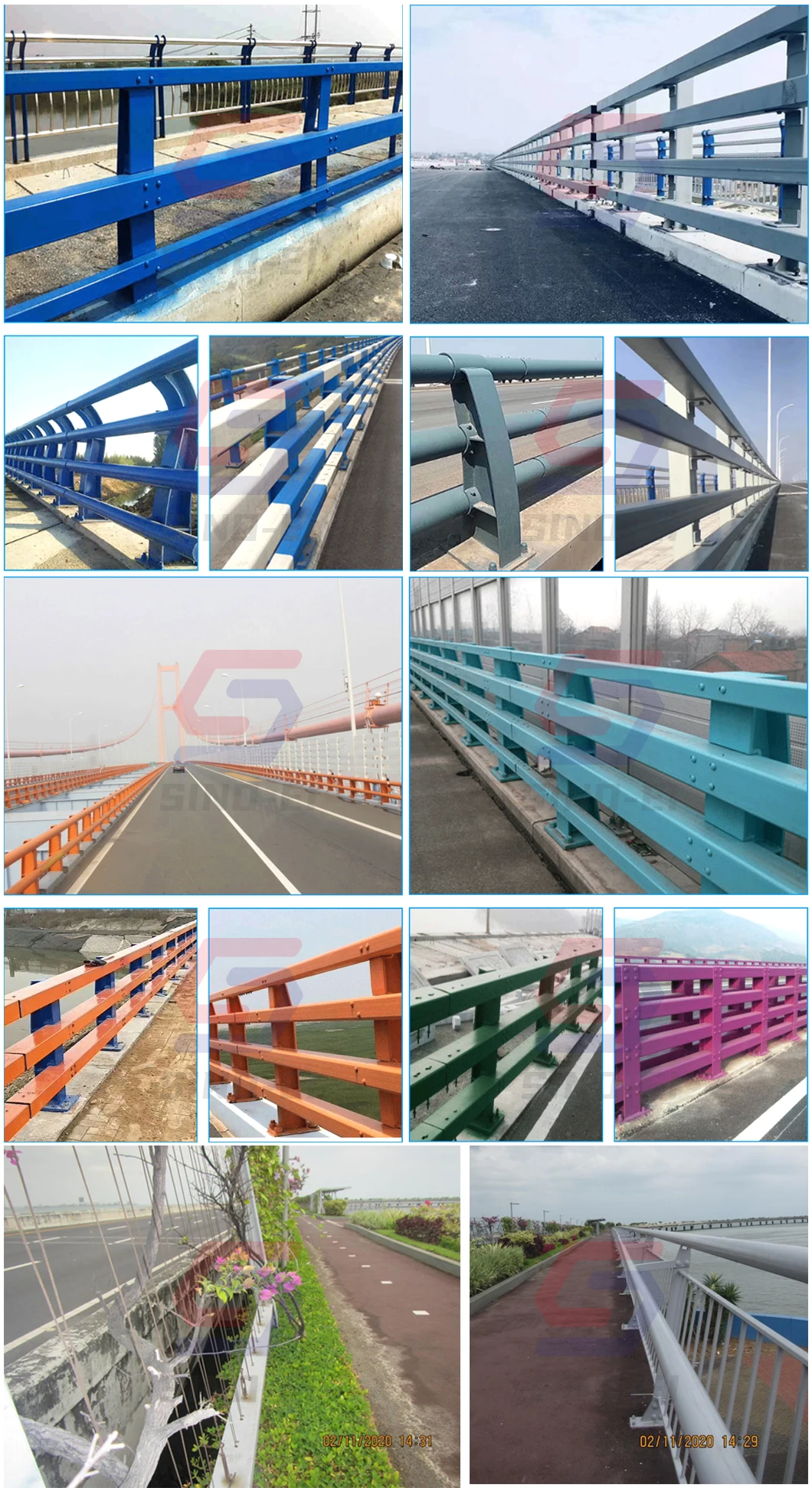

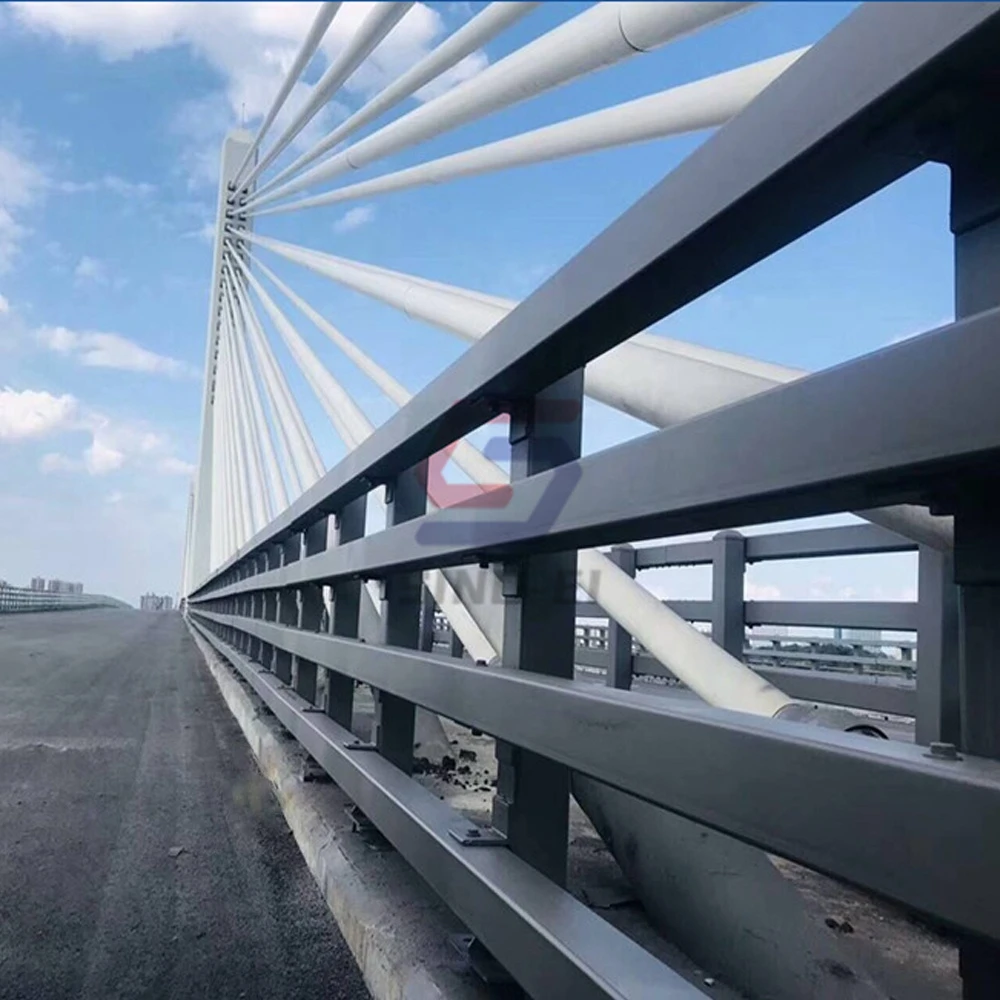

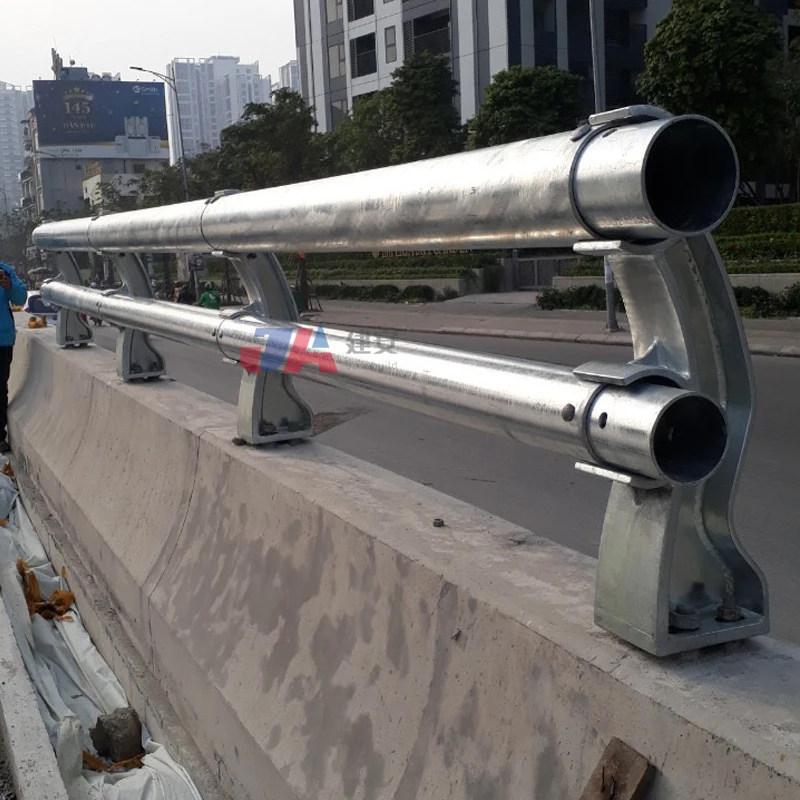

Bridge Guardrail
Bridge Guardrail is a guardrail set up on Bridges, rivers, scenic spots and highways. Its purpose is to prevent pedestrians or vehicles from crossing over the bridge. It has the function of preventing vehicles from breaking through, slipping under, jumping over the bridge and beautifying the bridge and river construction.
Bridge guardrail can be divided into cast iron guardrail, common steel guardrail, stainless steel guardrail, according to the application scene is different for bridge crash guardrail, river guardrail, scenic fence, highway guardrail, platform guardrail, overpass guardrail, etc.
The road anti-collision guardrail is mainly composed of guardrail posts and anti-collision beams. The main raw materials of the guardrail post are welded and assembled from Q series steel plates (Q195-235/16Mn) and aluminum alloys or casting with steel. The finished products are galvanized and sprayed or sprayed with fluorocarbon paint to make the guardrail products have acid resistance It has a series of advantages such as alkali corrosion resistance, no rust in the sun and rain, no delamination ,durability and no discoloration, luxury and beauty!
Product Paramenters
Column specification | 200x1500x8mm | 150x1000x8mm | 1000*150*100*12mm |
Square beam specification | 150×150×6mm | 120x120*4mm | 200*200*8mm |
Circular beam specification | Φ140*4mm L=1500mm | Φ89*6 L=500mm | Φ51*2 L=1000mm |
Horizontal spacing length | 1500mm | 3000mm | 1000mm |
Bolt | M10*L36mm M24*L335mm | M16*L175mm M24*L260mm | M6* M32* |
Texture of material | Q235 aluminium alloy | Zinc steel Q255 | stainless steel/304/202 Q355C |
Base plate thickness | 12mm | 30mm | 5mm |
Manufacturing Technique

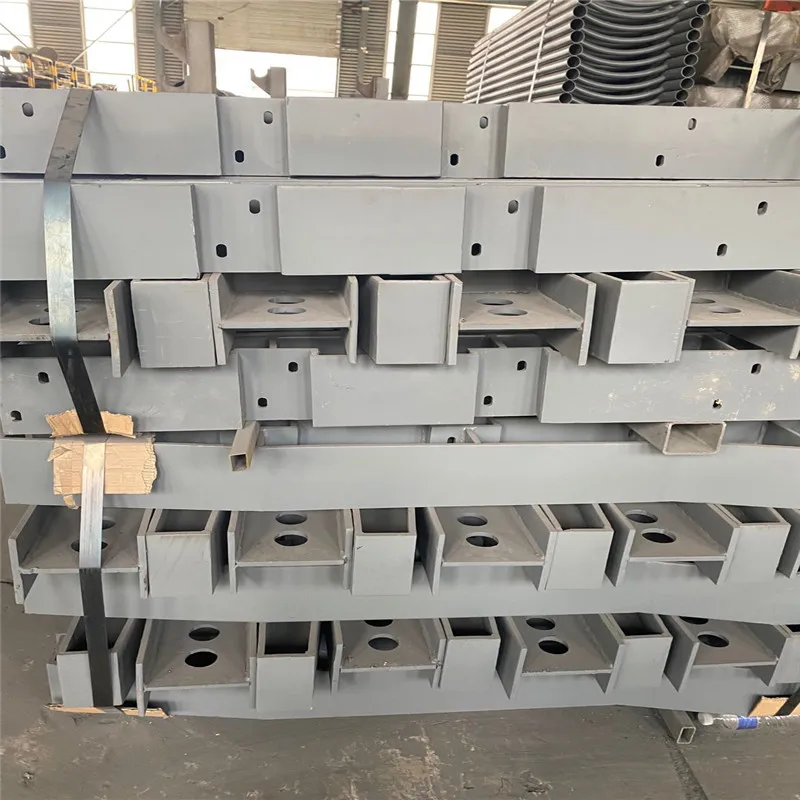

The bridge guardrail is mainly composed of columns, beams, transverse diaphragms, bolts, gaskets, etc., among which the bridge guardrail post plays a major supporting role, which can effectively prevent the deviation and tilt of the guardrail, protect the safety of vehicles and pedestrians.Technological process and classification of bridge rail support:
Cast iron guardrail bracket:
Sand molding → casting → semi-finished molding → sandblasting treatment → painting → finished products.
Cast steel guardrail bracket:
Sand mold forming → sand mold hardening → electric furnace casting → semi-finished product forming → sand blasting treatment→painting → finished product.
Cast iron guardrail bracket:
Sand molding → casting → semi-finished molding → sandblasting treatment → painting → finished products.
Cast steel guardrail bracket:
Sand mold forming → sand mold hardening → electric furnace casting → semi-finished product forming → sand blasting treatment→painting → finished product.

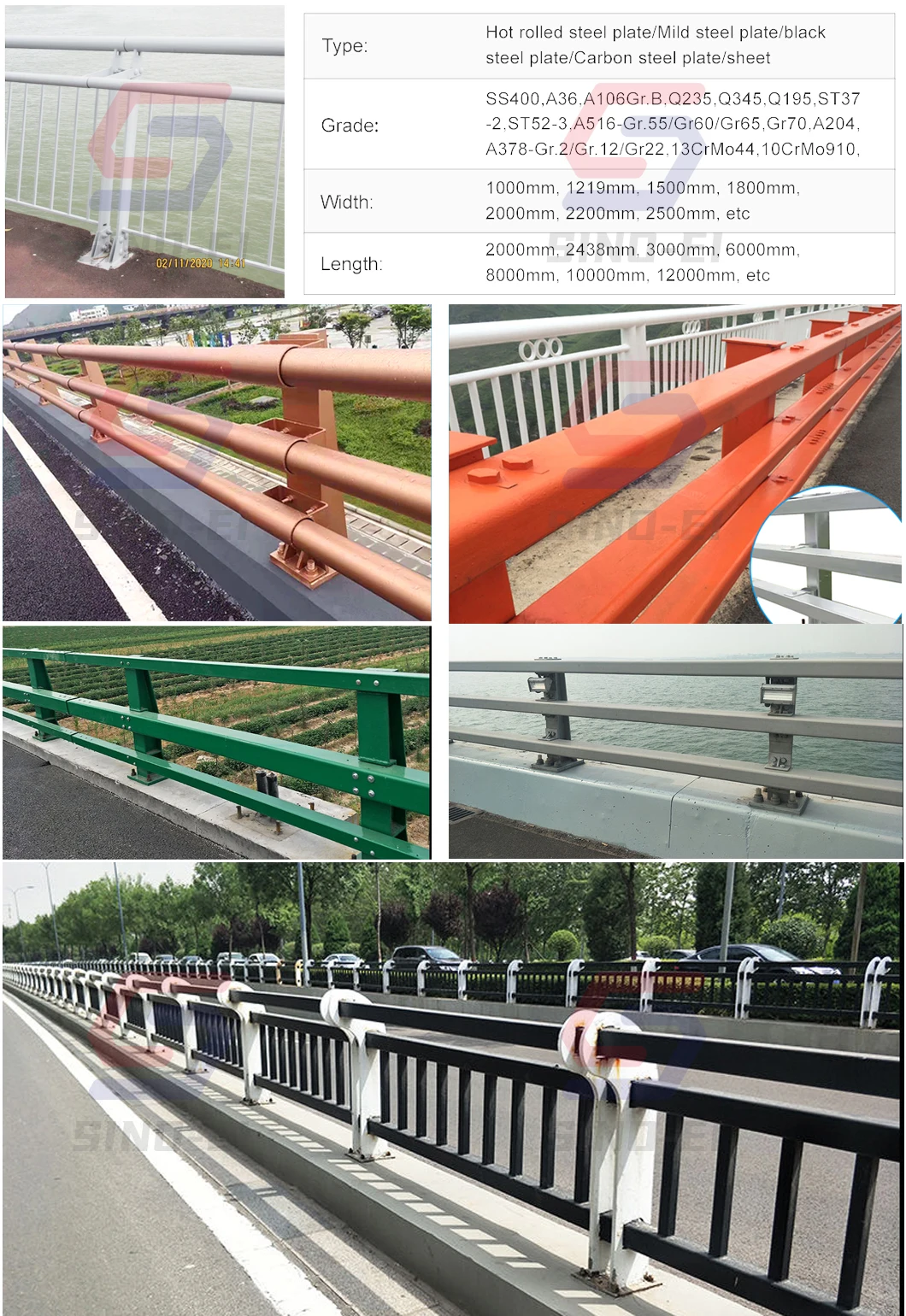

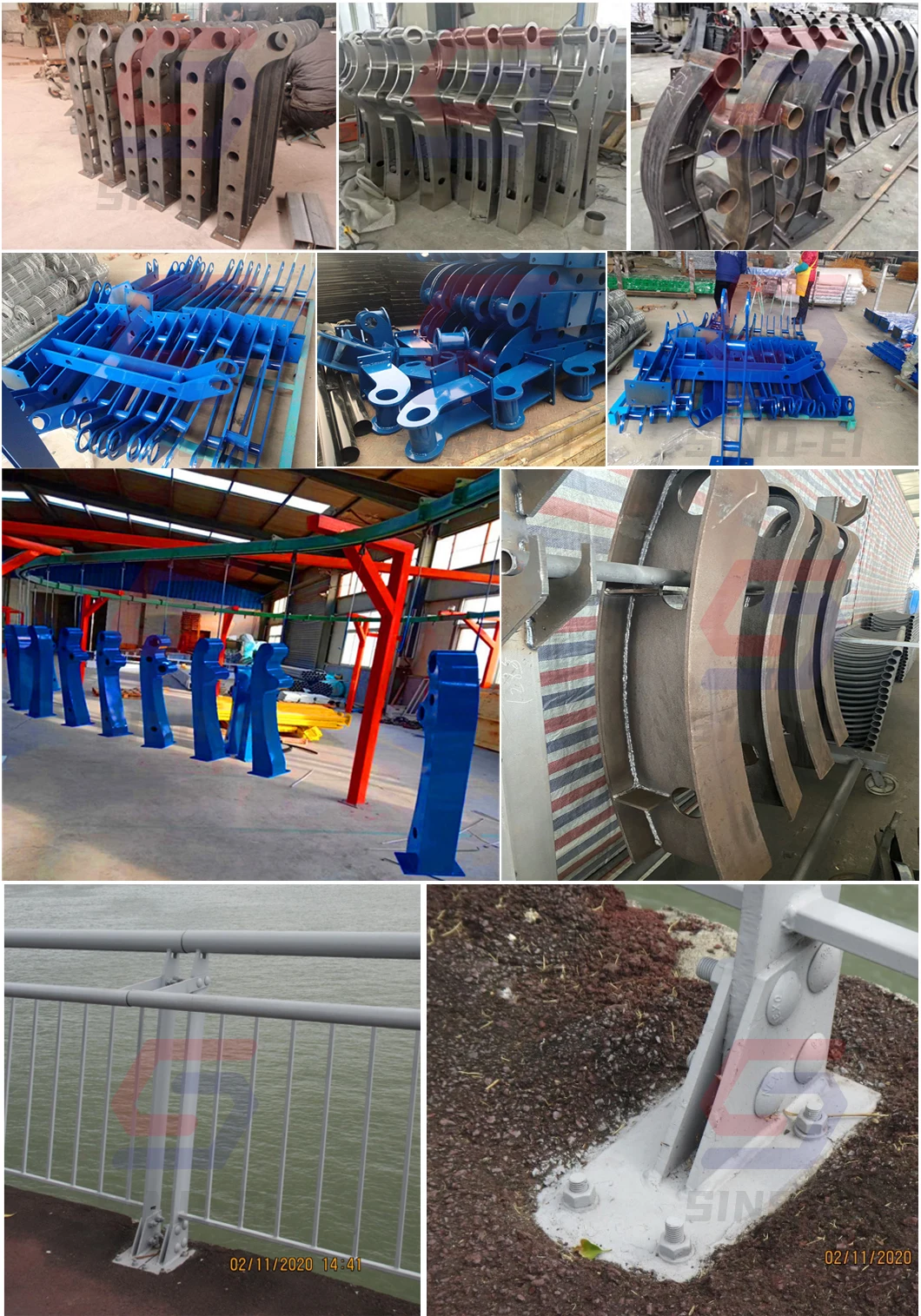

Details Images
Company Profile
Established in 2015,Shandong Sino-Energy Traffic Facilities Co., Ltd.is located in Economic Development Zone of guan
County,Liaocheng City, Shandong Province, China, which is near by jiguan Highway. specialized in manufacturing and exporting Highway Guardrail and accessories. Shandong Sino-Energy Traffic Facilities Co., Ltd.covers an area about 7,000 square meters, has 120 employees and 8 senior engineers. With an annual production capacity of 200,000 tons, Sino-Energy company has continuously invested in two Hot-dip galvanizing lines, two hot-dip aluminum production lines,two electrostatic spray production lines and one hot-dip coated production line.
Our aim is to Sino-Energy people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!

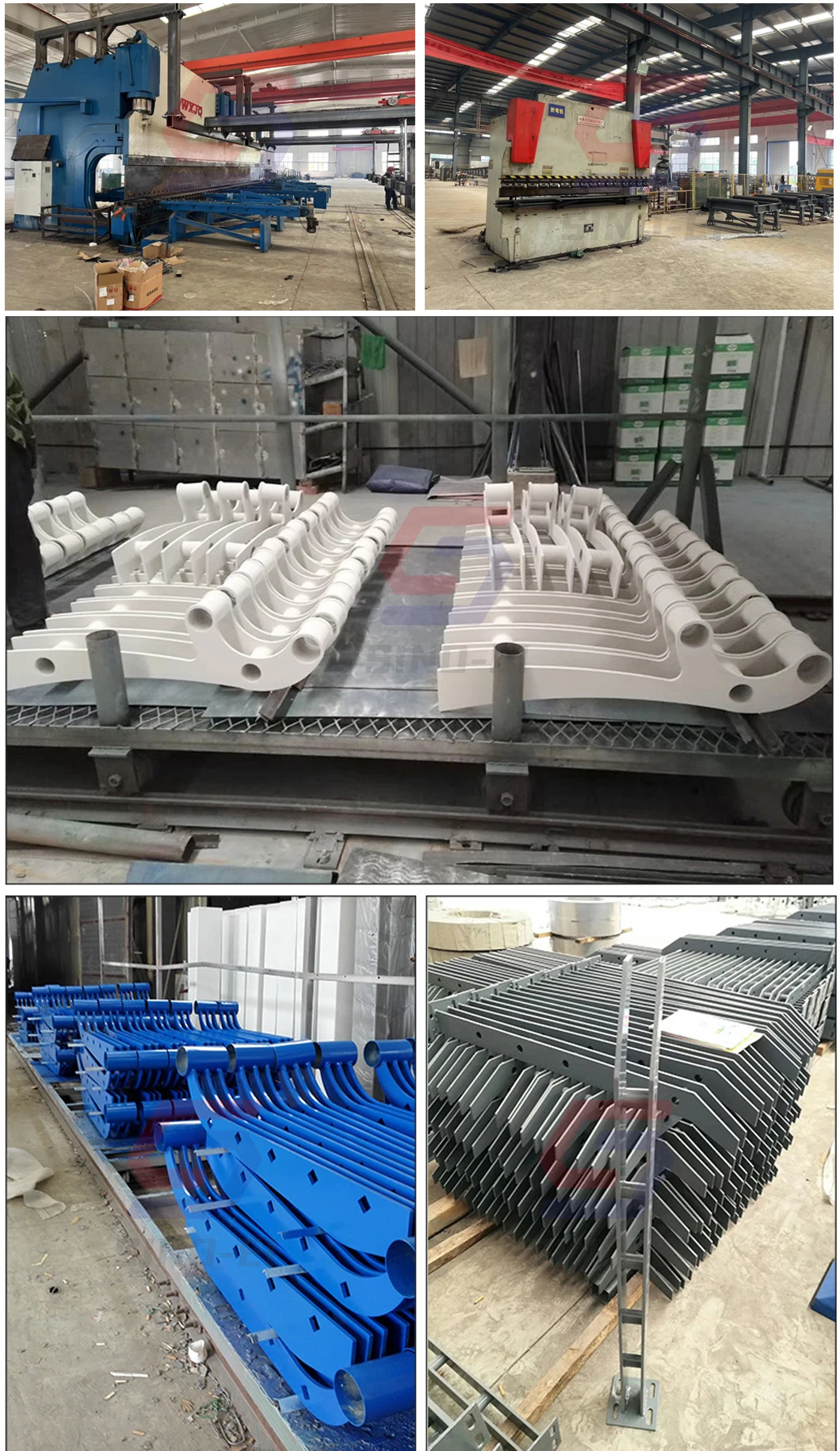

The company has advanced guardrail plate forming machine, which can realize the strip head removal, smoothing,
punching,cutting,forming, leveling and other working procedure, so that the guardrail has good consistency, high processing accuracy, low production cost, which is widely recognized by the market.
County,Liaocheng City, Shandong Province, China, which is near by jiguan Highway. specialized in manufacturing and exporting Highway Guardrail and accessories. Shandong Sino-Energy Traffic Facilities Co., Ltd.covers an area about 7,000 square meters, has 120 employees and 8 senior engineers. With an annual production capacity of 200,000 tons, Sino-Energy company has continuously invested in two Hot-dip galvanizing lines, two hot-dip aluminum production lines,two electrostatic spray production lines and one hot-dip coated production line.
Our aim is to Sino-Energy people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
The company has advanced guardrail plate forming machine, which can realize the strip head removal, smoothing,
punching,cutting,forming, leveling and other working procedure, so that the guardrail has good consistency, high processing accuracy, low production cost, which is widely recognized by the market.
The company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, corresponding surface treatment can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance.
We are spread to 8,000 km since it is established around China and successfully exported to other countries, like Russia and Malaysia, Algeria, Singapore, South Africa, Mozambique, Ghana, Brazil, etc. We have been holding a scientific, rigorous, normative and standardized pragmatic style , and developing impeccable inspection organization to to make sure all of our products quality are in line with national standards, industry standards and enterprise standards. Sino-Energy people, with our professional,whole-hearted and devoting spirits as well as our remarkable products quality and favorable service system,sincerely hope to work together with the vast number of clients, create brilliant!
different construction environment, corresponding surface treatment can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance.
We are spread to 8,000 km since it is established around China and successfully exported to other countries, like Russia and Malaysia, Algeria, Singapore, South Africa, Mozambique, Ghana, Brazil, etc. We have been holding a scientific, rigorous, normative and standardized pragmatic style , and developing impeccable inspection organization to to make sure all of our products quality are in line with national standards, industry standards and enterprise standards. Sino-Energy people, with our professional,whole-hearted and devoting spirits as well as our remarkable products quality and favorable service system,sincerely hope to work together with the vast number of clients, create brilliant!
Recommend Products

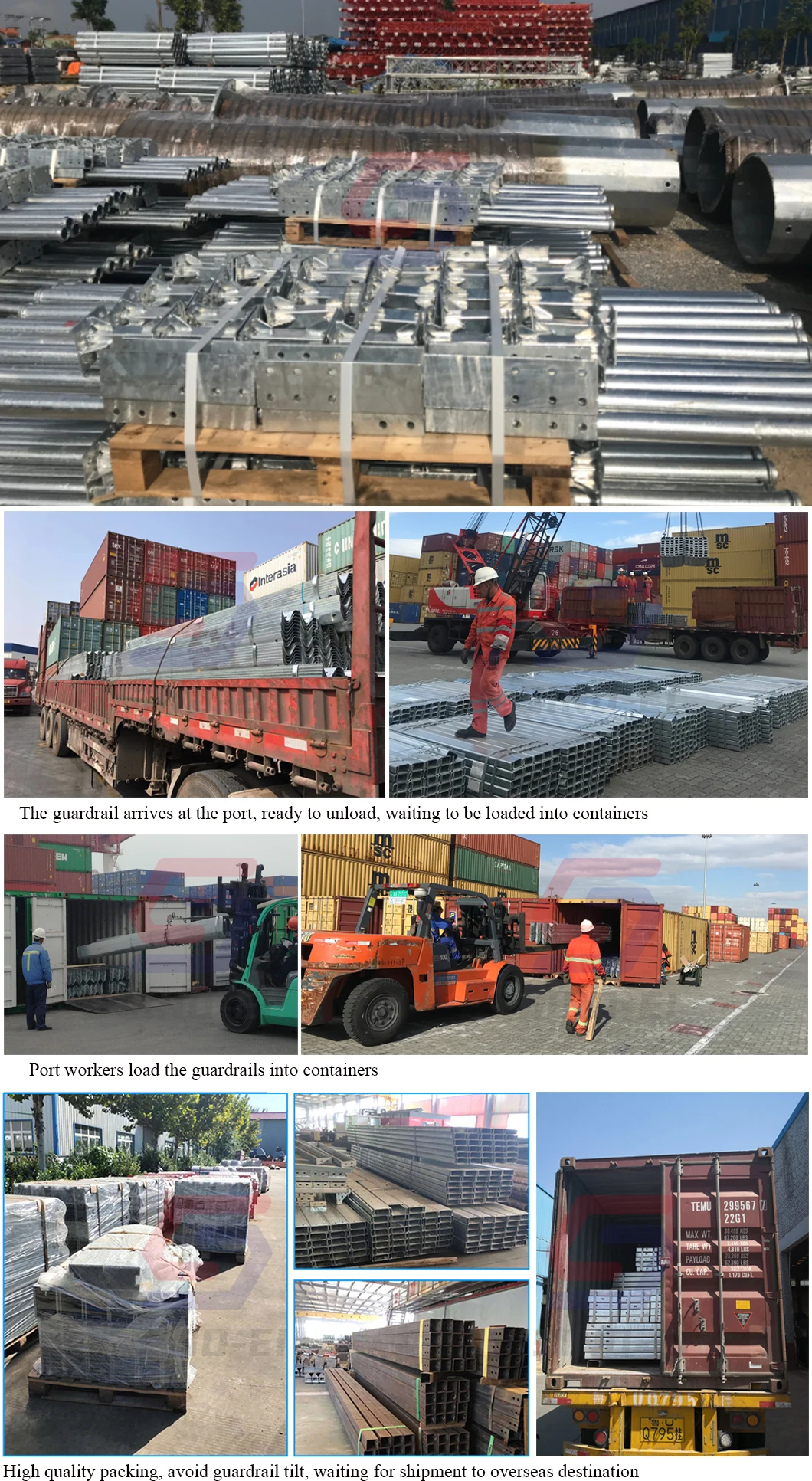

Product Packaging
Focusing on the export business of transportation facilities, the company has rich packing and packing experience for container loading. Among them, the guardrail plate is packed with steel wire rope, the post is transported by pallet, and the spacer and other guardrail accessories are shipped in ton package. This assembly method ensures that the products arrive at the destination port and is convenient for loading and unloading.
1.The packing of guardrail adopts bundling method, which is convenient for loading and unloading. It can also keep the balance of containers and facilitate transportation.
2.The packing of guardrail post adopts the well shaped binding method, which has strong firmness and is easy to be loaded and unloaded by forklift.
3.We use ton bags or simple wooden cases for packing accessories of guardrail, which is convenient for loading and unloading, and installation after arrival.
1.The packing of guardrail adopts bundling method, which is convenient for loading and unloading. It can also keep the balance of containers and facilitate transportation.
2.The packing of guardrail post adopts the well shaped binding method, which has strong firmness and is easy to be loaded and unloaded by forklift.
3.We use ton bags or simple wooden cases for packing accessories of guardrail, which is convenient for loading and unloading, and installation after arrival.

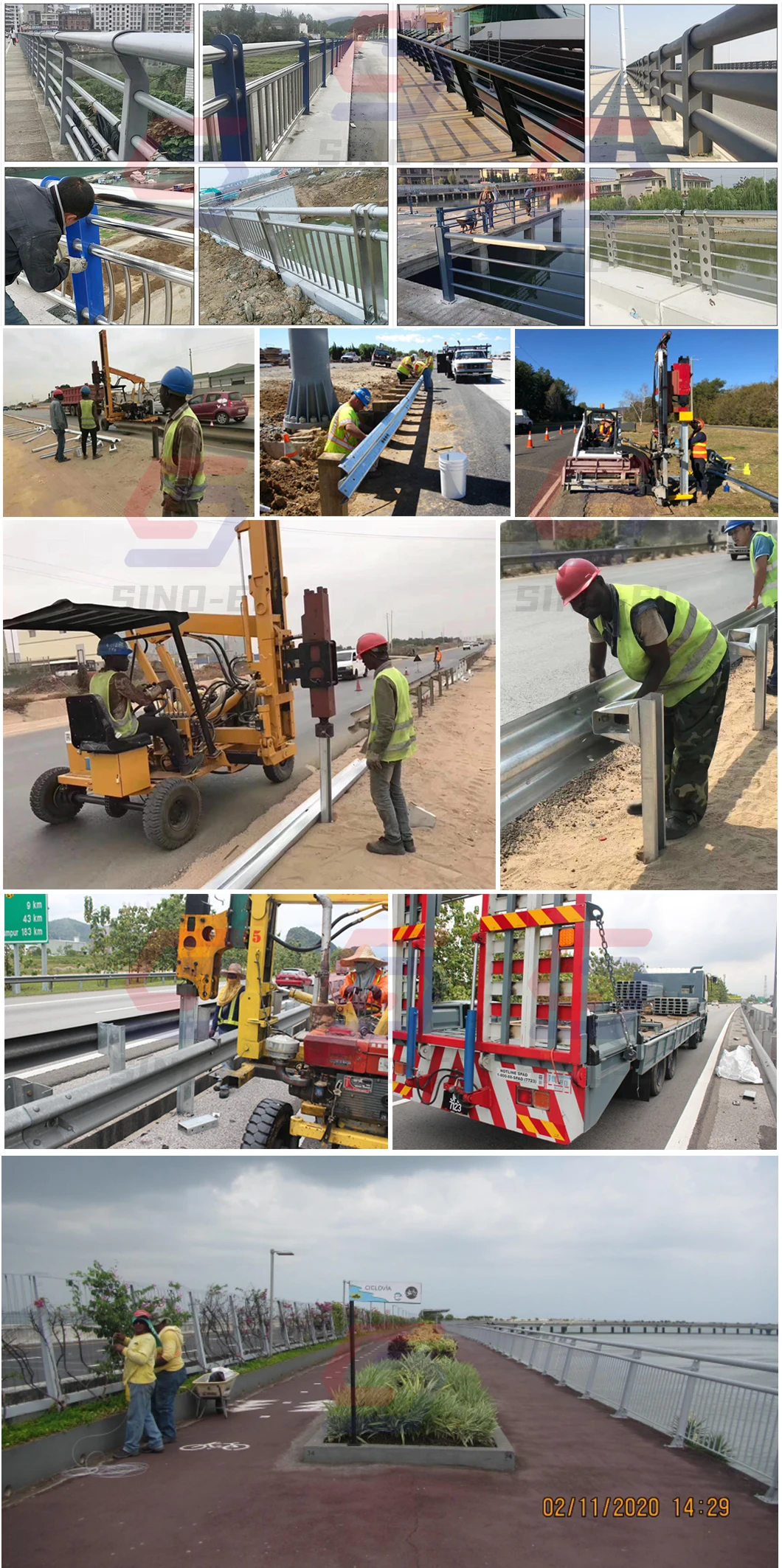

Installation Instructions
Our Advantages
1,Professional manufacturers and suppliers of safety protection products;
2,The company has many years of export experience, the export share is about 50%;
3,According to customer requirements, design, research and development, customized products;
4,Provide one-to-one online installation guidance and 24-hour service hotline.
2,The company has many years of export experience, the export share is about 50%;
3,According to customer requirements, design, research and development, customized products;
4,Provide one-to-one online installation guidance and 24-hour service hotline.
FAQ
1.Q:Are you a factory or trading company?
A:We are factory which has been in this field for more than 10 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to visit us!
3.Will you deliver the goods on time?
A:We are factory which has been in this field for more than 10 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to visit us!
3.Will you deliver the goods on time?
A:Yes,we promise to provide best quality products and delivery in time no matter if the price change lot or not, Honesty is our company's tenet.
8.How to order?
4.How can I get your quotation as soon as possible?
A:The email and fax will be checked in 24 hours, meanwhile, the skype will be online in 24 hours Please tell us the order information about quantity,Specification(steel type, material, size )and destination port, you will get the latest price.
5.How about the sample if I need?
A:The sample will be offered for free if you need, but the freight will be covered by our customer. If we have cooperation, the freight will be covered by our company.
A:The sample will be offered for free if you need, but the freight will be covered by our customer. If we have cooperation, the freight will be covered by our company.
6.How about the MOQ?
A:Generally, the trail order will be accepted.The MOQ can be confirmed according to the different products. For example, the MOQ of PPGI will be 10MT.
7.How about the delivery time?
A:Within 15-30 days after receiving the deposit or L/C at sight. Of course, the detail will be confirmed by the quantity and the different products.
8.How to order?
A:Please send us your purchase order by email. Or you can ask us to send you a proforma invoice for your order. We need to know the following information for your order.
9.What is shipment terms?
A:1. Container ship 2. bulk ship 3. Train
10.Do you have English Mill Test Certificates?
A:Yes,that is what we give gurantee to our clients.
11.Do you accept the third party inspection?
A:Yes,absolutely we accept.
12.Q:How does your factory do regarding quality control?
A:Quality is priority. All our staff members always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO 9001 and SGS authentication.
A:Yes,absolutely we accept.
12.Q:How does your factory do regarding quality control?
A:Quality is priority. All our staff members always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO 9001 and SGS authentication.
