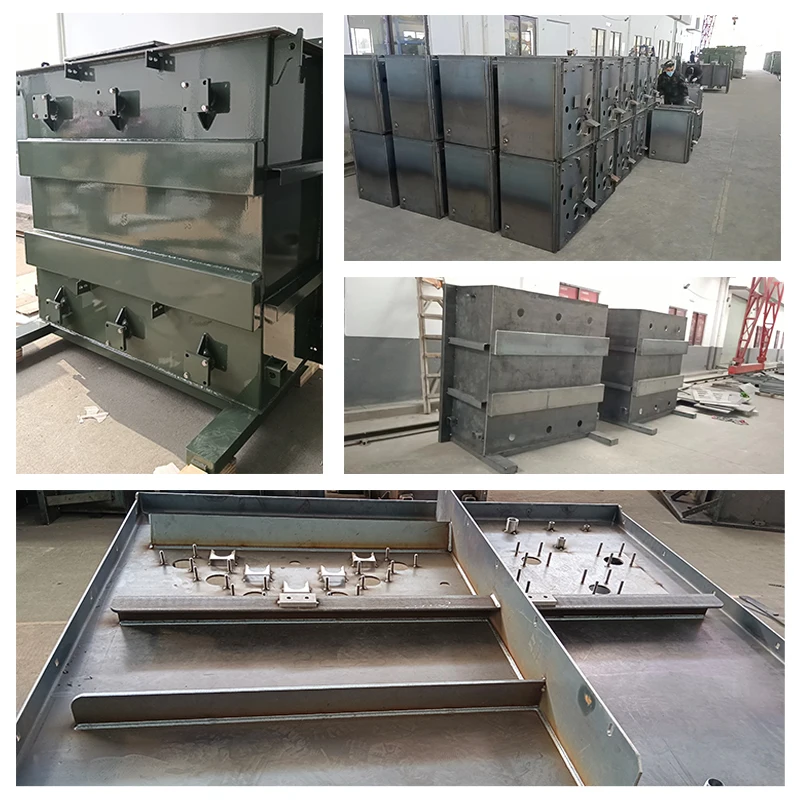

Corrugated fuel tank process:

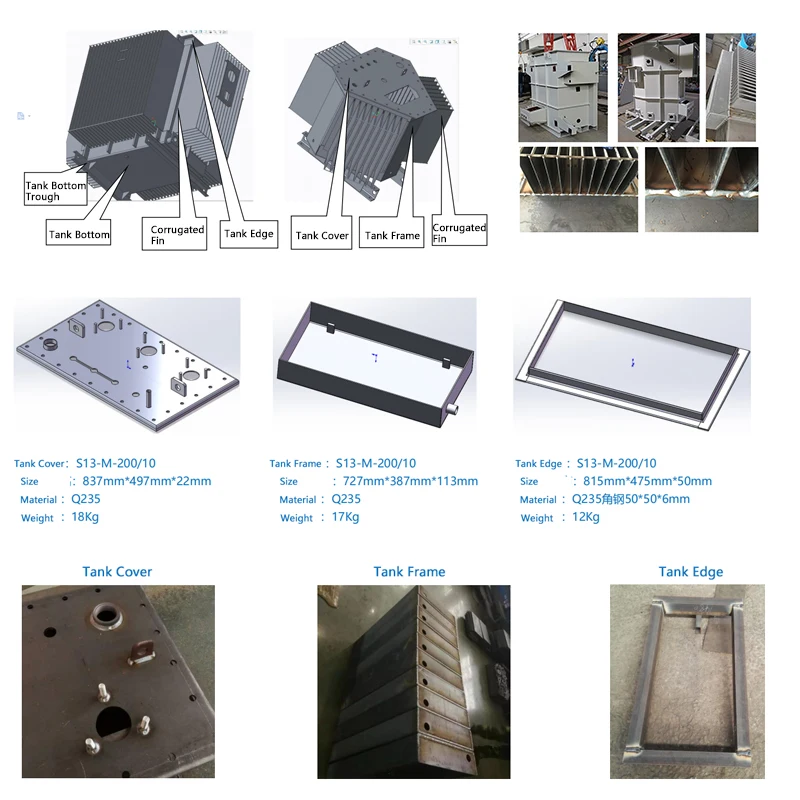

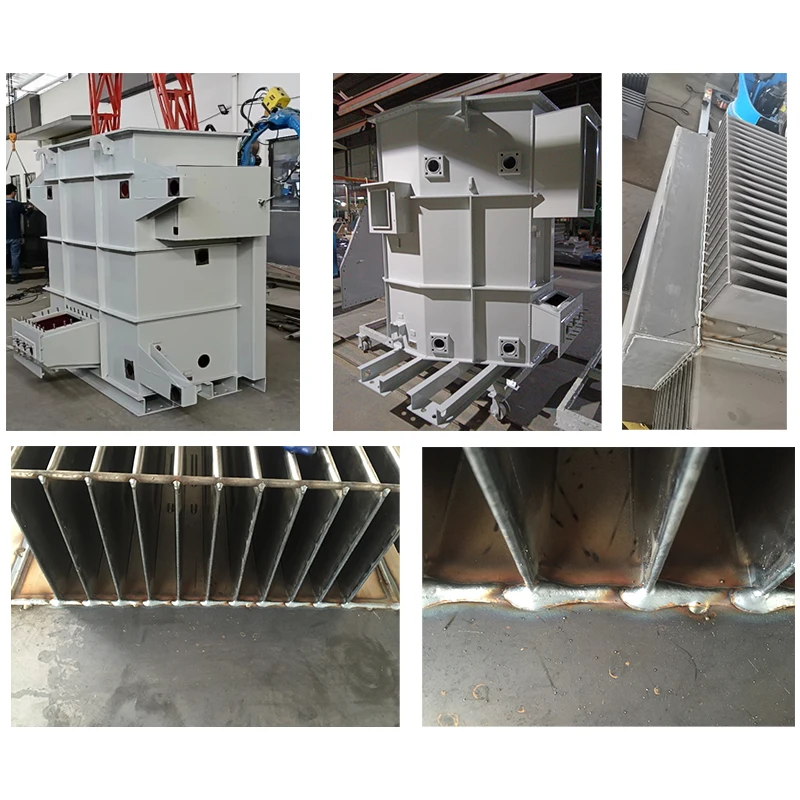

1. After the box cover is cut, the magnetic isolation plate is welded first, and then bent to correct the deformation. Then robot weld all the accessories.
2. The box along the angle iron is cut by the profile laser cutting machine, and then manually assembled and spot welded, and the robot is fully welded.3. The bottom of the four-sided box and the triangular frame, after bending, are manually assembled and spot-welded, and the robot is fully welded.

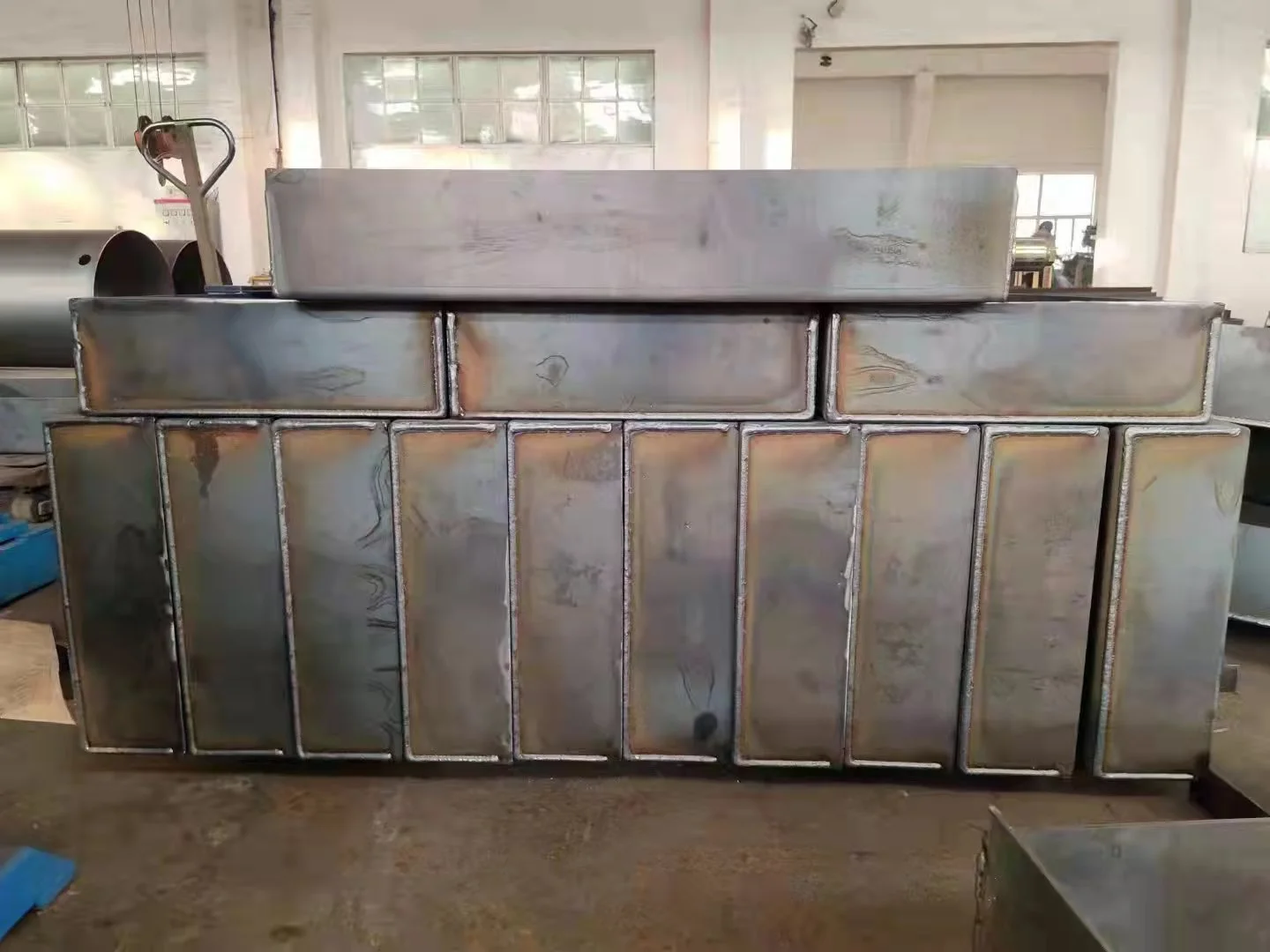

4. After the corrugated sheet is spot welded on the frame, the robot can be used to realize full welding.
5. After full welding, go to the assembly line, robot welds the channel steel of the foot, manually repairs the welding, and starts leak testing.
Wind change oil tank process:
channel steel of the foot, manually repairs the welding, and starts leak testing.
process flow：

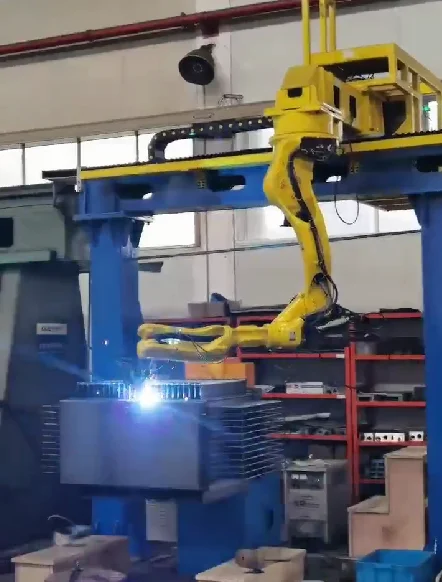

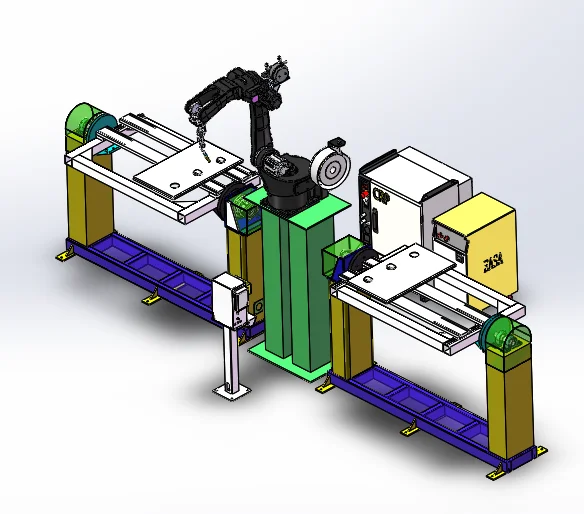

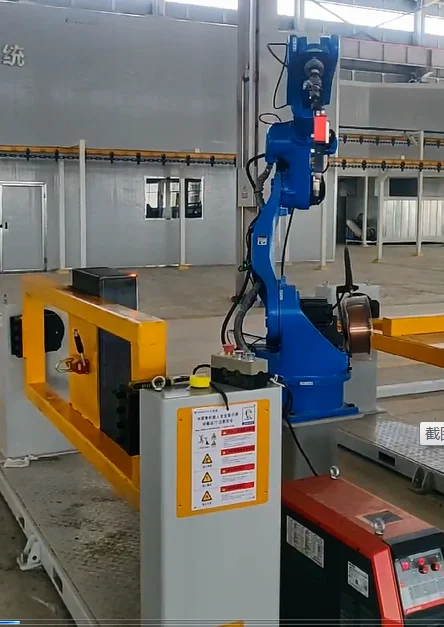

tank edge robot automatic welding workstation

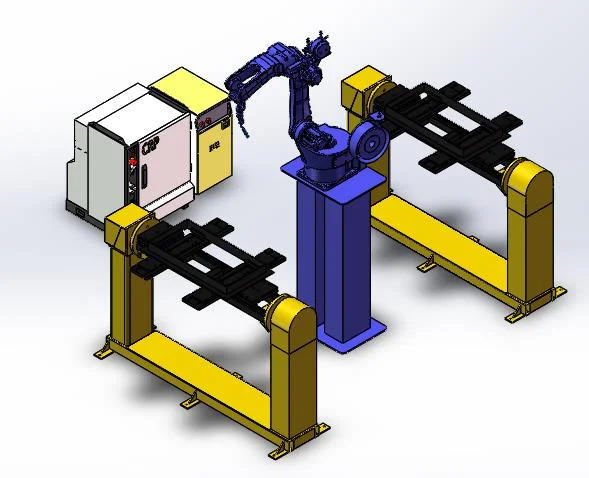

Welding tank along the range: 1400*1000, two positioners.
work process:

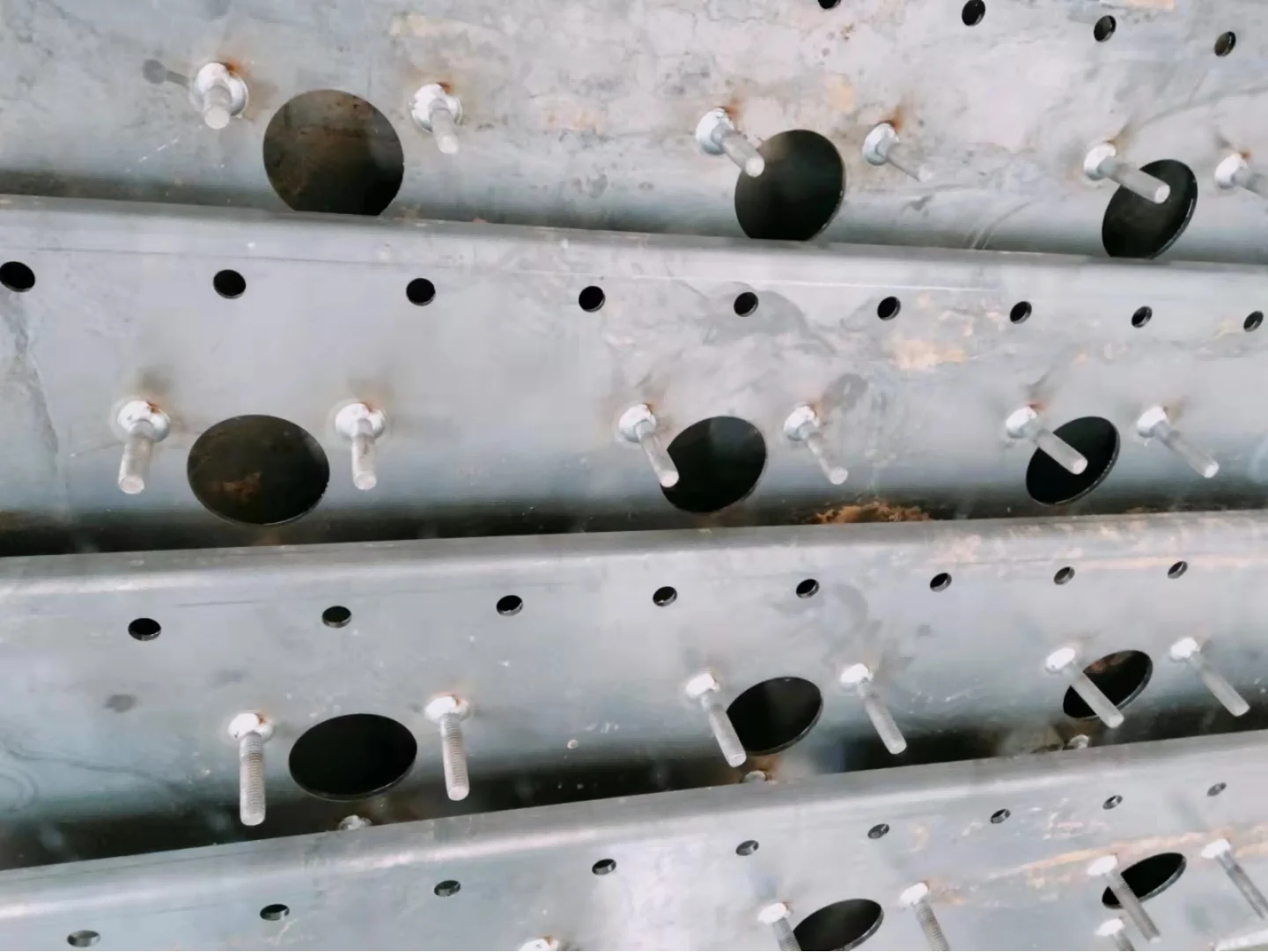

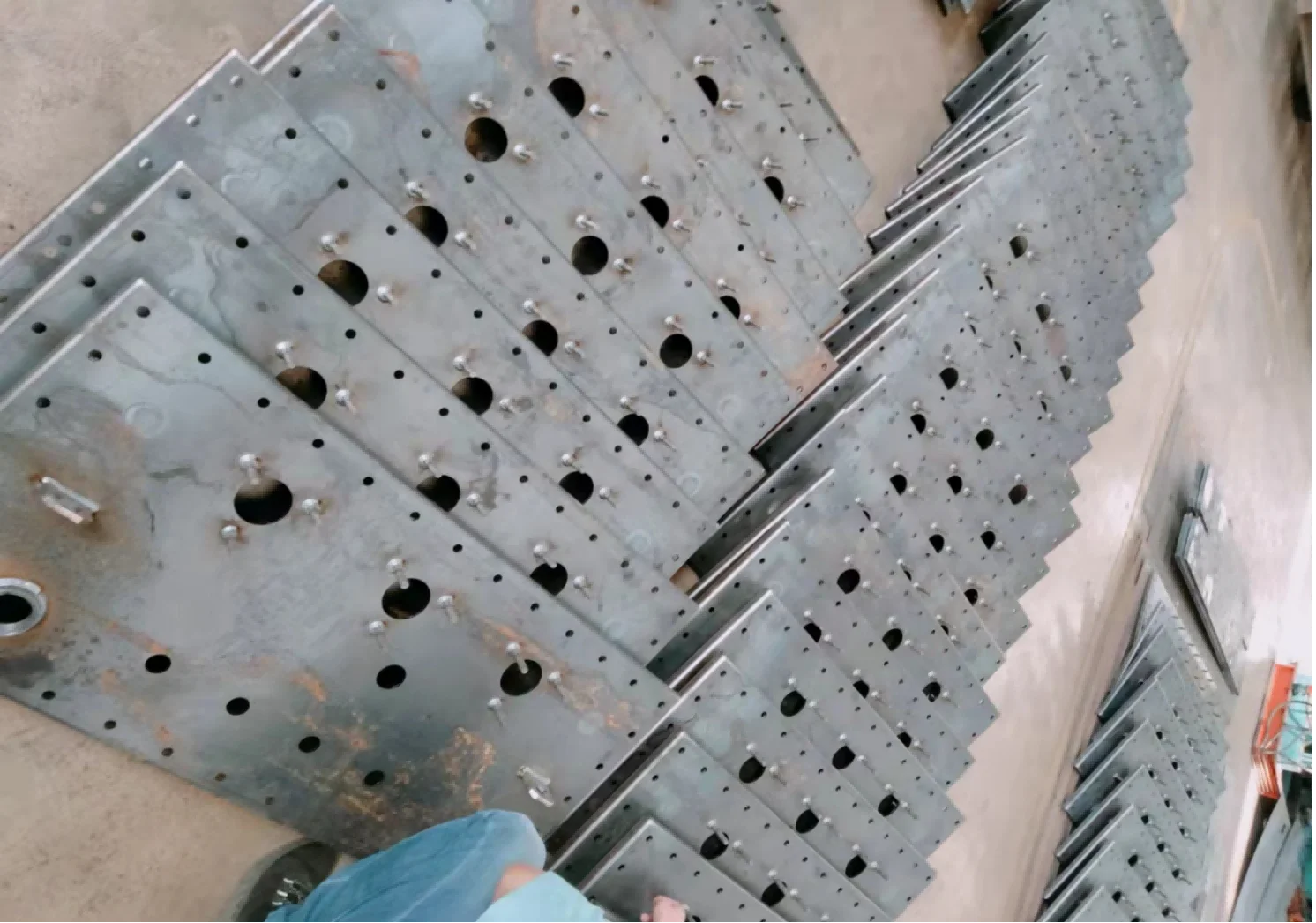

1 Cutting, put the 6-meter angle iron into the profile laser blanking equipment to automatically complete the hole cutting.
2 Manually place the lowered angle iron on the laser-cut box cover tooling for assembly and spot welding, and then place it on the positioning fixture of the positioner, and the robot completes the welding.
3 After welding, finish grinding in the grinding room.
1 Cutting, put the 6-meter angle iron into the profile laser blanking equipment to automatically complete the hole cutting.
2 Manually place the lowered angle iron on the laser-cut box cover tooling for assembly and spot welding, and then place it on the positioning fixture of the positioner, and the robot completes the welding.
3 After welding, finish grinding in the grinding room.
tank along the technological process: blanking→assembly spot welding→pressing→welding→manual grinding
Welding takt time: 7 minutes
Focus on: Most of the profiles are rebuilt from miscellaneous steel, and the welding requirements are very high. We have equipped with a 500P pulse welding machine, which can effectively avoid welding defects such as splashes, pores, and incomplete penetration.
Focus on: Most of the profiles are rebuilt from miscellaneous steel, and the welding requirements are very high. We have equipped with a 500P pulse welding machine, which can effectively avoid welding defects such as splashes, pores, and incomplete penetration.

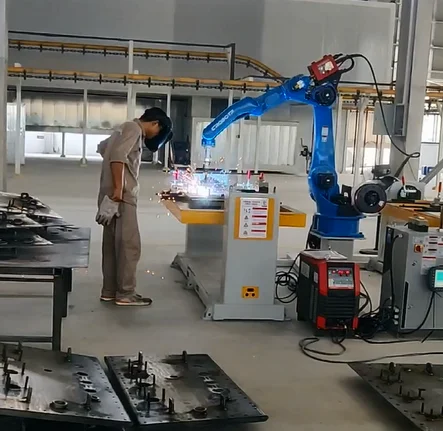

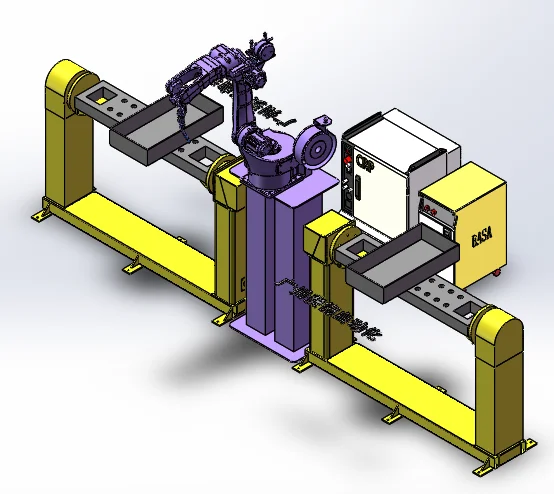

Cover welding workstation
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Process flow of box cover:laser blanking → edge folding → manual spot welding → KBK loading → robot full welding → inspection handover
1.The magnetic isolation plate is welded with stainless steel, and the deformation is very large, so it is not suitable for welding on the positioner.
2.It needs to be welded on a separate platform or manually welded.
2.It needs to be welded on a separate platform or manually welded.
Welding time beat: 10 minutes one
tank bottom process:Laser blanking → bending → assembly spot welding → robot vision positioning full welding
Welding time beat: every 5 minutes at the bottom of the box

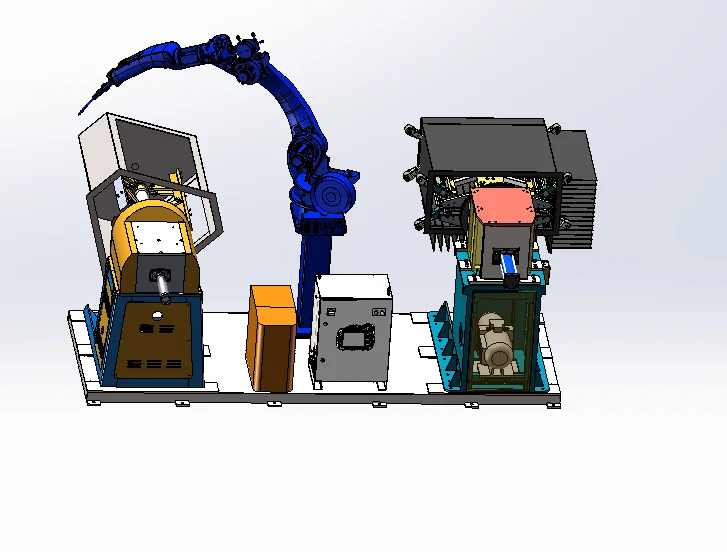

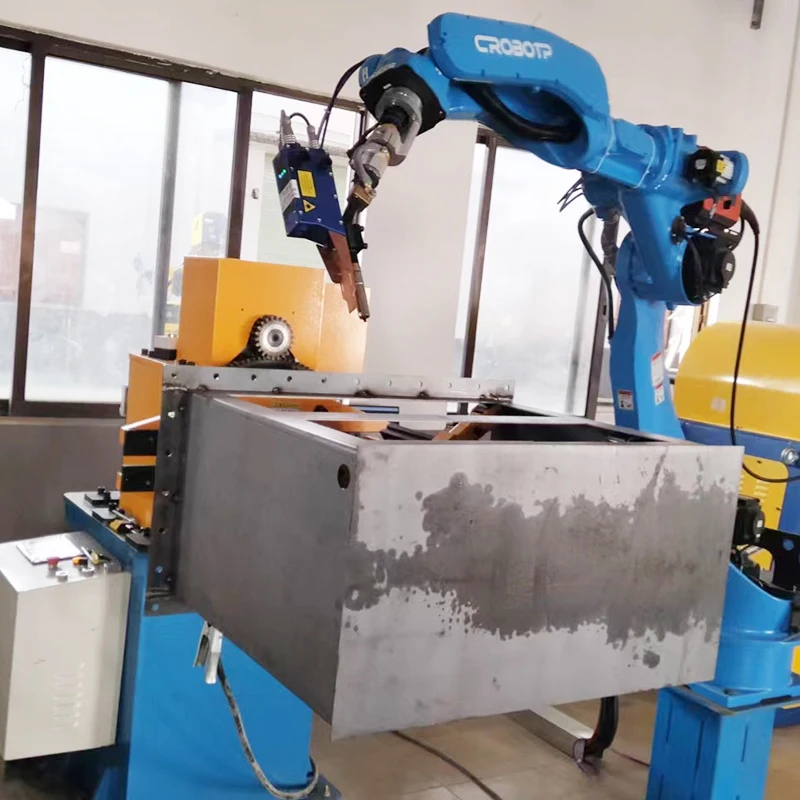

tank corrugated sheet welding workstation below 630KVa (ground assembled corrugated sheet, upper positioner robot welding)

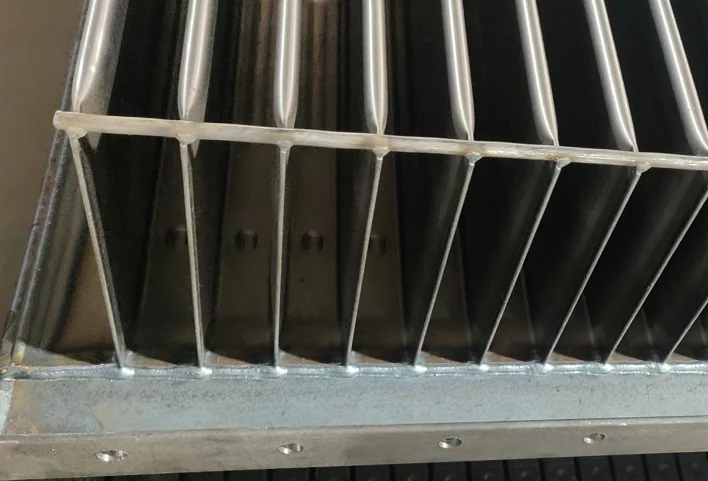

1. Manually assemble the corrugated sheets on the ground, and then put the assembled fuel tank on the positioner, and the robot starts to search for full welding.
2. Core technology: The robot tracks the weld seam in real time, identifies the location of the corrugated sheet, and the robot wraps it to ensure 100% leak-free. However, there may be leaks at the intersection of the welds and the 8 corners, which need to be covered manually.
2. Core technology: The robot tracks the weld seam in real time, identifies the location of the corrugated sheet, and the robot wraps it to ensure 100% leak-free. However, there may be leaks at the intersection of the welds and the 8 corners, which need to be covered manually.
Box process flow:
Corrugated sheet assembly spot welding → robot vision positioning full welding
Welding time beat: 20 minutes for a fuel tank with corrugated sheets on two sides, 40 minutes for a tank with corrugated sheets on four sides
Corrugated sheet assembly spot welding → robot vision positioning full welding
Welding time beat: 20 minutes for a fuel tank with corrugated sheets on two sides, 40 minutes for a tank with corrugated sheets on four sides
Box bottom process:
Laser blanking → bending → assembly spot welding → robot vision positioning full welding
Welding time beat: every 5 minutes at the bottom of the tankk
Welding time beat: every 5 minutes at the bottom of the tankk
Core technology: The robot tracks the weld seam in real time, recognizes the location of the corrugated sheet, and the robot wraps it.
Make sure it is 100% leak-free. However, there may be leaks at the intersection of the welds and the 8 corners, which need to be covered manually.
Make sure it is 100% leak-free. However, there may be leaks at the intersection of the welds and the 8 corners, which need to be covered manually.

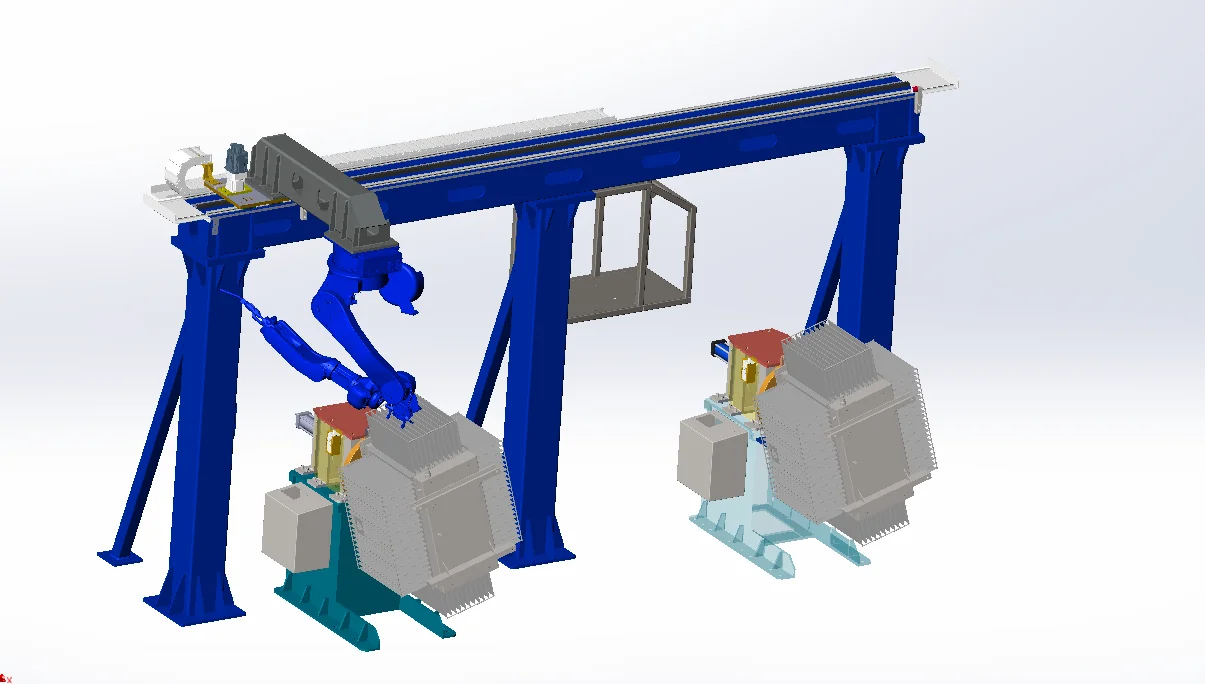

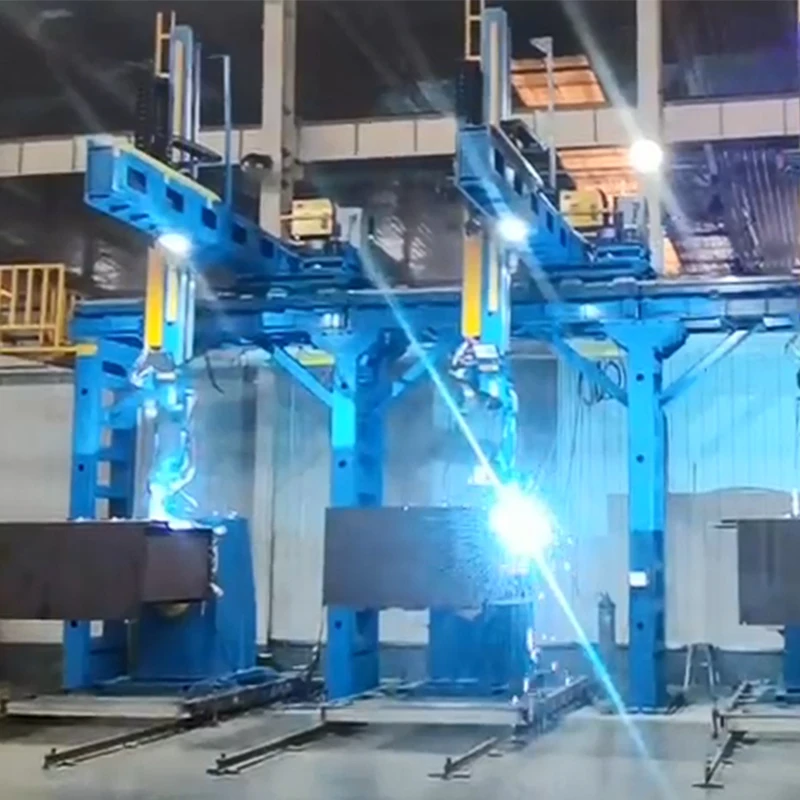

630KVa-2500KVA box corrugated sheet welding workstation (corrugated sheets can be assembled on the positioner)
Corrugated sheet assembly spot welding → robot vision positioning full welding
Welding time beat: 60-120 minutes for a large fuel tank For larger fuel tanks, a large positioner and gantry are required. The fuel tank can be assembled and welded on the positioner.
Welding time beat: 60-120 minutes for a large fuel tank For larger fuel tanks, a large positioner and gantry are required. The fuel tank can be assembled and welded on the positioner.
Product Description
Specification
item | value |
Dimension(L*W*H) | 1560*600*1220 |
Product name | TL-340 Winding Machine for Cartridge Heater |
Power Supply | single phase AC 220+/-10% 50hz. |
Power | 300W |
MgO rod diameter | ≤21mm |
MgO rod length | 60 to 800mm |
Dimension | 1560*600*1220mm |
