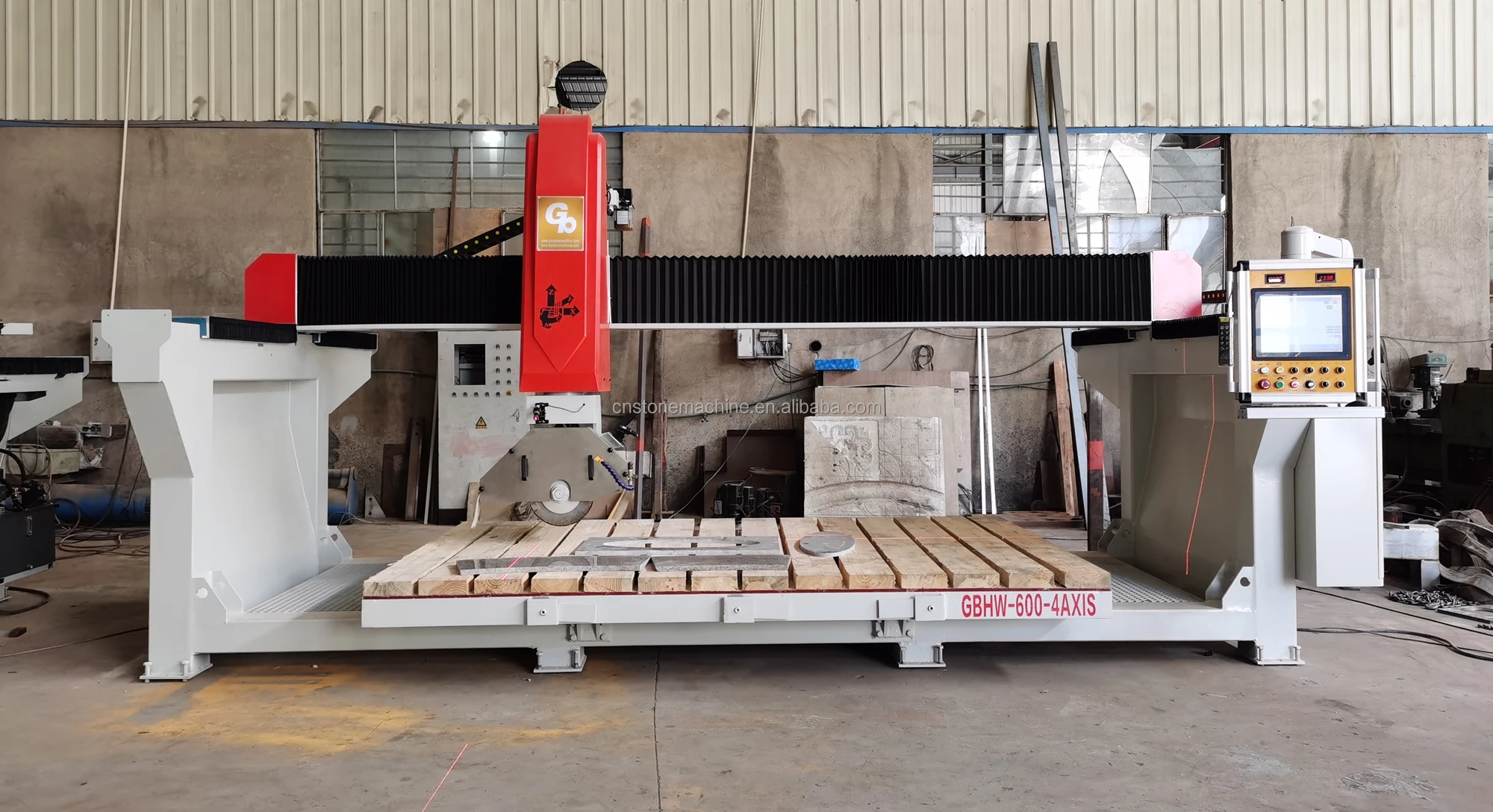

4 axis Bridge saw cnc Cutting Machine 45 degree miter cutter for marble granite bridge saw cnc
- Category: >>>
- Supplier: Xiamen Great Base Co. Ltd.
Share on (1600919002226):
Product Overview
Description
Product Description
Features:
1. This is 4axis bridge saw, adopts touch screen, new designed Chinese control system, easy for operation.

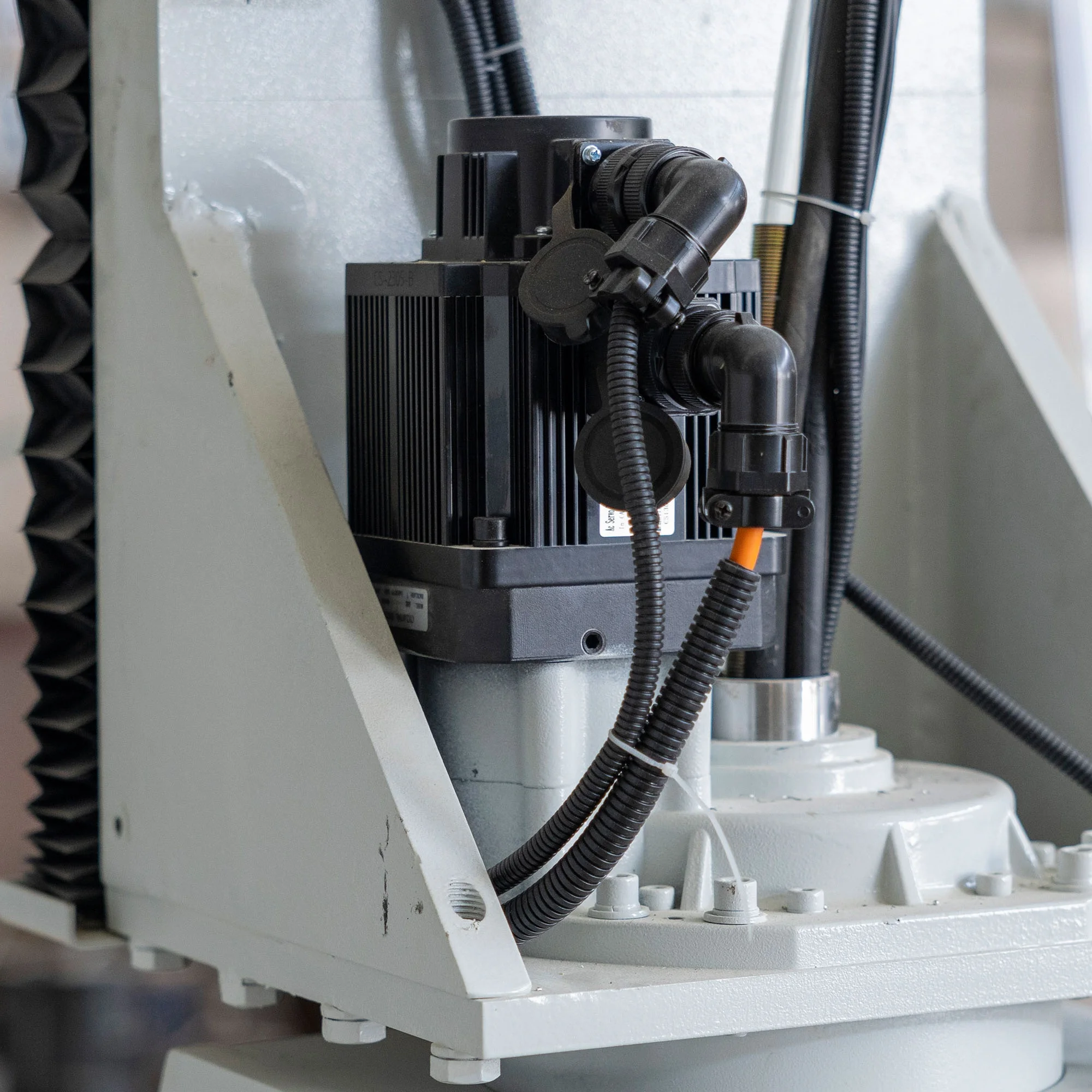

2. Its cutter head can rotate 360 degree by servo motor and tilt 45 degree by hydraulic cylinder.
3. It can do straight cuting, curve cutting, profiling and so on.
4. It can add 7.5kw engraving splindle to realize engraving and sinks corner cutting function.
Engraving spindle with high speed for engraving or sinks corner cutting

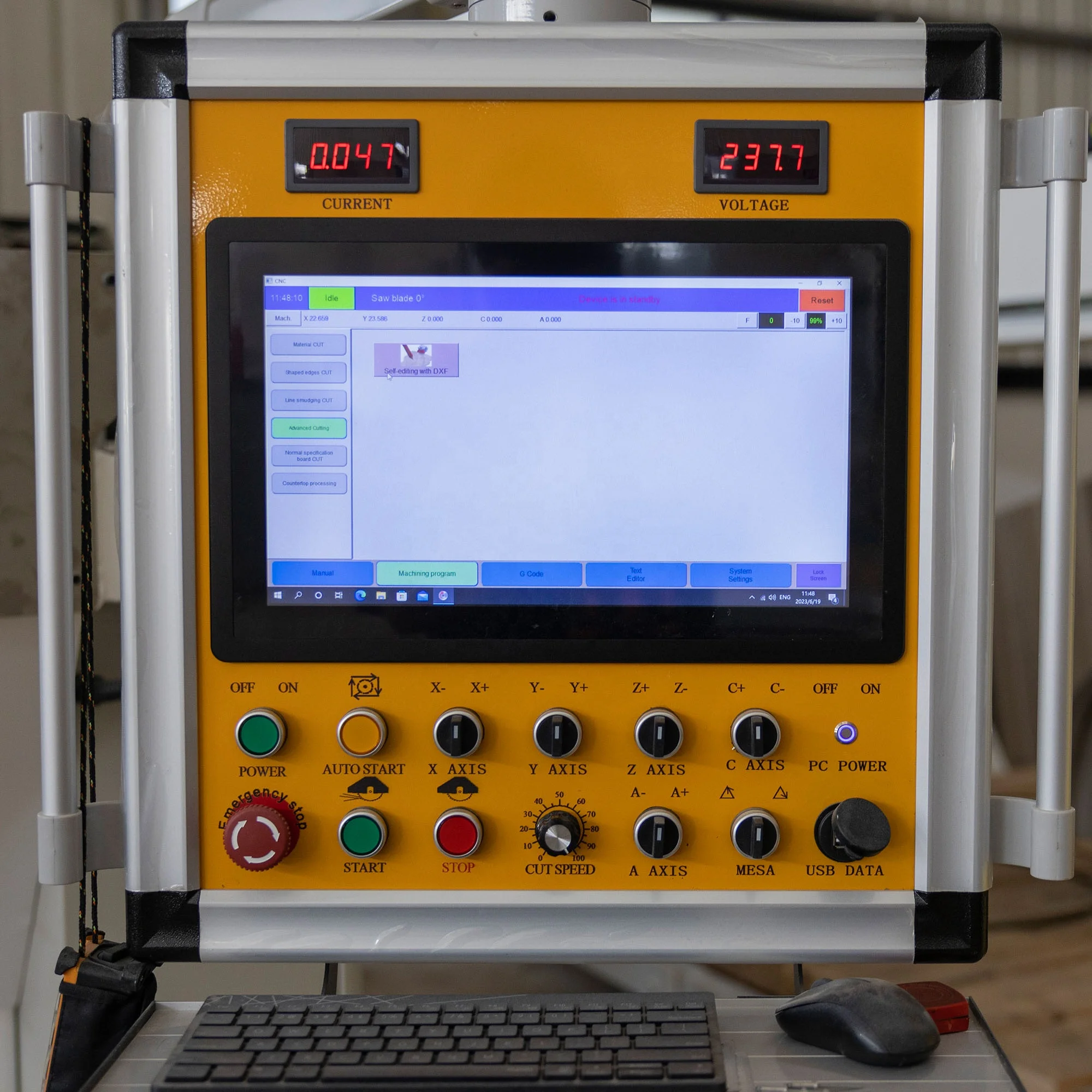

Operation screen: You can choose the shape that you want to cut and then input your size.

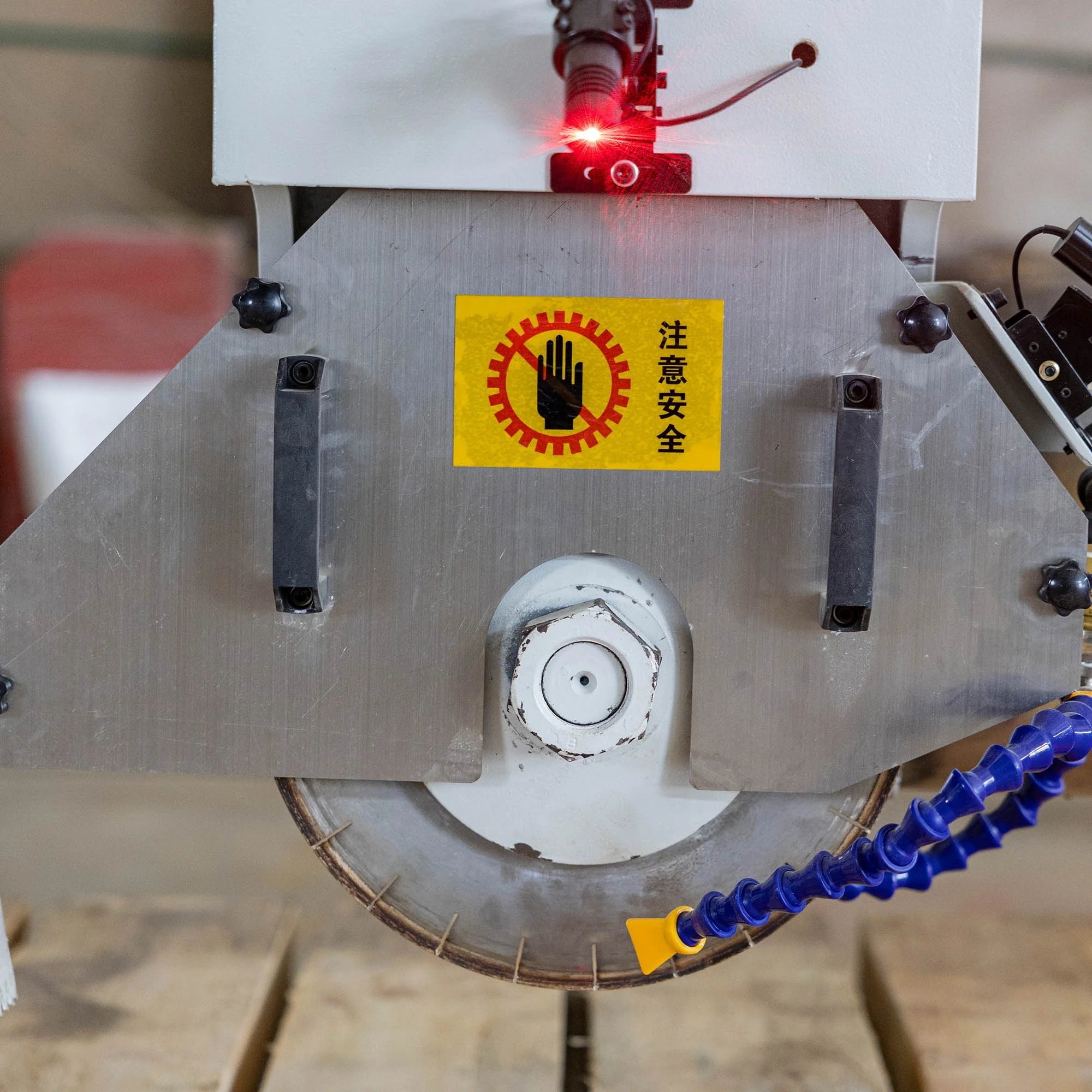

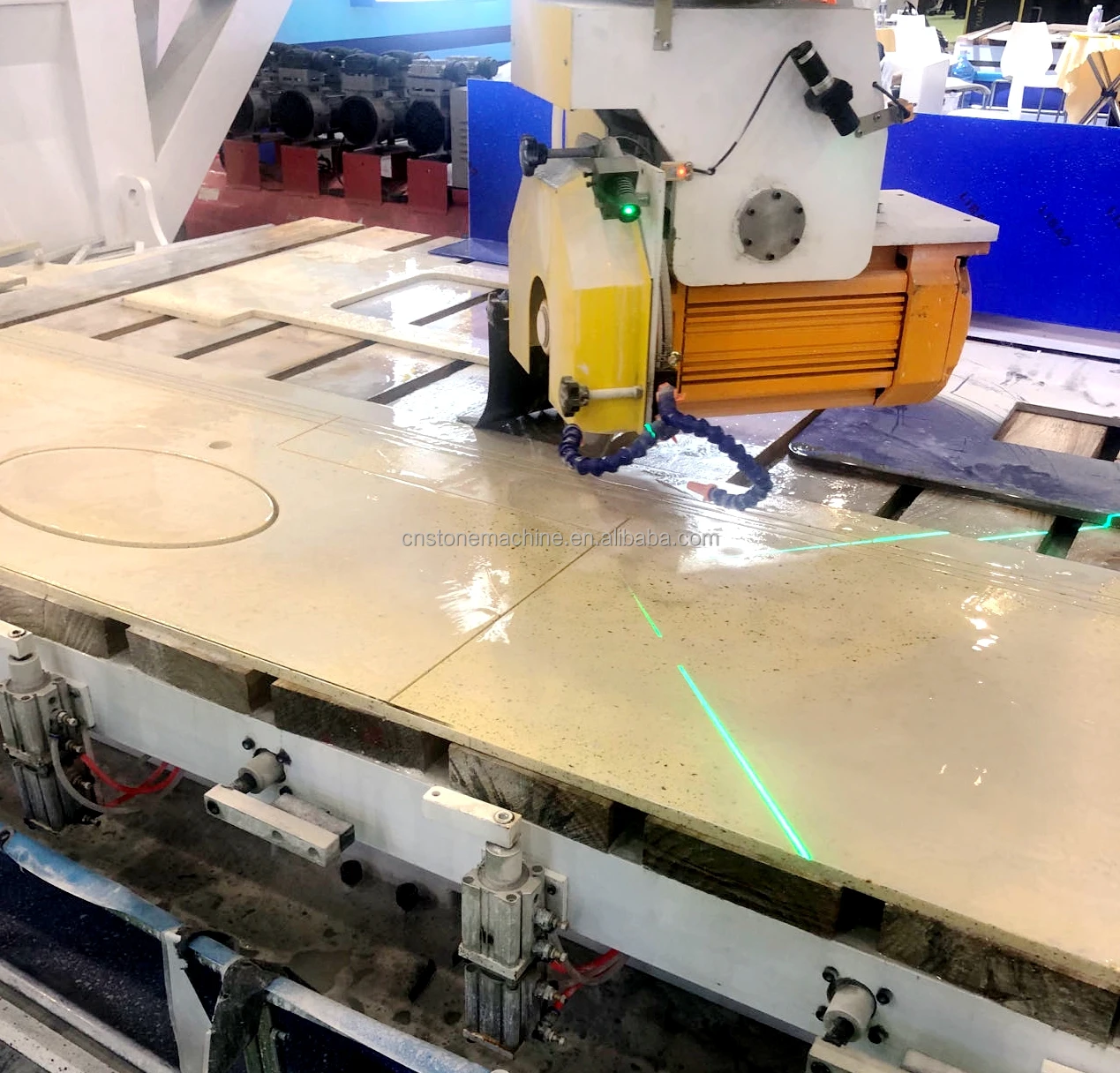

Two lasers in the head to improve the cutting precision.

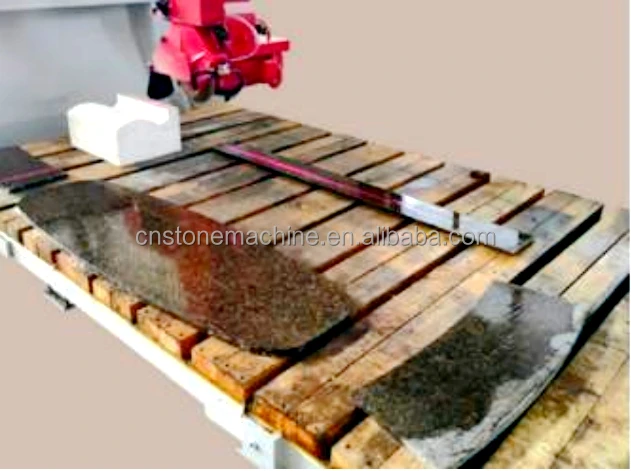

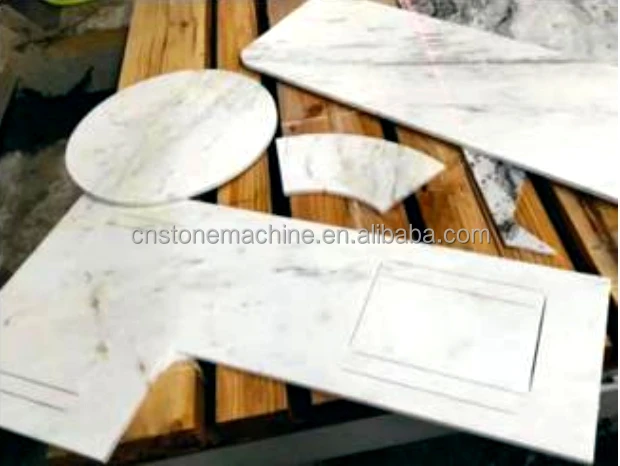

Cutting projects:
Specification
Name | Unit | GBHW-400-4AXIS | GBHW-600-4AXIS | |
Saw blade size | mm | 400 | 600 | |
Blade tilting degree | ° | 0-360° horizontally rotating by servo motor; tilting 0-45° by hydraulic cylinder | ||
Table tilting degree | ° | 0-85° | ||
Table rotation degree | ° | Table do not rotate, just tilting max. 85° to receive slab | ||
Table size | mm | 3200*2000 (Bigger size can be ordered) | ||
Max. cutting size | mm | 3200*2000*80 | 3200*2000*180 | |
Up/down stroke | mm | 300 | 380 | |
Main motor | kw | 18.5 | 22 | |
Dimension | mm | 5500*3250*3100 | 5500*3250*3300 | |
Total weight | kg | 4000 | 4500 | |

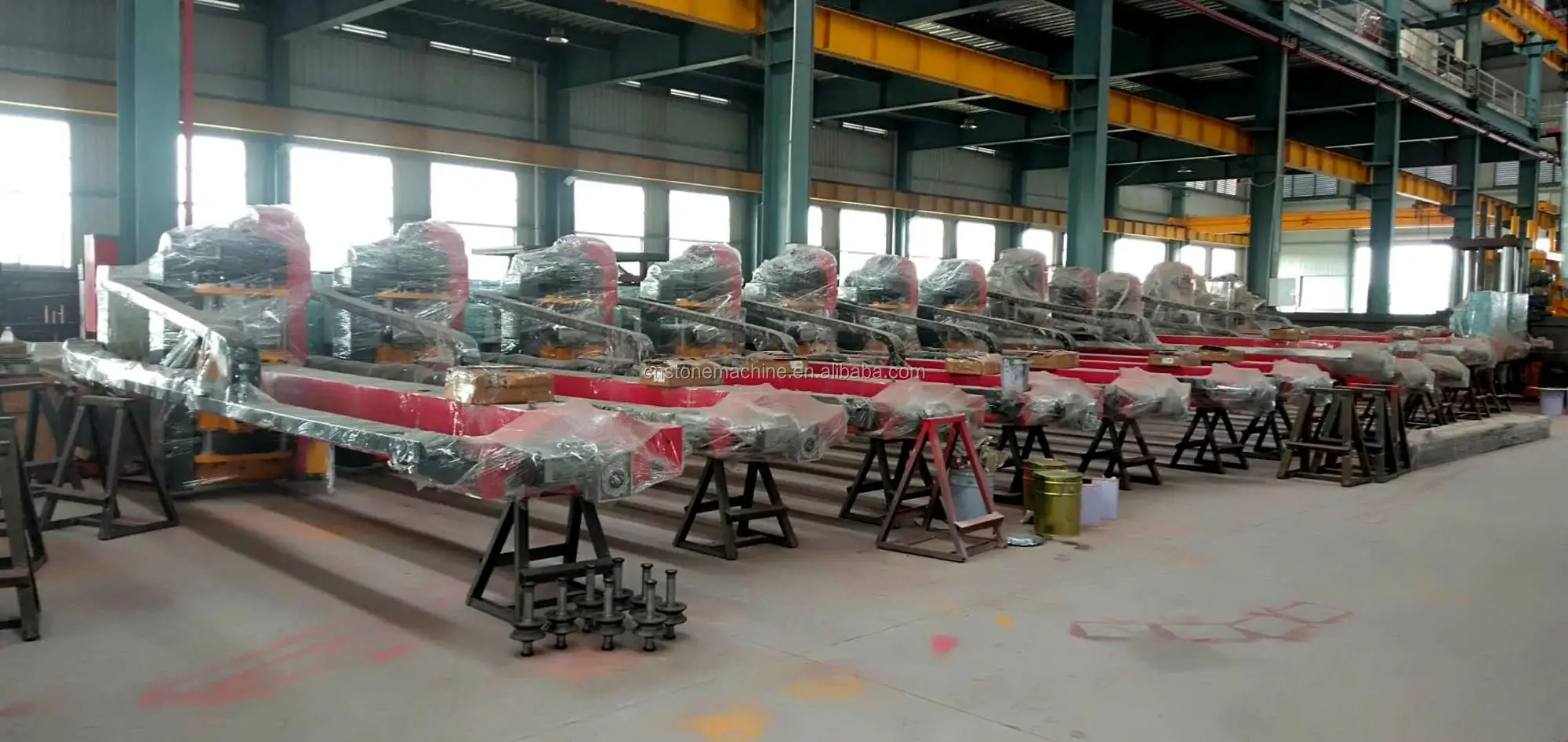

Packing & Delivery

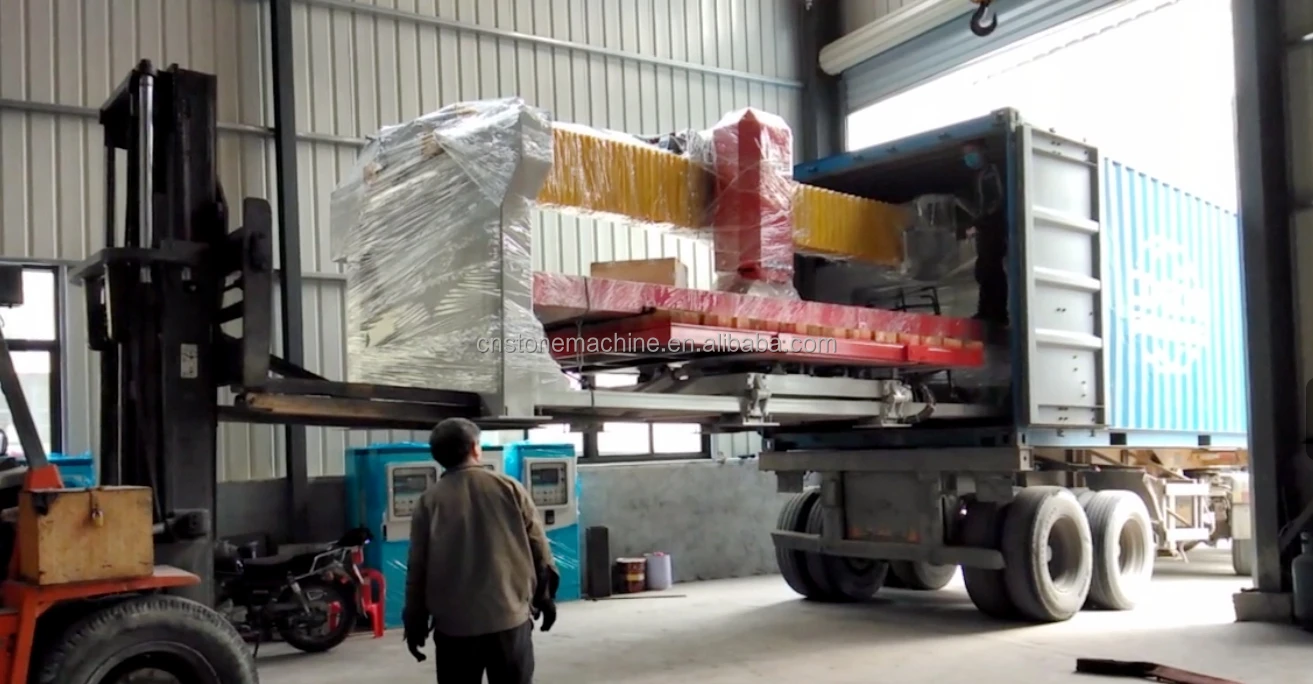

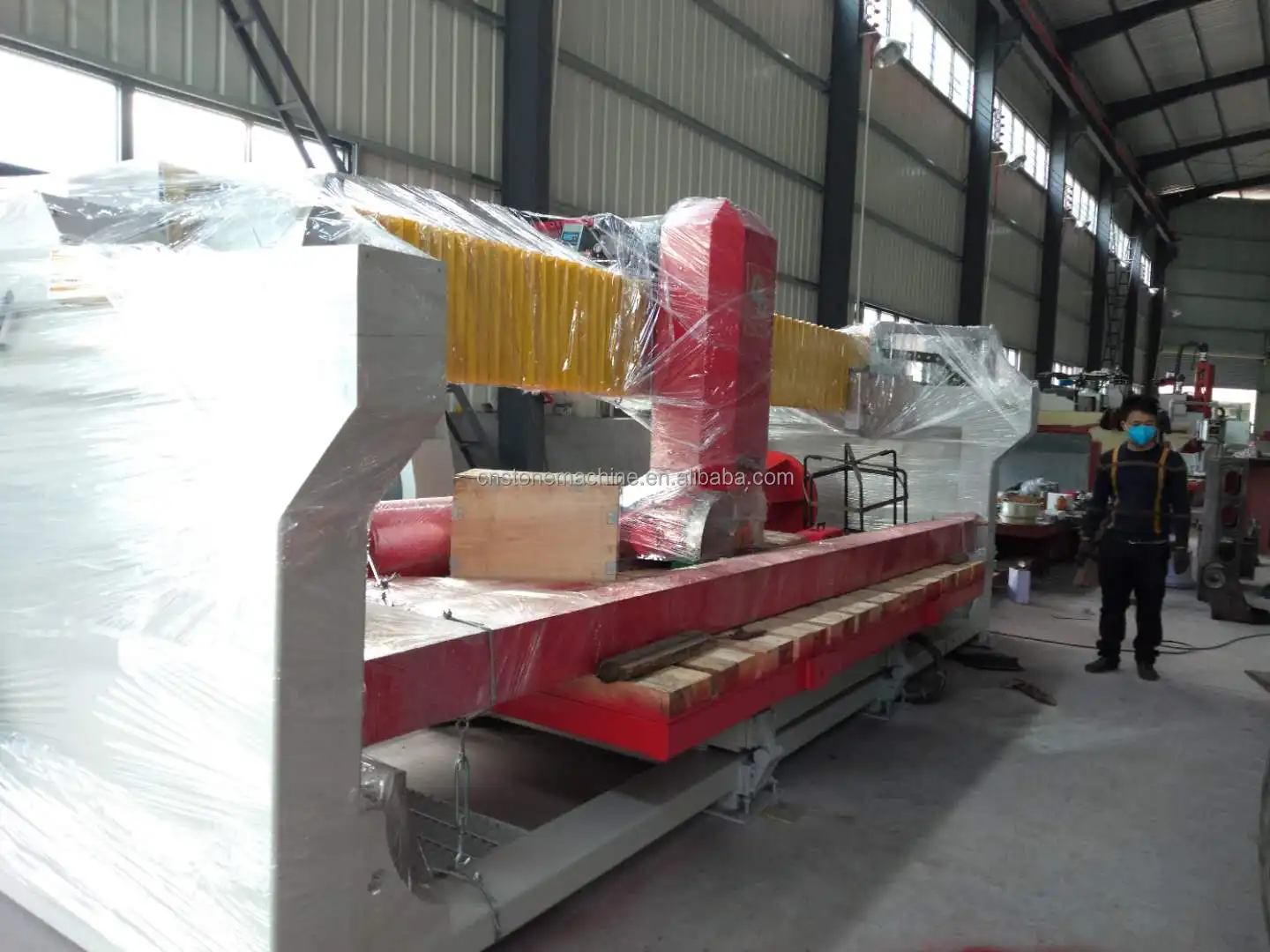

Suitable package for long distance transportation

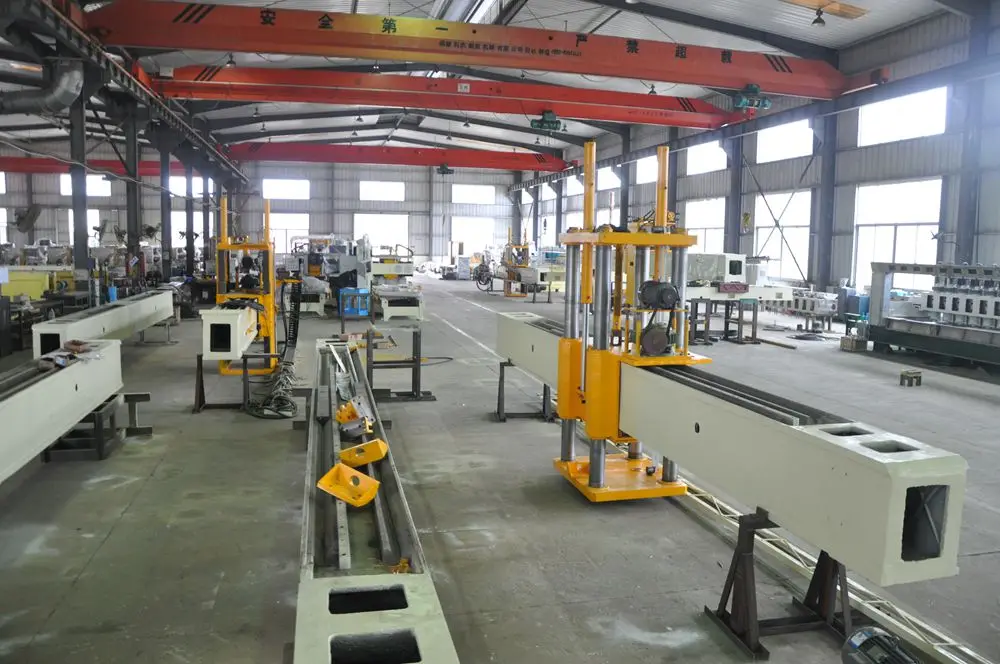

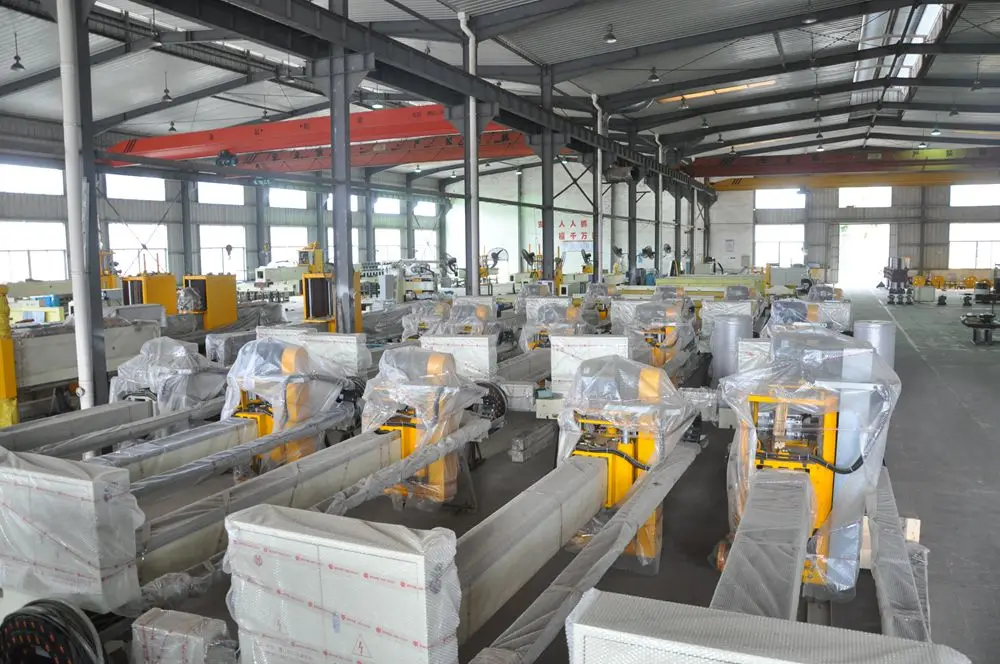

Company Profile
Great Base, was founded by a experienced and professional team, all the members are the export in Chinese Stone Machinery Industry,Diamond Tools Industry, Stone Industry.
Though Great Base is very young ,she is rapidly becoming known as a professional and reliable company within the Stone Industry of China and abroad.
The Head Office of Great Base is located in Xiamen known as today's "Capital of the international market for natural stone".Great Base is primarily a management with technical expertise ,providing services and supervision to make sure that client's interests are fully protected. Thanks to our efforts, we have created a solid link between China's stone processing industry (including stone machinery, stone, diamond tools) and the global market.
All the members have been working and studying China's stone processing industry for many years, so we can recommend the best and most suitable type Chinese stone machinery ,Chinese diamond tools and stone, with high quality and competitive price to meet our clients need.
Great Base, your best friend.
Though Great Base is very young ,she is rapidly becoming known as a professional and reliable company within the Stone Industry of China and abroad.
The Head Office of Great Base is located in Xiamen known as today's "Capital of the international market for natural stone".Great Base is primarily a management with technical expertise ,providing services and supervision to make sure that client's interests are fully protected. Thanks to our efforts, we have created a solid link between China's stone processing industry (including stone machinery, stone, diamond tools) and the global market.
All the members have been working and studying China's stone processing industry for many years, so we can recommend the best and most suitable type Chinese stone machinery ,Chinese diamond tools and stone, with high quality and competitive price to meet our clients need.
Great Base, your best friend.
