gypsum board machine/gypsum board making machines
US $7500-$12000
Partition wall structure Furring Channel Ceiling Span Tables roll forming machine
- Category: >>>
- Supplier: Bazhou Chenglang Keel Equipment Co. Ltd
Share on (1600919271805):
Product Overview
Description
Partition wall structure Furring Channel Ceiling Span Tables roll forming machine
Product Description
Gypsum Board Metal Steel Profiles Channel Making Machine ‘s Product Application
Machine's introductionManufacturer Drywall Material Channel Roll Forming Machine

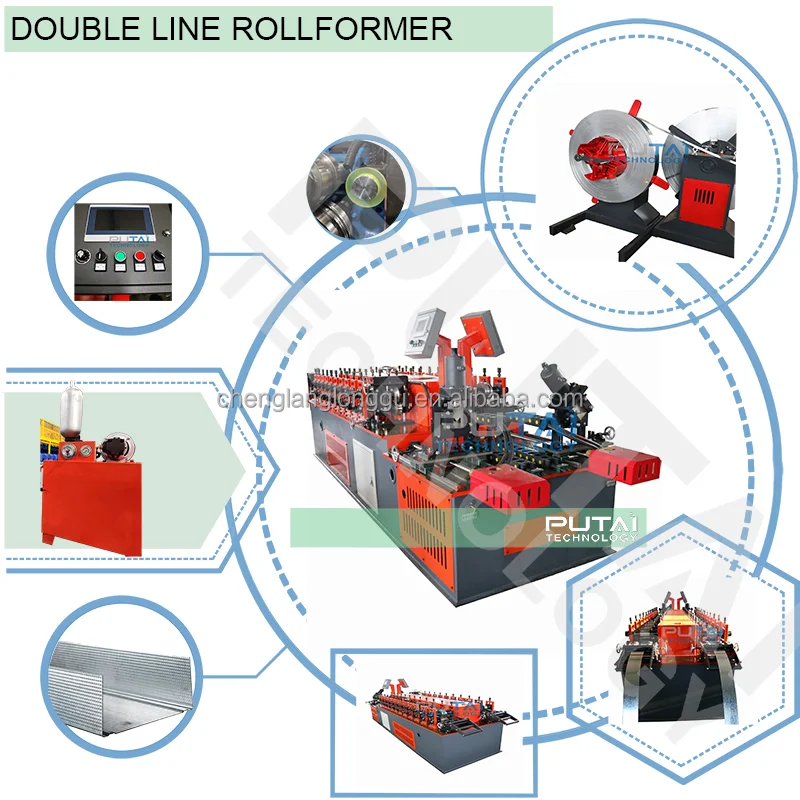

1.the main parts:
1) roll forming machine
2)molding press
3)cutting machine
4)PLC computer control
5)hydraulic system.
2.\tThe machine is stable,no noise,no shake.
3.\tControlling by computer, PLC display, operation is easy, running is steady and reliable,endurable
4.\tcutting machine is characterized by stable driving, easy operation.
5.\thydraulic system use hydraulic pump, long operating life,no noise.
6.\tmaterial: galvanized,colored steel or aluminum coil
7.\tWe can make and design the kinds of roll forming machine according to customer's request.
Specifications for Gypsum Board Metal Steel Profiles Channel Making Machine | ||||||
Manual Un-coiler | Max Capacity: 5000kgs | |||||
Inner diameter of coil:400-600mm | ||||||
Manual with brake | ||||||
Leveling Device | Ensure the material level and straight | |||||
The width can be adjusted | ||||||
Main Forming System | Width & Height & Thickness of sheet: According to Drawings | |||||
Material: GI sheet coil or Colored sheet coil | ||||||
Motor Power: 5.5 kw forming system | ||||||
Roller material:Cr12 | ||||||
Surface of Roller: Heat treatment HRC 58-60 | ||||||
Diameter of main shaft: 60mm #45 steel, heat treat modulation | ||||||
Forming station: 12 stations. | ||||||
Transmission: by chain and gear | ||||||
Measuring accuracy: +/- 0.5 mm/M. | ||||||
Arch middle plate: 30mm thickness. | ||||||
Output: 8-10 Tons per shift (8 hrs.). | ||||||
The machine base is assembled and welded by high quality steel. | ||||||

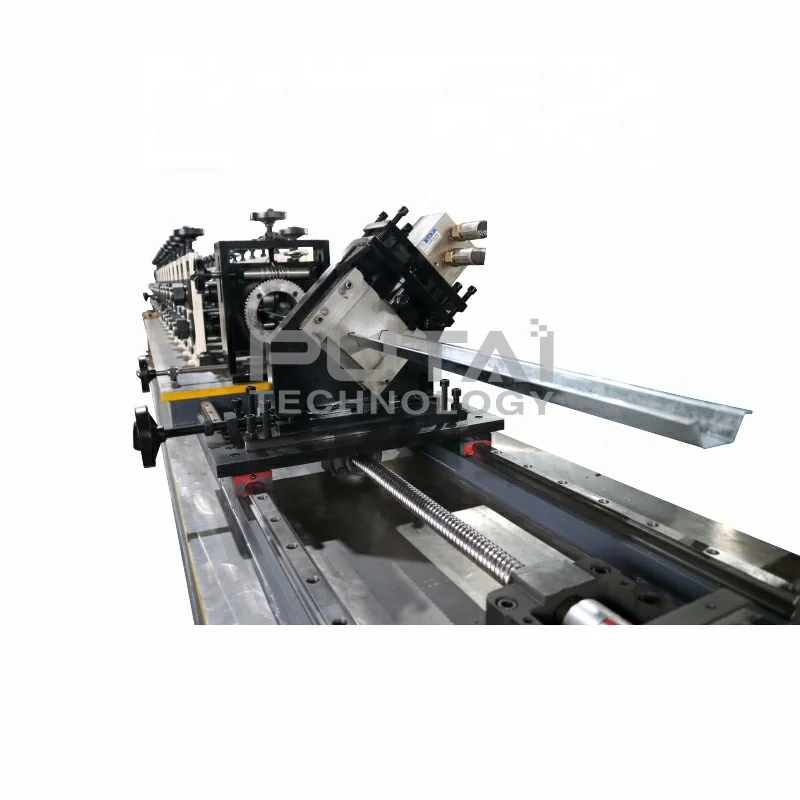

Cutting way: Tracking. | ||||||
Oil pump station: 1set | ||||||
Motor power of Oil pump station: 7.5kw with cooling system | ||||||
Forced air cooling device available. | ||||||
Cutting mould: 1 sets | ||||||
Material of blade: Cr12 with heat treatment HRC60-62. | ||||||
Electrical System | Control system: HMI & PLC control panel | |||||
Power: 380V 50Hz (as per local requirement) | ||||||
Run-out Table | Frame: A3 | |||||
Roller type | ||||||
Quantity: 1 pc | ||||||
Gypsum Board Metal Steel Profiles Channel Making Machine 's Main Features
1.Professional: rich experience in product and export process!
2.Low price:Save your money from every part!
a.Low labor cost
b.Convenient transportation;
c. Complete supporting industries
3.PLC: Ensuring high accuracy and easy to operate!
4.Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine automatically produce the product you need!
Detailed Images

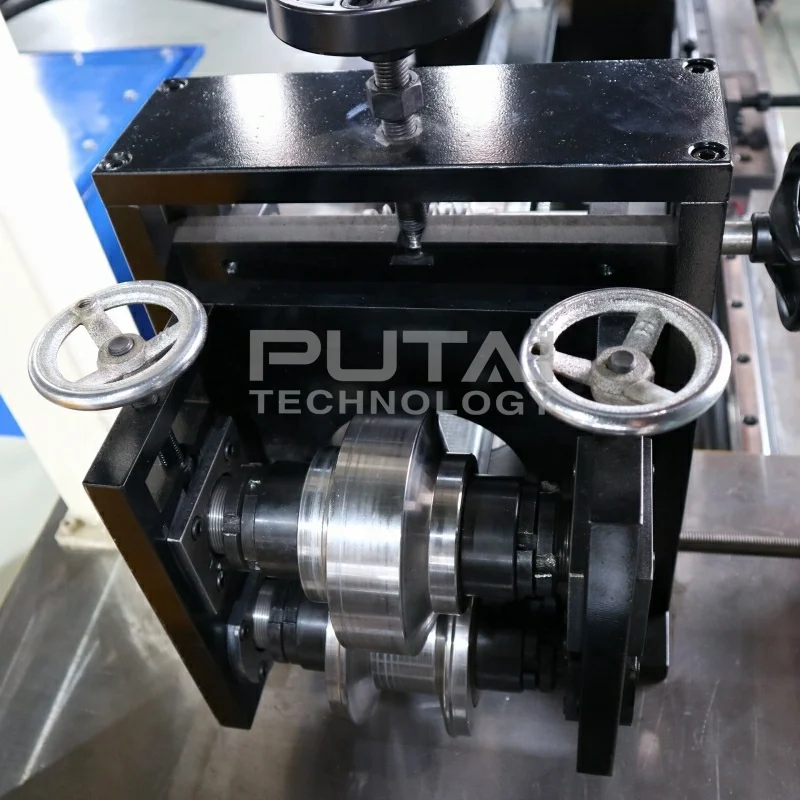

Gypsum Board Metal Steel Profiles Channel Making Machine 's Feeding and Leveling Device
Name: feeding and leveling device
It used for making the material flat before feeding into the roll forming machine
2 rollers(1 upper and 1 lower)
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Product Description

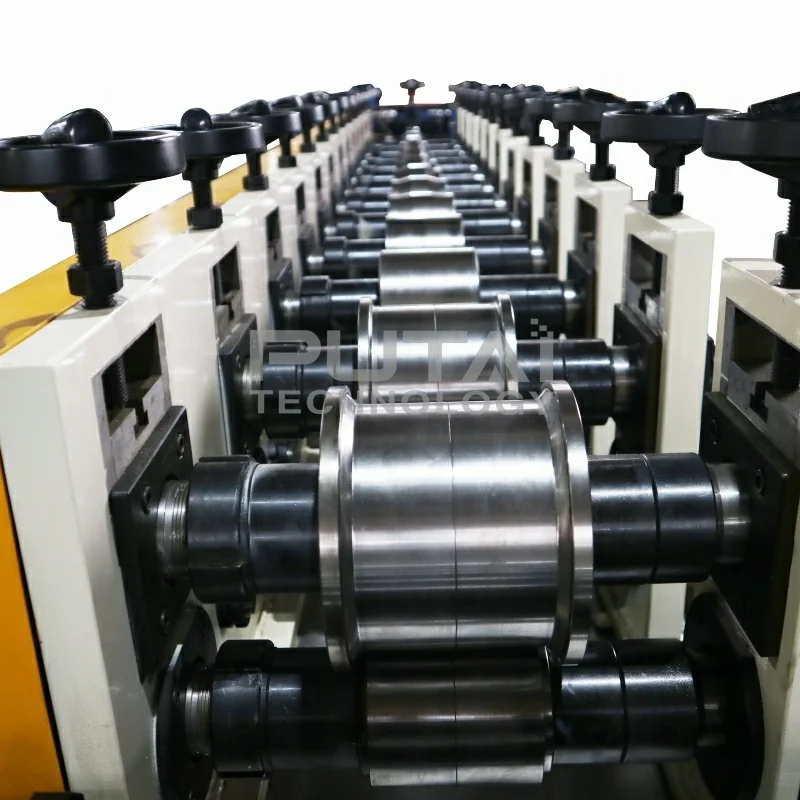

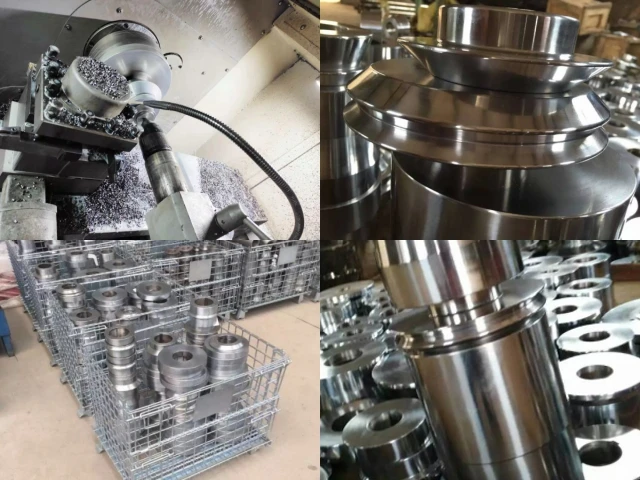

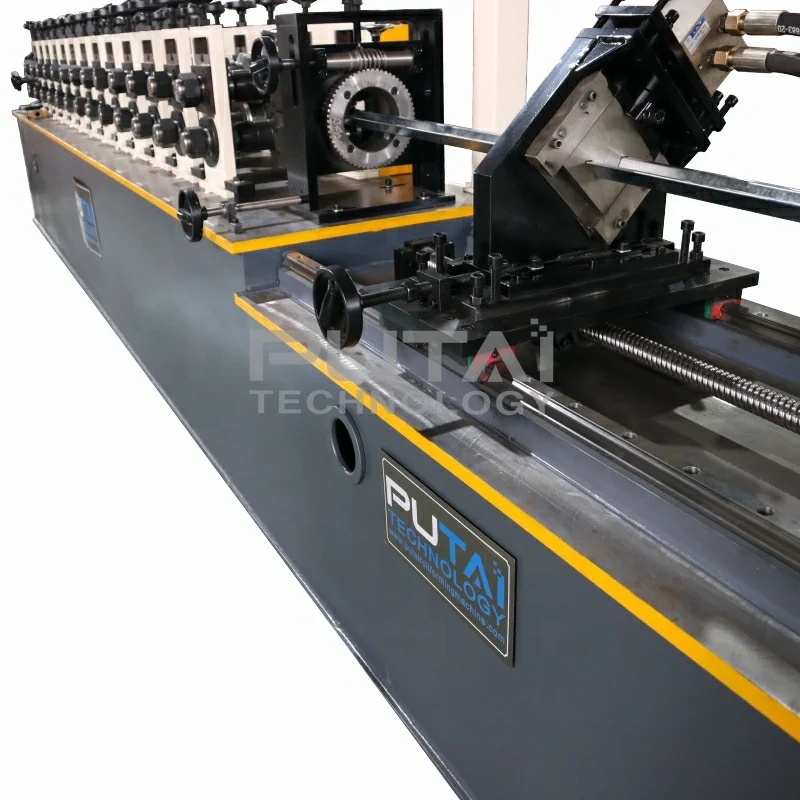

roll forming machine
a.Material:high grade 45# forged steel
b.Surface 0.05mm hard chrome coating
c.Polishing
d.Longer service life
Related Products

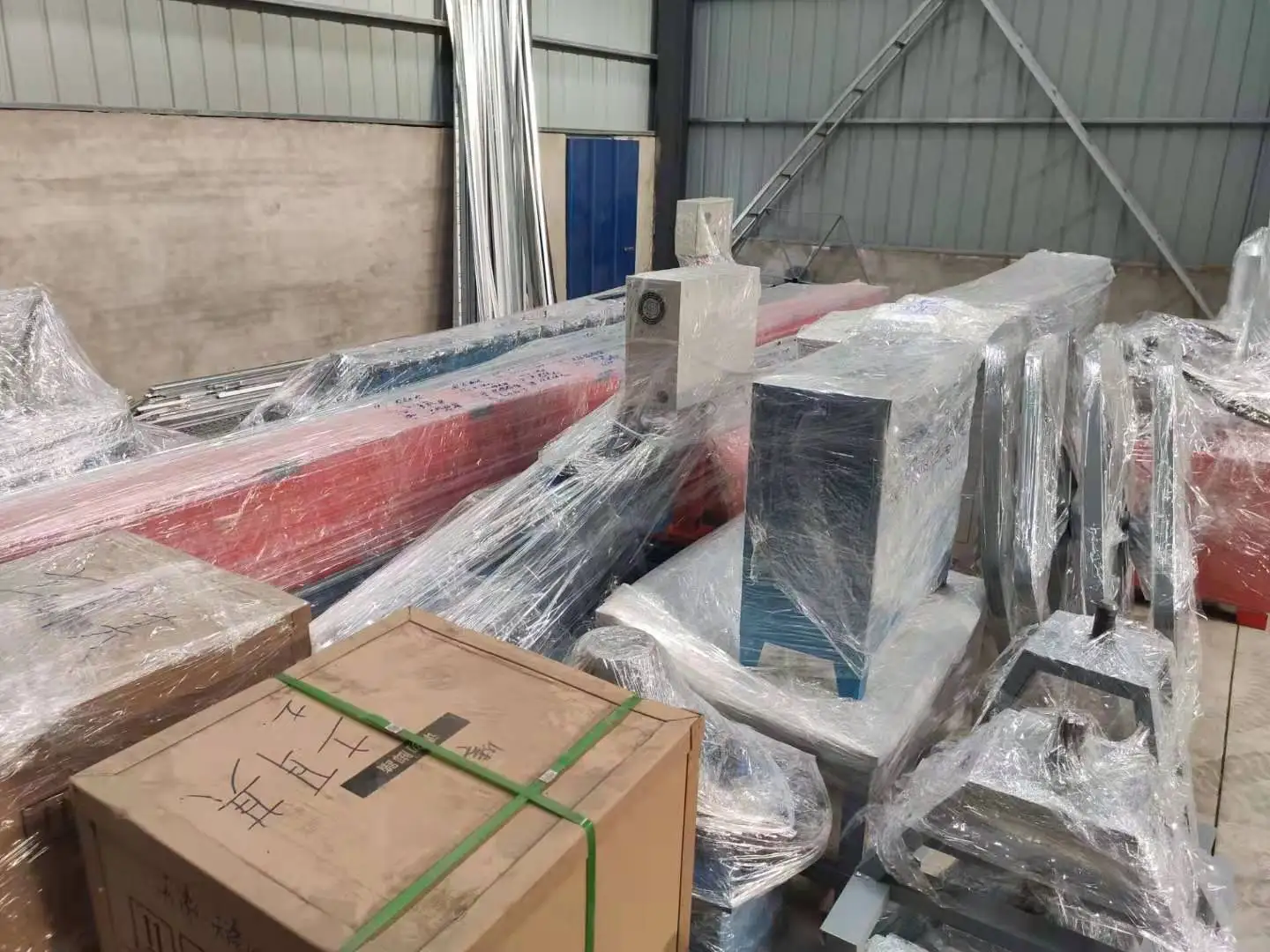

Packing&Shipping
1). Tighten to container with steel wire rope and welded machine with container by angel iron
2). Main forming machine and
un-coiler is naked(If you need we can also packed with water-proof plastic)
3). PLC contral system and motor pump are packed in
box with water proof paper coverage
box with water proof paper coverage
Transported By 40ft container

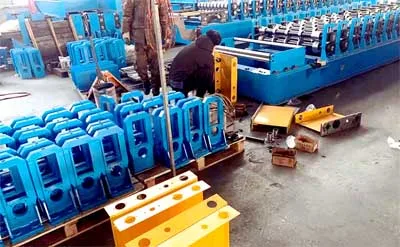

Company Introduction

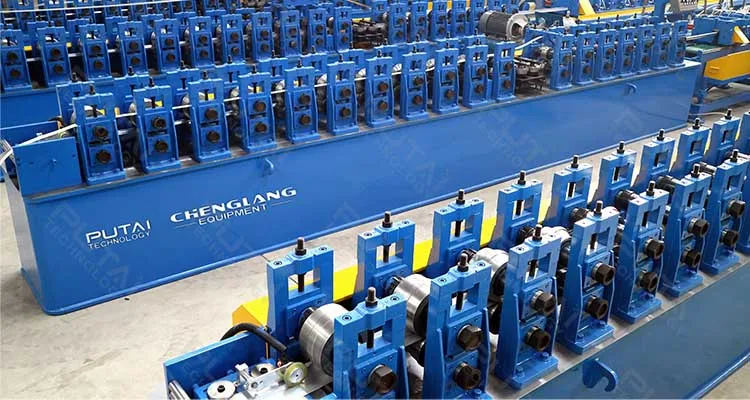

Our company Bazhou chenglang factory and Putai company(Tianjin Branch) is a professional cold roll forming machine manufacturer,we have been focusing on this field for 23 years. Our equipment includes roof forming machine, floor deck machine, automatic hydraulic uncoiler machine, shutter door coiling machine, light keel cold roll forming machine,stud and track C Z U forming machine, whole equalizer machine and other related construction equipment. With more than 22 years of engineering and design research and develop team. We have two patents for independently developed machine .At the same time, our machines use brand electrical components, raw materials from brand steel mills, strict process
control, two year warranty, installation and training services. Our customers all over the world, such as Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi
Arabia, South Korea, South Africa, Kenya and other 65 countries and regions. We have rich experience in different country needs such as profiles, thickness ranges, use, installation etc.
Company tenet: technological innovation, customer - centered, win-win. Thank you for your trust and choice, we will provide you with the best service support, help you achieve greater success.
We look forward to more cooperation with old and new friends from all over the world!
control, two year warranty, installation and training services. Our customers all over the world, such as Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi
Arabia, South Korea, South Africa, Kenya and other 65 countries and regions. We have rich experience in different country needs such as profiles, thickness ranges, use, installation etc.
Company tenet: technological innovation, customer - centered, win-win. Thank you for your trust and choice, we will provide you with the best service support, help you achieve greater success.
We look forward to more cooperation with old and new friends from all over the world!
FAQ
1-Are you manufacturer or trading company?
Yes, and we have more than 33 years of the cold roll forming machine
2-Can the machine parts be changed according to my requirements?
Yes, we will try our best to give you the best products.
3-What is your payment term?
30% T/T deposit paid in advance, 70% balance paid before shipping.
4-What is the delivery time?
About 35days after receive the deposit.
5- How can I get to your factory？
We could pick you up in airport or high speed rail station. The nearest airport is Beijing Daxing airport or Tianjin airport, and the nearest station is Bazhou or Shengfang station,please contact us.
6- What service can you provide before order?
About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
Yes, and we have more than 33 years of the cold roll forming machine
2-Can the machine parts be changed according to my requirements?
Yes, we will try our best to give you the best products.
3-What is your payment term?
30% T/T deposit paid in advance, 70% balance paid before shipping.
4-What is the delivery time?
About 35days after receive the deposit.
5- How can I get to your factory？
We could pick you up in airport or high speed rail station. The nearest airport is Beijing Daxing airport or Tianjin airport, and the nearest station is Bazhou or Shengfang station,please contact us.
6- What service can you provide before order?
About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
7- Can you finish the machine during the delivery time?
We will finish the machine in time according to determined lead time
8- Can you provide some spare parts?
Yes. The quick-wear parts are sent to you together with the roll forming machine
We will finish the machine in time according to determined lead time
8- Can you provide some spare parts?
Yes. The quick-wear parts are sent to you together with the roll forming machine
