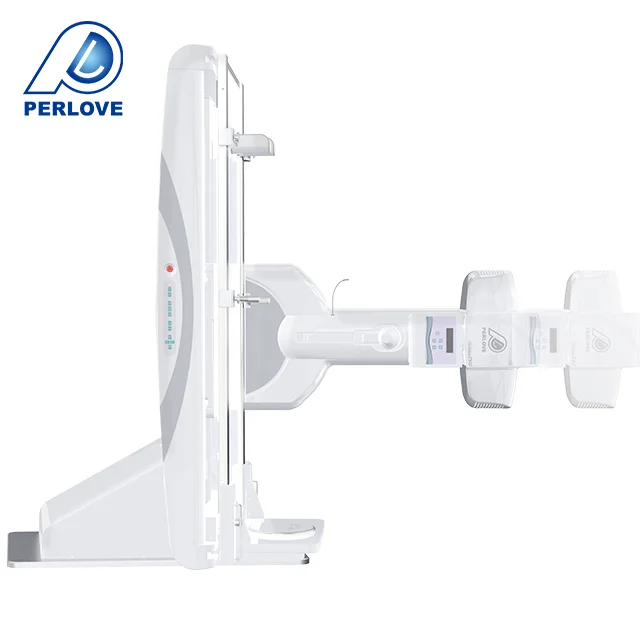

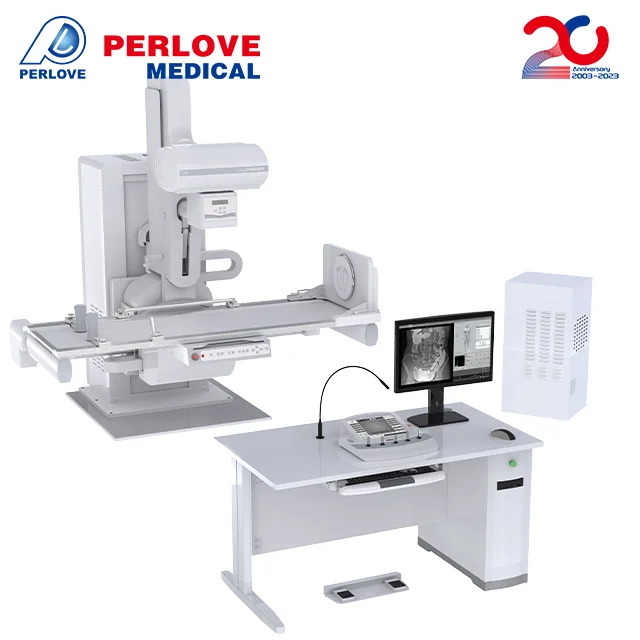

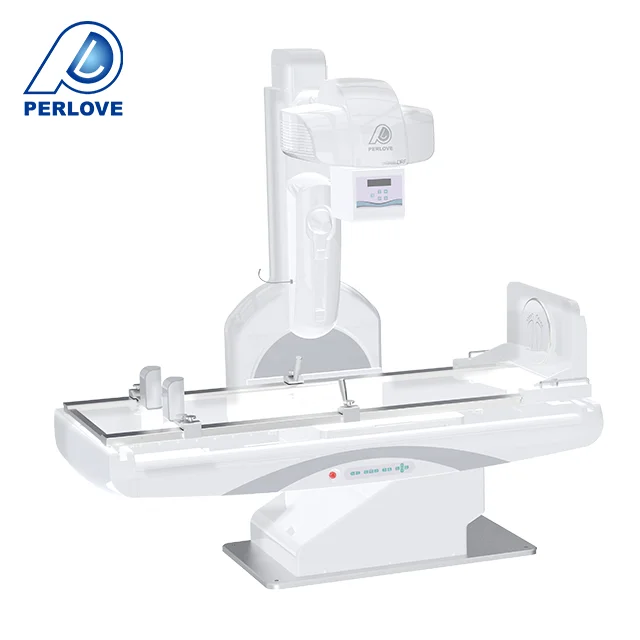

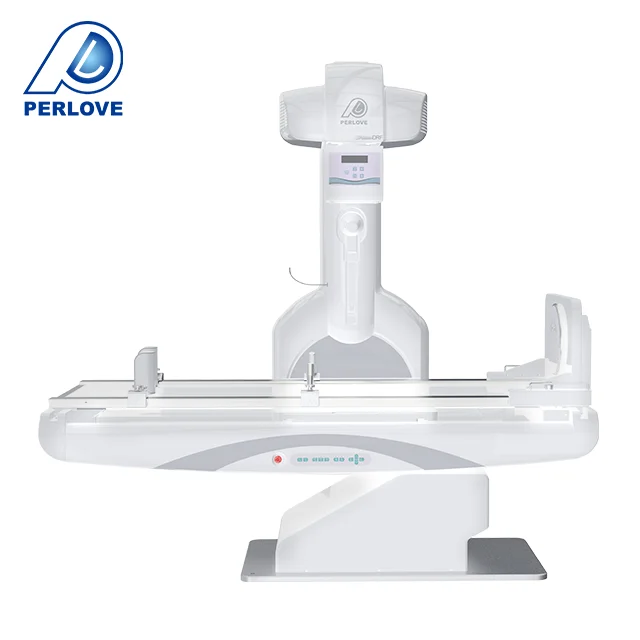

Perlove Medical Direct Sales PLD9600B DRF series High Frequency Digital Medical Diagnostic x ray Machine manufacturers china
- Category: >>>
- Supplier: Nanjing Perlove Medical Equipment Co. Ltd.
Share on (1600919745829):
Product Overview
Description
Products Description
Features：
DRF making radiography as well as fluoroscopy with dynamic FPD.
1.17"*17"dynamic flat panel detector provides large exposure area.
2. High frequency and high voltage generator guarantees
the x-ray quality.
3. Pulse fluoroscopy mode current can reach 20mA, providing
sharp image with low dose.

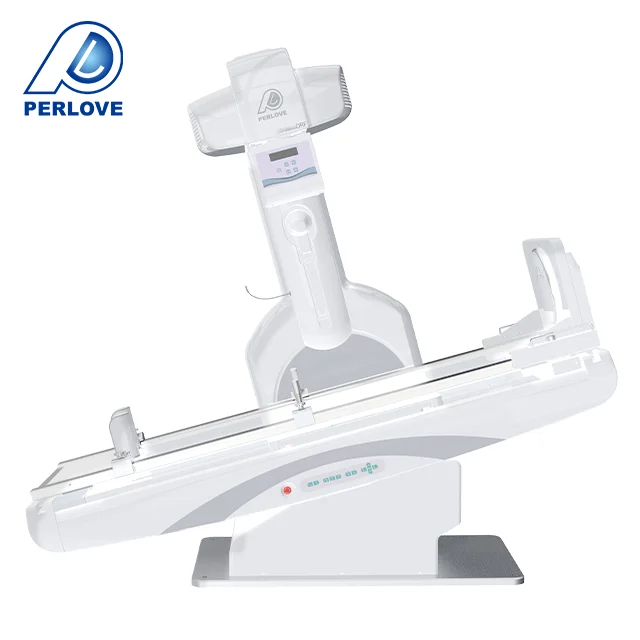

4. The grand table is flexible in various movement to meet
exposure needs.
5.Software has strong capabilities including automatic stitching function.
1.17"*17"dynamic flat panel detector provides large exposure area.
2. High frequency and high voltage generator guarantees
the x-ray quality.
3. Pulse fluoroscopy mode current can reach 20mA, providing
sharp image with low dose.
4. The grand table is flexible in various movement to meet
exposure needs.
5.Software has strong capabilities including automatic stitching function.
Technical Specifications
Category | Item | Parameters | |
Output Power | 84 kW | ||
Frequency | 500kHz | ||
Dual-focus | 0.6/1.2mm | ||
Exposure time | 0.1-10000ms | ||
Radiography | Tube voltage | 40-150kV | |
Tube current | 10-1000mA | ||
Tube voltage | 40-125kV | ||
Tube current | 0.5-10mA(Continuous Fluoroscopy) 5-20mA (Pulse Fluoroscopy | ||
Clinical Images
