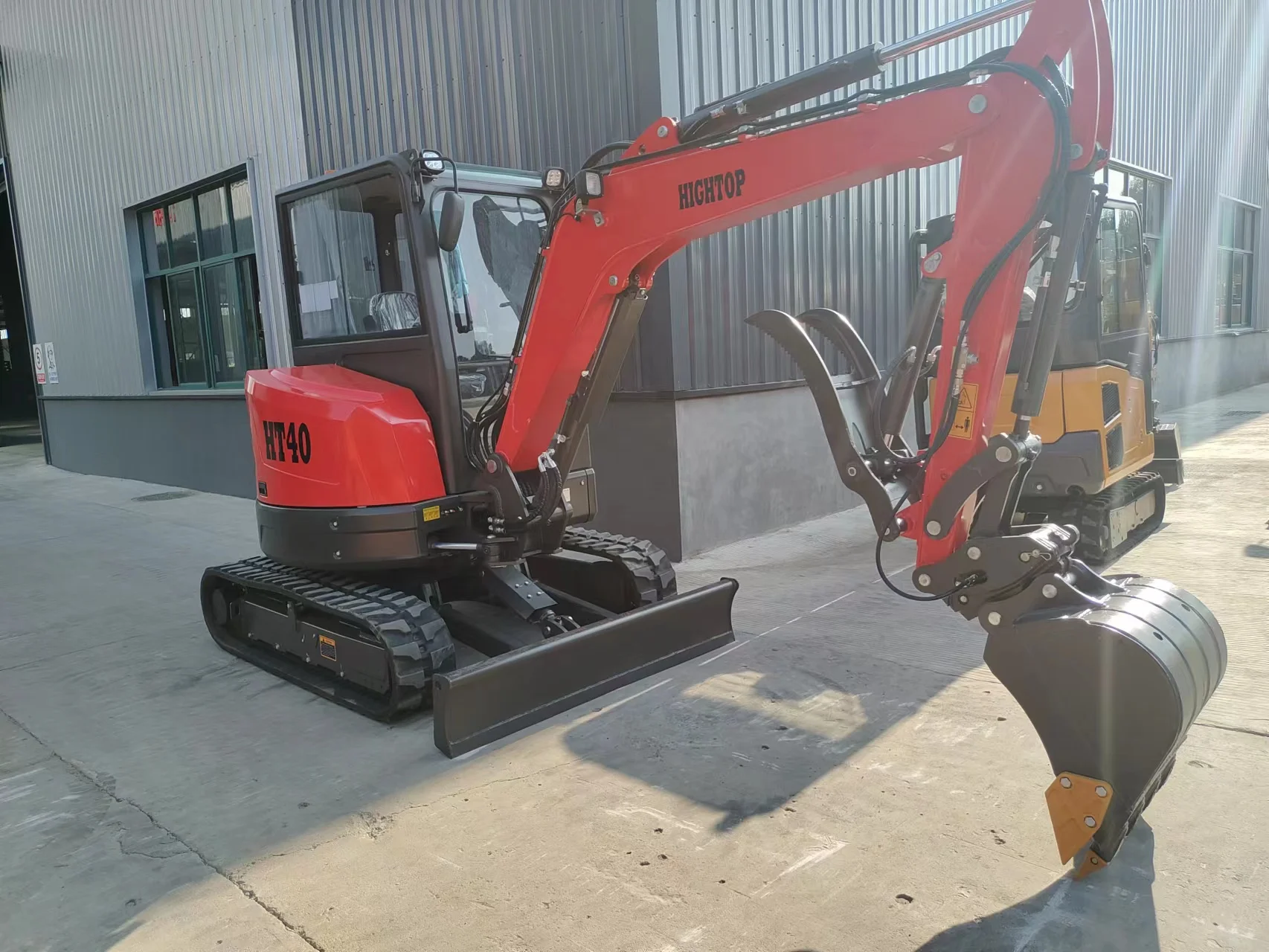

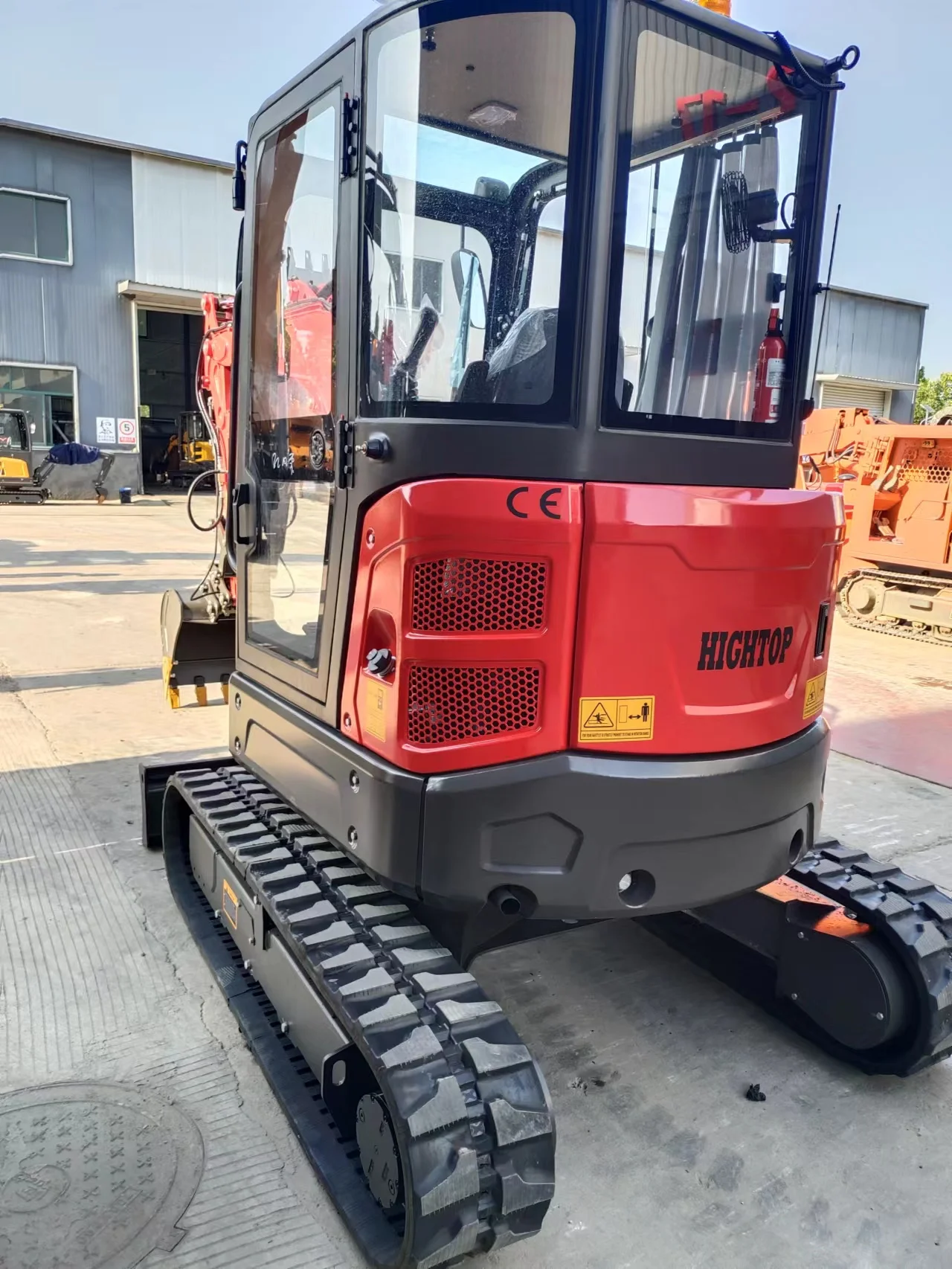

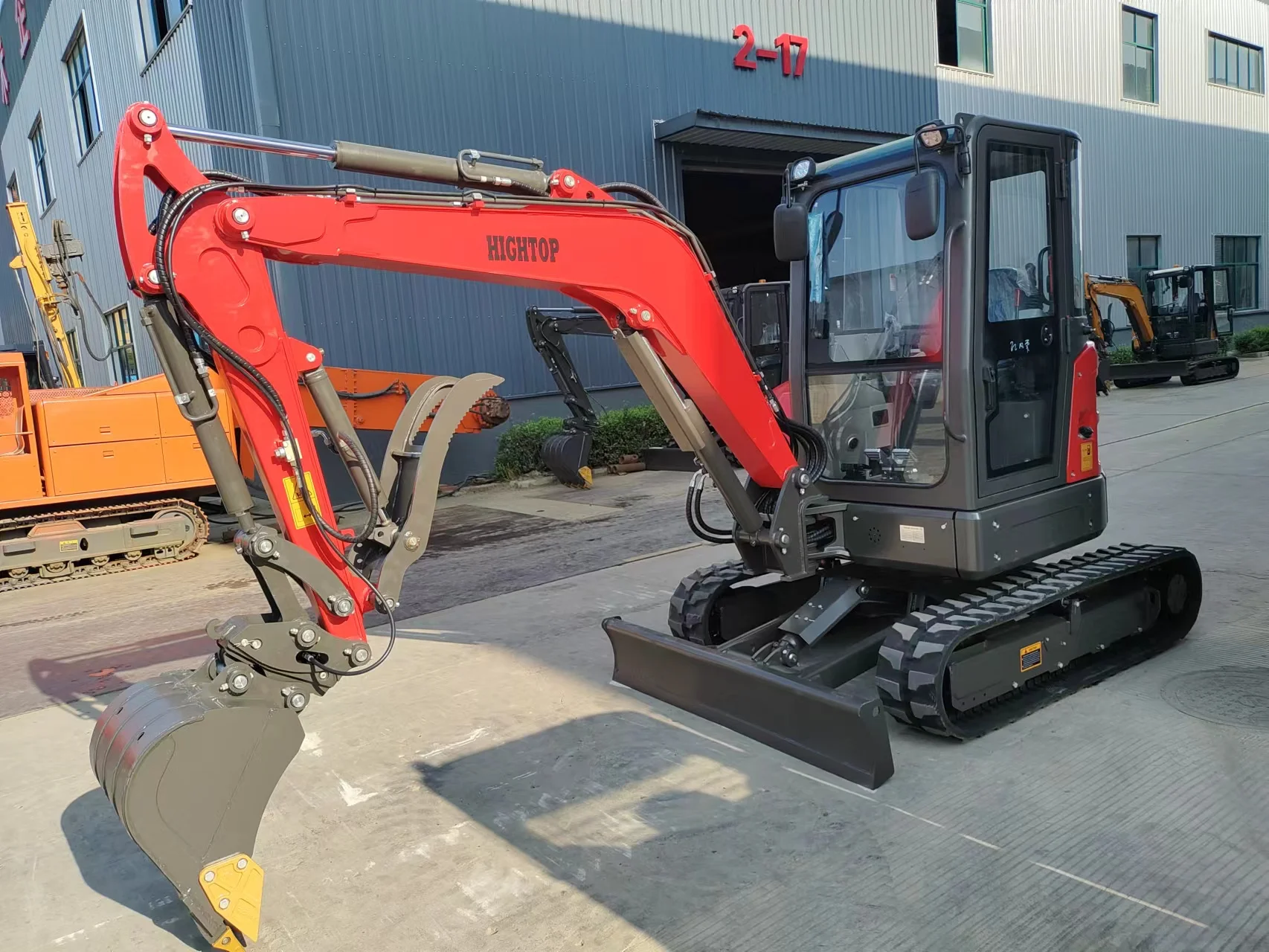

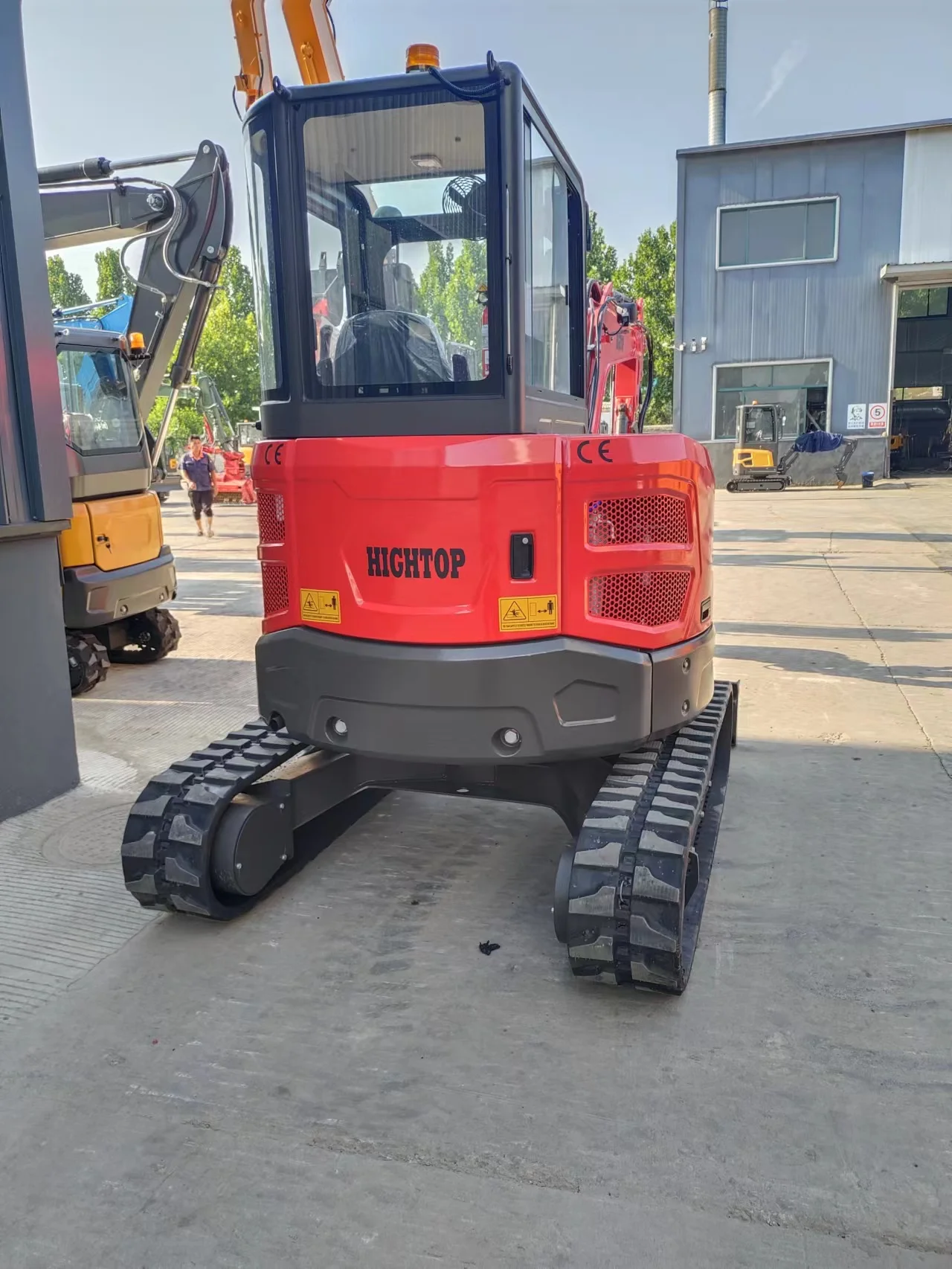

Mini Excavator 3.5 ton 4ton Mini Digger Excavator With EUROV/EPA Famous D1703 Engine

Share on (1600923308780):


Price:$17,999.00 - $18,999.00

Quantity:


Product Overview

Description



The crawler excavator is a compact excavator ,which matched KUBOTA engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted famous brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with hydraulic broken pipeline system. ensure it can work in different working environments and conditions.

with Kubota D1703 enigne, with cabin,heating and cooling air conditioning ,high and low speed, boom swing, Steel track,Hydraulic walking

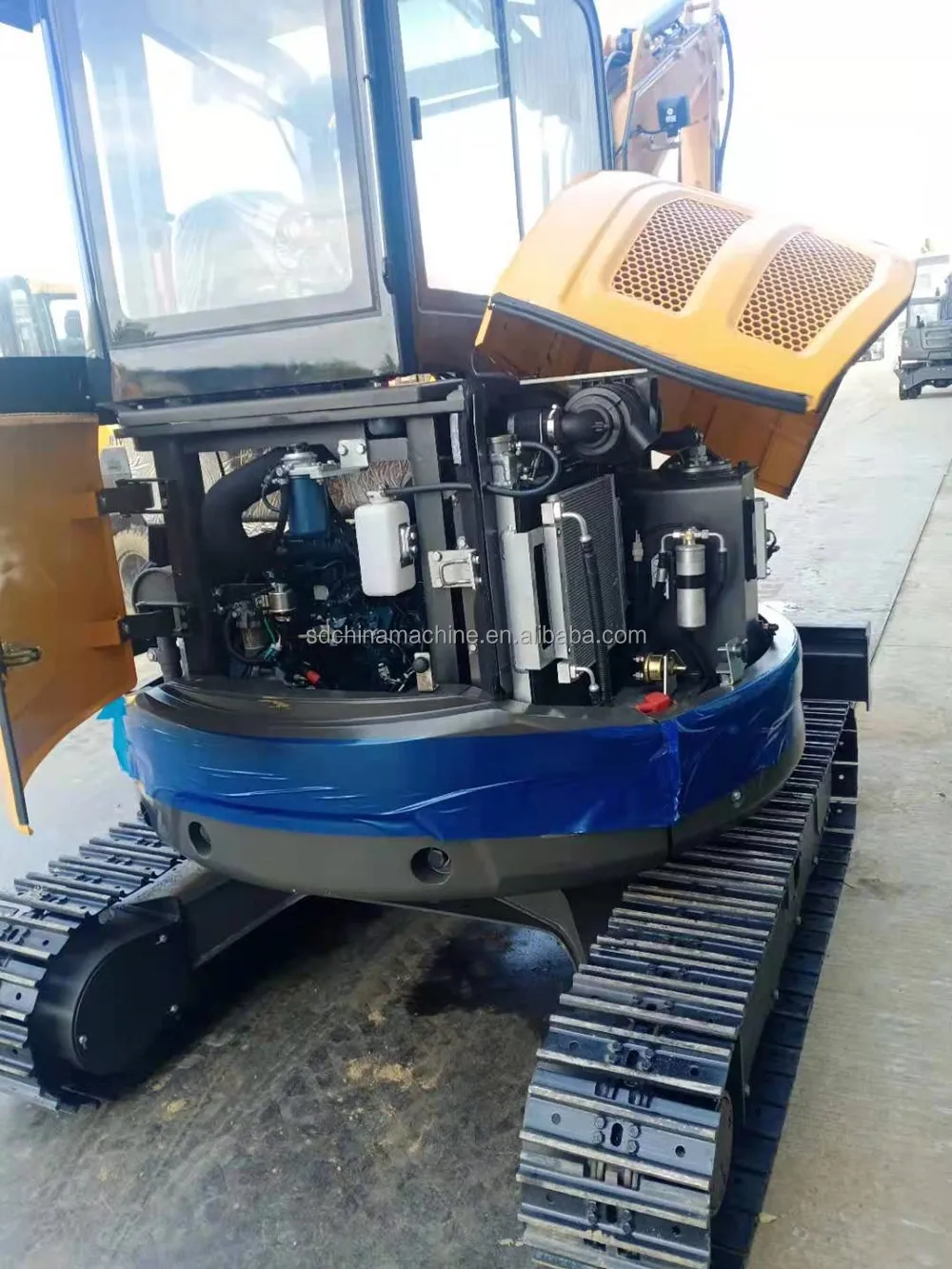

1-Japan Kubota D1703 engine , 18.5kw/2200rpm, Euro 5,EPA4
2-China brand pump
3-China brand valves
4-China brand slewing motor
5-China brand driving motor

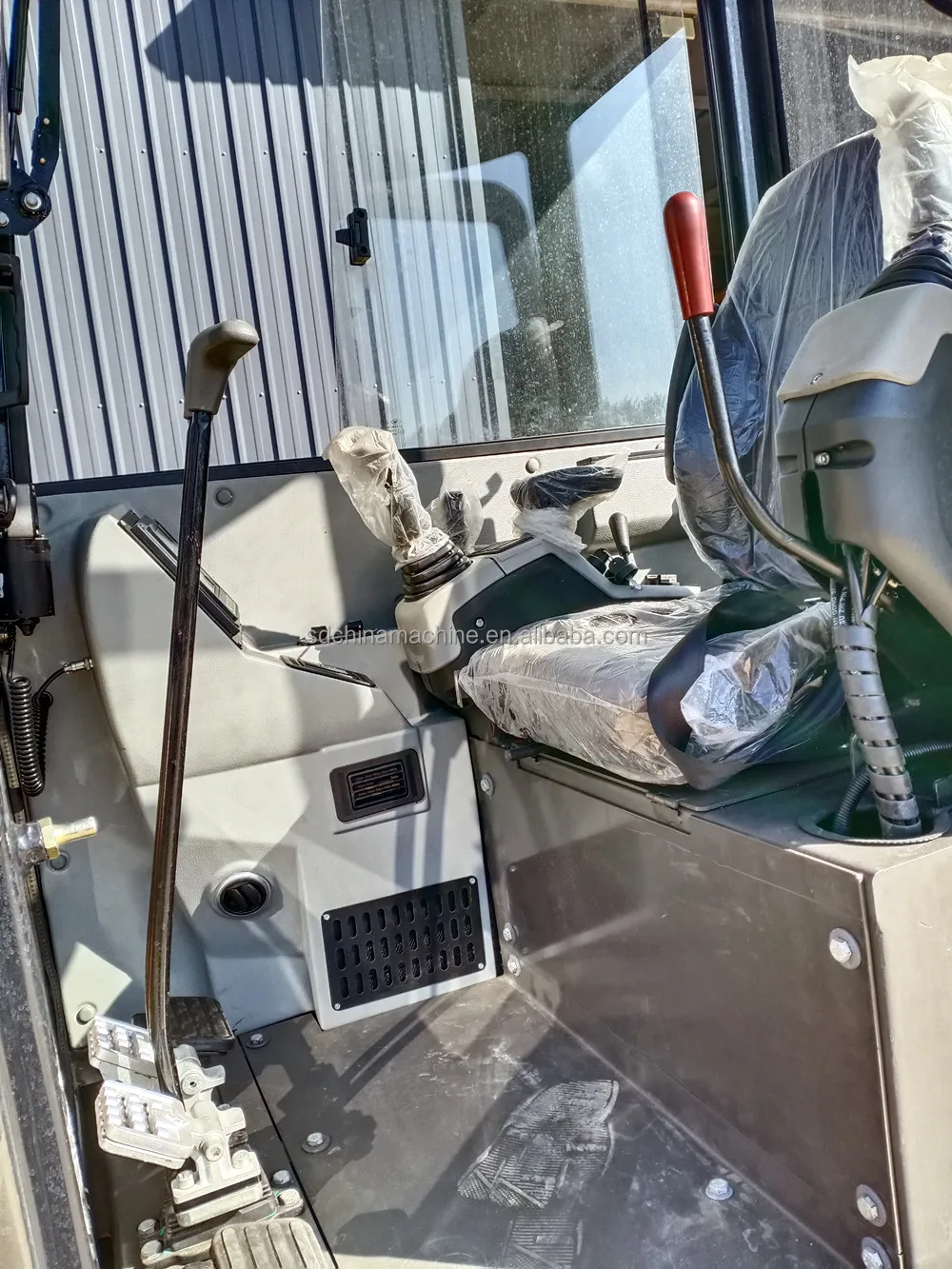

6-closed cabin

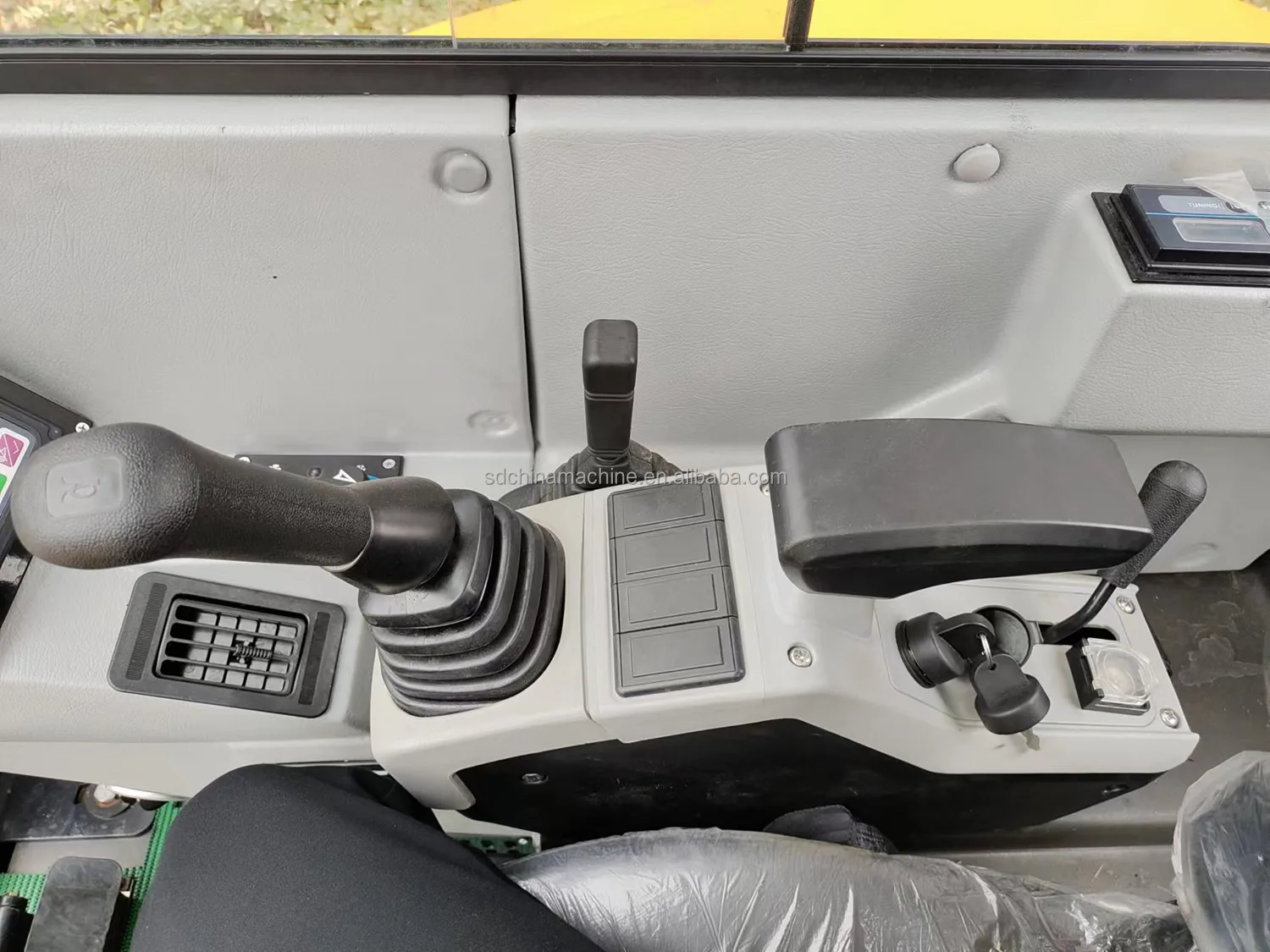

7-Hydraulic pilot servo operation system
8-Steel track :300mm,you can also choose rubber track
9-With hydraulic hammer pipeline system
10-Bucket capacity: 0.12m³
11-With dozer blade
12-with high-low speed

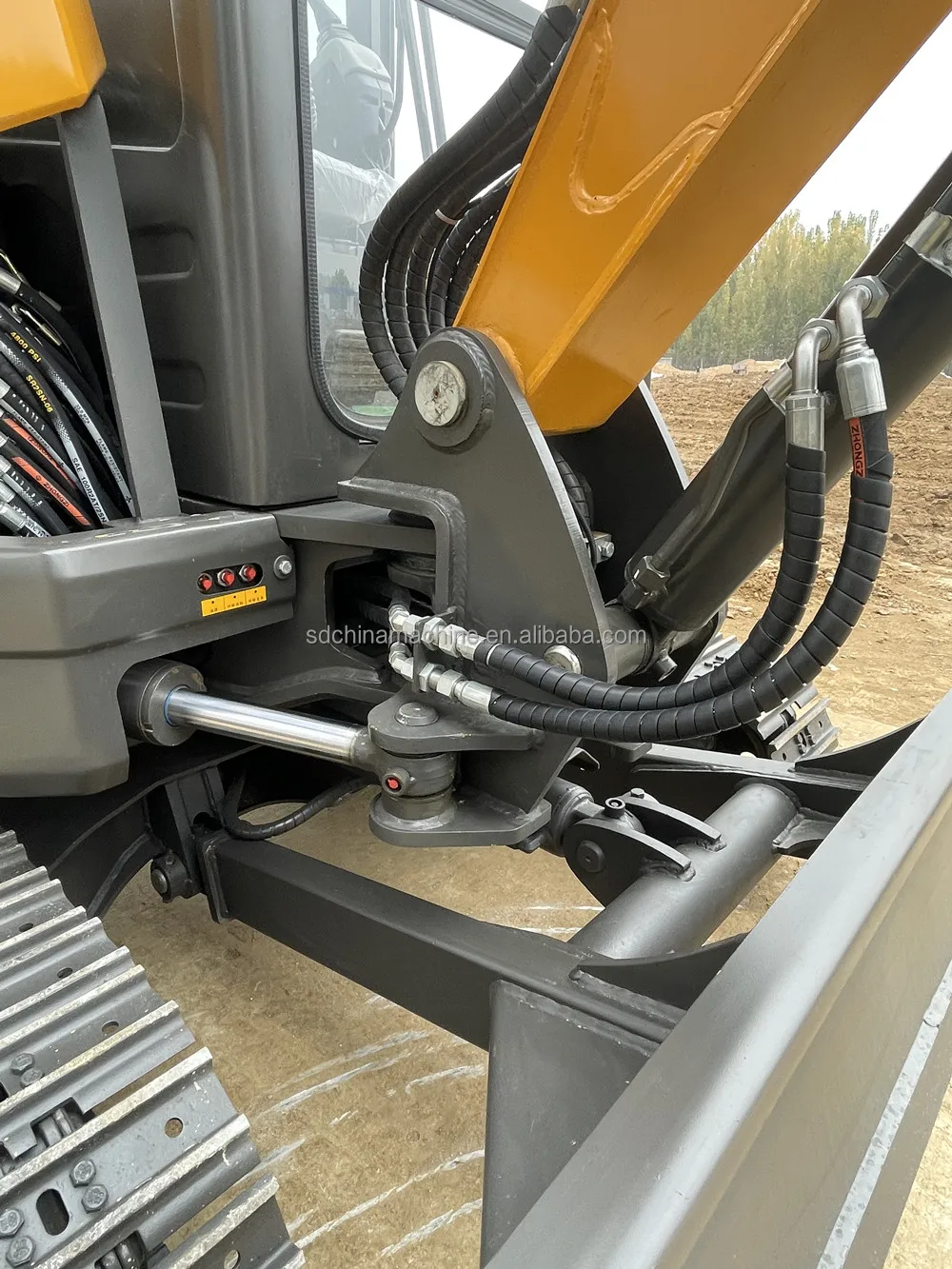

13-with side boom


add my Whatsapp for discount and quick response
add my Whatsapp for discount and quick response
add my Whatsapp for discount and quick response

24hours on-line services:
Contact: Alisa Kong
Whatsapp:+8613220799195
sales15(@)sinogoldmachine.com



Product Description




Specification


ENGINE
Emission Standard
Euro 5,EPA4
Make /Model
KUBOTA /D1703
Power /Rotation speed
18.5kw(25HP)@2200rpm
Number of cylinder
3
Type
In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated
Max.torque
97.4N.m/1500rpm
Displacement
1.647L
TRACK DRIVING SYSTEM
Maximum Travel speed(High/low)
4.4/2.4km/h
Width of steel track shoe
300mm
Carrier roller(Each side)
1
Supporting roller(Each side)
4
PERFORMANCE PARAMETER
Standard Bucket capacity
0.12m³
Swing speed
9rpm
Maximum Grade ability
58%
Ground pressure
32Kpa
Maximum Bucket digging force
30.4KN
Maximum Arm digging force
18.2KN
Hydraulic system pressure
22.5Mpa
Machine weight
3810kg
Boom length
2535mm
Arm length
1400mm
Fuel tank capacity
42L
Hydraulic oil tank capacity
48.5L
Engine oil capacity
7L
MACHINE SIZE
Overall dimension (L*W*H)
4915mm*1720mm*2525mm
Axle base(Track length on ground)
1670mm
Length of rubber track
2154mm
Track gauge
1420mm
Minimum Ground clearance
295mm
Swing radius at tail
860mm
Swing radius at front
2538mm
Height of blade
350mm
WORKING RANGE
Maximum Digging height
4800mm
Maximum Dumping height
3406mm
Maximum Digging depth
3208mm
Maximum Vertical digging depth
2957mm
Maximum Digging distance
5480mm
Maximum digging distance (on ground)
5359mm
Minimum swing radius
2530mm
Max.height when min.swing radius
3655mm
Maximum Lifting height of blade
365mm
Maximum Cutting depth of blade
385mm
Boom swing angle(Left/Right)
55°/65°

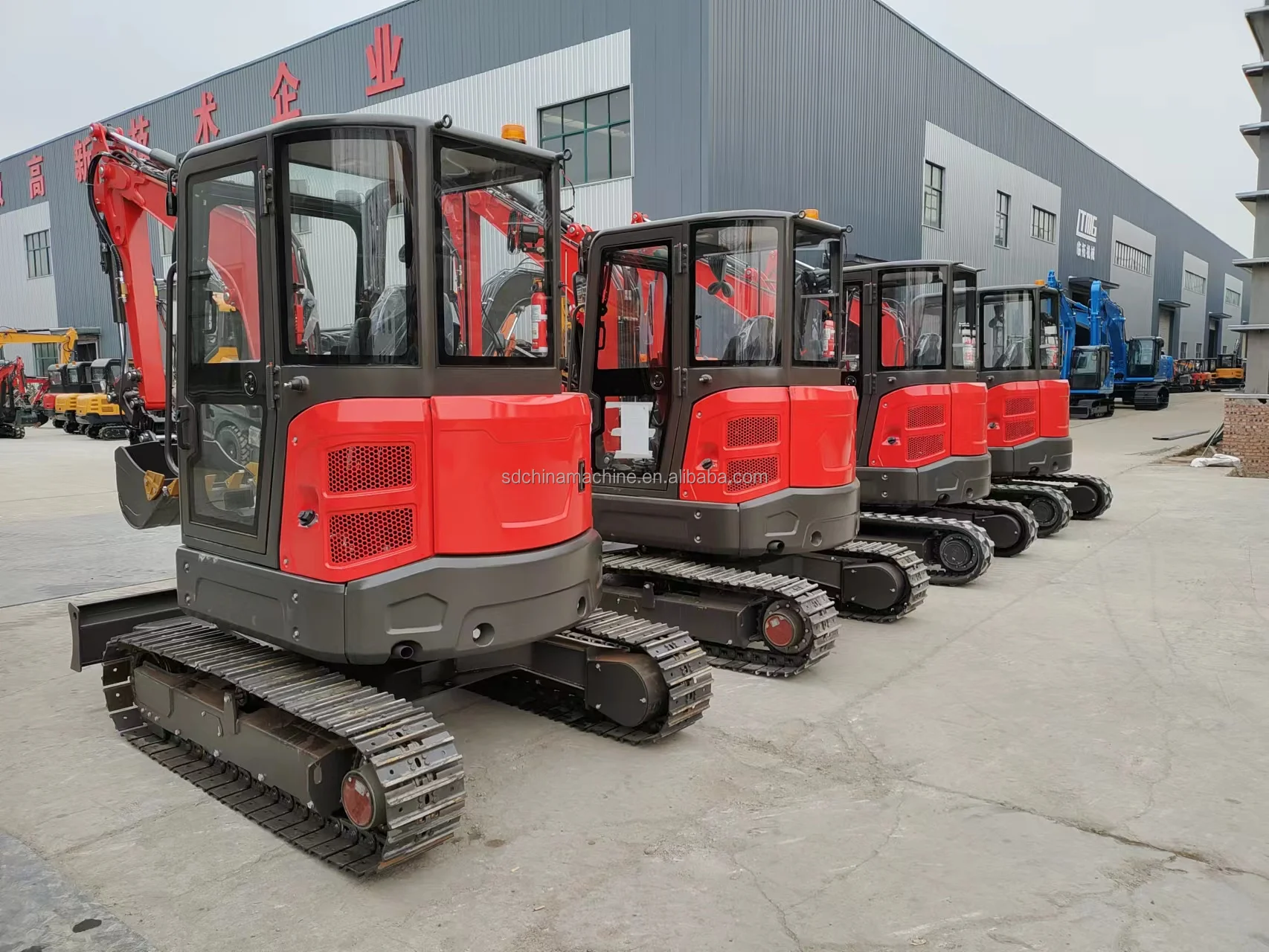

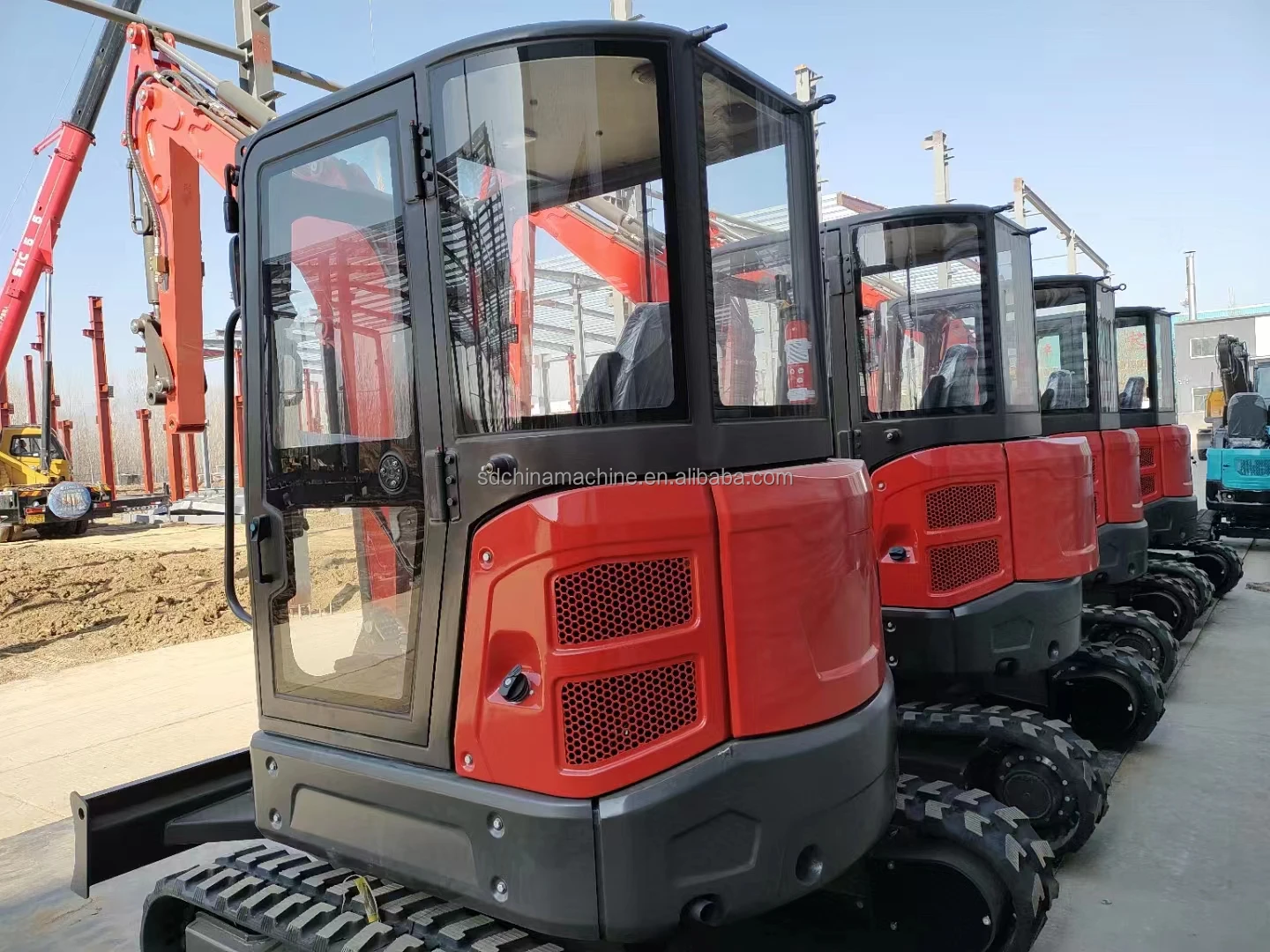

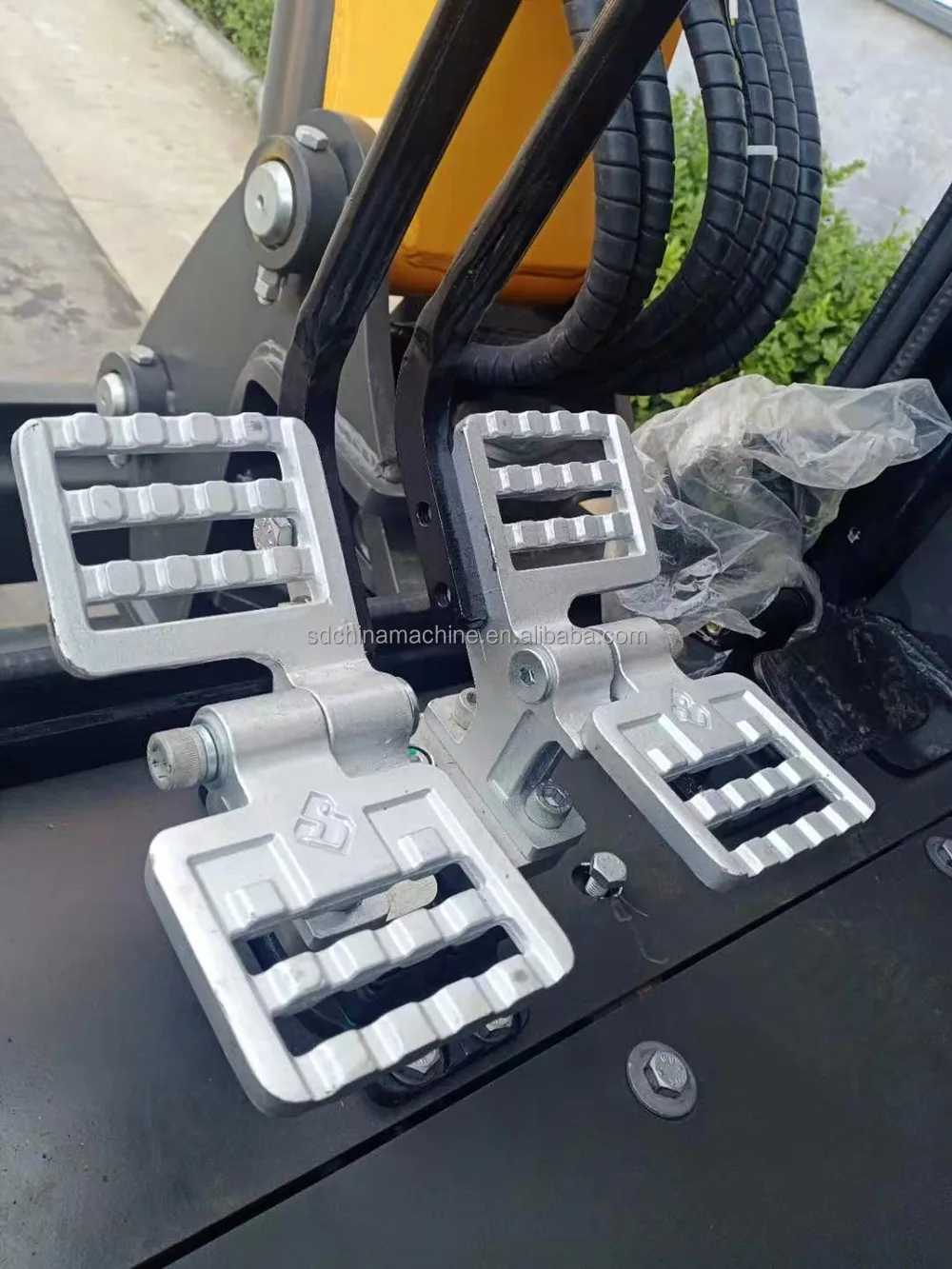

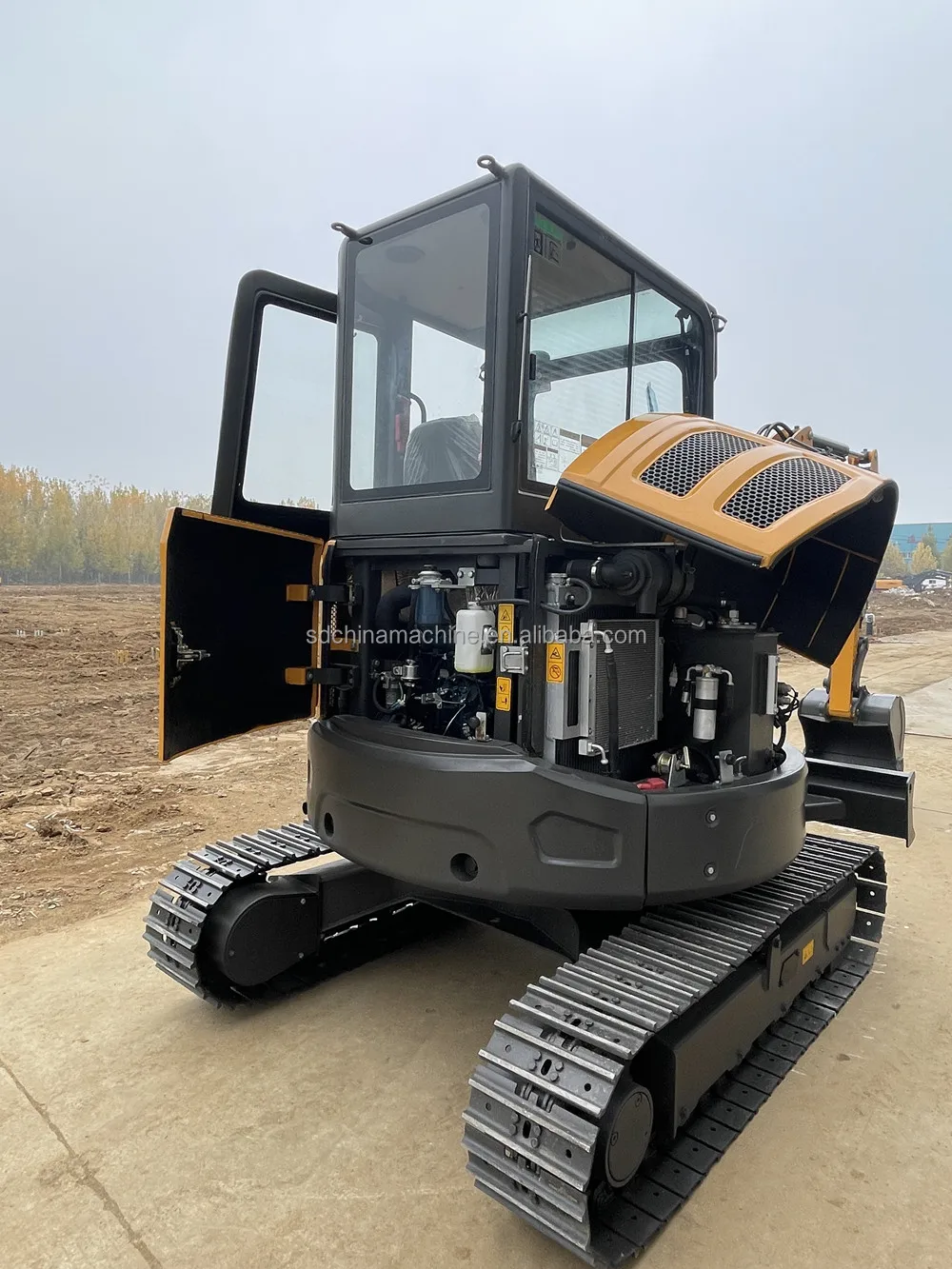

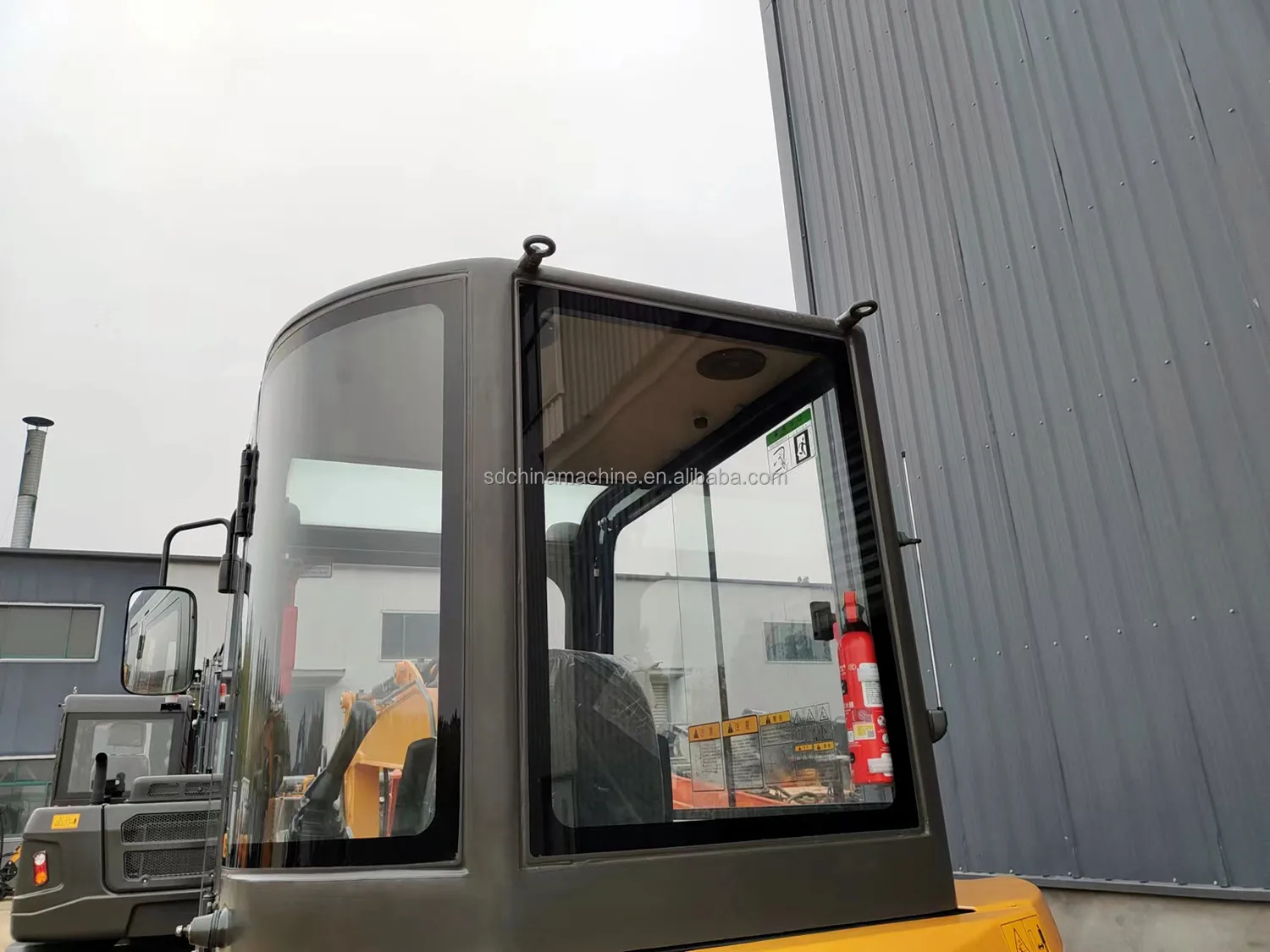

Details Images






















You May Like




Contact US


add my Whatsapp for discount and quick response
add my Whatsapp for discount and quick response
add my Whatsapp for discount and quick response

24hours on-line services:
Contact: Alisa Kong
Whatsapp:+8613220799195
sales15(@)sinogoldmachine.com


Company Profile




SHANDONG CNMIC MACHINERY CO.,LTD.established in 1980, is an important and a large construction engineering equipment joint-stock enterprise group, It has several wholly-owned subsidiaries, include SHANDONG HIGHTOP MACHINERY Co., Ltd. company headquarters is located at National High Tech Zone, Jining City, Shandong province.

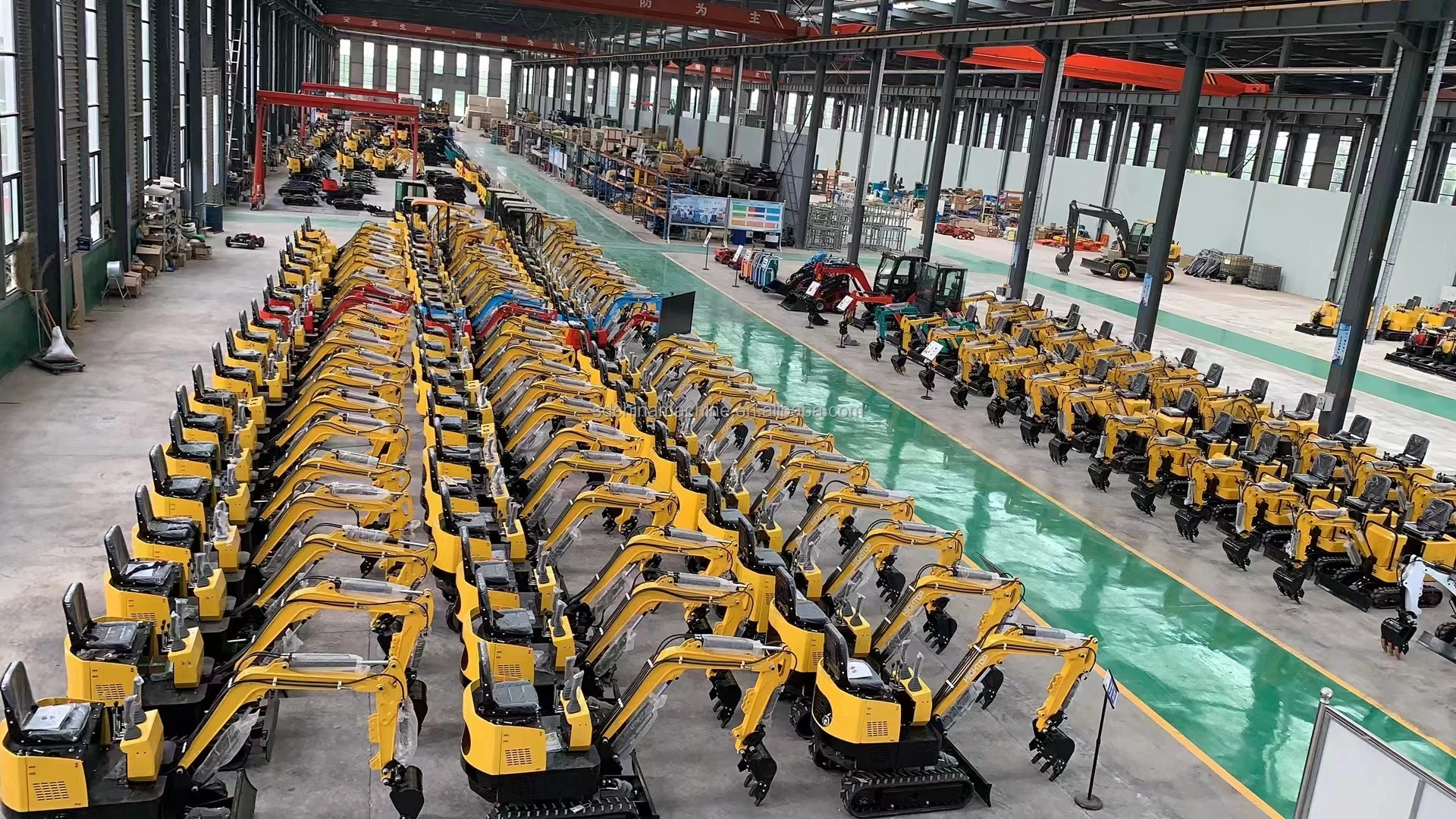

Group's manufacturing area is compromised of 50000 square meters where 2000 people are employed full-timely. Its service scope covers critical economic fields such as excavator, road roller, loader machine, backhoe loader, small transport vehicle,etc.
CNMC Group got ISO9001 international quality system certification, European Union CE certificate, SGS certificate, TUV certificate and BV certificate.
Scientific innovation is CNMC motive power. At 2000 year Our company and China Science and Technology University together established a steel products Rally testing laboratories, strive to enhance the product's impact resistance, in 2002 year the company and Xuzhou Construction Machinery Group Co., Ltd. jointly established machinery force research center for the construction machinery. Through exchanges and learn, CNMC mechanical products in the stability of performance has been greatly improved.
More than 30 years of hard work and struggle, CNMC products have been exported to more than 127 countries, and win good reputation from our customers, because we always pursue "CNMC FOCUS ON QUALITY" and explored a sustainable development path which combining the economic benefits and environmental protection together, and this make a great contribution to the development of China's machinery manufacturing industry and prosperity.
