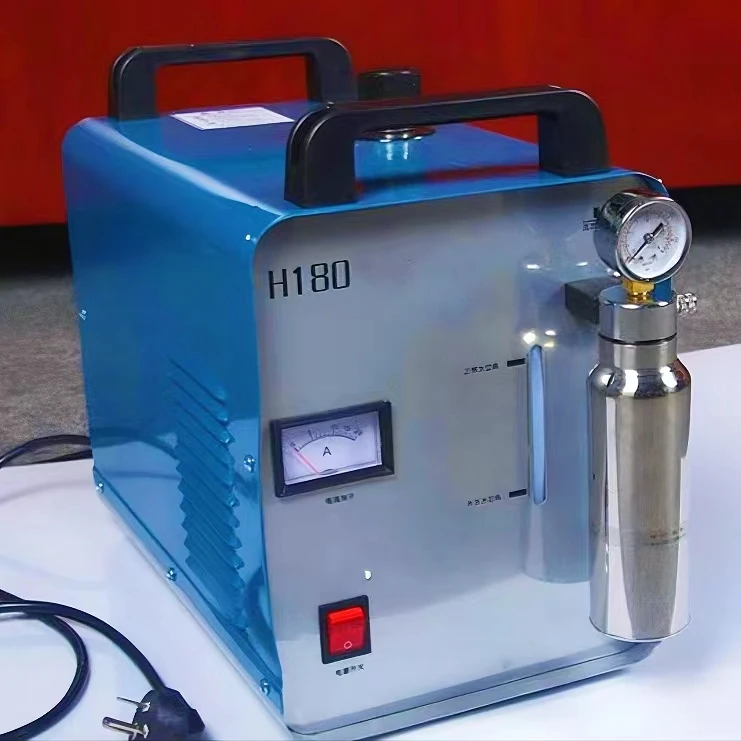

JX Oxy Hydrogen Generator Acrylic Flame Polishing Machine Water Welder H180 95L USA
- Category: >>>
- Supplier: Shandong Jx Auto Cnc Machinery Co. Ltd
Share on (1600923515717):
Product Overview
Description
Products Description

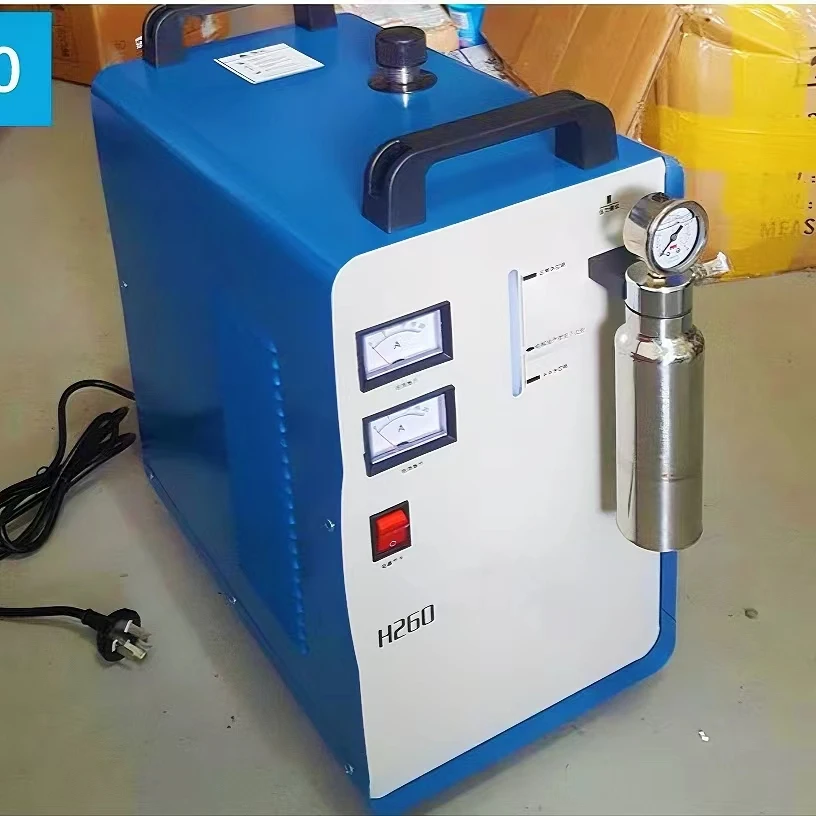

Gas acrylic flame polishing machine
Now more and more ornaments factory welding necklace、Earrings, rings, and other decorations use the flame polishing machine.
The flame polishing machine its flame temperature 2800 degrees.
The flame polishing machine its flame temperature 2800 degrees.
Product Paramenters

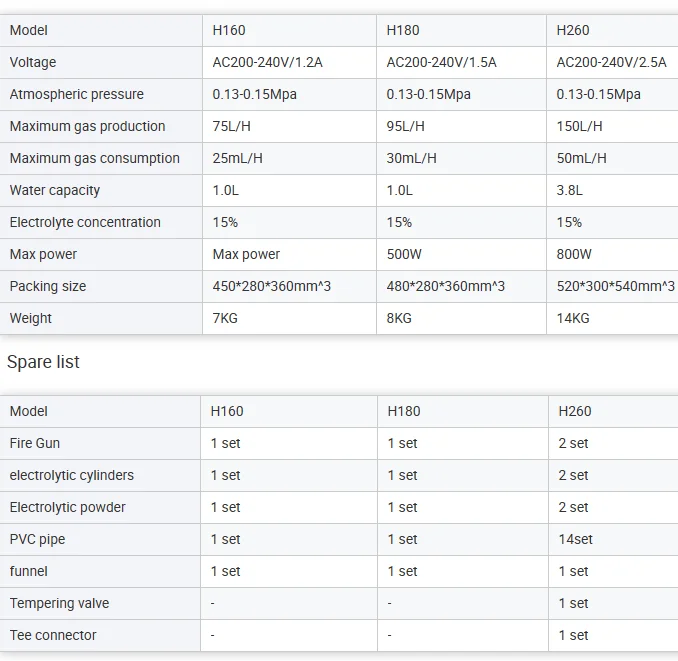

Gas acrylic flame polishing machine Machine parameter :
Model | H160 | H180 | H260 |
Voltage | AC200-240V/1.2A | AC200-240V/1.5A | AC200-240V/2.5A |
Atmospheric pressure | 0.13-0.15Mpa | 0.13-0.15Mpa | 0.13-0.15Mpa |
Maximum gas production | 75L/H | 95L/H | 150L/H |
Maximum gas consumption | 25mL/H | 30mL/H | 50mL/H |
Water capacity | 1.0L | 1.0L | 3.8L |
Electrolyte concentration | 15% | 15% | 15% |
Max power | Max power | 500W | 800W |
Packing size | 450*280*360mm^3 | 480*280*360mm^3 | 520*300*540mm^3 |
Weight | 7KG | 8KG | 14KG |

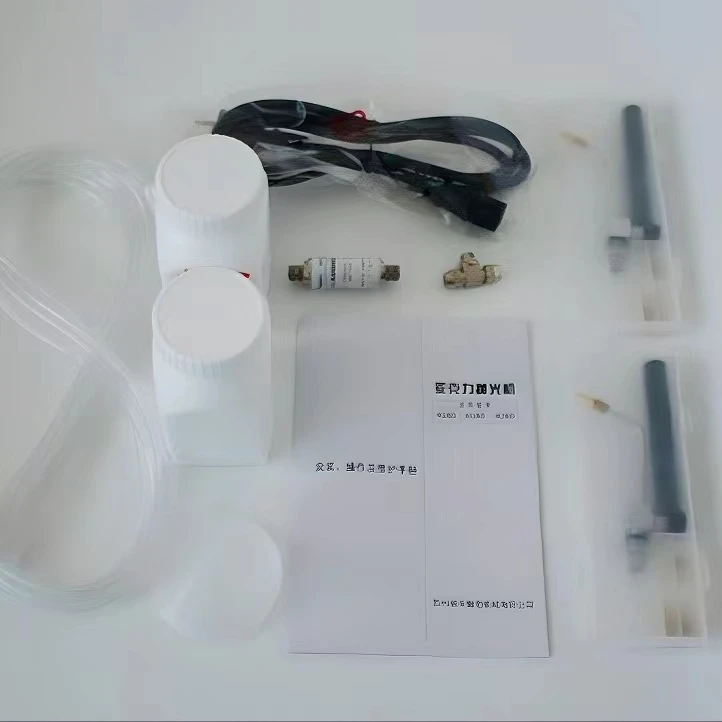

Spare list:
Model | H160 | H180 | H260 |
Fire Gun | 1 set | 1 set | 2 set |
electrolytic cylinders | 1 set | 1 set | 2 set |
Electrolytic powder | 1 set | 1 set | 2 set |
PVC pipe | 1 set | 1 set | 14set |
funnel | 1 set | 1 set | 1 set |
Tempering valve | - | - | 1 set |
Tee connector | - | - | 1 set |
Products Description
USE instruction :
1. Pour 0.25kg of special electrolyzed powder into the alkali-resistant dissolver, add a small amount of distilled water
(completely dissolve the electrolyzed powder), stir it for a little while, and let it cool for about 20 minutes. Connect the hose
and flame gun, connect the air outlet, select the nozzle type according to the thickness of the burr
(completely dissolve the electrolyzed powder), stir it for a little while, and let it cool for about 20 minutes. Connect the hose
and flame gun, connect the air outlet, select the nozzle type according to the thickness of the burr
2. Unscrew and add the solution nut. Slowly fill to a level below the "high" level (never exceed 90 degrees) and tighten the nut.
3. loosen the alcohol tank, slowly add alcohol (not more than 50%), tighten the alcohol tank.
3. loosen the alcohol tank, slowly add alcohol (not more than 50%), tighten the alcohol tank.
4. connect the power to start, the power indicator light, fan switch, gas outlet gas sense, pressure gauges have instructions,that all is normal.
5, open the spray gun regulating valve, the first use of attention to 5 seconds after the open flame, flame straight or inclined to the flash, keep the appropriate distance, evenly scan it.
5, open the spray gun regulating valve, the first use of attention to 5 seconds after the open flame, flame straight or inclined to the flash, keep the appropriate distance, evenly scan it.
6. Add water in a timely manner. If it is found that the liquid level indication has dropped significantly, it is necessary to add
water in a timely manner (without adding electrolytic powder).
7. Electrolyte powder preparations are properly filled when the current is significantly reduced.
water in a timely manner (without adding electrolytic powder).
7. Electrolyte powder preparations are properly filled when the current is significantly reduced.
