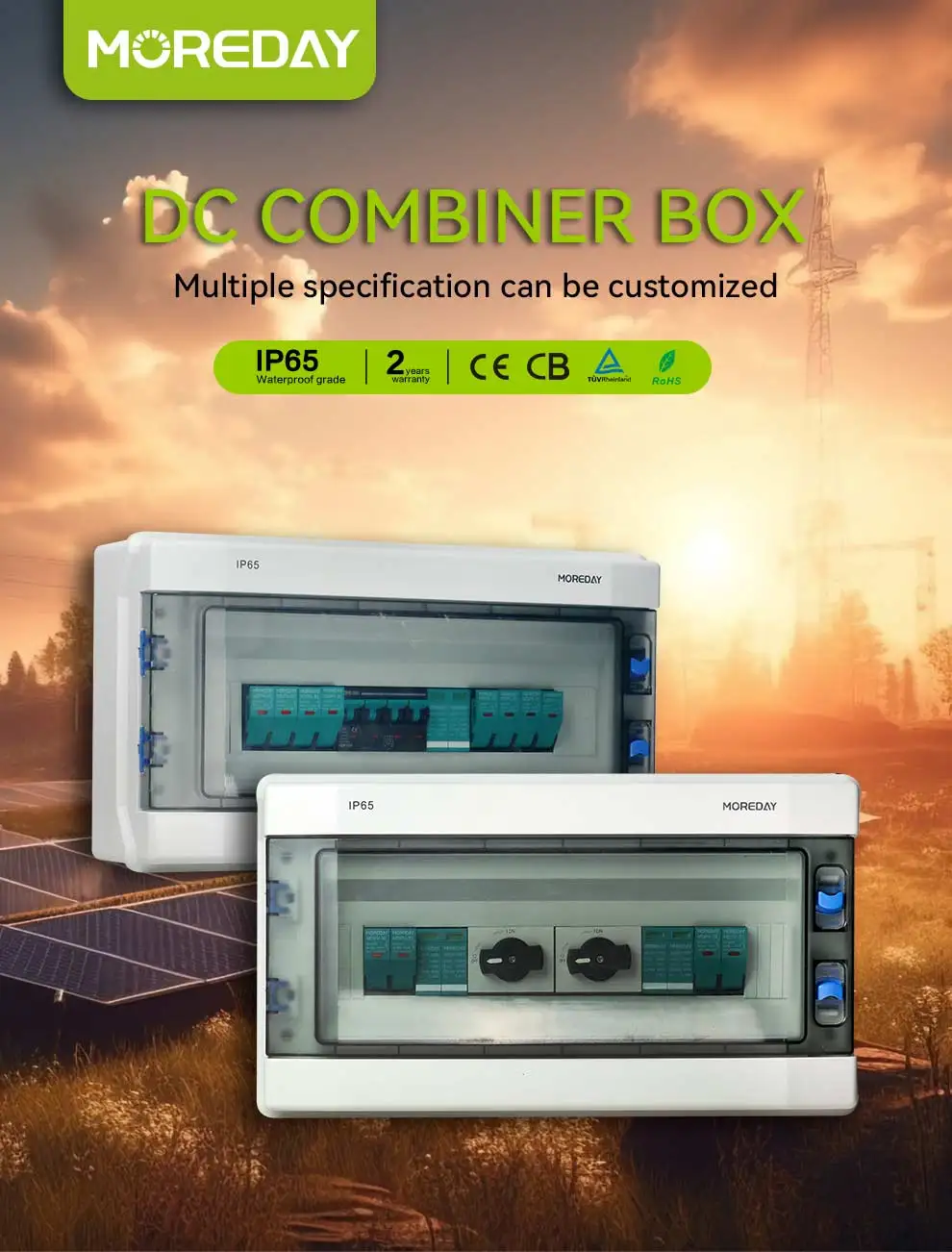

Dc Combiner Box 1000V 25A 2 In 2 Out 2 Strings Pv Combiner Box For Photovoltaic System Solar Panels
- Category: >>>
- Supplier: Mindian Electric Co. Ltd.
Share on (1600926929626):
Product Overview
Description
Product Description
General Data | ||
Model No. | MDJB-2/2 | |
Input | 2 strings | |
Output | 2 strings | |
Maximum Voltage | 1000V | |
Max DC Short Circuit Current Per Input（Isc） | 16A（Changeable） | |
Maximum Current Output | 32A | |
Enclosure | PLASTIC | |
Material Type | Polycarbonate/ABS | |
Degree of Protection | IP65 | |
Degree of Resistance to Impacts | IK10 | |
Dimension（W*H*D） | 292*195*132mm | |
Cable input Entry | PG09 Cable Gland,2.5-16mm² | |
Output Cable Gland | PG21 2.5-16mm² | |
DC Switch Disconnector | MDIS | |
Rated Insulation Voltage （Ui） | 1000V | |
Rated Current（Le） | 32A | |
Certification | UL,TUV,CB,CE | |
DC Surge Arrester | MDSP | |
Max Operation Voltage（Ucpv） | 1000V | |
Maximum Discharge Current | 40KA | |
Certification | TUV,CE | |
DC Fuse Holder | MDFU | |
Rated WorKing Voltage | 1000V | |
Fuse Link | 10*38mm Littel 16A | |
Certification | UL,CB,CE,TUV | |

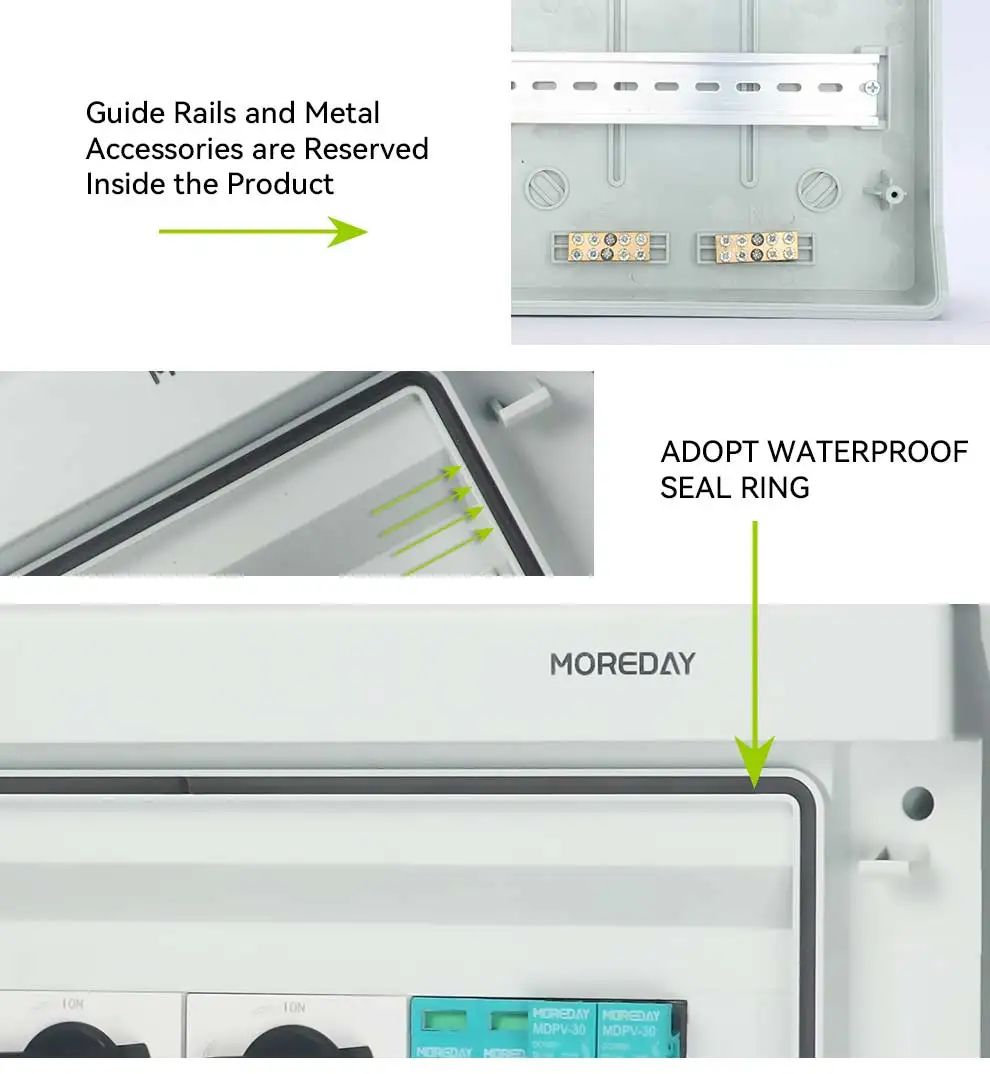

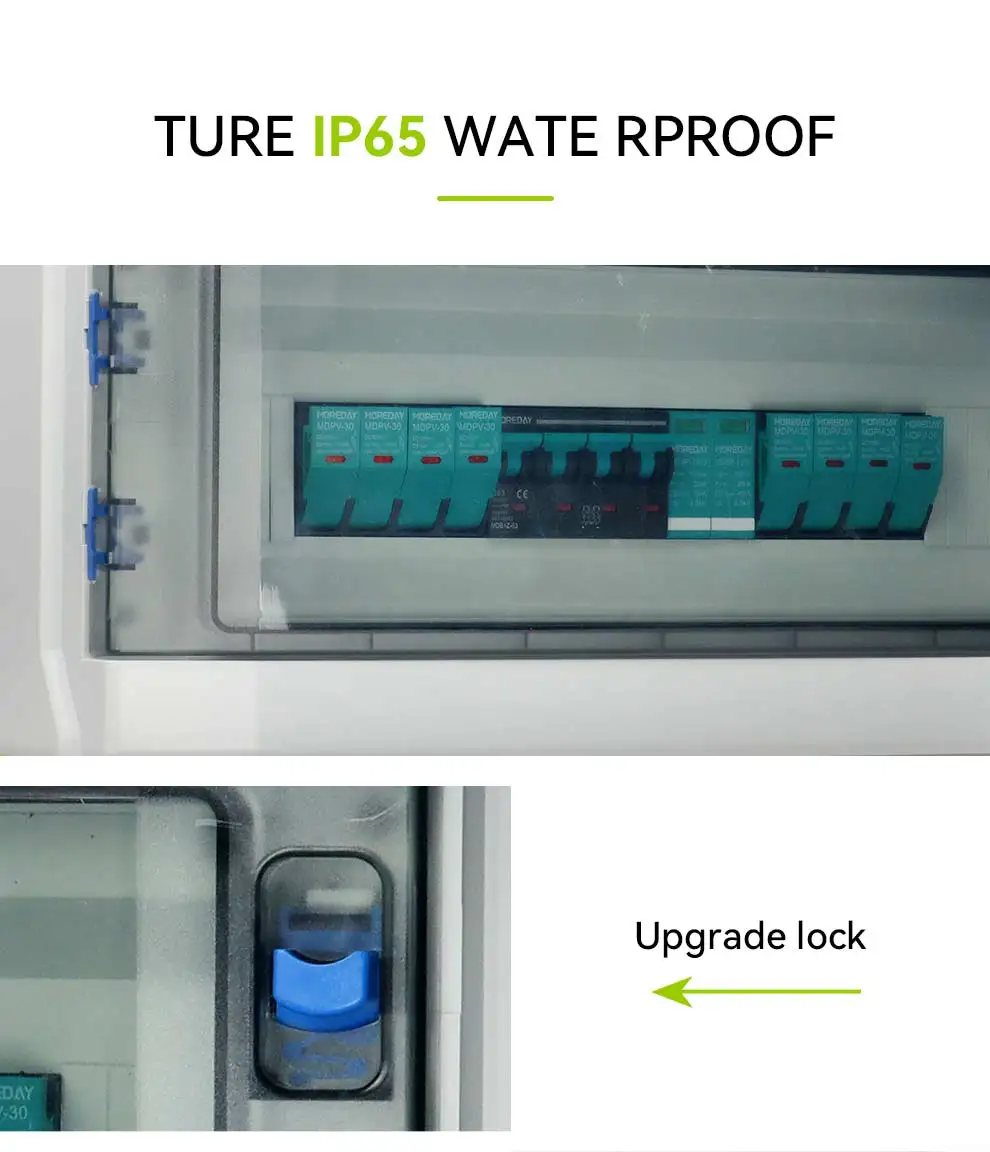

Details Images
MOREDAY COMBIENR BOX FEATURES
MOREDAY PV String DC Combiner Boxes are key components in the PV Solar PV systems, which are placed between Solar Panels and the Inverters.
Simplify the physical wiring between solar panel and inverter
Fault current protection for each PV String
Fault alarm
Easy installation and maintenance
PV combiner box Advantage:
Easy installation
IP65

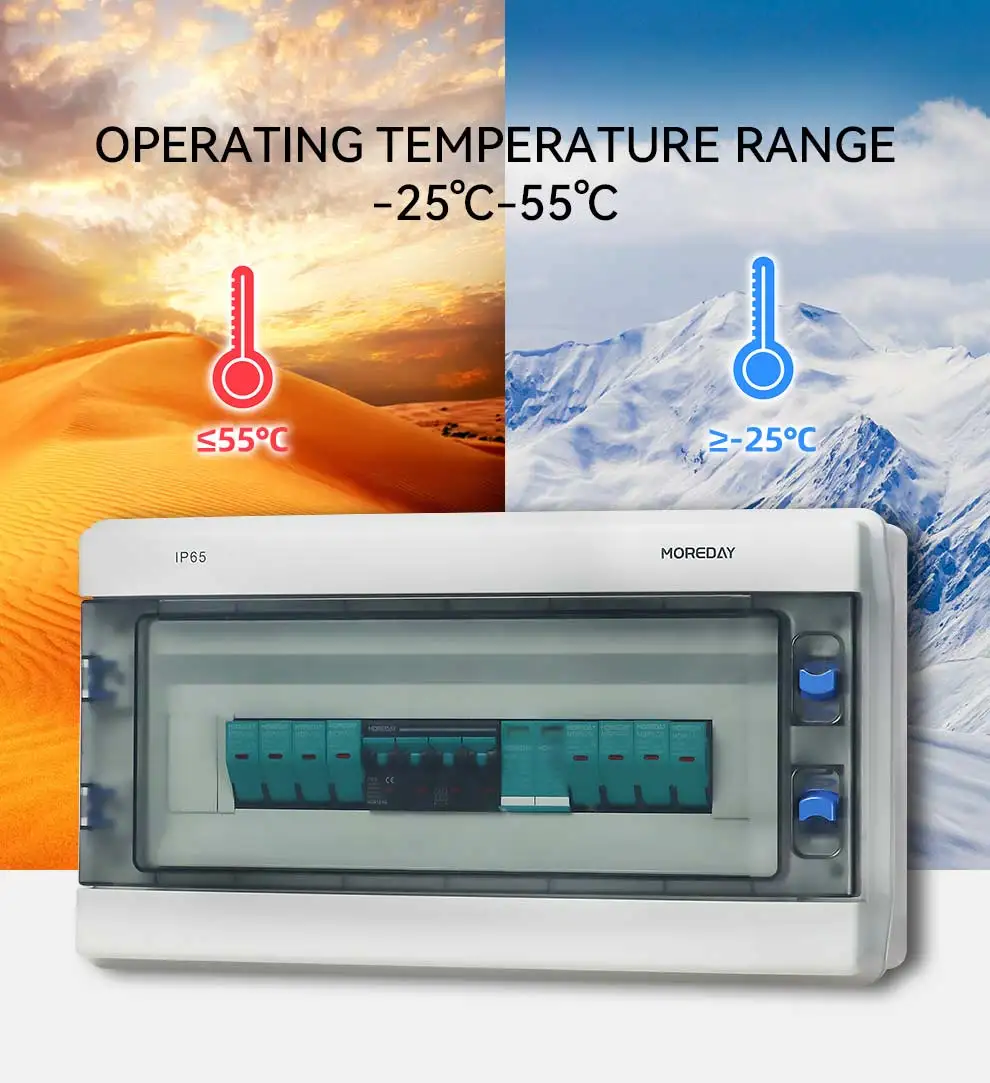

Wide operation temperature range
Fire Resistance
Non-conductive
Good resistance to chemical corrosion
Light weight
Excellent insulating properties
Cost-effective material for harsh environments

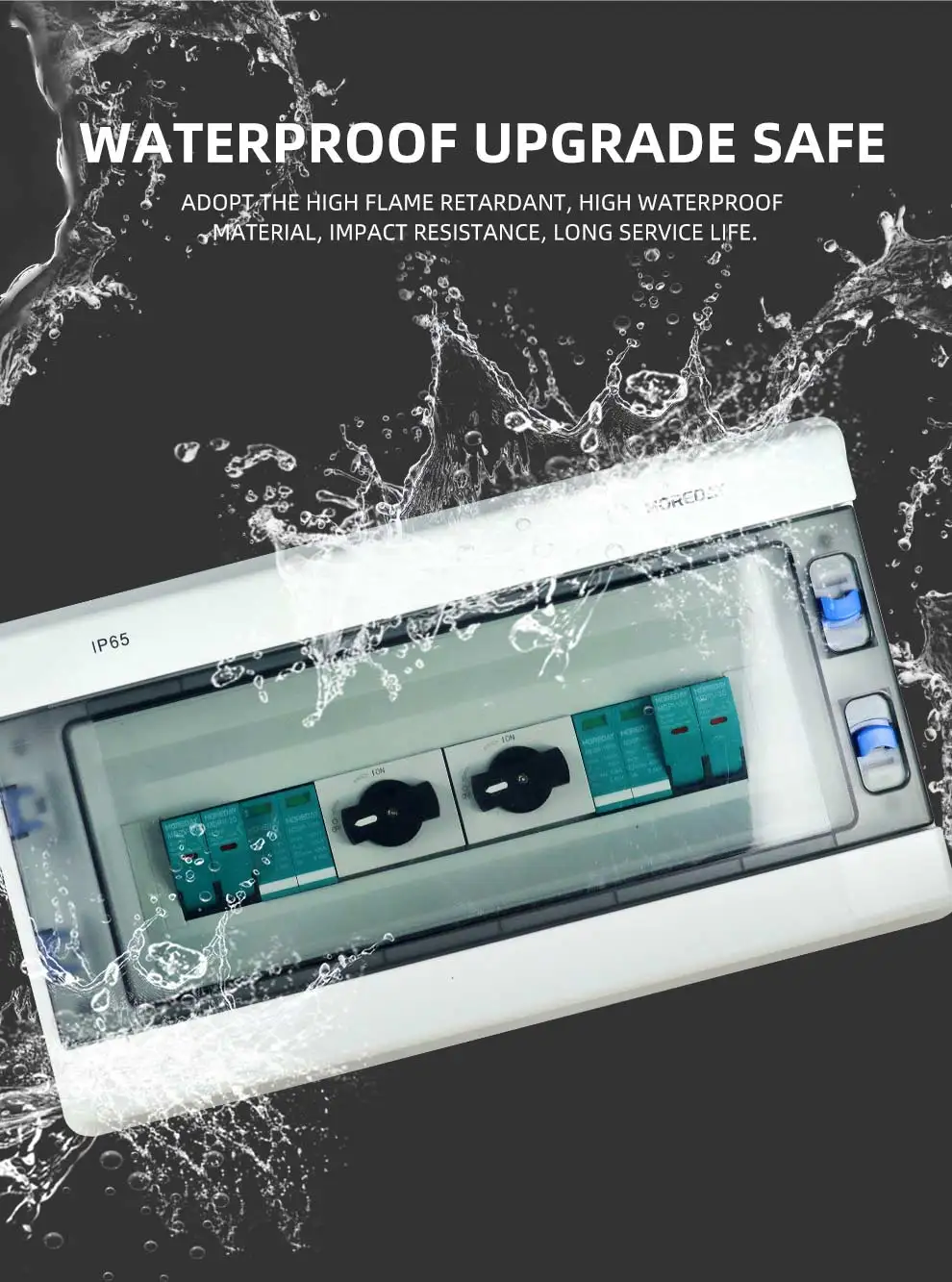

IP65 waterproof, dust proof,anti-corrosion and UV resistance
Durable: series combiner boxes are built to withstand harsh
environmental exposure
Suit for long distance transport
Easy installation
IP65
Wide operation temperature range
Fire Resistance
Non-conductive
Good resistance to chemical corrosion
Light weight
Excellent insulating properties
Cost-effective material for harsh environments
IP65 waterproof, dust proof,anti-corrosion and UV resistance
Durable: series combiner boxes are built to withstand harsh
environmental exposure
Suit for long distance transport
