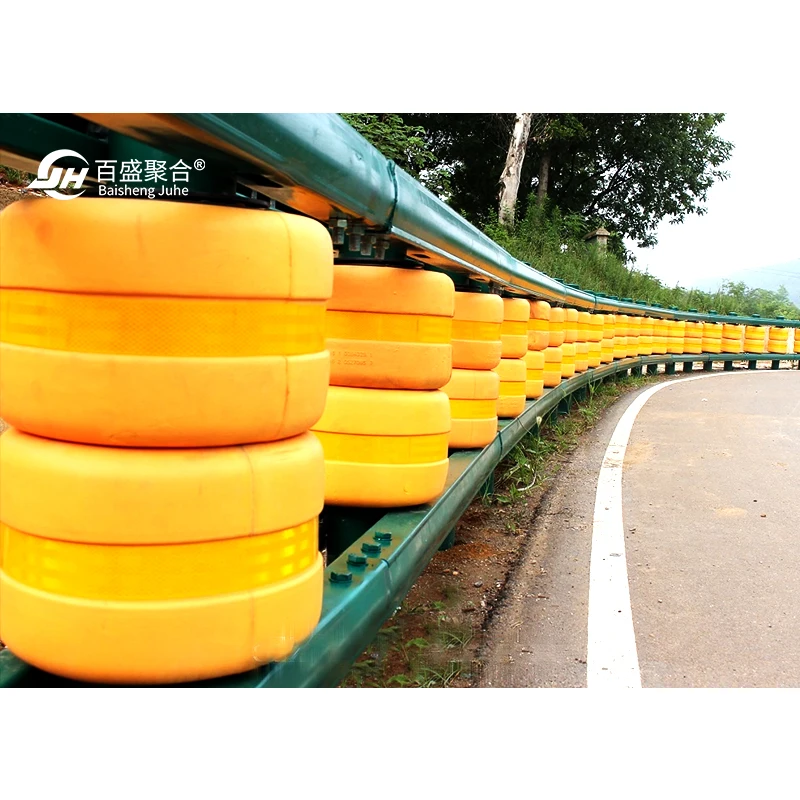

Road traffic safe eva material safety roller barrier safety roller barrier anti crash barrel
- Category: >>>
- Supplier: Shandong Juhe Steel Co. Ltd.
Share on (1600927837733):
Product Overview
Description

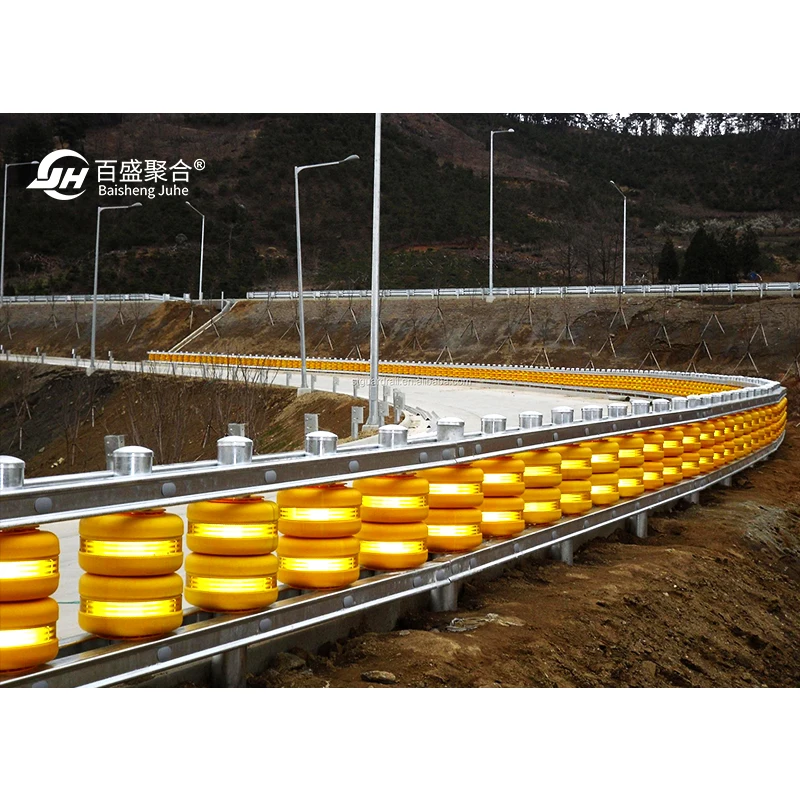

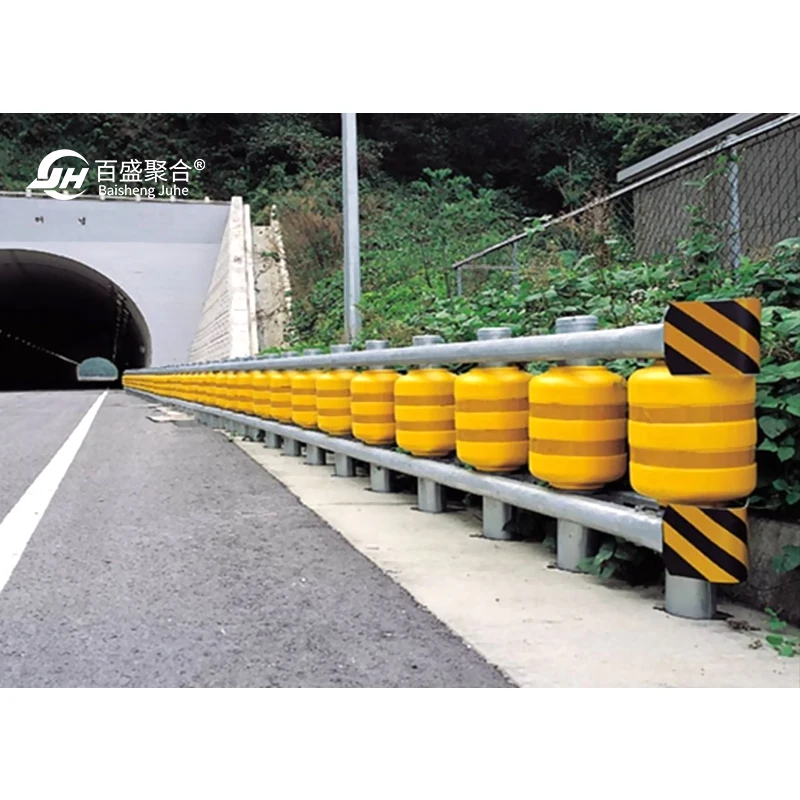

Ldeal for roadside or median applications, our Safety Roller Barrier (SRB) MASH TL-4 longitudinal barrier is designed to minimize damage on impact by safely converting crash energy into rotational energy. SRB’s highly resilient design allows it to sustain minor impacts and smoothly redirect vehicles with less damage to the vehicle and safety roller barrier system.
No. | Name | Specifications(mm) | Material |
1 | Roller | 345*490/350*510(Customized) | Polyurethane |
2 | Post | 140*2000*4.5(Customized) | Q235 |
3 | PVC Tube | 160*500*6.5(Customized) | PVC |
4 | Beam | 100*80*4.0 | Q235 |
5 | Rolling Circle | 182×145×6.0 | Polymer Ethylene |
6 | End Socket | 1300×230×4.0 | Q235 |
7 | Post Cap | 145×145 | Rubber |
8 | Bolt | M18*120 | Q235 |
M18*180 | Q235 | ||
M18*80 | Q235 | ||
9 | Nut | M20 | Q235 |
Item | Specifications |
Apparent Density (KG/m³) | ≥125 |
Tensile Strength(MPa) | ≥1.15 |
Elongation(%) | ≥320 |
Compression Permanent Distortion (%) | ≥38 |
Resilience(%) | ≥72 |
If you need more info, please feel free to contact us. →→ → Contact Us >
Products Description

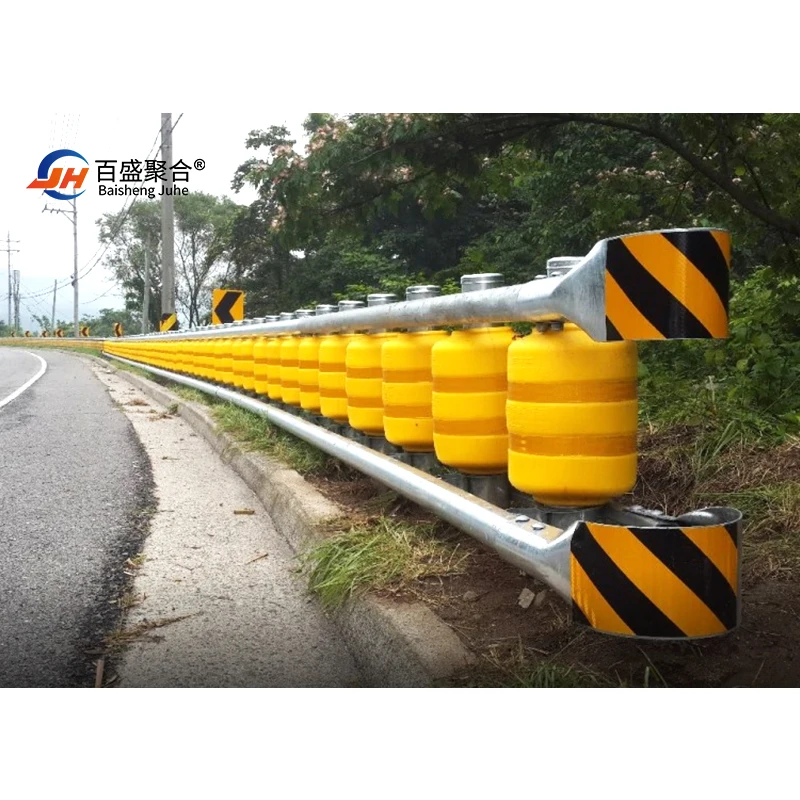

Safety Roller Barrier System Advantages

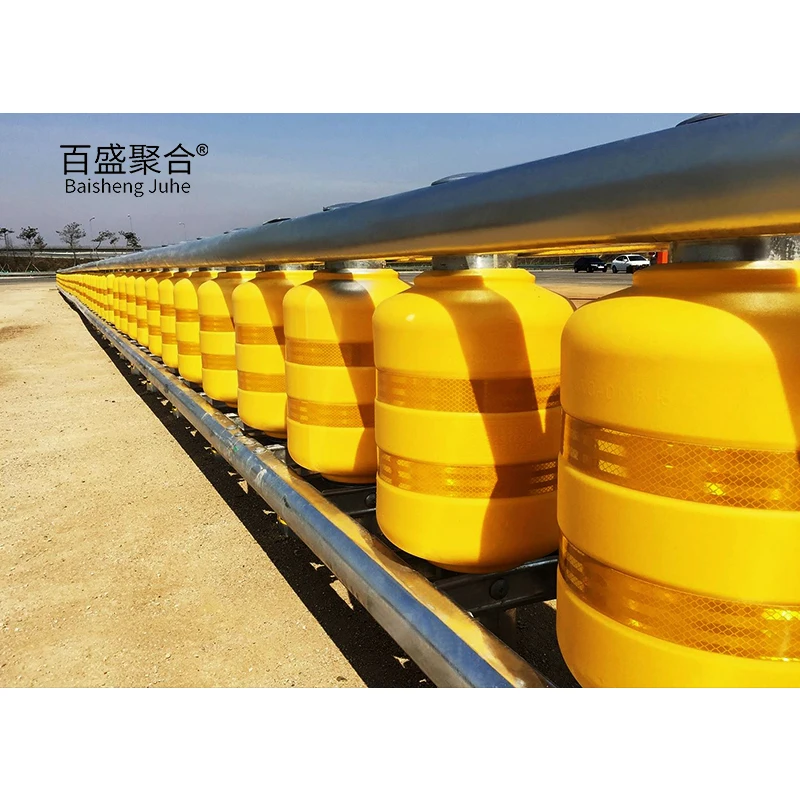

Improve roadside visibility – SRB rollers are striped with high-intensity reflective sheeting that increases driver awareness and reduces accidents. Optional LED guide lamps can be added for even more exceptional visibility.
Safety Roller Barrier System Advantages
Safely redirects vehicles – Shock absorbing rollers convert impact energy into rotational energy, creating a smooth redirection. Occupant impact test results show SRB is the safest in its class.
Safety Roller Barrier System Advantages
If you need more info, please feel free to contact us. →→ → Contact Us >

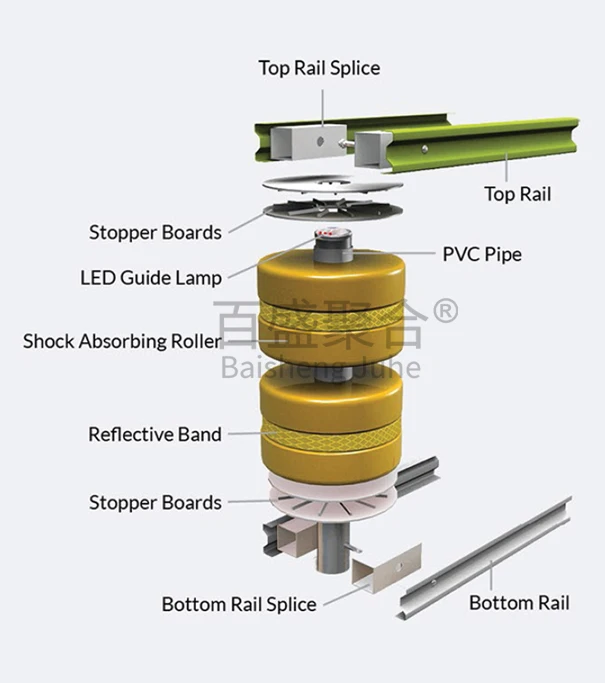

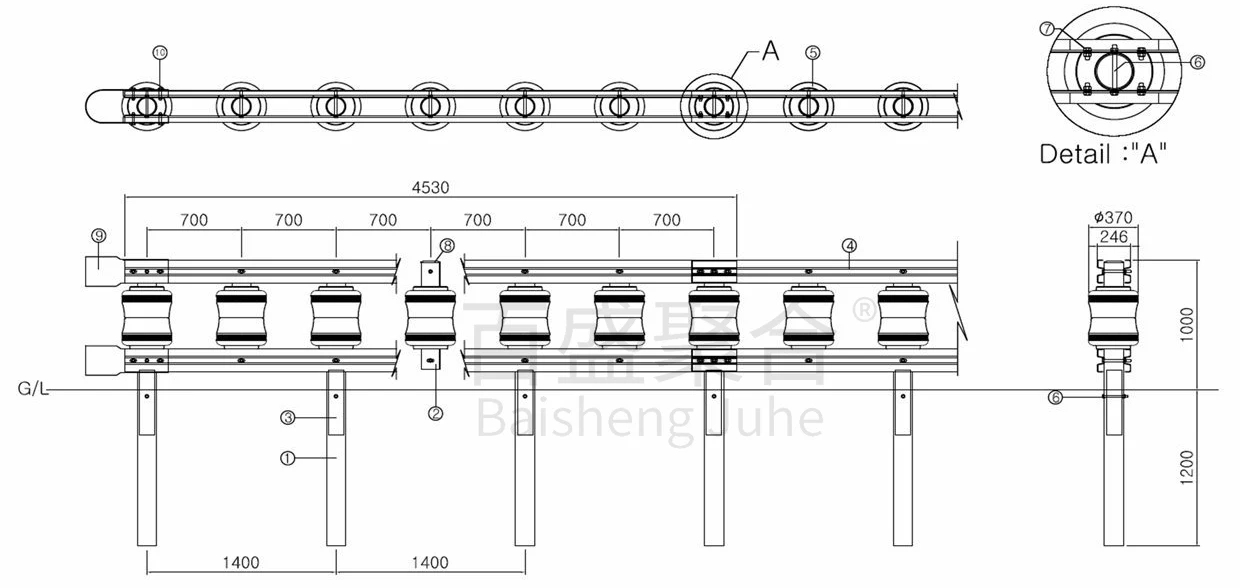

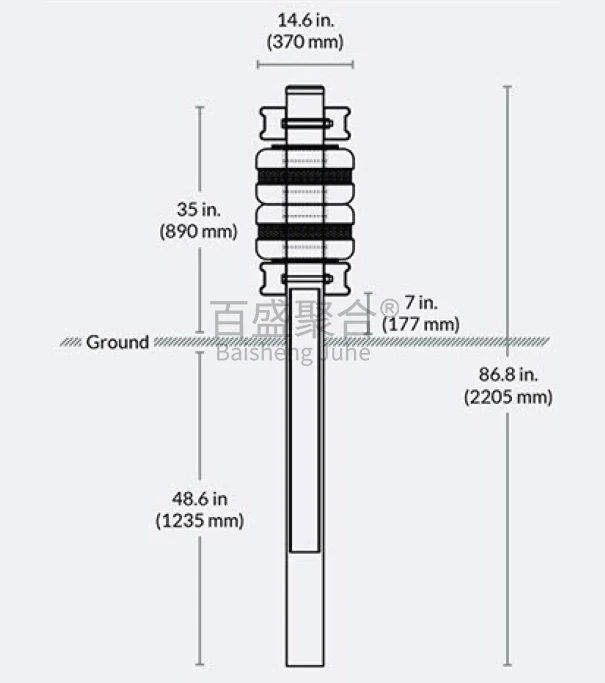

Design drawings
Modular system

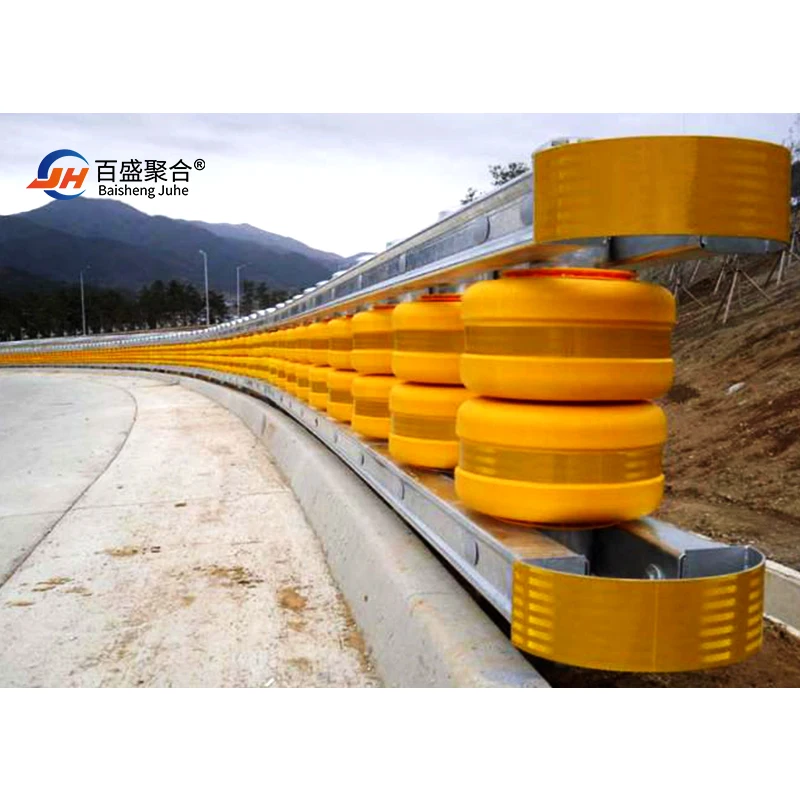

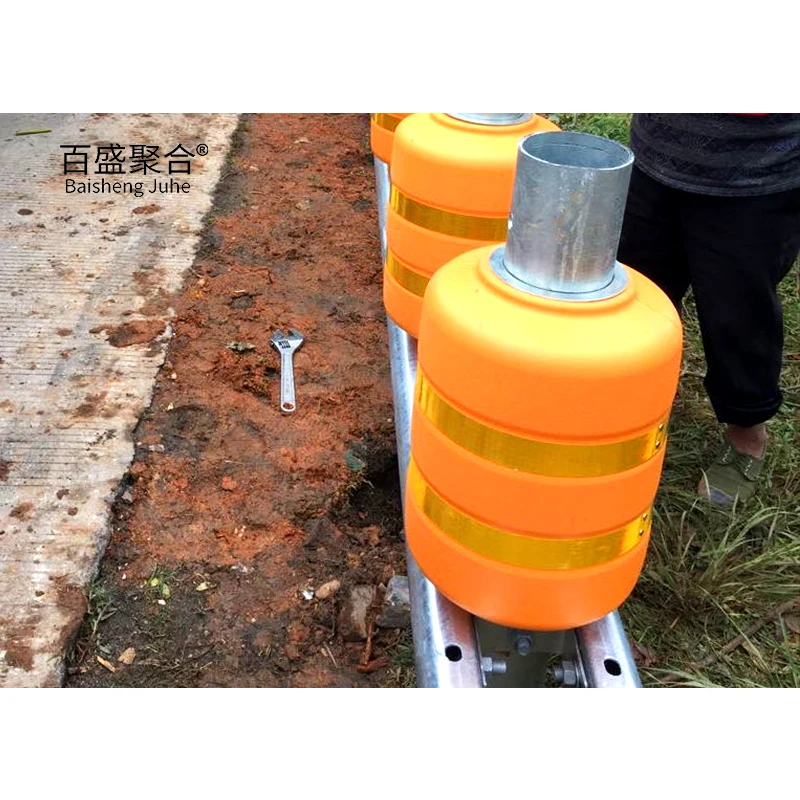

The Rolling Barrier Guardrail was built with maintenance as a primary concern. A modular design comprised of D-shaped steel rails, round steel-posts with EVA shock-absorbing barrels, and frame rail lockers means that after incidents, individual parts can be replaced without compromising the entire system thus reducing maintenance costs.

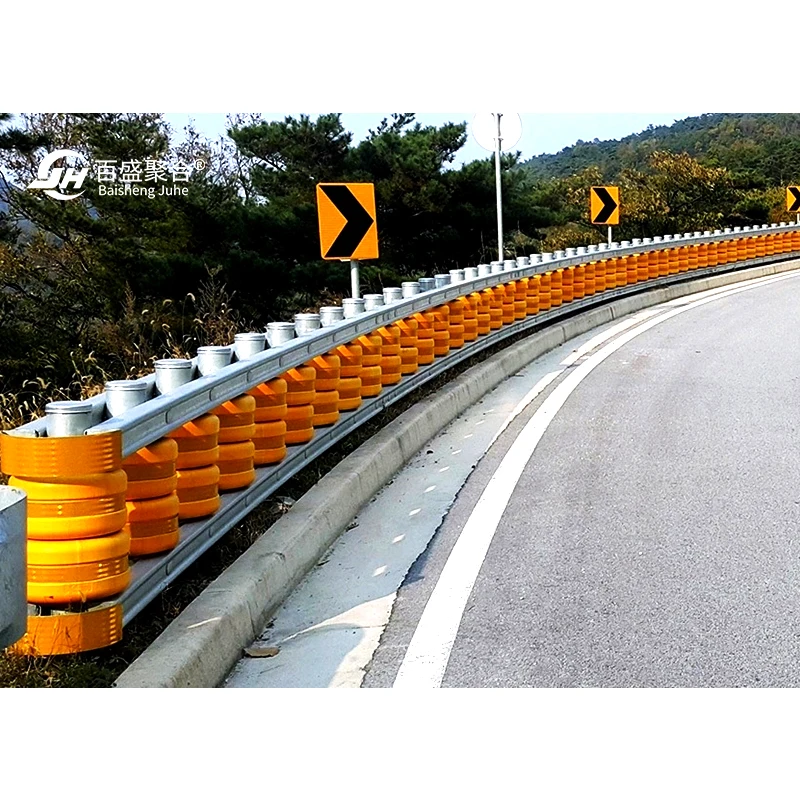

1、Easy installation and maintenance on curved road.
2、Powder coating with various colors is available upon request.
3、Minimizes damages on motorists and vehicles with rollers and dual guardrails.
4、High-elastic synthetic resin roller is hardly damaged on impact (Cover: PE, Core: Urethane).
2、Powder coating with various colors is available upon request.
3、Minimizes damages on motorists and vehicles with rollers and dual guardrails.
4、High-elastic synthetic resin roller is hardly damaged on impact (Cover: PE, Core: Urethane).
If you need more info, please feel free to contact us. →→ → Contact Us >

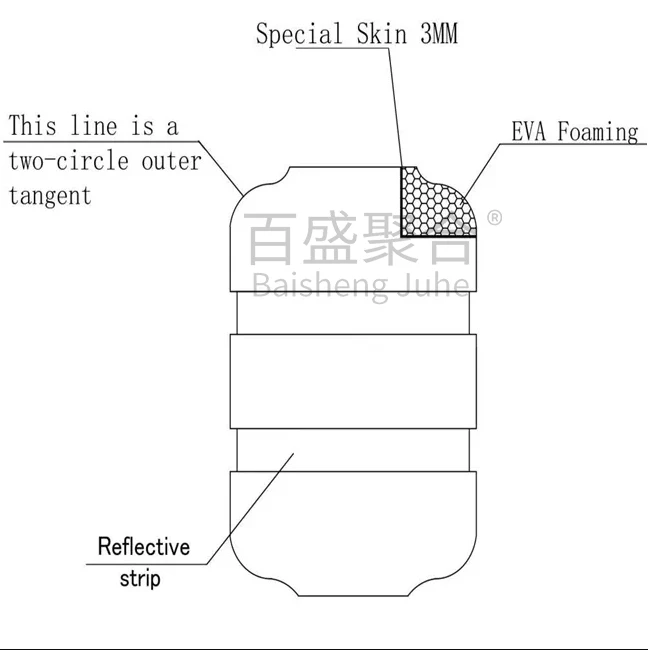

Structural Design Of Each Part

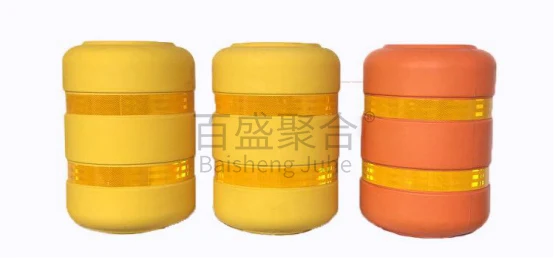

Wear resistance is higher than 200% Wear resistance is higher than 200% to other anti-collision barrel materials in the market . Due to its unique production process and process, Taicheng Rotary Anti-collision Barrel has 3mm thick hard polyurethane protective layer in the outer layer of the barrel. Its tensile strength and bearing capacity are 2-3 times that of other anti-collision barrels in the market.

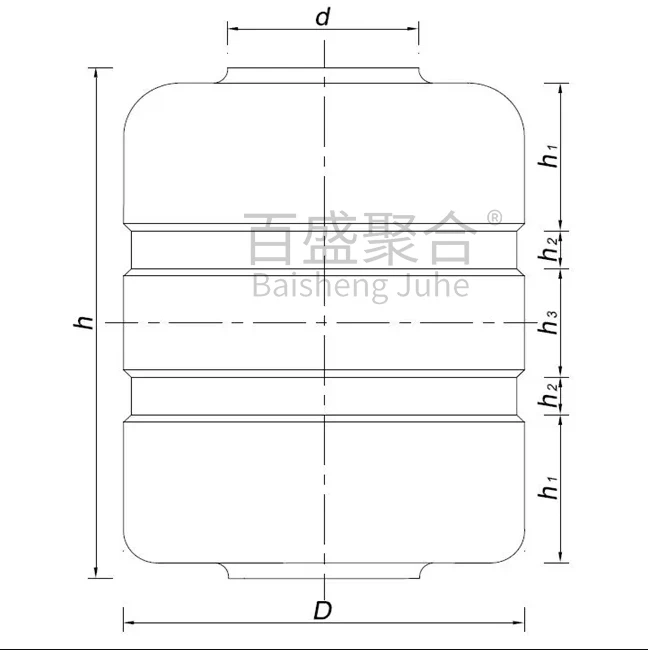

The shape of the rotating barrel is shown in Figure A.1 ,The nominal size and allowable deviation shall comply with the requirements of Table A.1.
Crash test

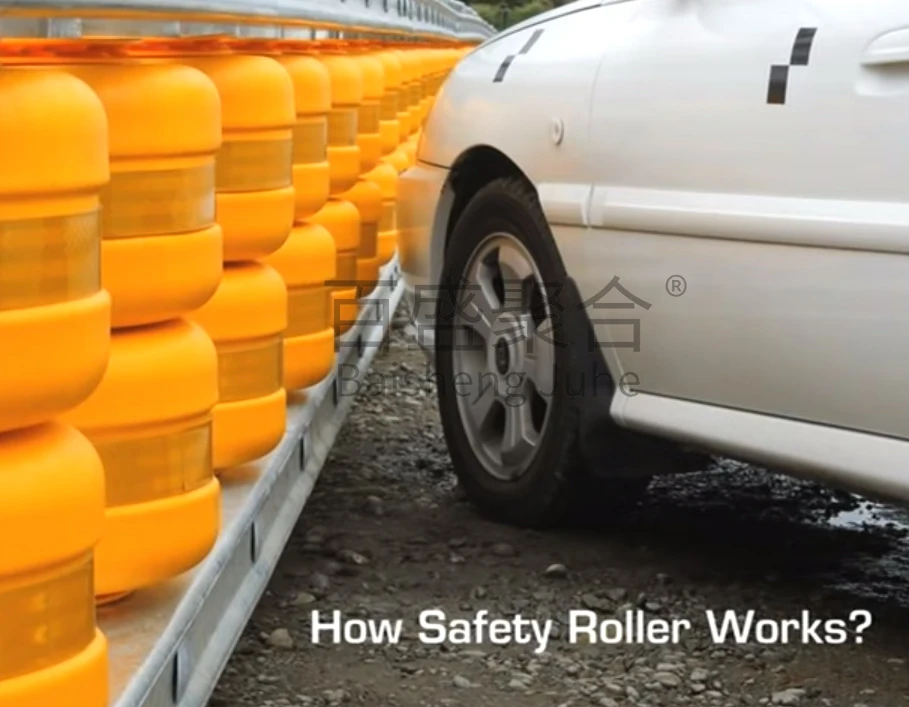

How Safety Roller Works？
1.Roller absorbs collision shock converting shock energy into rotational energy
2.Front rail absorbs 2nd shock
3.Back rail absorbs 3rd shock
4.Metal pipe inserted in to strengthen post
OCCUPANT IMPACT VELOCITY LIMITS | OCCUPANT RIDE DOWN ACCELERATION LIMITS | ||||||||||||
MASH Test | Longitudinal | Lateral (optional) | x-Direction | y-Direction | |||||||||
Test | (kg) | ft/s | (m/s) | ft/s | (m/s) | G’s | G’s | ||||||
4-10 | 1,100 C | 0.66 | (0.20) | 29.20 | (8.90) | 0.6 | 7 | ||||||
4-11 | 2,270 P | 0.33 | (0.10) | 19.40 | (5.90) | 1.1 | 9.7 | ||||||
4-12 | 10,000 S | 1.64 | (0.50) | 9.20 | (2.80) | 0.6 | 4.3 | ||||||
MASH Preferred Limits | ft/s (m/s) | MASH Preferred Limits | G’s | ||||||||||
30 (9.10) | 15 | ||||||||||||
MASH Max Limits | 40 (12.20) | MASH Max Limits | 20.49 | ||||||||||

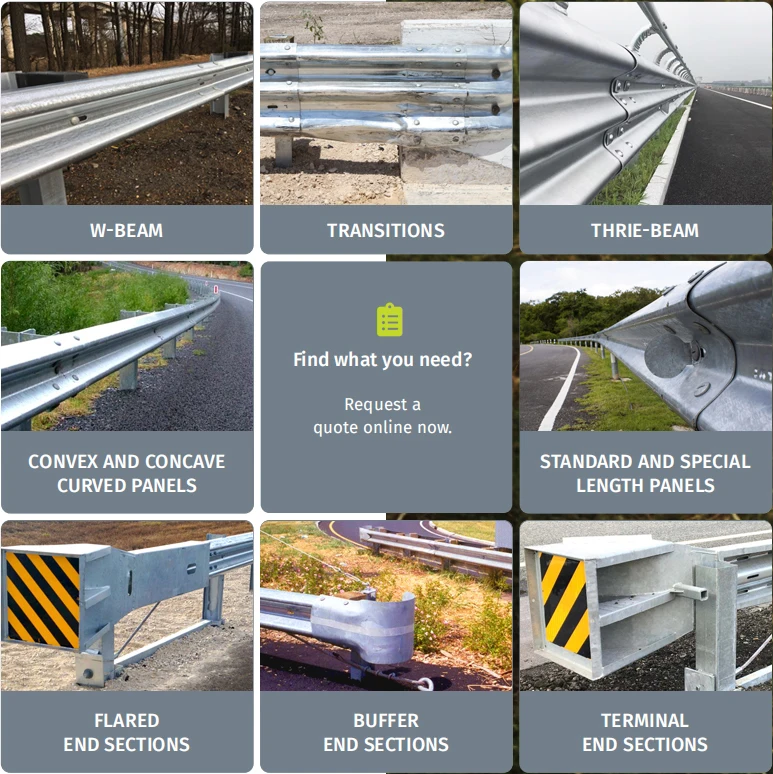

Find what you need?
