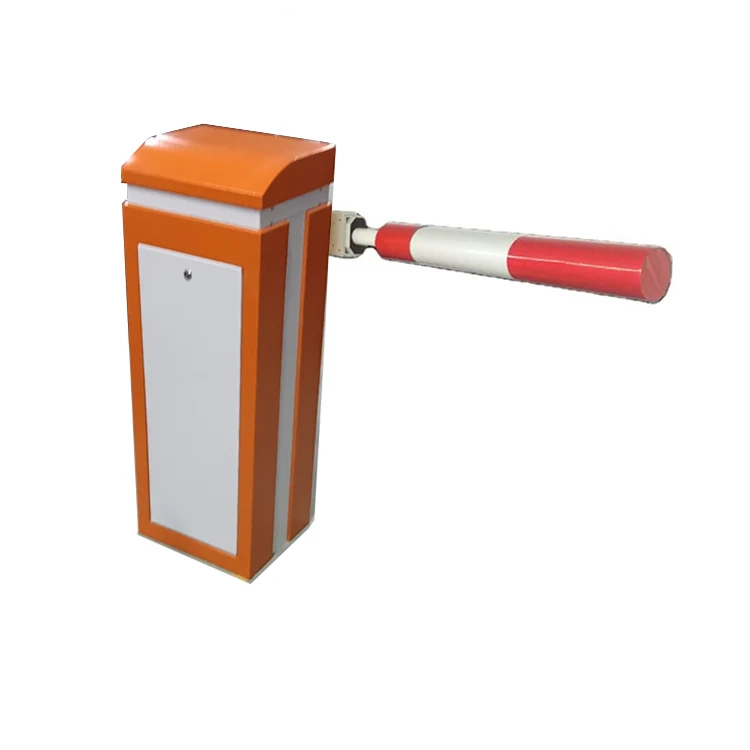

Fast Barrier Gate LED Automatic Boom Barrier Gate RFID Reader Parking Boom Barrier Gate For Packing
- Category: >>>
- Supplier: Chisung Intelligence Technology(shenzhen) Co. Limited
Share on (1600928321208):
Product Overview
Description
Products Description
Product Name | High-End DC24V Planetary Motor Barrier Gate Mechanism |
Motor Working Temperature | -30℃~+80℃ |
Motor Power | Max 200W |
Working Power | AC110~120V, or AC200~240V |
Relative Humidity | 30%~80%, No condensation |
Distance of remote control | L>=30M |
Controller input voltage | DC24V±10%, 10A |
Insulation Grade | F |
Application | Roadway Safety |
Warranty | 1 Year |
MTBF | 10 million times |
MOQ | 1 Set |
.1. Brief Introduction
The product consists of five parts: cabinet cap, cabinet body, transmission mechanism, control unit, and boom. It distinguishes between left and right machines and is used in parking lot entrance and exit control systems.
This product is divided into three types: straight boom barrier, folding boom barrier and fence boom barrier.
Note: If any customization which is not listed in the following table is needed, please consult the marketing staff.
1.2. Functions and Features

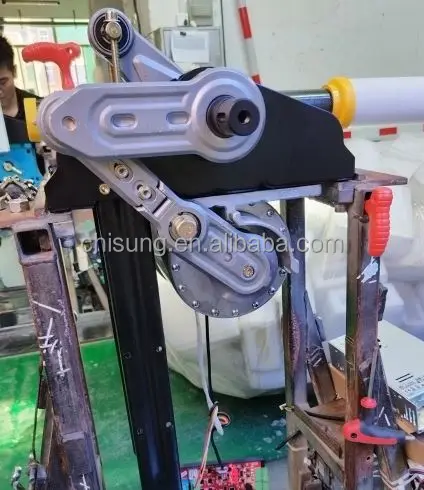

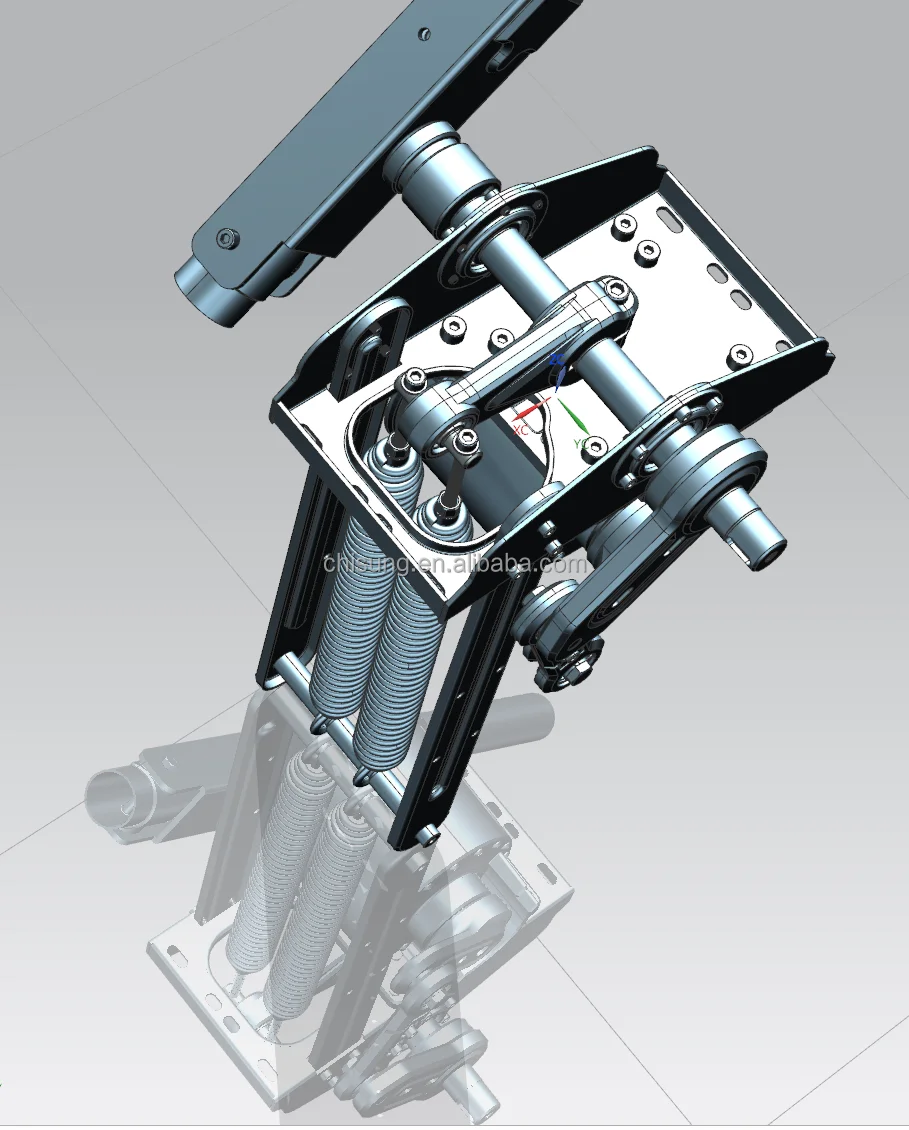

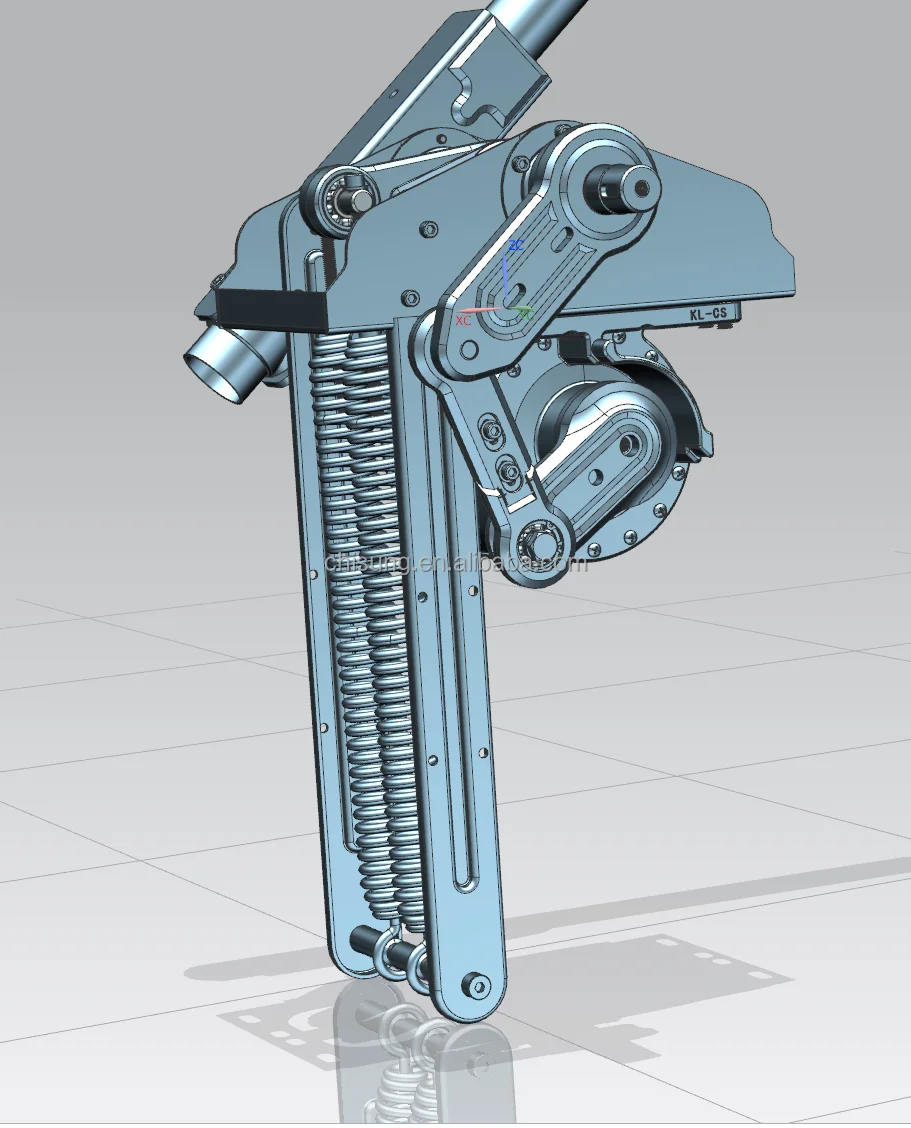

* 2.1. Motor driven, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 2.5 million times, spring life 500,000 times.
1.2.2. With auto-reversing on obstruction functions, the boom will auto reverse when meeting obstacles.
* 2.3. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external
radar power supply.
* 2.4. Support remote control, open and interference-free environment, the maximum distance is 50 meters.
1.3. Technical Data
1.3.1. Working temperature (motor): -35℃~ + 80℃
1.3.2. Power supply input voltage: AC110~120V, or AC200~240V
1.3.3. Controller input voltage: DC24V±10%, 10A
1.3.4. Motor power: 200W MAX
1.3.5. Relative Humidity: 30%~80%, No condensation
1.3.6. Distance of remote control: L≥30M
1.3.7. Insulation grade: F
Barrier Types
Description ( Boom length = L, Seconds=S )

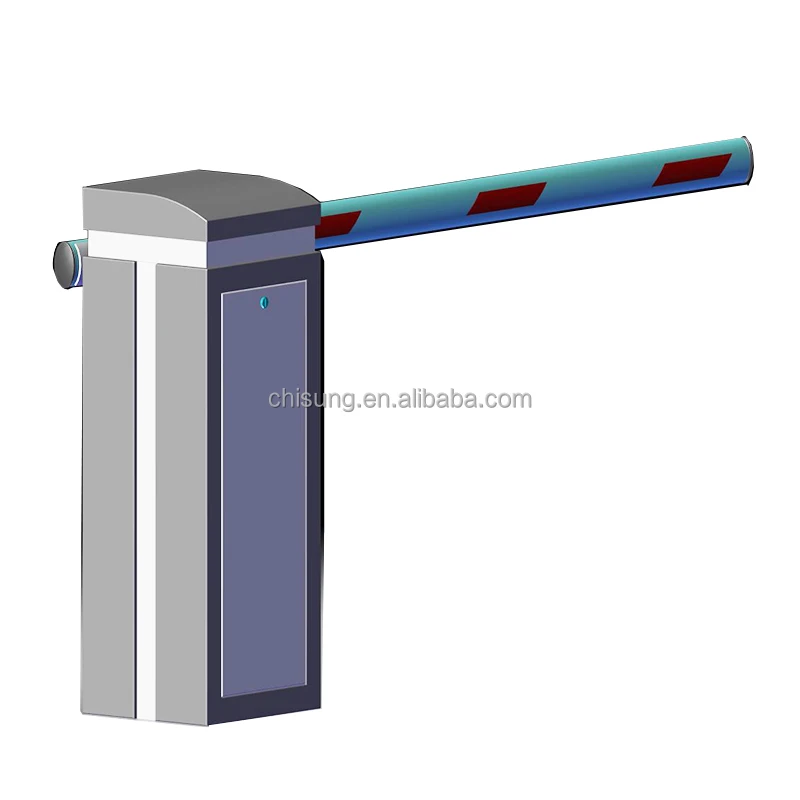

Barrier Gate with Straight Boom
l L≤2.5M, up speed 0.6S.
l L≤3M, up speed 0.9S.
l L≤3.5M, up speed 1.5S.
l L≤4M, up speed 2.5S.
l L≤4.55M, up speed 4S.
Barrier Gate with Carbon round boom
l L≤3.5M， up speed 0.6S.
Description ( Boom length = L, Seconds=S )
Barrier Gate with Straight Boom
l L≤2.5M, up speed 0.6S.
l L≤3M, up speed 0.9S.
l L≤3.5M, up speed 1.5S.
l L≤4M, up speed 2.5S.
l L≤4.55M, up speed 4S.
Barrier Gate with Carbon round boom
l L≤3.5M， up speed 0.6S.
Packing & Delivery
carton
Company Profile
Chisung(Chisung Intelligence Technology Co., Limited), is one of the enterprises integrating intelligent machinery and electronic technology in road safety machines.
Our main products are automatic barrier gates(barrier, barrier gate, boom barrier, automatic barrier, traffic barrier, car park barrier, ) for car parking lot, turnstile, automatic turnstile, tripod turnsiltes, sliding gate operators, swing gate operators, flap barriers, swing barriers, speed gates, parking locks, parking curbs, parking guard and full height turnstiles.
Since established, our company has always adhered to the business principle of "Quality is the first, Customer is the supreme", and we aim to become the top one as a world-known hi-tech enterprise in China, even in the world.
During the years of rapid development, we become one of the leading designer and manufacturers of intelligent gate control security machines in China,with spelization of security and protection products. Many of our technologies and innovations have got patent rights.
Chisung has established comprehensive and wide sales and after sales network, due to our advanced producing equipments and scientific management, our series of products with excellent quality are selling well not only in China but also all over the world.
Meanwhile, we provide the OEM service for many companies, and the products meet their demand of high quality facilities for the business, that make our customers more competitive.
Our main products are automatic barrier gates(barrier, barrier gate, boom barrier, automatic barrier, traffic barrier, car park barrier, ) for car parking lot, turnstile, automatic turnstile, tripod turnsiltes, sliding gate operators, swing gate operators, flap barriers, swing barriers, speed gates, parking locks, parking curbs, parking guard and full height turnstiles.
Since established, our company has always adhered to the business principle of "Quality is the first, Customer is the supreme", and we aim to become the top one as a world-known hi-tech enterprise in China, even in the world.
During the years of rapid development, we become one of the leading designer and manufacturers of intelligent gate control security machines in China,with spelization of security and protection products. Many of our technologies and innovations have got patent rights.
Chisung has established comprehensive and wide sales and after sales network, due to our advanced producing equipments and scientific management, our series of products with excellent quality are selling well not only in China but also all over the world.
Meanwhile, we provide the OEM service for many companies, and the products meet their demand of high quality facilities for the business, that make our customers more competitive.
Product Certification
FAQ
1.Are you a Trade company or manufacturer for barrier gate ?
--------We are a manufacturer , welcome to visit our factory , and welcome to OEM .
2. Sometimes, Why the barrier boom would open automatically?
-------- Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last
page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring
3. How long the Remote-control distance ?
-------- In general, most of CHISUNG 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier
gate from 100 meters away. CHISUNG recommends using the remote control within 30 meters or 50 meters.
4.Can CHISUNG barrier gate be used outdoors, even in extreme weathers?
-------- Yes, the working temperature is -30℃~+85℃
5.Is it changeable for the installation direction of the barrier gates?

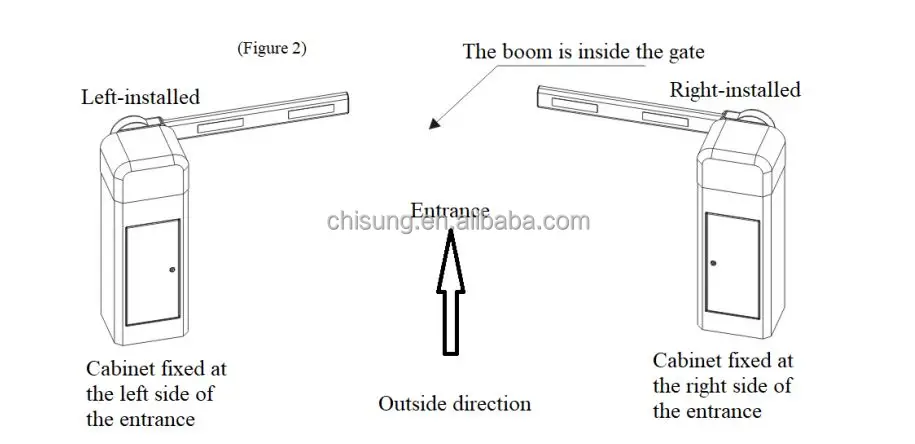

-------- The installation direction of CSDZ101, 102,201,301,501series barrier gates is fixed. But CSDZ601 and CSDZ701 are
adjustable.
--------We are a manufacturer , welcome to visit our factory , and welcome to OEM .
2. Sometimes, Why the barrier boom would open automatically?
-------- Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last
page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring
3. How long the Remote-control distance ?
-------- In general, most of CHISUNG 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier
gate from 100 meters away. CHISUNG recommends using the remote control within 30 meters or 50 meters.
4.Can CHISUNG barrier gate be used outdoors, even in extreme weathers?
-------- Yes, the working temperature is -30℃~+85℃
5.Is it changeable for the installation direction of the barrier gates?
-------- The installation direction of CSDZ101, 102,201,301,501series barrier gates is fixed. But CSDZ601 and CSDZ701 are
adjustable.
