Constant Temperature High Speed High Quality Automatic Suppository Shell Making Machine
- Category: >>>
- Supplier: Liaoyang Xianglong Pharmaceutical Machinery Co. Ltd.
Share on (1600929928003):
Product Overview
Description
Product Description
Suppository filling production line
1. Automatic suppository production line is suitablefor the production of special shapesof slugs such as bulletshape, torpedo shape and duckbill shape, which can meet the production of suppositories of various shapes. (Make a mold according to the sampleor requirement.)
2. From the beginning of the automatic suppository shell molding, to the filling station of the liquid materiel, the recip-rocating cooling setting (liquid conversion solid state), the continuous sealing, the batch number, the finished product cutting (the number of cutting particles is arbitrarily set on the touch screen,1-10 Free cutting)
One-time molding suppository for embedded type filling, filling accuracy + / - 2%, filling material barrel has electric heating
insulation system, the top is equipped with a uniform mixing machine in order to make materiel, materiel by high precision in VAT filling pump into the filling head, materiel through the other end of the cycle to rest after filling material barrel filling again next time.
2. From the beginning of the automatic suppository shell molding, to the filling station of the liquid materiel, the recip-rocating cooling setting (liquid conversion solid state), the continuous sealing, the batch number, the finished product cutting (the number of cutting particles is arbitrarily set on the touch screen,1-10 Free cutting)
One-time molding suppository for embedded type filling, filling accuracy + / - 2%, filling material barrel has electric heating
insulation system, the top is equipped with a uniform mixing machine in order to make materiel, materiel by high precision in VAT filling pump into the filling head, materiel through the other end of the cycle to rest after filling material barrel filling again next time.
Details Images
The insertion type linear perfusion mechanism
The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The single-grain measurement is 0.5-5g and the filling error is plus or minus 2%
Production capacity
The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.
Siemens PLC control system
The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment, accurate temperature control and smooth operation.
Servo high precision filling system
Filling, freezing, sealing and other production processes are fully automatic. Filling piston by servo motor with stroke rule, easy to observe, stable action, load online adjustable, high precision and easy to adjust!
Exclusive circulation of water cooling system
Latest circulating water cooling technology, which can solve the phenomenon of slag falling off and easy fracture when the product is torn apart. exclusive circulation of water cooling system advantages of thick tail edge, tear off residue. The temperature is adjustable.

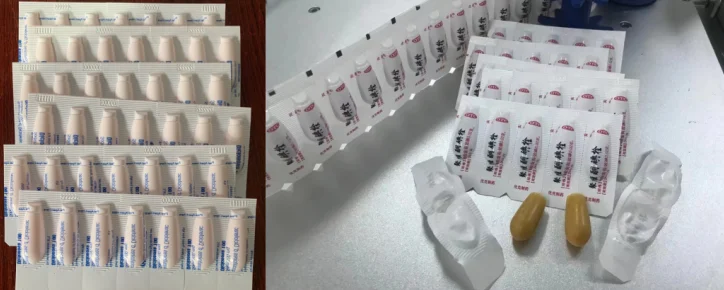

Finished product
The sealing seal should be well sealed, with neat appearance and good value of not less than 99.%.
Technical specifications
Name | Laboratory Suppository Production Line | Continuous Suppository Production Line | |||
Model | 1L | 3L | 7L | ||
1,000-2,000 pcs/h 5,000-6,000 pcs/h | 10,000-12,000 pcs/h 15,000-18,000 pcs/h 18,000-23,000 pcs/h | ||||
Shape | The bullet,torpedoes,duck bill and other various shapes | ||||
Application | Synthetic fatty acid glycerides,glycerin,gelation and polyethylene glycol,etc | ||||
Model | 1L | 3L | 7L | L10 |
Output | 1000-1500 pcs/h | 4500-5000 pcs/h | 10000 pcs/h | 15000 pcs/h |
Single dosage | 0.5—5g | 0.5—5g | 0.5—5g | 0.5—5g |
Dosage allowed | ＜±2% | ＜±2% | ＜±2% | ＜±2% |
Packaging Film | PVC\\PE | PVC\\PE | PVC\\PE | PVC\\PE |
Stirring tank capacity | 20L | 30L | 70L | 70L |
Air pressure | ≥0.6Mpa | ≥0.7Mpa | ≥0.7Mpa | ≥0.7Mpa |
Air consumption | 1.2m³ | 1.5m³ | 1.5m³ | 1.5m³ |
Water consumption | 50kg(recycling) | 50kg(recycling) | 50kg (recycling) | 50kg (recycling) |
Working voltage | 3 phase 380V | 3 phase 380V | 3 phase 380V | 3 phase 380V |
Total power | 4KW | 5KW | 7.5KW | 9.5KW |
Machine Weight | 500KG | 1000KG | 2000KG | 2500KG |
Overall dimensions | 2300*1200*1800 | 3587*1388*1828 | 5302*2120*1809 | 5965*2120*2150 |
Notes:If any change of data, we will not notify further
