EDON DC inverter plasma cutter CUT-40 IGBT CUTTING MACHINE
US $65.00-$91.00
Factory Wholesale China Goods Portable plasma cutting machine cutter at low price
- Category: >>>
- Supplier: Linyi Polaris International Trade Co. Ltd.Linyi Ltd.
Share on (1600935260193):
Product Overview
Description
【Portable appearance design】
Comfortable grip design makes mobile operation more convenient
(some large plasma cutting power supply with wheel set)

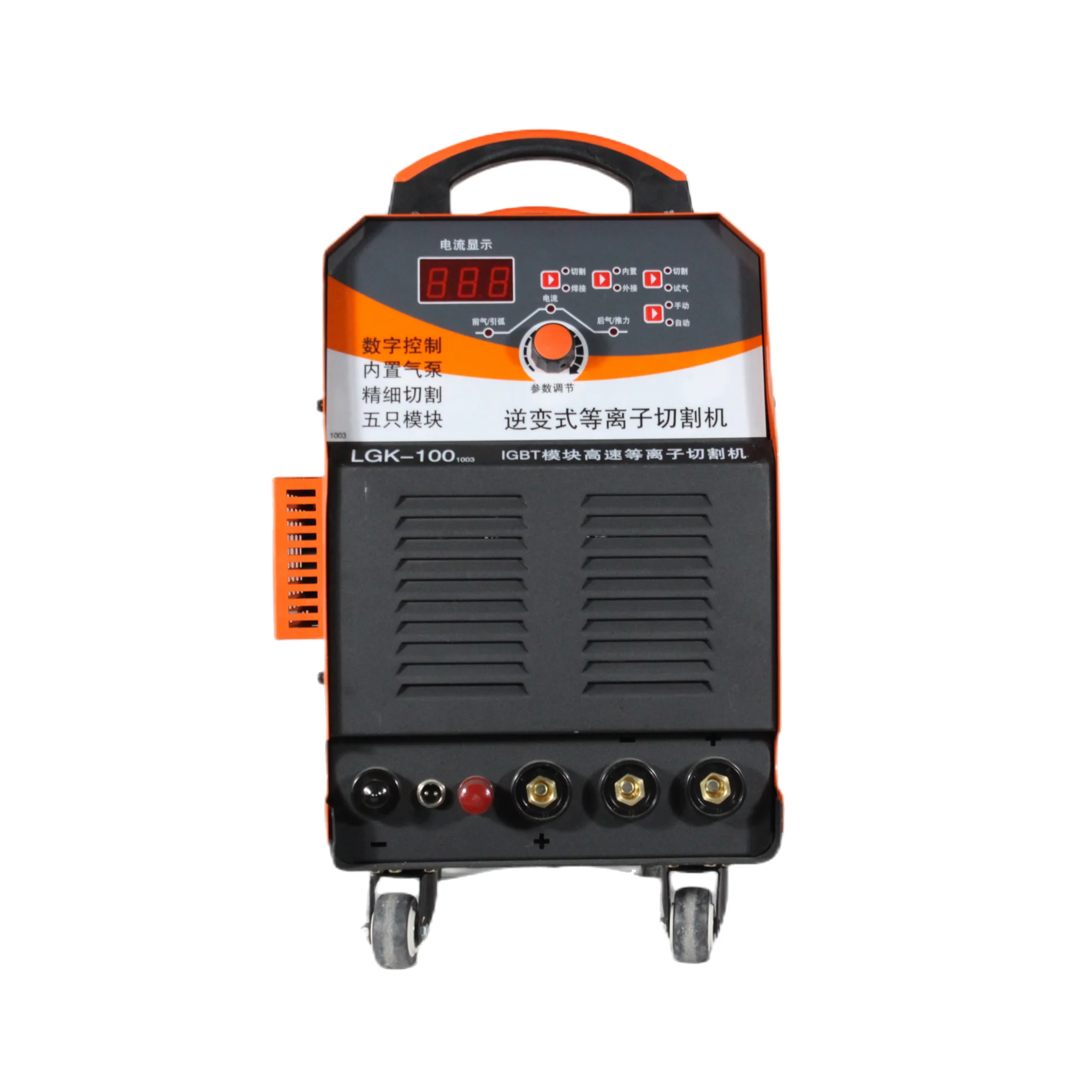

【Digital current display】
Precise stepless current regulation, suitable for different thickness.

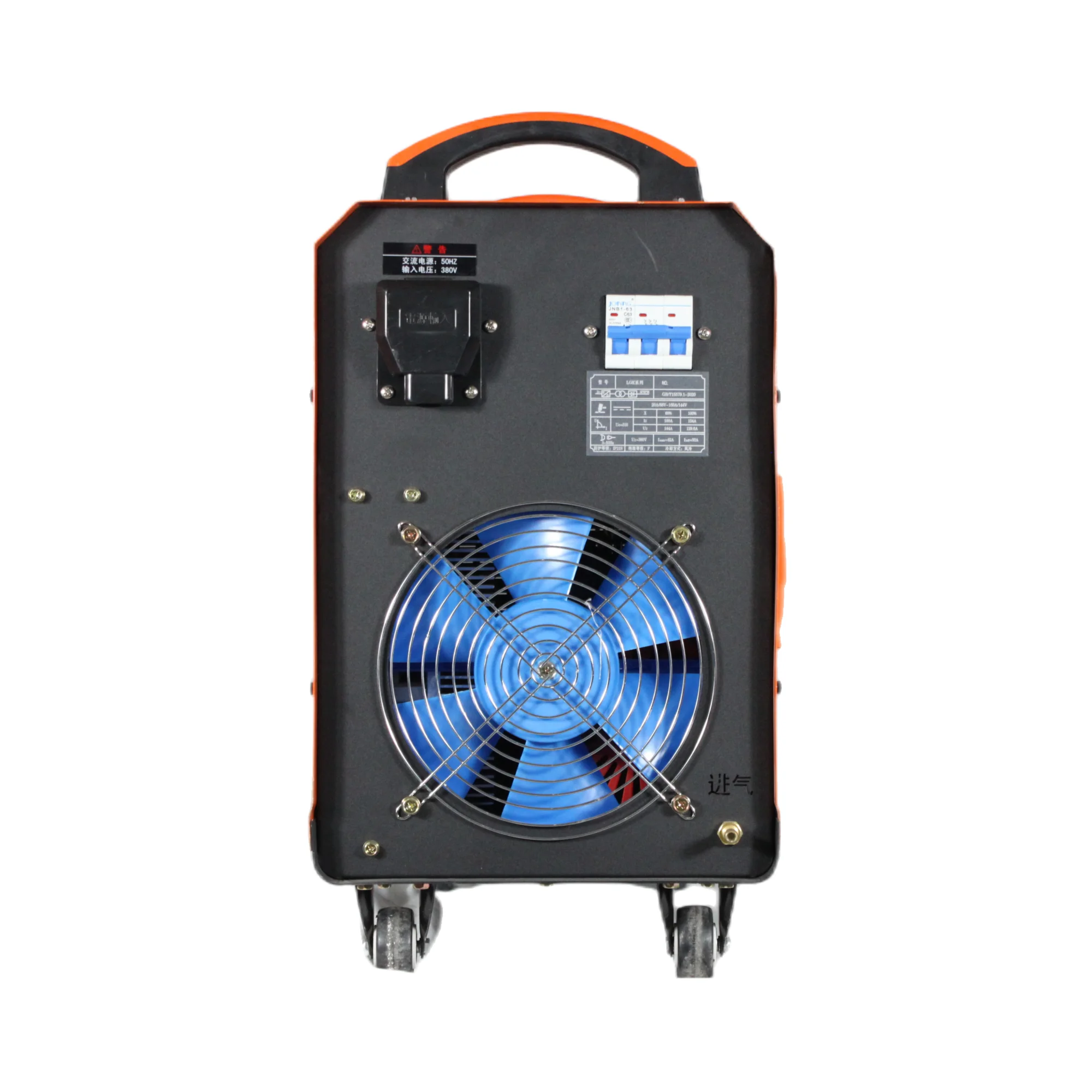

【Internal structure design】
Built in IGBT module, large fan cooling faster, all copper transformer, more stable output
【ARC Air Plasma Cutter】
Arc ignition technology allows you to cut without touching the tip to the metal. Efficiently cuts rough, painted and rusted surfaces with minimal drossing. Better cut quality and longer life.
Comfortable grip design makes mobile operation more convenient
(some large plasma cutting power supply with wheel set)
【Digital current display】
Precise stepless current regulation, suitable for different thickness.
【Internal structure design】
Built in IGBT module, large fan cooling faster, all copper transformer, more stable output
【ARC Air Plasma Cutter】
Arc ignition technology allows you to cut without touching the tip to the metal. Efficiently cuts rough, painted and rusted surfaces with minimal drossing. Better cut quality and longer life.
Product Paramenters
Model Number: | LGK-100(1003) |
multifunction: | mma+cutting |
Rated Input Voltage: | 3ph,380V±15% |
Rated input capacity: | 14.5KVA |
No-load Voltage: | 320V |
Rated Output Voltage: | 130V |
Rated Output Current: | 10-100A |
Pulse Frequency: | 50/60hz |
Duty Cycle(%): | 60 |
Power Factor COSФ: | 0.93 |
Dimensions: | 56*33*55cm |
Packaging Dimensions: | 62*35*54cm |
Net Weight: | 34.8KG |
Gross weight(KG): | 36.5KG |
Insulation Class: | Class F |
Protection class: | IP21S |
Cutting Thickness: | 1-30mm |
Scope of application: | Maintenance / decoration / steel processing / machining / steel structure / building construction / shipbuilding / pressure vessel |
Product Description: | Plasma cutting / IGBT module / configurable numerical control / inverter DC / protection circuit / air cooling / water cooling |
Accessories: | 1 cutting gun 1 ground wire clamp 1 barometer |
