ASTM D93 Pensky Martens Closed Cup (PMCC) Flash Point Tester for Laboratory Petroleum Products Test

Product Overview

Description

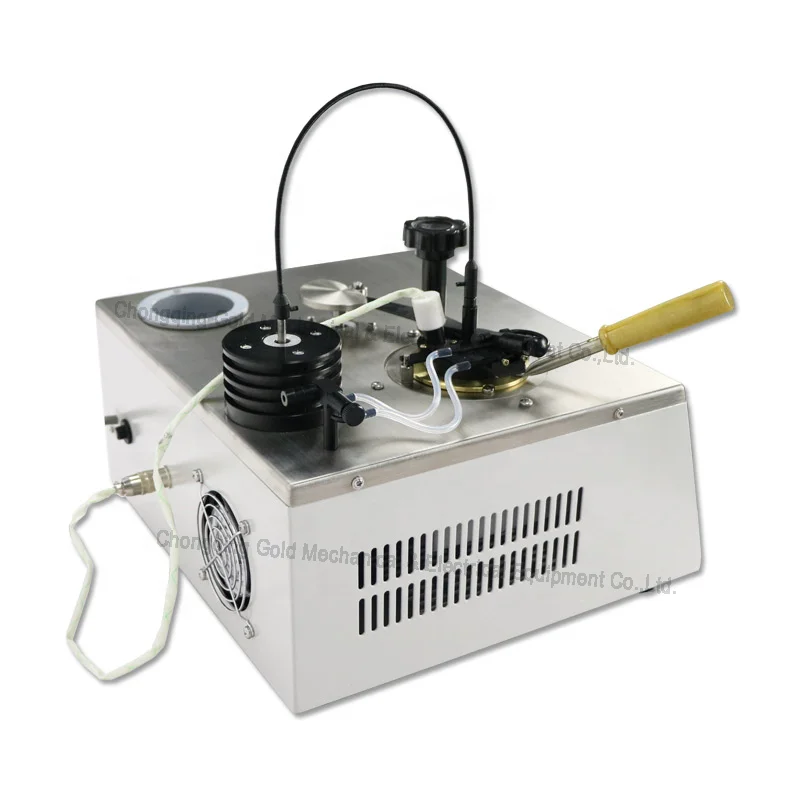

ASTM D93 Pensky Martens Closed Cup (PMCC) Flash Point Tester for Laboratory Petroleum Products

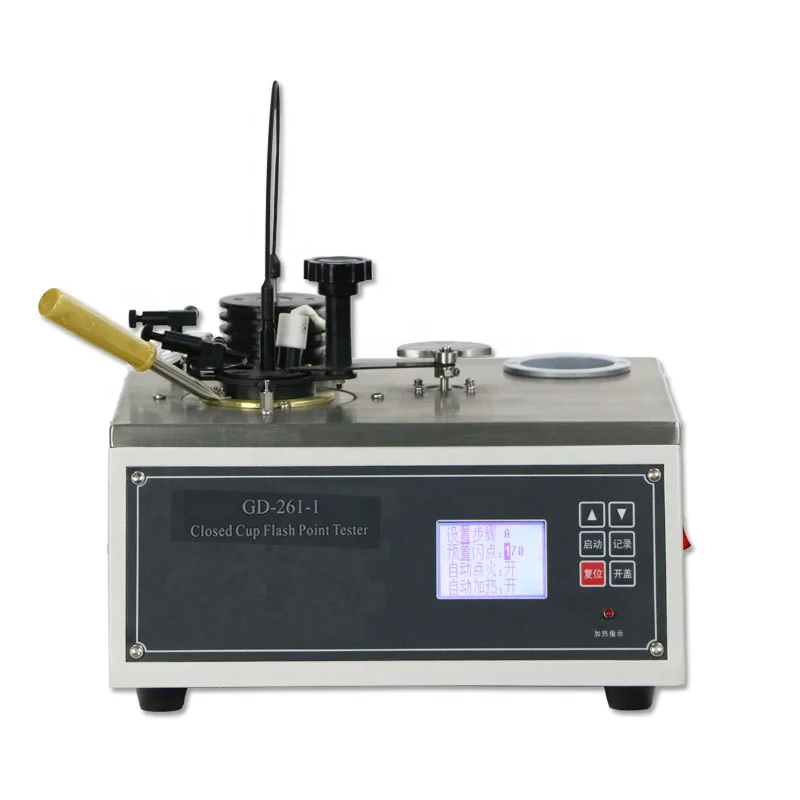

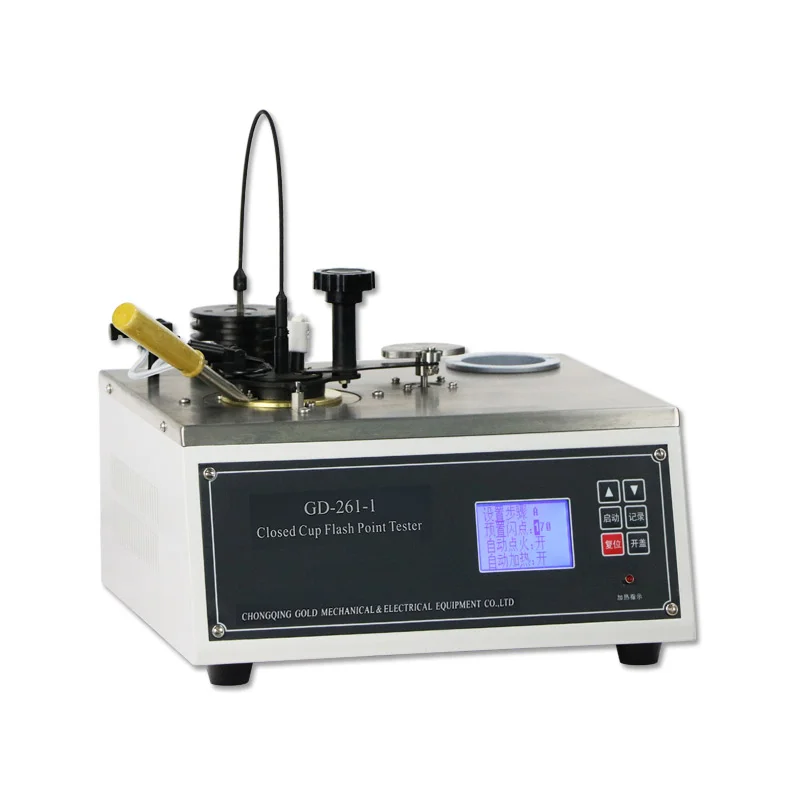

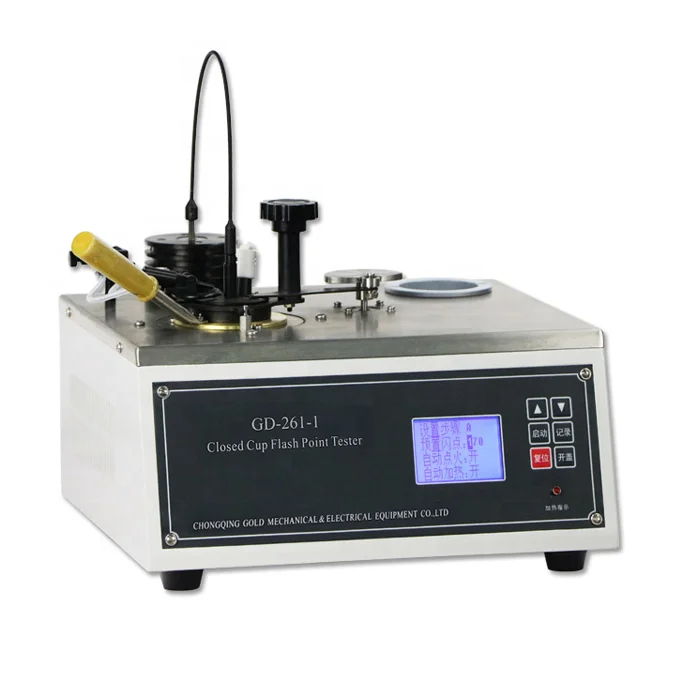

GD-261-1 closed cup flash point tester is designed and manufactured as per standards GB/T 261-2021 Determination of Flash Point-Pensky-Martens closed cup method and ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.



1. Single chip microcomputer control technique. LCD screen displays. English man-machine interaction interface. The heating power is continuously step-less adjustable. The rate of heating up is accurate. Easy setting for parameters.
2. The LCD screen has prompting menu, prompting input operation interface.
3. The PMCC flash point tester shows the setted parameters, real-time temperatures and other test parameters. Press the "record" button when the flash point appears. The screen will show and reserve the flash point.
4. The structure is newly design and small. Stainless steel table-board looks clean and beautiful.
5. The closed-cup flash point tester can be used as long as equipped with gas or other civilian fuels.
6. The PMCC flash point tester is easy to use and test results are accurate.



Power supply	AC( 220±10% )V, 50Hz
Total power consumption	≤650W
Heating device	(1) The furnace is silicon carbide material. Power is 600W. (2) The heating power is adjustable from 0 to 600W.
Heating rate	Procedure A: (5~6)ºC/min, Procedure B: (1~1.5)ºC/min. Procedure C: (2.5~3.5)ºC/min
Stirring device	(1) Stirring motor (2) Driving mode: flexible shaft (3) Shaft size: 8mm*40mm
Stirring rate	Procedure A: (90~120) RPM Procedure B: (250±10) RPM Procedure A: (90~120) RPM
Stand oil cup	(1) Internal diameter: 50.7mm~50.8mm (2) Depth: 55.7mm~56.0mm (3) Marking depth of oil testing capacity: 33.9mm~34.3mm; (4) Oil test capacity: about 70ml;
Igniting device	(1) Igniting source: gas (or other civilian fuels, the same below)
Suitable environment	Ambient temperature: (15~35)ºC Relative humidity: ≤85%
Dimension	340*330*380mm
Net weight	9kg

ASTM D93 Pensky Martens Closed Cup (PMCC) Flash Point Tester for Laboratory Petroleum Products Test

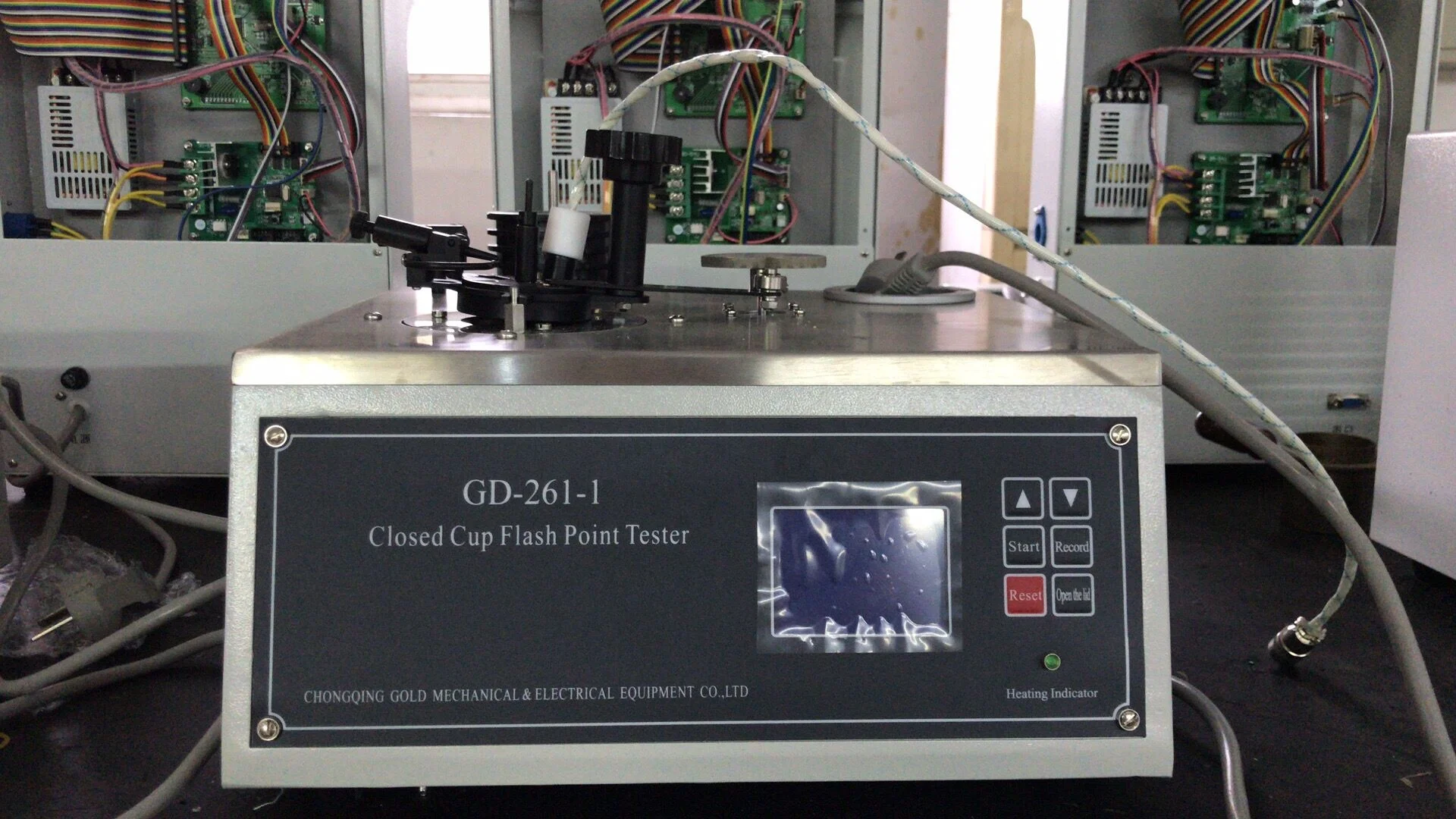

Details of ASTM D93 Pensky Martens Closed Cup (PMCC) Flash Point Tester

If you want know more about the ASTM D93 Pensky Martens Closed Cup (PMCC) Flash Point Tester, please feel free to contact us, thank you!
