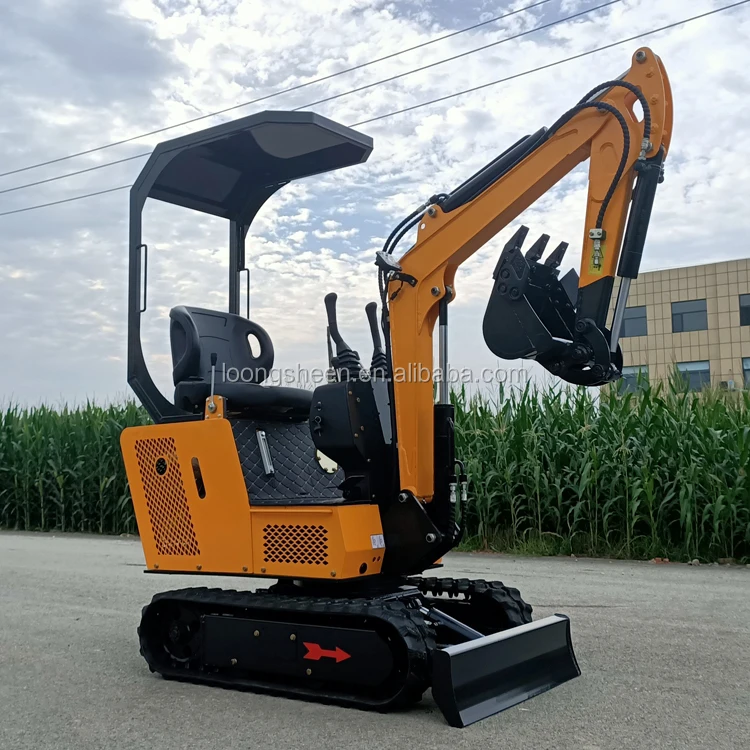

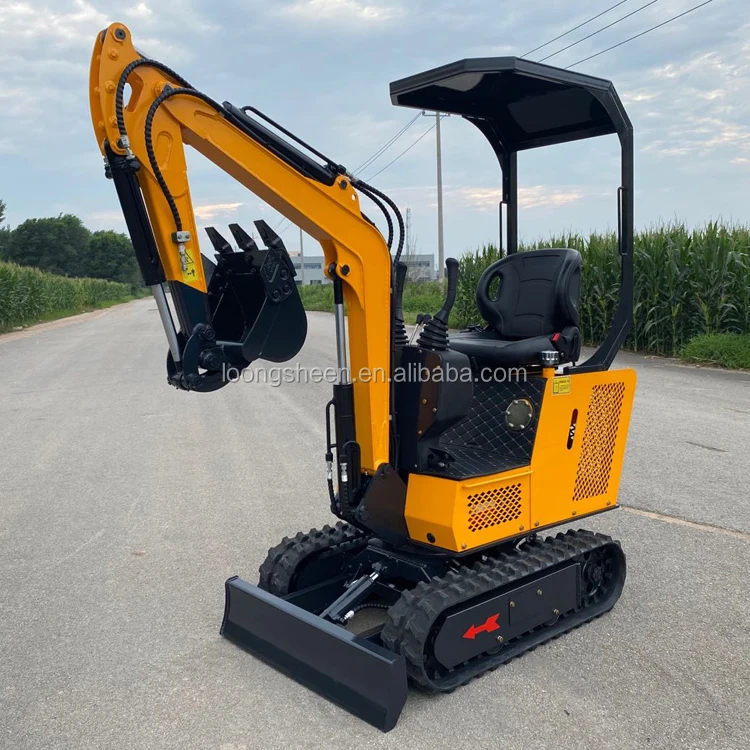

FREE SHIPPING 1 ton farm excavators yellow color rubber ttack crawler excavator 0.02cbm bucket minibagger
- Category: >>>
- Supplier: Shandong Loongsheen Heavy Industry Co. Ltd.
Share on (1600940616286):
Product Overview
Description
Product Overview
What color is your prefer like, custom made your color or brand name for free.
333

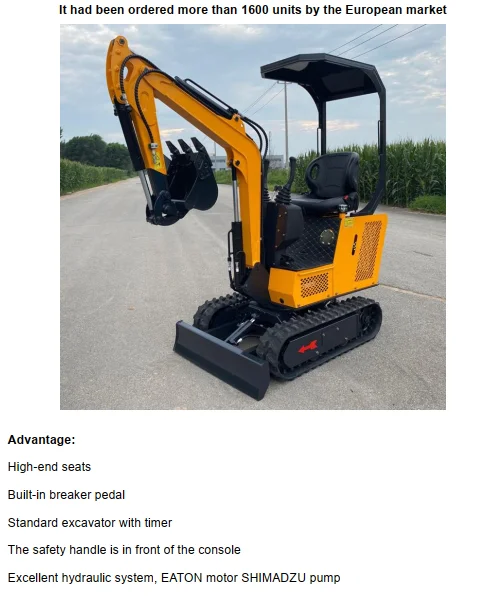

FEATURES AT A GLANCE

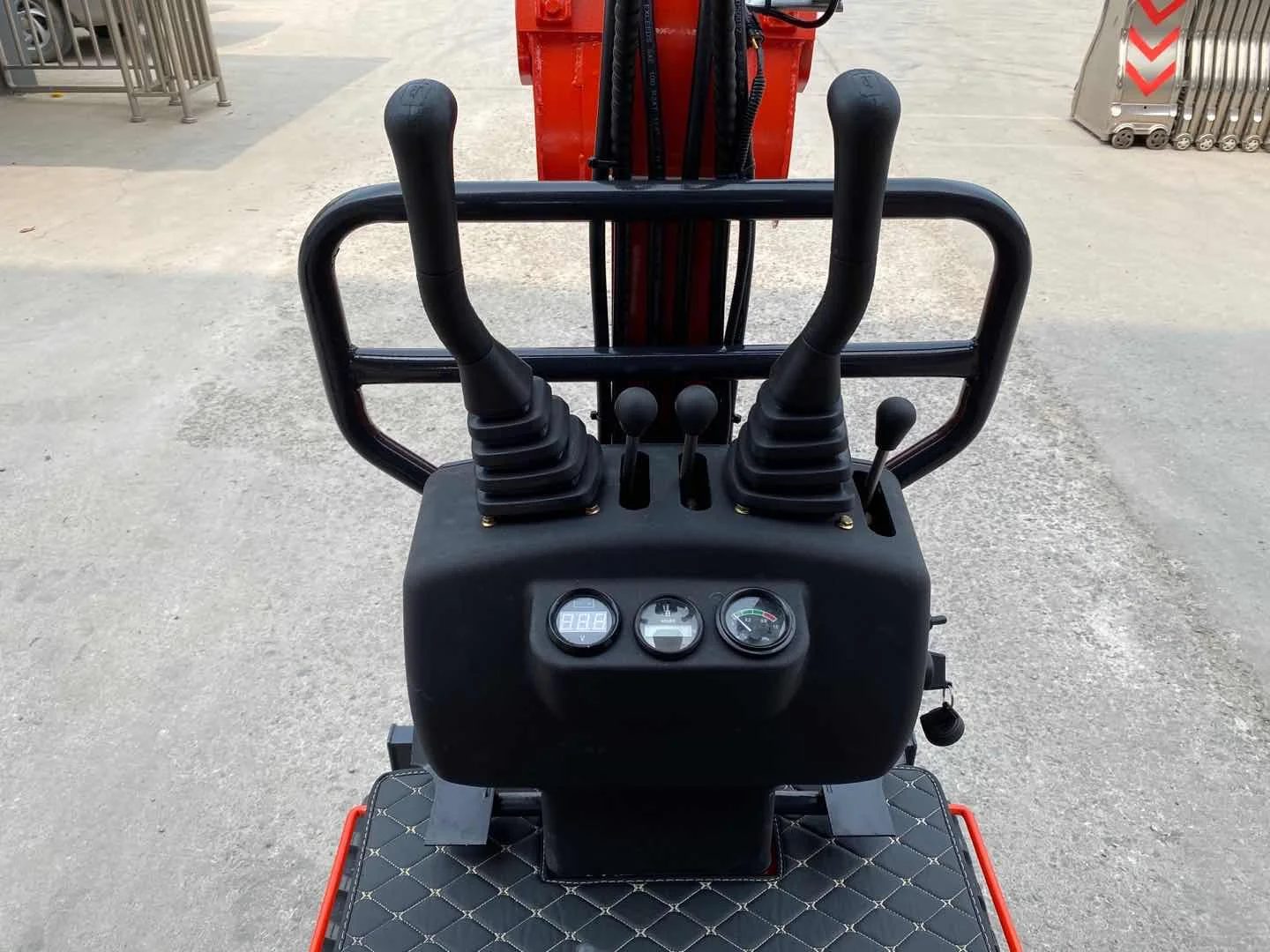

Front joystick/ pilot operate
Front joystick operate, More comfortable operation, easier work, with hand rest at the back.
Work timer, oil pressure.

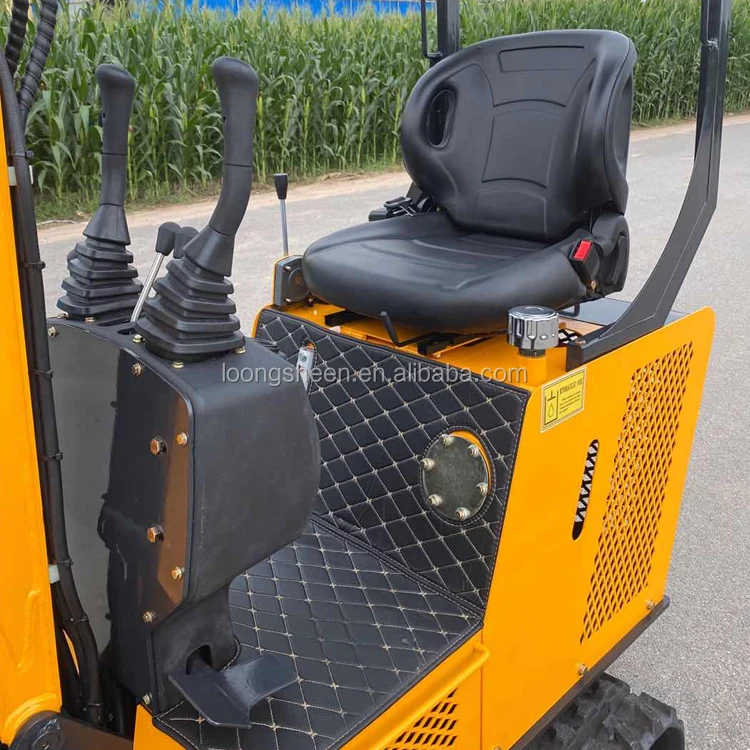

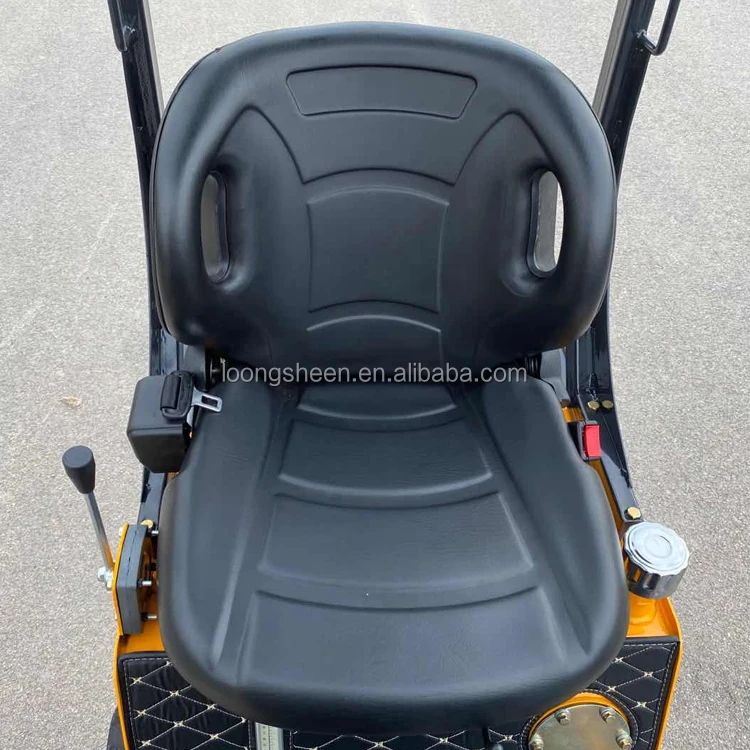

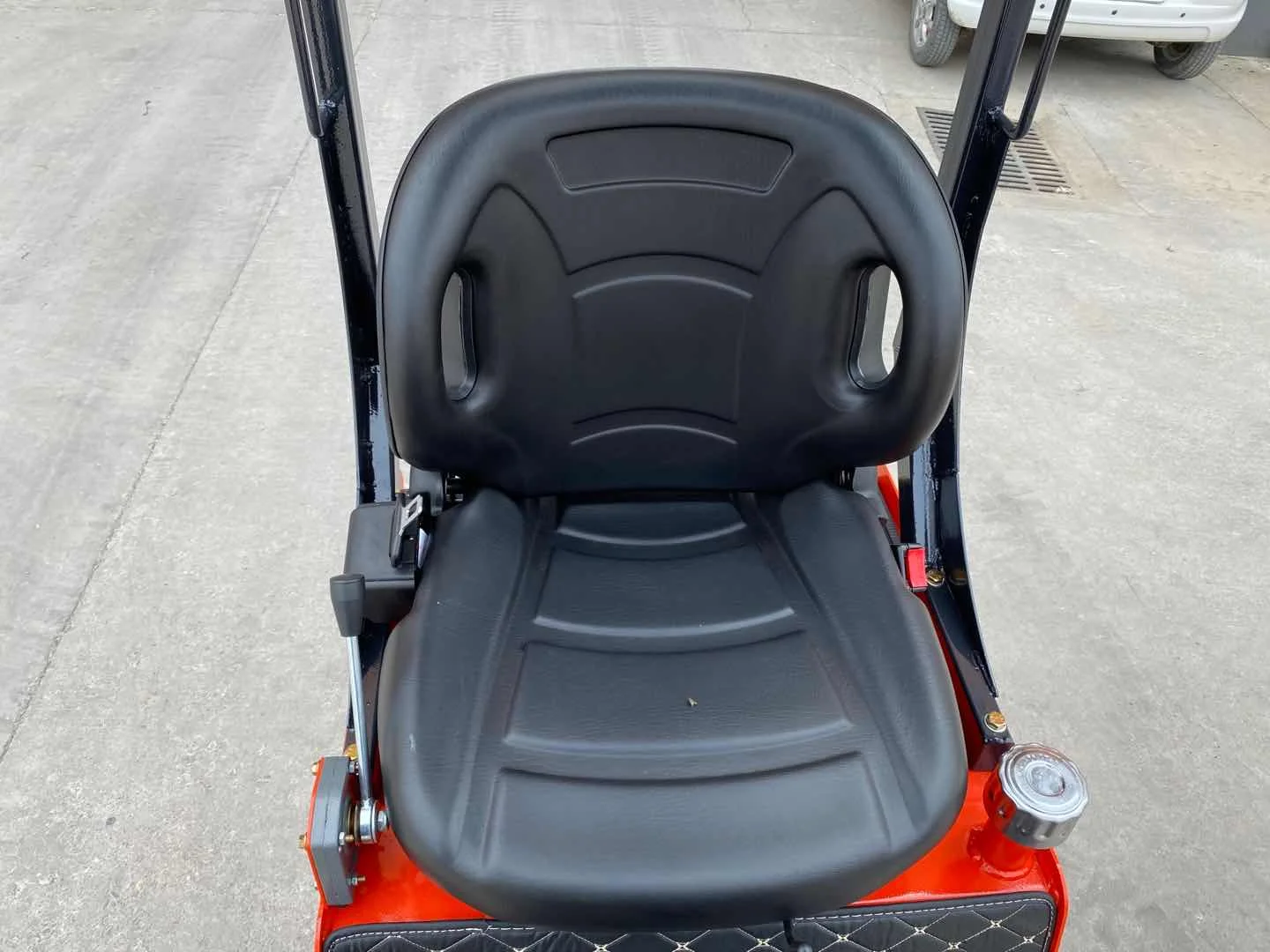

High-end seat
Work is easier with hands on the hand rest, and the driver puts on his seat belt before starting the excavator.
Driver's left side
ample leg room

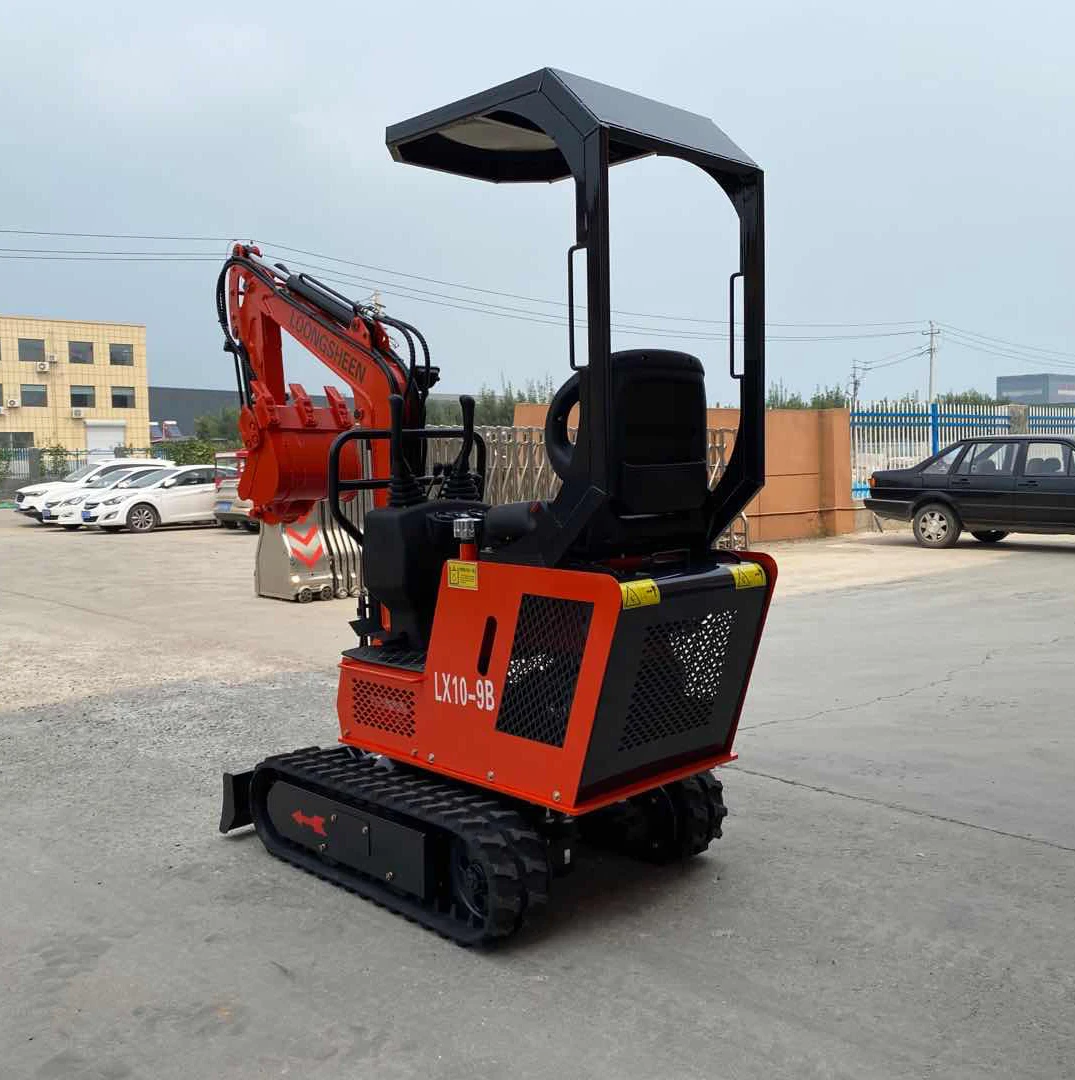

Strong, removable type canopy
When working, it will shade you from the sun and rain. The strong support structure provides you with safer work security.
The warning light reminds the surrounding people to be safe. A fan can be installed under the ceiling.
Part of the chassis
Stronger rubber track chassis, special custom oil cylinder of the bulldozer and boom/ arm/ bucket.
Here boom change to the swing boom is possible.
Also change to the expanding track system.
Long boom customize
add 300-800mm length
LED working light
It let you working in the night as the sun day.
Adjustable light head.
Pedal control the auger and hammer

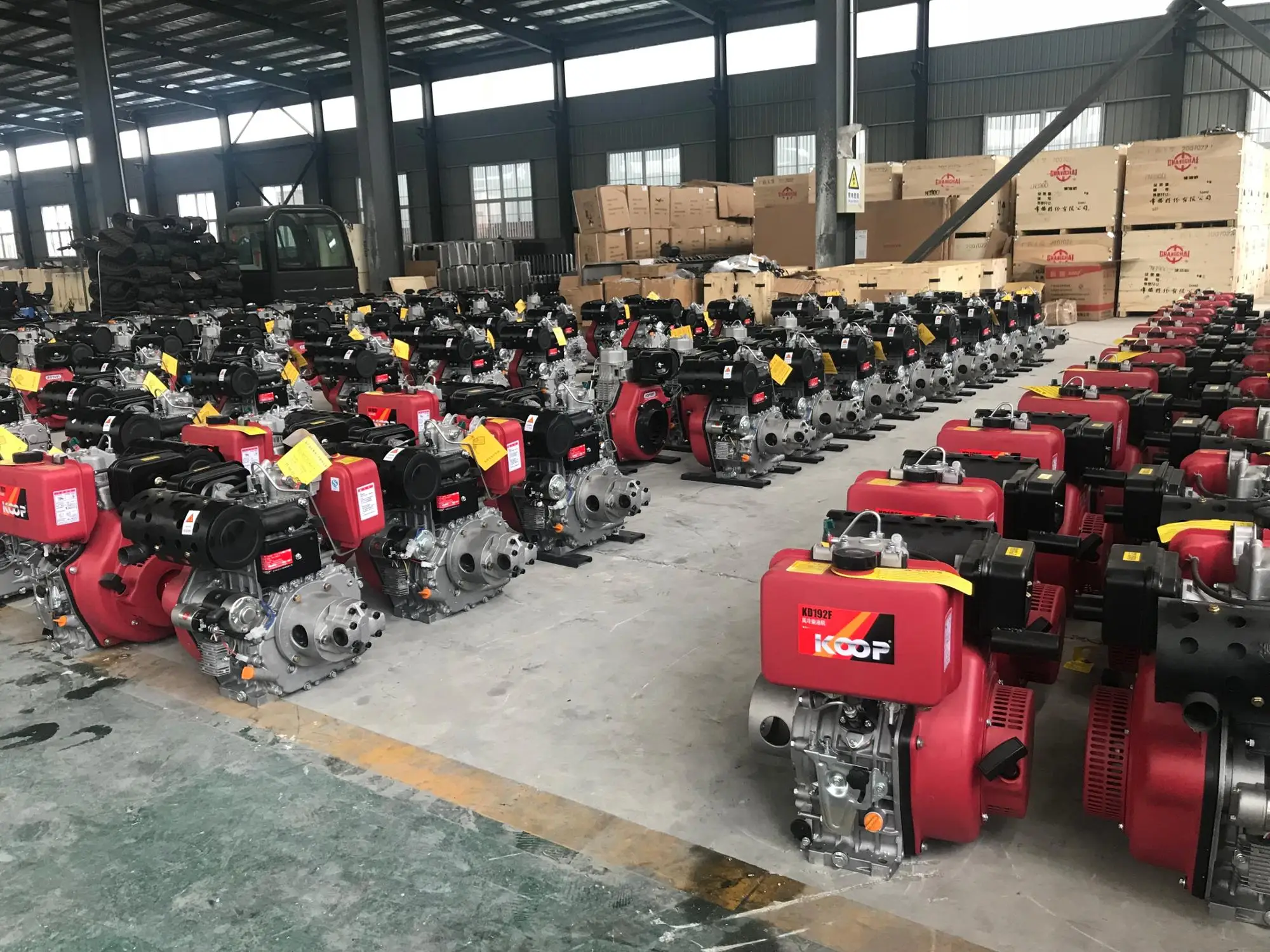

KOOP KD192F-1 EURO V/ KUB-TA D722 Engine EURO 5, EPA
Diesel type, fan cooled, single cylinder, 7.0kw/ 3000rpm
Customization For EUROPEAN market
Brig-gs&Stratt-on Engine EPA
Gasoline type, fan cooled, 13.5hp
Customization For USA/ Canada market
PRODUCT SPECIFICATIONS
Operate weight | 1000kg |
Bucket capacity | 0.022m³ |
Work device form | Backhoe |
Engine model | KOOP KD192F/ KD192F-1/ B&S/ D722 |
Engine power | 7.6KW/ 7.0KW/ 14HP/ 10.2KW |
Max.torque | 25/ 2500 N.m/r/min |
Max.travel speed | 2.5km/h |
Swing speed | 12rpm |
Max.climbing ability | 30° |
Max.digging force | 11.5kn |
Total length(transportation) | 2870mm |
Total width | 940mm |
Total height(with/ without roof) | 2285(2030) |
Bulldozer max.cleaning depth | 170 |
Bulldozer max.ground clearance height | 240 |
Ground pressure | 0.4kgf/cm2 |
Track | rubber |
Tension type | butter cylinder |
Hydraulic pump form | gear pump |
Hydraulic fluid work pressure | 16Mpa |
Hydraulic flow | 18L/min |
Hydraulic oil tank capacity | 18L |
Engine oil capacity | 1.65L |
Fuel tank capacity | 5.5L |
Successful Project
Company Information
Shandong Loongsheen Heavy Industry Co., Ltd. is one professional excavators manufacturer in Shandong, China. Main production mini excavators, crawler excavators, wheel excavators. We produce the standard excavators from 0.6 - 36 ton capacity. Mini excavators are used for garden, farm or home-work and large excavators are used for engineering project construction, road building, trench digging, etc.
All our products are passed the CE, TUV testing, these excavator are 100 % before delivery testing to make sure the quality. These excavator have the hydraulic lock protection, keep the safety working condition. It has an anti-rollover roof to protect the driver's work safety; and work warning lights.
We have professional engineer support, high efficiency sales team and competitive price superiority, Reliable after-sales service guarantee and technical support. And attract customers from all over the world, we export to over 40 countries, including Europe, Poland, Serbia, Turkey, Russia, USA, Mexico, Brazil, Australia, Thailand, Middle Asia and South Africa.
After several years of rapid development and accumulation of experience, we can customize the production of excavators according to the standard requirements of various countries and regions. Have a CAD design team, accept OED, ODM projects. More than 1500 units are produced per month. We are reliable manufacturer of the excavators with more experience. We are looking forward to get more cooperation.
All our products are passed the CE, TUV testing, these excavator are 100 % before delivery testing to make sure the quality. These excavator have the hydraulic lock protection, keep the safety working condition. It has an anti-rollover roof to protect the driver's work safety; and work warning lights.
We have professional engineer support, high efficiency sales team and competitive price superiority, Reliable after-sales service guarantee and technical support. And attract customers from all over the world, we export to over 40 countries, including Europe, Poland, Serbia, Turkey, Russia, USA, Mexico, Brazil, Australia, Thailand, Middle Asia and South Africa.
After several years of rapid development and accumulation of experience, we can customize the production of excavators according to the standard requirements of various countries and regions. Have a CAD design team, accept OED, ODM projects. More than 1500 units are produced per month. We are reliable manufacturer of the excavators with more experience. We are looking forward to get more cooperation.
Certifications

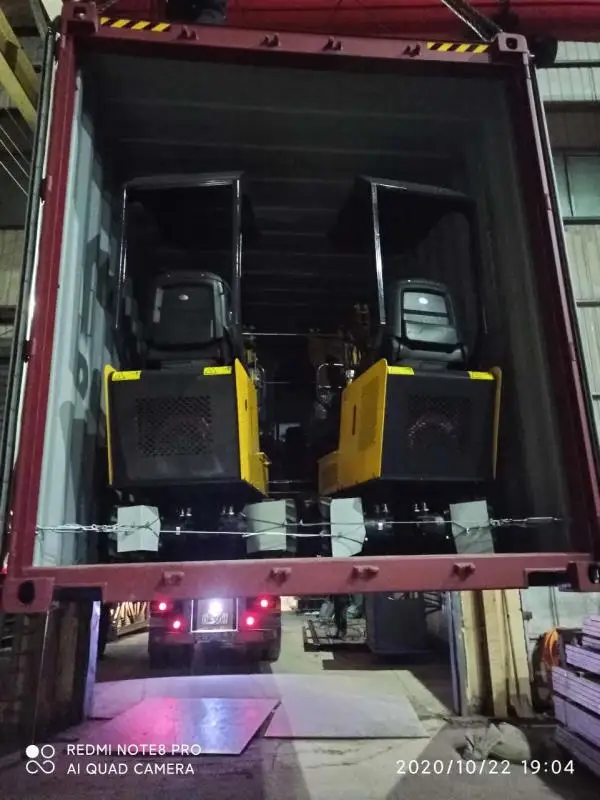

Packaging & Shipping
