3/4 axles Multi wheel heavy tractor sidewall semi trailer (Flatbed Fence tipper tanker Optional) cargo truck trailer
- Category: >>>
- Supplier: Shandong Benhong Trailer Co. Ltd.
Share on (1600944708531):
Product Overview
Description
Product Description

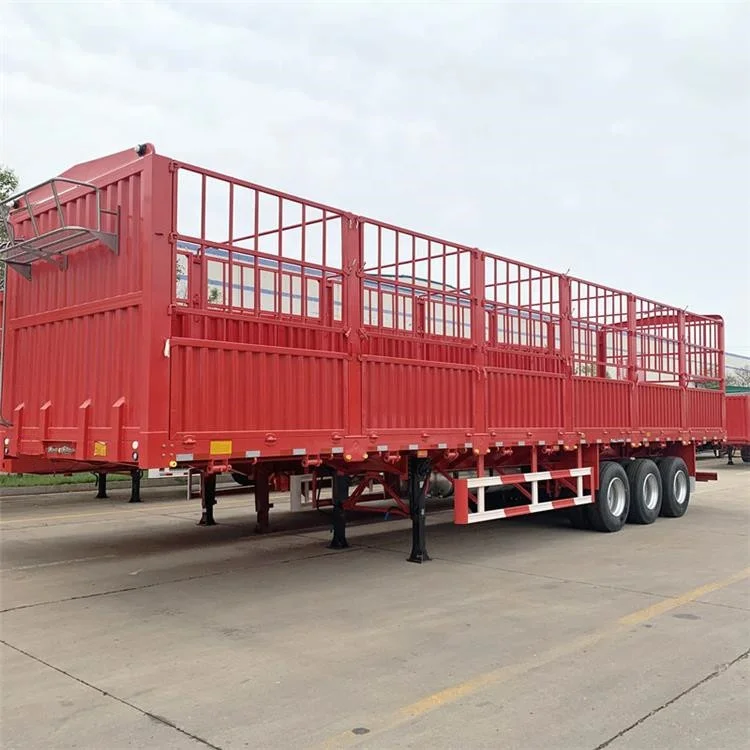

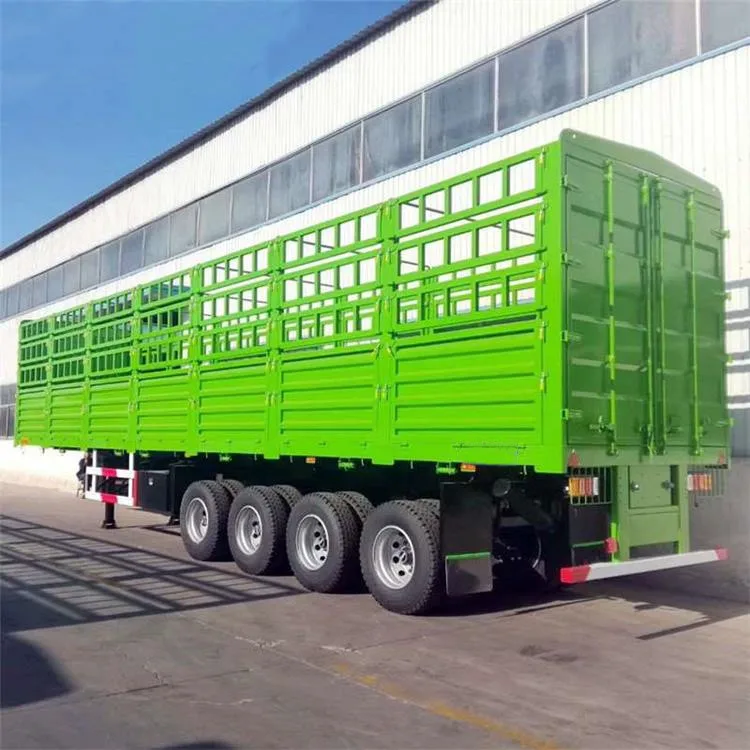

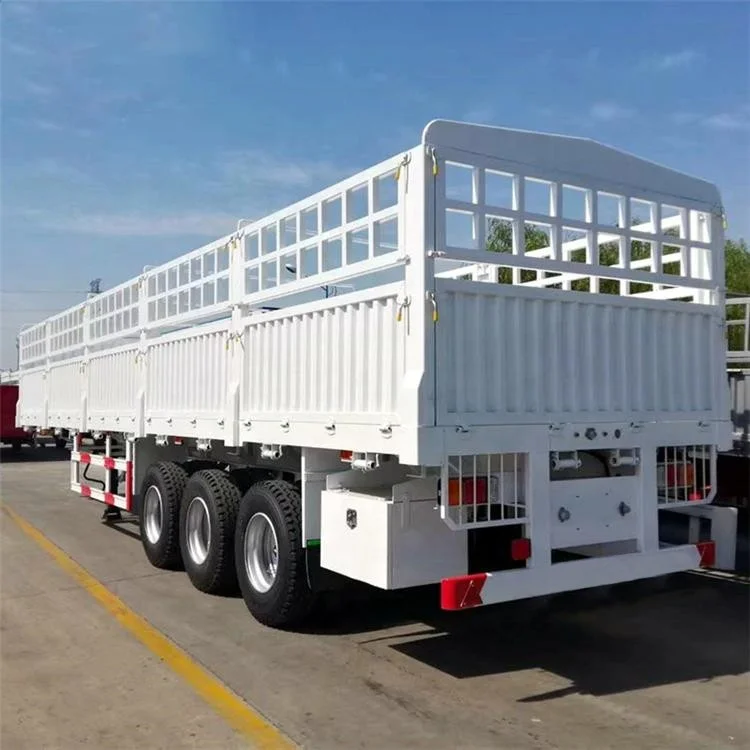

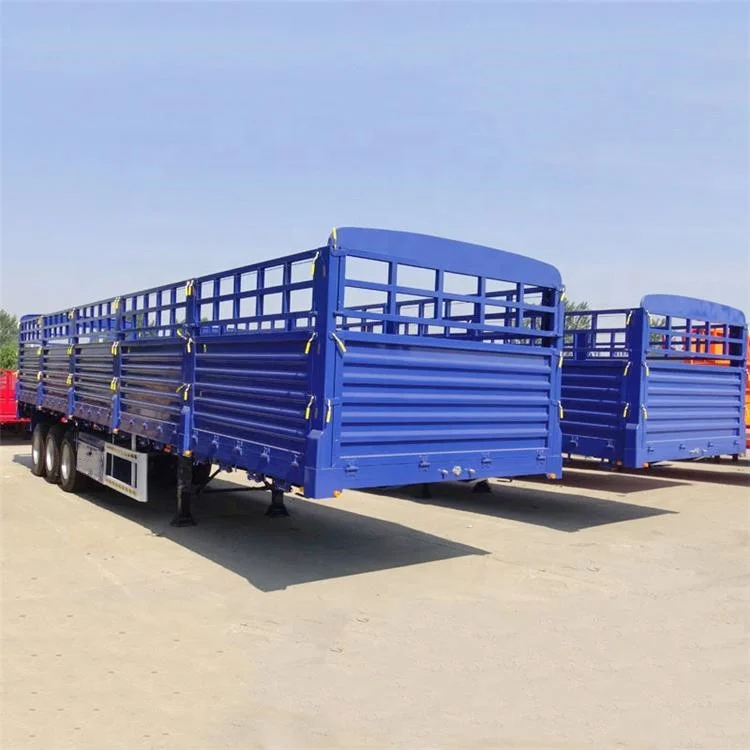

Huatong can customize the fence semi trailer for you. 3 axle 60 tons fence trailer is the most popular model in Sudan.
Fence semi trailer was popular by logistics companies as its multipurpose application. It uses to load a wide range of products and materials, like sand, bags, poultry, etc. Also some bulk cargo, very widely used in the transportation industry.
Huatong cargo fence trailer deeply loved by foreign customers due to main material used high quality steel-Q345B. It has
high-strength,strong and sturdy features, stability and safety when operating in harsh road conditions.
In addition, the trailer accessories and configuration all adopt international famous brand and China famous brand, this makes the trailer not only increase long service life but also improve operating efficiency and save maintenance costs.
Fence flatbed trailer can be used to load the containers after adopt the container locks for it.
Huatong cargo fence trailer deeply loved by foreign customers due to main material used high quality steel-Q345B. It has
high-strength,strong and sturdy features, stability and safety when operating in harsh road conditions.
In addition, the trailer accessories and configuration all adopt international famous brand and China famous brand, this makes the trailer not only increase long service life but also improve operating efficiency and save maintenance costs.
Fence flatbed trailer can be used to load the containers after adopt the container locks for it.
Specification

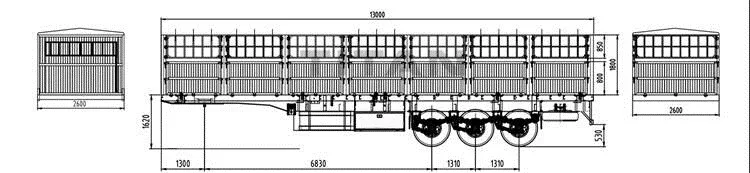

Overall dimension | 13000x2600x3420mm |
Trailer Sides | 1800mm |
Loading capacity(ton) | ≤60T |
Axles | 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand |
Tire | 12 units, 12.00R22.5 or 315/80R22.5 |
Rim | 9.00-22.5 or 9.75-22.5 |
Suspension | Mechanical, Bogie, Airbag suspension(China brand or BPW brand) |
Spring Leaf | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded |
Landing Gear | JOST brand D200T or Chinese brand 28tons(double-speed) |
Main Beam | Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel |
Bottom Side Beam | 16mm or 18mm steel channel (material: Q235 steel) |
Platform | 3mm-thick checkered plate |
Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank |
Twist Locks | 4,8,12 sets (lifting or screw type) |
Valve | WABCO valve (specially intended for oversea market) |
ABS | Optional |
Light | LED light (specially intended for oversea market) |
Voltage | 24V |
Socket(Receptacle) | 7-pin Socket (for 7 wire harness) |
Tool Box | 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |
